  1. Nucleic Acids

  2. Nucleic acids • Ribo-nucleic acid (RNA) • Deoxyribonucleic Acid (DNA) • They are polymers made up of repeating monomer units called nucleotides • DNA is double stranded helix, RNA is single • C-H-O-N-P atoms 21

  3. Nucleic acids store and transmit hereditary information • Information flows from DNA  RNA  Proteins

  4. Phosphate base Stay the same sugar Changes Contains nitrogen & carbon Pentose sugar (5 Carbon atoms) Nucleotide Structure 3 components: • Pentose sugar (ribose in DNA) • Phosphoric acid • Organic base (always contains nitrogen)

  5. Nucleotide 3 components: Pentose sugar; deoxyribose Phosphate group Nitrogenous base; 4 types: Join by condensation phosphate base Stay the same sugar Changes Contains nitrogen & carbon Ribose sugar in RNA Deoxyribose sugar in DNA Pentose sugar (5 Carbon atoms)

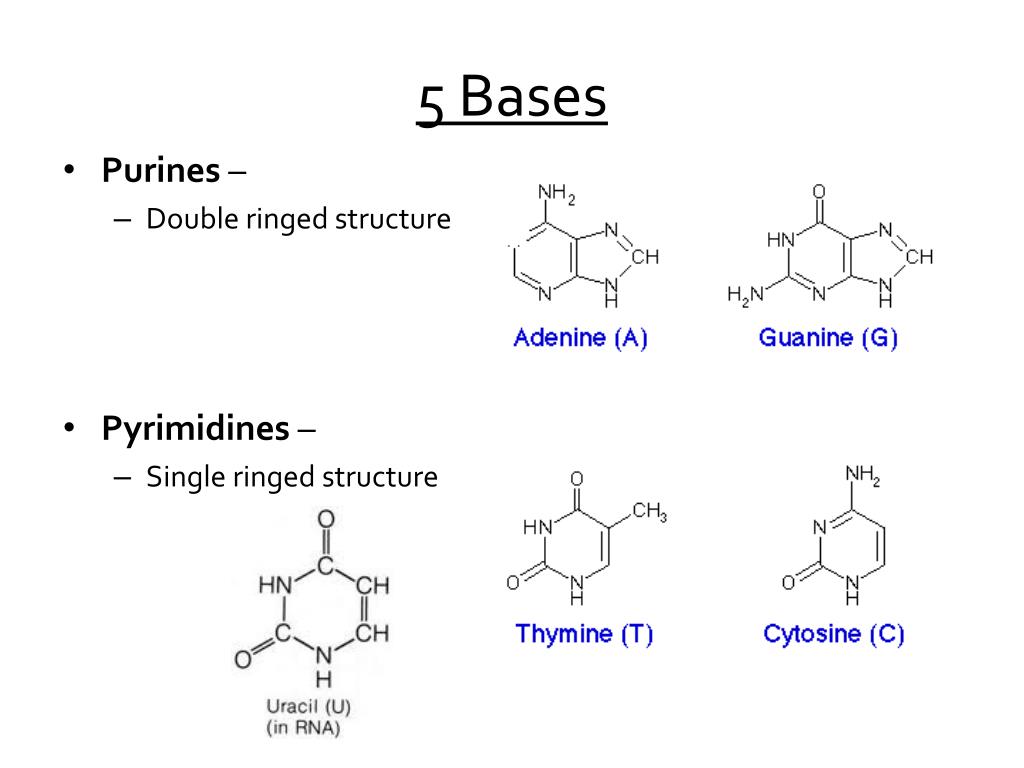

  6. 5 nitrogenous bases

  7. 5Bases • Purines – • Double ringed structure • Pyrimidines – • Single ringed structure

  8. Nucleic acids are polymers of nucleotides (polynucleotides) joined by phosphodiester bonds (phosphate to sugar)

  9. Bondings • The base and sugar join with a: glycosidic bond • The phosphate and sugar join with an: ester bond Both require a condensation reaction to occur 

  10. Phosphate 2 condensation reactions occur in the formation of a nucleotide: H Ester bond OH Glycosidic bond OH H Base Sugar

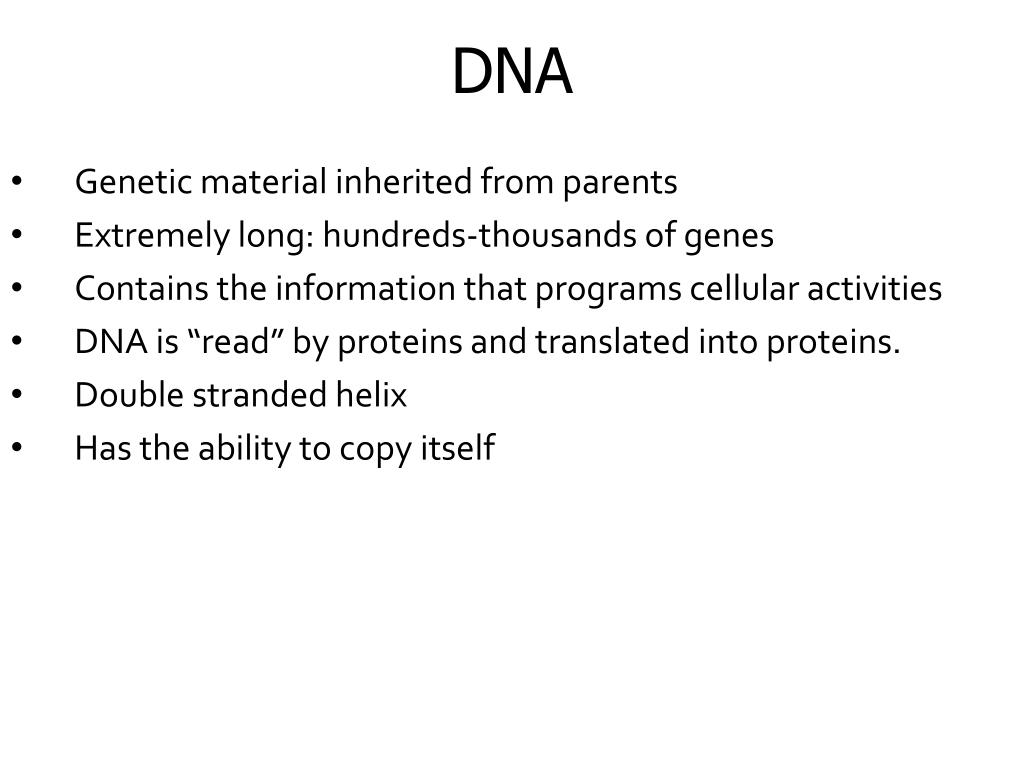

  11. DNA • Genetic material inherited from parents • Extremely long: hundreds-thousands of genes • Contains the information that programs cellular activities • DNA is “read” by proteins and translated into proteins. • Double stranded helix • Has the ability to copy itself

  12. Complementary Base Pairing *Purines always pair with pyrimidines* A joins to T (2 hydrogen bonds) C joins to G (3 hydrogen bonds) see

  13. 5’ 3 hydrogen bonds 3’ C G 0.34nm A T 3’ 2 hydrogen bonds 5’ 2nm

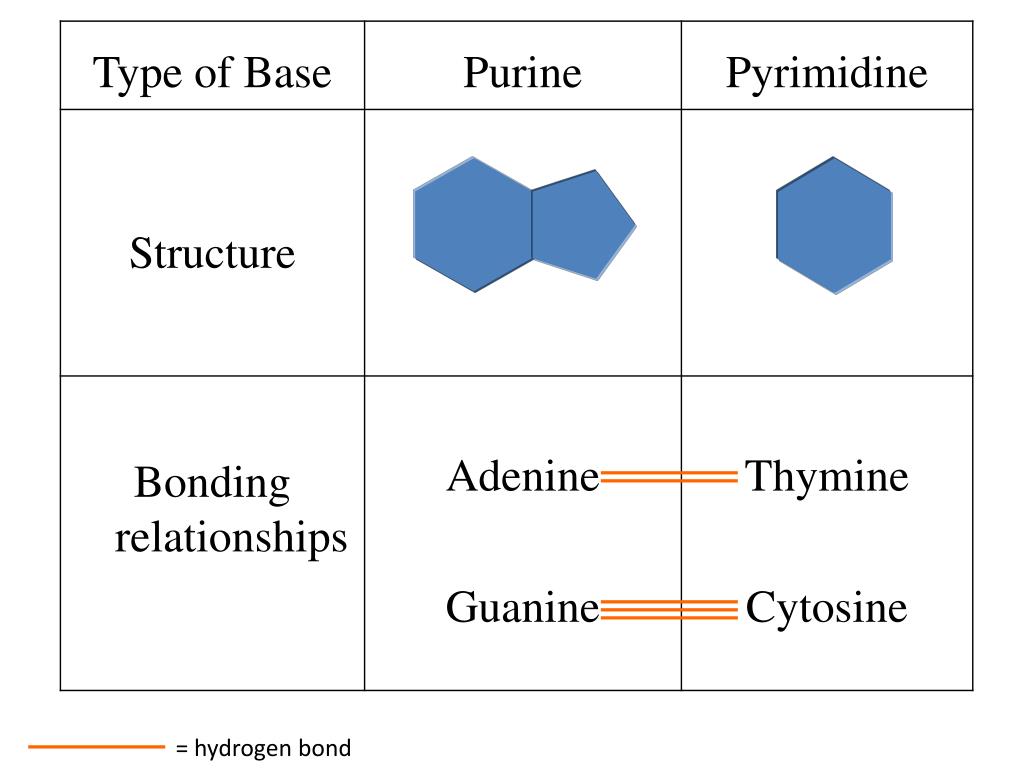

  14. = hydrogen bond

  15. / Uracil

  16. RNA • Messenger RNA (mRNA) conveys the DNA code out of the nucleus to the cytoplasm (ribosome) • Single stranded • Multiple complex structures • A,U,G,C

  17. RNA can adopt complex 3-D structures and is not restricted to the double helix structure RNA carries information from DNA (nucleus) to the ribosome via reverse transcription, followed by translation.

  18. Molecular Clocks • Linear sequences of nucleotides in DNA are passed from parent to offspring. DNA determines the amino acid sequence of proteins • Siblings have DNA that is more alike than an unrelated person • 2 species should have similar DNA if they are closely related based on fossil and anatomical evidence • The more differences in the DNA codes, the longer the time the two species have evolved separately.
