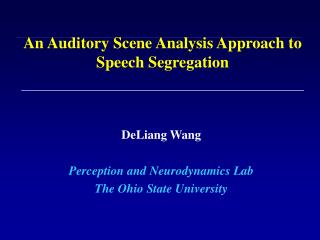

An Auditory Scene Analysis Approach to Speech Segregation

DeLiang Wang

Perception and Neurodynamics Lab

The Ohio State University


Outline of presentation l.jpg

Outline of presentation

  • Introduction

    • Speech segregation problem

    • Auditory scene analysis (ASA) approach

  • Voiced speech segregation based on pitch tracking and amplitude modulation analysis

    • Ideal binary mask as CASA goal

  • Unvoiced speech segregation

    • Auditory segmentation

  • Neurobiological basis of ASA


Real world audition l.jpg

Real-world audition

What?

  • Source type

    Speech

    message

    speaker

    age, gender, linguistic origin, mood, …

    Music

    Car passing by

    Where?

  • Left, right, up, down

  • How close?

    Channel characteristics

    Environment characteristics

  • Room configuration

  • Ambient noise


Humans versus machines l.jpg

Humans versus machines

Additionally:

  • Car noise is not a very effective speech masker

    • At 10 dB

    • At 0 dB

  • Human word error rate at 0 dB SNR is around 1% as opposed to 100% for unmodified recognisers (around 40% with noise adaptation)

Source: Lippmann (1997)


Speech segregation problem l.jpg

Speech segregation problem

  • In a natural environment, speech is usually corrupted by acoustic interference. Speech segregation is critical for many applications, such as automatic speech recognition and hearing prosthesis

  • Most speech separation techniques, e.g. beamforming and blind source separation via independent analysis, require multiple sensors. However, such techniques have clear limits

    • Suffer from configuration stationarity

    • Can’t deal with single-microphone mixtures orsituations where multiple sounds arrive from close directions

  • Most speech enhancement developed for monaural situation can deal with only stationary acoustic interference


Auditory scene analysis bregman 90 l.jpg

Auditory scene analysis (Bregman’90)

  • Listeners are able to parse the complex mixture of sounds arriving at the ears in order to retrieve a mental representation of each sound source

    • Ball-room problem, Helmholtz, 1863 (“complicated beyond conception”)

    • Cocktail-party problem, Cherry’53

  • Two conceptual processes of auditory scene analysis (ASA):

    • Segmentation. Decompose the acoustic mixture into sensory elements (segments)

    • Grouping. Combine segments into groups, so that segments in the same group are likely to have originated from the same environmental source


Computational auditory scene analysis l.jpg

Computational auditory scene analysis

  • Computational ASA (CASA) systems approach sound separation based on ASA principles

    • Weintraub’85, Cooke’93, Brown & Cooke’94, Ellis’96, Wang & Brown’99

  • CASA progress: Monaural segregation with minimal assumptions

  • CASA challenges

    • Broadband high-frequency mixtures

    • Reliable pitch tracking of noisy speech

    • Unvoiced speech


Outline of presentation8 l.jpg

Outline of presentation

  • Introduction

    • Speech segregation problem

    • Auditory scene analysis (ASA) approach

  • Voiced speech segregation based on pitch tracking and amplitude modulation analysis

    • Ideal binary mask as CASA goal

  • Unvoiced speech segregation

    • Auditory segmentation

  • Neurobiological basis of ASA


Resolved and unresolved harmonics l.jpg

Resolved and unresolved harmonics

  • For voiced speech, lower harmonics are resolved while higher harmonics are not

  • For unresolved harmonics, the envelopes of filter responses fluctuate at the fundamental frequency of speech

  • Our model (Hu & Wang’04) applies different grouping mechanisms for low-frequency and high-frequency signals:

    • Low-frequency signals are grouped based on periodicity and temporal continuity

    • High-frequency signals are grouped based on amplitude modulation (AM) and temporal continuity


Diagram of the hu wang model l.jpg

Diagram of the Hu-Wang model


Cochleogram auditory peripheral model l.jpg

Cochleogram: Auditory peripheral model

Spectrogram

Spectrogram

  • Plot of log energy across time and frequency (linear frequency scale)

    Cochleogram

  • Cochlear filtering by the gammatone filterbank (or other models of cochlear filtering), followed by a stage of nonlinear rectification; the latter corresponds to hair cell transduction by either a hair cell model or simple compression operations (log and cube root)

  • Quasi-logarithmic frequency scale, and filter bandwidth is frequency-dependent

  • Previous work suggests better resilience to noise than spectrogram

Cochleogram


Mid level auditory representations l.jpg

Mid-level auditory representations

  • Mid-level representations form the basis for segment formation and subsequent grouping

  • Correlogram extracts periodicity and AM from simulated auditory nerve firing patterns

  • Summary correlogram is used to identify global pitch

  • Cross-channel correlation between adjacent correlogram channels identifies regions that are excited by the same harmonic or formant


Correlogram l.jpg

Correlogram

  • Short-term autocorrelation of the output of each frequency channel of the cochleogram

  • Peaks in summary correlogram indicate pitch periods (F0)

  • A standard model of pitch perception

Correlogram & summary correlogram of a double vowel, showing F0s


Cross channel correlation l.jpg

Cross-channel correlation

(a) Correlogram and cross-channel correlation of hair cell response to clean speech

(b) Corresponding representations for response envelopes


Initial segregation l.jpg

Initial segregation

  • Segments are formed based on temporal continuity and cross-channel correlation

  • Segments generated in this stage tend to reflect resolved harmonics, but not unresolved ones

  • Initial grouping into a foreground (target) stream and a background stream according to global pitch using the oscillatory correlation model of Wang and Brown (1999)


Pitch tracking l.jpg

Pitch tracking

  • Pitch periods of target speech are estimated from the segregated speech stream

  • Estimated pitch periods are checked and re-estimated using two psychoacoustically motivated constraints:

    • Target pitch should agree with the periodicity of the time-frequency units in the initial speech stream

    • Pitch periods change smoothly, thus allowing for verification and interpolation


Pitch tracking example l.jpg

Pitch tracking example

(a) Global pitch (Line: pitch track of clean speech) for a mixture of target speech and ‘cocktail-party’ intrusion

(b) Estimated target pitch


T f unit labeling l.jpg

T-F unit labeling

  • In the low-frequency range:

    • A time-frequency (T-F) unit is labeled by comparing the periodicity of its autocorrelation with the estimated target pitch

  • In the high-frequency range:

    • Due to their wide bandwidths, high-frequency filters respond to multiple harmonics. These responses are amplitude modulated due to beats and combinational tones (Helmholtz, 1863)

    • A T-F unit in the high-frequency range is labeled by comparing its AM repetition rate with the estimated target pitch


Am example l.jpg

AM example

(a) The output of a gammatone filter (center frequency:2.6 kHz) in response to clean speech

(b) The corresponding autocorrelation function


Am repetition rates l.jpg

AM repetition rates

  • To obtain AM repetition rates, a filter response is half-wave rectified and bandpass filtered

  • The resulting signal within a T-F unit is modeled by a single sinusoid using the gradient descent method. The frequency of the sinusoid indicates the AM repetition rate of the corresponding response


Final segregation l.jpg

Final segregation

  • New segments corresponding to unresolved harmonics are formed based on temporal continuity and cross-channel correlation of response envelopes (i.e. common AM). Then they are grouped into the foreground stream according to AM repetition rates

  • Other units are grouped according to temporal and spectral continuity


Ideal binary mask for performance evaluation l.jpg

Ideal binary mask for performance evaluation

  • Within a T-F unit, the ideal binary mask is 1 if target energy is stronger than interference energy, and 0 otherwise

  • Motivation: Auditory masking - stronger signal masks weaker one within a critical band

  • We have suggested to use ideal binary masks as ground truth for CASA performance evaluation

    • Consistent with recent speech intelligibility results (Roman et al.’03; Brungart et al.’05)


Ideal binary mask illustration l.jpg

Ideal binary mask illustration


Voiced speech segregation example l.jpg

Voiced speech segregation example


Systematic snr results l.jpg

Systematic SNR results

  • Evaluation on a corpus of 100 mixtures (Cooke, 1993): 10 voiced utterances x 10 noise intrusions (see next slide)

  • Average SNR gain: 12.3 dB; 5.2 dB better than the Wang-Brown model (1999), and 6.4 dB better than the spectral subtraction method

SNR (in dB)

Hu-Wang model


Casa progress on voiced speech segregation l.jpg

CASA progress on voiced speech segregation

  • 100 mixture set used by Cooke (1993)

    • 10 voiced utterances mixed with 10 noise intrusions (N0: tone, N1: white noise, N2: noise bursts, N3: ‘cocktail party’, N4: rock music, N5: siren, N6: telephone, N7: female utterance, N8: male utterance, N9: female utterance)

Wang &

Brown

(1999)

Original mixture

of voiced speech

Cooke

(1993)

Ellis

(1996)

Hu & Wang

(2004)

+ telephone

+ male

+ female


Outline of presentation27 l.jpg

Outline of presentation

  • Introduction

    • Speech segregation problem

    • Auditory scene analysis (ASA) approach

  • Voiced speech segregation based on pitch tracking and amplitude modulation analysis

    • Ideal binary mask as CASA goal

  • Unvoiced speech segregation

    • Auditory segmentation

  • Neurobiological basis of ASA


Segmentation and unvoiced speech segretation l.jpg

Segmentation and unvoiced speech segretation

  • To deal with unvoiced speech segregation, we (Hu & Wang’04) proposed a model of auditory segmentation that applies to both voiced and unvoiced speech

  • The task of segmentation is to decompose an auditory scene into contiguous T-F regions, each of which should contain signal from the same sound source

    • The definition of segmentation does not distinguish between voiced and unvoiced sounds

  • This is equivalent to identifying onsets and offsets of individual T-F regions, which generally correspond to sudden changes of acoustic energy

  • The segmentation strategy is based on onset and offset analysis


Scale space analysis for auditory segmentation l.jpg

Scale-space analysis for auditory segmentation

  • From a computational standpoint, auditory segmentation is similar to image (visual) segmentation

    • Visual segmentation: Finding bounding contours of visual objects

    • Auditory segmentation: Finding onset and offset fronts of segments

  • Onset/offset analysis employs scale-space theory, which is a multiscale analysis commonly used in image segmentation

    • Smoothing

    • Onset/offset detection and onset/offset front matching

    • Multiscale integration


Example of auditory segmentation l.jpg

Example of auditory segmentation


Speech segregation l.jpg

Speech segregation

  • The general strategy for speech segregation is to first segregate voiced speech using the pitch cue, and then deal with unvoiced speech

  • To segregate unvoiced speech, we perform auditory segmentation, and then group segments that correspond to unvoiced speech


Segment classification l.jpg

Segment classification

  • For nonspeech interference, grouping is in fact a classification task – to classify segments as either speech or non-speech

  • The following features are used for classification:

    • Spectral envelope

    • Segment duration

    • Segment intensity

  • Training data

    • Speech: Training part of the TIMIT database

    • Interference: 90 natural intrusions including street noise, crowd noise, wind, etc.

  • A Gaussian mixture model is trained for each phoneme, and for interference as well which provides the basis for a likelihood ratio test


Example of segregating fricatives affricates l.jpg

Example of segregating fricatives/affricates

Utterance: “That noise problem grows more annoying each day”

Interference: Crowd noise with music (IBM: Ideal binary mask)


Example of segregating stops l.jpg

Example of segregating stops

Utterance: “A good morrow to you, my boy”

Interference: Rain


Outline of presentation35 l.jpg

Outline of presentation

  • Introduction

    • Speech segregation problem

    • Auditory scene analysis (ASA) approach

  • Voiced speech segregation based on pitch tracking and amplitude modulation analysis

    • Ideal binary mask as CASA goal

  • Unvoiced speech segregation

    • Auditory segmentation

  • Neurobiological basis of ASA


How does the auditory system perform asa l.jpg

How does the auditory system perform ASA?

  • Information about acoustic features (pitch, spectral shape, interaural differences, AM, FM) is extracted in distributed areas of the auditory system

  • Binding problem: How are these features combined to form a perceptual whole (stream)?

    • Hierarchies of feature-detecting cells exist, but do not seem to constitute a solution to the binding problem


Oscillatory correlation theory for asa l.jpg

Oscillatory correlation theory for ASA

  • Neural oscillators are used to represent auditory features

  • Oscillators representing features of the same source are synchronized, and are desynchronized from those representing different sources

  • Originally proposed by von der Malsburg & Schneider (1986), and further developed by Wang (1996)

  • Supported by growing experimental evidence


Oscillatory correlation representation l.jpg

Oscillatory correlation representation

FD: Feature

Detector


Oscillatory correlation for asa l.jpg

Oscillatory correlation for ASA

  • LEGION dynamics (Terman & Wang’95) provides a computational foundation for the oscillatory correlation theory

  • The utility of oscillatory correlation has been demonstrated for speech segregation (Wang-Brown’99), modeling auditory attention (Wrigley-Brown’04), etc.


Summary l.jpg

Summary

  • CASA approach to monaural speech segregation

  • Performs substantially better than previous CASA systems for voiced speech segregation

    • AM cue and target pitch tracking are important for performance improvement

  • Early steps for unvoiced speech segregation

    • Auditory segmentation based on onset/offset analysis

    • Segregation using speech classification

  • Oscillatory correlation theory for ASA


Acknowledgment l.jpg

Acknowledgment

  • Joint work with Guoning Hu

  • Funded by AFOSR/AFRL and NSF


  • Login
