Chapter 7

CHAPTER 7

Storing Organizational Information - Databases


Learning outcomes

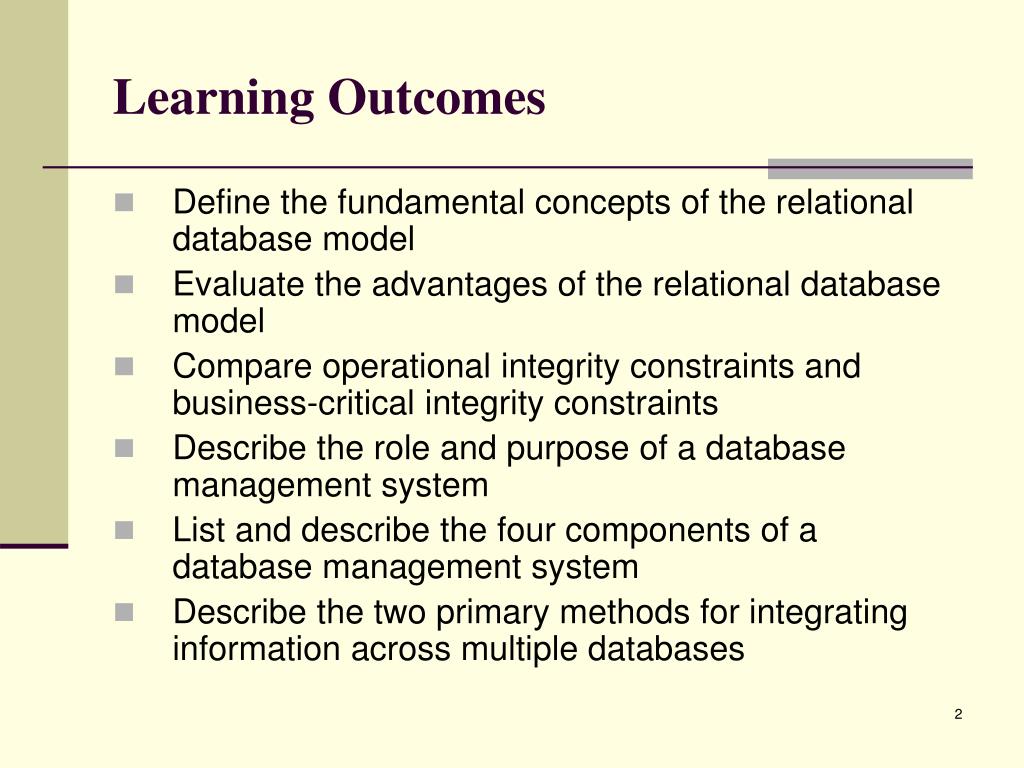

Learning Outcomes

  • Define the fundamental concepts of the relational database model

  • Evaluate the advantages of the relational database model

  • Compare operational integrity constraints and business-critical integrity constraints

  • Describe the role and purpose of a database management system

  • List and describe the four components of a database management system

  • Describe the two primary methods for integrating information across multiple databases


Overview

Overview

  • Information is stored in databases

  • Database – maintains information about various types of objects (inventory), events (transactions), people (employees), and places (warehouses)

Almost every business decision is

based on information


Database models

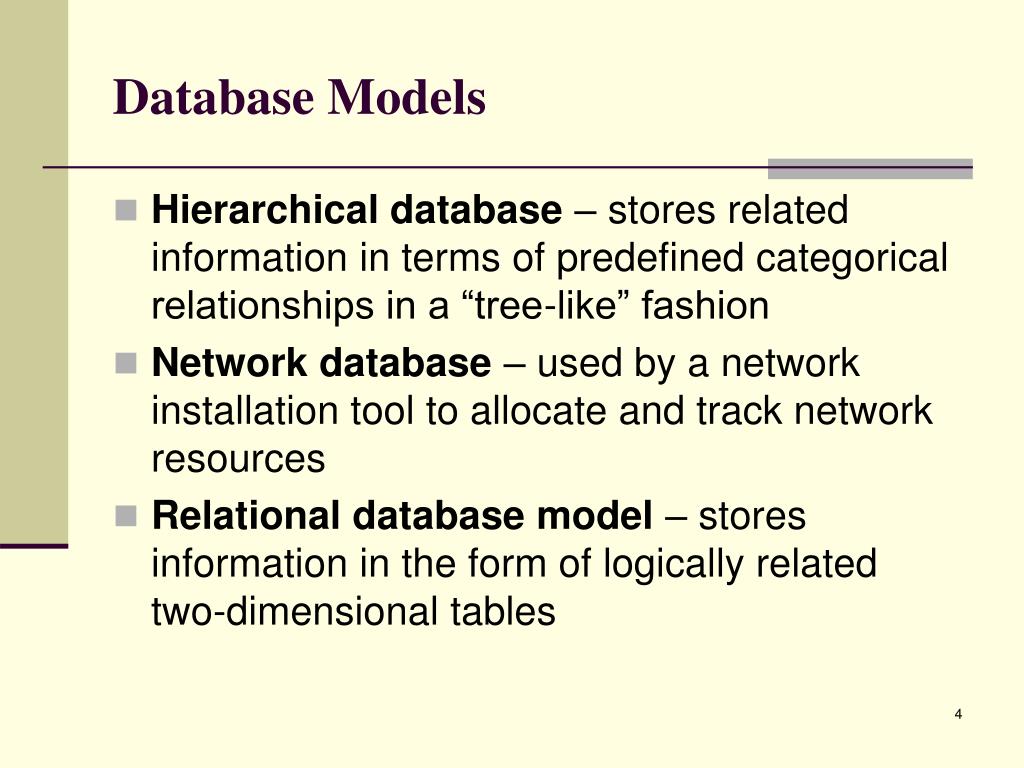

Database Models

  • Hierarchical database – stores related information in terms of predefined categorical relationships in a “tree-like” fashion

  • Network database – used by a network installation tool to allocate and track network resources

  • Relational database model – stores information in the form of logically related two-dimensional tables


Entities entity classes and attributes

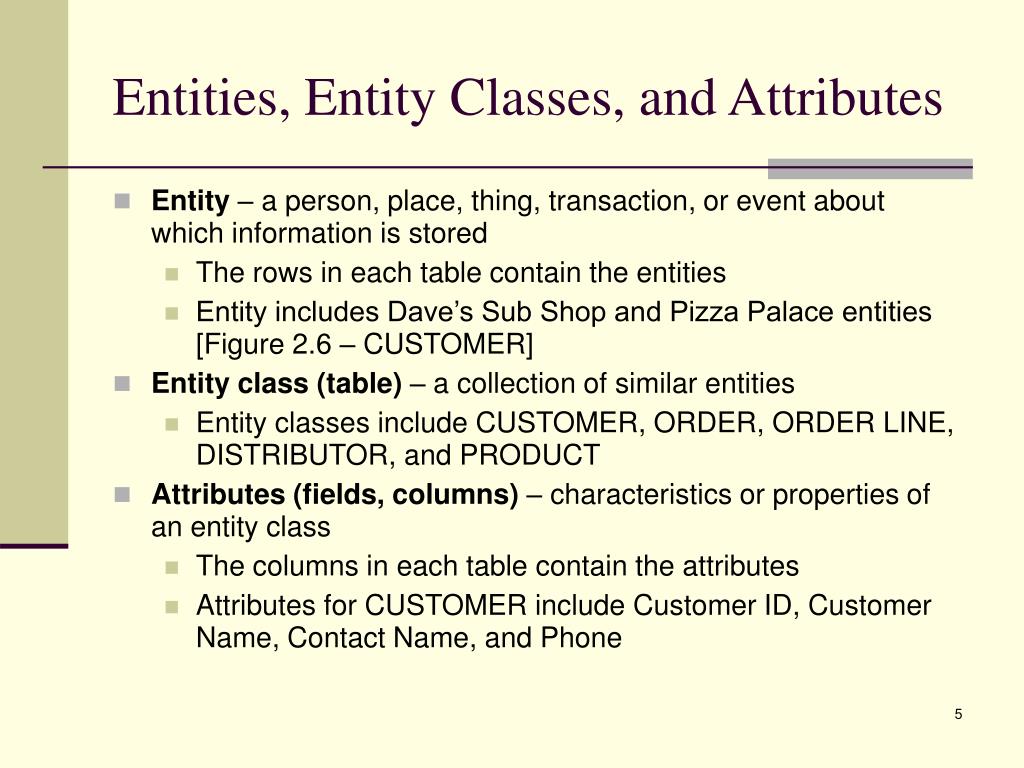

Entities, Entity Classes, and Attributes

  • Entity – a person, place, thing, transaction, or event about which information is stored

    • The rows in each table contain the entities

    • Entity includes Dave’s Sub Shop and Pizza Palace entities [Figure 2.6 – CUSTOMER]

  • Entity class (table) – a collection of similar entities

    • Entity classes include CUSTOMER, ORDER, ORDER LINE, DISTRIBUTOR, and PRODUCT

  • Attributes (fields, columns) – characteristics or properties of an entity class

    • The columns in each table contain the attributes

    • Attributes for CUSTOMER include Customer ID, Customer Name, Contact Name, and Phone


Keys and relationships

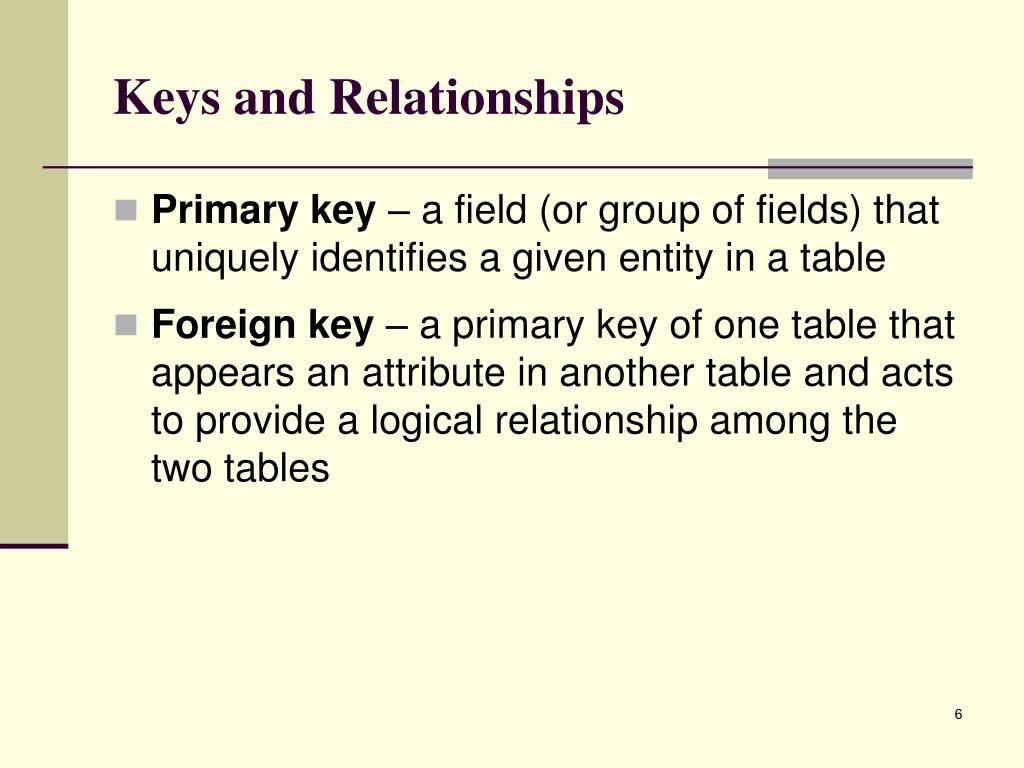

Keys and Relationships

  • Primary key – a field (or group of fields) that uniquely identifies a given entity in a table

  • Foreign key – a primary key of one table that appears an attribute in another table and acts to provide a logical relationship among the two tables


Chapter 7

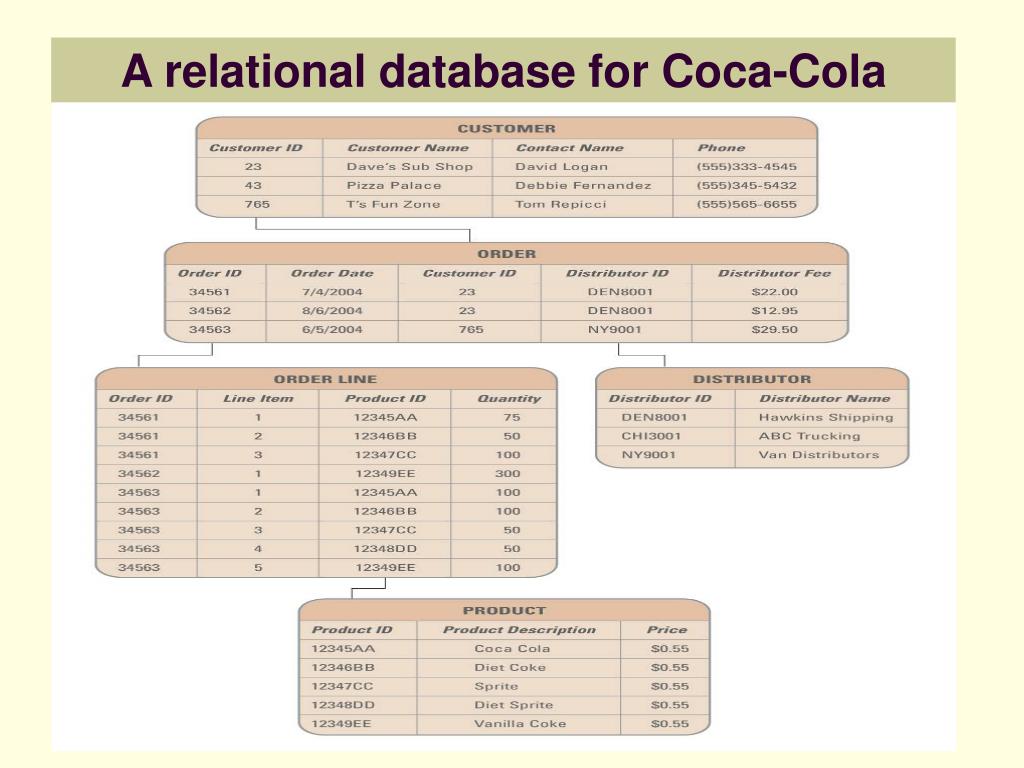

A relational database for Coca-Cola


Relational database advantages from a business perspective

Relational Database Advantagesfrom a business perspective

  • Increased flexibility

  • Increased scalability and performance

  • Reduced information redundancy

  • Increased information integrity (quality)

  • Increased information security


Increased flexibility

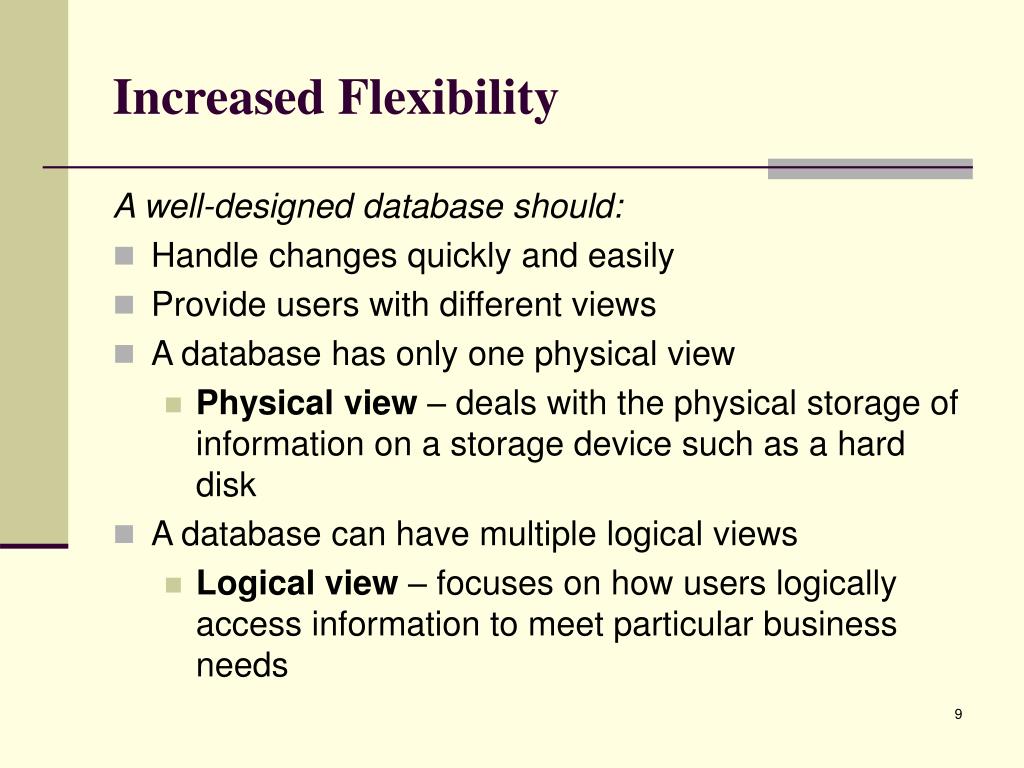

Increased Flexibility

A well-designed database should:

  • Handle changes quickly and easily

  • Provide users with different views

  • A database has only one physical view

    • Physical view– deals with the physical storage of information on a storage device such as a hard disk

  • A database can have multiple logical views

    • Logical view– focuses on how users logically access information to meet particular business needs


Increased scalability and performance

Increased Scalability and Performance

A database must scale to meet increased demand, while maintaining acceptable performance levels

  • Scalability – refers to how well a system can adapt to increased demands

  • Performance – measures how quickly a system performs a certain process or transaction


Reduced information redundancy

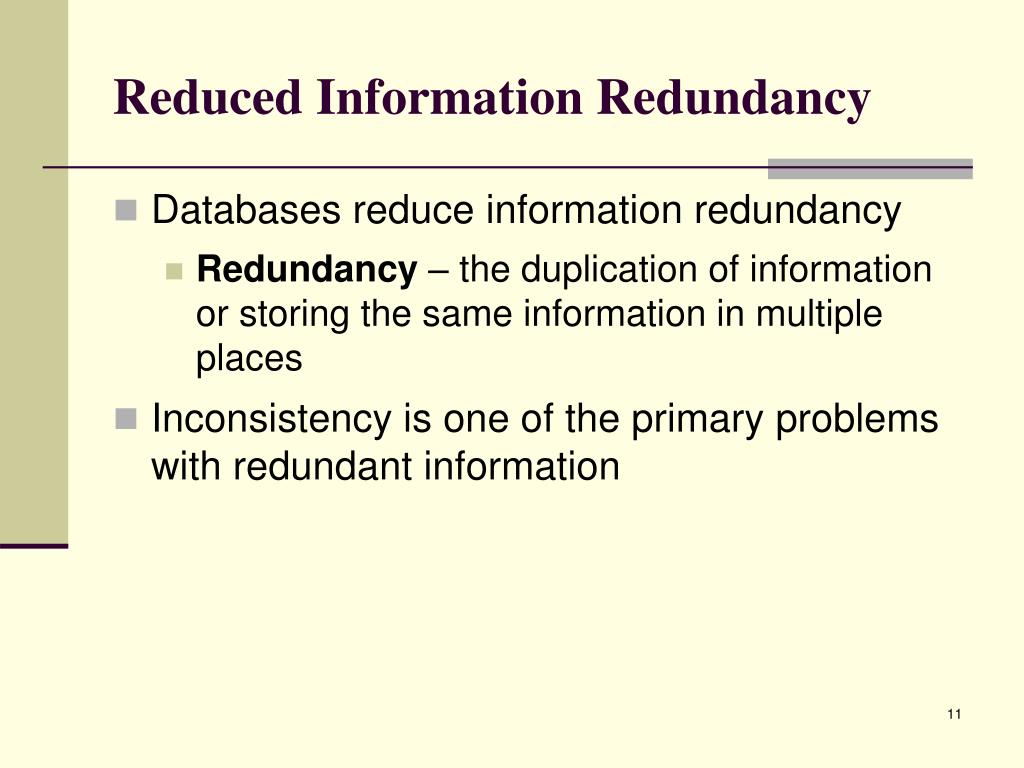

Reduced Information Redundancy

  • Databases reduce information redundancy

    • Redundancy – the duplication of information or storing the same information in multiple places

  • Inconsistency is one of the primary problems with redundant information


Increase information integrity

Users cannot create an order

for a nonexistent customer

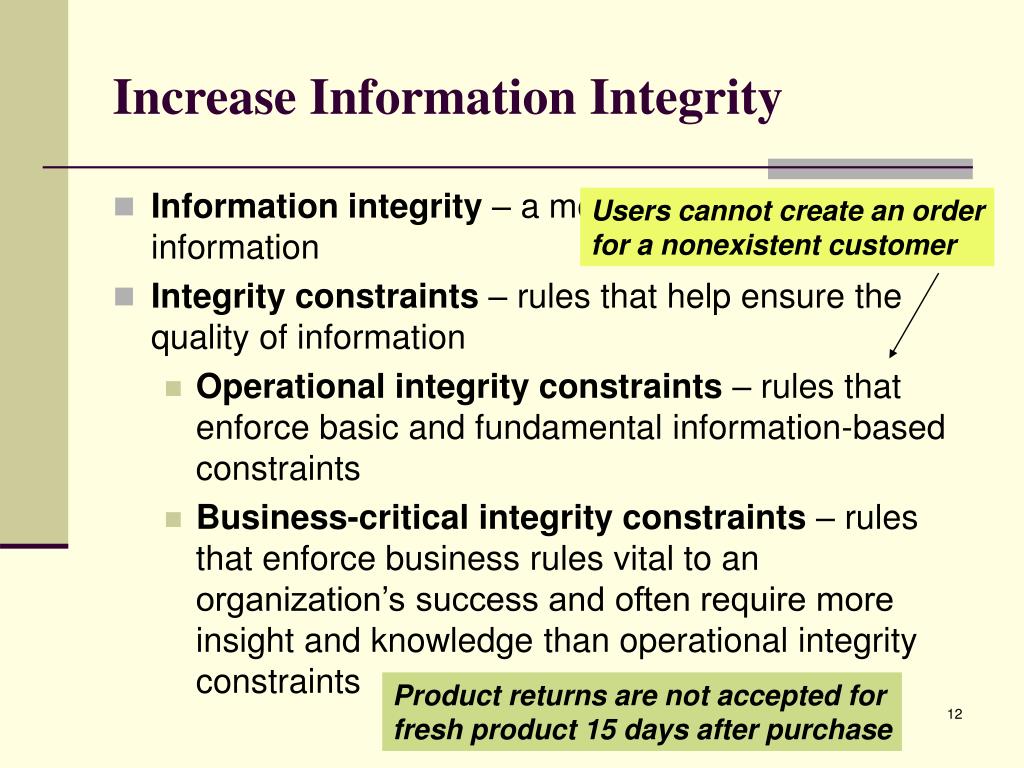

Increase Information Integrity

  • Information integrity – a measure of the quality of information

  • Integrity constraints – rules that help ensure the quality of information

    • Operational integrity constraints – rules that enforce basic and fundamental information-based constraints

    • Business-critical integrity constraints – rules that enforce business rules vital to an organization’s success and often require more insight and knowledge than operational integrity constraints

Product returns are not accepted for

freshproduct 15 days after purchase


Increased information security

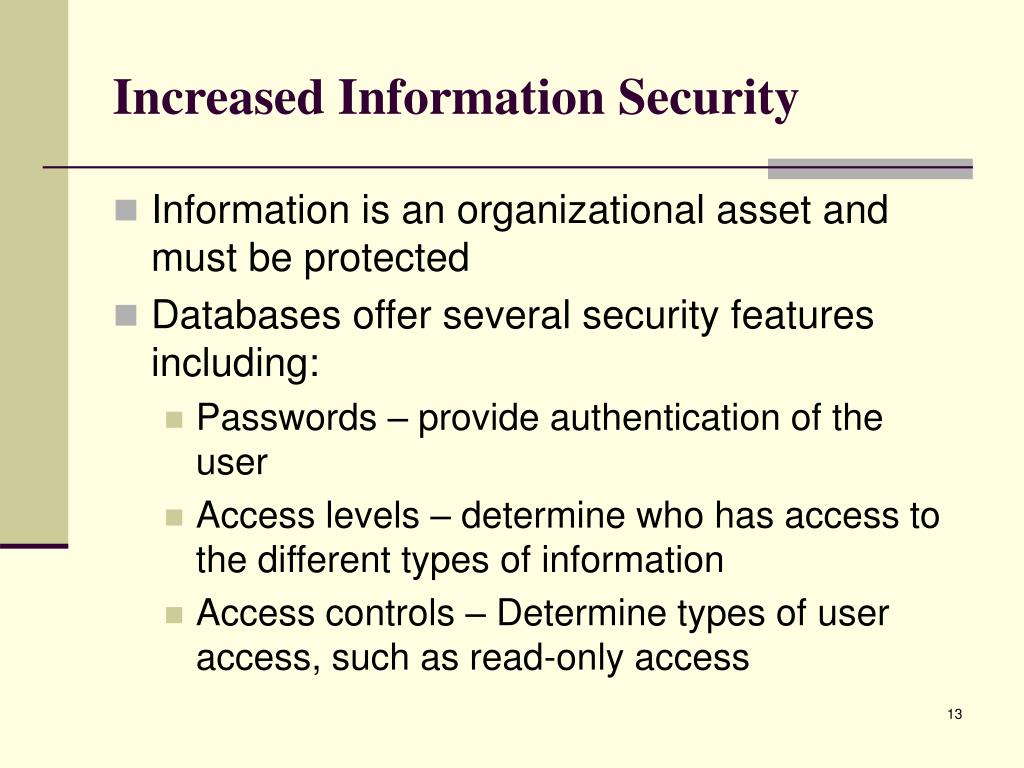

Increased Information Security

  • Information is an organizational asset and must be protected

  • Databases offer several security features including:

    • Passwords – provide authentication of the user

    • Access levels – determine who has access to the different types of information

    • Access controls – Determine types of user access, such as read-only access


Chapter 7

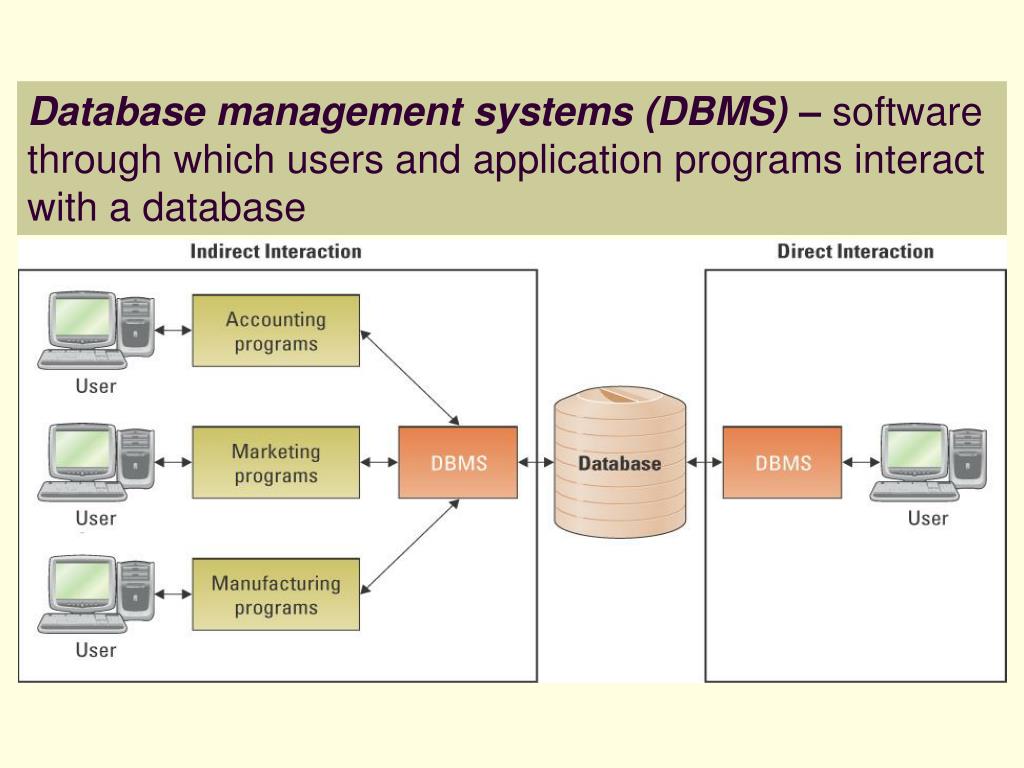

Database management systems (DBMS) – software through which users and application programs interact with a database


Chapter 7

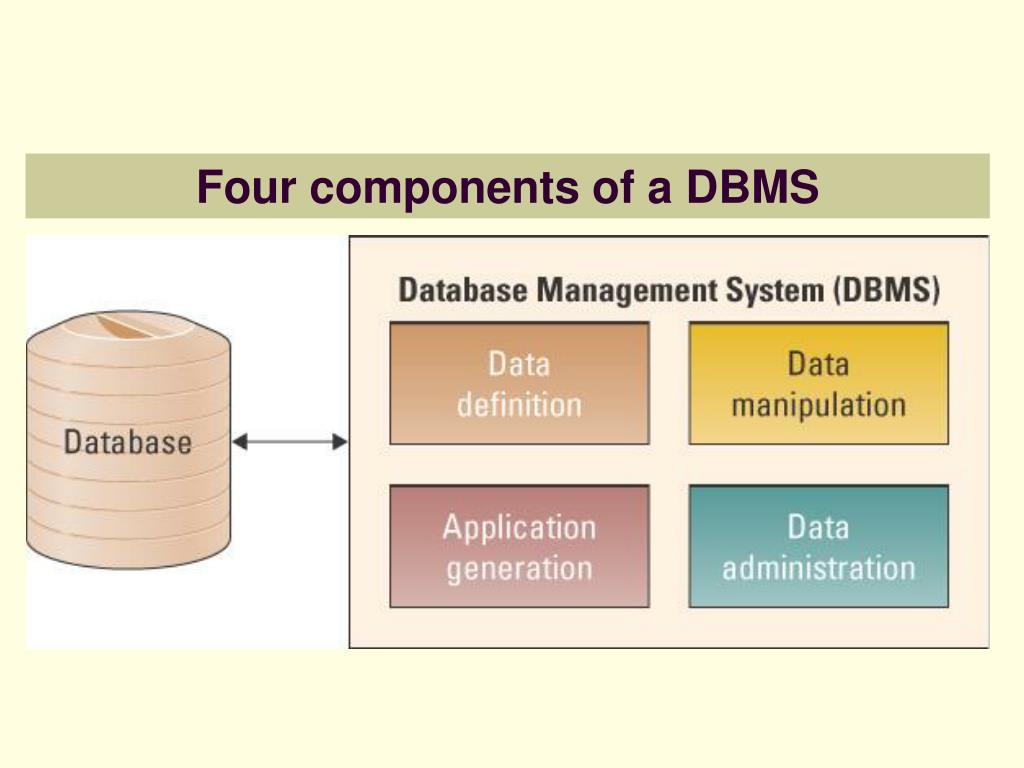

Four components of a DBMS


Data definition component

Data Definition Component

helps create and maintain the data dictionary and the structure of the database

  • Data dictionary – a file that stores definitions of information types, identifies the primary and foreign keys, and maintains the relationships among the tables

  • The data dictionary essentially defines the logical properties of the information that the database contains


Data manipulation component

Data Manipulation Component

  • Data manipulation component – allows users to create, read, update, and delete information in a database

  • A DBMS contains several data manipulation tools:

    • Views – Allows users to see, change, sort, and query the database content

    • Report generators

    • Query-by-example (QBE)

    • Structured query language (SQL)


Application generation and data administration components

Application Generation and Data Administration Components

  • Application generation component – includes tools for creating visually appealing and easy-to-use applications

  • Data administration component – provides tools for managing the overall database environment by providing faculties for backup, recovery, security, and performance

  • IT specialists primarily use these components


Integrating information among multiple databases

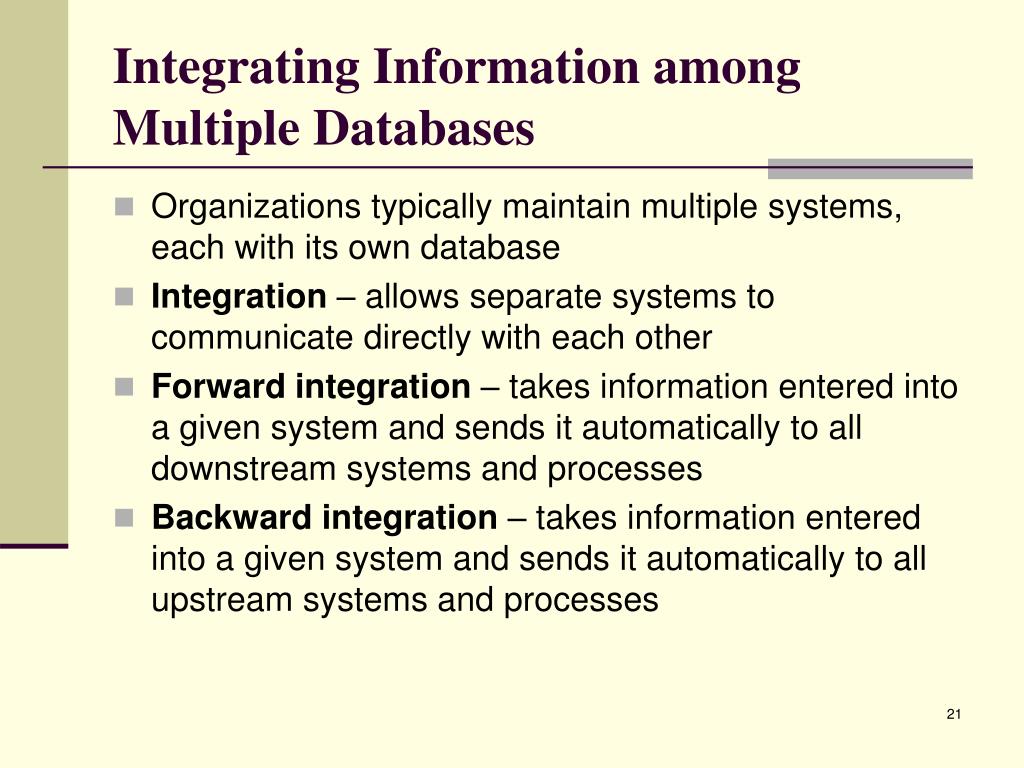

Integrating Information among Multiple Databases

  • Organizations typically maintain multiple systems, each with its own database

  • Integration – allows separate systems to communicate directly with each other

  • Forward integration – takes information entered into a given system and sends it automatically to all downstream systems and processes

  • Backward integration – takes information entered into a given system and sends it automatically to all upstream systems and processes


Chapter 7

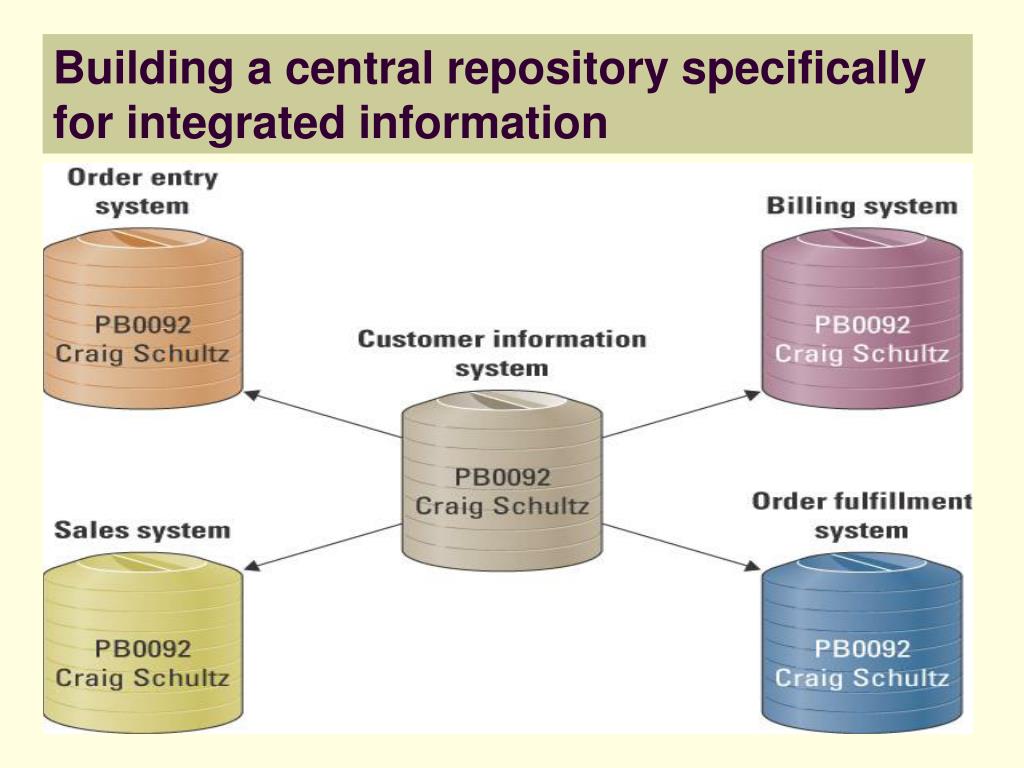

Building a central repository specifically for integrated information


Opening case study questions searching for revenue google

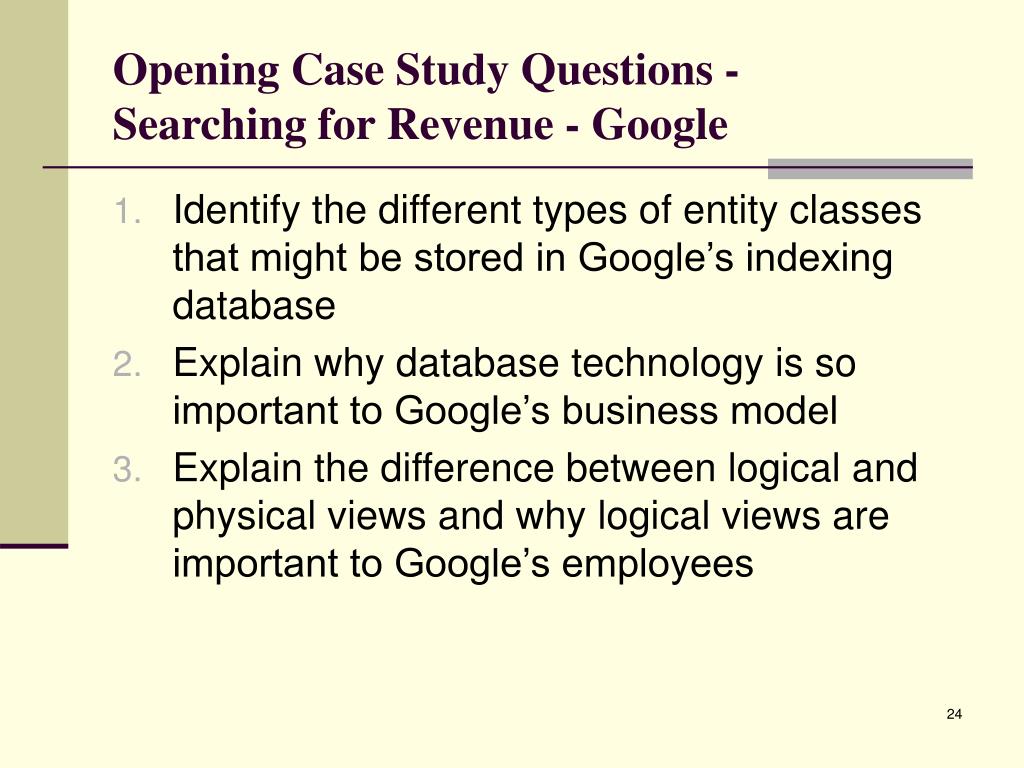

Opening Case Study Questions - Searching for Revenue - Google

  • Identify the different types of entity classes that might be stored in Google’s indexing database

  • Explain why database technology is so important to Google’s business model

  • Explain the difference between logical and physical views and why logical views are important to Google’s employees
