Magento 2 Store Locator Extension

Being online and offline seller several times it happens that your customer wants to visit your nearby physical store either for building trust on your brand or to experience your physical store products. But having a number of stores across the region makes difficult for customers to find & locate their nearby store if such data is not available on your store. At that time, helping your customer to quickly find their nearby store along with contact information on your Magento 2 store page helps a lot.<br><br>Magento 2 Store Locator Extension by MageComp allows your customer to quickly locate their nearby store and get direction & contact information for that store. On the frontend, the extension creates a separate store locator page that uses Google Map API to find nearby store and distance from useru2019s location. The extension comes with backend store manager grid from which admin can add the unlimited number of stores and can manage separate store information.<br>Why choose MageCompu2019s Magento 2 Store Locator Extension:<br>u2022 Option to enable or disable the extension.<br>u2022 Backend option to set custom Meta title and description for the frontend page.<br>u2022 You can customize store locator page url if needed.<br>u2022 Uses official Google Map API to find nearby store and direction.<br>u2022 Using backend option, the admin can style Google Map and can change layout if needed.<br>u2022 Option to set default latitude, longitude and default zoom value for the map.<br>u2022 Choice for distance unit either in kilometer and meter.<br>u2022 u201cAsk for Locationu201d feature to quickly locate useru2019s location.<br>u2022 Option to style Map radius from the backend if needed.<br>u2022 You can turn or turn off frontend store slider.<br>u2022 Backend grid to manage multiple stores and its respective information.<br>u2022 Option to add store name, address, email, phone number, map latitude, longitude, distance and redirection link for each store using grid.<br>u2022 On click of particular store customer can see store information and can get direction if needed.<br><br>for more information visit this: https://magecomp.com/magento-2-store-locator.html

magecomp
Download Presentation

Magento 2 Store Locator Extension

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

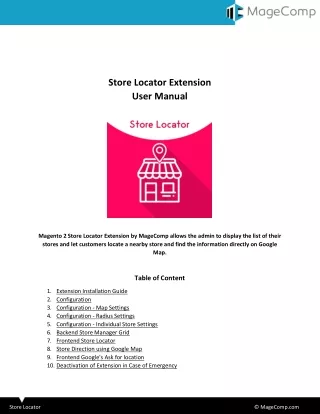

  1. Store Locator Extension User Manual Magento 2 Store Locator Extension by MageComp allows the admin to display the list of their stores and let customers locate a nearby store and find the information directly on Google Map. Table of Content 1.Extension Installation Guide 2.Configuration 3.Configuration - Map Settings 4.Configuration - Radius Settings 5.Configuration - Individual Store Settings 6.Backend Store Manager Grid 7.Frontend Store Locator 8.Store Direction using Google Map 9.Frontend Google's Ask for location 10.Deactivation of Extension in Case of Emergency Store Locator © MageComp.com

  2. 1.Extension Installation Guide Go to My downloadable products. The file that you download normally is a zip file. Use FTP client (such as Filezilla, WinSCP, cuteFtp) to upload or copy all folders in the zip package to your Magneto site root folder. This will not overwrite any existing files, just add new files to the folder structure. Open Command line in folder root of Magento and run following command respectively: ophp bin/magento setup:upgrade ophp bin/magento setup:static-content:deploy ophp bin/magento indexer:reindex ophp bin/magento cache:flush Navigate to Stores/Configuration, if you can see the extension tab, it is installed properly. If you need professional help regarding Magento Extension Installation, Feel free to contact us any time. 2.Configuration Once you have successfully installed the extension, go to Store -> Configuration to configure the extension for use. Here you can find various settings for the extension. Enabled: Option to enable or disable extension. Store Locator Page Settings: Meta Title: Set your SEO meta title for frontend store locator page. Meta Keywords: You can set SEO Keywords if you needed for your frontend store locator page. Meta Description: Option to set SEO meta description for your frontend locator page. Page URL: You can customize the store locator page URL from here. Store Locator © MageComp.com

  3. 3.Configuration - Map Settings Once you have properly configured the extension, you can see WhatsApp Contact button enabled in frontend. Select Layout: From here you can choose the frontend store locator page layout. Google Map API Key: Add your Google Map API key here. Zoom: You can set the default zooming level for frontend store locator page URL. Latitude: Option to set default latitude for map. Longitude: Option to set default longitude for map. Radius: Option to set default Map radius. Map Style: From here you can style your Map with an available different layout. Store Locator © MageComp.com

  4. Pin Icon: Option to change frontend store locator page pin icon if needed. Distance Unit: You can change the store distance unit in km or meters according to your business need. Ask for Location: You can ask your users to share location for saving time and server accurate store data. 4.Configuration - Radius Settings Stroke Settings: Width: Option to set radius stroke width. Color: Option to set radius stroke color. Opacity: From here you can set frontend Map stroke width. Fill Settings: Color: Option to set radius fill color. Opacity: From here you can set frontend Map stroke fill opacity. Store Locator © MageComp.com

  5. 5.Configuration - Individual Store Settings Zoom on Store details: From here you can set default store zoom level. Other Stores: Option to enable or disable other store lists in frontend. Stores Slider: Option to enable or disable store slider in the frontend. 6.Backend Store Manager Grid The extension comes with backend Store Manager grid using which store admin can add multiple stores and its information. On frontend whenever your customers will select their nearby location respective nearby store will be located. On click of “Add Store” Button, you can add your new store information to backend store manager grid. Store Locator © MageComp.com

  6. Status: Option to enable or disable the warehouse. Name: Set your Frontend Store Name. Address: Add your store address here. City: Set your store City. State: Set your store State. Country: Set your store country. Postcode: Set your store postcode. Email: Add your store email address here. Phone: Add your Store phone number here. Image: Add your Store Image to display in separate store locator page. Latitude: Option to set default latitude for map. Longitude: Option to set default longitude for map. Distance: Option to set distance from the default store External Link: Option to set external store link. Store Locator © MageComp.com

  7. 7.Frontend Store Locator Once you have saved all the configurations from the backend, your customer will able to locate their nearby store by searching for a paricualr location also the extension will display a list of store along with the distance from the user’s location. Store Locator © MageComp.com

  8. 8.Store Direction using Google Map Once your customer locates their nearby store, the extension allows the user to get a direction to that particular store using Google Map. Store Locator © MageComp.com

  9. 9.Frontend Google's Ask for location Once your customer locates their nearby store, the extension allows the user to get a direction to that particular store using Google Map. 10.Deactivation of Extension in Case of Emergency  Go to app   etc   config.php and find 'Magecomp_Storelocator => 1, and replace 1 with 0.  If something goes wrong, please contact us at https://www.magecomp.com/helpdesk or send us an email at helpdesk@magecomp.com 11.FAQs: What if I get “Access denied” error after installation of the extension? Whenever you get Access denied error while clicking on the extension tab after installation, log out admin panel and re-login. Store Locator © MageComp.com

  10. Thank You! Take a look at our other feature rich extensions: Magento 2 Distance based Shipping Extension by MageComp allows the store owner to charge shipping based on distance from their warehouse to customer’s location. Know More… Magento 2 Delivery Date extension allows customers to choose preferable date for product delivery. Know More… Store Locator © MageComp.com
