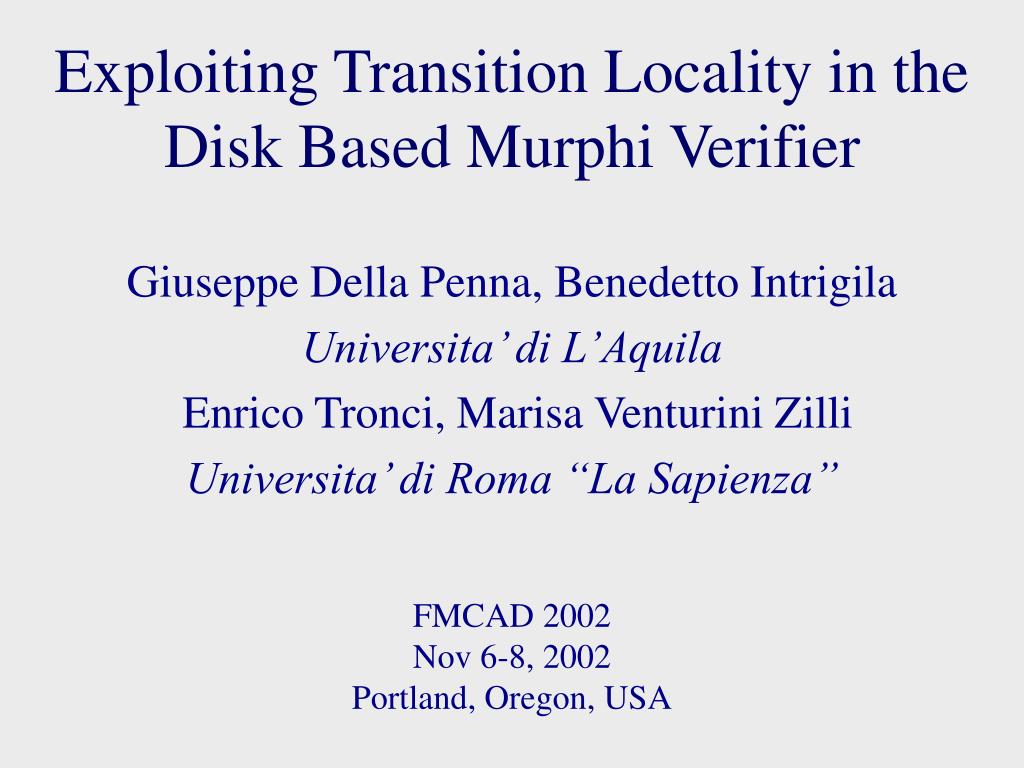

  1. Exploiting Transition Locality in the Disk Based Murphi Verifier Giuseppe Della Penna, Benedetto Intrigila Universita’ di L’Aquila Enrico Tronci, Marisa Venturini Zilli Universita’ di Roma “La Sapienza” FMCAD 2002 Nov 6-8, 2002 Portland, Oregon, USA

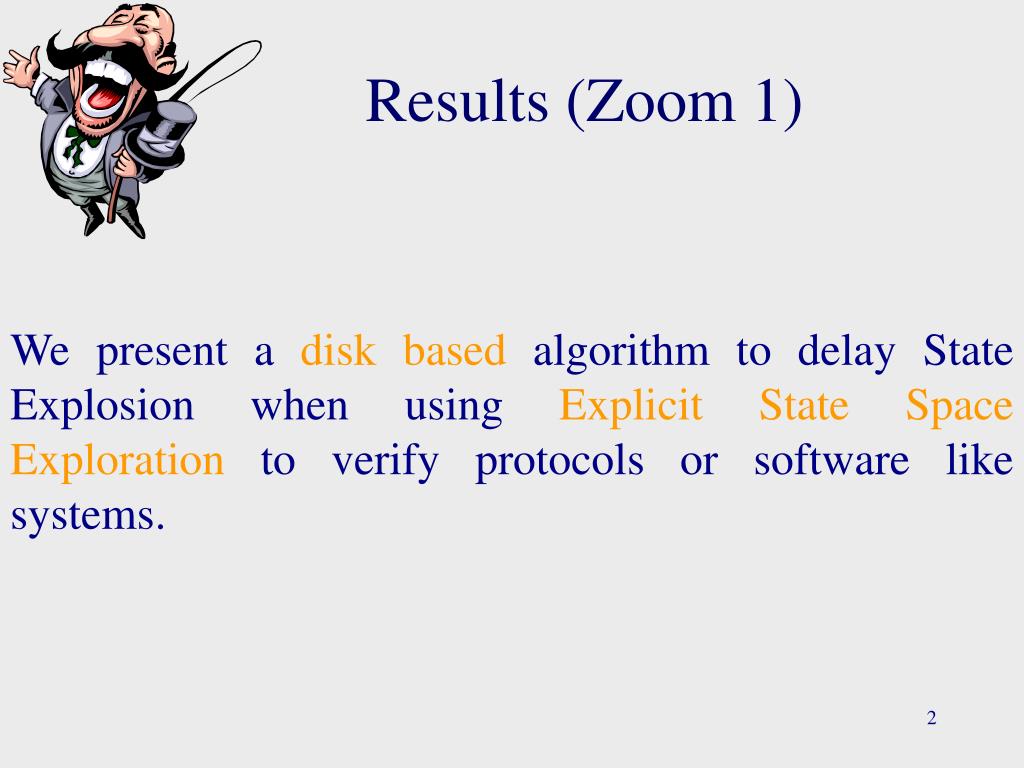

  2. Results (Zoom 1) We present a disk based algorithm to delay State Explosion when using Explicit State Space Exploration to verify protocols or software like systems.

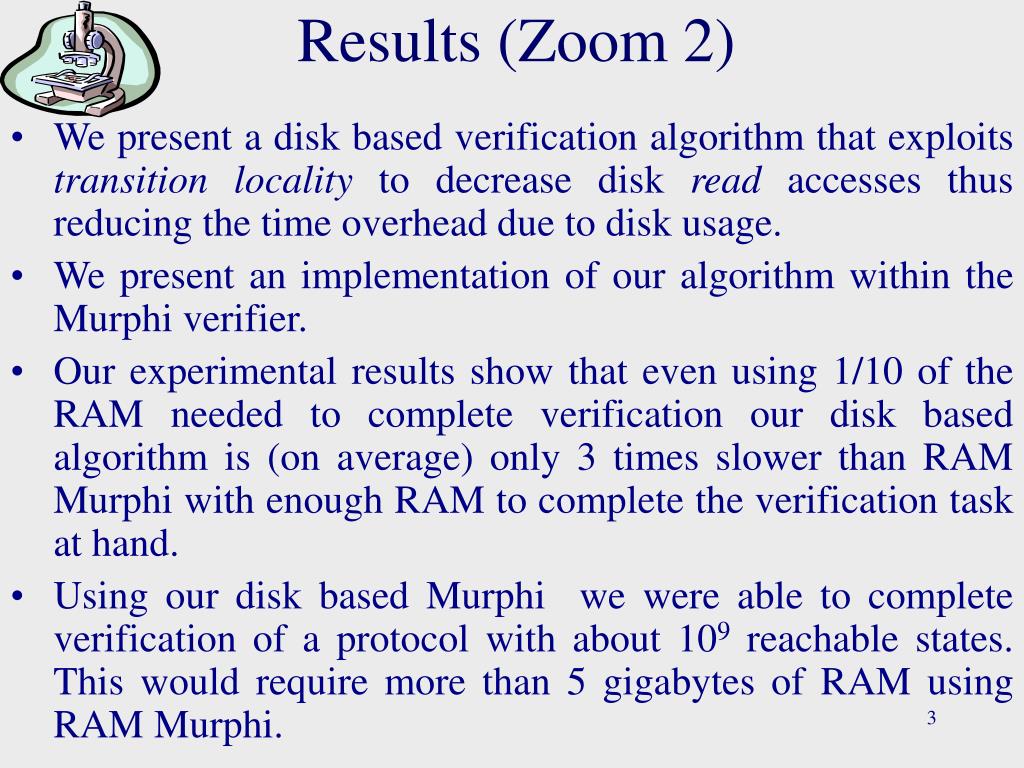

  3. Results (Zoom 2) • We present a disk based verification algorithm that exploits transition locality to decrease disk read accesses thus reducing the time overhead due to disk usage. • We present an implementation of our algorithm within the Murphi verifier. • Our experimental results show that even using 1/10 of the RAM needed to complete verification our disk based algorithm is (on average) only 3 times slower than RAM Murphi with enough RAM to complete the verification task at hand. • Using our disk based Murphi we were able to complete verification of a protocol with about 109 reachable states. This would require more than 5 gigabytes of RAM using RAM Murphi.

  4. K-transition iff level(s’) – level(s) = K Locality Transition k-local iff |level(s’) – level(s)| <= k -4 1 -2 1 0 1 0 -1 -1 1 0 1 1 -1 0 1 2 3 4

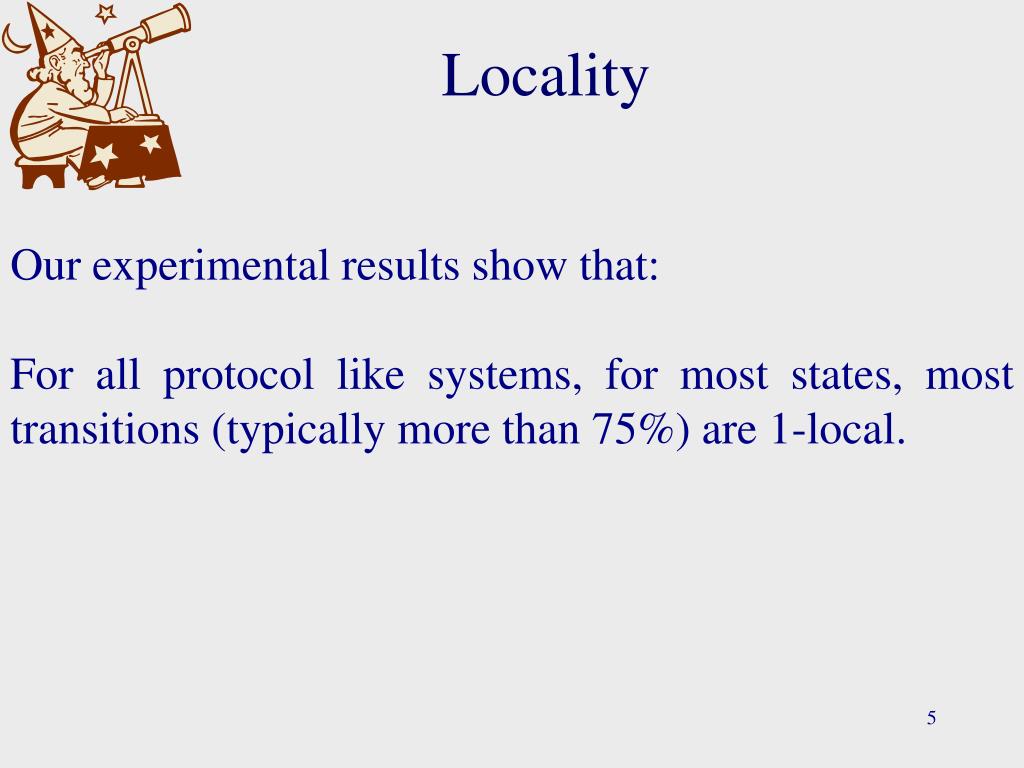

  5. Locality Our experimental results show that: For all protocol like systems, for most states, most transitions (typically more than 75%) are 1-local.

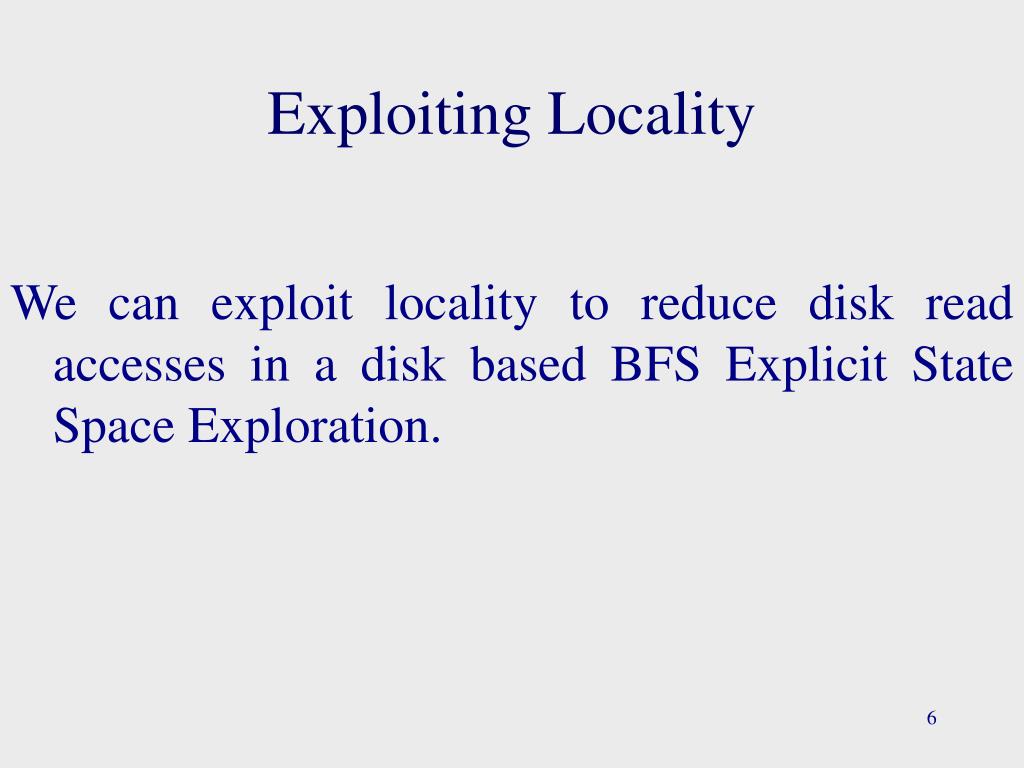

  6. Exploiting Locality We can exploit locality to reduce disk read accesses in a disk based BFS Explicit State Space Exploration.

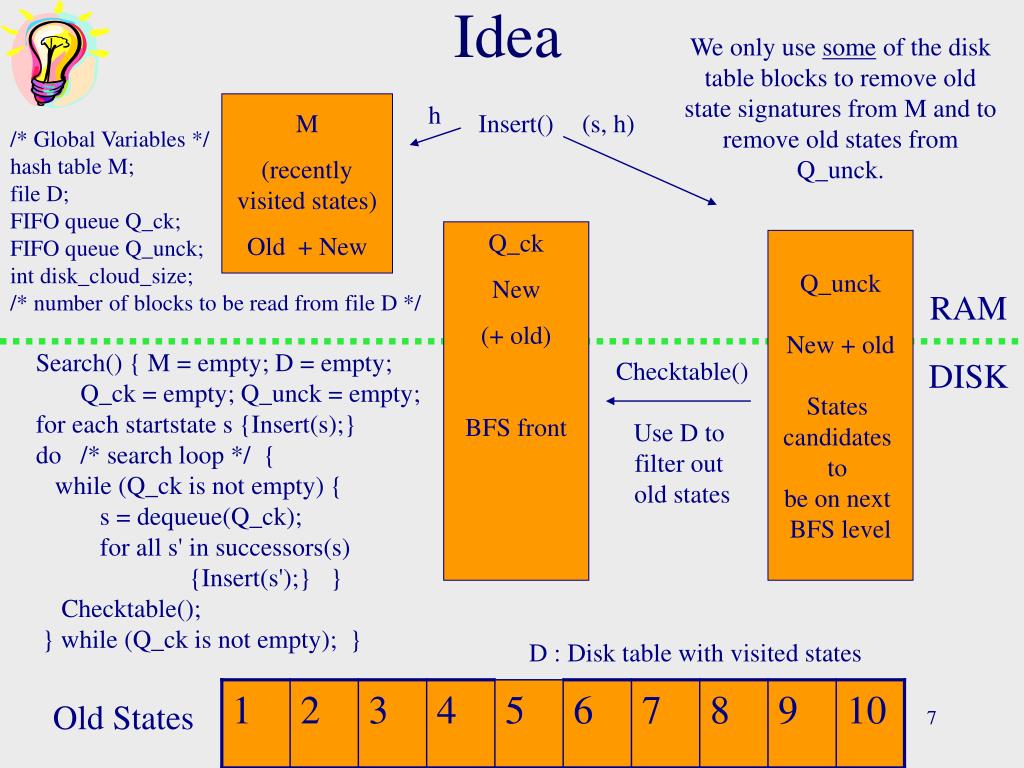

  7. We only use some of the disk table blocks to remove old state signatures from M and to remove old states from Q_unck. Idea h M (recently visited states) Old + New Insert() (s, h) /* Global Variables */ hash table M; file D; FIFO queue Q_ck; FIFO queue Q_unck; int disk_cloud_size; /* number of blocks to be read from file D */ Q_ck New (+ old) BFS front Q_unck New + old States candidates to be on next BFS level RAM Search(){M = empty; D = empty; Q_ck = empty; Q_unck = empty; for each startstate s {Insert(s);} do /* search loop */{ while (Q_ck is not empty){ s = dequeue(Q_ck); for all s' in successors(s) {Insert(s');} } Checktable(); } while (Q_ck is not empty);} Checktable() Use D to filter out old states DISK D : Disk table with visited states Old States

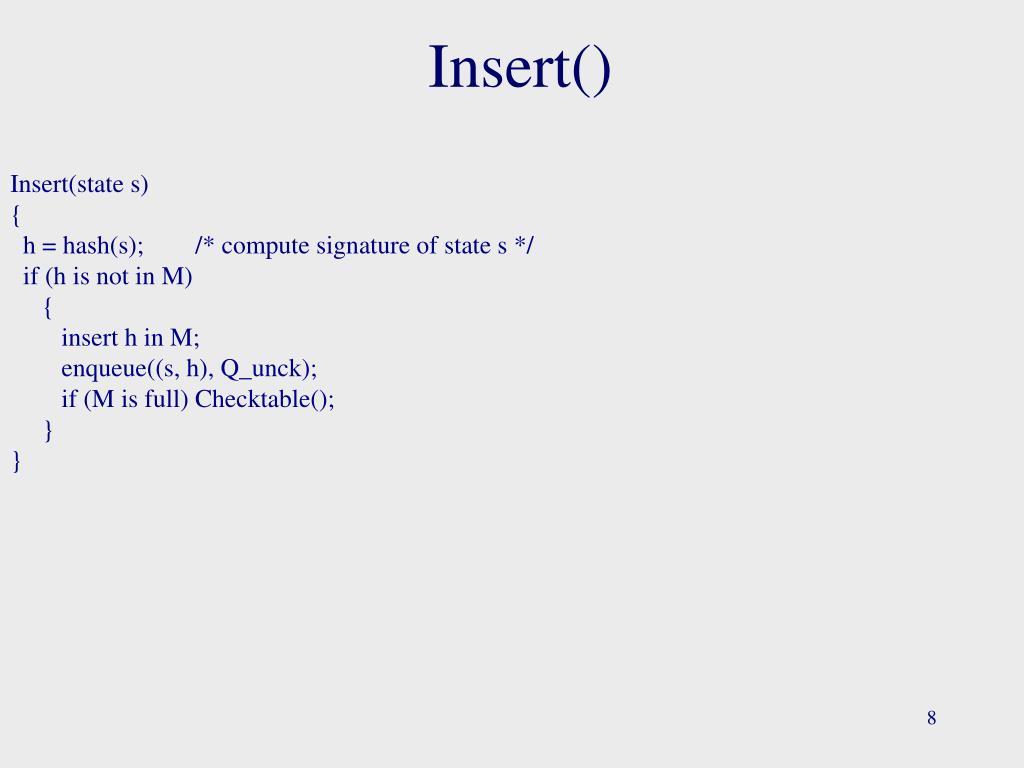

  8. Insert() Insert(state s) { h = hash(s); /* compute signature of state s */ if (h is not in M) { insert h in M; enqueue((s, h), Q_unck); if (M is full) Checktable(); } }

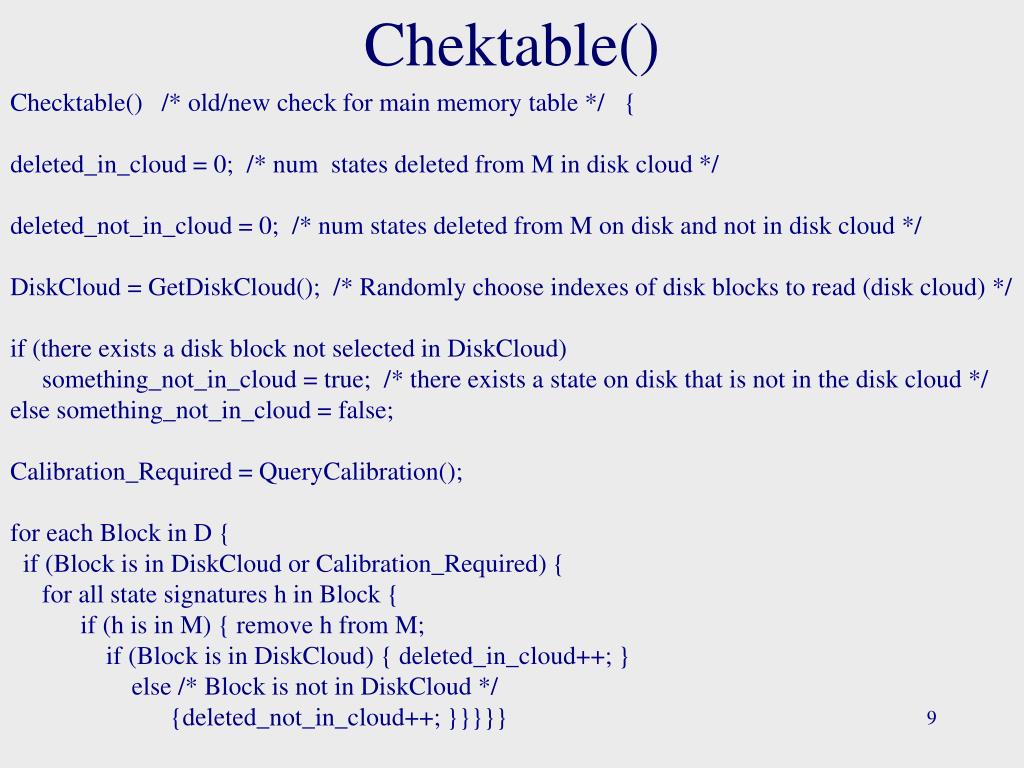

  9. Chektable() Checktable() /* old/new check for main memory table */{ deleted_in_cloud = 0; /*num states deleted from M in disk cloud*/ deleted_not_in_cloud = 0;/*num states deleted from M on disk and not in disk cloud*/ DiskCloud = GetDiskCloud(); /* Randomly choose indexes of disk blocks to read (disk cloud) */ if (there exists a disk block not selected in DiskCloud) something_not_in_cloud = true; /* there exists a state on disk that is not in the disk cloud */ else something_not_in_cloud = false; Calibration_Required = QueryCalibration(); for each Block in D { if (Block is in DiskCloud or Calibration_Required) { for all state signatures h in Block { if (h is in M) { remove h from M; if (Block is in DiskCloud) { deleted_in_cloud++; } else /* Block is not in DiskCloud */ {deleted_not_in_cloud++; }}}}}

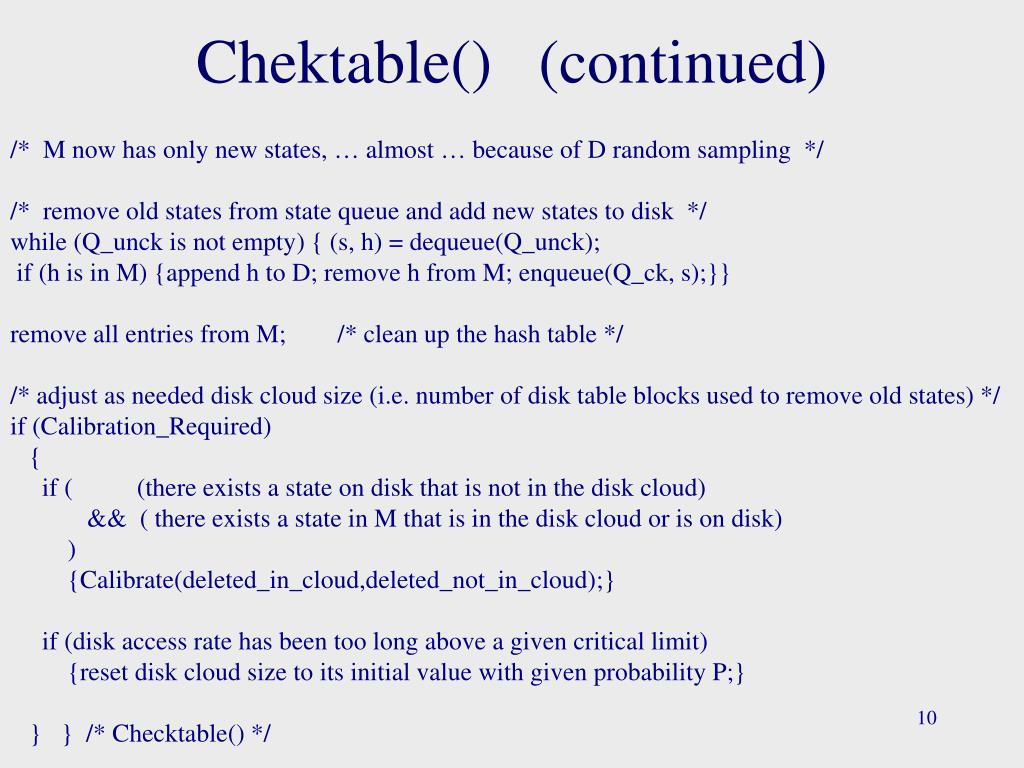

  10. Chektable() (continued) /* M now has only new states, … almost … because of D random sampling */ /* remove old states from state queue and add new states to disk */ while (Q_unck is not empty) { (s, h) = dequeue(Q_unck); if (h is in M) {append h to D; remove h from M; enqueue(Q_ck, s);}} remove all entries from M;/* clean up the hash table */ /* adjust as needed disk cloud size (i.e. number of disk table blocks used to remove old states) */ if (Calibration_Required) { if ( (there exists a state on disk that is not in the disk cloud) && ( there exists a state in M that is in the disk cloud or is on disk) ) {Calibrate(deleted_in_cloud,deleted_not_in_cloud);} if (disk access rate has been too long above a given critical limit) {reset disk cloud size to its initial value with given probability P;} } } /* Checktable() */

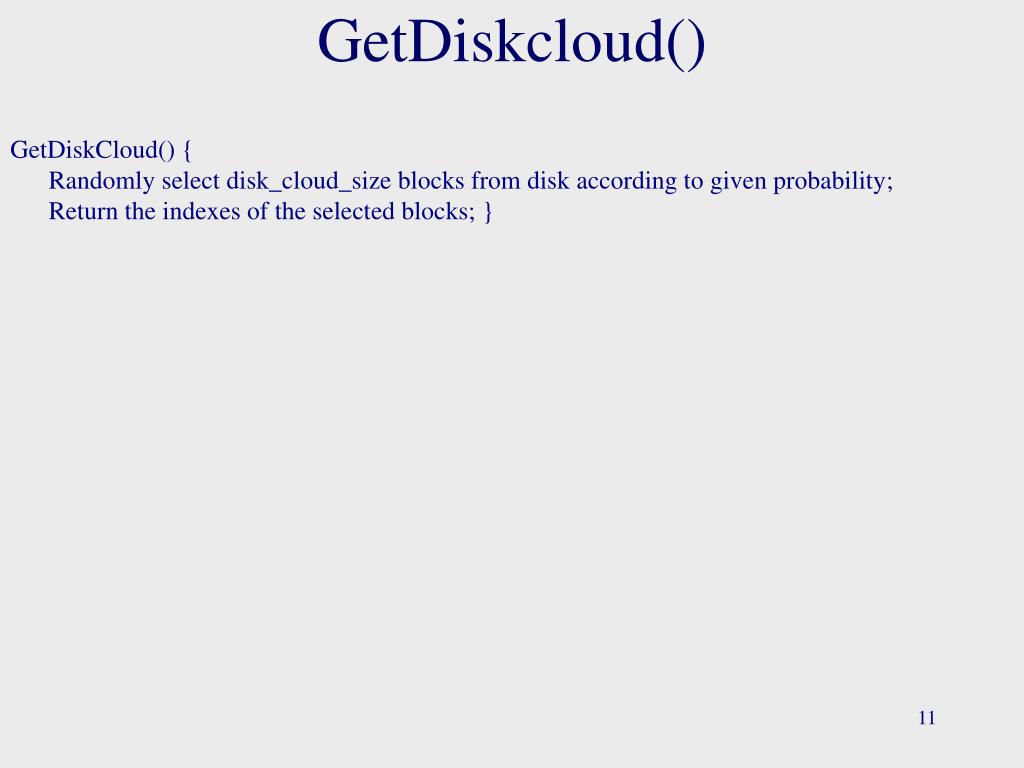

  11. GetDiskcloud() GetDiskCloud(){ Randomly select disk_cloud_size blocks from diskaccording to given probability; Return the indexes of the selected blocks; }

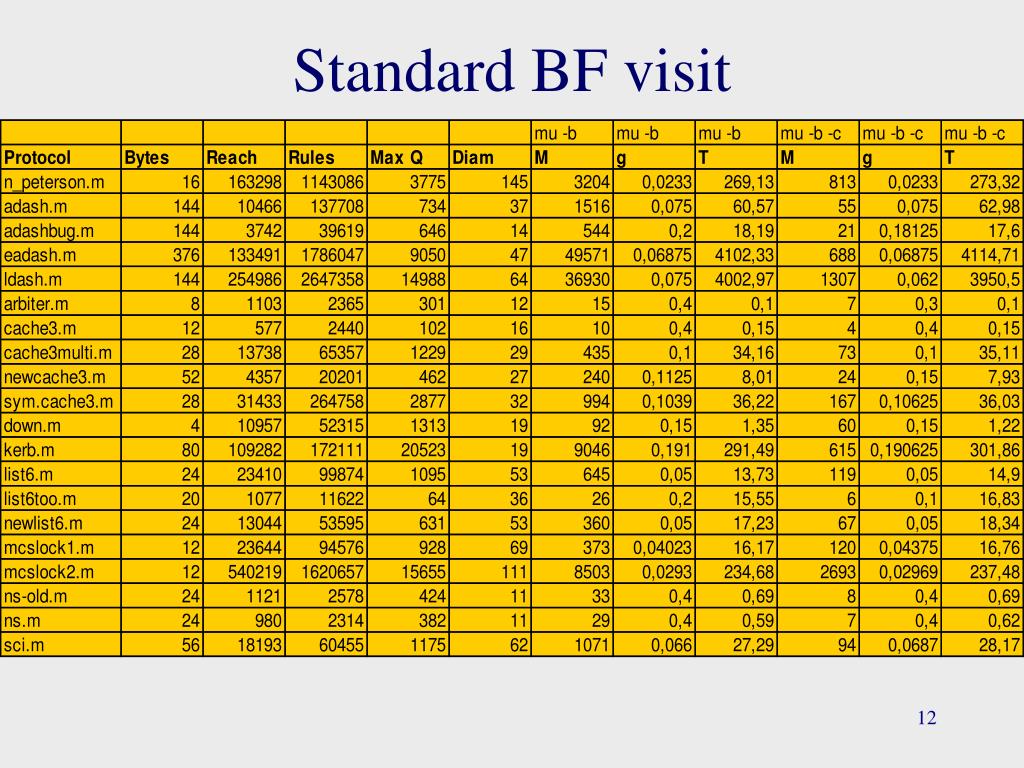

  12. Standard BF visit

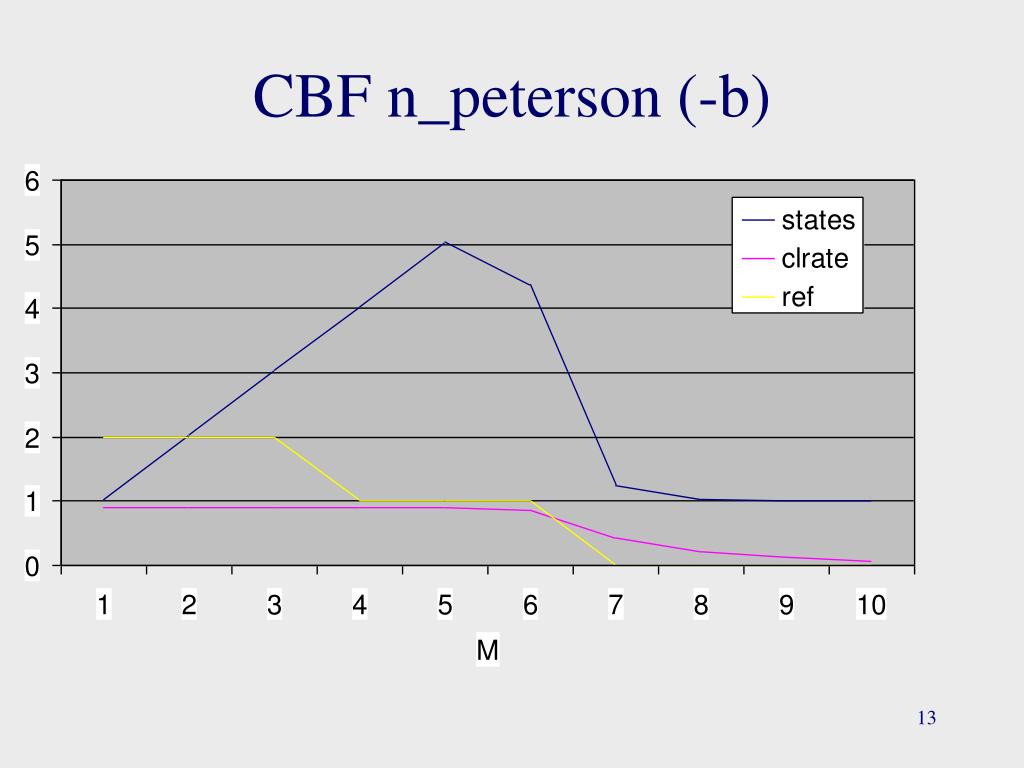

  13. CBF n_peterson (-b)

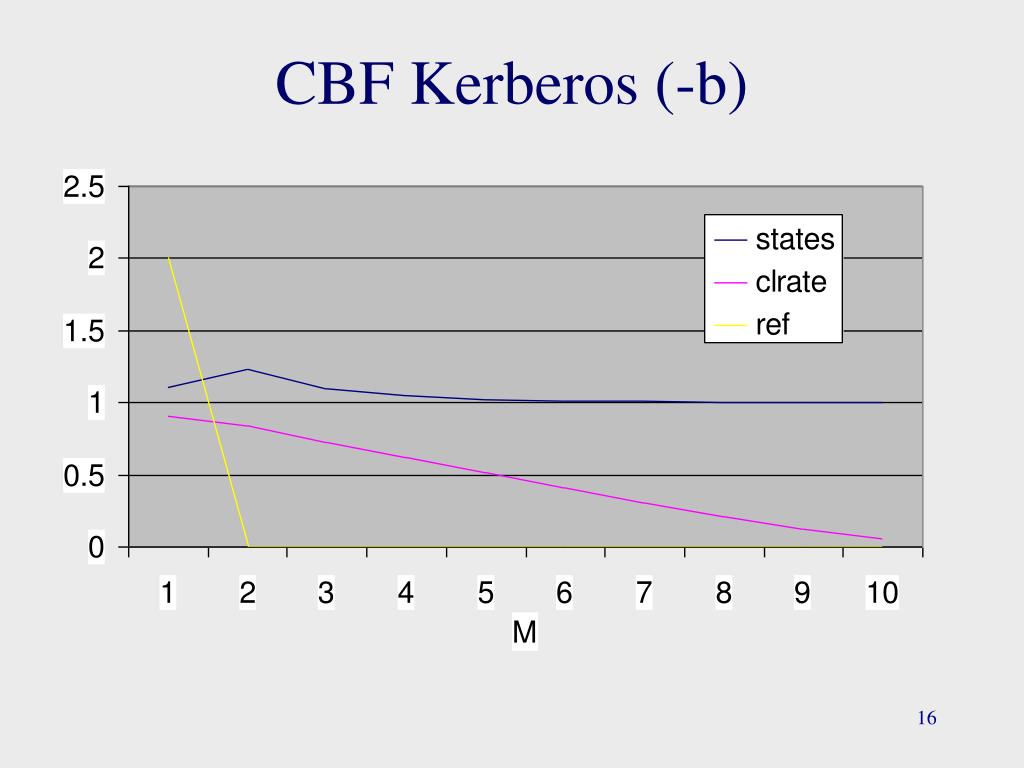

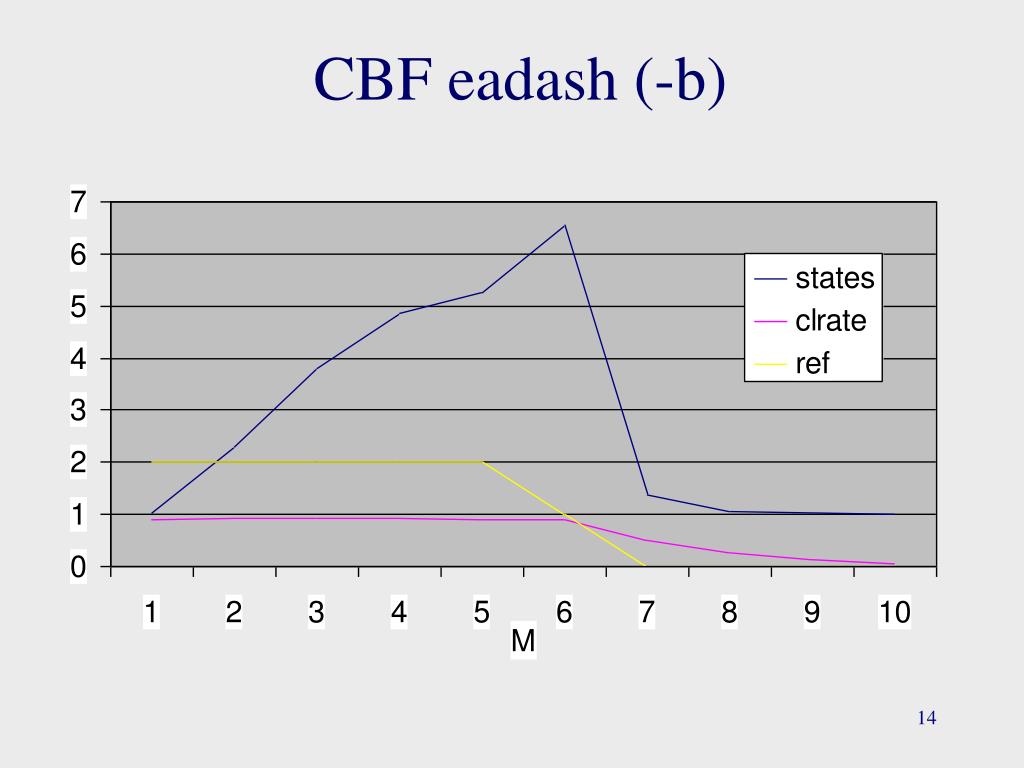

  14. CBF eadash (-b)

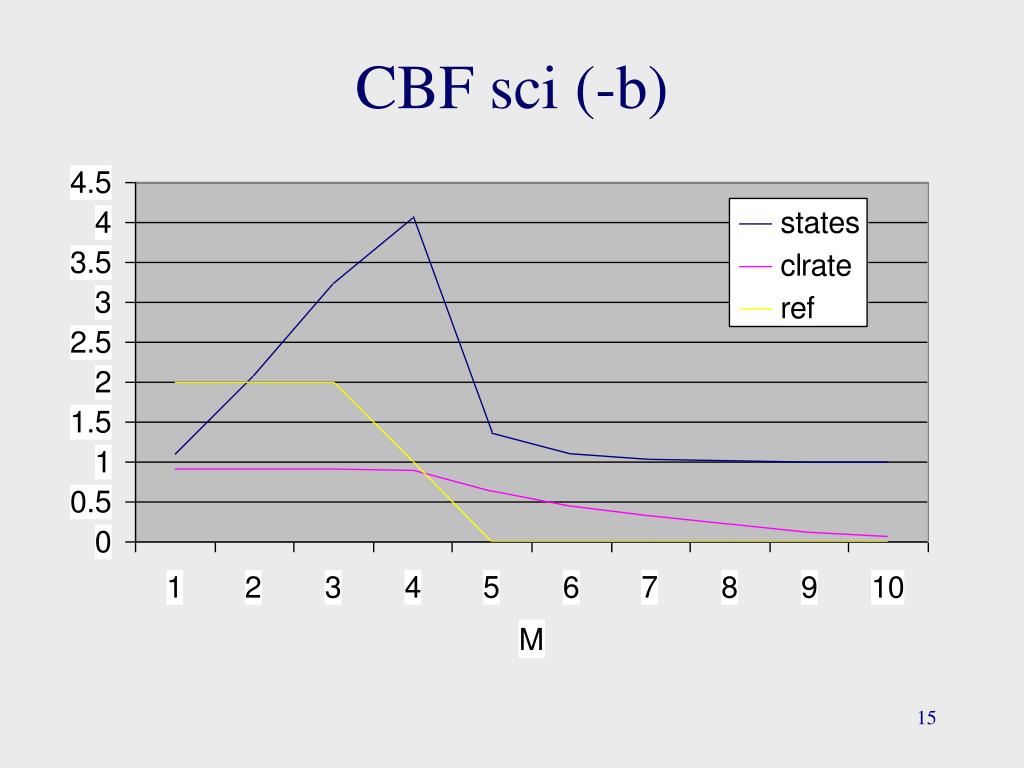

  15. CBF sci (-b)

  16. CBF Kerberos (-b)

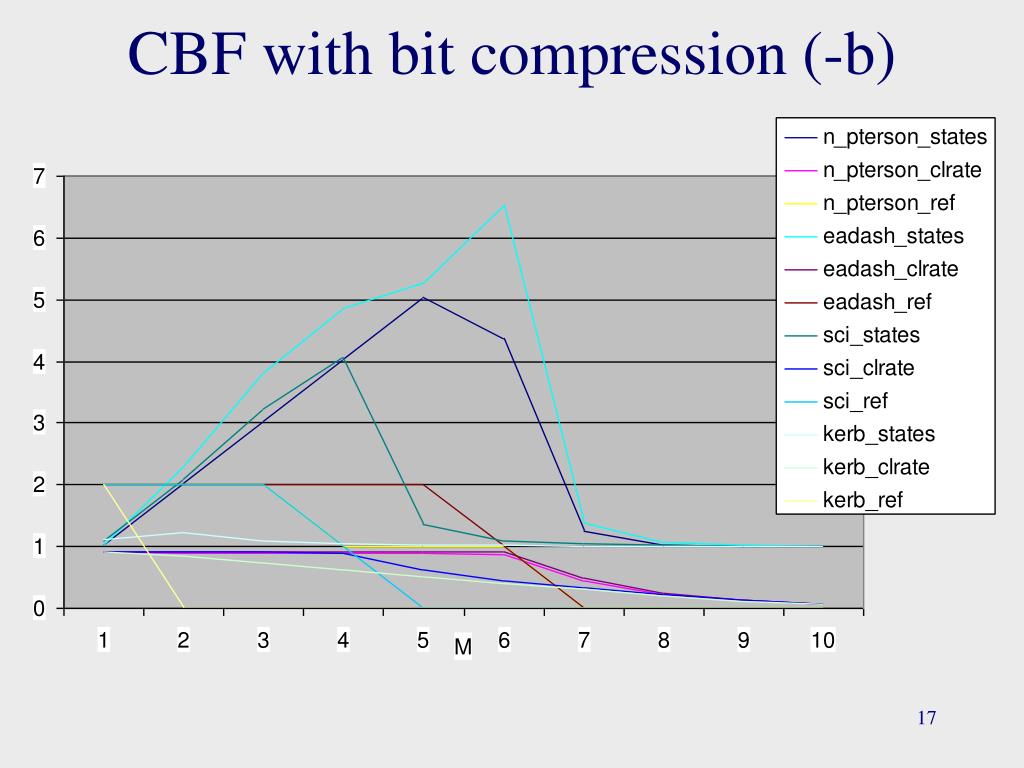

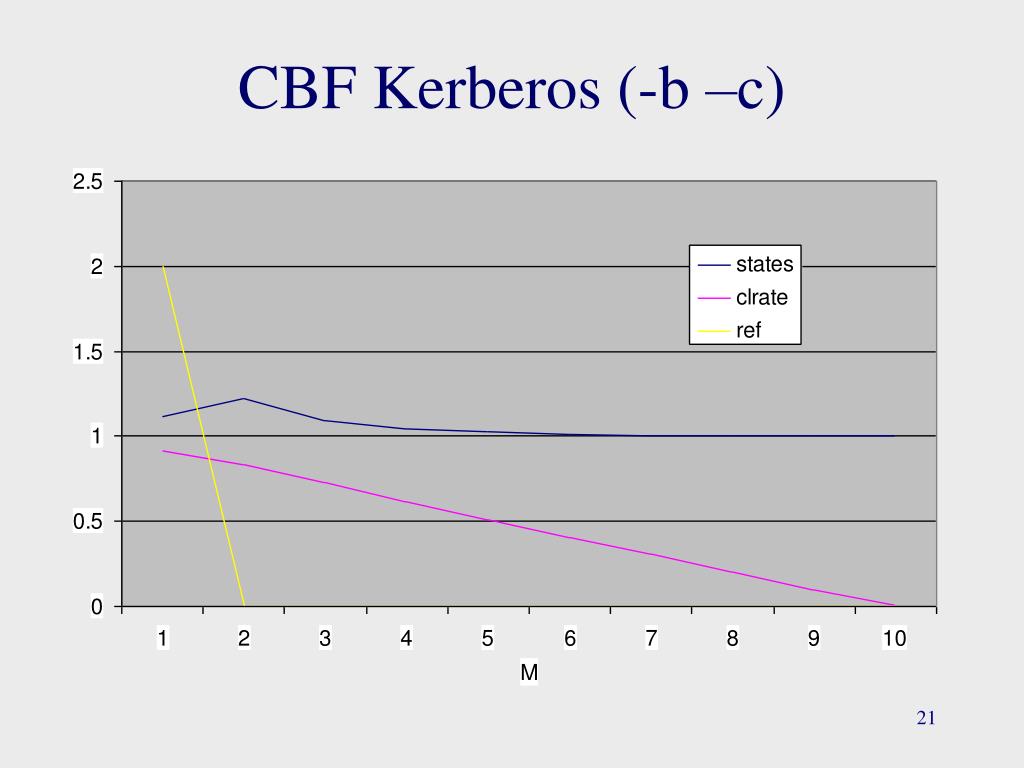

  17. CBF with bit compression (-b)

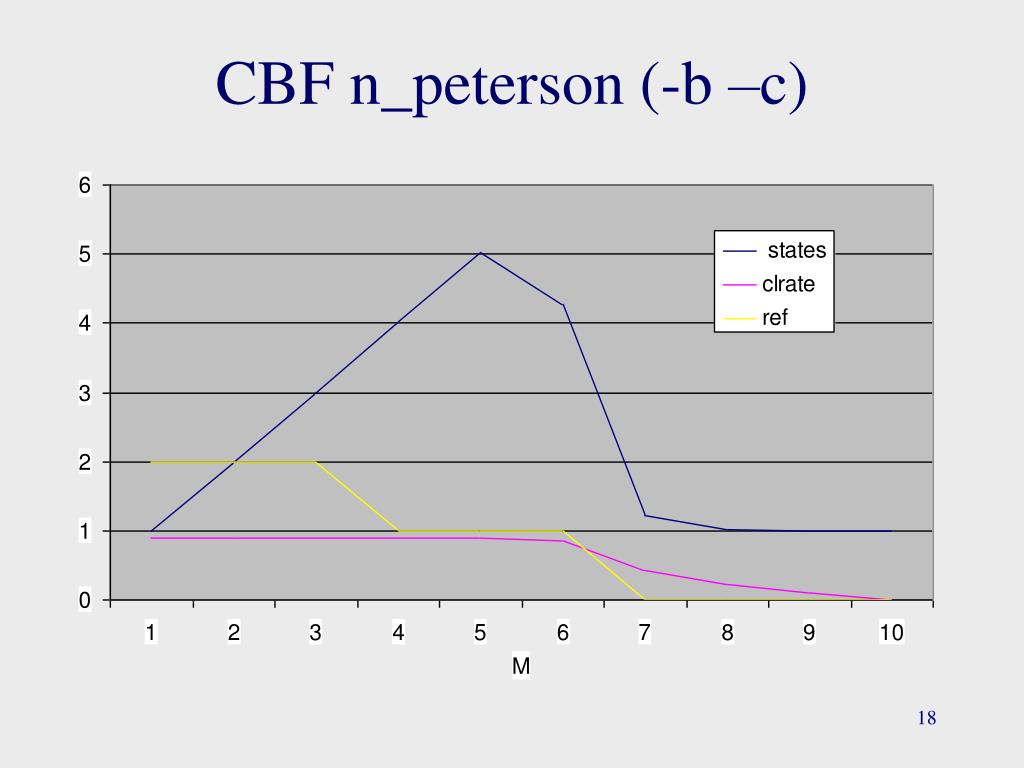

  18. CBF n_peterson (-b –c)

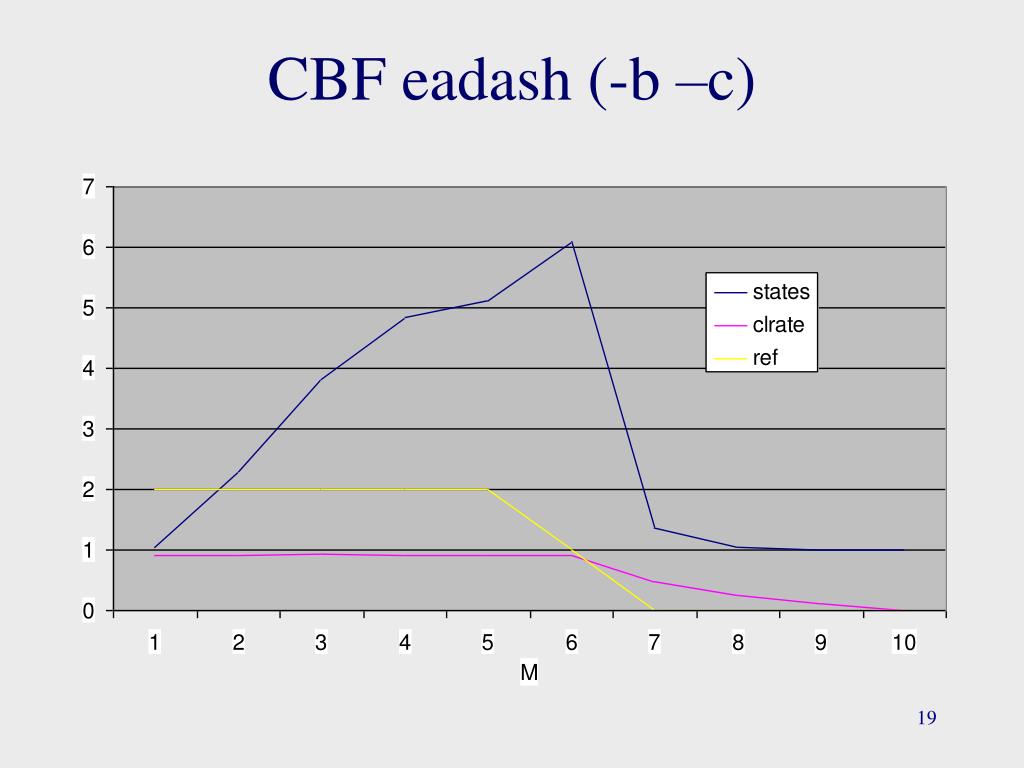

  19. CBF eadash (-b –c)

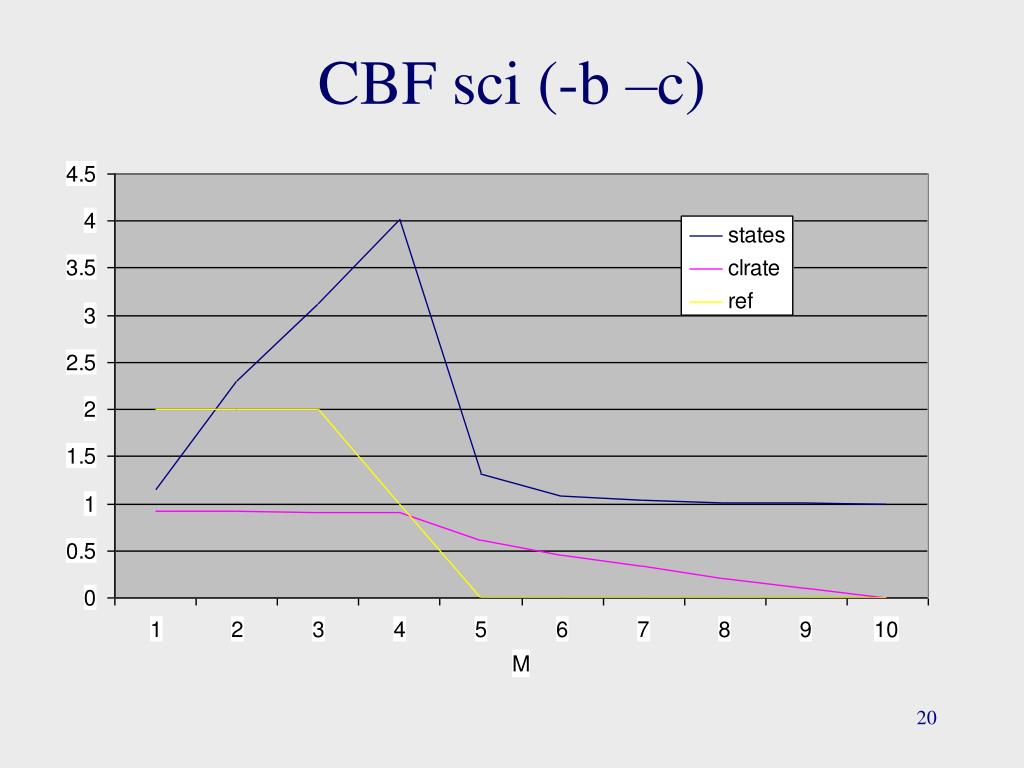

  20. CBF sci (-b –c)

  21. CBF Kerberos (-b –c)

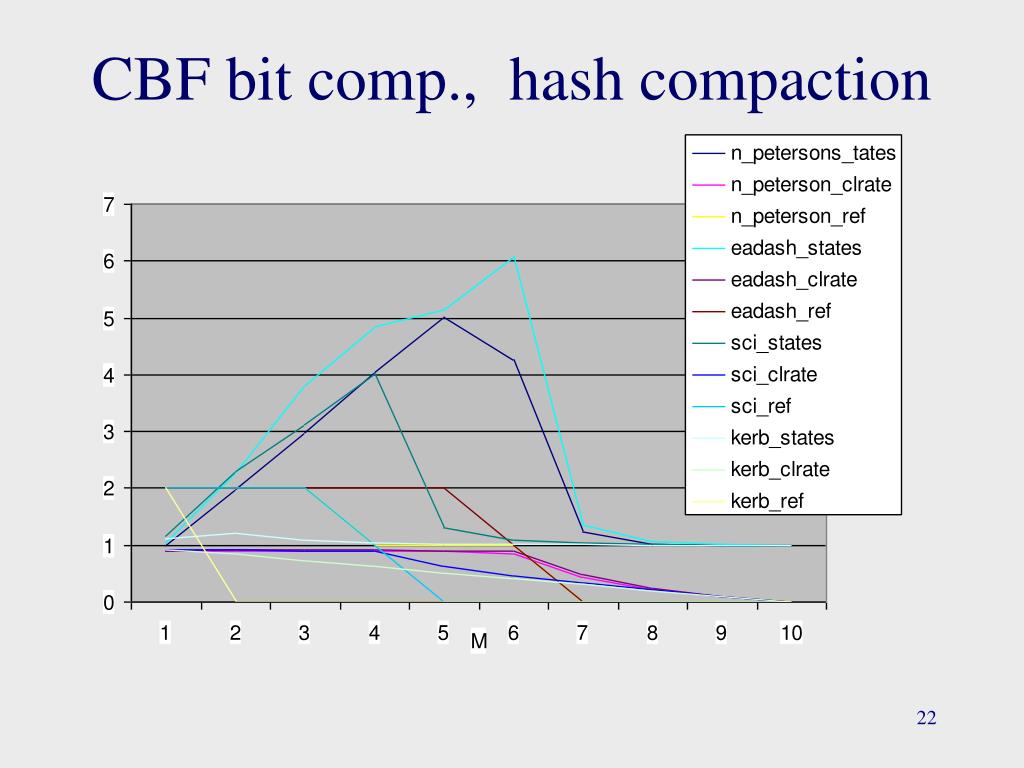

  22. CBF bit comp., hash compaction

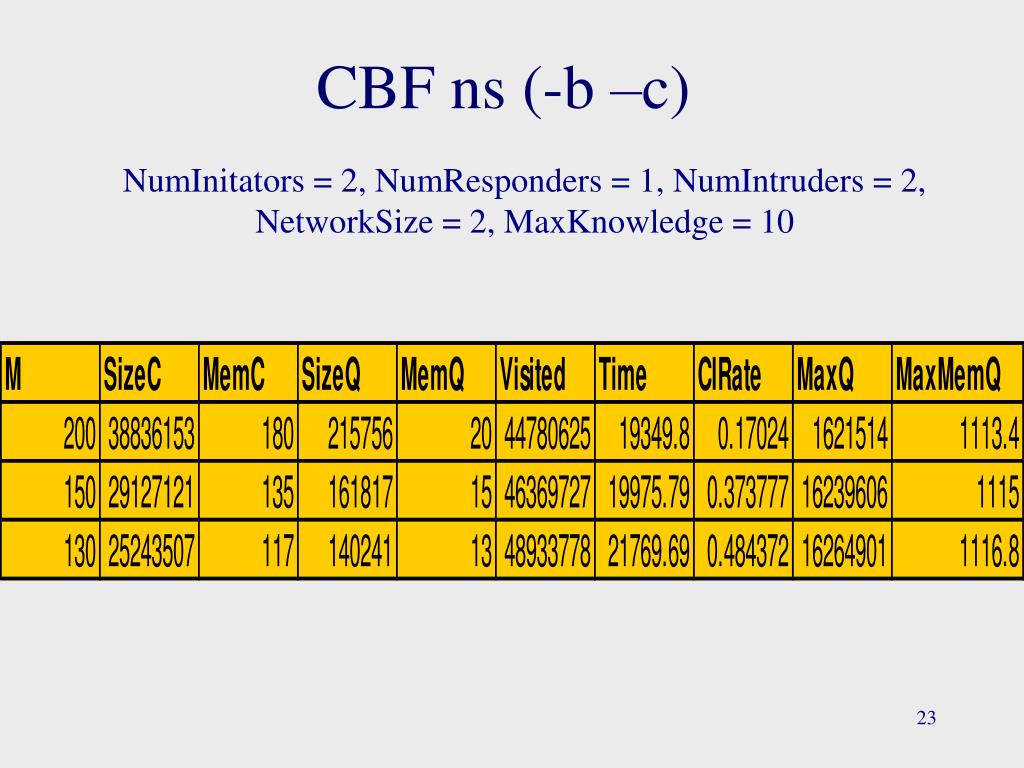

  23. CBF ns (-b –c) NumInitators = 2, NumResponders = 1, NumIntruders = 2, NetworkSize = 2, MaxKnowledge = 10

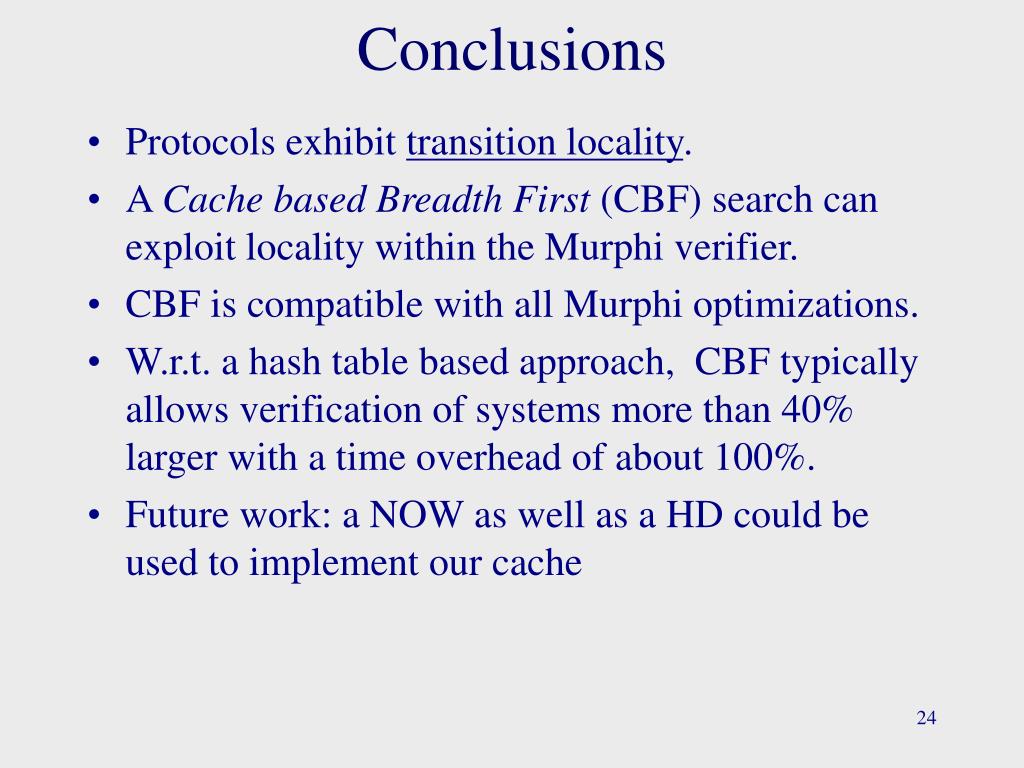

  24. Conclusions • Protocols exhibit transition locality. • A Cache based Breadth First (CBF) search can exploit locality within the Murphi verifier. • CBF is compatible with all Murphi optimizations. • W.r.t. a hash table based approach, CBF typically allows verification of systems more than 40% larger with a time overhead of about 100%. • Future work: a NOW as well as a HD could be used to implement our cache
