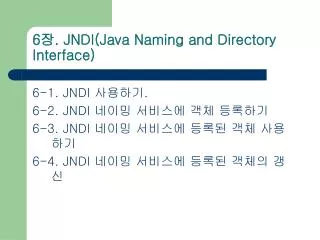

  1. 6장. JNDI(Java Naming and Directory Interface) 6-1. JNDI 사용하기. 6-2. JNDI 네이밍 서비스에 객체 등록하기 6-3. JNDI 네이밍 서비스에 등록된 객체 사용하기 6-4. JNDI 네이밍 서비스에 등록된 객체의 갱신

  2. JNDI 란 • 분산환경 • EJB의 엔터프라이즈란 분산환경을 의미함 • 컴퓨터 여러 대에 서버가 분산되어 운영된다는 것을 의미함 • 이때 각각의 서버는 객체를 공유할 방법이 필요

  3. JNDI 란 • 네이밍 서비스 • 대표적이 예로 도메인명을 IP로 바꿔주는 서비스 • 분산된 환경에서 특정한 이름으로 객체를 등록해서 관리할 수 있는 방법 • 예) JDBC 실습에서 DataSource를 “ora9”, “mysql9”등으로 등록하여 사용함

  4. JNDI 란 • JDNI • 자바에서 객체를 네이밍 서비스에 등록, 삭제, 검색을 할 수 있는 방법 • 여러 대의 서버간에는 JNDI를 이용하여 객체를 등록하고, 참조하여 이용됨

  5. JNDI 란 • 문제점 • JNDI lookup()을 사용해서 객체를 참조시, 과부하가 발생 • JSP/서블릿에서는 init() 메소드를 사용함 (JSP/서블릿이 처음 실행될 때 한번만 실행됨)

  6. 6-1. JNDI 사용하기 • JNDI를 사용하는 클라이언트는 • javax.naming 패키지 안의 클래스를 이용 • import javax.naming.*; 선언 • javax.naming.Context 인터페이스 • 기본적인 JNDI 객체 • JNDI 네이밍 서비스에 사용할 객체를 추가, 삭제, 검색할 수 있는 메소드를 가짐

  7. 6-1. JNDI 사용하기 • 웹로직 내부에서 JNDI를 이용할 경우에는 • javax.naming.InitialContext 객체를 생성하여 사용 javax.naming.Context ctx = new javax.naming.InitialContext(); • 우리가 사용한 코드상에서 사용은.. import javax.naming.*; Context ctx = new InitialContext();

  8. 6-1. JNDI 사용하기 • 웹로직 서버 외부에서 동작하는 JSP/서블릿 혹은 엔터프라이즈 빈즈에서 JNDI를 이용할 경우 java.util.Properties p = new java.util.Properties(); p.put(Context.INITIAL_CONTEXT_FACTORY, "weblogic.jndi.WLInitialContextFactory"); p.put(Context.PROVIDER_URL, "t3://localhost:7001"); javax.naming.Context ctx = new javax.naming.InitialContext(p);

  9. 6-1. JNDI 사용하기 import java.util.Properties; import javax.naming.*; Properties p = new Properties(); p.put(Context.INITIAL_CONTEXT_FACTORY, "weblogic.jndi.WLInitialContextFactory"); p.put(Context.PROVIDER_URL, "t3://localhost:7001"); Context ctx = new InitialContext(p);

  10. 6-1. JNDI 사용하기 • java.util.Properites 객체에 전달하는 Properties Key값의 의미

  11. 6-1. JNDI 사용하기 • JNDI 네이밍 서비스를 하는 서버의 주소가 변경된 경우 소스를 수정하고 재컴파일 해야함 • 이를 해결하기 위해 소스에는 Context ctx = new InitialContext(); • Jre 폴더 아래의 lib 폴더에 jndi.properties 파일 작성 Java.naming.factory.initial = weblogic.jndi.WLInitialContextFactory Java.naming.provider.url = “t3://localhost:7001”

  12. 6-2. JNDI 네이밍 서비스에 객체 등록하기 • JNDI 네이밍 서비스에 객체를 등록하려면 InitialContext객체를 생성한 후, Context가 가지고 있는 bind() 메소드를 이용 Context ctx = new InitialContext(h); ctx.bind(“ksp”, “김성박”); // bind(String, Object) // bind(JNDI 네임, 객체)

  13. 6-3. JNDI 네이밍 서비스에 등록된 객체 사용하기 • JNDI 네이밍 서비스에 등록된 객체를 가져오려면, InitialContext객체가 가지고 있는 lookup()메소드에 JNDI 이름을 인자로 지정 Context ctx = new InitialContext(h); ctx.lookup(“ksp”); // lookup(String) // lookup(JNDI 네임)

  14. 6-4. JNDI 네이밍 서비스에 등록된 객체의 갱신 #1 • JNDI 네이밍 서비스에 등록된 객체의 갱신하려면, InitialContext 객체의 rebind 메소드를 이용 Context ctx = new InitialContext(h); ctx.rebind(“ksp”, “김성박”); // bind(String, Object) // bind(JNDI 네임, 객체)
