Presentation Transcript


Sis 315 graphics engine l.jpg

SiS 315 Graphics Engine

Introduction to some capabilities of graphics accelerator hardware


Svga incompatibilities l.jpg

SVGA incompatibilities

  • SVGA manufacturers have different ways of implementing their accelerator features

  • SiS provides 2D and 3D graphics engines

  • Access is via memory-mapped i/o ports

  • This requires a new Linux device-driver, to allow mapping the io-ports into user-space

  • A suitable driver is our ‘engine2d.c’

  • It only works with SiS graphics hardware


Sis policy l.jpg

SiS policy

  • SiS officials say it is not company policy to provide individuals with programming info

  • But some programming info is available in ‘unofficial’ sources (e.g., in-line comments by programmers who wrote ‘open source’ device-drivers for Linux XFree86 systems)

  • Not everything is fully explained, though

  • So a lot of ‘trial-and-error’ is necessary!


Where to look for info l.jpg

Where to look for info

  • The source-code for drivers distributed with the Linux kernel can be found in:/usr/src/local/linux/drivers/video/sis

  • Recent versions of the SVGALIB package have some SiS-specific code you can view

  • There is also a website maintained by the author of the SiS driver for Linux (Thomas Winischhofer): http://www.winischhofer.net


Linux kernel modules l.jpg

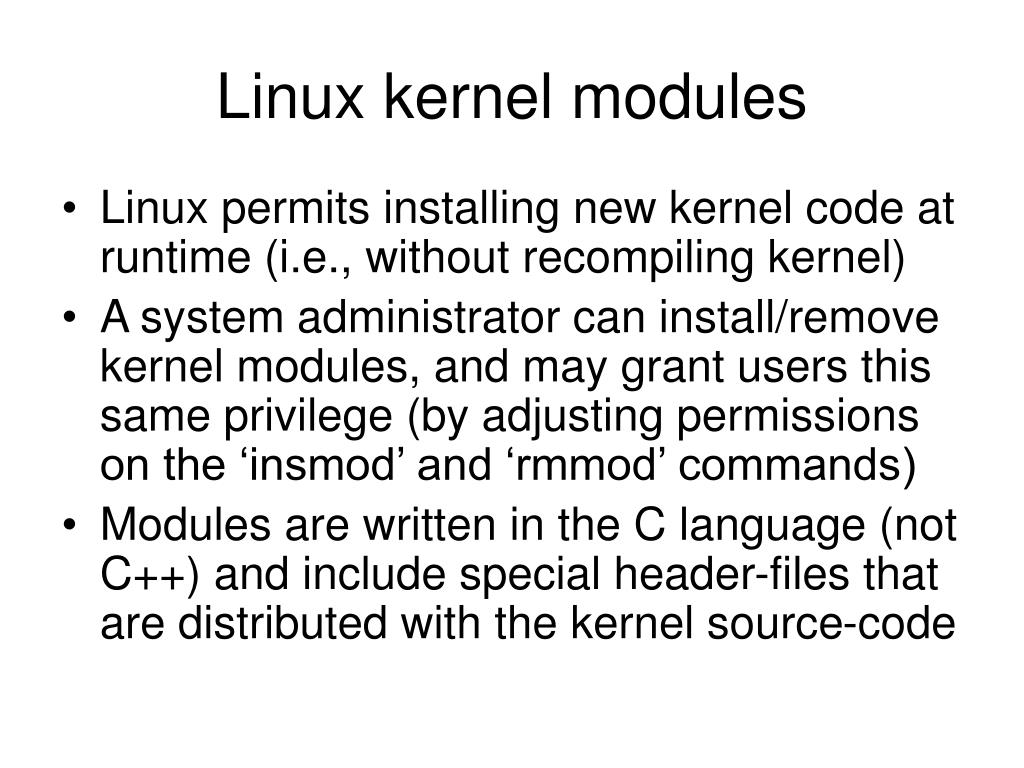

Linux kernel modules

  • Linux permits installing new kernel code at runtime (i.e., without recompiling kernel)

  • A system administrator can install/remove kernel modules, and may grant users this same privilege (by adjusting permissions on the ‘insmod’ and ‘rmmod’ commands)

  • Modules are written in the C language (not C++) and include special header-files that are distributed with the kernel source-code


Module requirements l.jpg

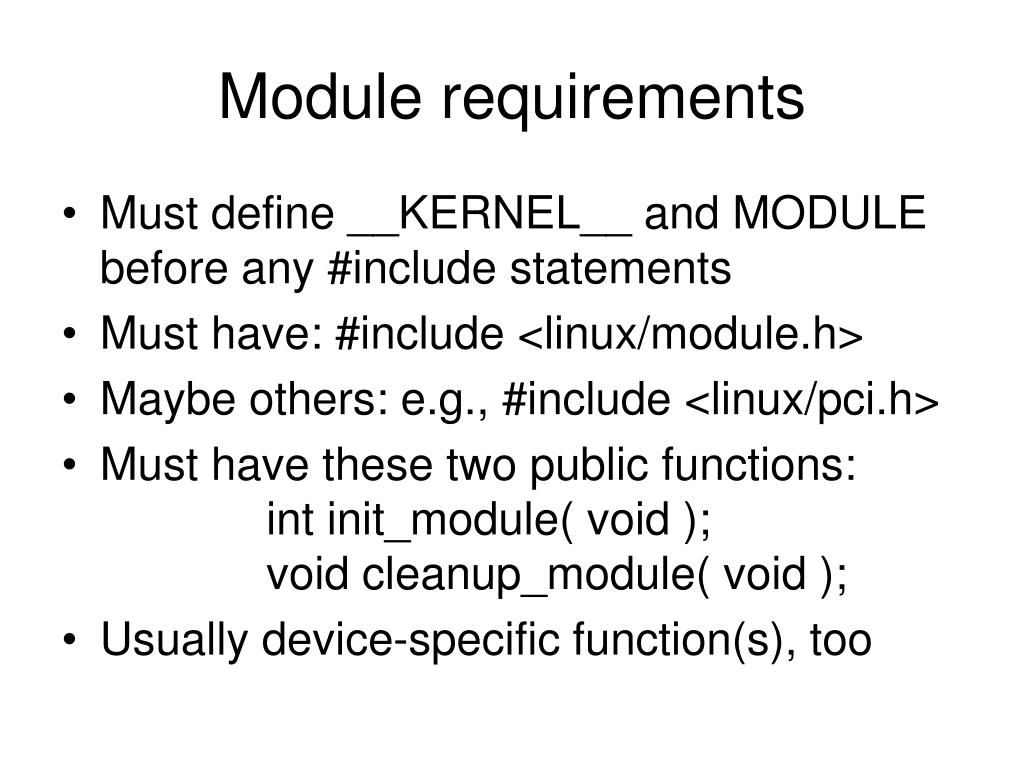

Module requirements

  • Must define __KERNEL__ and MODULE before any #include statements

  • Must have: #include <linux/module.h>

  • Maybe others: e.g., #include <linux/pci.h>

  • Must have these two public functions:int init_module( void );void cleanup_module( void );

  • Usually device-specific function(s), too


Driver module structure l.jpg

Driver-Module Structure

// filename and module abstract

#include ---------

#define -----------

typedef -------------

static data objects

This is the device-driver core

read()

write()

lseek()

mmap()

struct file_operations

init_module()

These are for module mgmt

cleanup_module()

MODULE_LICENSE


Our engine2d c module l.jpg

Our ‘engine2d.c’ module

  • Our module only needs one extra function:int my_mmap( );

  • Also needs a ‘struct file_operations’ object:struct file_operations my_fops;

  • The ‘init_module()’ function will install that structure-object in kernel-space, together with executable code which it references

  • The ‘cleanup_module()’ function removes that code and data after we’re finished


How it works l.jpg

How it works

user-space

kernel-space

int $0x80

runtime

library

syscall

handler

iret

ret

call

mmap

ret

application

program

device-driver

module


Pentium s page tables l.jpg

Pentium’s Page-Tables

  • Our driver’s ‘mmap’ method calls a kernel procedure that knows how to setup some new entries in the CPU’s page-directory and page-table data-structures which give the effect of mapping the GPU’s i/o-ports into an application’s virtual address-space

  • Then the program can read or write these i/o-ports as if they were memory-locations


The pci interface l.jpg

The PCI Interface

  • The graphics hardware connects with the CPU using the AGP bus, conforming to a standard PCI-bus programming interface

  • Linux kernel functions can be called from our ‘init_module()’ to query the GPU chip

    • Identify the chip’s make and model

    • Get physical address for its i/o-memory

    • Determine the length of the i/o-memory


Linux device nodes l.jpg

Linux device-nodes

  • Linux treats devices as if they were files

  • We must create a device-file for our GPU

  • Device-files normally go in ‘/dev’ directory

  • We invent a filename for our device-file

  • We pick an unused device id-number

  • A system administrator creates the file:root# mknod /dev/sismmio c 101 0root# chmod a+rw /dev/sismmio


Our sisaccel cpp demo l.jpg

Our ‘sisaccel.cpp’ demo

  • We have written a short demo-program

  • It uses the SiS 315’s 2D graphics engine

  • It fills some rectangles with a solid color

  • It also shows how to draw a line-segment

  • These operations could be done, as we know, with software algorithms – but it’s faster to let the hardware do it instead

  • You are invited to experiment further!


Include sisaccel h l.jpg

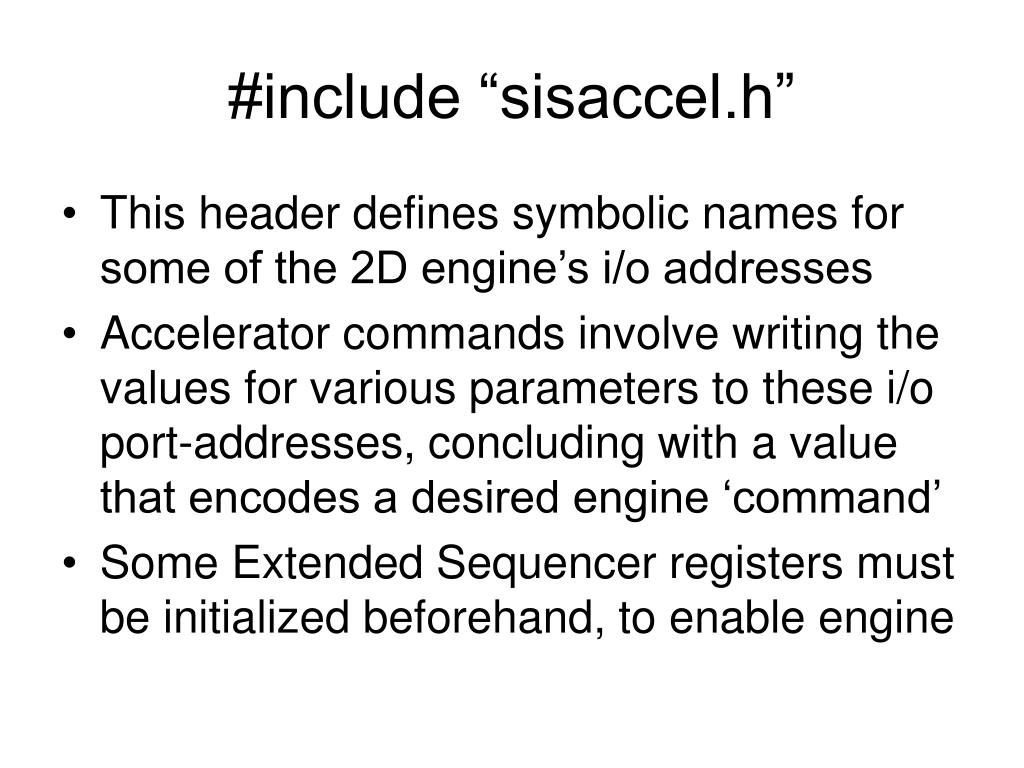

#include “sisaccel.h”

  • This header defines symbolic names for some of the 2D engine’s i/o addresses

  • Accelerator commands involve writing the values for various parameters to these i/o port-addresses, concluding with a value that encodes a desired engine ‘command’

  • Some Extended Sequencer registers must be initialized beforehand, to enable engine


Truecolor graphics l.jpg

Truecolor Graphics

  • We used VESA graphics mode 0x413B

  • Screen-resolution is 800x600

  • Pixels are 32-bits in size (‘Truecolor’)

  • Recall the Truecolor pixel-format:

byte2

byte1

byte3

byte0

Alpha channel


Makefile l.jpg

Makefile

  • In order to compile the ‘engine2d.c’ driver, we recommend using the ‘Makefile’ on our class website (copy it to your directory):$ make engine2d.o

  • Be sure you compile it BEFORE you try to run the ‘gpuaccel.cpp’ demo-program

  • Don’t forget that your IOPL needs to be 3e.g., run the ‘iopl3’ program first
