  1. Hydrogeochemistry • “Geochemistry of Natural Waters” • No wastewater, water resources • Class not related directly to social aspects of water • Study natural controls of chemistry of rivers, lakes, ground water, oceans etc.

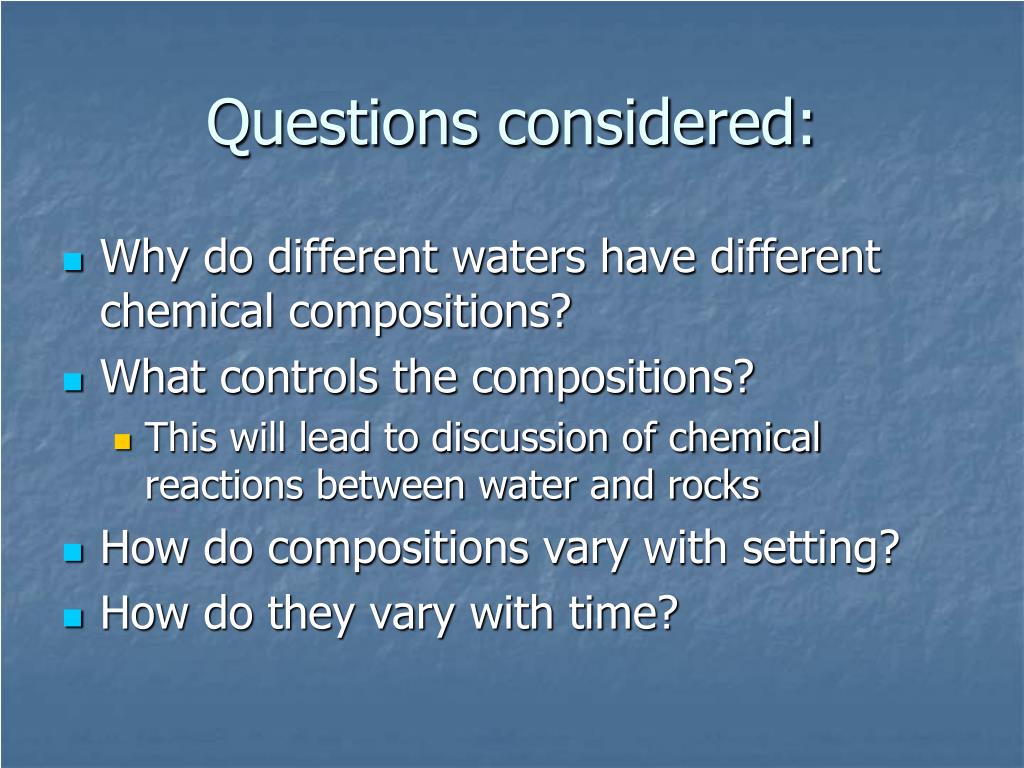

  2. Questions considered: • Why do different waters have different chemical compositions? • What controls the compositions? • This will lead to discussion of chemical reactions between water and rocks • How do compositions vary with setting? • How do they vary with time?

  3. Why consider these questions? • Diagenesis ≡ All chemical (and physical) alteration of solid material (low T and P) • Material: rocks, sediments, minerals, plants, animals, bacteria, archea • Typically occurs in water with dissolution/precipitation reactions • Often involves gas phases

  4. Why consider these questions? • Hydrology and Hydrogeology • Variations in chemical composition can be used to understand (map) flow paths • Flow can alter chemistry – through mixing of different composition waters • Diagenesis and hydrology are linked • This link critical for all earth surface processes • Also – may be used to understand paleoenvironments

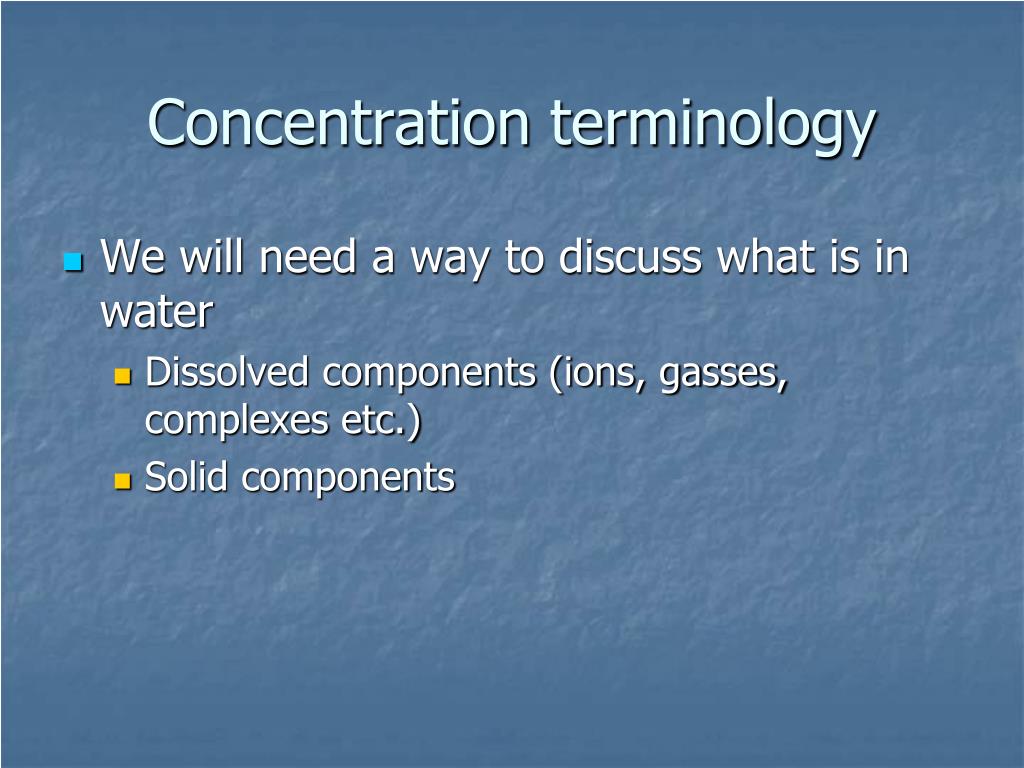

  5. Concentration terminology • We will need a way to discuss what is in water • Dissolved components (ions, gasses, complexes etc.) • Solid components

  6. Total dissolve solids • Total dissolved solids (TDS) – mass of solid remaining after evaporation of water • Bicarbonate converted to carbonate • Units of mass/volume (e.g. g/L, kg/L, etc.)

  7. Salinity • Salinity – similar to TDS except includes only charged species • Operational definition • Salinity reported as ratio of electrical conductivity to standard • Originally “Copenhagen seawater” • Now KCl standard • Ratio so dimensionless (commonly ppt, ‰, Practical Salinity Units - PSU, nothing)

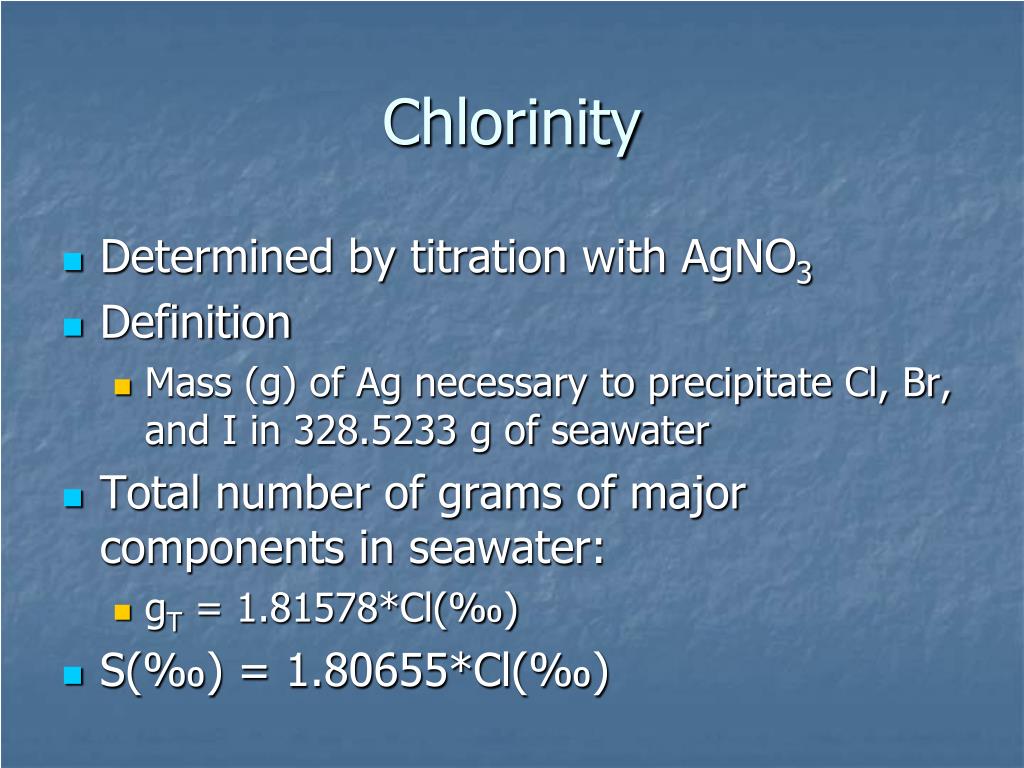

  8. Chlorinity • Determined by titration with AgNO3 • Definition • Mass (g) of Ag necessary to precipitate Cl, Br, and I in 328.5233 g of seawater • Total number of grams of major components in seawater: • gT = 1.81578*Cl(‰) • S(‰) = 1.80655*Cl(‰)

  9. Dissolved concentrations • Fresh water • Potable, generally < 1000 mg/L TDS • Brackish • Non-potable, but < seawater • Seawater, salinity 34 to 37 • Saline water/brine > seawater salinity • We will see later that seawater salinity important cutoff for chemical models

  10. Other measures of TDS • Refractive index • Amount of refraction of light passing through water • Linearly related to concentrations of dissolved salts • Conductivity/resistivity • Current carried by solution is proportional to dissolved ions

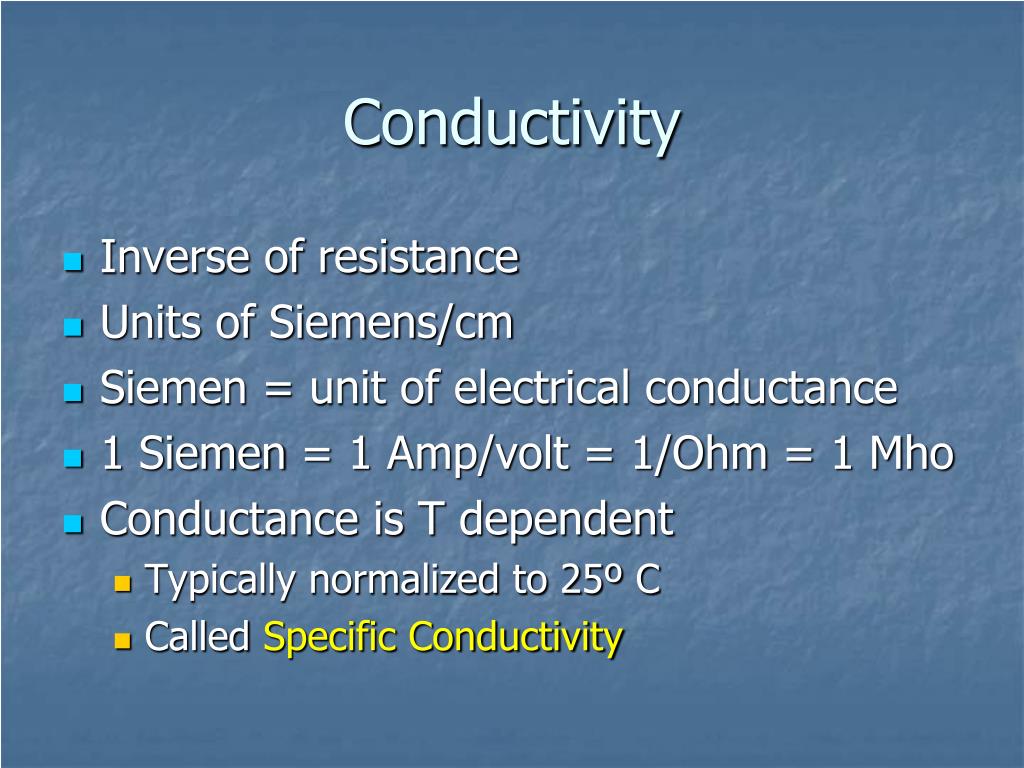

  11. Conductivity • Inverse of resistance • Units of Siemens/cm • Siemen = unit of electrical conductance • 1 Siemen = 1 Amp/volt = 1/Ohm = 1 Mho • Conductance is T dependent • Typically normalized to 25º C • Called Specific Conductivity

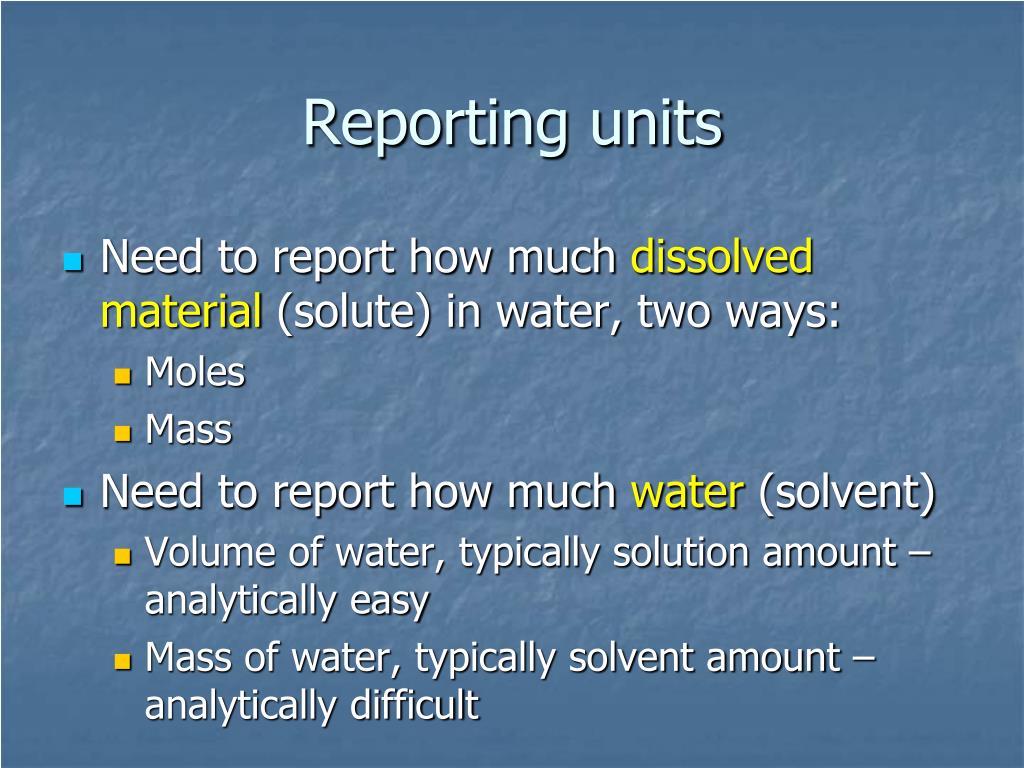

  12. Reporting units • Need to report how much dissolved material (solute) in water, two ways: • Moles • Mass • Need to report how much water (solvent) • Volume of water, typically solution amount – analytically easy • Mass of water, typically solvent amount – analytically difficult

  13. Molar units • Number of molecules (atoms, ions etc) in one liter of solution • Most common – easy to measure solution volumes • Units are M, mM, µM (big M) • Example Na2SO4 = 2Na+ + SO42- 1 mole sodium sulfate makes 2 moles Na+ and 1 mole SO42-

  14. Molal Units • Number of molecules (atoms, ions etc) in one kg of solvent • Abbreviation: m or mm or mm (little m) • Difficult to determine mass of solvent in natural waters with dissolved components • not used so often in natural waters • Useful for physical chemistry because doesn’t depend on T or X (composition of dissolved constituents).

  15. Why use molar units? • Reaction stoichiometry is written in terms of moles, not mass CaCO3 = Ca2+ + CO32- 100 g = 1 mole 40 g = 1 mole 60 g = 1 mole Simple to convert between mass (easily measured) and moles

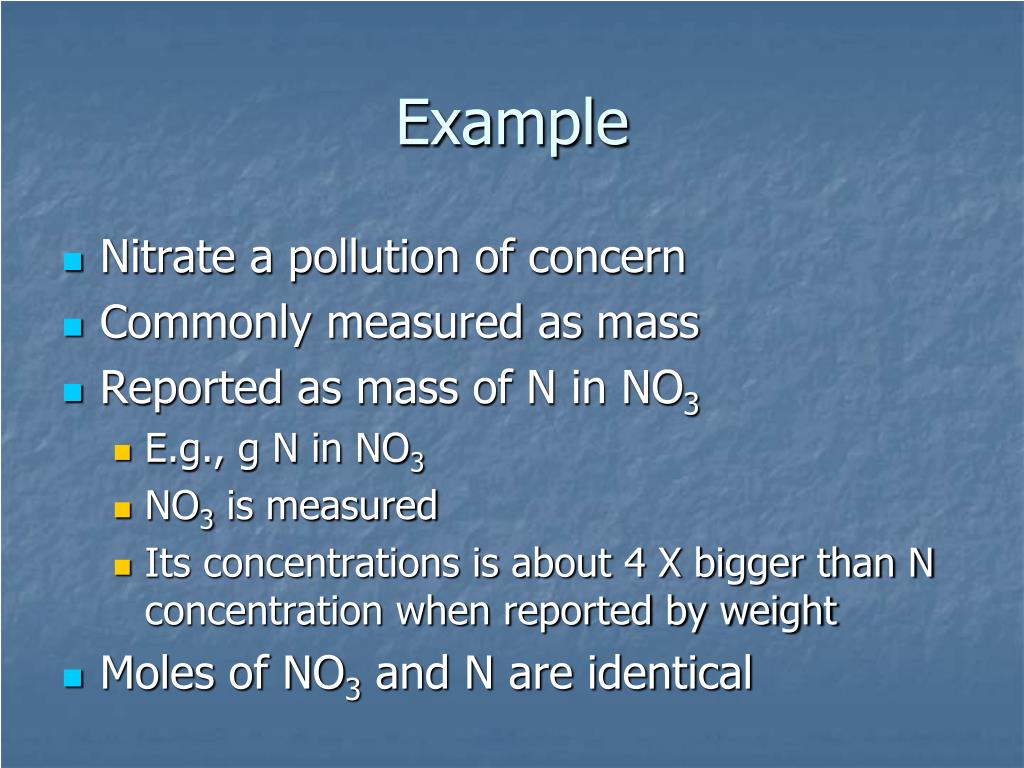

  16. Example • Nitrate a pollution of concern • Commonly measured as mass • Reported as mass of N in NO3 • E.g., g N in NO3 • NO3 is measured • Its concentrations is about 4 X bigger than N concentration when reported by weight • Moles of NO3 and N are identical

  17. Alternative – Weight units • Mass per unit volume • For example: g/L or mg/L • If very dilute solution • Mass per unit volume about the same as mass per mass • 1L water ~ 1000 g, BUT variable with T, P and X as density changes

  18. Mass – Mole conversion • Conversion from weight units to molar units • Divide by gram formula weight • Molar units to weight units • Multiply by gram formula weight

  19. Alternative – charge units • Equivalents – molar number of charges per volume • eq/L or meq/L • Used to plot piper diagrams • Used to calculate electrical neutrality of solutions

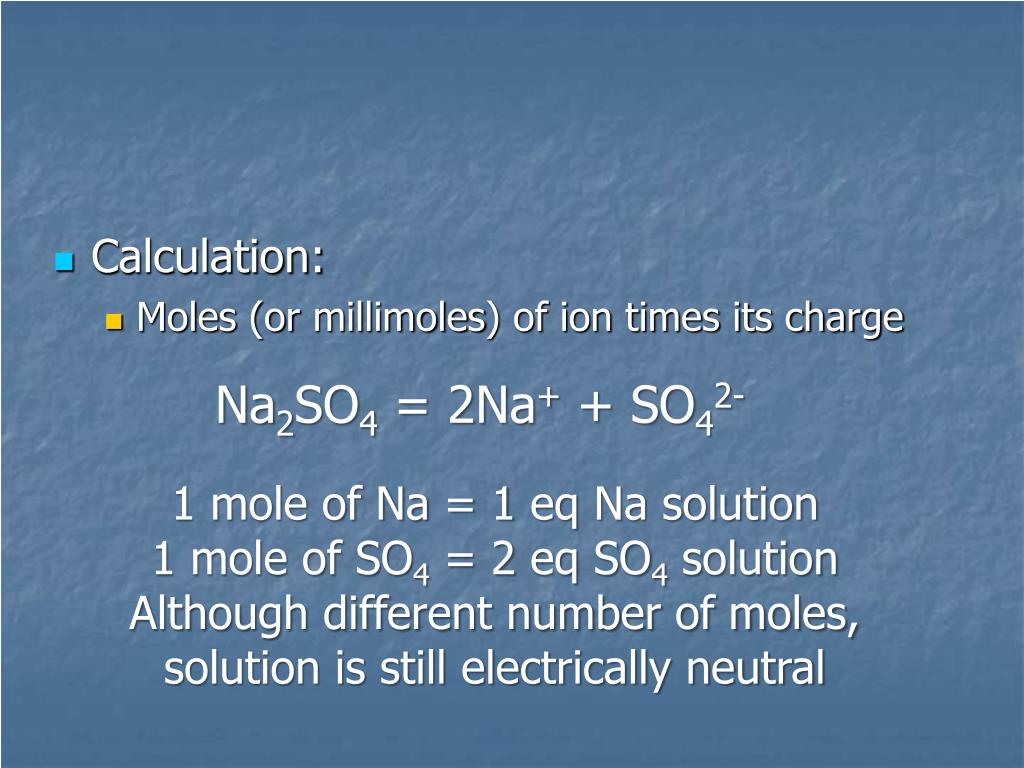

  20. Calculation: • Moles (or millimoles) of ion times its charge Na2SO4 = 2Na+ + SO42- 1 mole of Na = 1 eq Na solution 1 mole of SO4 = 2 eq SO4 solution Although different number of moles, solution is still electrically neutral

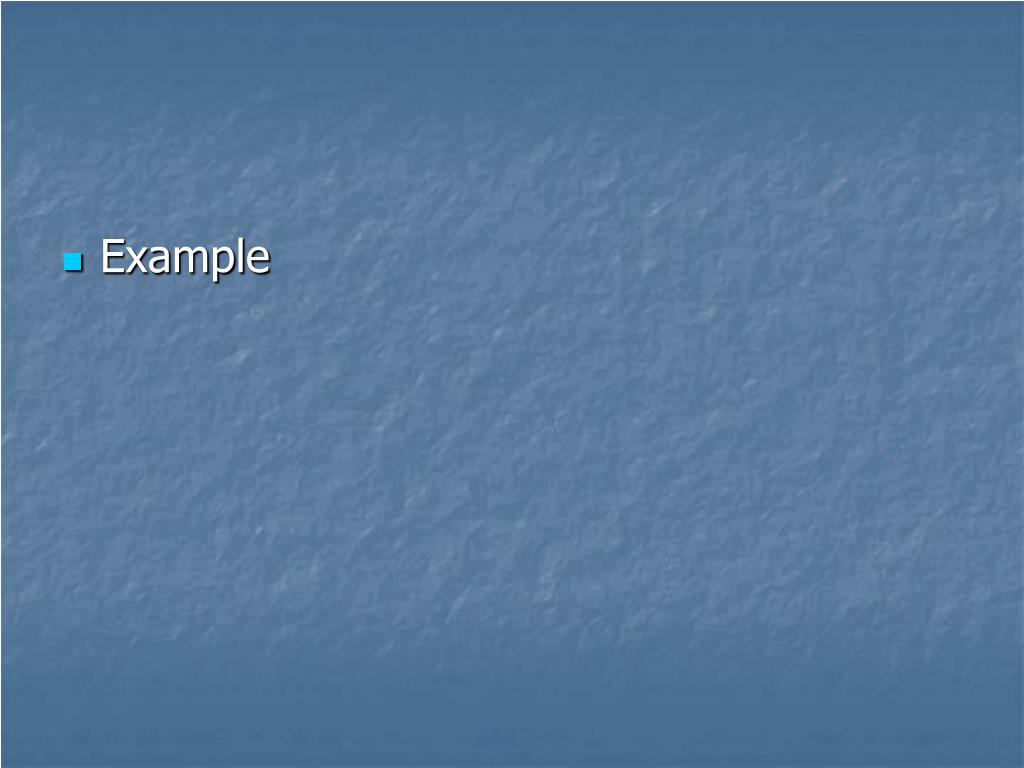

  21. Example

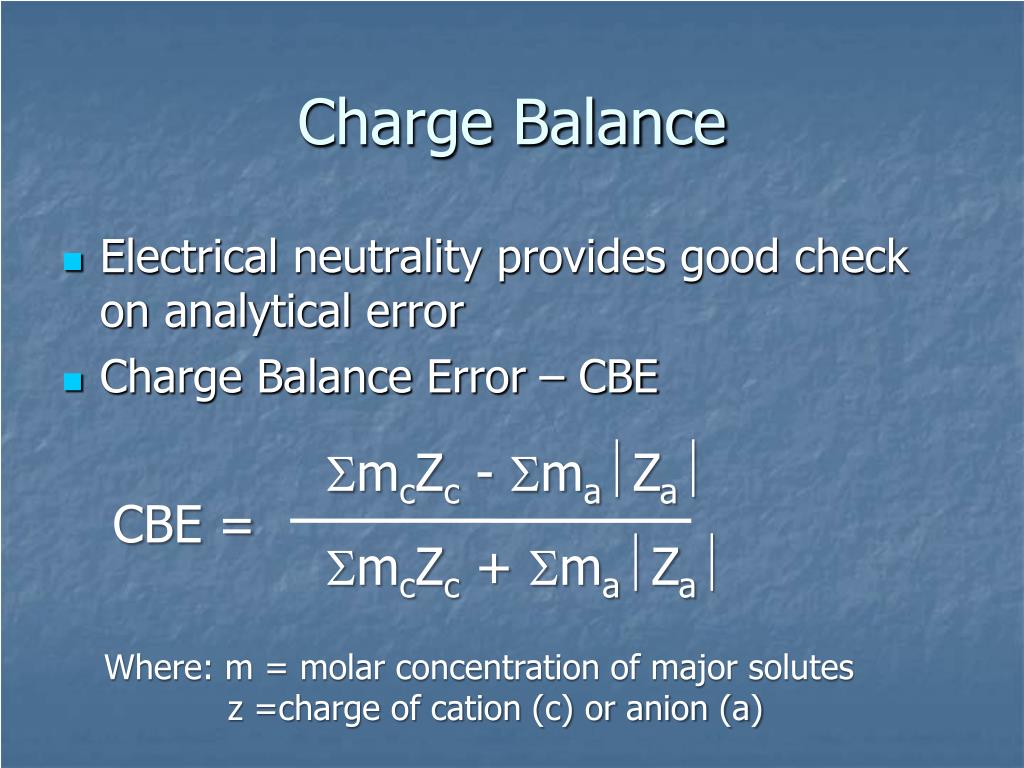

  22. Charge Balance • Electrical neutrality provides good check on analytical error • Charge Balance Error – CBE SmcZc - SmaZa CBE = SmcZc + SmaZa Where: m = molar concentration of major solutes z =charge of cation (c) or anion (a)

  23. Possible causes of errors • Significant component not measured • Commonly alkalinity – can be estimated by charge balance • Analytical error • +5% difference OK – acceptable • + 3% good • 0% probably impossible

  24. Graphical data presentation • Stiff diagram – geographic distribution • Piper diagram – comparison of large numbers of samples

  25. Stiff Diagrams Cations on left Anions on right Top K+Na & Cl = seawater Middle Ca & HCO3 (alkalinity) most fresh water Bottom Mg & SO4 – other major component 4th optional – redox couples

  26. Free software for stiff diagrams • http://www.twdb.state.tx.us/publications/reports/GroundWaterReports/Open-File/Open-File_01-001.htm

  27. Piper Diagrams • Two triangular diagrams • Projected on quadralinear diagram • Very useful figure for comparing concentrations of water

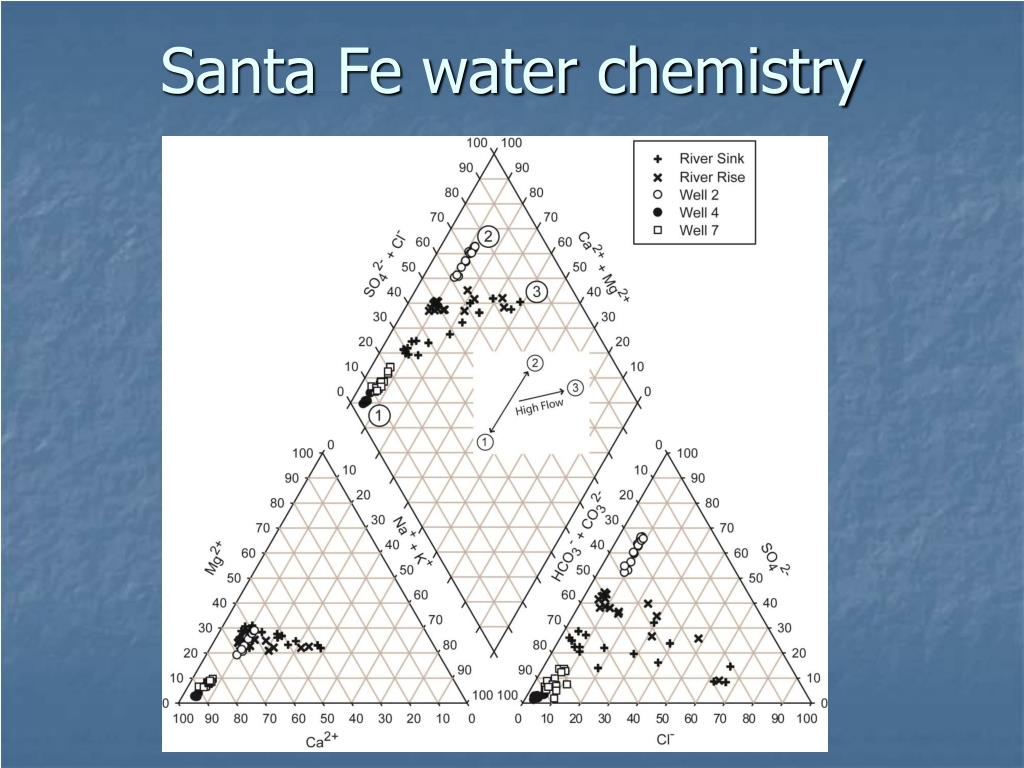

  28. Santa Fe water chemistry

  29. Construction • Convert concentrations to meq/L • Use major cations and anions concentrations • Cations = Ca, Mg, Na + K • Anions = SO4, Cl, HCO3 + CO3 (or alkalinity)

  30. Calculate %’s of each element on ternary diagram • For example Ca is: • Plot %’s on ternary diagrams • Project each % onto diamond diagrams [Ca] *100 [Ca] + [Mg] + [Na + K]

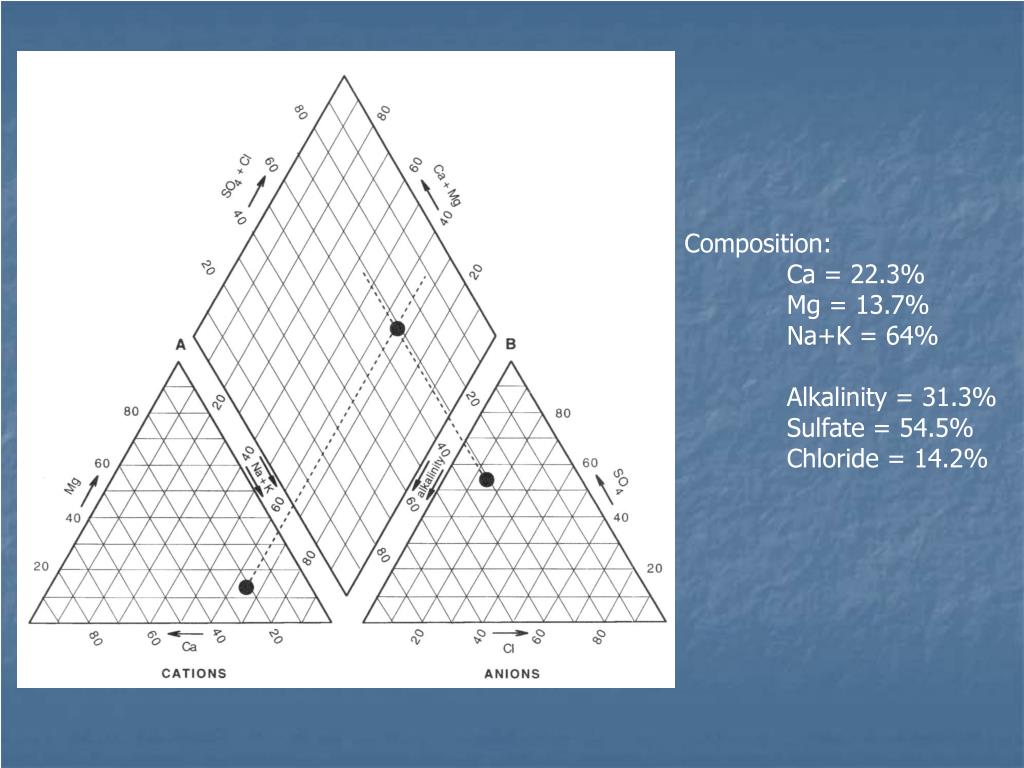

  31. Composition: Ca = 22.3% Mg = 13.7% Na+K = 64% Alkalinity = 31.3% Sulfate = 54.5% Chloride = 14.2%

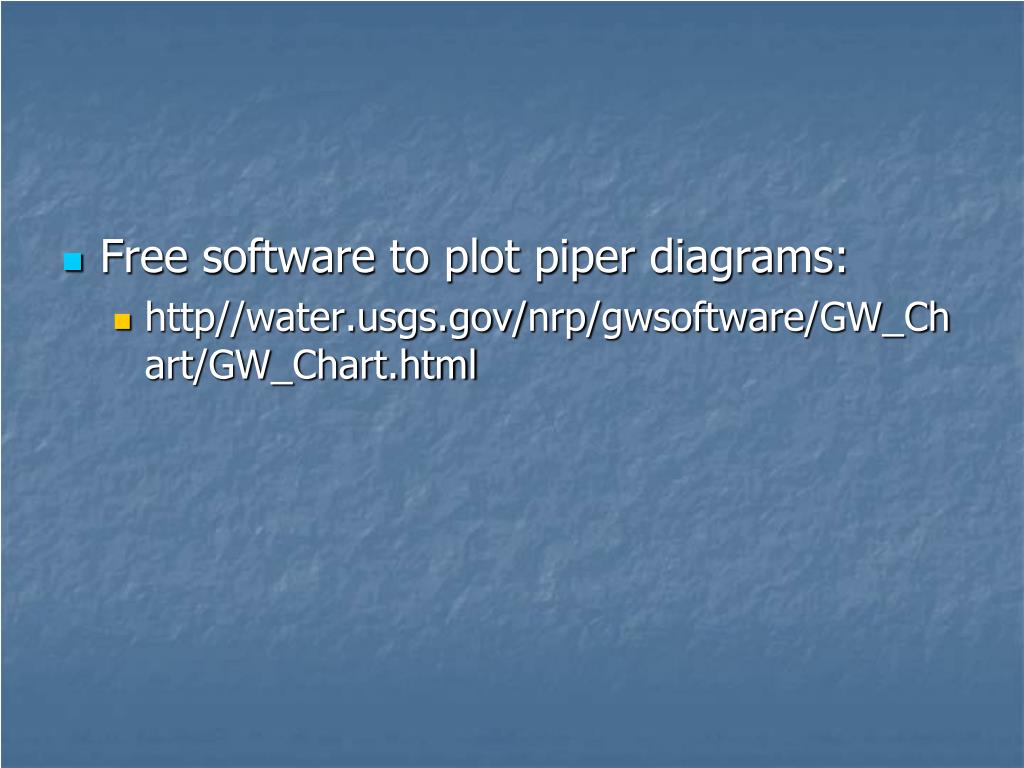

  32. Free software to plot piper diagrams: • http//water.usgs.gov/nrp/gwsoftware/GW_Chart/GW_Chart.html
