Technical proposal for dvd r file system specifications

WG3-7/24/98-7

Technical ProposalforDVD-R File System Specifications

July 24 , 1998

Matsushita Electric Industrial Co., Ltd.


Concept

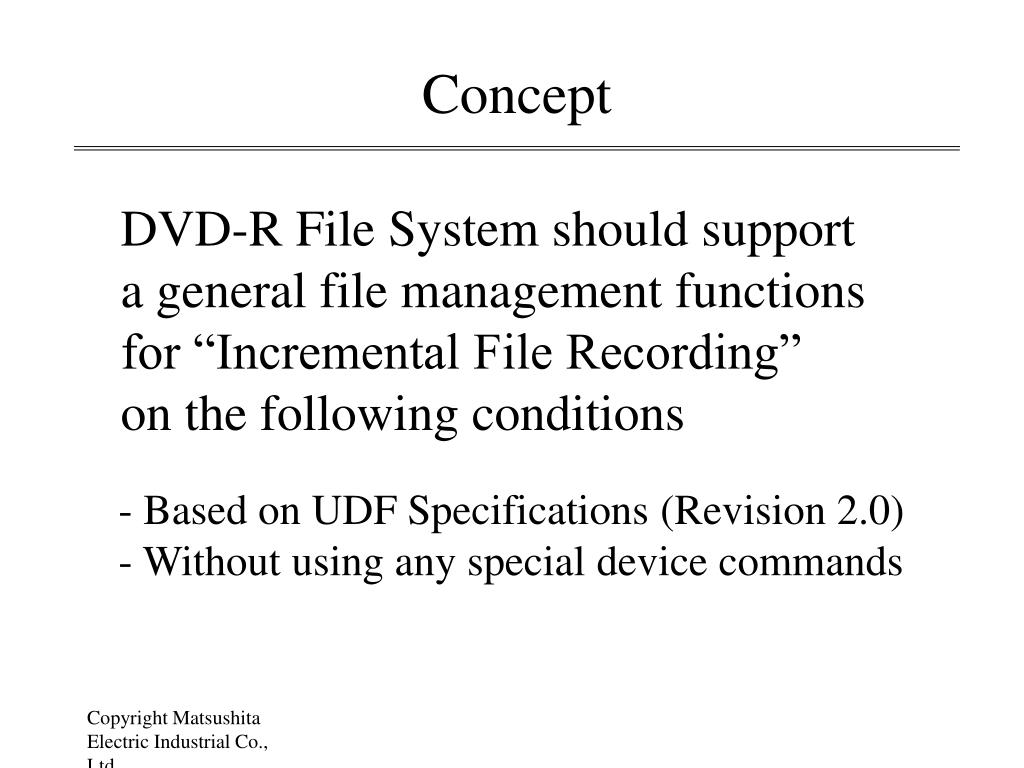

Concept

DVD-R File System should support

a general file management functions

for “Incremental File Recording”

on the following conditions

- Based on UDF Specifications (Revision 2.0)

- Without using any special device commands


Outline of current specifications version1 0

Lead-in Area

Volume/File Structure

& Files

Border-out Area

Border-in Area

File Structure

& Files

Border-out Area

Unrecorded

Area

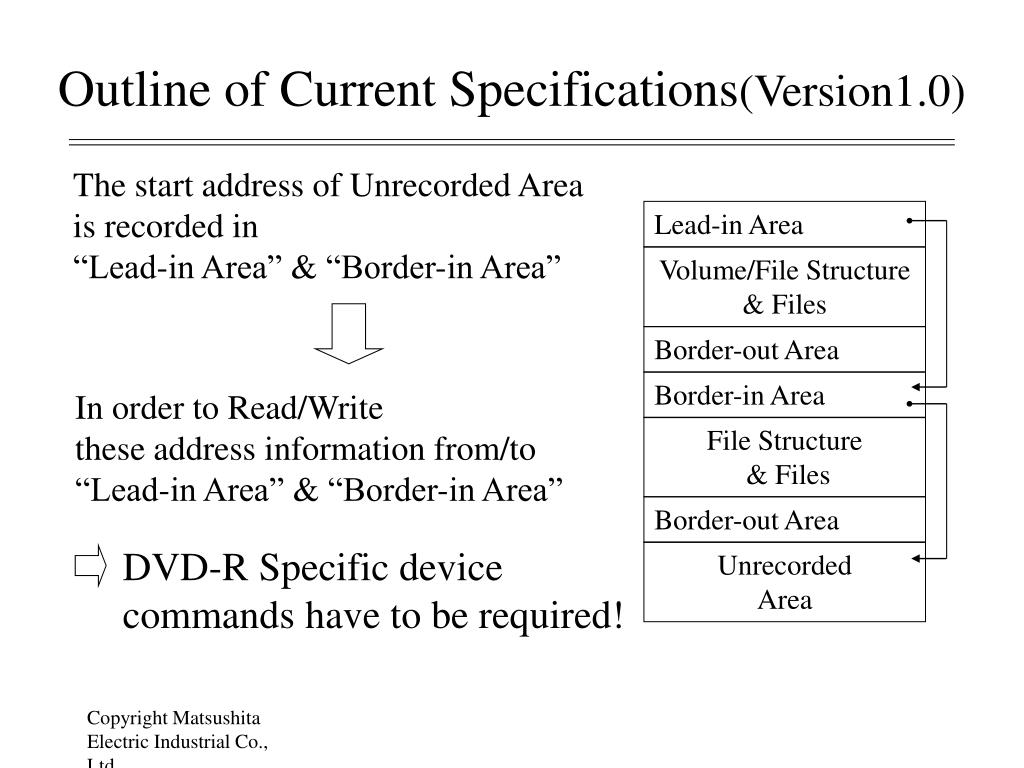

Outline of Current Specifications(Version1.0)

The start address of Unrecorded Area

is recorded in

“Lead-in Area” & “Border-in Area”

In order to Read/Write

these address information from/to

“Lead-in Area” & “Border-in Area”

DVD-R Specific device

commands have to be required!


New solution for this issue

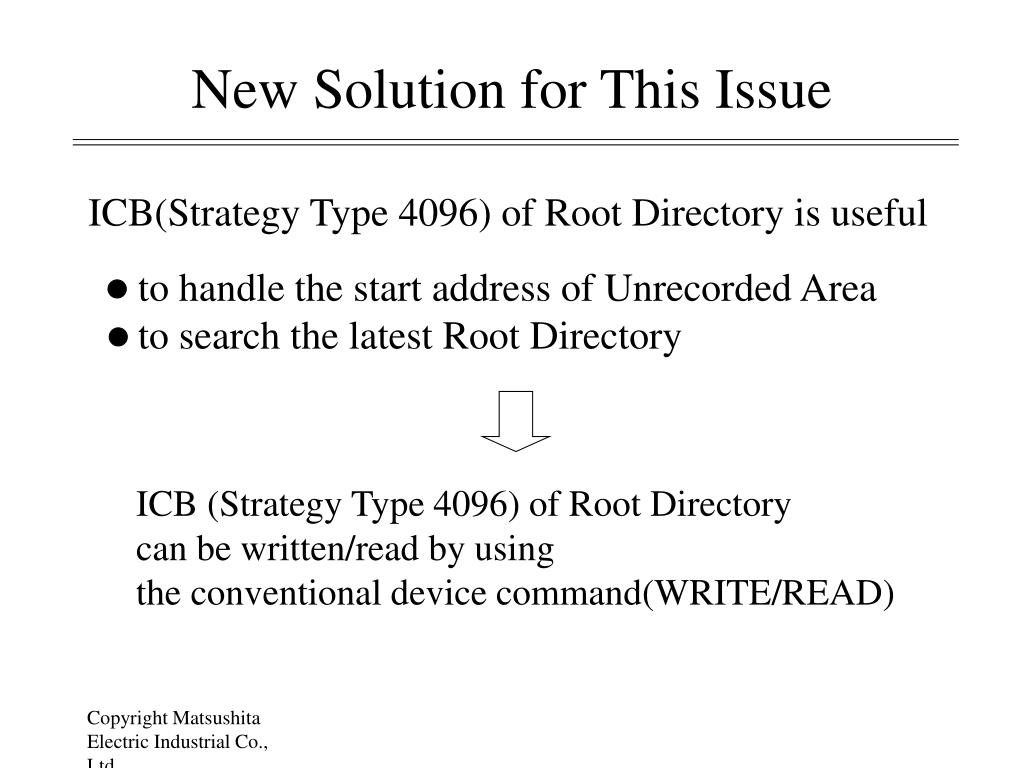

New Solution for This Issue

ICB(Strategy Type 4096) of Root Directory is useful

to handle the start address of Unrecorded Area

to search the latest Root Directory

ICB (Strategy Type 4096) of Root Directory

can be written/read by using

the conventional device command(WRITE/READ)


Disc format operation
Disc Format Operation

On Format

The first generation of ICB

(Root Directory) has

the start address of

“Unrecorded Area”

Write operation


How to write a file

File-a

Dir-A

Root

How to Write a file

On write “File-a” of “Dir-A”

1. Find “Unrecorded Area”.

(①+②+③)

2. Write files and

related file structure.(④)

3. Write “Over-run Extent”.(⑤)

4. Write updated ICB.(⑥)


How to read file

File-a

Root

Dir-B

Dir-A

File-b

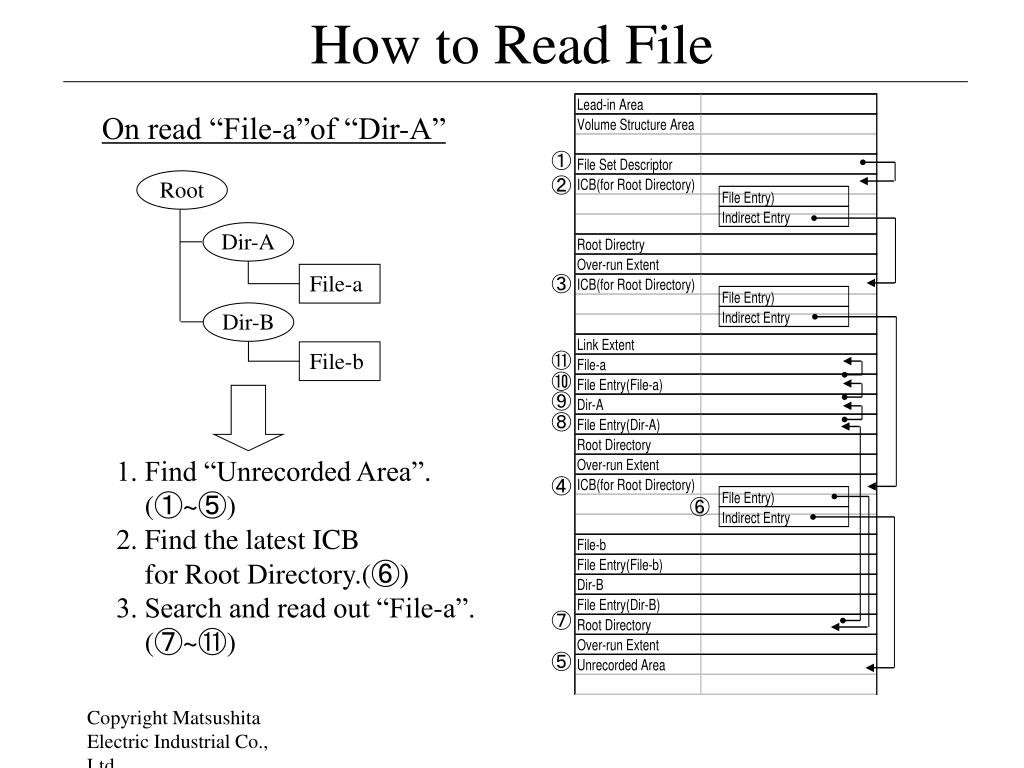

How to Read File

On read “File-a”of “Dir-A”

1. Find “Unrecorded Area”.

(①~⑤)

2. Find the latest ICB

for Root Directory.(⑥)

3. Search and read out “File-a”.

(⑦~⑪)


Summary
Summary

ICB(Strategy Type 4096) of Root Directory is useful

to handle the start address of Unrecorded Area

to search the latest Root Directory

ICB(Strategy Type 4096) is supported by

DVD-ROM & DVD-RAM File System Specifications

New Solution for DVD-R is consistent with

DVD-ROM & DVD-RAM File System Specifications
