  1. Energy, environment, justice Chris Greacen Palang Thai www.palangthai.org

  2. Outline • Problems • Global warming (only part of the “energy-environment crisis”) • Causes • Impacts • Solutions? • Saving energy • Renewable energy

  3. Getting hotter:1000 years of global temperature

  4. Global temperature dramatically increases, especially during the last decade and scientists predicts the future surface temperature to be … During the last 100 years ช่วงที่มีการสังเกตการณ์ Projections in the next 100 years ในรอบ 1,000 ปีที่ผ่านมา Source: IPCC, 2001 Seehttp://www.ipcc.ch/present/graphics/2001syr/small/05.24.jpg

  5. Greenhouse effect – how greenhouse gases make the world hotter

  6. How the world gets hotter

  7. Rising CO2 – measured since 1958

  8. Per Capita CO2 emissions from fossil fuels and industry, 1996 Thailand (1997): 0.77

  9. Cumulative CO2 emissions 1900-1999 From fossil fuel combustion and land-use change From WRI (Baumert and Kete 2002)

  10. Per capita income (PPP) 1999 From WRI (Baumert and Kete 2002)

  11. The Champagne Glass UNDP, Human Development Report, 1998

  12. Electricity use in Thailand in 2003 Source: Figure 19, Statistical Report Fiscal Year 2003 Power Forecast and Statistics Analysis Department System Control and Operation Division. Report No. SOD-FSSR-0404-05

  13. โรงไฟฟ้าพลังความร้อน โรงไฟฟ้าพลังน้ำ โรงไฟฟ้าพลังความร้อนร่วม แม่เมาะ 2,625 MW เทินหินบุน 214 MW สิริกิติ์ 500 MW ภูมิพล 736 MW น้ำพอง 710 MW N ลานกระบือ 169 MW NE ปากมูล 136 MW เขาแหลม 300 MW ห้วยเฮาะ 133 MW C ลำตะคอง 500 MW ศรีนครินทร์ 720 MW วังน้อย 2,031 MW • EPEC 350 MW บางปะกง 3,675 MW บ่อวิน 713 MW • TECO 700 MW • ราชบุรี • 3,645 MW ระยอง 1,232 MW IPT 700 MW Metro เขต กทม. พระนครใต้ 2,288 MW หนองจอก 366 MW S • ขนอม 824 MW รัชชประภา 240 MW ระบบส่ง 230,000 โวลต์ ระบบส่ง 500,000 โวลต์ • สุราษฎร์ 240 MW โรงไฟฟ้ากังหันแก็ส บางลาง 72 MW

  14. Small residential customers use very little

  15. 1993 (2536) 2000 (2543) Some effects of climate change… Snow on Mt. Kilmanjaro (Kenya) almost all melted within the past 7 years Source: IUCN

  16. Ice melting areas Polar ice melting Albedo Effect กรีนแลนด์ บริเวณขั้วโลกเหนือ Source of picture: bbc.co.uk

  17. Source: Government of South Australia, 2005 See http://www.climatechange.sa.gov.au/greenhouse/greenhouse.htm

  18. Impacts: flooding & sea-level rise

  19. Impact on Bangladesh of sea rise of 1.5 meters Source: UNEP/GRID Seehttp://www.grida.no/climate/vital/33.htm

  20. Apart from CO2 reduction, adaptation is needed…

  21. Impacts: extreme weather events

  22. Economic impacts -- especially from extreme weather “2005 Atlantic hurricane season has clearly been the most active season on record” www.pewclimate.org/hurricanes.cfm#5

  23. Impacts: in parts of the world -- less rain, less crops

  24. Source: BBC UK, 2005; UNEP, 2006 Seehttp://www.grida.no/climate/vital/32.htm

  25. Climate change used to justify…BIG DAMS • Ecological/social damage from flooding • Decimated fish stocks • Especially impacts rural politically disempowered • (Often does cause climate change)

  26. NUCLEAR • Expensive • Waste deadly for at least 250,000 years • We can’t figure out how to dispose of waste • Unavoidable weapons linkages

  27. Global warming is only a tiny part of the energy/ecology/society story… • One large shopping mall (average consumption): 10 Megawatt • Pak Mun Dam (average production): 40 Megawatt • Fish stocks decimated • 10 years of protest, 5000 villagers • Communities forcefully relocated

  28. Are there alternatives? … yes… • Save energy • Use clean (renewable) energy

  29. (Real) Buddhist values • Moderation / simplicity • Emphasis on “being” rather than “having”

  30. Energy waste in a typical pumping system

  31. Saving electricity is cheaper than generating it Demand Side Management (saving electricity) Source: The World Bank (1993)

  32. GHGs emissions from household and daily activities ที่มา : Australian Greenhouse Office (2003) See http://www.greenhouse.gov.au/gwci/index.html

  33. ปลูกสร้างอาคารให้สอดคล้องกับทิศการรับความร้อน ปลูกต้นไม้ให้ความร่มรื่น และช่วยลดอุณหภูมิ South ที่มา : Australian Greenhouse Office (2003)

  34. California energy conservation programs save $1000 per family/year

  35. Source: Presentation by Ministry of Energy at Energy Strategy Workshop chaired by Prime Minister Thaksin Shinawatra. 28 August 2003

  36. Very little electricity comes from renewables… 0.6% from Renewable Energy Source: EGAT PDP 2003

  37. Old way New way Power plant Power plant Biomass Wind power Biomass Solar Customers Energy efficient end-use

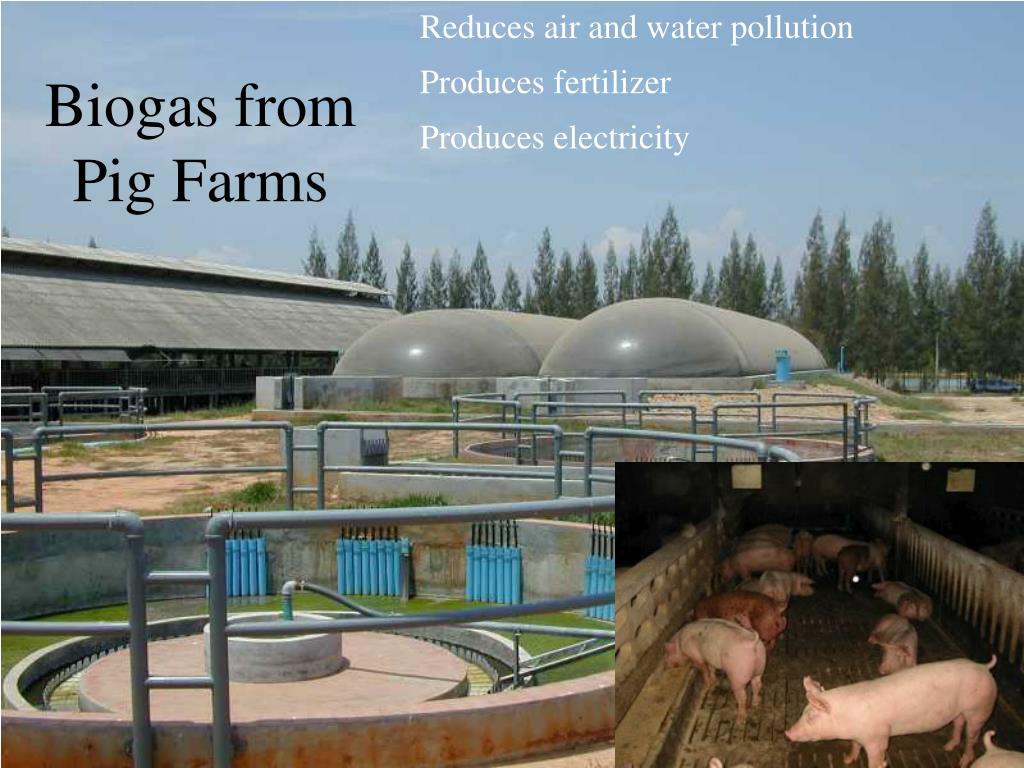

  38. Reduces air and water pollution Produces fertilizer Produces electricity Biogas from Pig Farms

  39. Biogas from Pig Farms

  40. Korat Waste to Energy - biogas • Uses waste water from cassava to make methane • Produces gas for all factory heat (30 MW thermal) + 3 MW of electricity • Earns high market returns • Developer estimates 300 MW from waste water + 800 MW from wet cake

  41. Korat Waste to Energy - biogas • 3 x 1 MW Jenbacher gas generators

  42. Micro-hydroelectricity Source: Inversin, A. R. (1986). Micro-Hydropower Sourcebook.

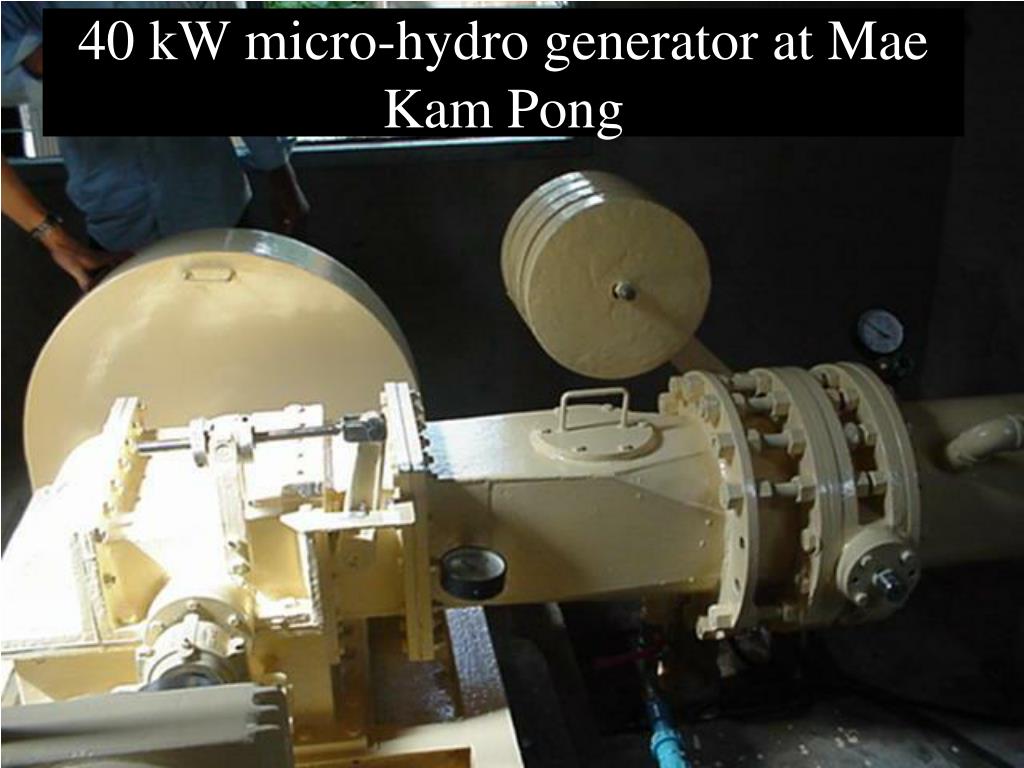

  43. 40 kW micro-hydro generator at Mae Kam Pong

  44. Replacing small diesel generators with renewable energy
