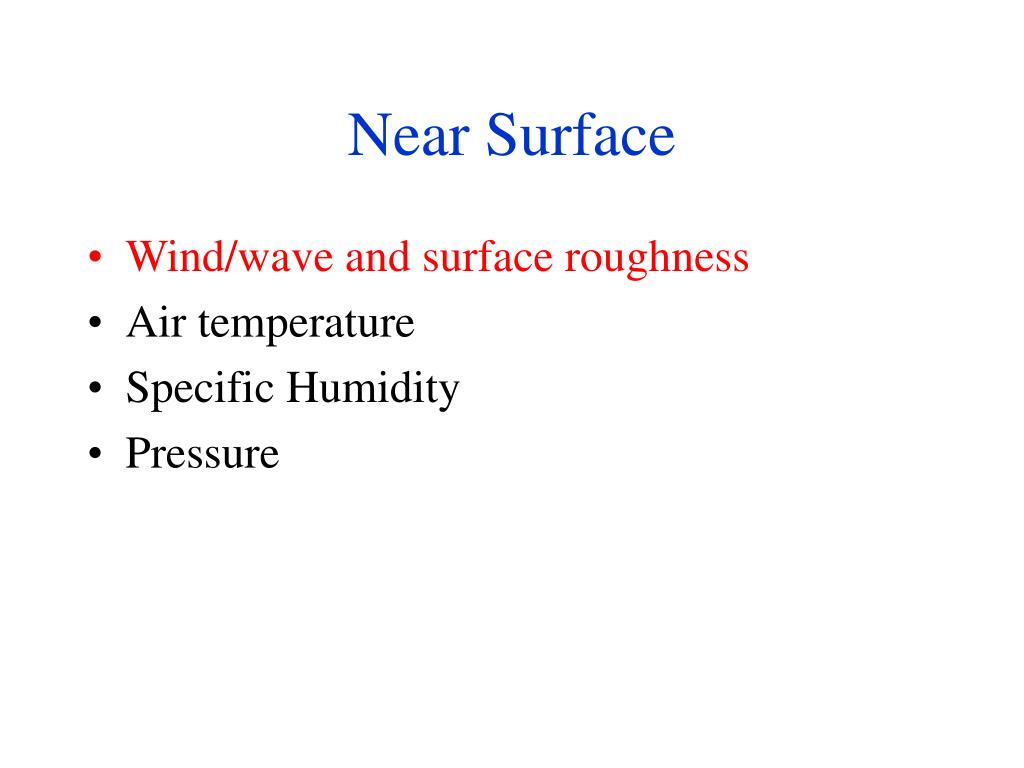

  1. Near Surface • Wind/wave and surface roughness • Air temperature • Specific Humidity • Pressure

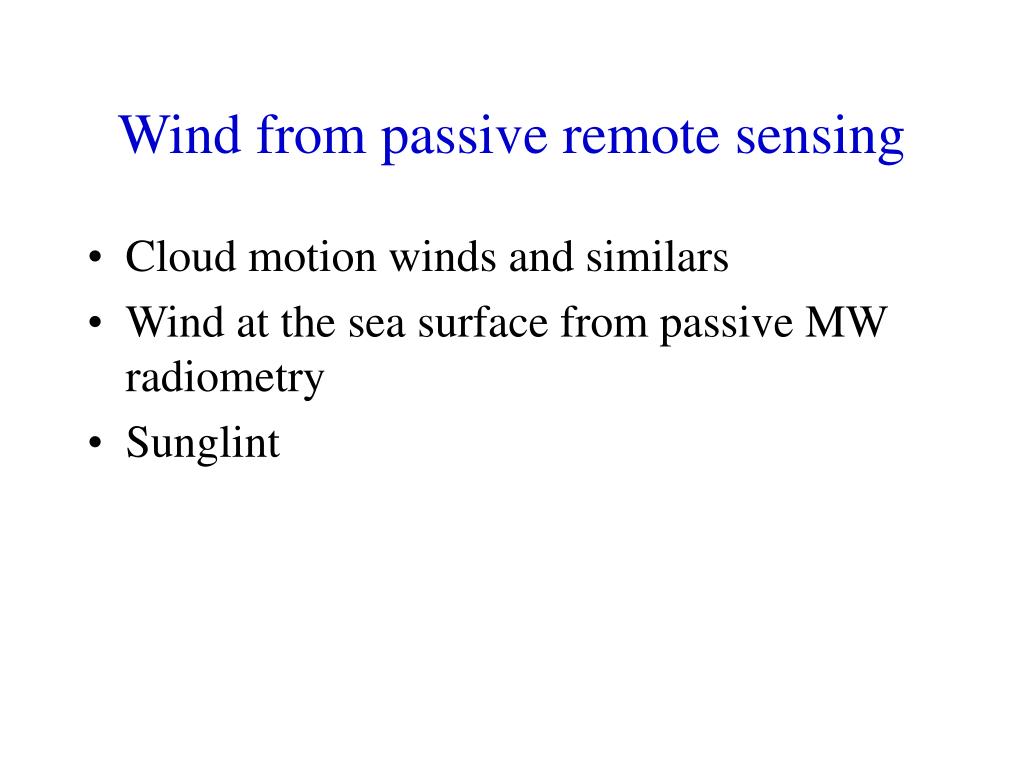

  2. Wind from passive remote sensing • Cloud motion winds and similars • Wind at the sea surface from passive MW radiometry • Sunglint

  3. Data coverage (received)

  4. Another type of inversion: Polar WV winds from MODIS Source: P. Menzel, 2003

  5. POLDER partial (6 out of about 14) sequence of images observing the same pixel Sunglint Specular (flat sea) reflection component SUNGLINT In principle wind intensity can be estimated over ocean by measuring the angular extension of the sunglint area.

  6. Surface emissivity - Oceans Plane surface: Sea-water permittivity Fresnel equations (I, Q) Wind roughened surface: Sea-water permittivity Fresnel equations (I, Q) Large-scale waves Gravity-capillary, capillary waves (> 2m/s) Whitecaps (> 7 m/s) Foam (> 10-12 m/s) Directional wind roughened surface: Sea-water permittivity Fresnel equations (I, Q, U, V) Large-scale waves Gravity-capillary, capillary waves (> 2m/s) Whitecaps (> 7 m/s) Foam (> 10-12 m/s)

  7. Modelled emissivity - Oceans 10.7 GHz 19.35 GHz  = 53.1o  = 0, 180o v-pol. h-pol. 37.0 GHz 85.5 GHz Comparison of different ocean surface emissivity models Wind speed [m/s]

  8. Motivation Available observations for latent heat flux over oceans based on SSM/I: Spatial resolution Temporal resolution of observation 2007/02/13, Local Evening Passes 2007/02/13, Local Morning Passes

  9. WindSat Payload Description The 6.8 channel is dual-polarization (vertical and horizontal), and is more sensitive to sea surface temperature (SST) than to winds. Thus it is used to remove environmental noise due to variations in SST. Similarly, the 23.8 channel has dual-polarization and is highly sensitive to atmospheric water vapor. Thus, measurements at 23.8 GHz enable algorithms to correct for the effects of atmospheric attenuation on signals from the ocean surface. WindSat uses a 1.8-m offset reflector antenna fed by 11 dual-polarized feed horns. The antenna beams view the Earth at incidence angles ranging from 50 to 55°. Table 1 shows the nominal beamwidth and resulting surface spatial resolution of each band. The Coriolis satellite orbits Earth at an altitude of 840 km in a Sun-synchronous orbit. The satellite completes just over 14 orbits per day. The orbit and antenna geometry result in a forward-looking swath of approximately 1000 km and an aft-looking swath of about 350 km. The fully integrated WindSat payload stands 10 ft tall and weighs approximately 675 lbs. http://www.nrl.navy.mil/WindSat/Description.php

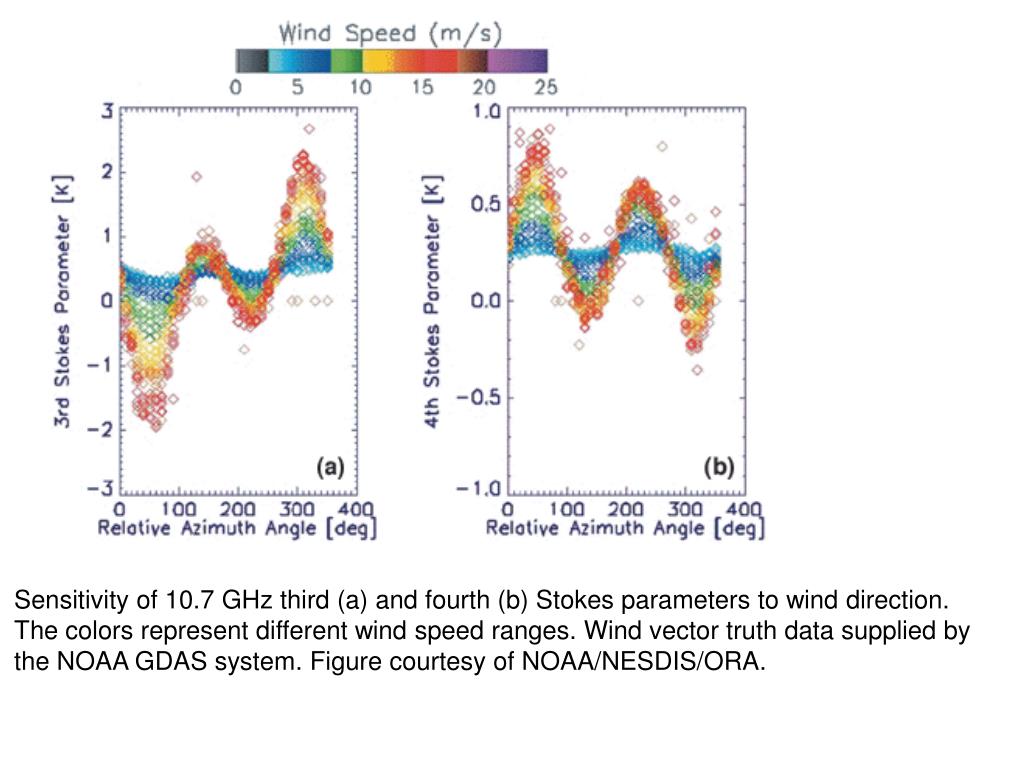

  10. Sensitivity of 10.7 GHz third (a) and fourth (b) Stokes parameters to wind direction. The colors represent different wind speed ranges. Wind vector truth data supplied by the NOAA GDAS system. Figure courtesy of NOAA/NESDIS/ORA.

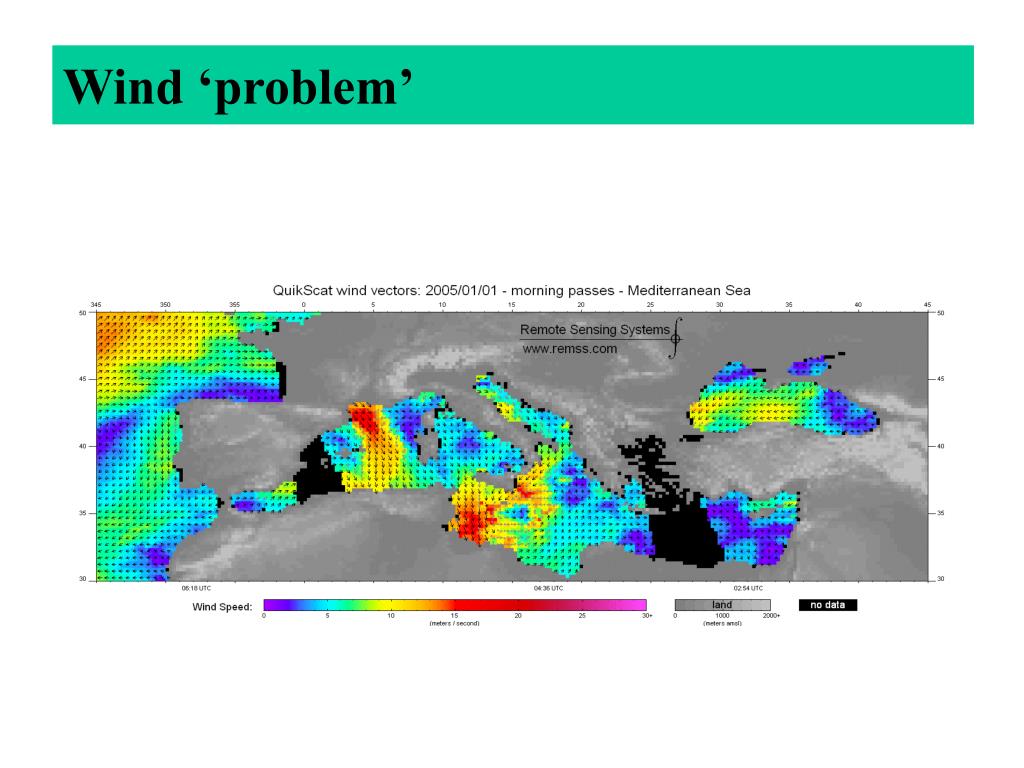

  11. Wind ‘problem’

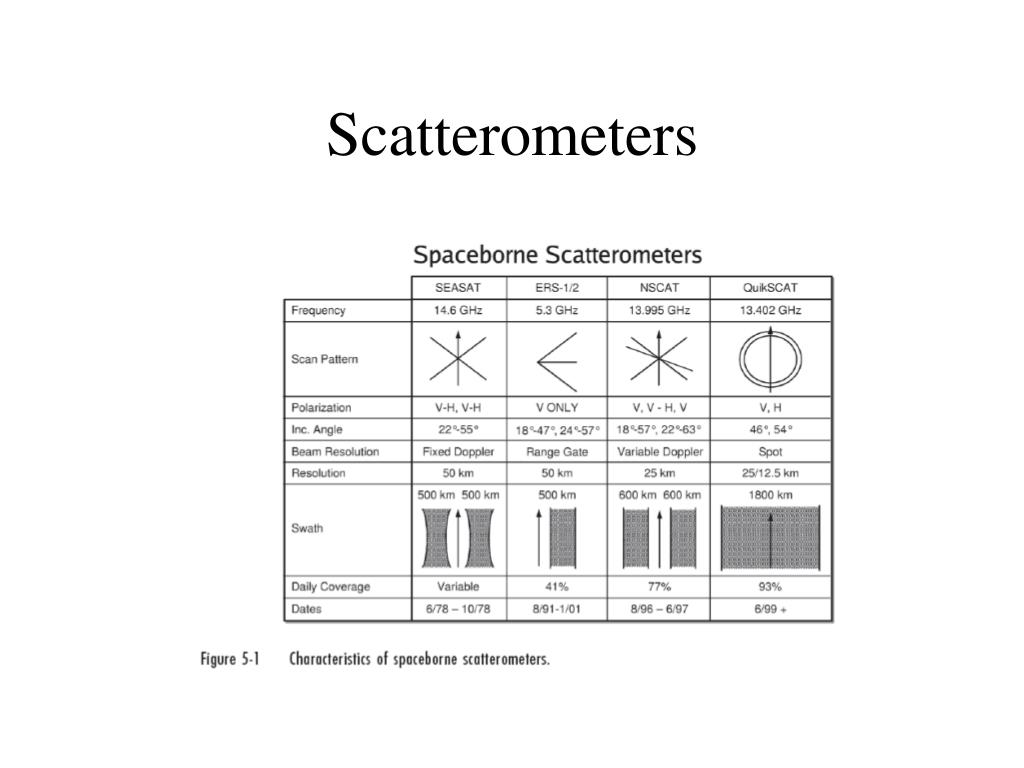

  12. Scatterometers

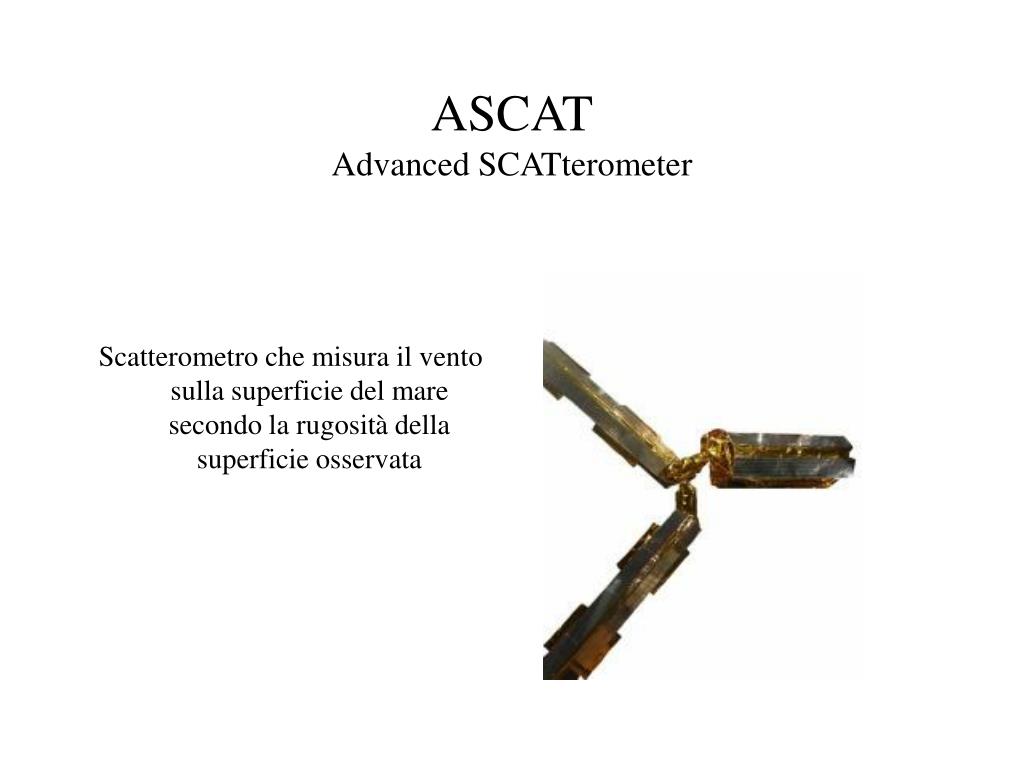

  13. ASCATAdvanced SCATterometer Scatterometro che misura il vento sulla superficie del mare secondo la rugosità della superficie osservata

  14. Prodotti di ASCAT • Velocità e direzione del vento sulla superficie degli oceani • Analisi di vegetazione tropicale • Analisi di ghiaccio polare • Osservazione di comportamenti climatici • Strato di permafrost • Desertificazione • Profili verticali di temperatura e pressione

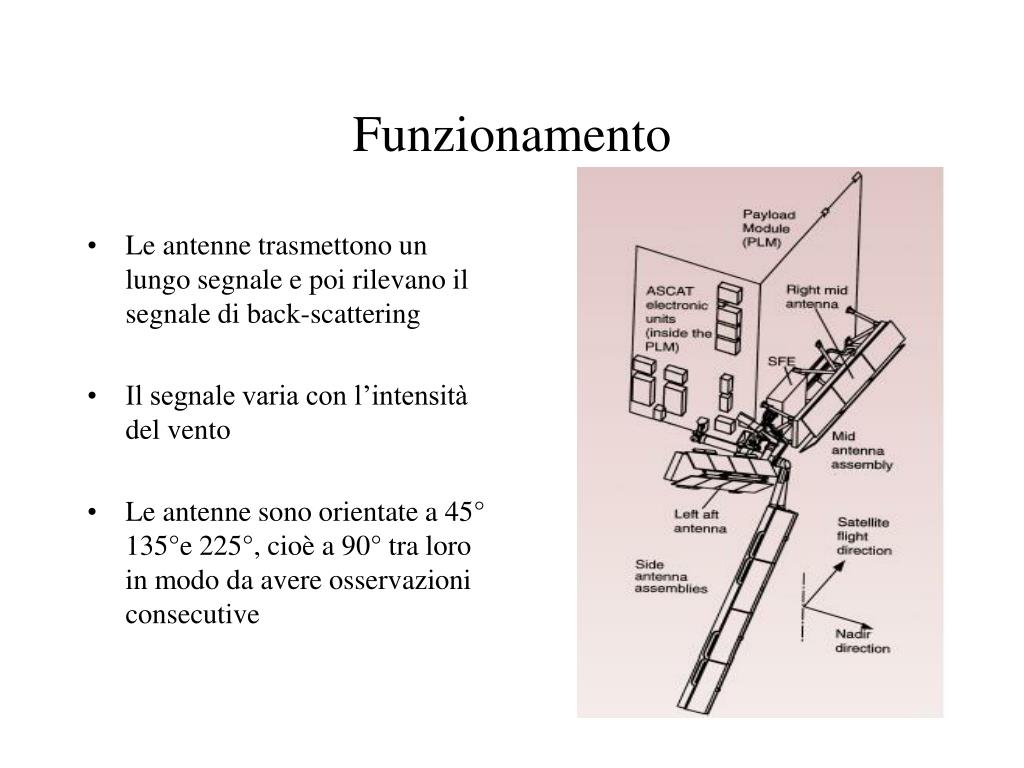

  15. Funzionamento • Le antenne trasmettono un lungo segnale e poi rilevano il segnale di back-scattering • Il segnale varia con l’intensità del vento • Le antenne sono orientate a 45° 135°e 225°, cioè a 90° tra loro in modo da avere osservazioni consecutive

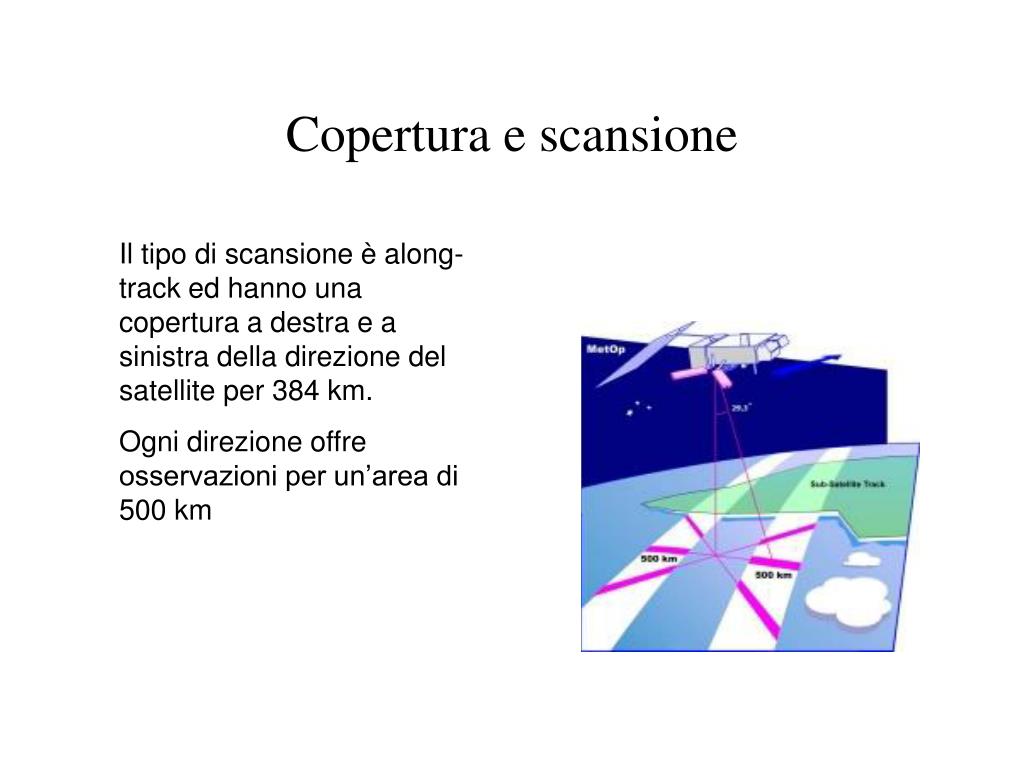

  16. Copertura e scansione Il tipo di scansione è along-track ed hanno una copertura a destra e a sinistra della direzione del satellite per 384 km. Ogni direzione offre osservazioni per un’area di 500 km

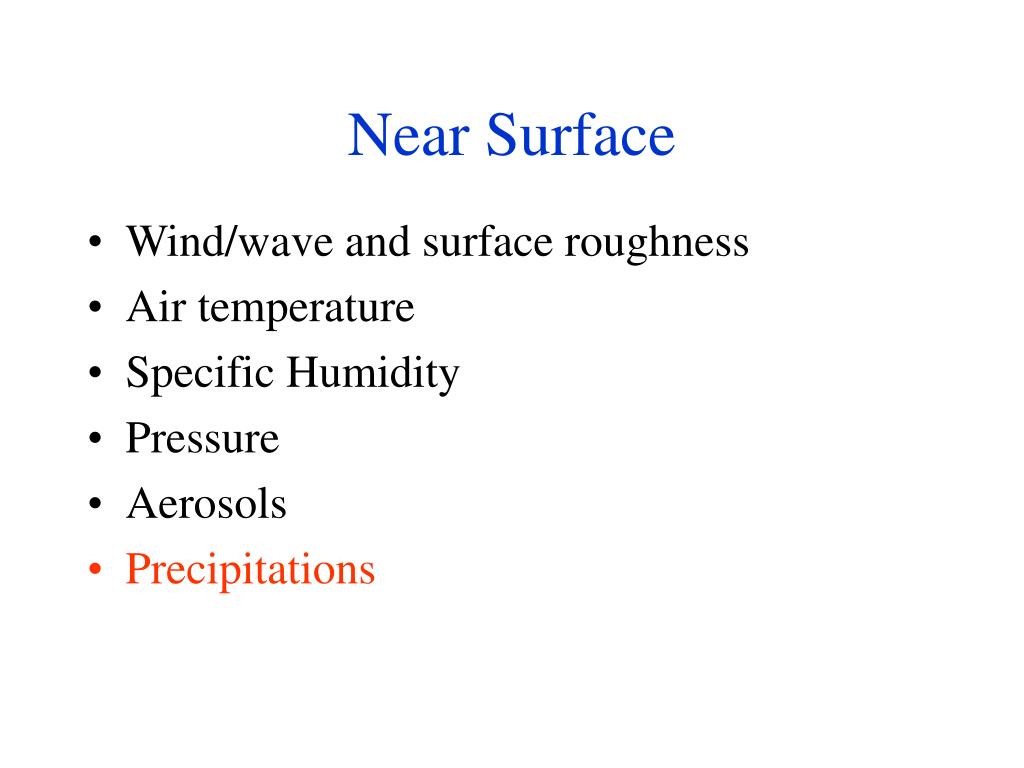

  17. Near Surface • Wind/wave and surface roughness • Air temperature • Specific Humidity • Pressure • Aerosols • Precipitations

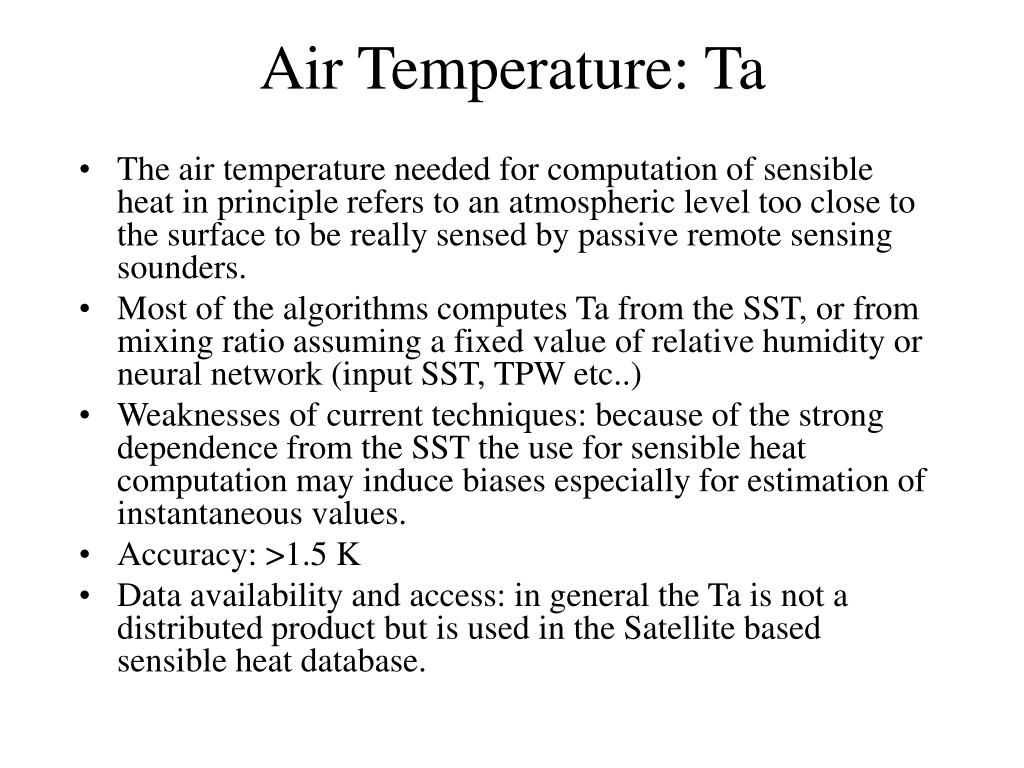

  18. Air Temperature: Ta • The air temperature needed for computation of sensible heat in principle refers to an atmospheric level too close to the surface to be really sensed by passive remote sensing sounders. • Most of the algorithms computes Ta from the SST, or from mixing ratio assuming a fixed value of relative humidity or neural network (input SST, TPW etc..) • Weaknesses of current techniques: because of the strong dependence from the SST the use for sensible heat computation may induce biases especially for estimation of instantaneous values. • Accuracy: >1.5 K • Data availability and access: in general the Ta is not a distributed product but is used in the Satellite based sensible heat database.

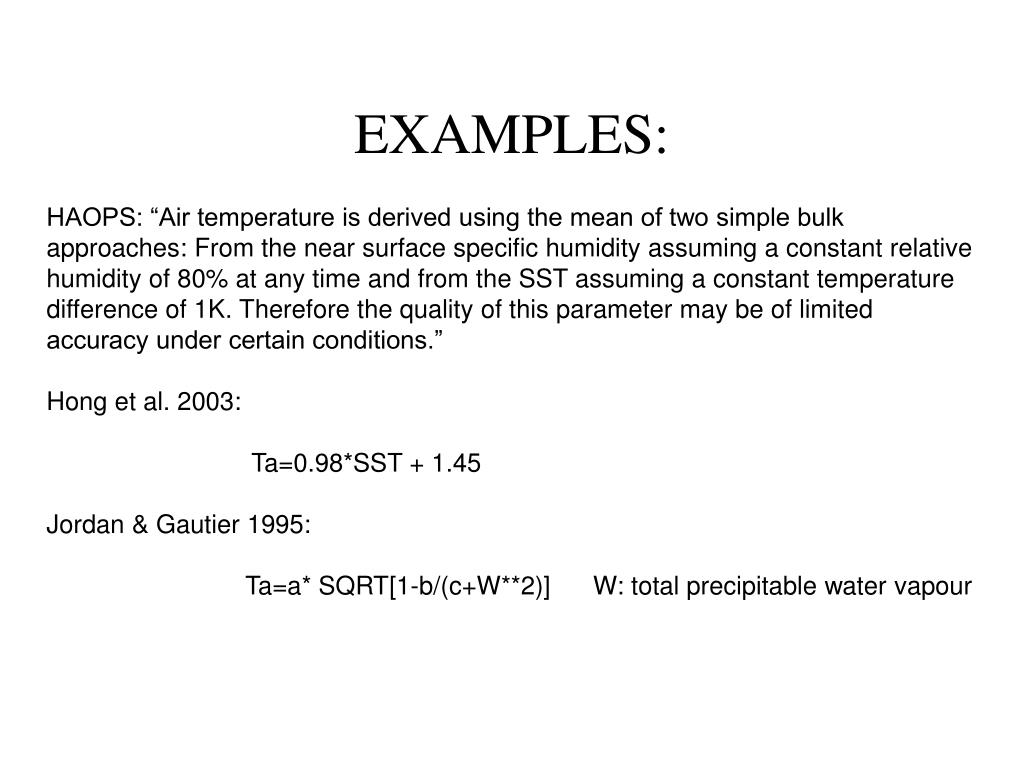

  19. EXAMPLES: HAOPS: “Air temperature is derived using the mean of two simple bulk approaches: From the near surface specific humidity assuming a constant relative humidity of 80% at any time and from the SST assuming a constant temperature difference of 1K. Therefore the quality of this parameter may be of limited accuracy under certain conditions.” Hong et al. 2003: Ta=0.98*SST + 1.45 Jordan & Gautier 1995: Ta=a* SQRT[1-b/(c+W**2)] W: total precipitable water vapour

  20. Meng,L., He,Y., Chen, J., Wu, Y., 2007: Neural network retrieval of ocean surface parameters from SSM/I data, Mon. Weather Rev, 135, 586-597

  21. Near Surface • Wind/wave and surface roughness • Air temperature • Specific Humidity • Pressure • Aerosols • Precipitations

  22. Near surface humidity: Qs • The near surface humidity needed for computation of latent heat in principle refers to an atmospheric level too close to the surface to be really sensed by passive remote sensing sounders. • Most of the algorithms computes Qs with regression from the SST, TPW and integrated water vapour in the lowest 500 m. • Weaknesses of current techniques: because of the dependence from the SST the use for latent heat computation may induce biases especially for estimation of instantaneous values. • All algorithms retrieving Qs use SSM/I observations and therefore have relatively coarse spatial resolution 30 km and problems close to coast

  23. Methods to retrieve near-surface specific humidity

  24. GA: Qa=0.729*SST*Wb+ 0.259*W*Wb-0.259*SST*Wb2+3.26 SC93: Qa=a+b*Wb CH97: Qa=f(Wb,W) found using PCA L86: Q=f(W) based on simple polinomial regression (for monthly mean) Meng,L., He,Y., Chen, J., Wu, Y., 2007: Neural network retrieval of ocean surface parameters from SSM/I data, Mon. Weather Rev, 135, 586-597 Singh,R., Joshi, P.C., Kishtwal, C.M., Pal, P.k, 2006: A new method for estimation of near surface specific humidity over global oceans, Met. And Atm. Phys., 94, 1-10

  25. Accuracy Daily mean of mixing ratio at the surface for the period 1990-2003 at Trapani station.

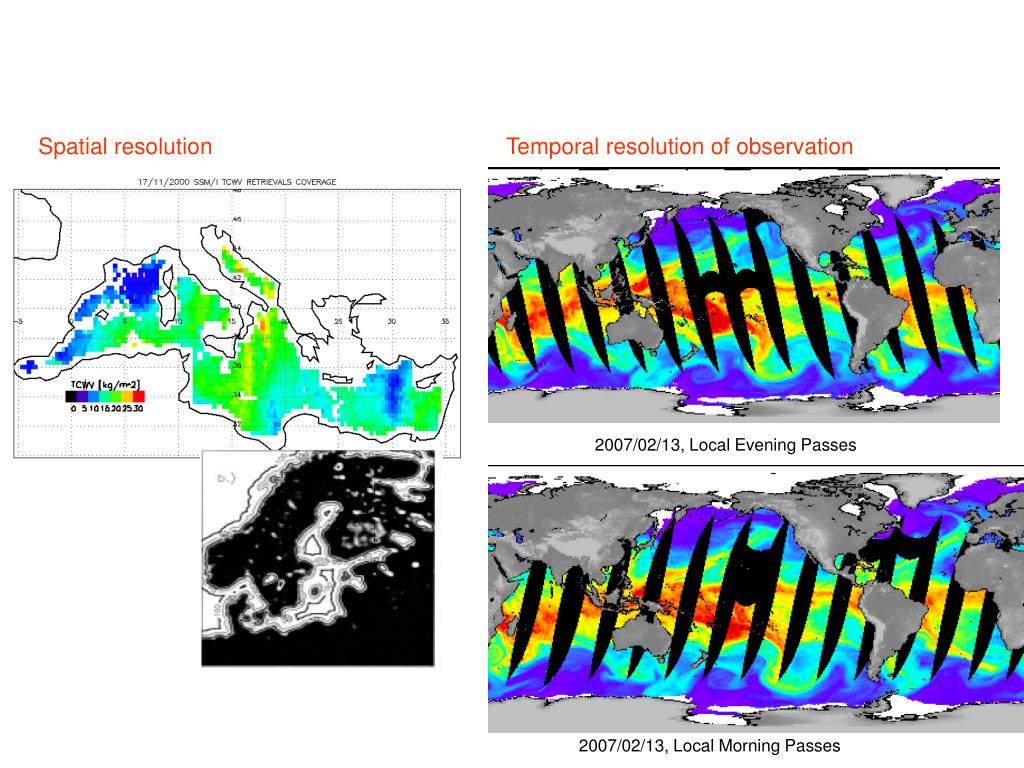

  26. Spatial resolution Temporal resolution of observation 2007/02/13, Local Evening Passes 2007/02/13, Local Morning Passes

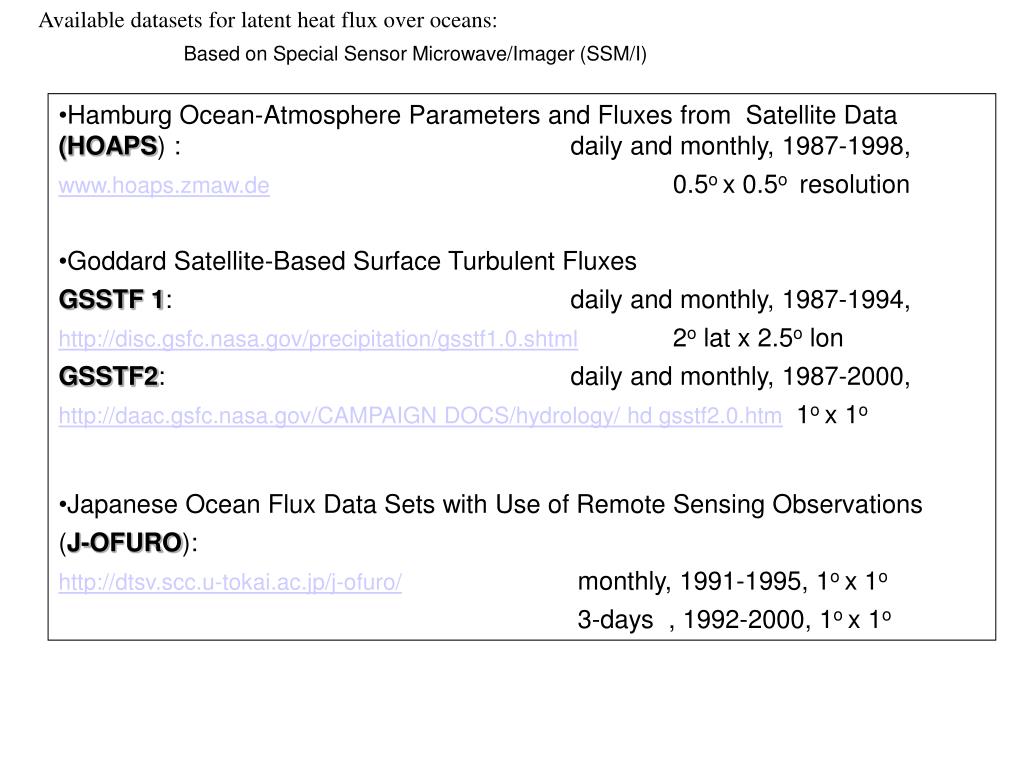

  27. Based on Special Sensor Microwave/Imager (SSM/I) • Hamburg Ocean-Atmosphere Parameters and Fluxes from Satellite Data (HOAPS) : daily and monthly, 1987-1998, www.hoaps.zmaw.de 0.5o x 0.5o resolution • Goddard Satellite-Based Surface Turbulent Fluxes GSSTF 1: daily and monthly, 1987-1994, http://disc.gsfc.nasa.gov/precipitation/gsstf1.0.shtml2o lat x 2.5o lon GSSTF2: daily and monthly, 1987-2000, http://daac.gsfc.nasa.gov/CAMPAIGN DOCS/hydrology/ hd gsstf2.0.htm1o x 1o • Japanese Ocean Flux Data Sets with Use of Remote Sensing Observations (J-OFURO): http://dtsv.scc.u-tokai.ac.jp/j-ofuro/ monthly, 1991-1995, 1o x 1o 3-days , 1992-2000, 1o x 1o Available datasets for latent heat flux over oceans:

  28. Near Surface • Wind/wave and surface roughness • Air temperature • Specific Humidity • Pressure • Aerosols • Precipitations

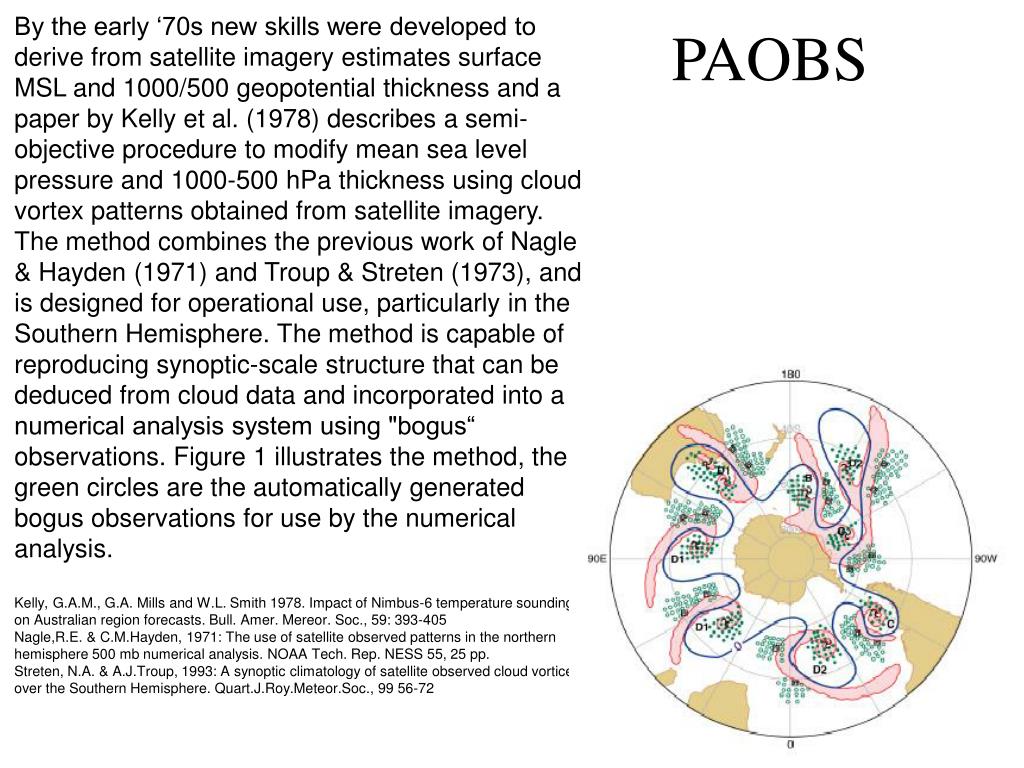

  29. By the early ‘70s new skills were developed to derive from satellite imagery estimates surface MSL and 1000/500 geopotential thickness and a paper by Kelly et al. (1978) describes a semi-objective procedure to modify mean sea level pressure and 1000-500 hPa thickness using cloud vortex patterns obtained from satellite imagery. The method combines the previous work of Nagle & Hayden (1971) and Troup & Streten (1973), and is designed for operational use, particularly in the Southern Hemisphere. The method is capable of reproducing synoptic-scale structure that can be deduced from cloud data and incorporated into a numerical analysis system using "bogus“ observations. Figure 1 illustrates the method, the green circles are the automatically generated bogus observations for use by the numerical analysis. Kelly, G.A.M., G.A. Mills and W.L. Smith 1978. Impact of Nimbus-6 temperature soundings on Australian region forecasts. Bull. Amer. Mereor. Soc., 59: 393-405 Nagle,R.E. & C.M.Hayden, 1971: The use of satellite observed patterns in the northern hemisphere 500 mb numerical analysis. NOAA Tech. Rep. NESS 55, 25 pp. Streten, N.A. & A.J.Troup, 1993: A synoptic climatology of satellite observed cloud vortices over the Southern Hemisphere. Quart.J.Roy.Meteor.Soc., 99 56-72 PAOBS

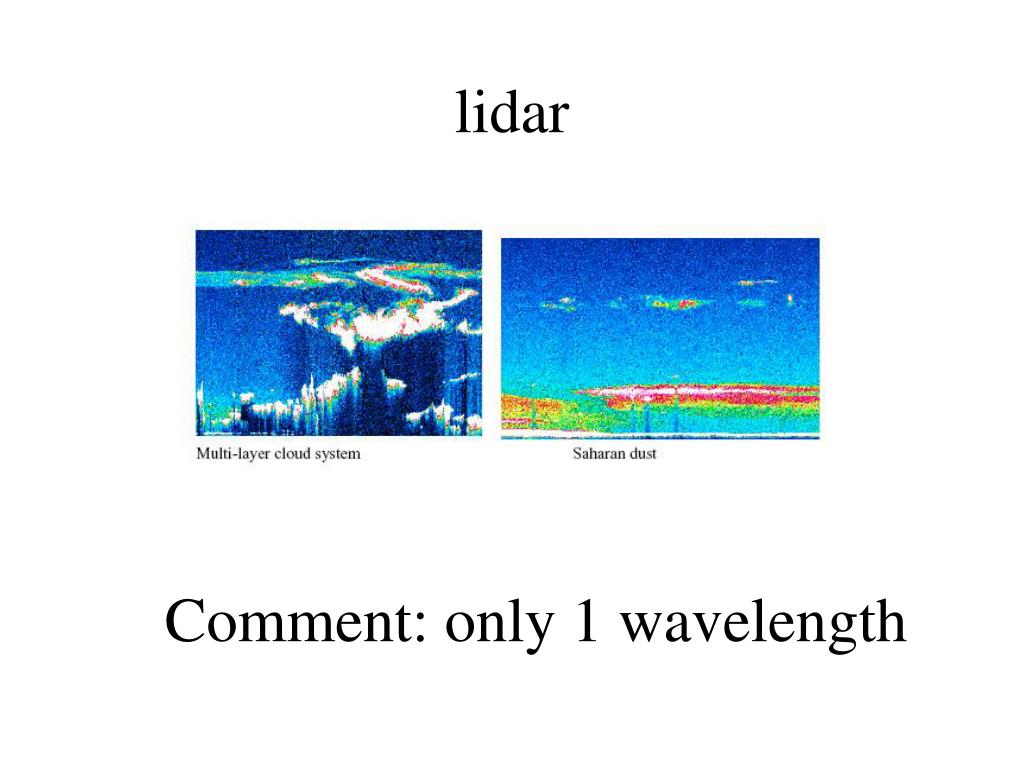

  30. lidar Comment: only 1 wavelength

  31. Near Surface • Wind/wave and surface roughness • Air temperature • Specific Humidity • Pressure • Aerosols • Precipitations

  32. Precipitations: physical basis • VIS/IR: is based on indirect relationship between cloud top properties (e.g. temperature, reflectance, particle effective radius) and precipitation. Better performances for convective clouds (fixed bottom and varying top) than for frontal clouds (fixed top varying bottom). Good spatial resolution and temporal sampling (15’)

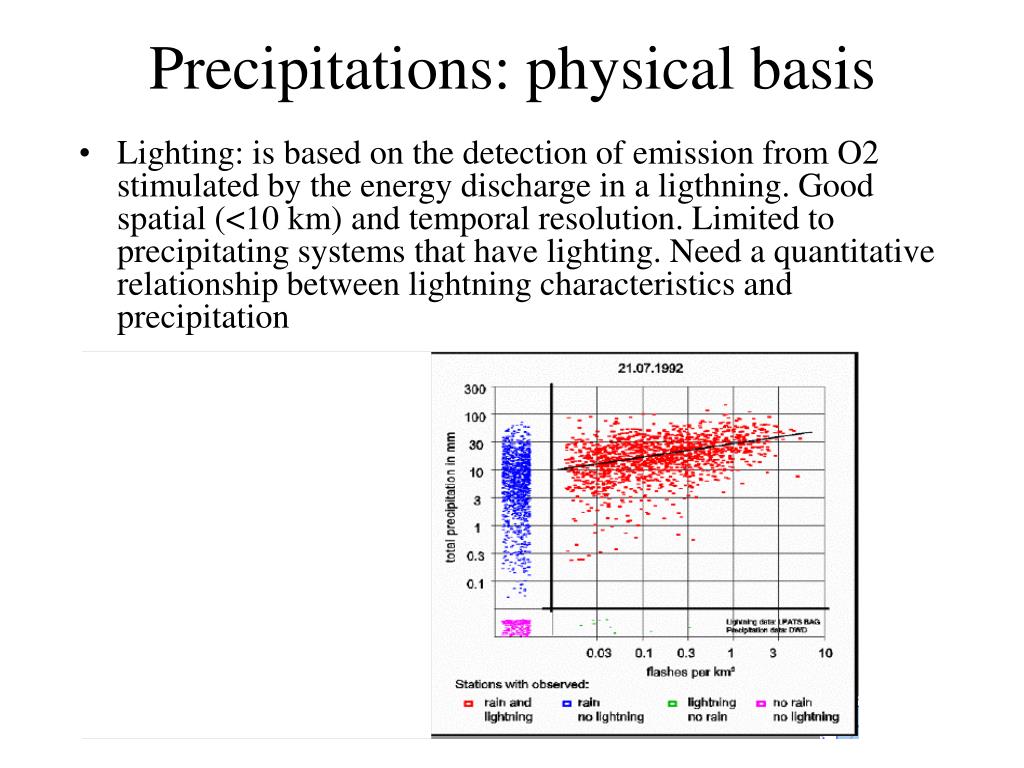

  33. Precipitations: physical basis • Lighting: is based on the detection of emission from O2 stimulated by the energy discharge in a ligthning. Good spatial (<10 km) and temporal resolution. Limited to precipitating systems that have lighting. Need a quantitative relationship between lightning characteristics and precipitation

  34. Precipitations: physical basis • Passive MW: based on interaction between precipitating particles and radiation. Sensitivity to the vertical structure. Low sensitivity to solid precipitation or weak liquid precipitations (drizzle). Relatively low spatial resoltion (>10 km). Problems with coasts and islands. Temporal sampling: Low orbit satellites 2 sampling/day • Radar up to now only over tropics and single frequency (14 GHz). Good spatial resolution. Real vertical profile
