  1. HBS CV. BANGUN GRAHA Komp. Ruko Artha Gading Niaga Block B No.35 Jakarta Telp. (021) 98283659 Fax. (021) 45850570 E MAIL : hawilasemesta@yahoo.com Best Solution for your Facade

  2. HBS the Companyis established to cope with the growing demand on the unitized curtain wall system in Indonesia. CV. BANGUN GRAHA ……………, established in 2001

  3. please consider !?#@ Curtain walls differ from storefront systems in that they are designed to span multiple floors, and take into consideration design requirements such as: thermal expansion and contraction; building sway and movement; water diversion; and thermal efficiency for cost-effective heating, cooling, and lighting in the building Deflection One of the disadvantages of using aluminum for mullions is that its modulus of elasticity is about one-third that of steel. This translates to three times more deflection in an aluminum mullion compared to the same steel section under a given a load Sealant Curtain walls and perimeter sealants require maintenance to maximize service life. Perimeter sealants, properly designed and installed, have a typical service life of 10 to 15 years. Removal and replacement of perimeter sealants require meticulous surface preparation and proper detailing.

  4. DIRECTOR HBS ORGANIZATION CHART PROJECT DIRECTOR ACCOUNTING MANAGER HRDMANAGER DESIGN ENGGINEERING MANAGER MARKETING MANAGER PROJECTMANAGER ADM & FINANCECOORDINATOR CADSTUDIO ENGINEER MARKETINGENGINEER SITEMANAGER PROJECTENGINEER FINANCE ADM MARKETING SUPERVISOR FOREMAN FOREMAN

  5. Businesses HBS • Aluminum façade specialist for high rise building • Curtain wall consultant for design & budgeting

  6. .

  7. INTRODUCTION Façade Curtain Wall HBS Makes an architectural form of buildings and to protect the human beings from bad effects which comes from outside such as weather, noise, dirtiness, it also keeps our privacy while still letting us see the scenery outside for that concern we introduce the stick system curtain wall & unitized systemcurtain wall

  8. Basic material of Curtain wall • Aluminum • Melaluiproses Hall-Heroult Cell 4 t bauksit + 0,1 t batu bara + 0,03 t minyak berat + 0,07 t coustic soda 2 ton aluminium oksida Listrik 15.000 Kwh/ton 1 ton aluminium ingot

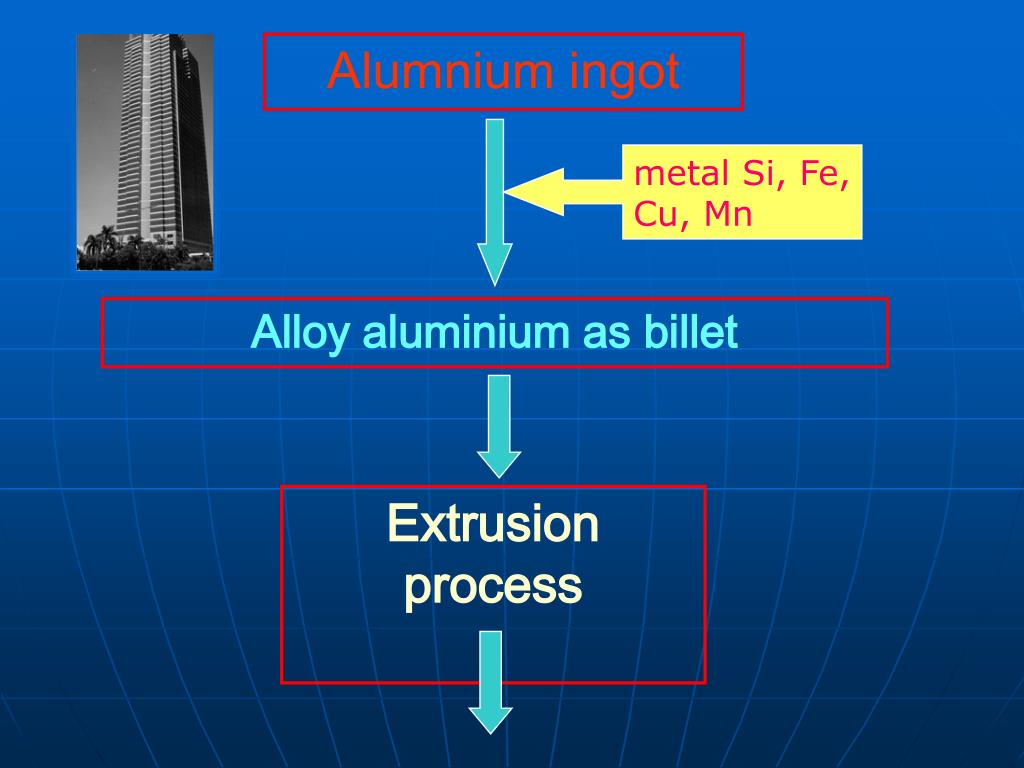

  9. Alumnium ingot metal Si, Fe, Cu, Mn Alloy aluminium as billet Extrusion process

  10. Aluminium Section With design process fabrication & assembling By FABRICATOR Curtain Wall System Installation process by FABRICATOR

  11. Design Process Stick System • Section mullion, transom, bracket system design • Structural Analysis - Win pressure (Australian Standard AS 1170.2-1989) - Aluminium Structure Stress, Strengths & Stability (Australian Standard AS 1664-1979) • Shop Drawing • Fabrication Drawing

  12. Fabrication & delivery

  13. Curtain Wall Stick System method of Installation * Marking & Floor Bracket Installation

  14. Mullion Installation method

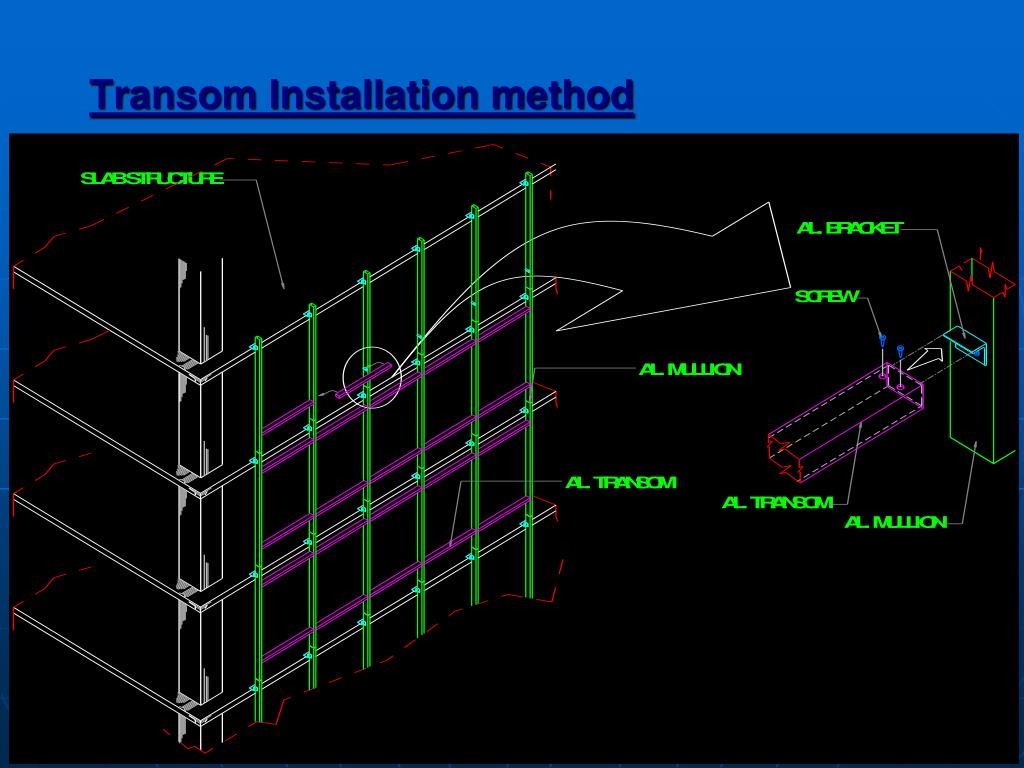

  15. Transom Installation method

  16. Glass & Sealant Installation

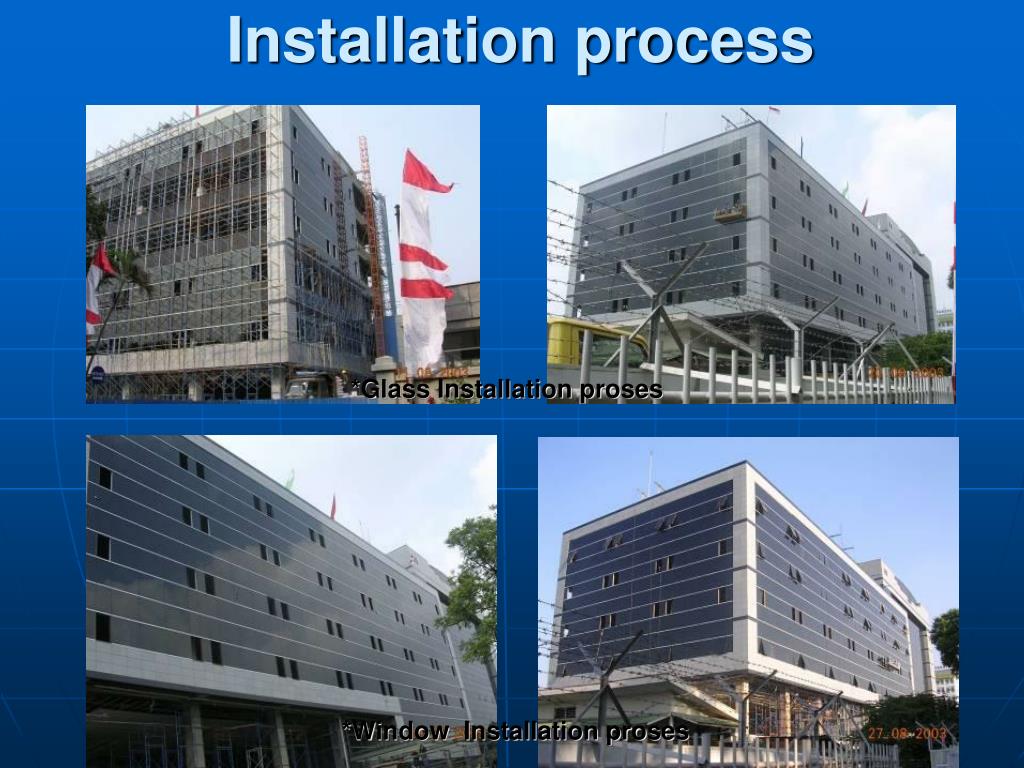

  17. Installation process *Frame mullion & transom Installation proses *Glass Installation proses

  18. Installation process *Glass Installation proses *Window Installation proses

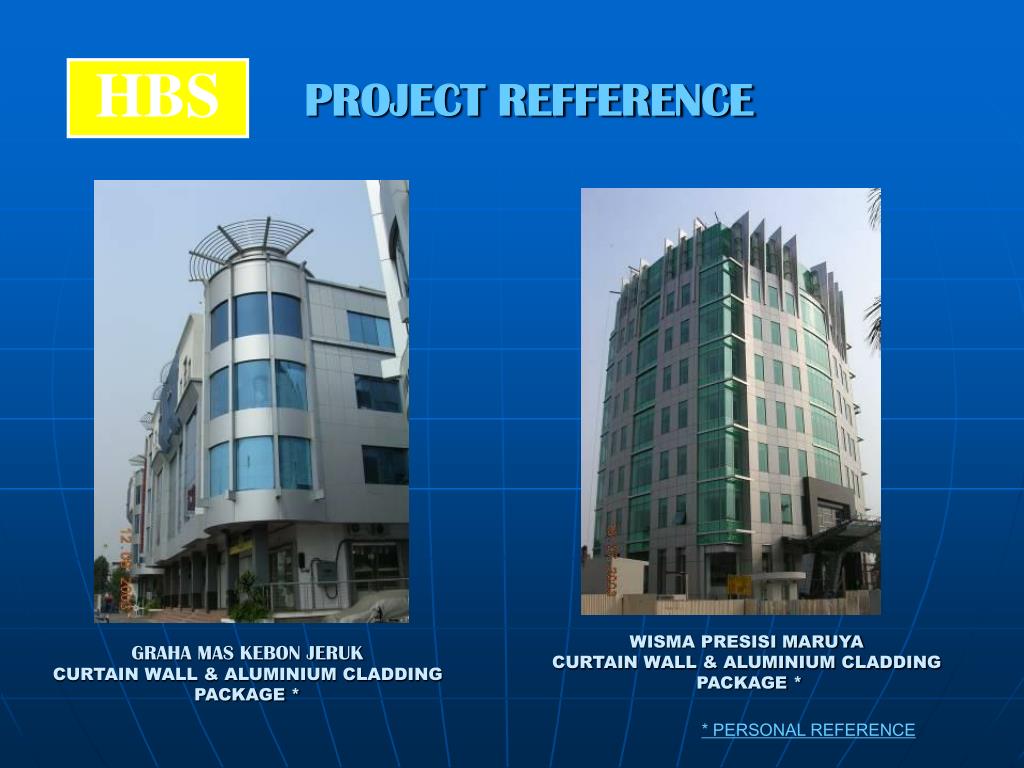

  19. PROJECT REFFERENCE HBS GRAHA MAS KEBON JERUKCURTAIN WALL & ALUMINIUM CLADDING PACKAGE * WISMA PRESISI MARUYACURTAIN WALL & ALUMINIUM CLADDING PACKAGE * * PERSONAL REFERENCE

  20. PROJECT REFFERENCE HBS GEDUNG PRIORITAS – CIKINICURTAIN WALL & ALUMINIUM CLADDING PACKAGE * * PERSONAL REFERENCE

  21. HBS SUDIRMAN PLAZA & THE MAYFLOWER APPARTEMENT SUDIRMANUNITIZED system CURTAIN WALL & ALUMINIUM GRILE PACKAGE * * PERSONAL REFERENCE

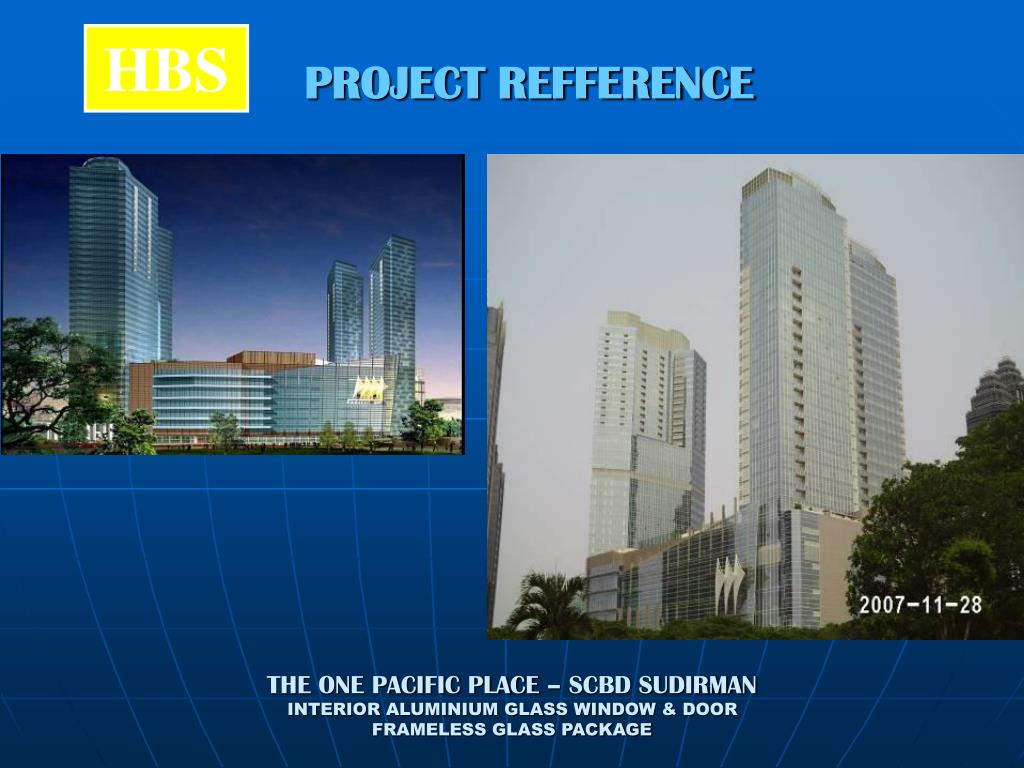

  22. PROJECT REFFERENCE HBS THE ONE PACIFIC PLACE – SCBD SUDIRMANINTERIOR ALUMINIUM GLASS WINDOW & DOORFRAMELESS GLASS PACKAGE

  23. PROJECT REFFERENCE HBS GRAHA SAPTA INDRA - CILANDAKALUMINIUMCURTAIN WALL & CLADDING PACKAGE

  24. PROJECT REFFERENCE HBS THE SUDIRMAN PLACESUDIRMAN INTERIOR ALUMINIUM GLASS WINDOW & DOORFRAMELESS GLASS PACKAGE

  25. PROJECT REFFERENCE HBS THE PLAZA INDONESIA EXTENSIONMH.THAMRININTERIOR ALUMINIUM GLASS WINDOW & DOORFRAMELESS GLASS PACKAGE

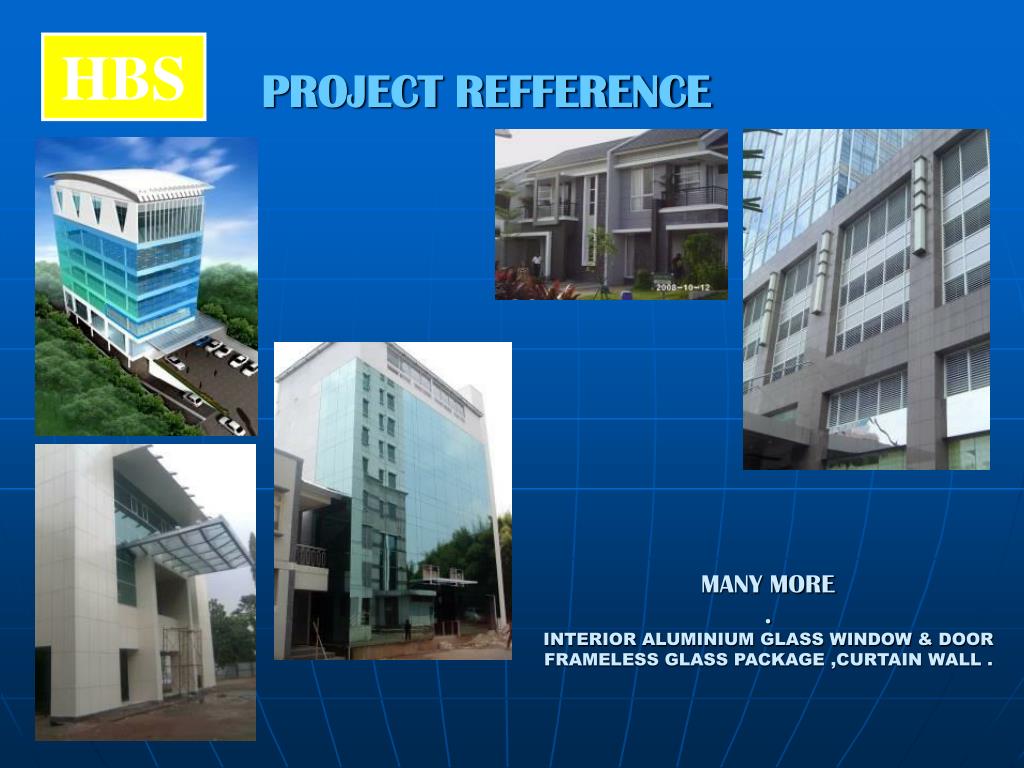

  26. PROJECT REFFERENCE HBS MANY MORE.INTERIOR ALUMINIUM GLASS WINDOW & DOORFRAMELESS GLASS PACKAGE ,CURTAIN WALL .

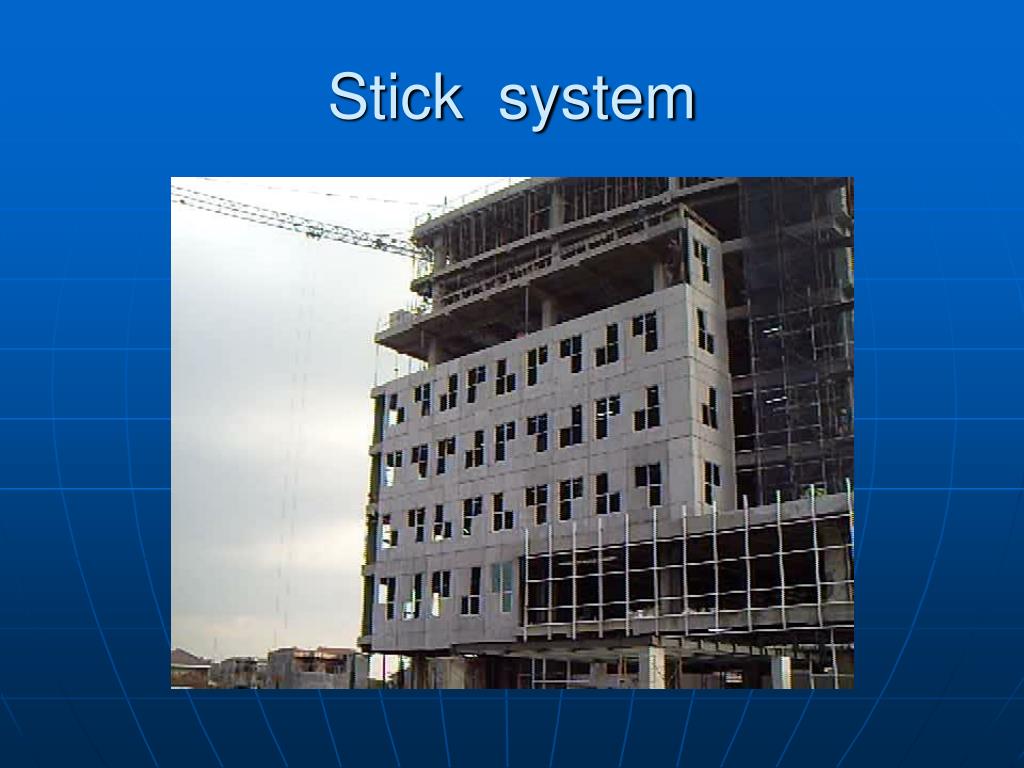

  27. Stick system

  28. .

  29. Curtain Wall with Unitized System
