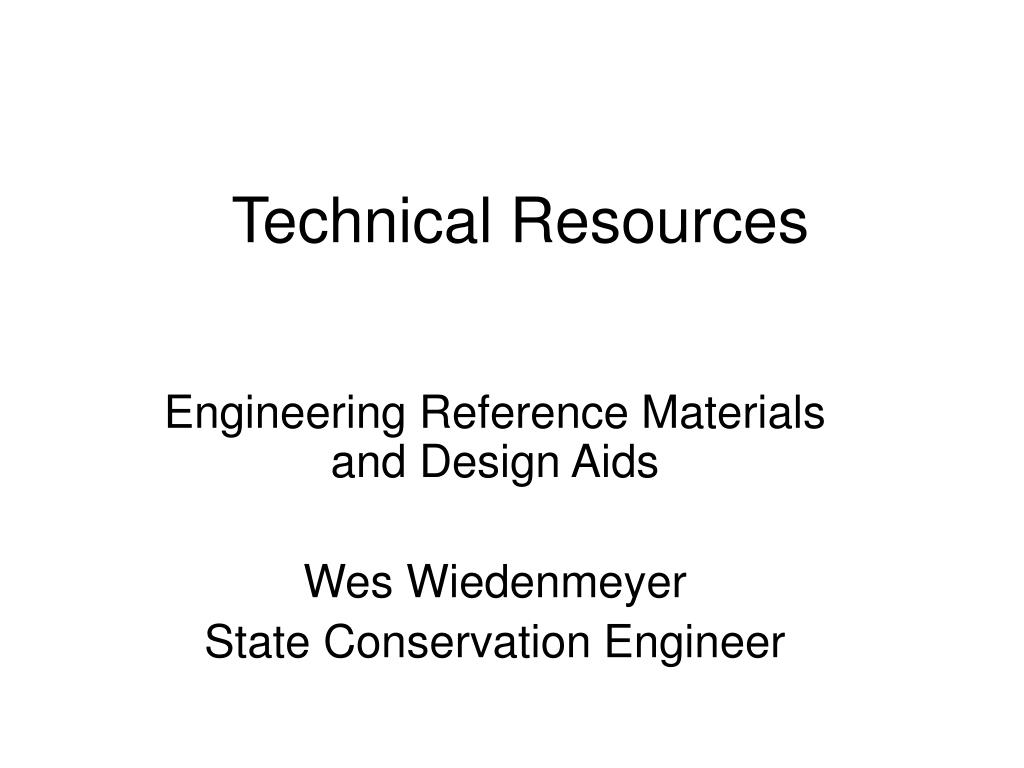

  1. Technical Resources Engineering Reference Materials and Design Aids Wes Wiedenmeyer State Conservation Engineer

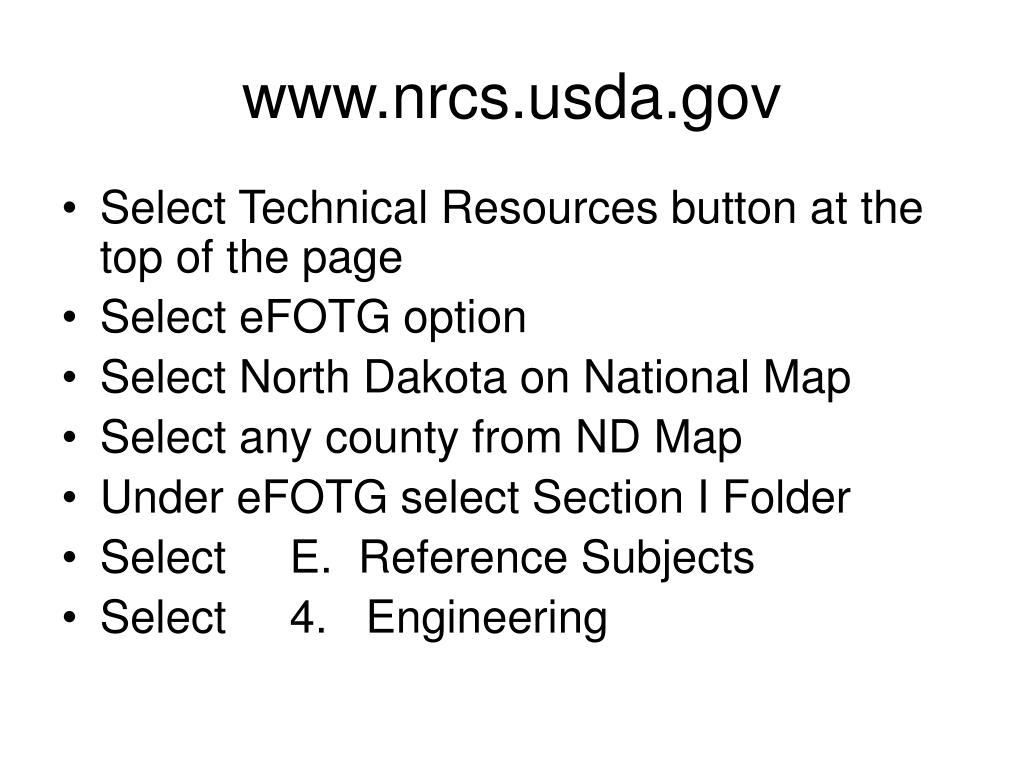

  2. www.nrcs.usda.gov • Select Technical Resources button at the top of the page • Select eFOTG option • Select North Dakota on National Map • Select any county from ND Map • Under eFOTG select Section I Folder • Select E. Reference Subjects • Select 4. Engineering

  3. Engineering References • Handbook of Channel Design, TP – 61 • Ponds – Planning, Design, Construction Agriculture Handbook 590 • North Dakota Hydrology Manual • North Dakota Irrigation Guide

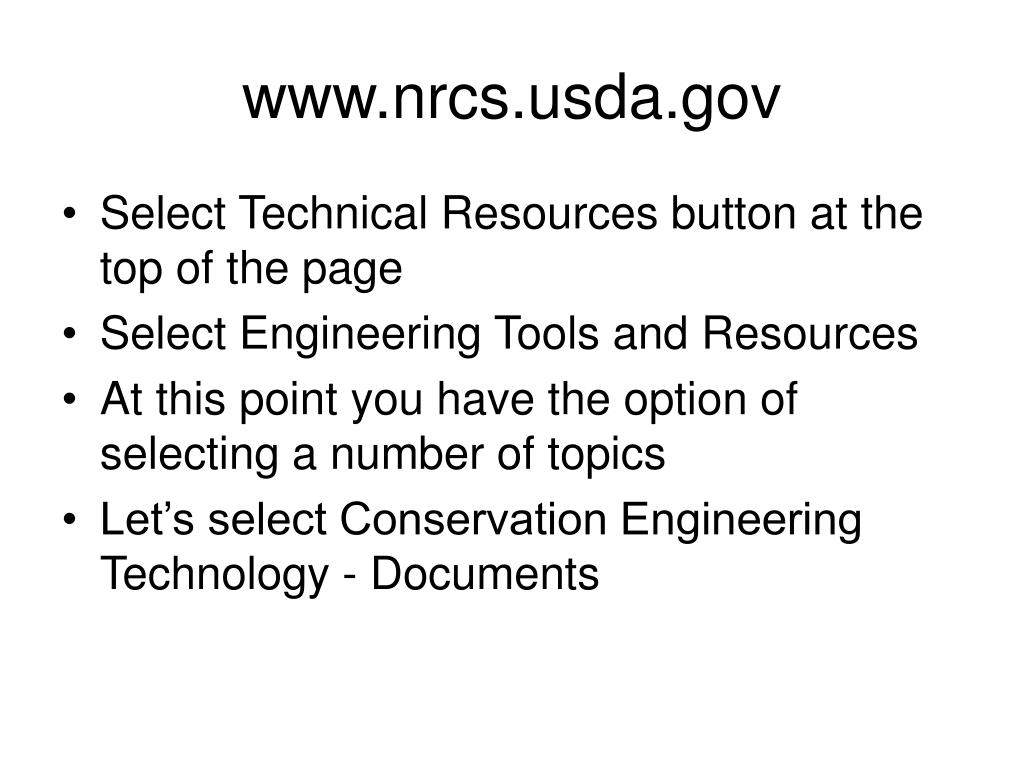

  4. www.nrcs.usda.gov • Select Technical Resources button at the top of the page • Select Engineering Tools and Resources • At this point you have the option of selecting a number of topics • Let’s select Conservation Engineering Technology - Documents

  5. Conservation Technology Documents • Provides information on a variety of engineering subjects • Subjects can be accessed for example such as “Environmental Engineering” • Brings up the NRCS National Engineering Handbook (NEH) Part 651 • Part 651 is the Agricultural Waste Field Management Handbook

  6. Continued • Selecting Specifications as a topic directs you to NEH Part 642 – Specifications for Construction Contracts • Provides NRCS Construction and Material Specifications in pdf format which can be downloaded • Instructions are included on the use of both the Material and Construction Specifications

  7. Continued • Selecting the Engineering Field Handbook option provides access to various chapters of the handbook that have been made available in downloadable format.

  8. Engineering Field Handbook • Chapter 1 – Engineering Survey • Chapter 2 – Estimating Runoff and Peak Discharges • Chapter 3 – Hydraulics • Chapter 4 – Soil Engineering • Chapter 5 – Preparation of Engineering Plans • Chapter 6 – Structures

  9. Chapter 7 – Grassed Waterways • Chapter 8 – Terraces • Chapter 9 – Diversions • Chapter 10 – Gully Treatment • Chapter 11 – Ponds and Reservoirs • Chapter 12 – Springs and Wells • Chapter 13 – Wetland Restoration

  10. Chapter 14 – Water Management (Drainage) • Chapter 15 – Irrigation • Chapter 16 – Streambank and Shoreline Protection • Chapter 17 – Construction and Material Specifications • Chapter 18 – Soil Bioengineering

  11. Chapter 19 – Hydrology Tools for Wetland Determination

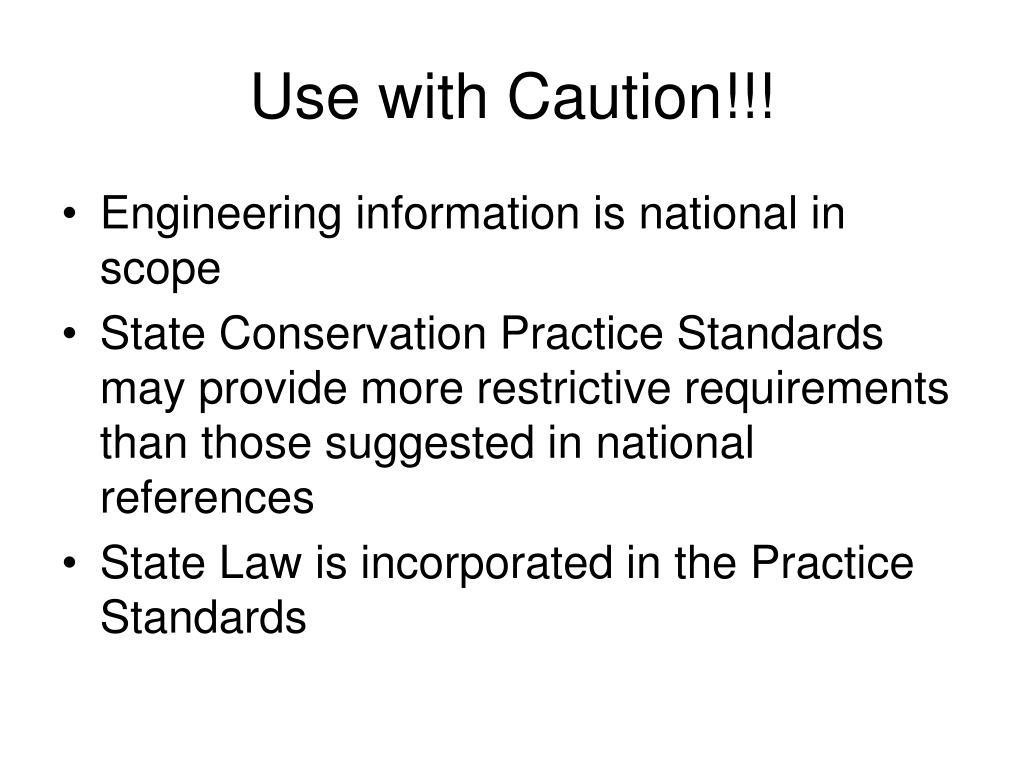

  12. Use with Caution!!! • Engineering information is national in scope • State Conservation Practice Standards may provide more restrictive requirements than those suggested in national references • State Law is incorporated in the Practice Standards
