slide1

Enterprise IP Solutions

OfficeServ 7400

Quick Install Guide- Data Server –VPN

Mar, 2006

OfficeServ Lab.

Samsung Electronics Co., Ltd.

slide2

Contents

  • > VPN Overview
  • > IPSec Settings
  • 1. IPSec Connection Between OS7400s
      • ◆ RSA key ◆ Pre-shared key ◆ X.509 Cert
  • 2. IPSec Connection Between OS7400 and PC (Remote User)
      • ◆ Pre-shared key ◆ X.509 Cert
  • 3. IPSec Connection Between OS7400 and Cisco Router
  • ◆ Pre-shared key
  • > PPTP/L2TP Settings
  • 4. PPTP/L2TP Configuration on OS7400 System 5. PPTP/L2TP Configuration on PC (Windows 2000/XP)
  • > Application Cases
  • 6. IP Networking (QSIG) Application Cases 7. H.323/SIP Application Cases
slide3

IPSec

PPTP/L2TP

VPN Overview - GWIMS

  • - System to System
  • - Need GWIMS D-board
  • VPN: Virtual Private Network
  • IPSec: Internet Protocol Security Protocol
  • PPTP: Point to Point Tunneling Protocol
  • L2TP: Layer2 Tunneling Protocol

IPSec

  • - System to Node or Server to Client (ex: PC)
  • - Don’t need GWIMS D-board

Branch #1

Remote User

Office

본사

PPTP, L2TP

Internet

VPN Tunneling

Branch #2

Serial

2Mbps

Serial

2Mbps

Private Line

slide4

payload

payload

Internet

payload

payload

payload

payload

VPN Overview – IPSec, L2TP/PPTP

  • Tunnel Mode (don’t support Transport mode)
  • Tunnel Protocol (IPSec, L2TP/PPTP)
  • Key Management : IKE, ISAKMAP, X.509, pre-shared
  • Authentication : MD5, SHA-1
  • Encryption : AES,3DES
  • Transform Protocol : AH, ESP

Mobile

User

VPN S/W

Remoteaccess

payload

BusinessPartner

Headquarters

Tunnel

VPN S/W

Extranet

encryption

VPN

new header

payload

payload

Branch

VPN

payload

Intranet

payload

VPN

payload

slide6

IP header

AH

IP payload

Authenticated except for mutable fields in ‘IP header’

IP header

ESP header

IP payload

ESP trailer

ESP auth

Encrypted

Authenticated

New IP header

AH

IP header

IP payload

Authenticated except for mutable fields in ‘New IP header’

New IP header

ESP header

IP header

IP payload

ESP trailer

ESP auth

Encrypted

Authenticated

VPN Overview – IPSec

  • Transport Mode
  • Tunnel Mode
slide7

VPN Overview – IKE

  • Internet Key Exchange
    • Phase 1
      • Generate IKE key
      • Main mode, aggressive mode
      • Authentication
        • Pre-shared key
        • Digital Signature
        • Public key encryption
        • Revised public key encryption
    • Phase 2
      • Generate IPSEC key
      • Quick mode
slide8

IKE connection flow

Crypto & Auth algorithm(SA) proposal

SA choice

Responder

Initiator

public key exchange(Diffie-Hellman)

Diffie-Hellman

Transmit Identity

confirm and transmit Identity

SA proposal, public key exchange, transmit identity

SA choice, public key exchange, transmit identity

transmit hash value

slide9

VPN Overview – OS7x00

  • 2. Choose Phase 1 / Phase 2 parameters.
  • 1. Configuration
  • 3. Check status
slide10

VPN Overview – OS7200 via OS7400

OS 7200 (v1.12)

OS 7400

Lists

Max. Tunnel

100 Tunnels

1024 Tunnels

H/W Chip

Hifn 7951

CN 1120

IPSec, PPTP, L2TP

IPSec, PPTP

Protocol

Phase 1(main), Phase 2(quick)

Phase 1(main, aggressive),

Phase 2(quick)

ISAKMP

3DES

3DES, AES

Encryption

RSA, Pre-shared key, X.509

Authentication

slide12

New Dest IP165.213.89.227

New Src IP

165.213.89.238

Dest IP192.168.0.100

Src IP

10.0.0.100

payload

Dest IP192.168.0.100

Dest IP192.168.0.100

Src IP

10.0.0.100

Src IP

10.0.0.100

payload

payload

1. IPSec Connection Between OS7400s

VPN of OS7400 allows you to connect different networks.The following figure illustrates basic network settings for using OS7400 VPN:

Tunneling (IPSec)

WAN1

165.213.89.238

165.213.89.227

WAN1

10.0.0.1

LAN

192.168.0.1

LAN

payload

PC

10.0.0.100

PC

192.168.0.100

slide13

The above figure shows packet forwarding when making communications from PC (10.0.0.100) to the target PC (192.168.0.100) using VPN.

    • ① Create and forward a packet whose dest IP is 192.168.0.100 and whose src IP is 10.0.0.100 from PC (10.0.0.100).
    • ② The original packet is encrypted through the VPN gateway. Add a new IP header (Dest IP: 165.213.87.227, Src IP: 165.213.89.238) to create and forward a new packet.
    • ③ Decrypt the forwarded packet in the VPN gateway. Then, forward the packet to the destination host by referring to the destination IP of the original packet.
    • ④ The PC (192.168.0.100) receives the original packet properly.
slide14

RSA key (1)

If you click [VPN] from the main menu, the following window will appear. Click the [Add] button to select a VPN gateway and to determine an authorization method.

slide15

RSA key (2)

Set OS7400_1 first. Enter the information on OS7400_1 in Local settings and the information on OS7400_2 in Remote settings. Click “find” button to upload OS7400_2 RSA key. (Click the Management => RSA [Download] button to download the authorization key and to deliver the key to OS7400_2.)

slide16

RSA key (3)

Set OS7400_2 in the same method as OS7400_1.

OS7400_2

slide17

Pre-shared key (1)

Set the Pre-shared key field in the same method as the RSA key field. Enter the shared key, which is a password to be used for user authorization, in the Pre-shared key field.

slide18

Pre-shared key (2)

Set OS7400_2 in the same method as OS7400_1.

slide19

X.509 (1)

Click Certification from the left menus. Once the window below appears, click the [Add] button to create a CA certification.

slide20

X.509 (2)

Once a window that prompts you to create a CA certification appears, fill out all of the fields, and click the [OK] button.

slide21

X.509 (3)

Once a window that prompts you to create a host certification appears, fill out the fields, and click the [OK] button. Note that you must remember the password.

slide22

X.509 (4)

Click the [Download] button from the window below to download a certification.

slide23

X.509 (5)

Click Config from the left menus, and then select Local Certificate. And click OK. Select X.509 Cert and click the [OK] button.

slide24

X.509 (6)

Then ‘Local Certificate’ and ‘Local ID’ are displayed. Enter the password used for creating a host certification in ‘Password’ and ‘Remote ID’ value. In this case, Remote ID value is OS7400_2’s Local ID that is acquired in the same method as OS7400_1.

slide25

X.509 (7)

In [Management] from the left menu, select external device and click [ok] button.If Activity is set to Stopped, click the [Run] button. (If Activity is set to Running, click the [Stop] button, and then click the [Run] button again.)

slide26

X.509 (8)

Click Status from the left menu to check the current status and log of VPN connections.

OS7400_1

“OS7400_1”

“OS7400_1”

“OS7400_1”

“OS7400_1”

“OS7400_1”

slide27

Tunneling (IPSec, PPTP, L2TP)

2. IPSec Connection Between OS7400s and PC (Remote User)

Remote User

165.213.109.101

Internet

WAN1

165.213.89.245

192.168.0.1

LAN

PC

192.168.0.100

slide28

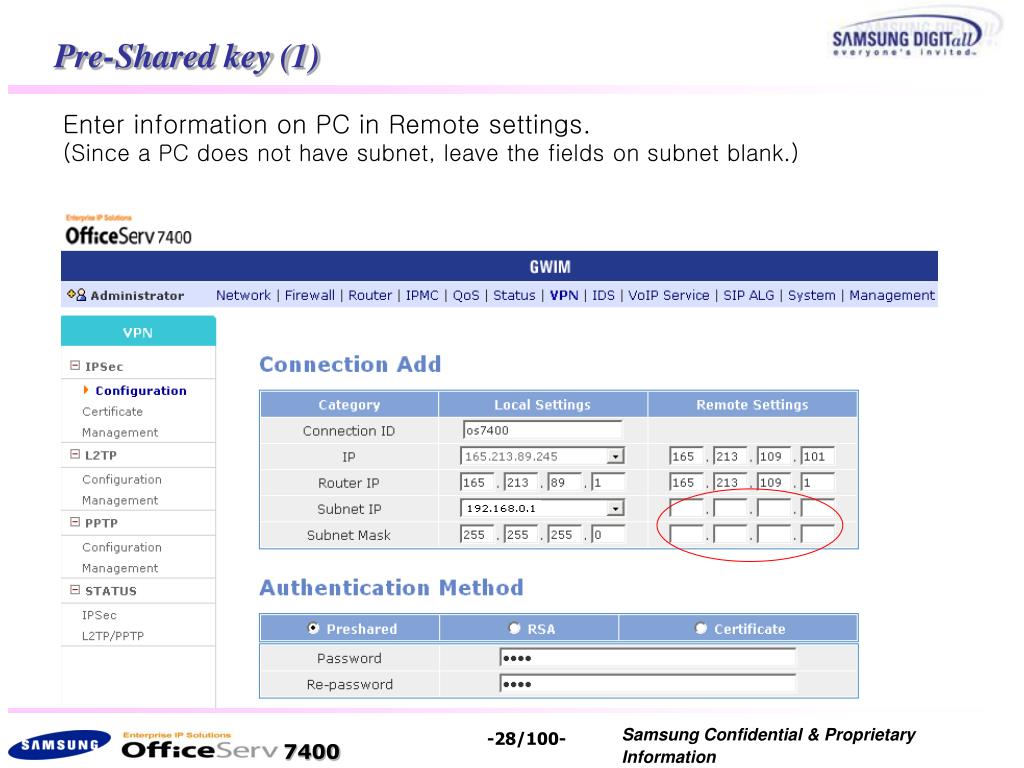

Pre-Shared key (1)

Enter information on PC in Remote settings. (Since a PC does not have subnet, leave the fields on subnet blank.)

slide29

Pre-Shared key - VPN Client (1)

If you select [Start] -> [Run], and run ‘mmc’, the window below will appear. Select [File] -> [Add/Remove Snap-In] from the Console window.

slide30

Pre-Shared key - VPN Client (2)

If you click the [Add] button from the <Add Standalone Snap-in> window, the window below will appear. Select ‘IP Security Policy Management’ from the snap-in list, and click the [Add] button.

slide31

Pre-Shared key - VPN Client (3)

Once the window below appears, select ‘Local computer’, and click the [Finish] button.

slide32

Pre-Shared key - VPN Client (4)

If you move the <Console> window, the ‘IP Security Policies on Local Computer’ submenu is created under ‘Console Root’. Right-click the submenu to select [Create IP Security Policy].

slide33

Pre-Shared key - VPN Client (5)

Enter the name of description of the IP security policy in the <IP Security Policy Wizard> window, and click the [Next] button.

slide34

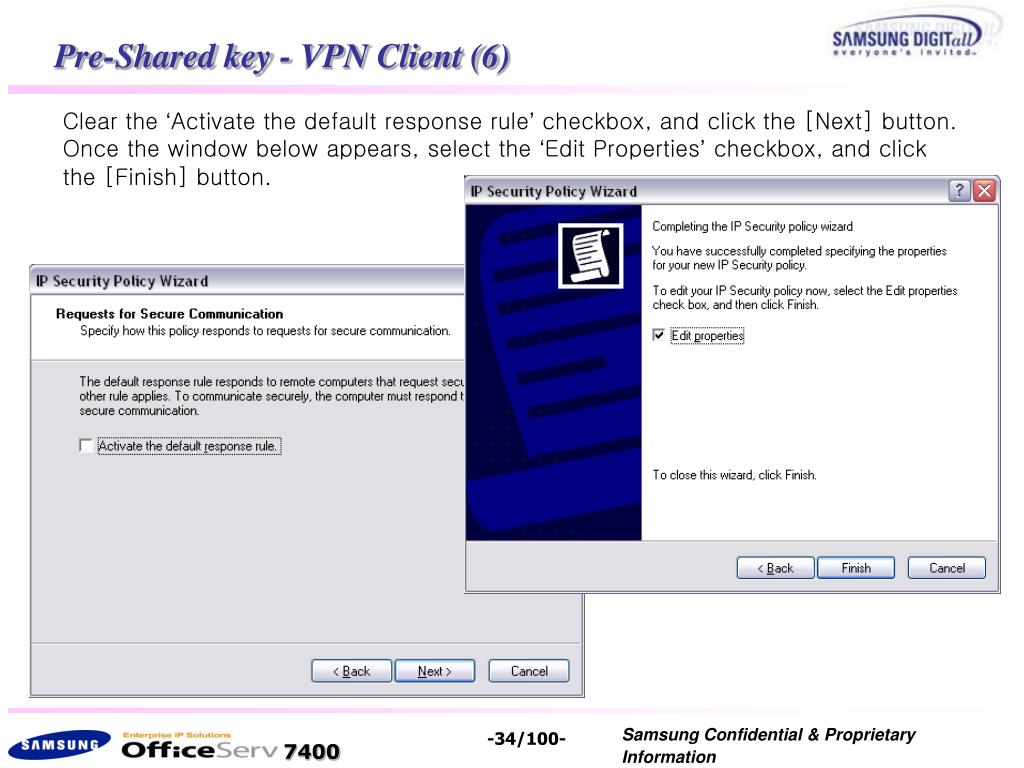

Pre-Shared key - VPN Client (6)

Clear the ‘Activate the default response rule’ checkbox, and click the [Next] button. Once the window below appears, select the ‘Edit Properties’ checkbox, and click the [Finish] button.

slide35

Pre-Shared key - VPN Client (7)

If the <XP IPSec Properties> window appears, the created item will be displayed. Clear the checkbox, and click the [Add] button.

slide36

Pre-Shared key - VPN Client (8)

Once <Security Rule Wizard> starts, click the [Next] button to select ‘The tunnel endpoint is specified by this IP address:’. Enter the WAN interface IP address (165.213.89.245), and click the [Next] button.

slide37

Pre-Shared key - VPN Client (9)

If you select ‘ Local Area Network[lan]’ from the <Network Type> window and click the [Next] button, the <Authentication Method> window will appear. Select the ‘Use this string to protect the key exchange [preshared key]:’ checkbox, and enter the user password registered with the firewall. Click the [Next] button.

slide38

Pre-Shared key - VPN Client (10)

If you click the [Add] button from the <IP Filter List> window, the window below will appear. Enter ‘outbound’ in the Name field, and click the [Add] button.

slide39

Pre-Shared key - VPN Client (11)

If you click the [Next] button from the <IP Filter Wizard> window, the window below will appear. Select ‘My IP address’ in the Source Address option, and click the [Next] button.

slide40

Pre-Shared key - VPN Client (12)

Select ‘A specific IP Subnet’ in the Destination address option. Enter the address of the internal network (192.168.0.0) and subnet mask (255.255.255.0), and click the [Next] button.

slide41

Pre-Shared key - VPN Client (13)

Select ‘Any’ from IP Protocol Type, and click the [Next] button. Select the ‘Edit properties’ checkbox, and click the [Finish] button.

slide42

Pre-Shared key - VPN Client (14)

If you click the [OK] button, the outbound option will be created as shown in the figure below. Click the [Add] button to create the ‘inbound’ option. Enter 192.168.0.0 and 255.255.255.0 in ‘A specific IP Subnet’ of Source Address. Select ‘My IP Address’ from Destination Address. The next settings are the same as the previous ones.

slide43

Pre-Shared key - VPN Client (15)

If you click the [OK] button, the window below will appear. Select the ‘outbound’ option, and click the [Next] button.

slide44

Pre-Shared key - VPN Client (16)

Select the ‘Request Security (Optional)’ option, and click the [Edit] button.

slide45

Pre-Shared key - VPN Client (17)

Select ‘Negotiate security’, and then select an option from each of ‘AH Integrity (None)’, ‘ESP Confidentiality (3DES)’, and ‘ESP Integrity (MD5)’ in Security Method Priority. Click the [Move Up] button to move to the top. Select the ‘Session key perfect forward security (PFS)’ checkbox, and click the [OK] button.

slide46

Pre-Shared key - VPN Client (18)

If you select the ‘Edit Properties’ checkbox, and click the [Finish] button, the outbound option will be created as shown in the figure below. Click the [Add] button to create the inbound option.

slide47

Pre-Shared key - VPN Client (19)

Once <Security Rule Wizard> starts, click the [Next] button to select the ‘The tunnel endpoint is specified by this IP address’ checkbox, and enter the Remote User IP address (165.213.109.101). Click the [Next] button.

slide48

Pre-Shared key - VPN Client (20)

If you select ‘Local area network[LAN]’ from the <Network Type> window and click the [Next] button, the <Authentication Method> window will appear. Select the ‘Use this string to protect the key exchange (preshared key):’ checkbox, and enter the user password registered with the firewall. Click the [Next] button.

slide49

Pre-Shared key - VPN Client (21)

If you click the [OK] button, the <IP filter list> window will appear. Select ‘inbound’ from the window, and select the [Next] button. The next settings are the same as the previous ones.

slide50

Pre-Shared key - VPN Client (22)

Select the [General] tab from the <XP IPSec Properties> window, and click the [Advanced] button. Once the <Key Exchange Settings> window appears, select the ‘Master key perfect forward security (PFS)’ checkbox, and click the [Method] button.

slide51

Pre-Shared key - VPN Client (23)

Select an option from each of ‘Encryption (3DES)’, ‘Integrity (MD5)’, and ‘Diffie-Hellman (Medium(2))’ of the <Key Exchange Security Methods> window, and click the [Move Up] button to move to the top. Click the [OK] button.

slide52

Pre-Shared key - VPN Client (24)

Select the ‘IP Security Policy of Local Computer’ submenu from the <Console> window. Right-click the newly created item at the right window, and select the ‘Assign’ menu. The policy assignment is set to ‘Yes’.

slide53

Pre-Shared key - VPN Client (25)

Select [Start]->[Programs]->[Administrative Tools]->[Services] from the Windows taskbar. Right-click ‘IPSEC Services’, and click ‘Restart’.

slide54

Pre-Shared key - VPN Client (26)

Check connection status of the internal IP address (192.168.0.1) by executing ping at the command prompt. If a response is made as shown in the figure below, it means that the connection has been successfully made.

slide55

X.509(1)

Enter information on OS7400 and PC in the same method as the pre-shared key settings. Select X.509 Cert, and set values requested.

slide56

X.509(2)

Create an additional host certificate to authorize a PC.

slide57

X.509(3)

Download a new PC certificate, and deliver it to the PC.

slide58

X.509 - VPN Client (1)

If you select [Start]-> [Run] from the Windows taskbar and run ‘mmc’, the window below will appear. Select [File]->[Add/Remove Snap-in] from the Console window.

slide59

X.509 - VPN Client (2)

If you click the [Add] button from the <Add/Remove Snap-in> window, the window below will appear. Select ‘Certificates’ from the snap-in list, and click the [Add] button.

slide60

X.509 - VPN Client(3)

Select ‘Computer account’, and click the [Next] button.

slide61

X.509 - VPN Client(4)

Select ‘Local computer: (the computer this console is running on)’, and click the [Finish] button.

slide62

X.509 - VPN Client(5)

Select ‘IP Security Policy Management’ from the snap-in list, and click the [Add] button.

slide63

X.509 - VPN Client(6)

Select ‘Local computer’ from the Select Computer or Domain window, and click the [Finish] button to complete.

slide64

X.509 - VPN Client(7)

Right-click the Private submenu under the Certificate menu of the Console window, and select ‘All Tasks’ -> ‘Import’ in sequence.

slide65

X.509 - VPN Client(8)

Once a window that prompts you to start Certificate Import Wizard appears, click the [Next] button, and find a file to be imported by clicking the [Browse] button. If you find the file, click the [Next] button.

slide66

X.509 - VPN Client(9)

Enter the password used for creating a host certificate, and click the [Next] button.

slide67

X.509 - VPN Client (10)

Select ‘Automatically select the certificate store based on the type of certificate’, and click the [Next] button to exit the wizard.

slide68

X.509 - VPN Client(11)

If you click the Certificate submenu under the Private menu from the Console window, the saved certificate will appear at the right of the window. Double-click the certificate.

slide69

X.509 - VPN Client (12)

Enter like the information in ‘Subject’ from the ‘Details’ tab in the Remote ID field for OS7400 settings.

slide70

X.509 - VPN Client (13)

Right-click ‘IP Security Policy of Local Computer’ under the Console Route menu of the Console window, and click the [Create IP Security Policy]. The next settings are the same as pre-shared key settings.

slide71

X.509 - VPN Client (14)

Select ‘Use a certificate from the certification authority (CA)’ in the Authentication Method window. Then, select a certificate by using the [Browse] button. (Set outbound and inbound in the same method.)

slide73

New Dest IP165.213.87.227

New Src IP

165.213.89.238

Dest IP192.168.0.100

Src IP

10.0.0.100

payload

Dest IP192.168.0.100

Dest IP192.168.0.100

Src IP

10.0.0.100

Src IP

10.0.0.100

payload

payload

3. IPSec Connection Between OS7400 and Cisco Router

VPN of OS7400 allows you to connect different networks.The following figure illustrates basic network settings for using OS7400 VPN:

Tunneling (IPSec)

WAN1

165.213.89.238

165.213.87.227

WAN1

10.0.0.1

LAN

192.168.0.1

LAN

payload

PC

10.0.0.100

slide74

The above figure shows packet forwarding when making communications from PC (10.0.0.100) to the target PC (192.168.0.100) using VPN.

    • Cisco Router configuration
    • 1) NAT configure, create Access Rule for NAT, and add routing table
    • 2) Create Keys for IKE and IPSec, and create site-to-site VPN
    • 2. OS 7400 configuration
    • 1) Create connection Mod.
    • 2) Select Pre-Shared Authentication Method.
    • 3) Choose Phase 1 / Phase 2 parameters.
    • 4) running vpn and check status.
slide75

Cisco Router configuration

    • 1) NAT configure, create Access Rule for NAT, and add routing table.
    • . Outside : GigabiEthernet 0 - 165.213.87.227
    • . Inside : Vlan1 - 192.168.0.1/24
  • (Example)
    • interface GigabitEthernet0
    • ip address 165.213.87.227 255.255.255.0
    • ip nat outside
    • !
    • interface Vlan1
    • ip address 192.168.0.1 255.255.255.0
    • ip nat inside
    • !
    • ip nat pool natOutIpPool 165.213.87.225 165.213.87.225 netmask 255.255.255.252
    • ip nat inside source list 111 pool natOutIpPool overload
    • !
    • access-list 111 permit ip 192.168.0.0 0.0.0.255 any
    • !
    • ip classless
    • ip route 0.0.0.0 0.0.0.0 165.213.87.1
slide76

2) Create Keys for IKE and IPSec , and create site-to-site VPN

  • !--create isakmp policy, pre-shared key is cisco123
    • crypto isakmp policy 2
    • encr 3des
    • hash md5
    • authentication pre-share
    • group 5
    • crypto isakmp key cisco123 address 165.213.89.238
    • !
    • !--- Create an IPSec transform set named "myset". Use 3DES for ESP
    • !--- and ESP with the MD5 (HMAC variant) authentication algorithm
    • !--- with transport mode
    • crypto ipsec transform-set myset esp-3des esp-md5-hmac
    • !
    • !--- Create a crypto map "newmap" and assign sequence number 10.
    • crypto map newmap 10 ipsec-isakmp
    • set peer 165.213.89.238
    • set transform-set myset
    • match address 100
    • ! -- add crypto map to interface
    • interface GigabitEthernet0
    • crypto map newmap
slide77

2) Create Keys for IKE and IPSec , and create site-to-site VPN (cont’d)

  • !-- add nat rule for route-map
  • ip nat inside source route-map newmap pool natoutIpPool
  • !
  • ! Create route-map
  • route-map SDM_RMAP_1 permit 1
  • match ip address 111
  • !
  • ! – create access list for VPN
  • access-list 100 remark SDM_ACL Category=4
  • access-list 100 remark IPSec Rule
  • access-list 100 permit ip 192.168.0.0 0.0.0.255 10.0.0.0 0.0.0.255
  • !
slide78

2) Create Keys for IKE and IPSec , and create site-to-site VPN (cont’d)

  • !--create isakmp policy, pre-shared key is cisco123
    • crypto isakmp policy 2
    • encr 3des
    • hash md5
    • authentication pre-share
    • group 5
    • crypto isakmp key cisco123 address 165.213.89.238
    • !
    • !--- Create an IPSec transform set named "myset". Use 3DES for ESP
    • !--- and ESP with the MD5 (HMAC variant) authentication algorithm
    • !--- with transport mode
    • crypto ipsec transform-set myset esp-3des esp-md5-hmac
    • !
    • !--- Create a crypto map "newmap" and assign sequence number 10.
    • crypto map newmap 10 ipsec-isakmp
    • set peer 165.213.89.238
    • set transform-set myset
    • match address 100
slide79

2. OS 7400 configuration

  • 1) Create connection Mod.
  • 2) Select Pre-Shared Authentication Method.
slide83

4. PPTP Configuration at OS7400 System

1. Click [PPTP]->[Config] from the left menu. If you click the [Add] button to add a PPTP user, the window below will appear. Enter the user ID and password, and select a method of assigning a user IP (Auto/static).

slide84

2. Click Management from the left menu. If Activity is set to Stopped, click the [Run] button. (If Activity is set to Running, click the [Stop] button, and then click the [Run] button again.)

slide85

5. PPTP Configuration on PC (Windows 2000/XP)

1. Run [Start]->[Settings]->[Control Panel]->[Network Connections]->[Create a new connection] on the Windows taskbar. Once the New Connection Wizard starts, click the [Next] button.

slide86

2. Select ‘Connect to the network at my workplace’ from Network Connection Type and ‘Virtual Private Network connection’ in Network Connection. Click the [Next] button.

slide88

4. Completing the New Connection Wizard, and Attempt to connect to the corporate VPN server.

slide89

- Example -

(VoIP Service Using VPN)

slide90

Network Environment

VoIP Connection Without VPN

Internet

WAN1

165.213.89.238

165.213.89.227

WAN1

Tunneling (IPSec, L2TP, PPTP)

10.0.0.1

VoIP Connection Using VPN

LAN

192.168.0.1

LAN

MCP: 10.0.0.10/24

MGI: 10.0.0.20/24

MCP: 192.168.0.10/24

MGI: 192.168.0.20/24

2010

2050

Site A(Node 0)

Site B(Node 1)

slide91

Conditions

  • Set NAT from [Firewall/Network] of GWIM. Then, set
  • network information as shown in the figure below.
  • 2. Set the external port of MGI to No. 20000.
  • 3. Pre-set static NAPT on MCP and MGI.
  • 4. Set IPSec between Site A and Site B.
  • E.g.) Refer to the [OfficeServ 7400]Quick Install Guide(VoIP Service) file.
slide92

6. H.323/SIP Application Case

▶ CASE I: H.323/SIP Call Connection Using NAPT

Site A MMC Configuration

-. MMC 830 IP:10.0.0.10 / GW:10.0.0.1 / Netmask: 255.255.255.0 /

Public Port: 1719 / Public IP: 165.213.89.238

System IP Type: Private with Public

-. MMC 831

IP:10.0.0.20 / GW:10.0.0.1 / Netmask:255.255.255.0 /

Public Port: 20000 / Public IP: 165.213.89.238

System IP Type: Private with Public

-. MMC 724

Enter an MGI Dial No. (E.g. 3801 ~ 3816).

-. MMC 615

Enter a VoIP trunk and a public IP trunk (E.g. 3801 ~ 3816).

-. MMC 838

10.0.0.255 (80)

-. MMC 833

165.213.87.227 (Site B WAN IP address)

slide93

Site B MMC Configuration

-. MMC 830 IP:192.168.0.10 / GW:192.168.0.1 / Netmask:255.255.255.0 /

Public Port: 1719 / Public IP: 165.213.87.227

System IP Type: Private with Public

-. MMC 831

IP:192.168.0.20 / GW: 192.168.0.1 / Netmask: 255.255.255.0 /

Public Port: 20000 / Public IP: 165.213.87.227

System IP Type: Private with Public

-. MMC 724

Enter an MGI Dial No. (E.g. 3801 ~ 3816).

-. MMC 615

Enter a VoIP trunk and a public IP trunk (E.g. 3801 ~ 3816).

-. MMC 838

192.168.0.255 (80)

-. MMC 833

165.213.89.238 (Site A WAN IP address)

slide94

▶ CASE II: H.323/SIP Call Connection Using IPSec

Site A MMC Configuration

-. MMC 830 IP:10.0.0.10 / GW:10.0.0.1 / Netmask:255.255.255.0 /

System IP Type:Private

-. MMC 831

IP:10.0.0.20 / GW:10.0.0.1 / Netmask:255.255.255.0 /

System IP Type:Private

-. MMC 724

Enter an MGI Dial No. (E.g. 3801 ~ 3816).

-. MMC 615

Enter a VoIP trunk and a IP trunk (E.g. 3801 ~ 3816).

-. MMC 838

192.168.0.255 (79)

10.0.0.255 (80)

-. MMC 833

192.168.0.10 (Site B MCP private IP address)

slide95

Site B MMC Configuration

-. MMC 830 IP:192.168.0.10 / GW:192.168.0.1 / Netmask:255.255.255.0 /

System IP Type:Private

-. MMC 831

IP:192.168.0.20 / GW:192.168.0.1 / Netmask:255.255.255.0 /

System IP Type:Private

-. MMC 724

Enter an MGI Dial No. (E.g. 3801 ~ 3816).

-. MMC 615

Enter a VoIP trunk and a IP trunk (E.g. 3801 ~ 3816).

-. MMC 838

10.0.0.255 (79)

192.168.0.255 (80)

-. MMC 833

10.0.0.10 (Site A MCP private IP address)

slide96

7. IP Networking (Qsig) Application Case

▶ CASE III: IP Networking (Qsig) Call Connection Using NAPT

Site A MMC Configuration

-. MMC 830 IP:10.0.0.10 / GW:10.0.0.1 / Netmask:255.255.255.0 /

Public Port: 6100 / Public IP: 165.213.89.238

System IP Type:Private or Public

-. MMC 831

IP:10.0.0.20 / GW:10.0.0.1 / Netmask:255.255.255.0 /

Public Port: 20000 / Public IP: 165.213.89.238

System IP Type:Private or Public

-. MMC 724

Enter an MGI Dial No. (E.g. 3801 ~ 3816).

-. MMC 615

Enter a VoIP trunk and a public IP trunk (E.g. 3801 ~ 3816).

-. MMC 838

10.0.0.255 (80)

-. MMC 820

SELF LINK ID:0 / Signal GW:10.0.0.10

SYS01 LINK ID:1 / Signal GW:165.213.87.227 / IP Type:Public

slide97

Site B MMC Configuration

-. MMC 830 IP:192.168.0.10 / GW:192.168.0.1 / Netmask:255.255.255.0 /

Public Port: 6100 / Public IP: 165.213.87.227

System IP Type:Private or Public

-. MMC 831

IP:192.168.0.20 / GW:192.168.0.1 / Netmask:255.255.255.0 /

Public Port: 20000 / Public IP: 165.213.87.227

System IP Type:Private or Public

-. MMC 724

Enter an MGI Dial No. (E.g. 3801 ~ 3816).

-. MMC 615

Enter a VoIP trunk and a public IP trunk (E.g. 3801 ~ 3816).

-. MMC 838

192.168.0.255(80)

-. MMC 820

SELF LINK ID:1 / Signal GW:192.168.0.10

SYS01 LINK ID:0 / Signal GW:165.213.89.238 / IP Type:Public

slide98

▶ CASE IV: IP Networking (Qsig) Call Connection Using IPSec

Site A MMC Configuration

-. MMC 830 IP:10.0.0.10 / GW:10.0.0.1 / Netmask:255.255.255.0 /

System IP Type:Private

-. MMC 831

IP:10.0.0.20 / GW:10.0.0.1 / Netmask:255.255.255.0 /

System IP Type:Private

-. MMC 724

Enter an MGI Dial No. (E.g. 3801 ~ 3816).

-. MMC 615

Enter a VoIP trunk and a IP trunk (E.g. 3801 ~ 3816).

-. MMC 838

192.168.0.255 (79)

10.0.0.255 (80)

-. MMC 820

SELF LINK ID:0 / Signal GW:10.0.0.10

SYS01 LINK ID:1 / Signal GW:192.168.0.10 / IP Type:Private

slide99

Site B MMC Configuration

-. MMC 830 IP:192.168.0.10 / GW:192.168.0.1 / Netmask:255.255.255.0 /

System IP Type:Private

-. MMC 831

IP:192.168.0.20 / GW:192.168.0.1 / Netmask:255.255.255.0 /

System IP Type:Private

-. MMC 724

Enter an MGI Dial No. (E.g. 3801 ~ 3816).

-. MMC 615

Enter a VoIP trunk and a IP trunk (E.g. 3801 ~ 3816).

-. MMC 838

10.0.0.255(79)

192.168.0.255(80)

-. MMC 820

SELF LINK ID:1 / Signal GW:192.168.0.10

SYS01 LINK ID:0 / Signal GW:10.0.0.10 / IP Type:Private

ad
