Iomega Network Storage

Iomega Network Storage . Hardware Overview. PX Series. Storage for SMB and Distributed Enterprise. PX Series. px2-300d Network Storage. Key features Diskless & fully pop. Pro Series, shipping with Standard Class drives Server Series, shipping with Server Class drives

mabyn
Download Presentation

Iomega Network Storage

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Iomega Network Storage Hardware Overview

  2. PX Series Storage for SMB and Distributed Enterprise

  3. PX Series

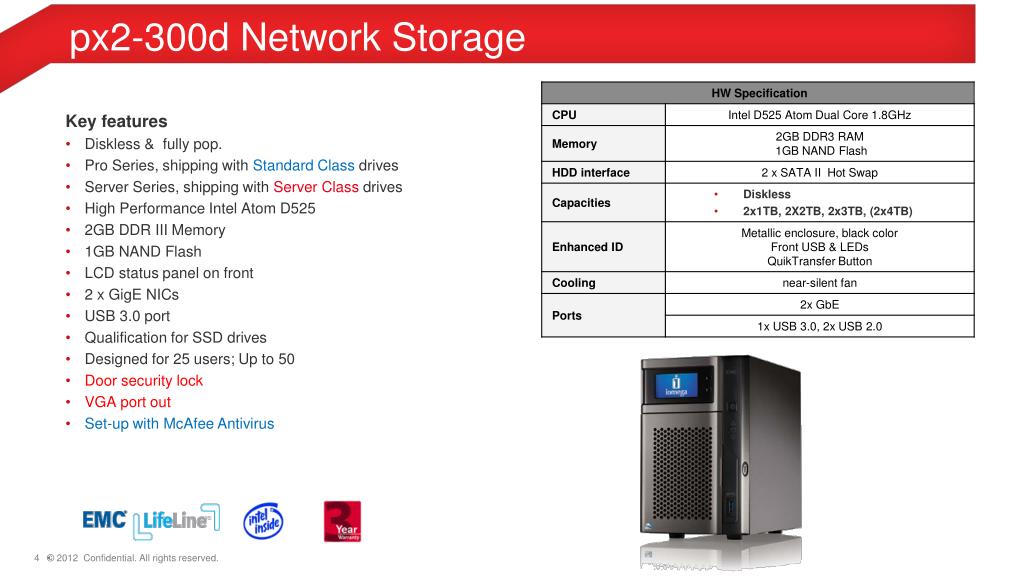

  4. px2-300d Network Storage • Key features • Diskless& fully pop. • Pro Series, shipping with StandardClassdrives • Server Series, shipping with Server Class drives • High Performance Intel Atom D525 • 2GB DDR III Memory • 1GB NAND Flash • LCD status panel on front • 2 x GigE NICs • USB 3.0 port • Qualification for SSD drives • Designed for 25 users; Up to 50 • Door security lock • VGA port out • Set-up with McAfee Antivirus

  5. px4 / 6-300d Network Storage • Key features • Diskless, partially or fully populated • Pro Series, shipping with StandardClassdrives • Server Series, shipping with Server Class drives • High Performance CPU (Intel Dual Core Atom) • Hot Swappable HDDs (Hot spare support) • LCD status panel on front • 2 x GigE NICs • USB 3.0 port on front • Qualification of SSD drives • Designed for 50 users; Up to 100

  6. px4-300r Network Storage • Key features • Diskless or fully populated • Shipping 2TB with Standard Class drives • Shipping 1TB/2TB/3TB with Server Class drives • Intel Celeron Dual Core CPU • Dual Power Supply (2nd PSU sold separately) • 2GB memory • 2 x GbE NIC • Less than 20 in. deep • Bring your own drives, online RAID expansion • SSD drives qualified • Designed for 100 users; Up to 150

  7. px12-400r Network Storage • Key features • Diskless, partially & fully populated • Shipping with Server Class drives • Intel Core i3 Dual Core 3.3 GHz processor • 4GB memory • Designed for 10 x GbE NIC and 4TB drives • SSD drives qualified • Support up to 48 cameras • VGA port out • Set-up with McAfee Antivirus • Shipping with trays already built-in • Typically used for • Production file storage, backup target, video surveillance, server virtualization • Designed for 100 users; up to 250

  8. px12-450r Network Storage • Key features • Diskless, partially & fully populated • Shipping with Server Class drives • Intel Quad Core Xeon CPU (Ivy Bridge) • 8GB memory • Designed for 10 x GbE NIC and 4TB drives • SSD drives qualified • Support up to 48 cameras • VGA port out • Set-up with McAfee Antivirus • Shipping with 12 trays already built-in • Key differentiation to px12-350r (and px12-400r): • CPU and memory • Performance when running volume encryption, Avamar, and when supporting SSD (or running IVX virtual machines when Palazzo will be available) • Designed for 250 users; Up to 375

  9. EZ & IX Series Storage for Home and SOHO

  10. Storage for Home and SOHO

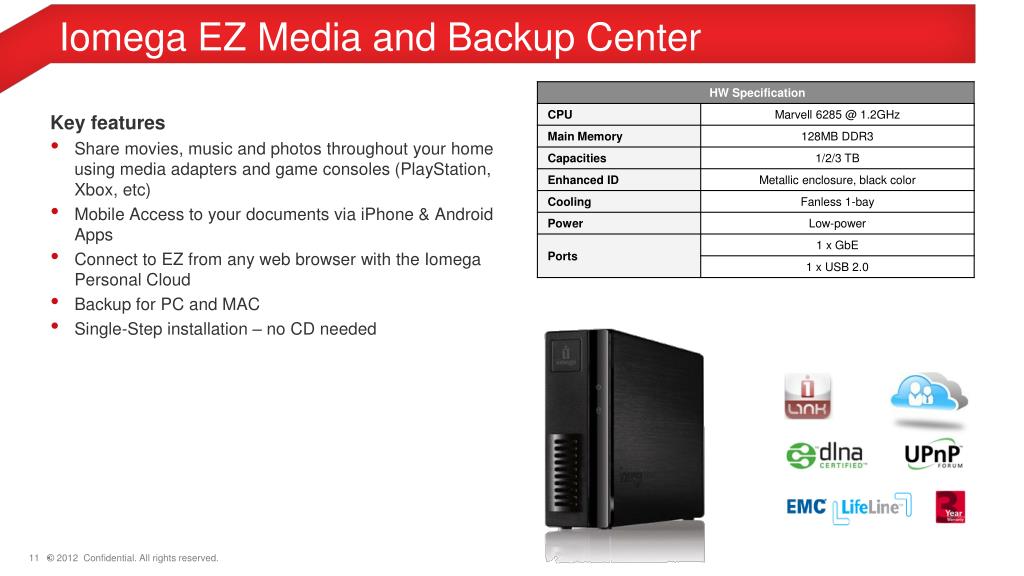

  11. Iomega EZ Media and Backup Center • Key features • Share movies, music and photos throughout your home using media adapters and game consoles (PlayStation, Xbox, etc) • Mobile Access to your documents via iPhone & Android Apps • Connect to EZ from any web browser with the Iomega Personal Cloud • Backup for PC and MAC • Single-Step installation – no CD needed

  12. Iomega ix2 Network Storage • Key features • Up to 30% faster Performance • Backup for PC and MAC • Flexible configurations (0-6TB) • Tool-less Design • CD-less installation • Low Power Consumption

  13. Iomega ix4-300d Network Storage • Key features • Next-gen Marvell Dual-Core Armada CPU • Excellent Read & Write Performance • Front LCD • Dual GbE NICs • Flexible configurations (0-6TB) • More efficient file system (EXT4) • Tool-less design • Key software features: • CD-less installation • Personal Cloud web login • Video Surveillance with 1 free cam license • Customizable Cloud landing page • Proxy support
