초전도의 짝짖기 대칭성과 불순물 효과. 숭실대학교 물리학과 김 희 상. Outline. Introduction service basics on SC What is a superconductor? / G-L theory, type I, type II / Cooper pair, BCS theory / What kinds of SC? order parameter symmetry Unconventional SC Exotic s-wave SC impurity scattering summary.

Download Presentation

초전도의 짝짖기 대칭성과 불순물 효과

An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -

Presentation Transcript


4522161

초전도의 짝짖기 대칭성과 불순물 효과

숭실대학교 물리학과

김 희 상


Outline

Outline

  • Introduction service

  • basics on SC

    • What is a superconductor? / G-L theory, type I, type II / Cooper pair, BCS theory / What kinds of SC?

  • order parameter symmetry

    • Unconventional SC

    • Exotic s-wave SC

    • impurity scattering

  • summary


4522161

초전도가 할 수 있는 것


4522161

From “The hunt for Red October”


4522161

<= 가속기

초고속 컴퓨터 =>


4522161

<= MRI 의료기기


4522161

대표적인 광고

Diagram for

politicians

하지만……

지구를 영하 200도

까지 냉각 시켜야 된다는 거….

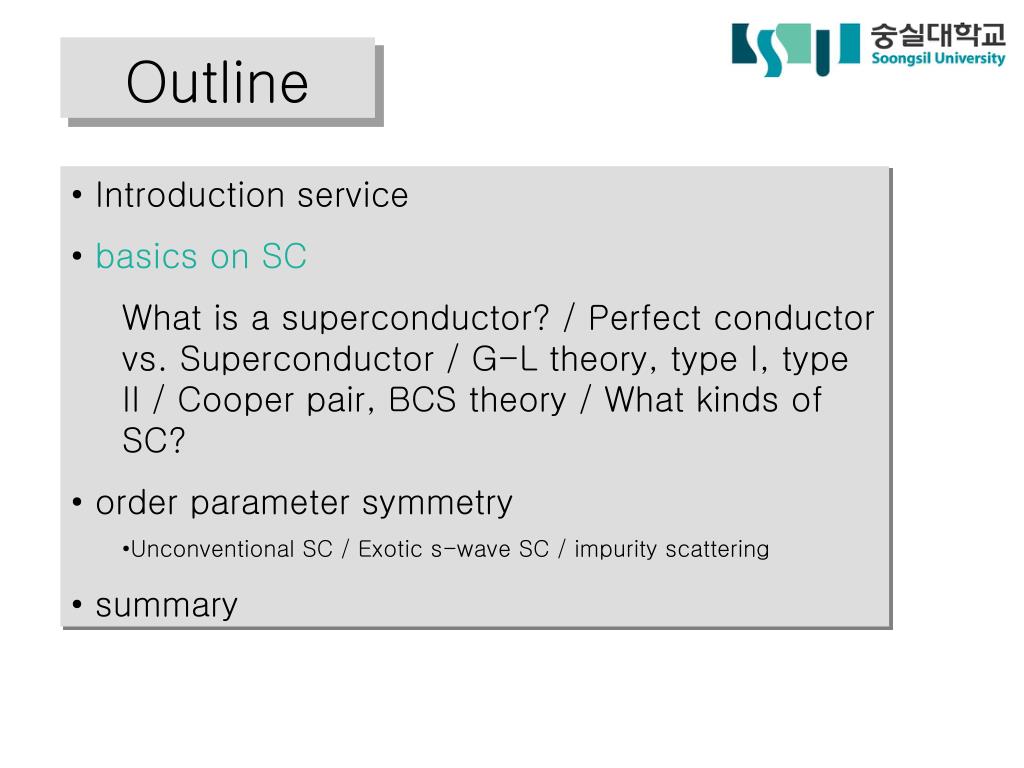

Outline1

Outline

  • Introduction service

  • basics on SC

    • What is a superconductor? / Perfect conductor vs. Superconductor / G-L theory, type I, type II / Cooper pair, BCS theory / What kinds of SC?

  • order parameter symmetry

    • Unconventional SC / Exotic s-wave SC / impurity scattering

  • summary


4522161

1. Perfect conductivity

  • 1908 – H. Kermerlingh Onnes (네덜란드) – Helium의 액화 성공

  • 1911 – 4.2 K, 수은(Hg)의 초전도 발견

H. Kermerlingh Onnes

H. K. Onnes, Commun. Phys. Lab.12,120, (1911)

초전도체의 정의


4522161

2. Perfect diamagnetism

  • 1933 – Meissner & Oschenfeld –not only perfect conductor

  • but also perfect diamagnetism

Perfect conductor와 superconductor의 차이는?


4522161

1st cooling

Apply B field

Becomes p.c.

Lenz 의 법칙-mag flux 유지

Remove B field

Lenz 의 법칙-mag flux 유지

Perfect conductor below Tc

  • cooling 1st & field next


4522161

Apply B field

Current dissipation

Field penetrates

Lenz 의 법칙-mag flux 유지

Now cooling

Becomes p.c.

Remove B field

Lenz 의 법칙-mag flux 유지

Perfect conductor below Tc

  • Field 1st & cooling next

BUT SCs always expel the B field

below Tc, no matter what.


4522161

B field

Superconductor

London penetration depth

  • 1935 – London brothers – two fluid model => penetration depth

Magnetic length scale


4522161

  • 1950 – Ginzburg-Landau theory => free energy expansion


4522161

Where is a complex order parameter,

and is to represent local density of sc electrons, .

Take the variation w.r.t. and .

There exists sc coherence length.

There exists flux quantum.

Flux quantization.

  • 1950 – Ginzburg-Landau theory => free energy expansion


4522161

Vortex state

Flux quantum

  • 1957 –Abrikosov-predict type II SC


4522161

How to understand type I, II ?

Introduce a vortex in SC

이득 :

자기장을 상쇄시키지 않아도 됨

손실 :

응축에너지의 이득을 못 봄


4522161

Physics Letters, 24A, 526(1967)

PRL, 62, 214 (1989)


4522161

  • 1957 – BCS theory –초전도 현상을 설명

John Robert Schrieffer

John Bardeen

Leon Neil Cooper


4522161

e

e

Fermi Sea

and

for

otherwise zero!

Cooper pair problem

  • fully filled F.S. + two interacting electrons

  • two electrons interact with F.S.

  • only through Pauli exclusion principle.


4522161

Conclusion

  • F.S. becomes unstable for arbitrarily small attractive interaction.

  • electrons are bounded, i.e., get paired.

  • Bound energy is not analytic in v. => pertubation is not possible

Cooper’s results

Let and, then,

Size of the bound state


4522161

=> Ion plays a role

=> lattice vibration, i.e., phonon

Where could the attractive interaction come from?

Isotope effect


4522161

The pairs are heavily entangled!!

Indirect interaction through phonon


4522161

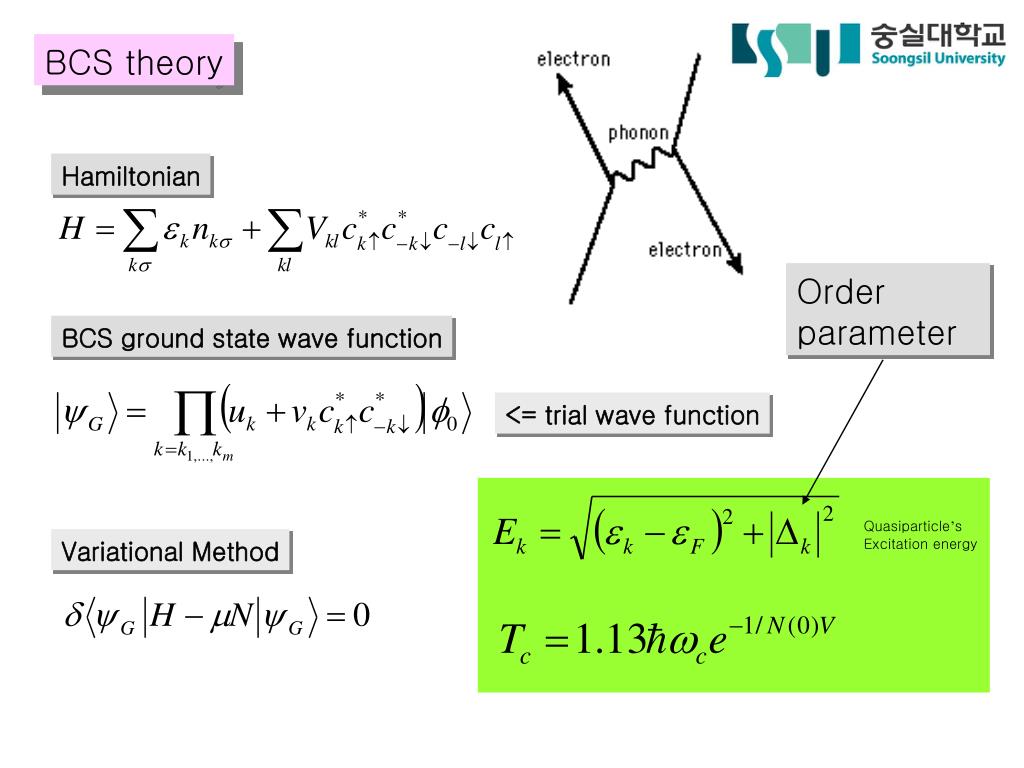

BCS theory

Hamiltonian

Order parameter

BCS ground state wave function

<= trial wave function

Quasiparticle’s

Excitation energy

Variational Method


4522161

BCS explains exp. data


4522161

초전도의 분류

  • type I, type II - magnetic property

  • BCS type SC

  • He3

  • heavy fermion SC

  • high Tc cuprates

  • Fullerine C60

  • organic SC

  • MgB2 금속화합물

  • and many more ……

  • conventional, unconventional– OP symmetry


4522161

CeCu2Si2 - heavy effective mass ~ 200me

UBe13– rich phase diagram

UPt3– possible spin triplet

  • 1972 – Osheroff, Richardson, Lee –superfluidity in He3 ; Leggett –theory based on BCS

  • 1979 – Steglich Heavy fermion superconductor

  • 1986 – Bednorz, Muller - High Tc superconductor


4522161

High Tc SC; copper oxides; Cuprates


We are interested in the order parameter symmetry

We are interested in the order parameter symmetry!!!


4522161

antisymmetric

Spin part

Spatial part

Singlet pairing

antisymm.

Spherical symm.있는 경우

Triplet pairing

symm.

  • Spherical harmonics

    s, d, g, … symm. Singlet pairing

    p, f, … antisymm. Triplet pairing

Order parameter in SC

Two particle func.


4522161

using the generalized BCS

Therefore, OP symm. has info. of the interaction, i.e. the mechanism.

The solution has

the following form.


4522161

Tetragonal symm. group; D4

YBCO

Irreducible rep.

dimension

Base func

Etc.

A1

1

s-wave

A2

1

B1

1

d-wave

B2

1

xy

E

2

(xz,yz)

Unconventional SC(USC)

Definition –

order parameter(spatial part) has less rotational symmetry than the host lattice


4522161

Cubic symm. group; Oh

Irreducible rep.

dimension

Base func

Etc.

A1

1

s-wave

A2

1

E

2

T1

3

(x,y,z)

T2

3

(xz,yz,zx)

Heavy fermion SC


4522161

Structure of SC OP could be very complicated !!!

  • Conventional SC

  • s-wave

  • extended s-wave (sign change)

Non-zero ave. on F.S.

No node

Gap-yes

Exponential behavior

Ignore imp. scattering

  • Unconventional SC

  • d-wave(spin singlet)

  • p-wave(spin triplet)

  • and more ……

1.Zero average of OP on F.S.

2.Nodes exist.

gapless, power law behavior

Sensitive to imp. scattering


4522161

  • 1.Zero average of OP on F.S.

  • 2.Nodes exist.

    • => structure of nodes (point node, line node, etc.) determines SC property

    • gapless, power law behavior

    • sensitive to impurity scattering

  • Line node : d-wave

  • Extended s-wave, d+s wave, ellipsoid

  • Point node

  • Nodeless UOP


4522161

Eqs. to solve self-consistently


4522161

parameters describing impurity

Scattering cross section

(normalized by strong limit)

Scattering rate


4522161

Line node (d-wave)

Striking difference


4522161

Sensitive to imp scattering

Finite DOS at FS


4522161

Exotic s-wave SCs

Extended s-wave, d+s wave


4522161

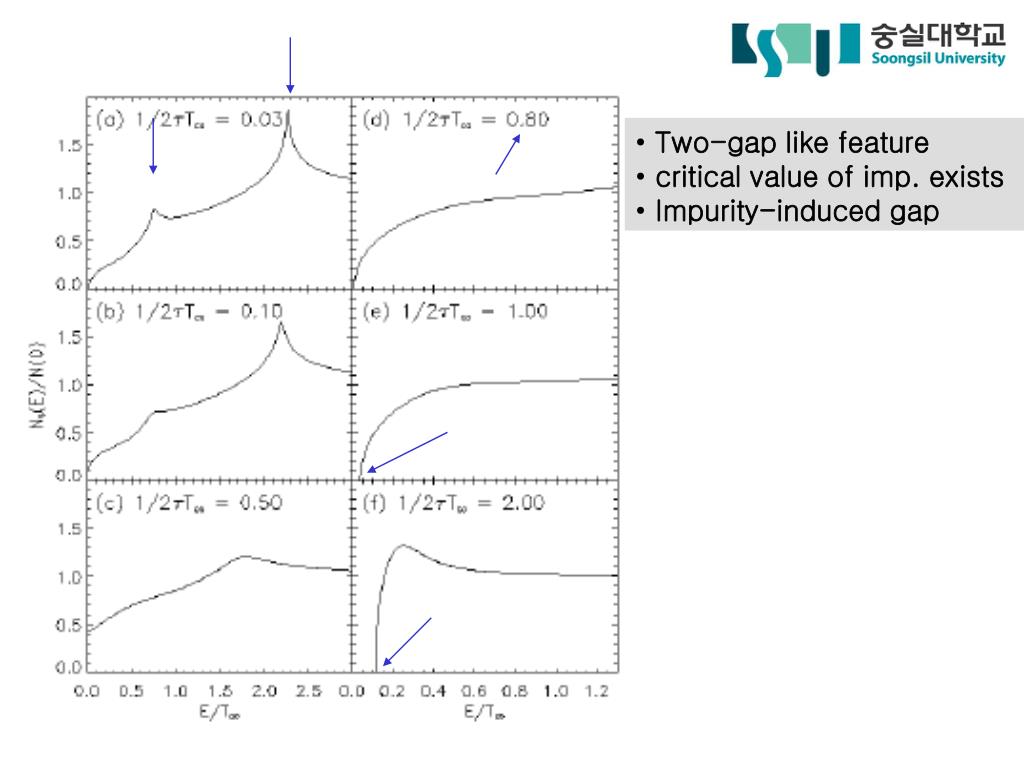

  • Two-gap like feature

  • critical value of imp. exists

  • Impurity-induced gap


4522161

Ellipsoid

~ D(1 + a cos(theta))

Single peak

Exotic s-wave SCs

Two gap like feature

Maki (2002)


4522161

Gap amp. is not sensitive to impurity


4522161

Exotic s-wave SCs

Point node

Notice : the difference

A-phase of SF He3

Zero FS average (USC)


4522161

Gap opens with impurity scattering


4522161

T^3 behavior

(w/o imp)

Exponential behavior

(w/ imp.)


4522161

Tc is not sensitive to imp.

All agree with borocarbides data.


4522161

  • Summing up ……

  • basics on SC (from def. to BCS)

  • why order parameter symmetry?

  • unconventional order parameter

  • exotic s-wave order parameters

    • Extended s-wave, d+s wave

    • Point node SC – special atten. w/ borocarbides

  • Imp. effect plays a key role in detecting OP symm.


4522161

1913

2003

1972

2003

1973

1996

2003

1987

오늘 우리가 이야기한 것들……

  • 1908 – H. Kermerlingh Onnes (네덜란드) – Helium의 액화 성공

  • 1911 – 4.2 K, 수은(Hg), perfect conductivity

  • 1933 – Meissner & Oschenfeld – perfect diamagnetism

  • 1935 – London brothers –현상론 => penetration depth

  • 1950 – Ginzburg-Landau theory => free energy expansion

  • 1957 – BCS theory –초전도 현상을 설명; Abrikosov-predict type II SC

  • 1962 – Josephson effect

  • 1972 – Osheroff, Richardson, Lee –superfluidity in He3 ; Leggett –theory based on BCS

  • 1979 – Heavy fermion superconductor

  • 1986 – Bednorz, Muller - High Tc superconductor

  • 2001 – MgB2 - 39K - 금속화합물

  • 초전도문제는 어렵지만, 재미있고 방대한 구조를 가지고 있다.

  • 아직도 중요한 open problems가 널려있다.

  • 가장 rewarding한 분야이다.

  • 그리고……고도의 복지사회로 인도하는……
