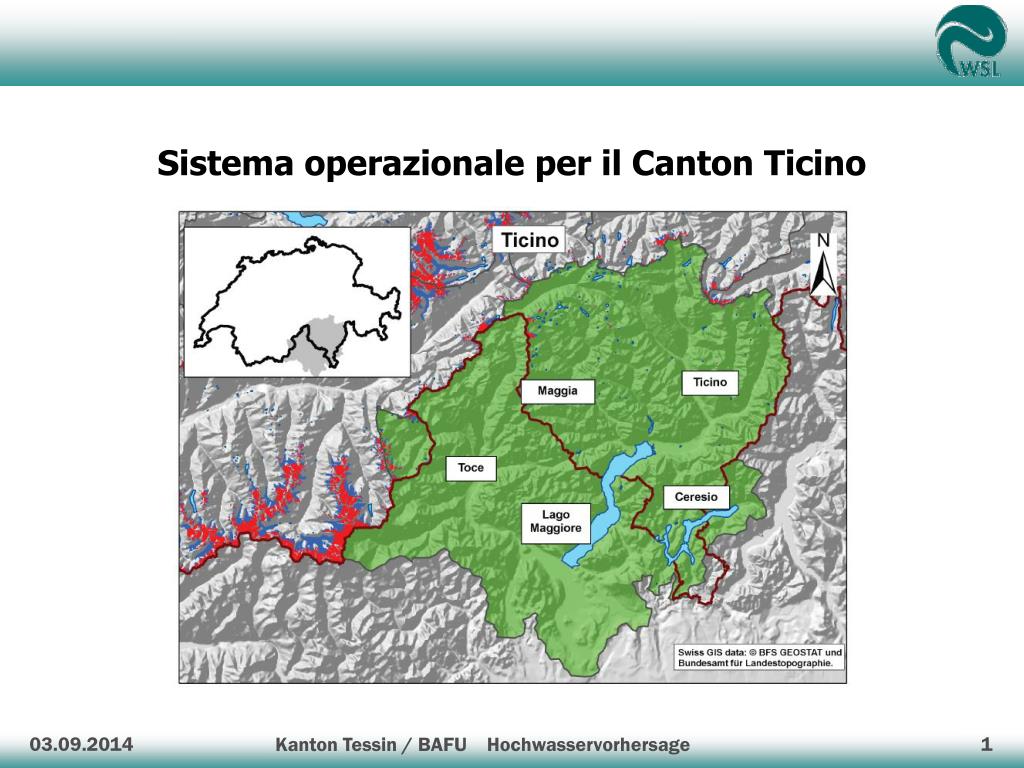

  1. Sistema operazionale per il Canton Ticino 03.09.2014 1 Kanton Tessin / BAFU Hochwasservorhersage

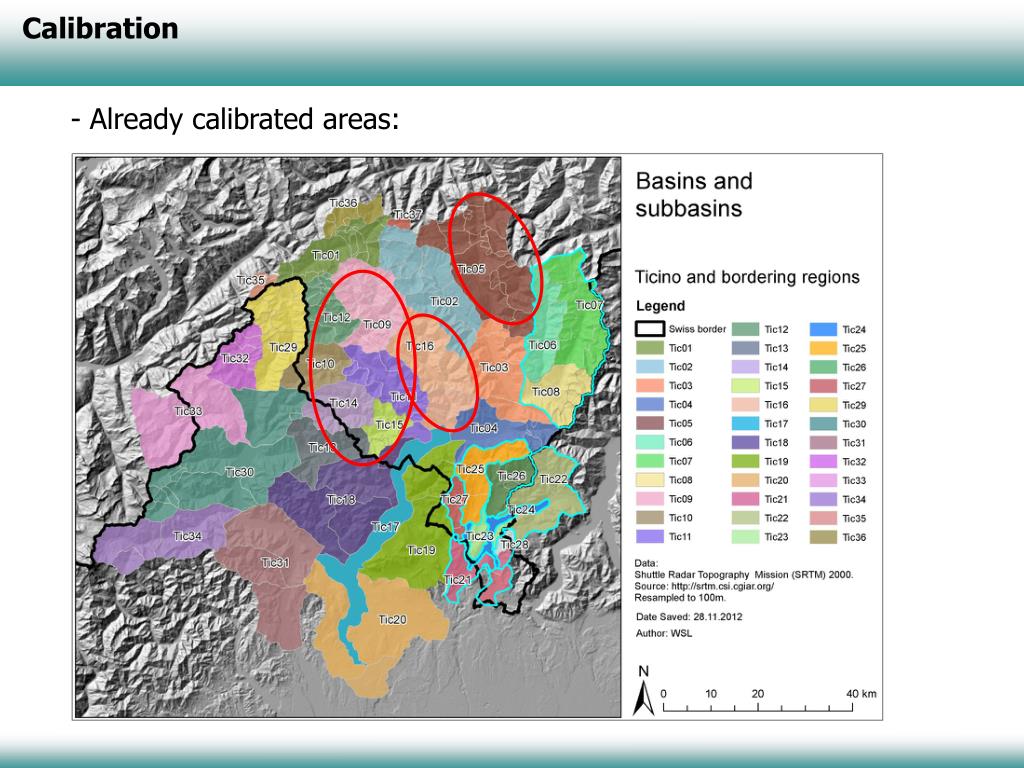

  2. Calibration • Already calibrated areas:

  3. Calibration approach • Tuneable Parameters • Precipitation correction • Threshold coefficient for surface runoff /quick runoff formation • Storage time for surface runoff • Storage time for interflow Manual Calibration PREVAH Xml-file (discharge) • Tuneable Parameters • Hydropower infrastructure (intakes, derivations, storage, powerplants) • Storage accumulation/release (volume, energy demand, legislations, etc..) • River bed hydraulics (slope, river bed geometry) Manual Calibration RS3.0

  4. Kalibrierung RS3.0 Fokus auf: Zielniveaukurven (saisonale Volumen Verschiebung) Umleiten von Wasser durch Fassungen, Galerien (geographische Verschiebung) Strategien Kalibrierung • Langfristig (Jahresverlauf) • Staureferenzniveau • Kurzfristig (Tages/Wochen) • Strompreise • Rahmenbedingungen • Wehrreglement und andere

  5. Calibration approach RoutingSystem Target Level Curve Die Target Level Curvewird verwendet um das langzeitverhalten der grossen Reservoire zu simulieren. Falls vorhanden wird die Zielkurve über gemittelte historische Jahreskurven definiert (in diesem fall 2000-2011) Falls nicht wird die Zielkurve definiert in dem man den Ertrag des Kraftwerkes optimiert (saisonalen Energiepreisschwankungen nutzen und Überlaufereignisse minimieren) Sambuco: 64 Mio m3

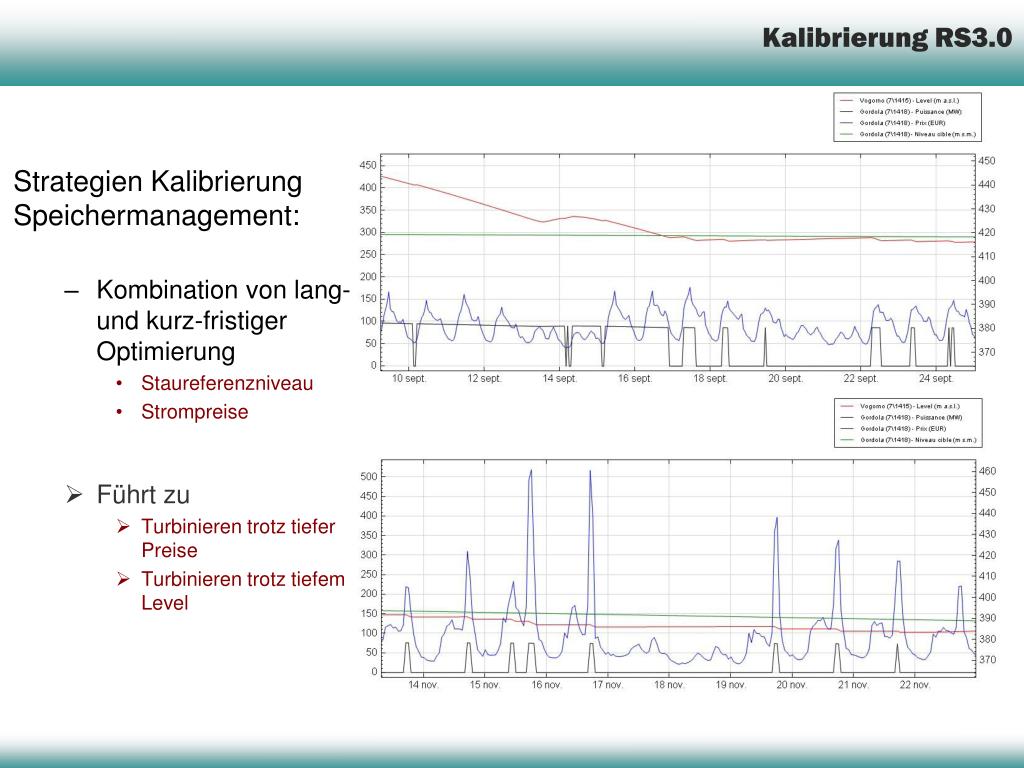

  6. Kalibrierung RS3.0 Strategien Kalibrierung Speichermanagement: • Kombination von lang- und kurz-fristiger Optimierung • Staureferenzniveau • Strompreise • Führt zu • Turbinieren trotz tiefer Preise • Turbinieren trotz tiefem Level

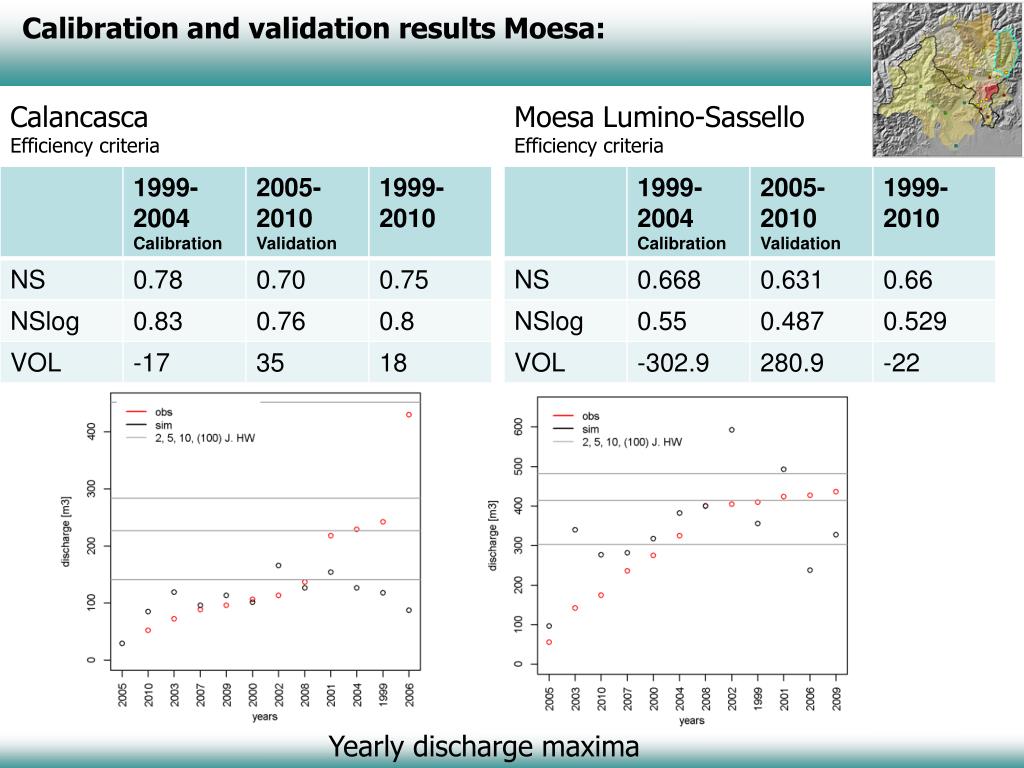

  7. Calibration and validation results Moesa: Calancasca Efficiency criteria Moesa Lumino-Sassello Efficiency criteria • Yearly discharge maxima

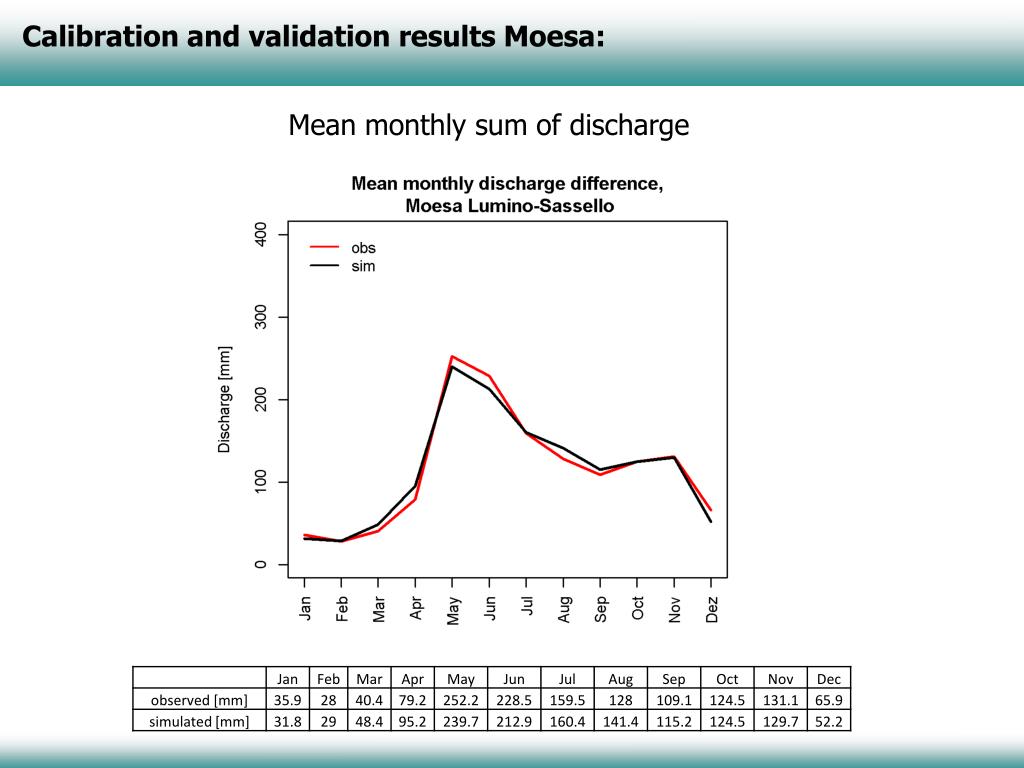

  8. Calibration and validation results Moesa: Mean monthly sum of discharge

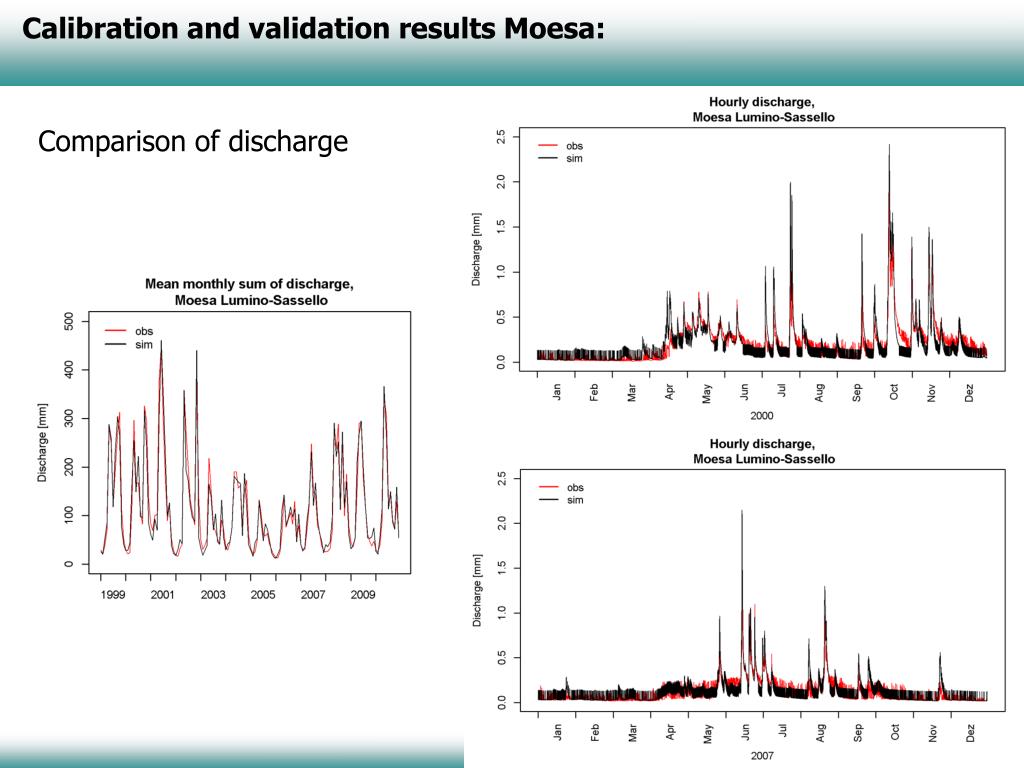

  9. Calibration and validation results Moesa: Comparison of discharge

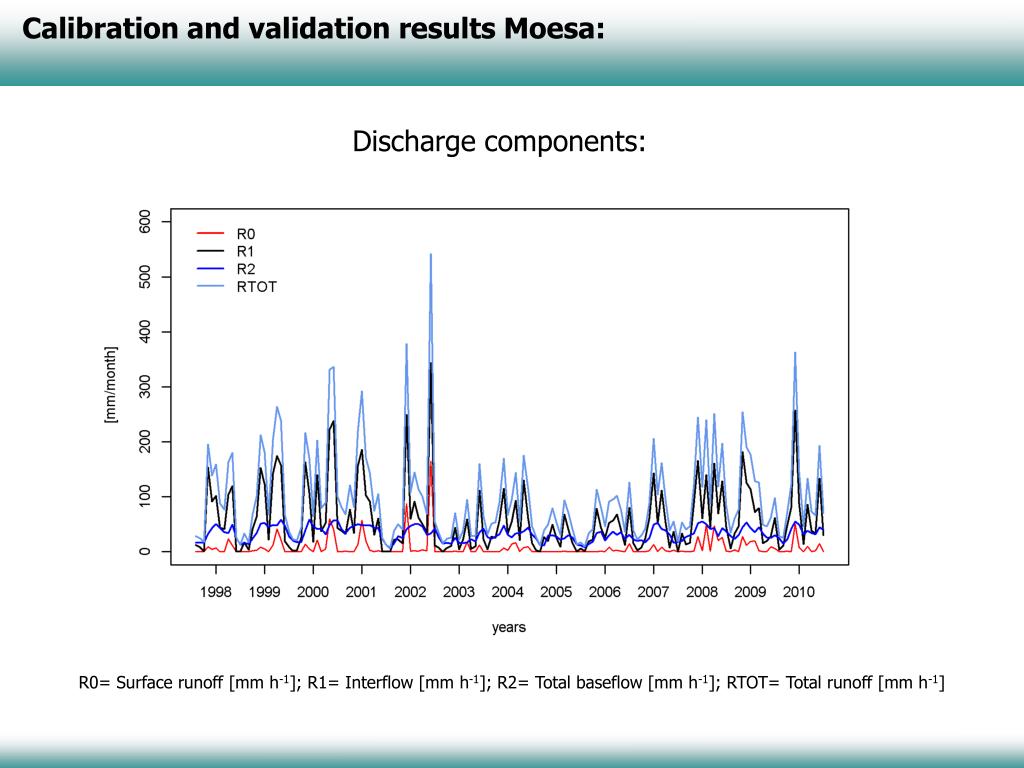

  10. Calibration and validation results Moesa: Discharge components: R0= Surface runoff [mm h-1]; R1= Interflow [mm h-1]; R2= Total baseflow [mm h-1]; RTOT= Total runoff [mm h-1]

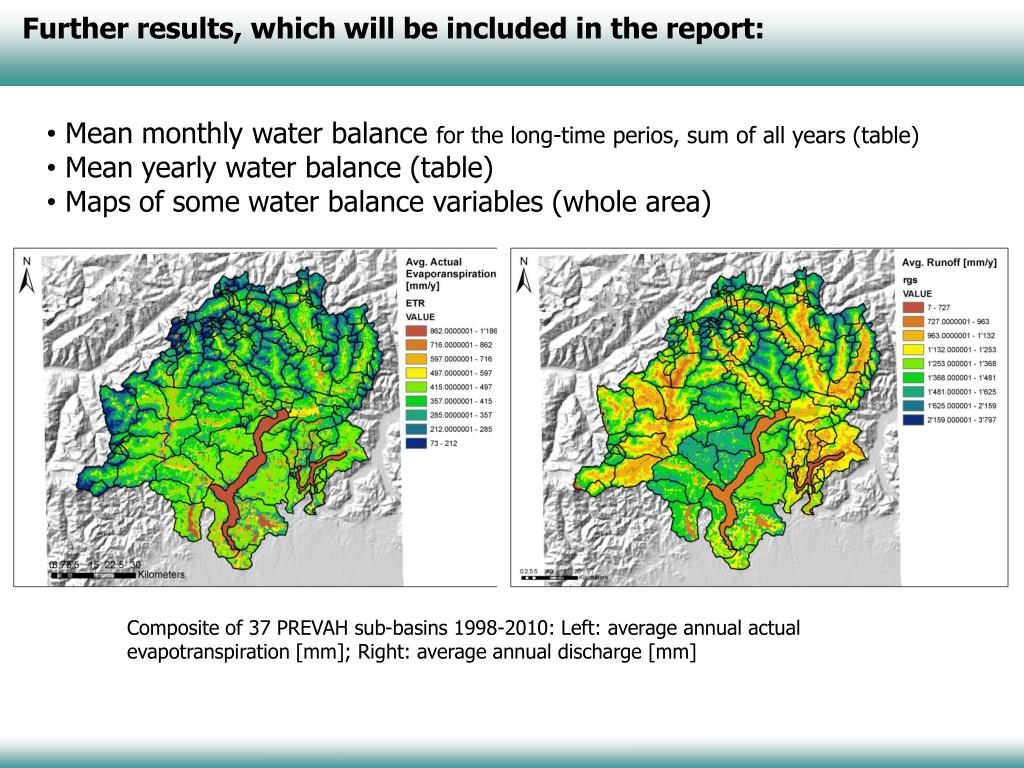

  11. Further results, which will be included in the report: • Mean monthly water balance for the long-time perios, sum of all years (table) • Mean yearly water balance (table) • Maps of some water balance variables (whole area) Composite of 37 PREVAH sub-basins 1998-2010: Left: average annual actual evapotranspiration [mm]; Right: average annual discharge [mm]

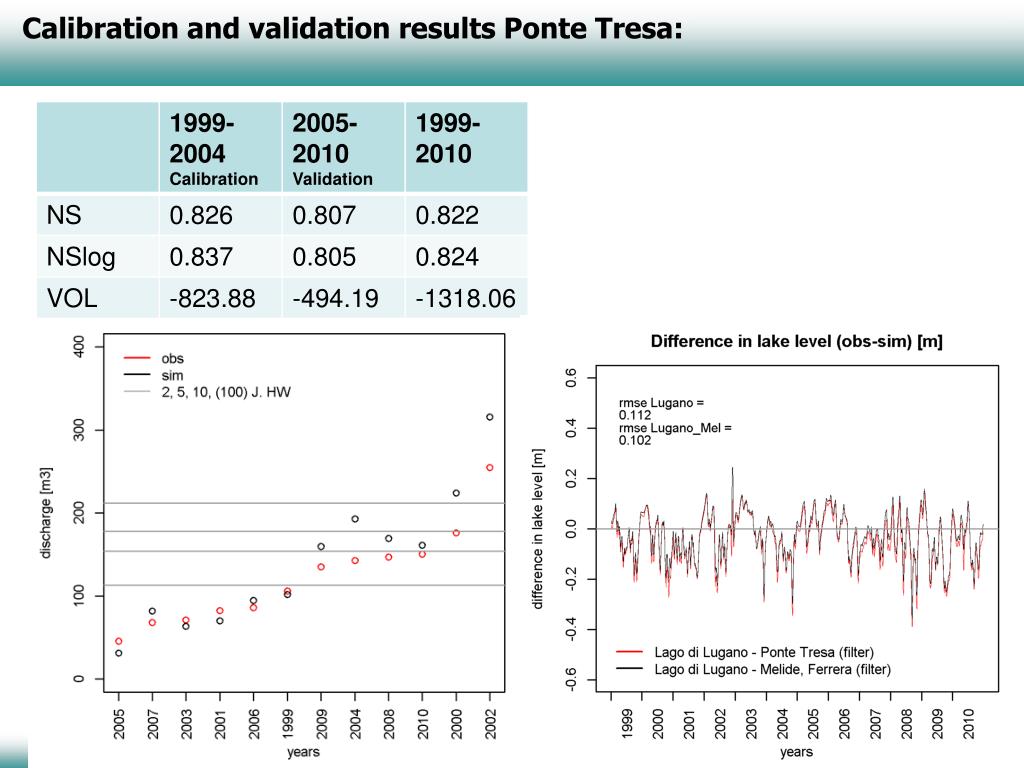

  12. Calibration and validation results Ponte Tresa:

  13. Difficulties during calibration process: • - Low NS and Nslog-values for Riva San Vitale_Laveggio, Porlezza, Lugano- Scariolo • Riva San Vitale_Laveggio • Porlezza • Lugano Scariolo

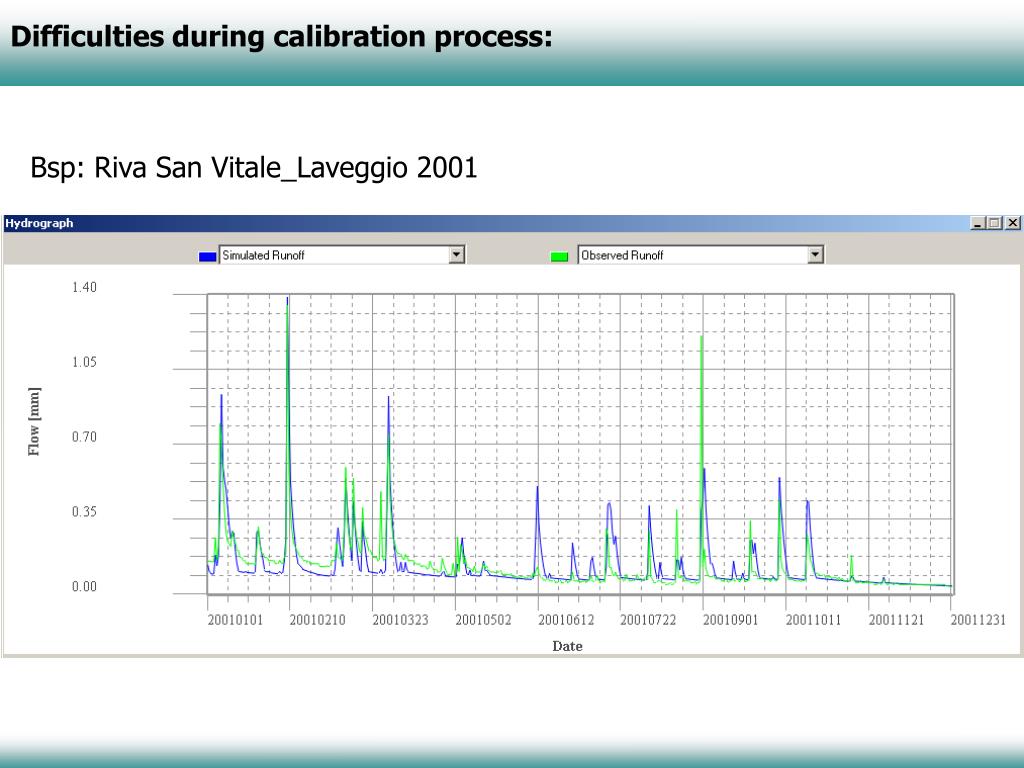

  14. Difficulties during calibration process: • Bsp: Riva San Vitale_Laveggio 2001

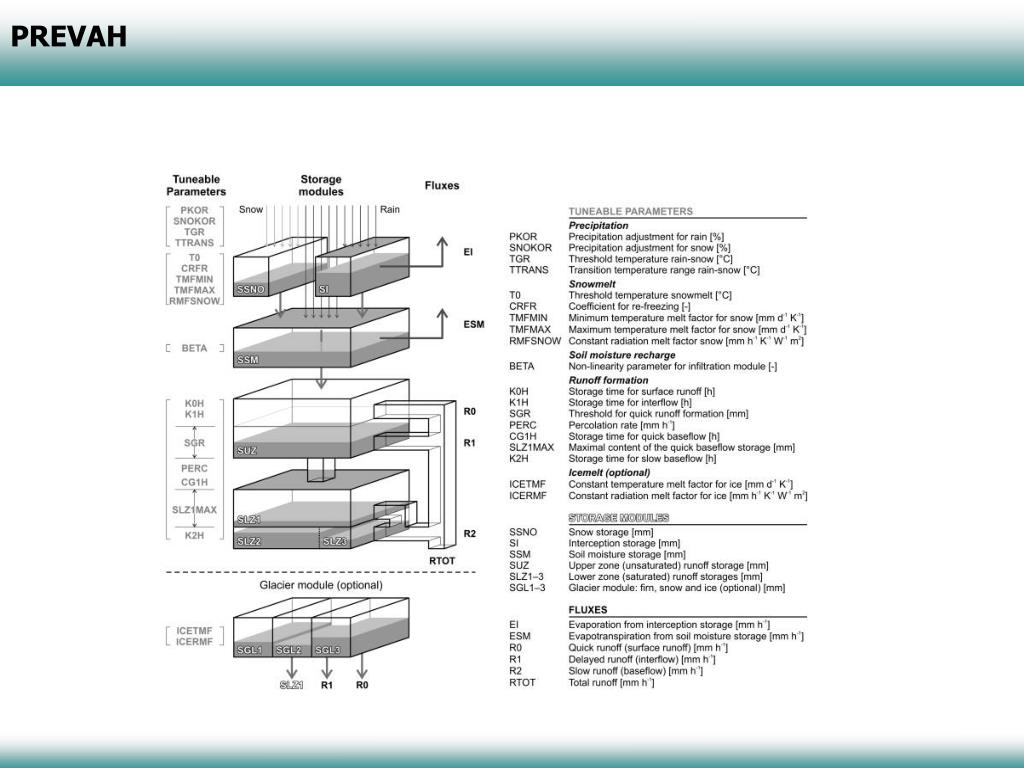

  15. PREVAH
