  1. Pressure

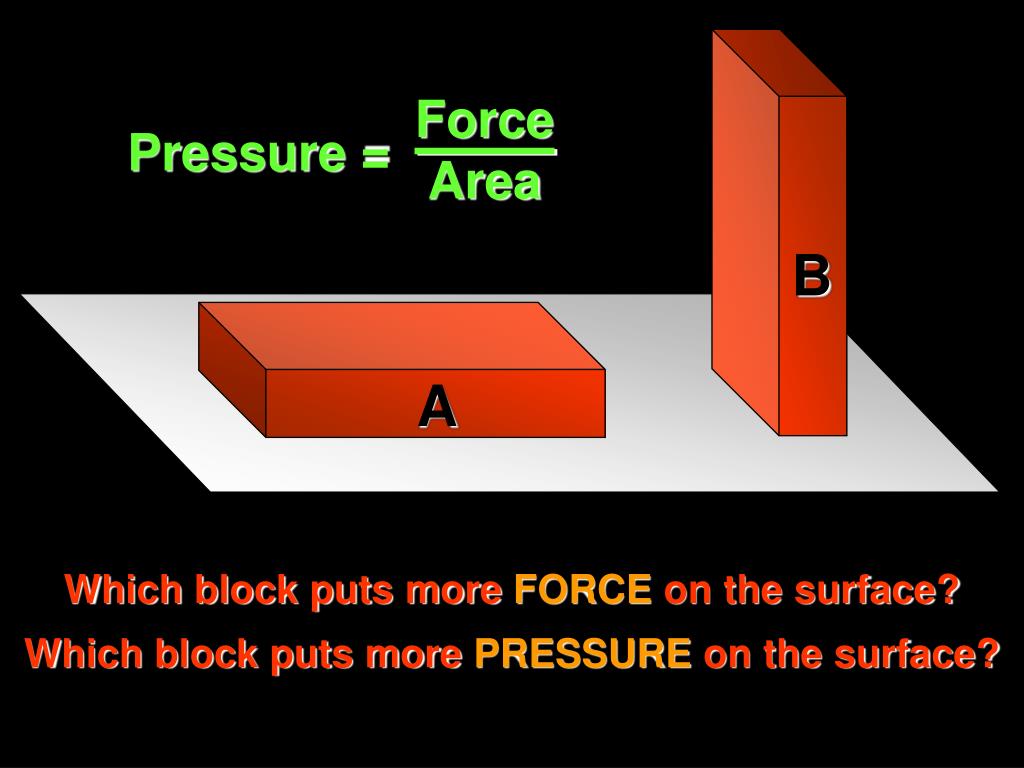

  2. ForceArea Pressure = B A Which block puts more FORCE on the surface? Which block puts more PRESSURE on the surface?

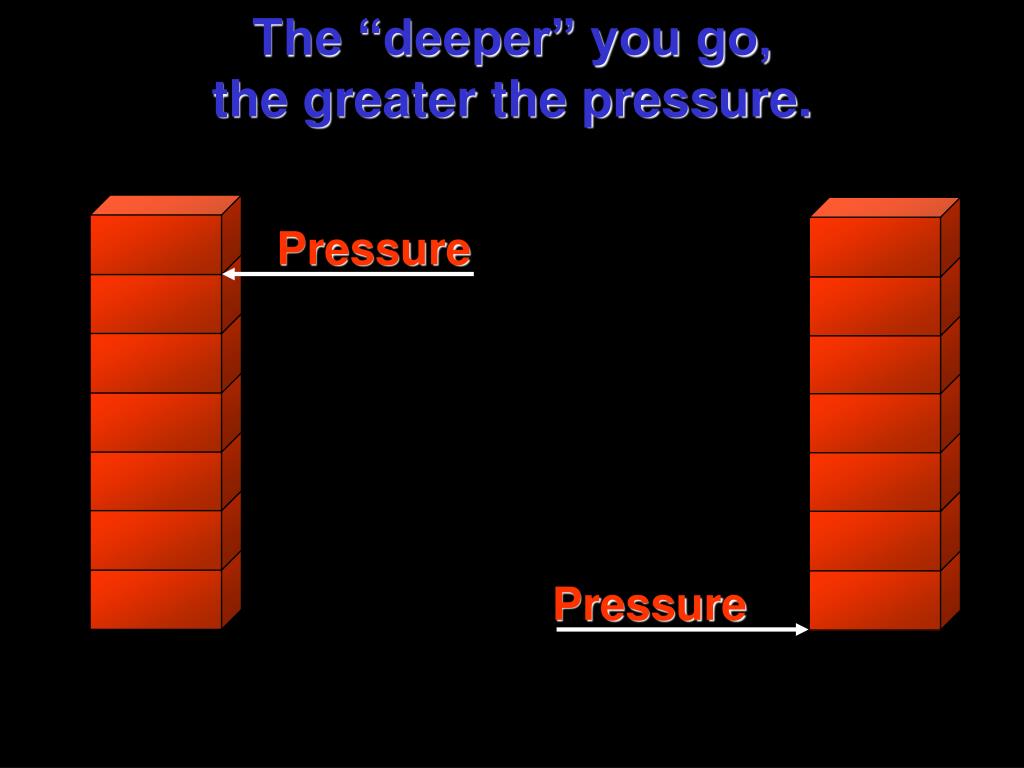

  3. The “deeper” you go,the greater the pressure. Pressure Pressure

  4. http://www.highland-academy.com/webpages/webpages_events/events_03-04/03-04_school_vs_staff_flagball.htmhttp://www.highland-academy.com/webpages/webpages_events/events_03-04/03-04_school_vs_staff_flagball.htm http://www.dmitchell.com/home/extended_family.html DOG PILE

  5. How does this picture illustratepressure as a function of depth?

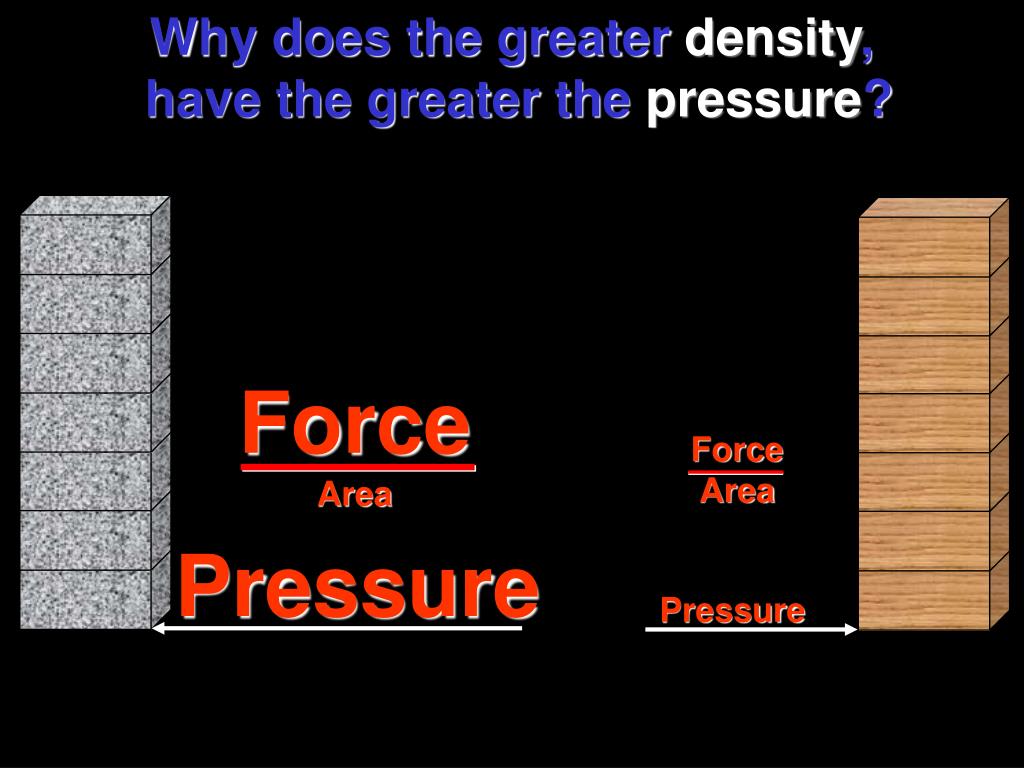

  6. Why does the greater density, have the greater the pressure? ForceArea ForceArea Pressure Pressure

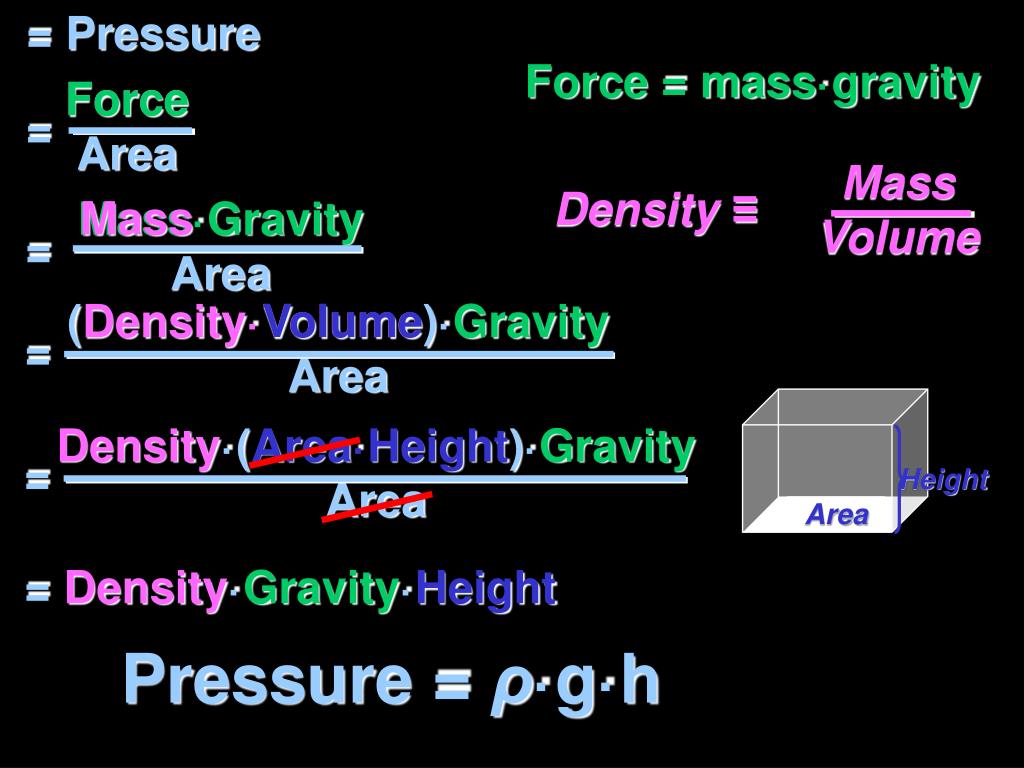

  7. = Pressure ForceArea = Height Area Mass·GravityArea = MassVolume Density ≡ (Density·Volume)·GravityArea = Density·(Area·Height)·GravityArea = Force = mass·gravity Force Mass Volume = Density·Gravity·Height Pressure = ρ·g·h

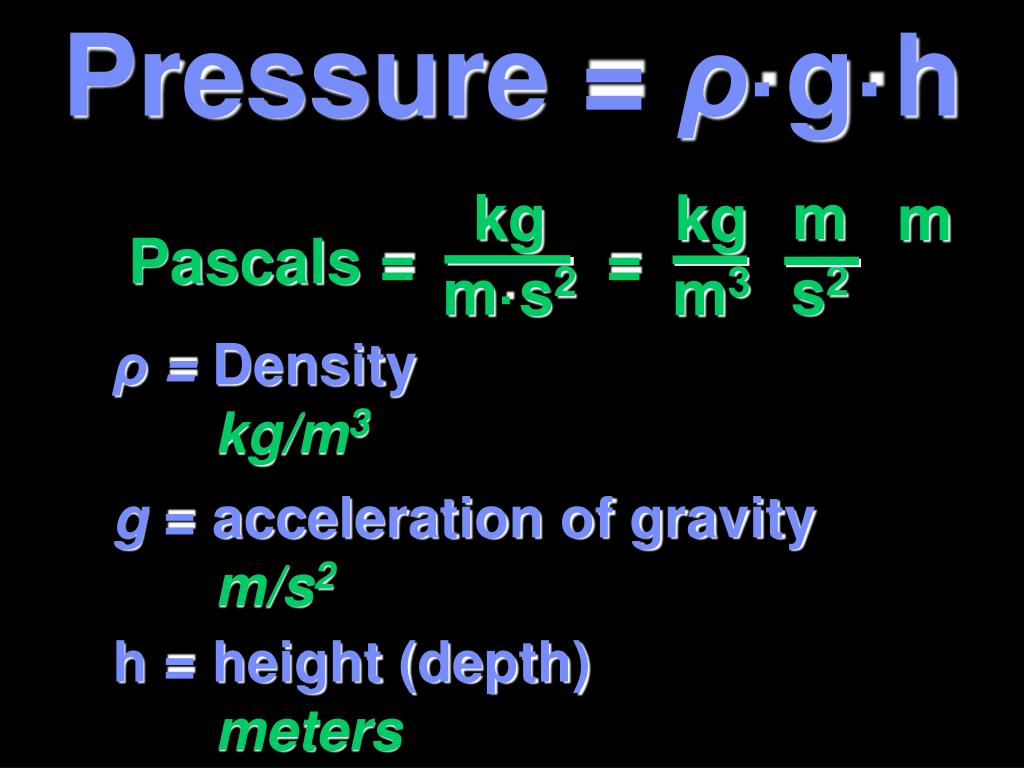

  8. Pressure = ρ·g·h ms2 kgm3 kgm·s2 m Pascals = = ρ = Density kg/m3 g = acceleration of gravitym/s2 h = height (depth)meters

  9. This is too much,I can’t handle the ρ·g·h!

  10. Homework (start right now): Pg 326 #22-28 Find the weight of a car using the tire pressure – Due Wednesday:

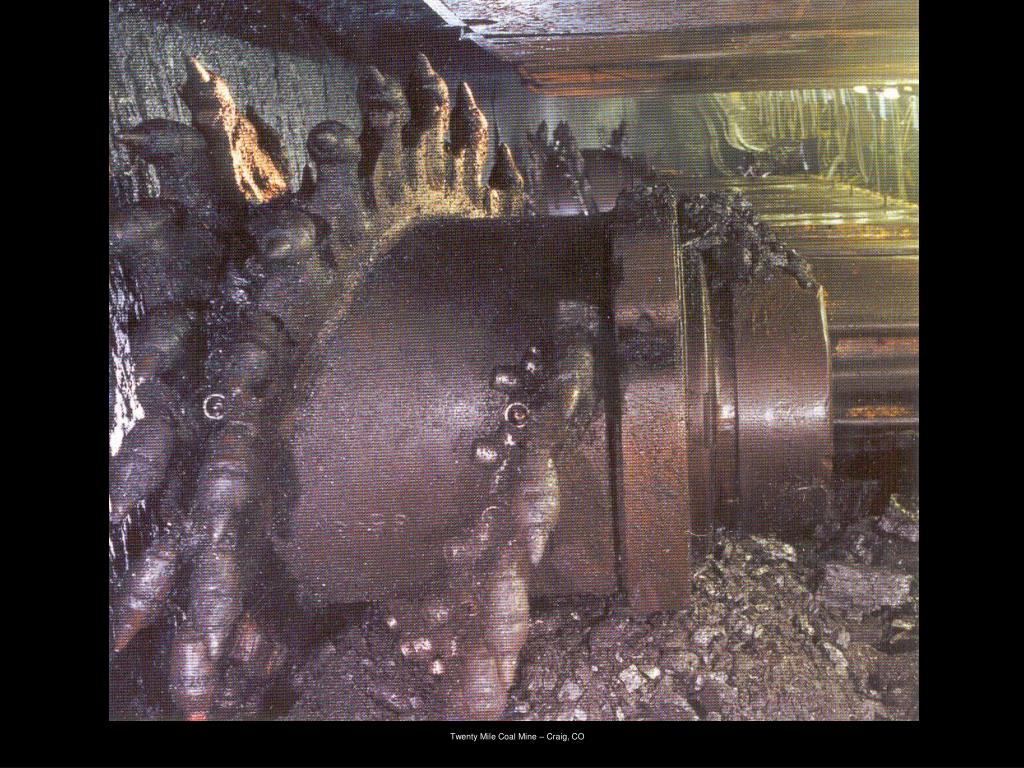

  11. Twenty Mile Coal Mine – Craig, CO

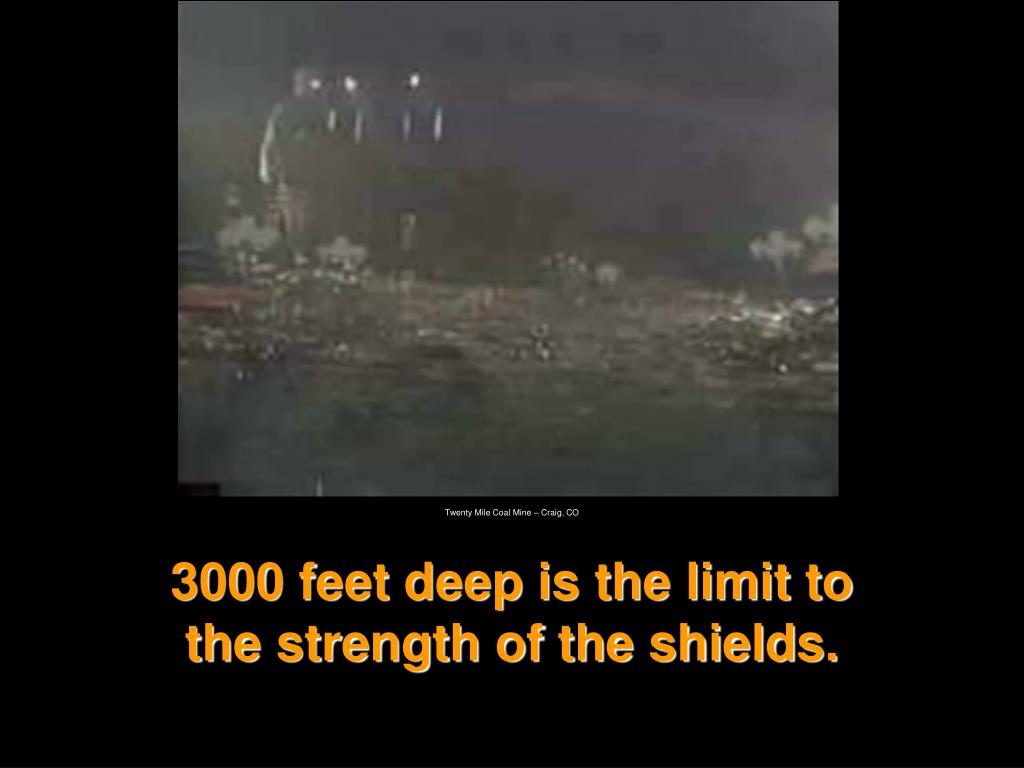

  12. Twenty Mile Coal Mine – Craig, CO 3000 feet deep is the limit tothe strength of the shields.

  13. Liquid Pressure

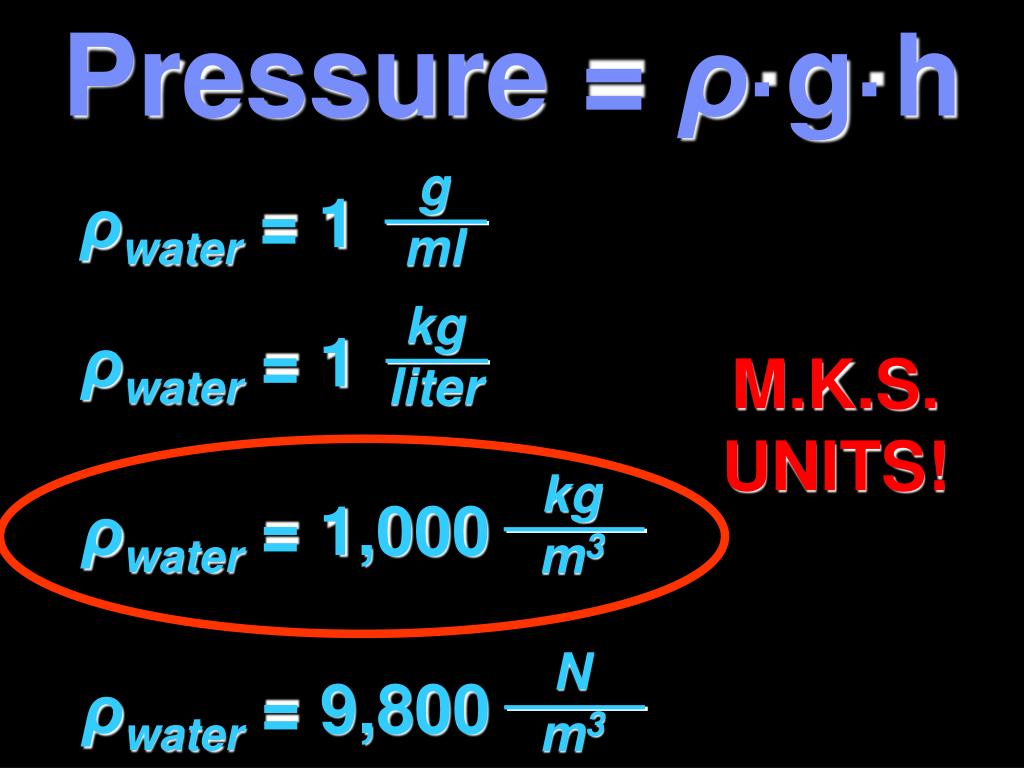

  14. Pressure = ρ·g·h gml kgliter kgm3 Nm3 ρwater = 1 ρwater = 1 ρwater = 1,000 ρwater = 9,800 M.K.S. UNITS!

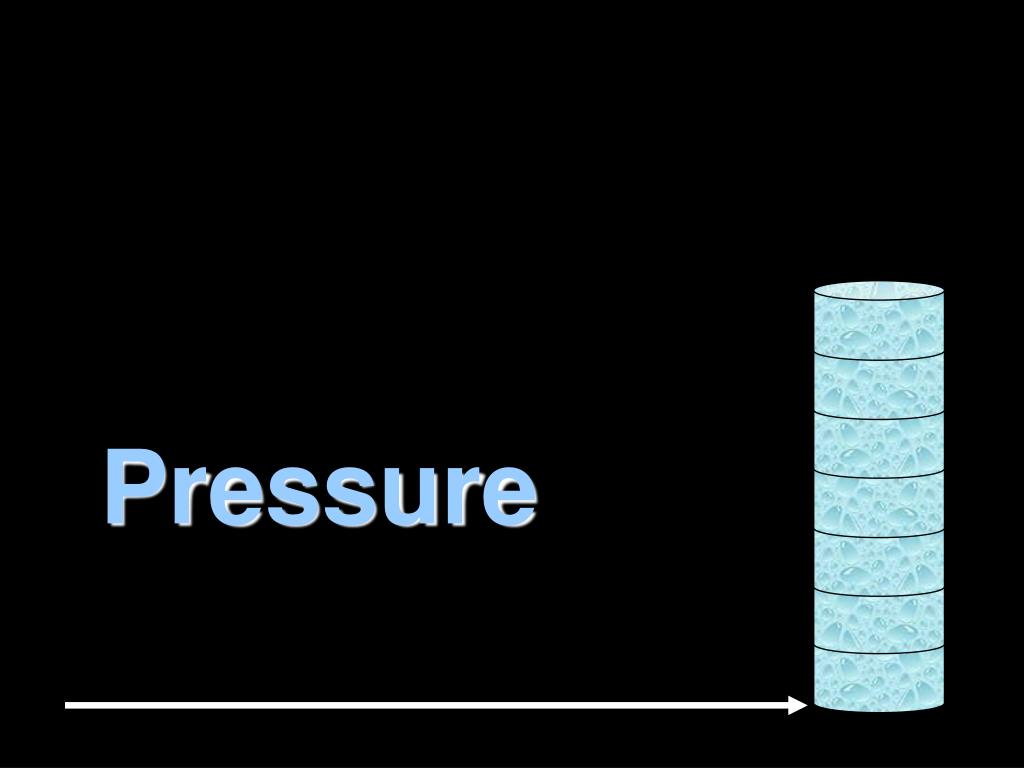

  15. Pressure

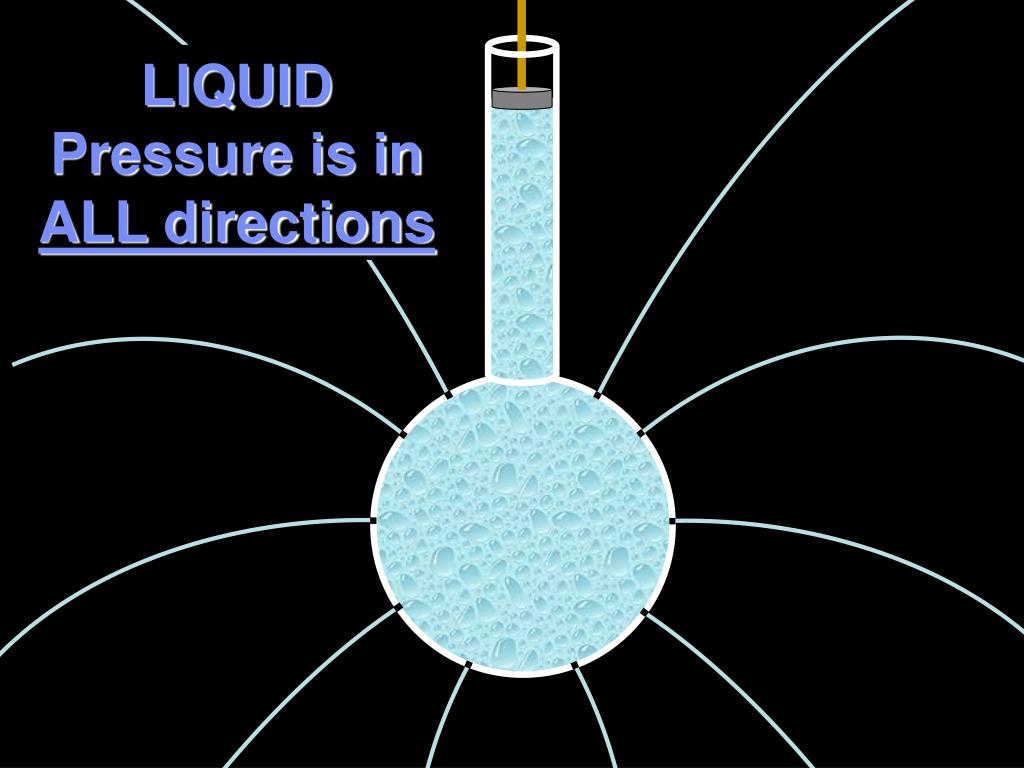

  16. LIQUIDPressure is in ALL directions

  17. Solids Liquids http://catalinaphysics.freeservers.com/photo.html

  18. http://www.ricardojacobson.com/photopages/LasVegas2004_HoverDam.htmhttp://www.ricardojacobson.com/photopages/LasVegas2004_HoverDam.htm

  19. http://www.kevini.net/GrandCanyon/pages/Hoover%20Dam%20wall%202.htmhttp://www.kevini.net/GrandCanyon/pages/Hoover%20Dam%20wall%202.htm

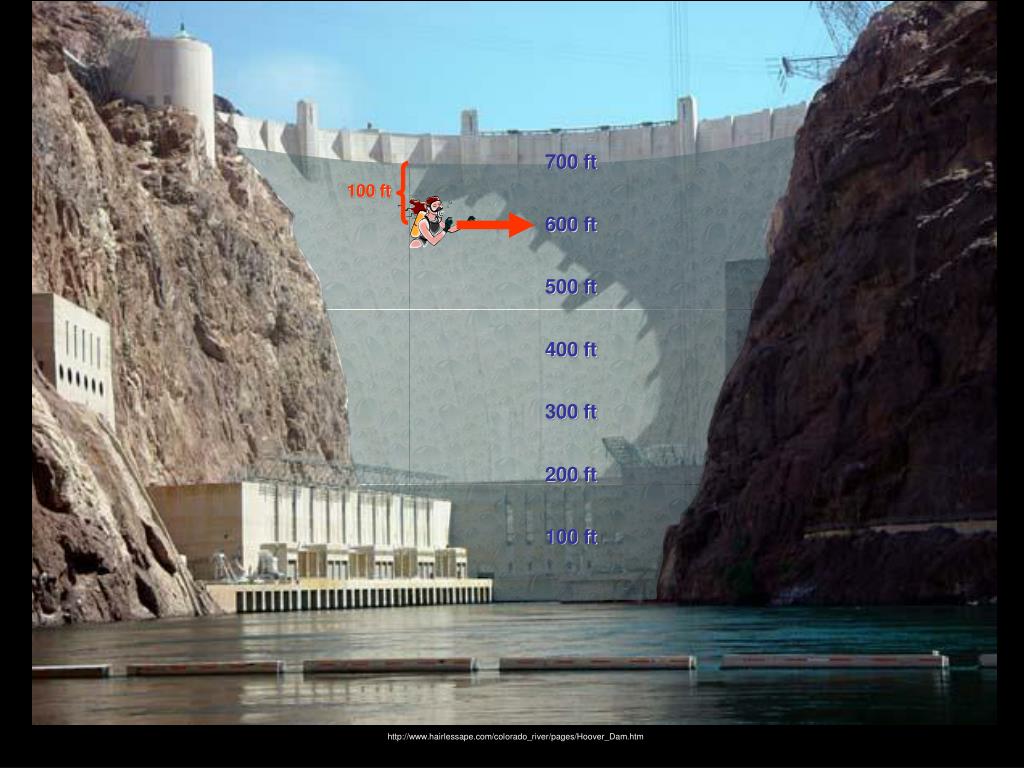

  20. 700 ft 600 ft 100 ft 500 ft 400 ft 300 ft 200 ft 100 ft http://www.hairlessape.com/colorado_river/pages/Hoover_Dam.htm

  21. 727 feet http://www.arizona-leisure.com/gfx/hoover-dam-2-lg.jpg

  22. 660 feet http://www.arizona-leisure.com/gfx/hoover-dam-7-lg.jpg

  23. http://home.silco.com/vegas/pictures/Hoover%20Dam%20Sept%202001/MVC-367X.JPGhttp://home.silco.com/vegas/pictures/Hoover%20Dam%20Sept%202001/MVC-367X.JPG

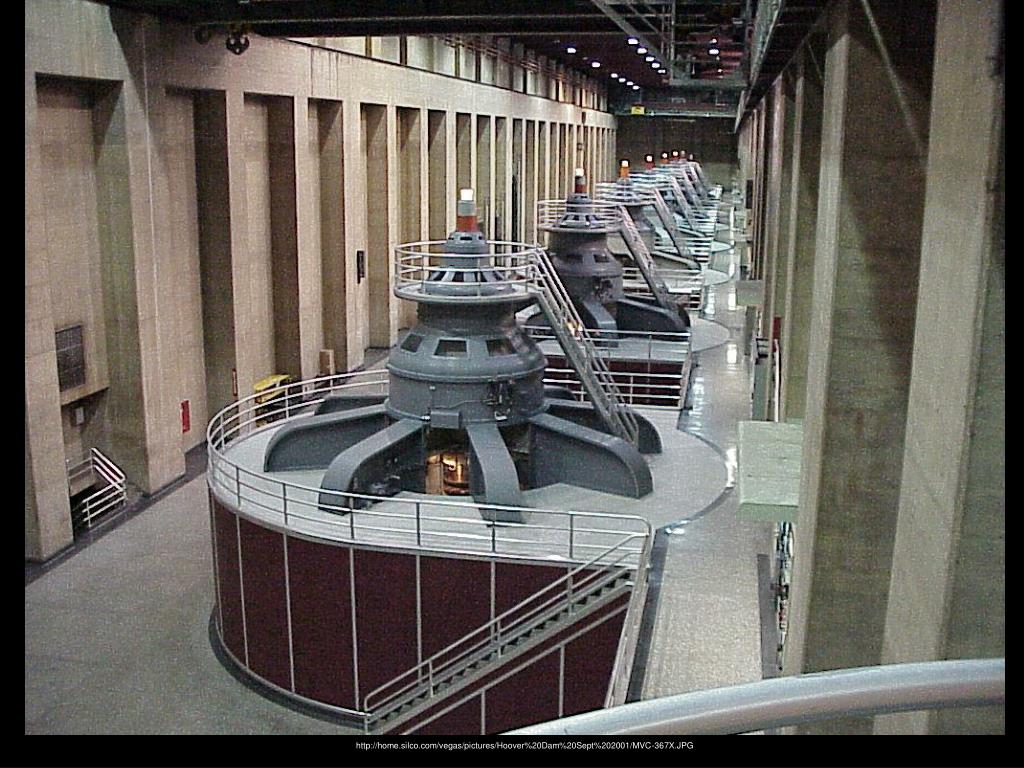

  24. Pressure = ρ·g·h http://oak.cats.ohiou.edu/~bw249495/Hoover%20Dam%20-%20Arial.JPG

  25. Pressure = ρ·g·h

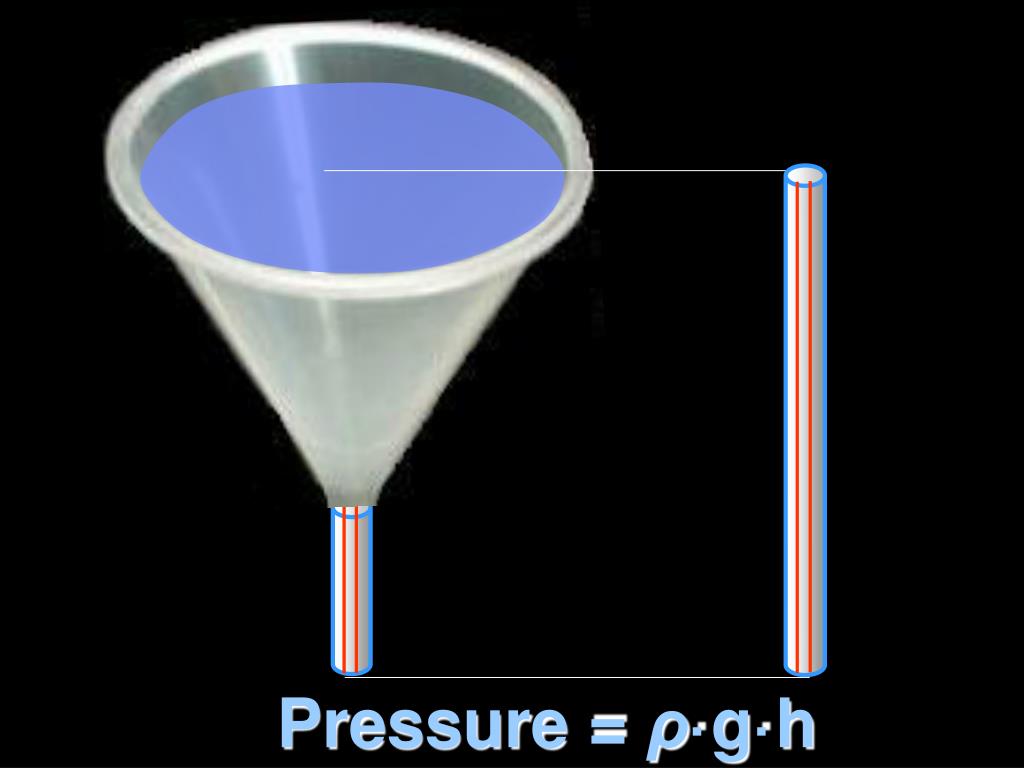

  26. P = ρ·g·h Pressure

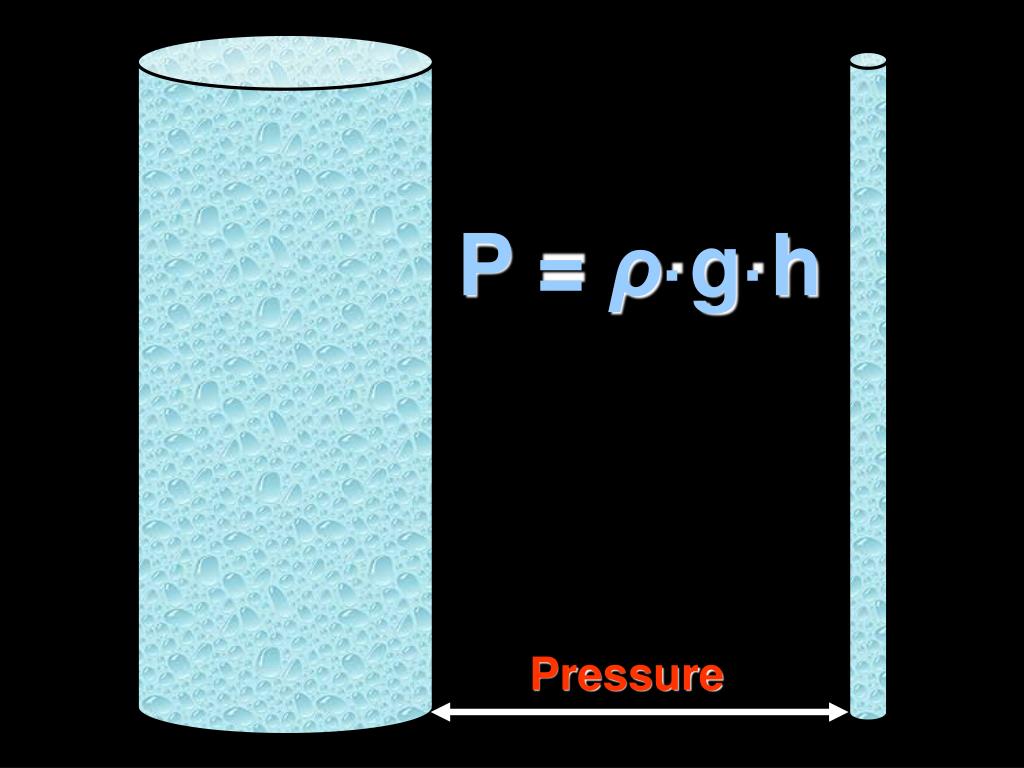

  27. P = ρ·g·h Pressure

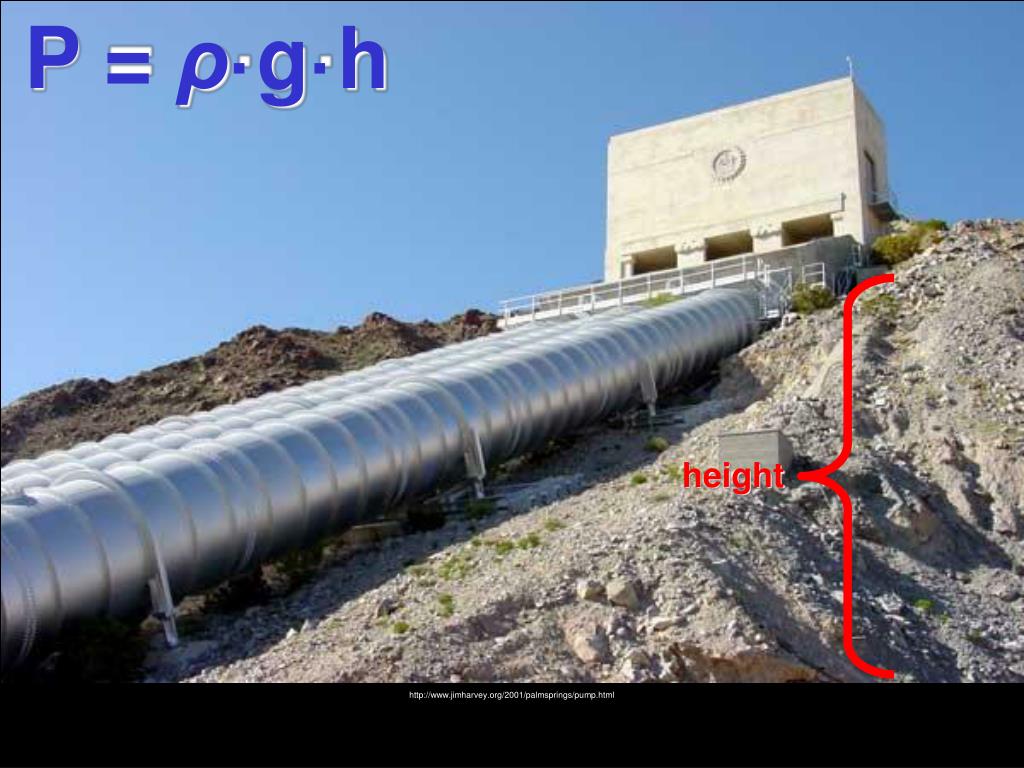

  28. P = ρ·g·h height http://www.jimharvey.org/2001/palmsprings/pump.html

  29. Artesian Well http://www.uwsp.edu/geo/faculty/ozsvath/images/artesian_well.htm

  30. Artesian Well Height = P = ρ·g·h http://www6.big.or.jp/~tebaland/neo-ganot/chap_02liquid/057ArtesianWell057.html

  31. Artesian Well http://www.uwsp.edu/geo/faculty/ozsvath/images/artesian_well.htm

  32. http://www.pirateplanet.com/Etc/small/Aurora_Water_Tower.jpg

  33. http://www.pictureperfectlawns.com/+ http://www.householdlab.com/bath/shower-head.html6

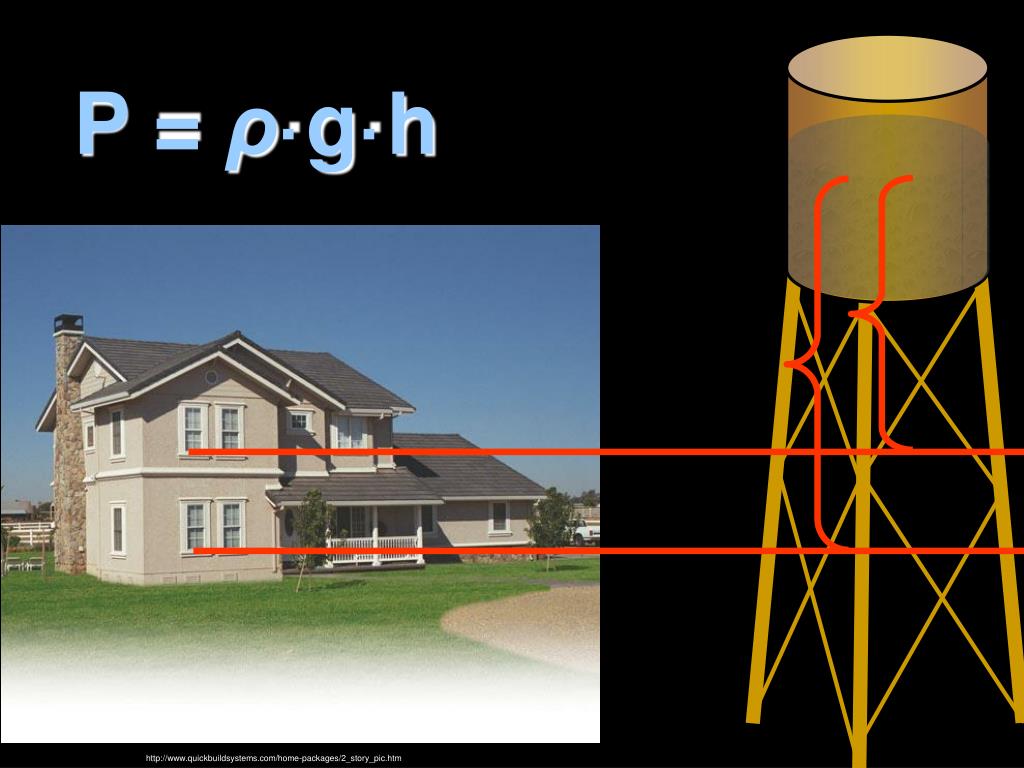

  34. P = ρ·g·h http://www.quickbuildsystems.com/home-packages/2_story_pic.htm

  35. Why is blood pressure measured at the level of your upper arm? It is at the same “depth”as your heart. http://www.nghs.com/nghs/servicesfolder/L_S/pulmonary_rehab.htm

  36. http://health.allrefer.com/pictures-images/shock.html

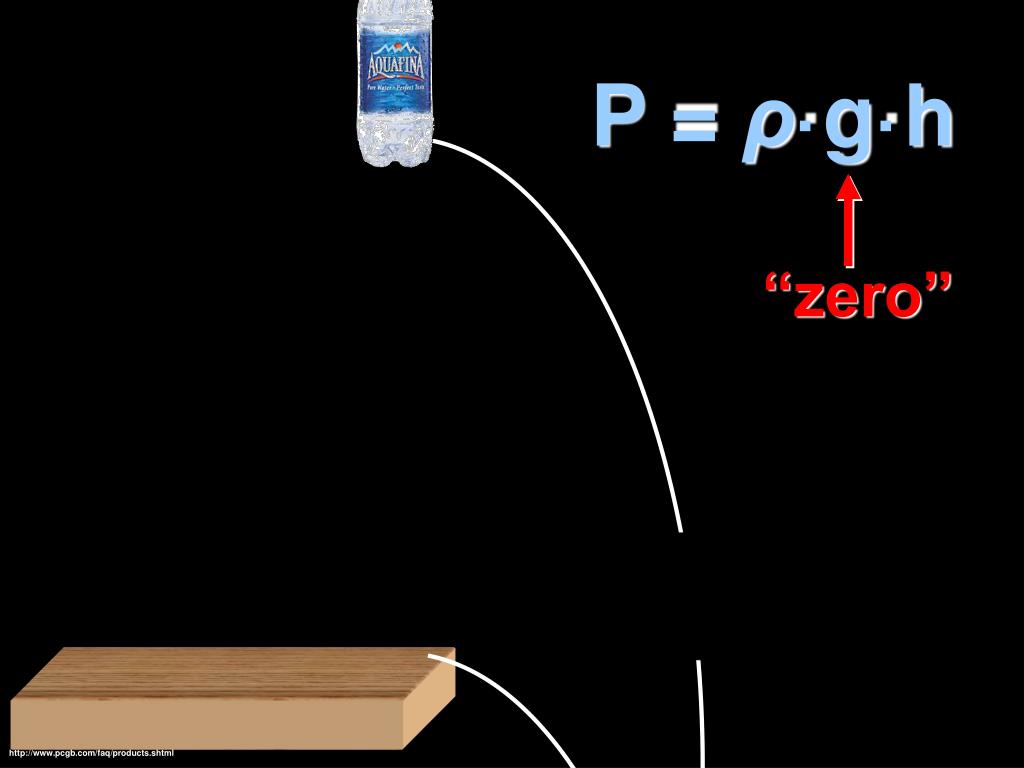

  37. “zero” P = ρ·g·h http://www.pcgb.com/faq/products.shtml

  38. P = ρ·g·h http://www.mcs.utulsa.edu/~partha/personal/photo/chicago1.JPG http://www.gast-hillmer.com/images/admince1.jpg Chicago, ILLake Michigan Which harbor would you experience more pressure 50 ft under the surface? San Diego, CAPacific Ocean

  39. P = ρ·g·h http://www.mcs.utulsa.edu/~partha/personal/photo/chicago1.JPG http://www.swimmingpoolservices.com/myimages/rect-indoor.jpg Chicago, ILLake Michigan Which water would you experience more pressure 10 ft under the surface? Swimming Pool

  40. ForceupForcedown ForceBuoyant ForceupForcedown ForceBuoyant

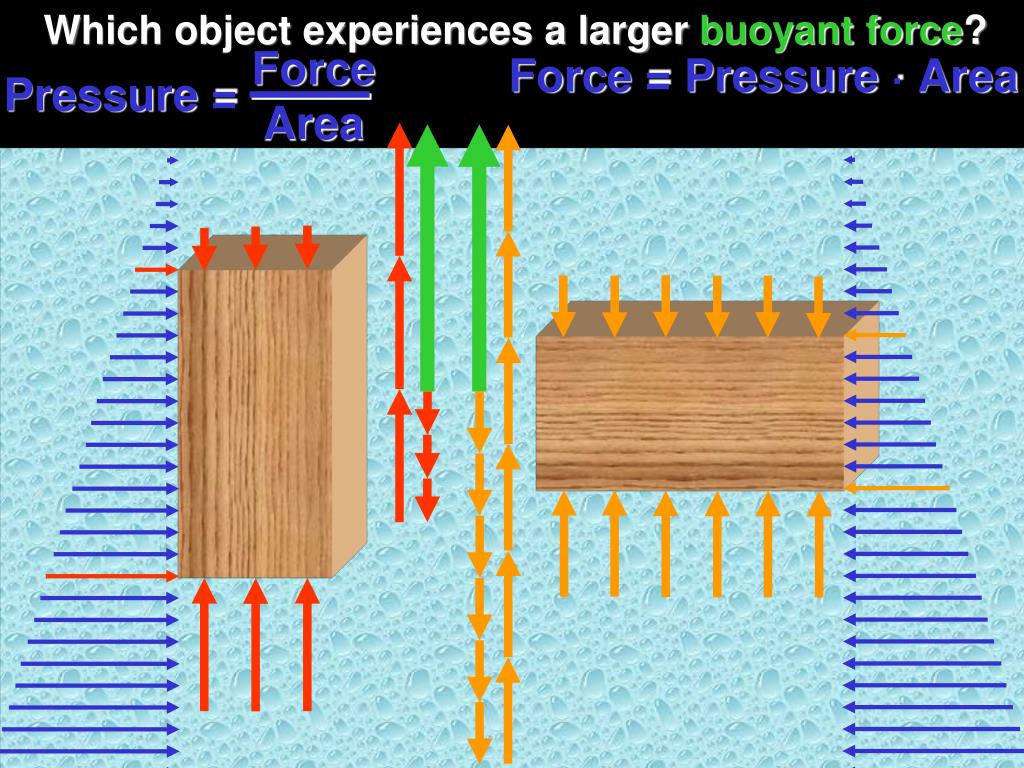

  41. Which object experiences a larger buoyant force? ForceArea Pressure = Force = Pressure · Area
