Agenda

Agenda


Presentation of imagelab

Presentation of ImageLab

DigitalLibrary

content-basedretrieval

Computer Vision

forroboticautomation

Multimedia: video annotation

MedicalImaging

Video analysis

for indoor/outdoor

surveillance

Off-line Video analysis

fortelemetry

and forensics

People and vehicle surveillance

Imagelab-Softech

Lab of Computer Vision,

Pattern Recognition and Multimedia

Dipartimento di Ingegneria dell’Informazione

Università di Modena e Reggio Emilia Italy

http://imagelab.ing.unimore.it


Imagelab recent projects in surveillance

Imagelab: recentprojects in surveillance

Projects:

European

International

Italian & Regional

With Companies

  • THIS Transport hubs intelligent surveillance EU JLS/CHIPS Project 2009-2010

  • VIDI-Video: STREP VI FP EU  (VISOR VideosSurveillance Online Repository) 2007-2009

  • BE SAFE NATO Science for Peace project 2007-2009

  • Detection of infiltrated objects for security 2006-2008 Australian Council

  • Behave_Lib : Regione Emilia Romagna Tecnopolo Softech 2010-2013

  • LAICARegione Emilia Romagna; 2005-2007

  • FREE_SURF MIUR PRIN Project 2006-2008

  • Building site surveillance: with Bridge-129 Italia 2009-2010

  • Stopped Vehicles with Digitek Srl 2007-2008

  • SmokeWave: with Bridge-129 Italia 2007-2010

  • Sakbot for Traffic Analysis with Traficon 2004-2006

  • Mobile surveillance with Sistemi Integrati 2007

  • Domotica per disabili: posture detection FCRM 2004-2005

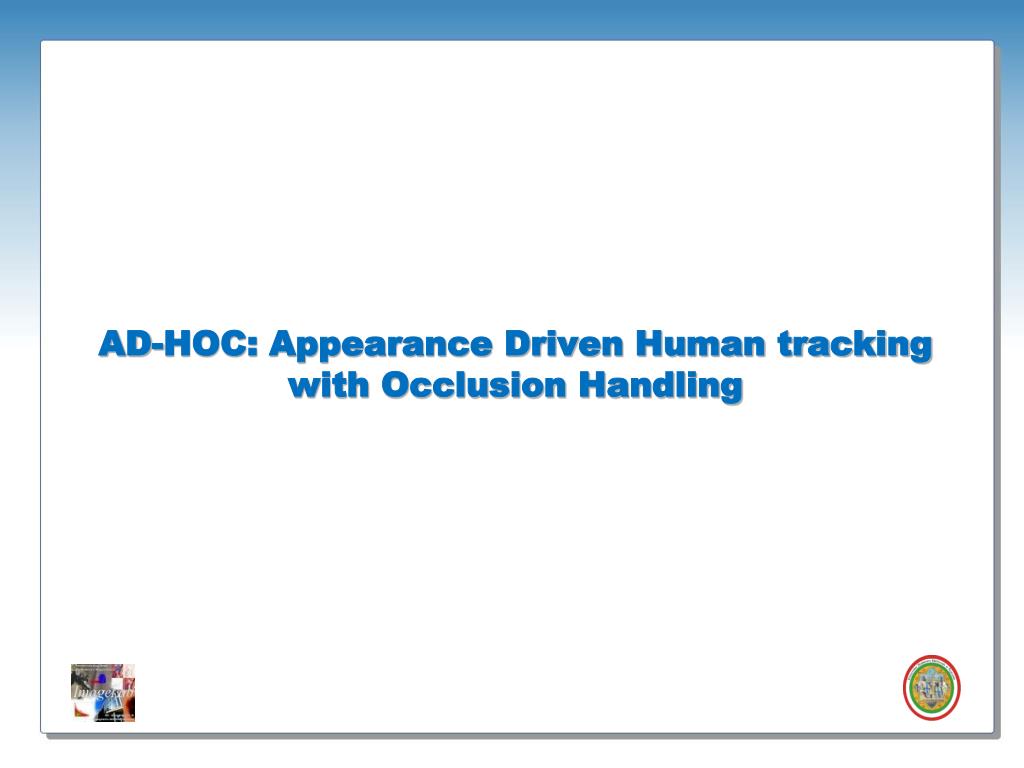

Ad hoc appearance driven human tracking with occlusion handling

AD-HOC: Appearance Driven Human tracking with Occlusion Handling


Key aspects

Key aspects

  • Based on the SAKBOT system

    • Background estimation and updating

    • Shadow removal

  • Appearance based tracking

    • we aim at recovering a pixel based foreground mask, even during an occlusion

    • Recovering of missing parts from the background subtraction

    • Managing split and merge situations

  • Occlusion detection and classification

    • Classify the differences as real shape changes or occlusions

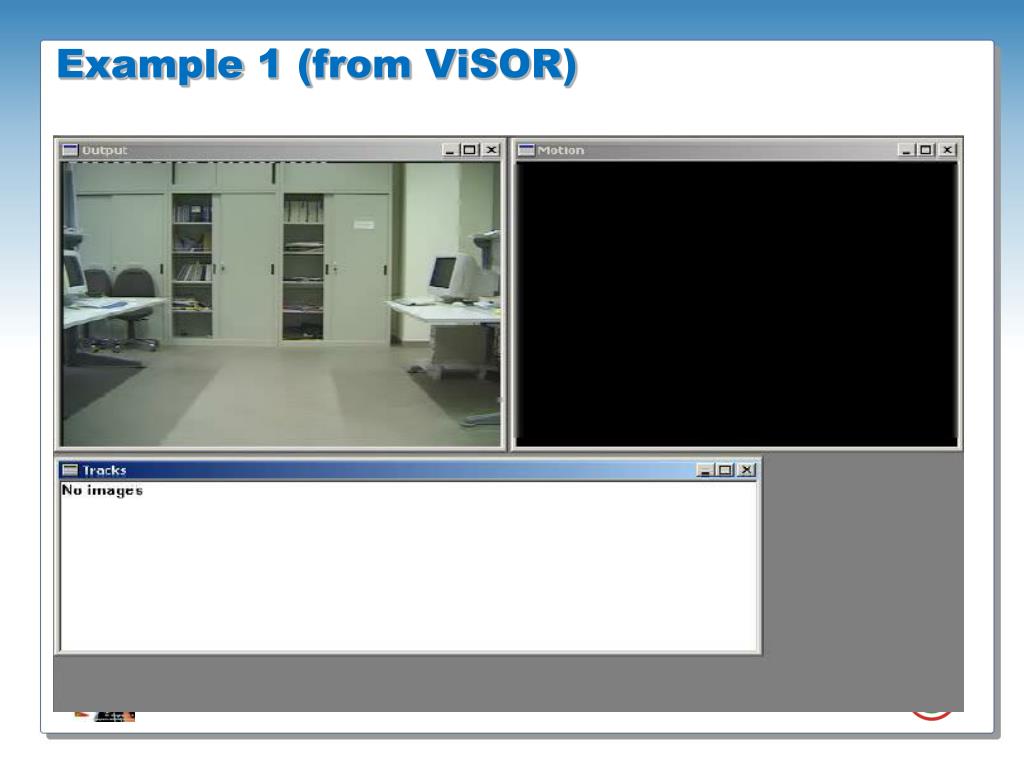

Example 1 from visor

Example1 (fromViSOR)


Example 2 from pets 2002

Example 2 from PETS 2002


Example 3

Example 3

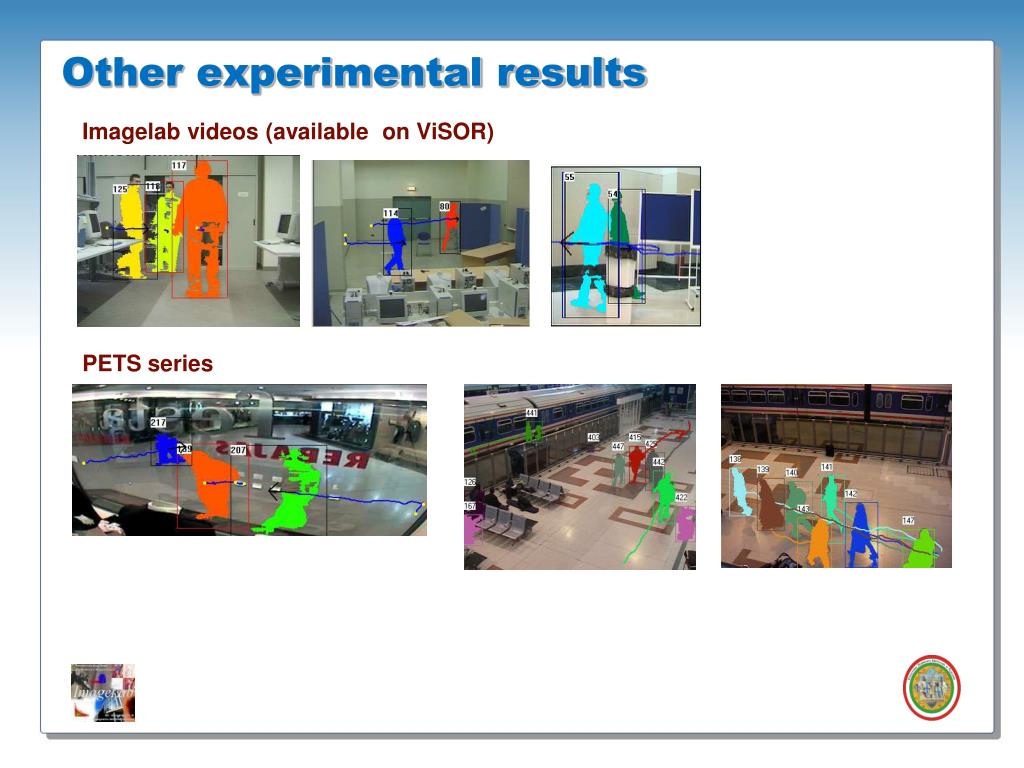

Other experimental results

Other experimental results

Imagelab videos (available on ViSOR)

PETS series


Results on the pets2006 dataset

Results on the PETS2006 dataset

Working in real time at 10 fps!

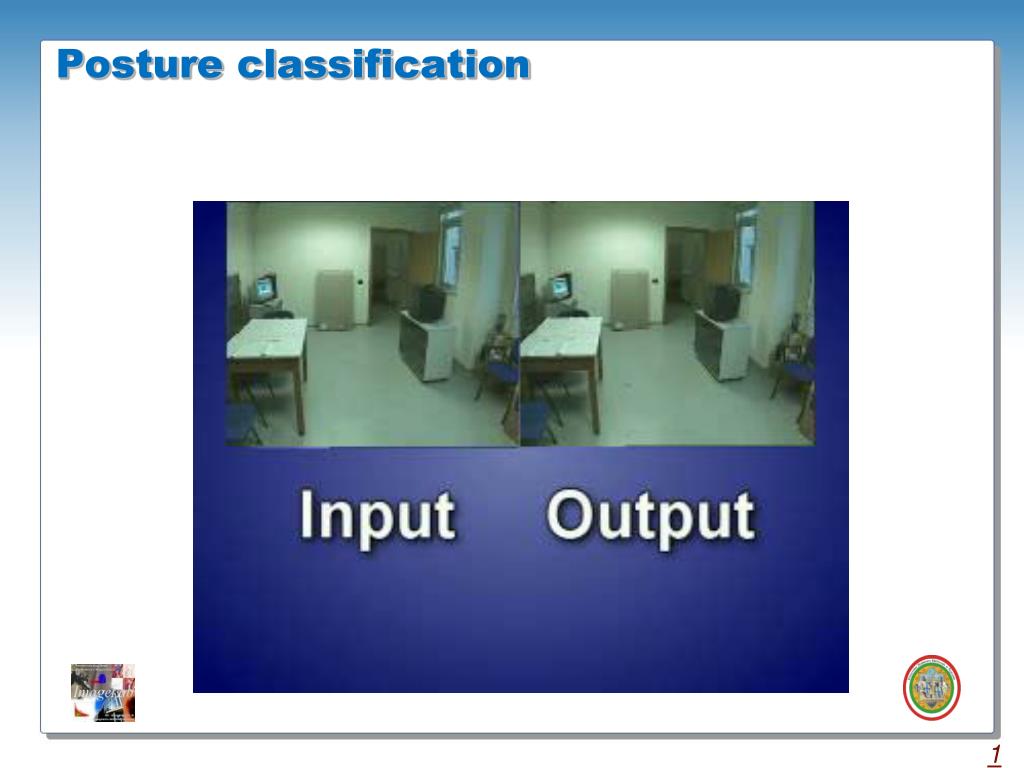

Posture classification

Posture classification


Distributed surveillance with non overlapping field of view

Distributed surveillancewith non overlapping field of view


Exploit the knowledge about the scene

Exploit the knowledgeabout the scene

  • To avoid all-to-all matches, the tracking system can exploit the knowledge about the scene

    • Preferential paths -> Pathnodes

    • Border line / exit zones

    • Physical constraints & Forbidden zones NVR

    • Temporal constraints


Tracking with pathnode

Trackingwithpathnode

A possiblepathbetweenCamera1 and Camera 4

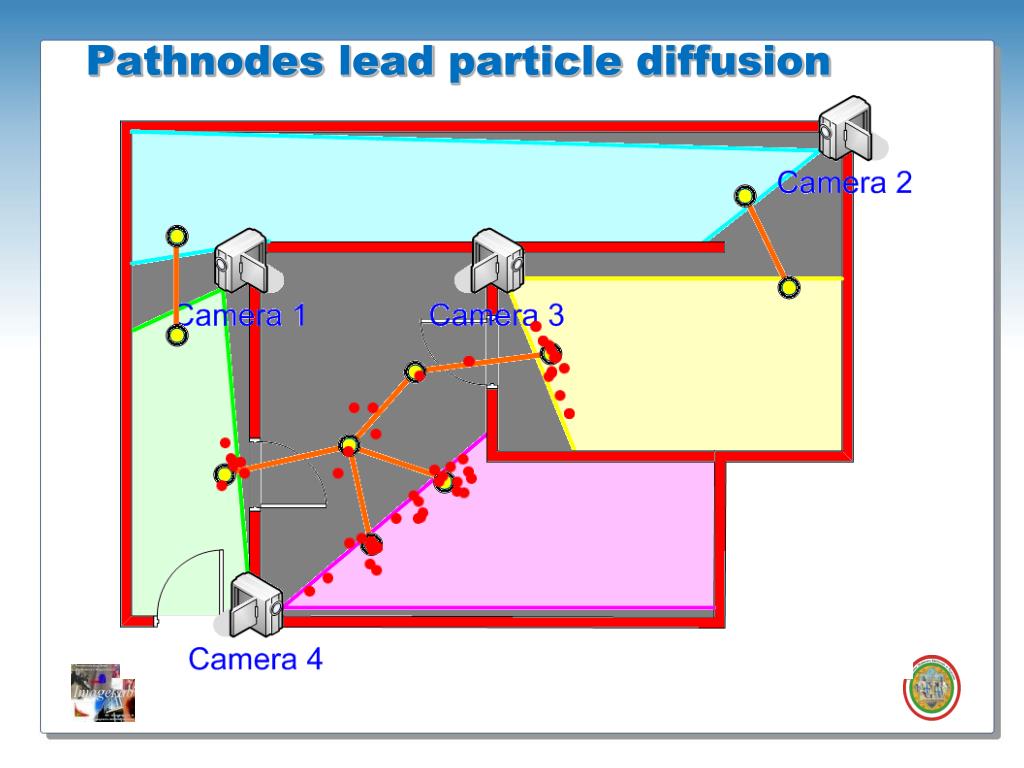

Pathnodes lead particle diffusion

Pathnodesleadparticlediffusion


Results with pf and pathnodes

Resultswith PF and pathnodes

Single camera tracking: Multicamera tracking

Recall=90.27% Recall=84.16%

Precision=88.64% Precision=80.00%


Agenda

“VIP: Vision tool for comparing Images of People”

Lantagne & al., Vision Interface 2003

Each extracted silhouette is segmented into significant region using the JSEG algorithm

( Y. Deng ,B.S. Manjunath: “Unsupervised segmentation of color-texture regions in images and video” )

Colour and texture descriptors are calculated for each region

  • The colour descriptor is a modified version of the descriptor

  • presented in Y. Deng et al.: “Efficient color representation for

  • Image retrieval”.

  • Basically an HSV histogram of the dominant colors.

  • The texture descriptor is based on D.K.Park et al.: “Efficient

  • Use of Local Edge Histogram Descriptor”.

  • Essentially this descriptor characterizes the edge density

  • inside a region according to different orientations ( 0°, 45°,

  • 90° and 135° )

  • The similarity between two regions is the weighted sum of

  • the two descriptor similarities:


Agenda

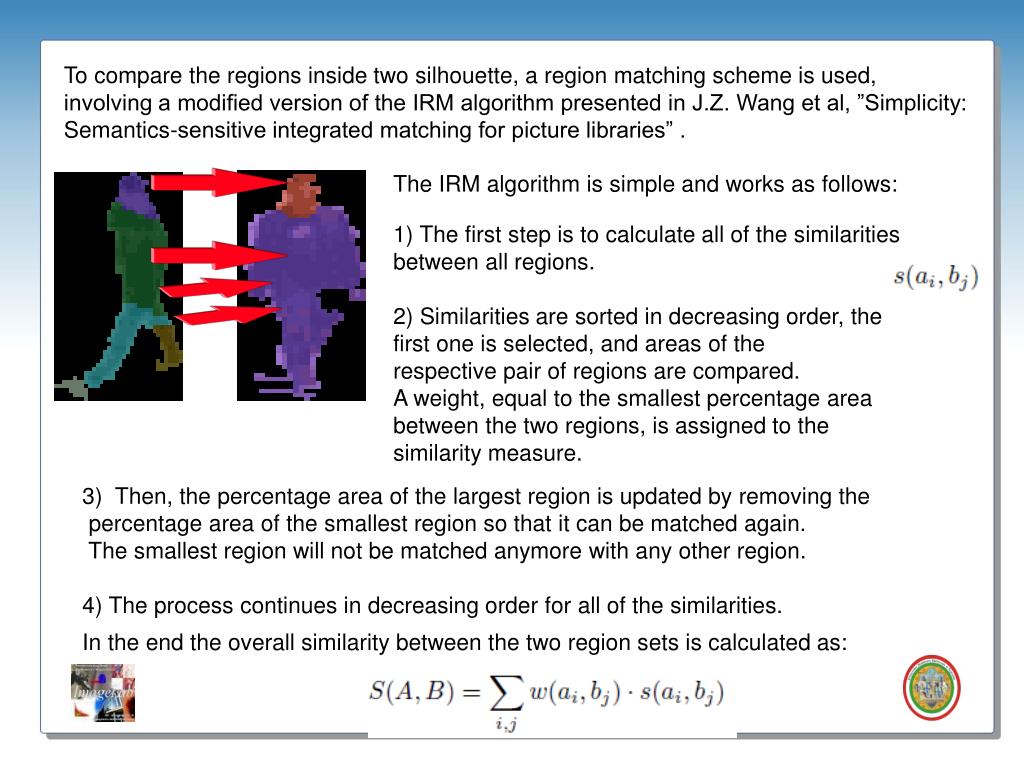

To compare the regions inside two silhouette, a region matching scheme is used,

involving a modified version of the IRM algorithm presented in J.Z. Wang et al, ”Simplicity:

Semantics-sensitive integrated matching for picture libraries” .

The IRM algorithm is simple and works as follows:

1) The first step is to calculate all of the similarities

between all regions.

2) Similarities are sorted in decreasing order, the

first one is selected, and areas of the

respective pair of regions are compared.

A weight, equal to the smallest percentage area

between the two regions, is assigned to the

similarity measure.

3) Then, the percentage area of the largest region is updated by removing the

percentage area of the smallest region so that it can be matched again.

The smallest region will not be matched anymore with any other region.

4) The process continues in decreasing order for all of the similarities.

In the end the overall similarity between the two region sets is calculated as:


Visor video surveillance online repository

ViSOR: Video Surveillance Online Repository


The visor video repository

The ViSOR video repository


Aims of visor

Aims of ViSOR

  • Gather and make freely available a repository of surveillance videos

  • Store metadata annotations, both manually provided as ground-truth and automatically generated by video surveillance tools and systems

  • Execute Online performance evaluation and comparison

  • Create an open forum to exchange, compare and discuss problems and results on video surveillance


Different types of annotation

Different types of annotation

  • Structural Annotation: video size, authors, keywords,…

  • Base Annotation: ground-truth, with concepts referred to the whole video. Annotation tool: online!

  • GT Annotation: ground-truth, with a frame level annotation; concepts can be referred to the whole video, to a frame interval or to a single frame. Annotation tool: Viper-GT (offline)

  • Automatic Annotation: output of automatic systems shared by ViSOR users.

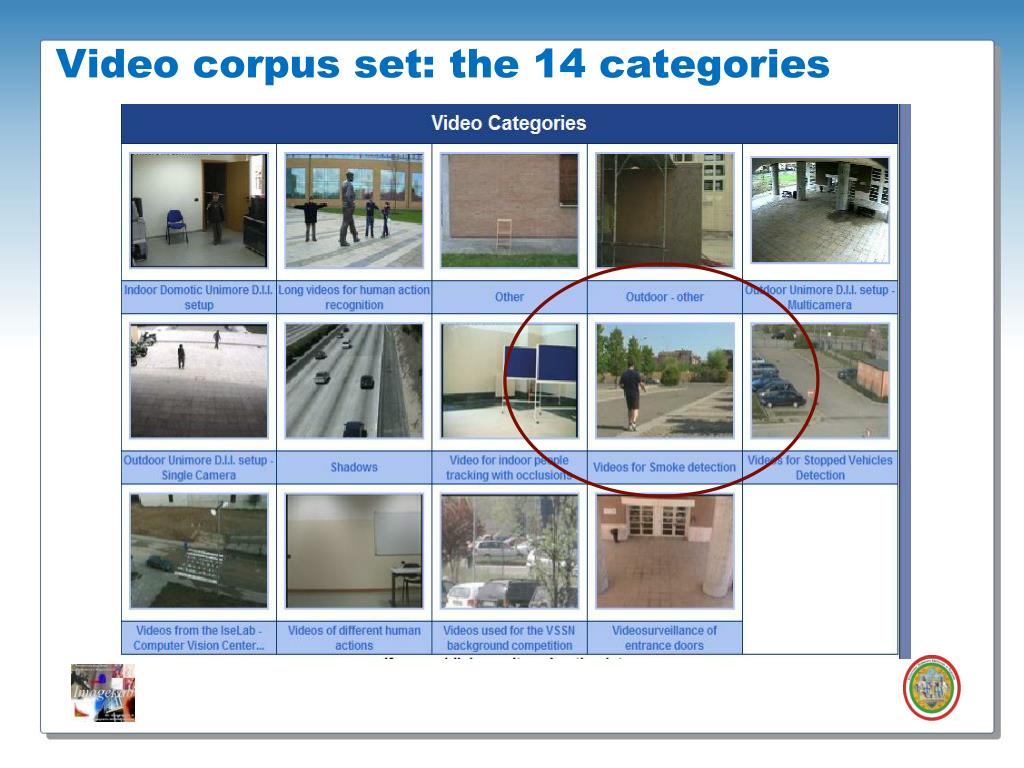

Video corpus set the 14 categories

Video corpus set: the 14 categories

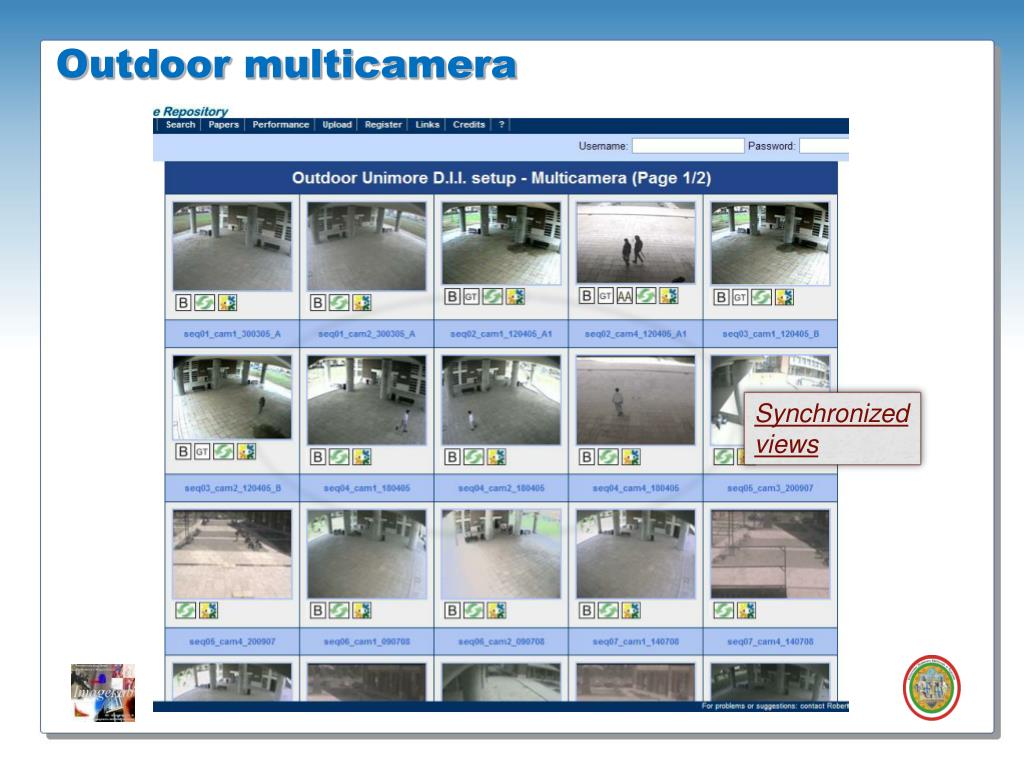

Outdoor multicamera

Outdoor multicamera

Synchronizedviews


Surveillance of entrance door of a building

Surveillanceofentrancedoorof a building

  • About 10h!

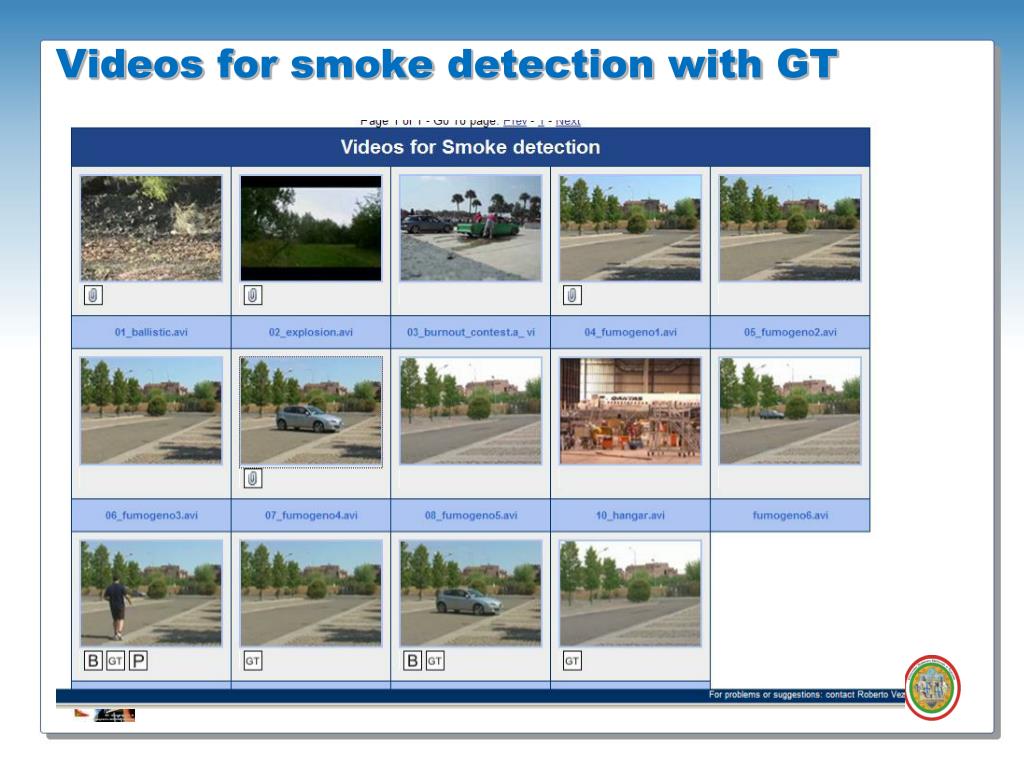

Videos for smoke detection with gt

Videosforsmoke detection with GT

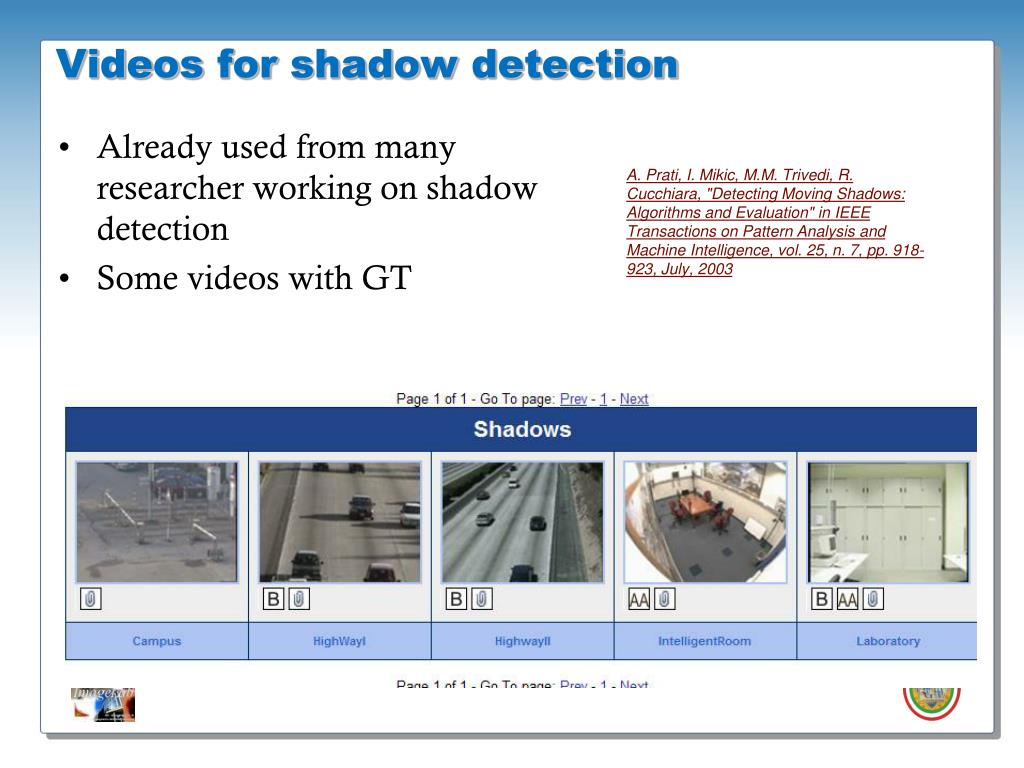

Videos for shadow detection

Videosforshadow detection

  • Already used from many researcher working on shadow detection

  • Some videos with GT

A. Prati, I. Mikic, M.M. Trivedi, R. Cucchiara, "Detecting Moving Shadows: Algorithms and Evaluation" in IEEE Transactions on Pattern Analysis and Machine Intelligence, vol. 25, n. 7, pp. 918-923, July, 2003

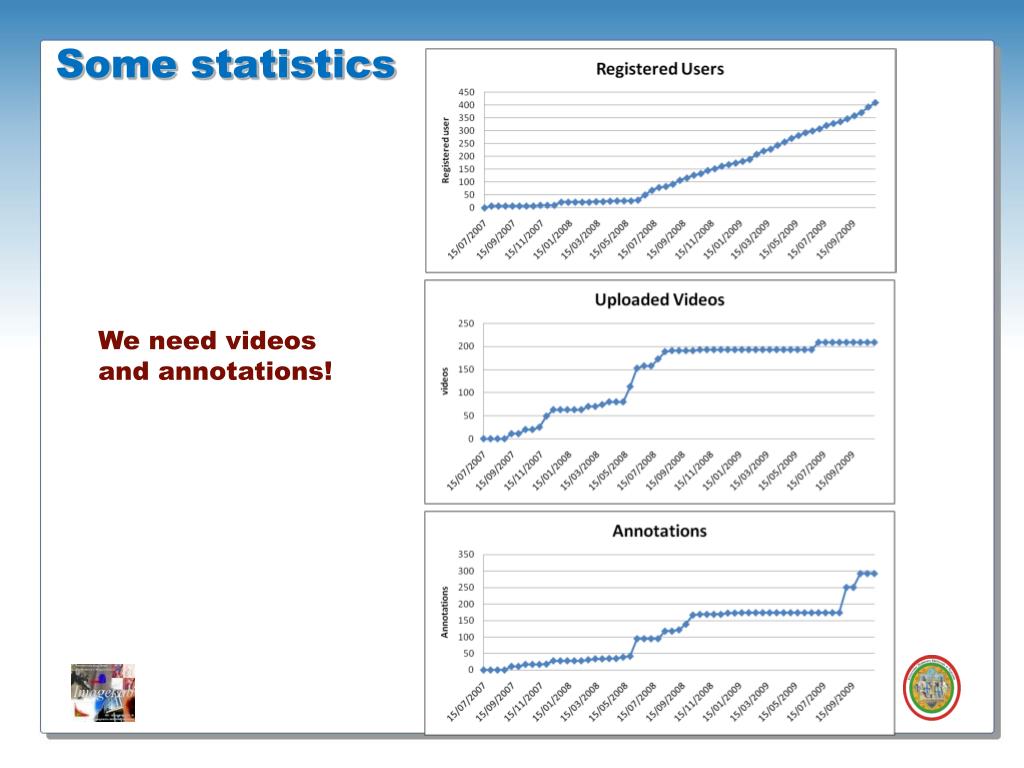

Some statistics

Some statistics

We need videos and annotations!

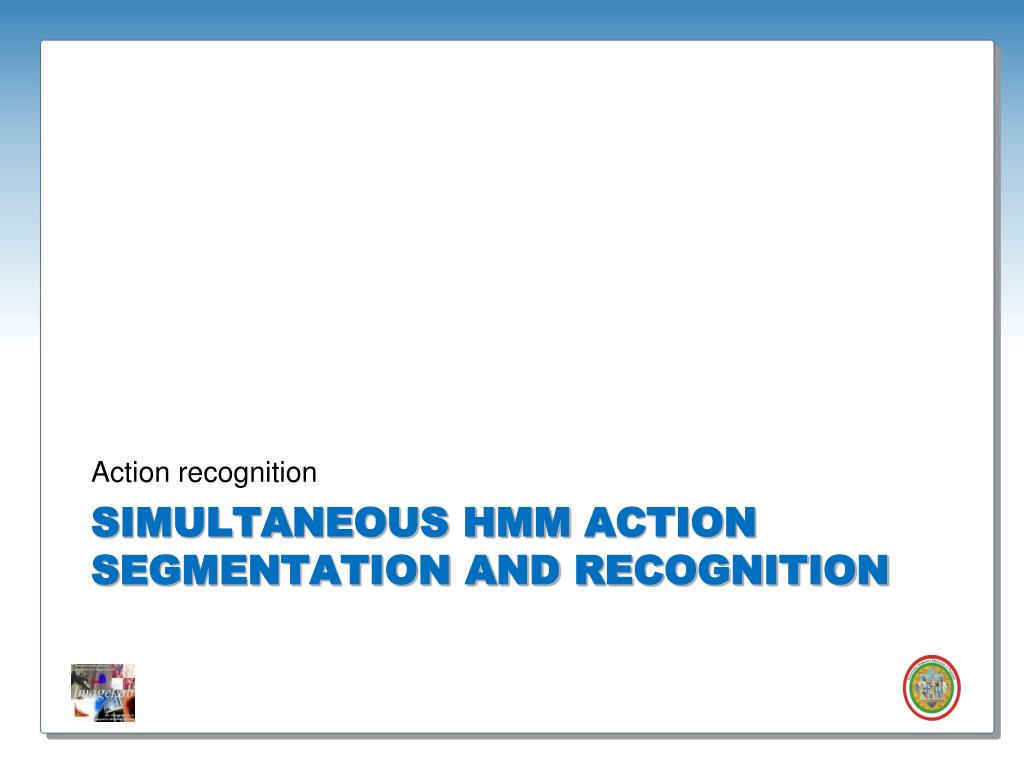

Simultaneous hmm action segmentation and recognition

Action recognition

SIMULTANEOUS HMM action SEGMENTATION AND Recognition


Probabilistic action classification

Probabilistic Action Classification

  • Classical approach:

    • Given a set of training videos containing an atomic action each (manually labelled)

    • Given a new video with a single action

  • … find the most likely action

Dataset: "ActionsasSpace-TimeShapes (ICCV '05)." M. Blank, L. Gorelick, E. Shechtman, M. Irani, R. Basri


Classical hmm framework

Classical HMM Framework

  • Definition of a feature set

  • For each frame t, computation of the feature set Ot (observations)

  • Given a set of training observations O={O1…OT} for each action, training of an HMM (k) for each action k

  • Given a new set of observations O={O1…OT}

  • Find the model (k) which maximise P(k|O)

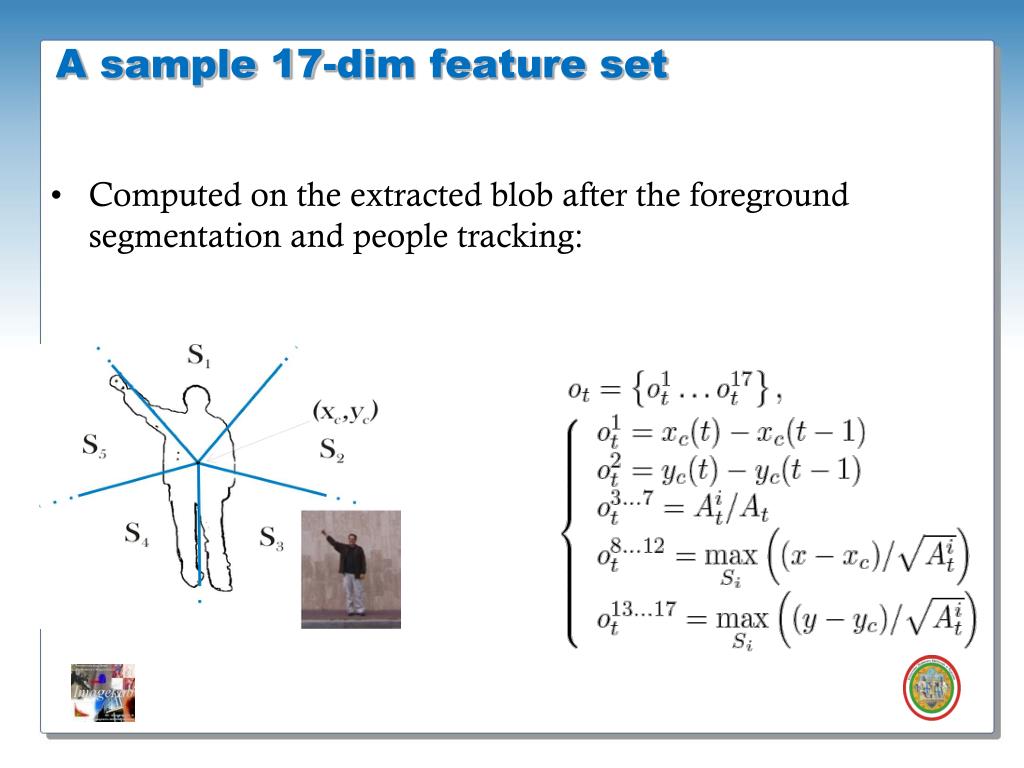

A sample 17 dim feature set

A sample 17-dim feature set

  • Computed on the extracted blob after the foreground segmentation and people tracking:

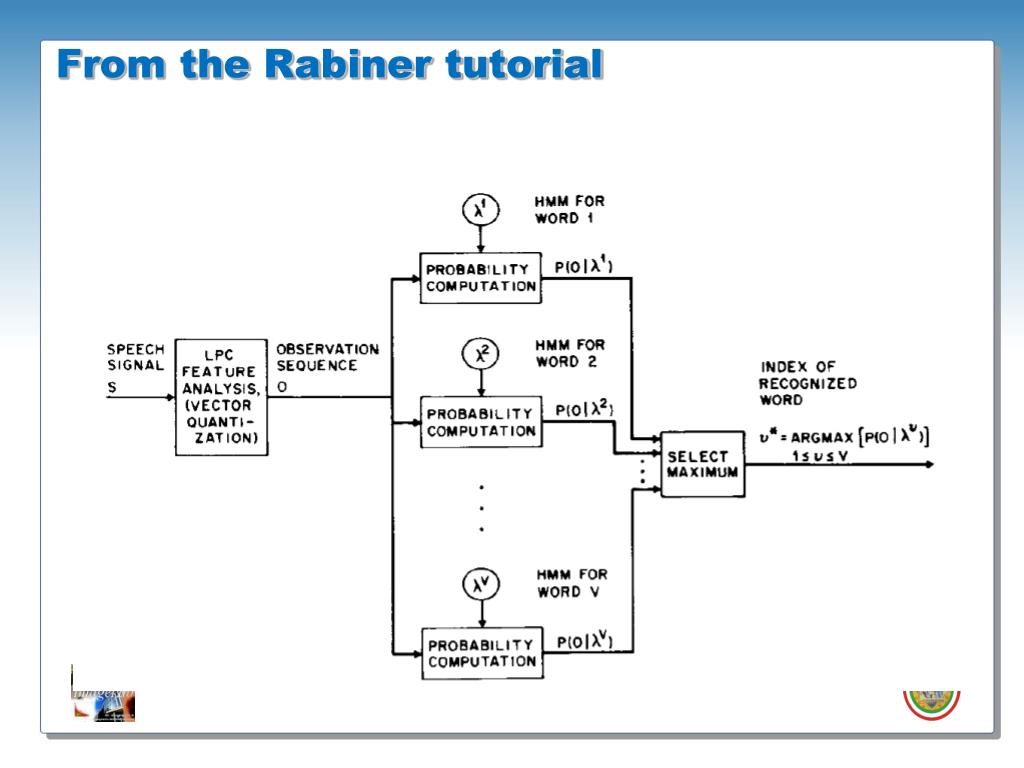

From the rabiner tutorial

From the Rabiner tutorial

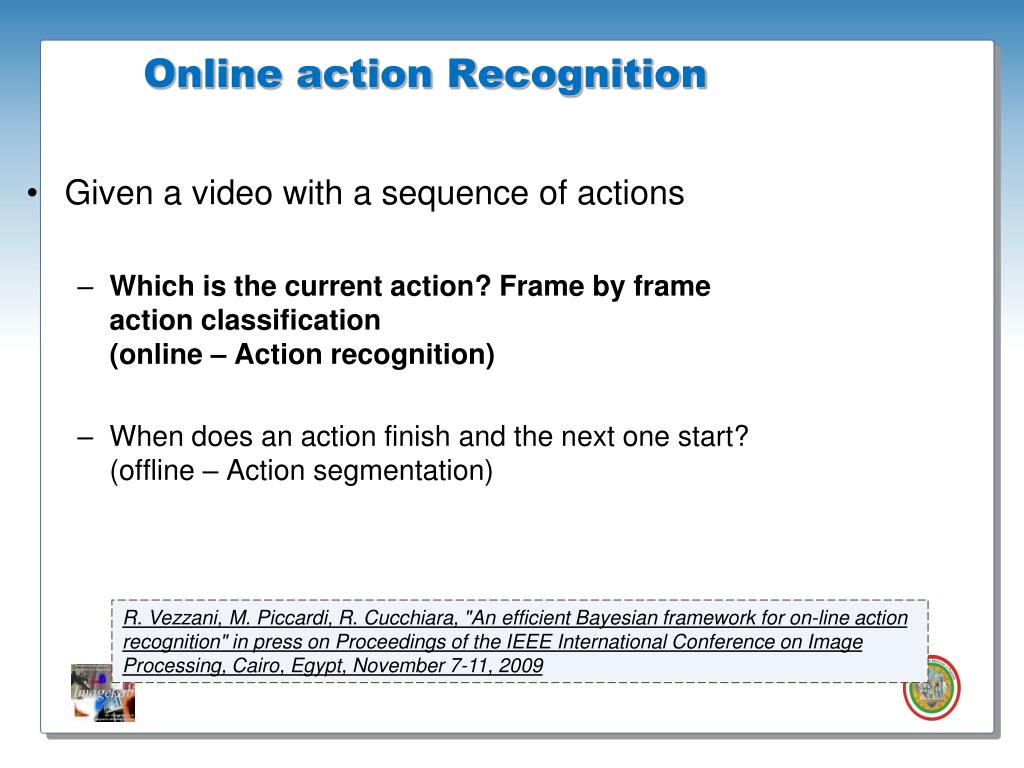

Online action recognition

Online action Recognition

  • Given a video with a sequence of actions

    • Which is the current action? Frame by frame action classification(online – Action recognition)

    • When does an action finish and the next one start? (offline – Action segmentation)

R. Vezzani, M. Piccardi, R. Cucchiara, "An efficientBayesianframeworkfor on-line actionrecognition" in press on Proceedingsof the IEEE International Conference on Image Processing, Cairo, Egypt, November 7-11, 2009


Main problem of this approach

Main problem of this approach

  • I do not know when the action starts and when it finishes.

  • Using all the observations, the first action only is recognized

  • A possible solution: “brute force”. For each action, for each starting frame, for each ending frame, compute the model likelihood and select the maximum. UNFEASIBLE

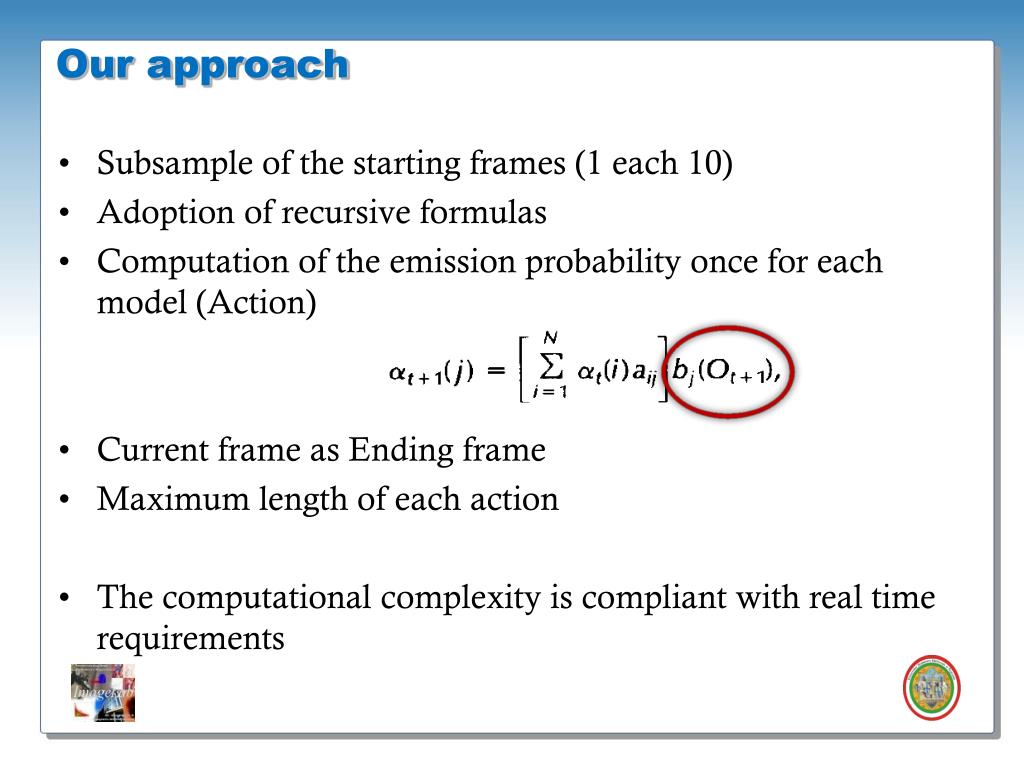

Our approach

Our approach

  • Subsample of the starting frames (1 each 10)

  • Adoption of recursive formulas

  • Computation of the emission probability once for each model (Action)

  • Current frame as Ending frame

  • Maximum length of each action

  • The computational complexity is compliant with real time requirements

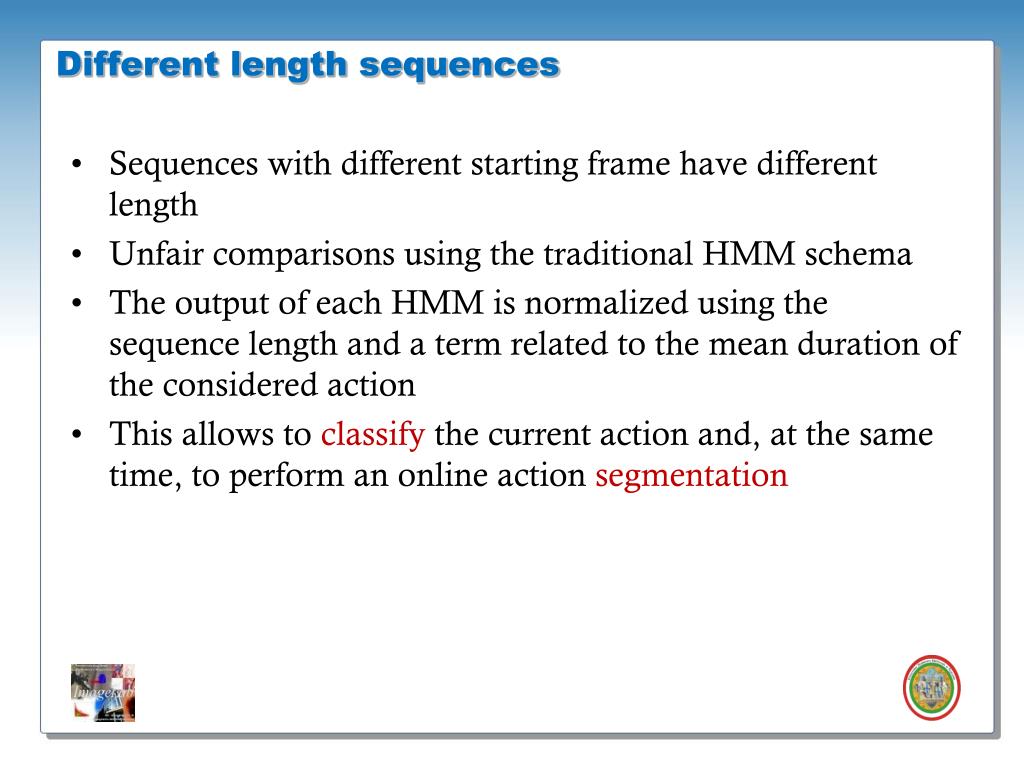

Different length sequences

Different length sequences

  • Sequences with different starting frame have different length

  • Unfair comparisons using the traditional HMM schema

  • The output of each HMM is normalized using the sequence length and a term related to the mean duration of the considered action

  • This allows to classify the current action and, at the same time, to perform an online action segmentation
