The Planck Early Release Compact Source Catalog - Status

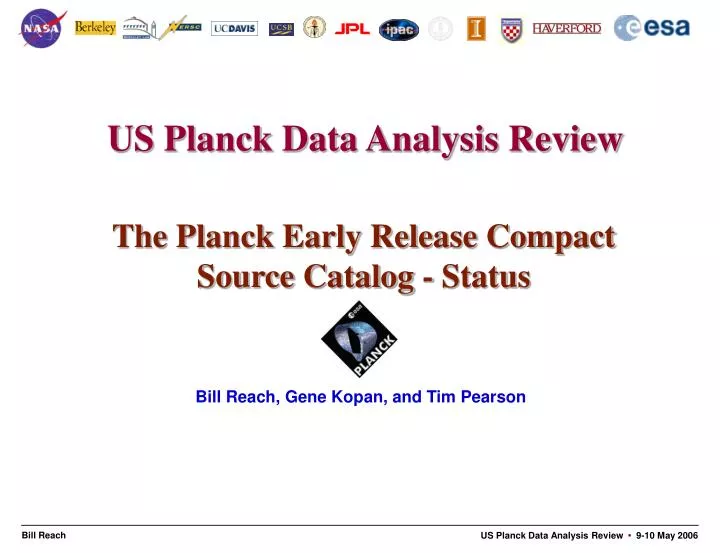

1. The Planck Early Release Compact Source Catalog - Status Bill Reach, Gene Kopan, and Tim Pearson

2. What it is A list of compact bright sources Galaxies, Quasars, AGN SZ clusters Compact interstellar clouds HII regions and molecular clouds Others A catalog using both HFI and LFI data Returned to DPCs within 6 months of the first “full” sky coverage Released to the public 3 months after provided to DPCs Intended for rapid follow-up of “interesting” sources while Herschel (and other systems) still available What it is not It is not a real-time detection system Not even near-real-time Not appropriate for follow-ups of flaring sources Not appropriate for new solar system object follow-ups It is not the final Planck catalog Calibration will not be finalized. Completeness levels will not guaranteed. There may be false detections Polarization catalog Polarization-sensitive bolometers will be summed Early Release Compact Source Catalog (ERCSC)

3. ERCSC Specifications • Requirements • Source lists, one for each frequency (9 altogether) • No Requirements on band-merging, uncertainties, or in confused areas (e.g. galactic plane), best reasonable efforts will be made • No requirements for polarization, but ERCSC can be run on Stokes Q,U maps on request from DPCs • The DPCs will release the catalogs 3 months after receipt • Goals • 90% reliability of compact source identifications (over cutoff) • Expected Performance • Flux density cutoff: SNR 10 or better • Flux density accuracy: better than 30% • Positional accuracy: better than FWHM/5 (1 sigma radial)

4. ERCSC Dependencies • Required Inputs from HFI and LFI DPCs • calibrated, cleaned data with pointing reconstruction for LFI and HFI within 4 weeks of receipt on ground (e.g. weekly deliveries) • Detector calibration (instrument model) for both LFI and HFI • ERCSC to be produced from calibrated data available two months before catalog due date (I.e. calibration available at S1+4 months) • HFI/LFI L2 pipeline codes (and installation help) for preprocessing (NERSC/IPAC) • Realistic simulated data for development and testing – a substantial fraction of a full-sky survey is required, at all frequencies and including as much realism as possible, before launch for integration testing • USDPC provides to HFI and LFI DPCs • source lists within 6 months of completion of first full sky survey coverage • code that produced source list, within six months of delivery of source list • USPDC will participate in DPC and Planck end-to-end test schedules until launch. Intermediate code deliveries will be made then. There is no requirement that the ERCSC code will run outside of USPDC environment. • The USPDC will make no formal code deliveries between launch and delivery of the catalog

5. L2 products L2 products • high-pass filter (optional) • Assign pointing to samples • Destripe (Springtide) • Assign samples to pixels • Coadd into maps ERCSC Processing LFI DPC HFI DPC FTP FTP IPAC Planck Data Archive LFI Preprocessing HFI L2 Preprocessing USDPC Destriping / Mapmaking ERCSC Source Detection / Extraction ERCSC QA/ Catalog Production ERCSC

6. ERCSC Operations • ERCSC generated from 1st sky coverage • Receive data…weekly major updates • Make new maps…monthly map updates • Must be able to make map from 7 months of data in << 1 month • Make new source list…monthly update • Software upgrades • Allow for at least 2 complete reprocessings (software versions) before delivery • Versions: P1 = prelaunch pipeline • P2 = first post-launch update, 1-3 months after getting 1st survey data • P3 = final update, operational version to generate product delivered back to Planck project

7. ERCSC Processing steps • Input calibrated, position-tagged TOD • will use PIOremote and L2 pipeline for HFI • Will use calibrated timeline in exchange format for LFI (under negotiation) • Clean glitches & instrument signatures • Destripe to match scans (Springtide) • Generate maps per detector • signal, sample variance, counts • Unified Mapmaking Code same for both HFI and LFI • Filter maps with symmetric ‘matched’ compact source filters • Detect and extract sources from per band maps • Band merge (best efforts) • Quality Analysis • Output catalog

8. ERCSC Development Tasks • HFI L2 Preprocessing code • Port to local machines • Evaluate/ augment • USDPC Mapmaking/ GCP/ M3 code • Port to local machines • Evaluate/ augment • Point source detection/ extraction algorithms • Evaluate/ trade off • Implement • Bandmerging code • Quality assessment tools • Pipeline & software integration • End-to-end testing • In conjunction with major Planck tests, ingest data at IPAC and attempt to run those parts of ERCSC software that exist

9. Near-Term Plans FY 06 • Obtain all-frequency simulated images with point sources • Simulations underway by three groups • JPL/ADG (soon) all frequency, single “super” bolometer, 1 sky coverage TOD • 30 GHz done, 217 GHz part done • HFI/IAP 40-day TOD simulations for ERCSC and data transfer test • In conjunction with DM test • LFI TBD for data transfer test • Evaluate point source detection/ extraction algorithms (Pearson) • Get HFI/LFI L2 (DM) Preprocessing codes running locally • Test data ingestion using data from HFI/LFI transfer tests • Get USPDC Unified Mapping/ GCP/ M3 code running locally • Generate maps for detection/ extraction testing

10. ERCSC Milestones • Inter-related milestones related to data transfer and handling are in separate schedule. 5/06 Obtain level S simulations all frequencies 6/06 Install PISTOU, kst 5/06 Obtain predicted source catalog for all frequencies 2/07 Predict ERCSC contents (number, type of sources; simulated source lists) 7/07 Run Level S data through L2 testbed 12/06 Select detect/extract option 4/07 Build detect/extract modules 7/07 Integrate datect/extract with IPAC implementations of L2 pipelines 12/07 Run detect/extract on simulated data 3/08 Design/develop Catalog generator 5/08 Integrate Catalog generator with US DPC pipeline 7/08 Run Level S data through Catalog generator 7/07 Design/develop QA tool 4/08 Design/modify/develop Bandmerger for QA 5/08 Bandmerge on simulated source lists 5/08 Develop ability to assicate extractions with prior catalogs 9/08 Test ability to associate extracted sources with prior sources (C&R)

11. Source Extraction Tim Pearson

12. ERCSC Source Extraction (1/3) • Locate sources in single-band maps (detection) • Filter maps and search for peaks • Matched filters (with assumptions about noise statistics) • “Robust” filters (e.g., mexican hat) • Bayesian methods • Estimate source parameters (extraction) • Position, flux density • Polarization (Q, U) for bright sources • Angular size (resolved sources): best effort • Band merge (best efforts) • Cross-correlation of single-band catalogs • Parameter estimation using simultaneous fits to several bands • Spectral index • SZ cluster detection (?)

13. ERCSC Source Extraction (2/3) • Make use of published algorithms • Development of new algorithms may occur but is not necessary to meet goals • Use code developed elsewhere when possible • Write new code as necessary • Compare algorithms using simulated sky maps and WMAP data • Compare extracted source parameters with input • As a function of source flux density • In regions with different foreground contamination • Estimate reliability and completeness • Reliability: fraction of sources found that are real • Completeness: fraction of real sources that are found • Estimate parameter accuracy • Positional accuracy • Photometric accuracy • Goal: choose one algorithm that meets requirements by mid 2007 • Balance criteria of reliability, completeness, accuracy, run time • Implement full pipeline and test with simulated data • Further development of algorithms prior to launch

14. ERCSC Source Extraction (3/3)Proposed Algorithms • Matched filter • Tegmark & de Oliveira-Costa 1998; Vio et al. • Mexican hat wavelet • Cayón et al. 2000; Vielva et al. 2001, 2003 • Neyman-Pearson detector and biparametric scale adaptive filter • López-Caniego et al. 2005 • Adaptive top-hat filter • Chiang et al. 2002 • Bayesian approach • Hobson & McClachlan 2003 • Savage & Oliver 2005 • MOPEX • Makovoz & Marleau 2005 • Sextractor • Bertin & Arnouts 1996 (blended sources) • etc.

15. US Planck Data Center Archive at IPAC Bill Reach

16. IPAC Planck Team • Bill Reach • IPAC team lead, Data center design • Gene Kopan • ERCSC system architect • Tim Pearson • Source detection and extraction algorithms • Brendan Crill • HFI instrument, lab testing, telemetry • Ben Rusholme (June 2006) • Preprocessing pipelines, QA • Graca Rocha (TBD) • Algorithms, maps, simulations • 1 more scientist being recruited • Code developer being recruited

17. IPAC Planck Data Archive • Service for the US portion of the Planck team • Retrieve data from DPCs • IPAC is single point of contact for mission data • Start with simulations and laboratory test data before launch • Start with PV phase for flight data • Continue through end of mission • Maintain data securely • Support ERCSC development and operations • Distribute to US team members in accord with Planck policies • Generate calibrated data from raw, upon instrument model update • Service for the US comminuty • Prepare a mission archive capable of supporting NASA researchers into the future • Same products and documentation as available from ESA, reorganized for our servers but not rewritten • Limited US community support (public webpage, email helpdesk) • Deliver entire archive (“in a box”) to Infrared Science Archive (IRSA) for “eternity”

18. IPAC Planck Archive: Operations • Import data from HFI and LFI DPCs in their native format • Includes detector data, pointing data, and instrument models • Start during PV phase • At least weekly transfers • Import data products from HFI and LFI DPCs • Calibrated time-ordered data • skymaps • Preprocess data using L2 (modified) pipelines at IPAC • Limited processing capability at IPAC, at level 2 (L2) • No processing for US team after 2011 • Algorithm development support for US team ideas that need to feed back to DPCs • Export preprocessed data to NERSC for mapmaking • Support secure transfer to NERSC • Consultation support for installing DPC software at NERSC

19. Secure storage • Access to US co-Is as per DPC policies • Calibrate (apply instrument model) • Deglitch (flagging) Calibrate (apply instrument model) • Deglitch (flagging) • high-pass filter (optional) • Assign pointing to samples • Destripe (Springtide) • Assign samples to pixels • Coadd into maps IPAC Planck Processing LFI DPC HFI DPC FTP FTP LFIraw and L2 PIOremote And L2 IPAC Planck Data Archive HFI L2 Preprocessing LFI Preprocessing USDPC Destriping / Mapmaking ERCSC Source Detection / Extraction ERCSC QA/ Catalog Production ERCSC

20. IPAC/PlanckComputing

21. Phase 1 (FY06) Phase 2 (FY07) IPAC/PlanckComputing

22. Data Archive: Milestones 6/06 Install PIOlib 8/06 Compile individual L2 module 7/07 Integrate L2 modules into testbed 8/06 Negotiate data transfer format with HFI DPC 8/06 Negotiate data transfer format with LFI DPC 6/06 Obtain simulated data from HFI DPC 6/07 Obtain flightlike data from HFI DPC 9/06 Obtain sample data from LFI DPC 9/07 Obtain flightlike data from LFI DPC 9/06 Develop data security plan 12/07 Design prototype archive interface for US co-Is 4/07 Integrate L2 modules onto US PDC pipeline 9/07 Run L2 pipeline on testbed with HFI data 9/07 Run LFI-L2 pipeline on testbed with LFI data 10/07 Run HFI and LFI data through Unified mapmaking code 6/06 Install 20 TB disk, linux servers (8 node) 6/07 Install 40 TB disk, linux servers (24 node)
