Presentation Transcript
Btm 1200 load banks battery maintenance to go l.jpg
BTM 1200 Load Banks.Battery Maintenance To Go


Introduction l.jpg
Introduction

  • Polytronics Engineering, an industry leader in battery monitoring, offers flexibility in battery testing.

  • BTM1200 Portable Load Banks allows you to compare the specifications of the battery to its performance.

  • All semiconductors. No mechanical contacts


Introduction3 l.jpg
Introduction

  • BTM1200 Load Bank comes bundled with it’s own software. All the operations may be recorded and logged for later analysis.

  • The compact design of the BTM1200L/M meets airline baggage restrictions, thus it is ideal for battery audits and preventative maintenance work throughout the organization.


Features l.jpg
Features

  • Intuitive software interface

  • High speed sampling of individual cells

  • Measurement Capability:

    • Voltage, current, temperature, and discharge time

  • Choice of three discharge modes:

    • Constant Current, Constant Power, or Manual

  • Configurable string size

  • Detailed logs of cell and string data


Features5 l.jpg
Features

  • Battery performance forecasting

  • Separate data log for each site

  • Efficiency and statistical analysis

  • Fiber optic Isolation

  • Variable end voltage per cell/string

  • Configurable Auto shut-off

  • Individual cell discharge profiles (optional)

  • Portable - BTM1200L and BTM1200Mini meets airline baggage restrictions


Technical specifications l.jpg
Technical Specifications

  • Test Battery Load

    • User Configurable from 18V /100A-550V/1000A DC range

    • From 2kW to 550 kW

  • Test Battery Parameters

    • Minimum string size: 6 cells

    • Maximum string size: 260 cells

    • Maximum string voltage: 550 VDC


Technical specifications7 l.jpg
Technical Specifications

  • Discharge Test Modes

    • Constant Current Mode

    • Constant Power Mode

    • Manual

  • Control

    • Laptop or PC operating BTM1200L control software


Technical specifications8 l.jpg
Technical Specifications

  • Software Features

    • Load Control

    • Individual cell discharge curve

    • Cell degradation / prediction

    • String discharge curve

    • String analysis

  • Controlling Power

    • 120V AC 60Hz, 240V AC or 12V DC


Technical specifications9 l.jpg
Technical Specifications

  • Cooling

    • Air convection or forced, water for above 300kW

  • Dimensions

    • BTM1200Mini -7”x20”x20”

    • BTM1200L

      • Breaks down into 2 sections -- 22.5”x21.5”x9” 22.5”x21.5”x11”

    • BTM1200Maxi (custom design)

      • Water cooled 550V/1000A - two sections: 32”x36”x52”each

      • Convection cooled 48V/2000A 108”x96’x96”

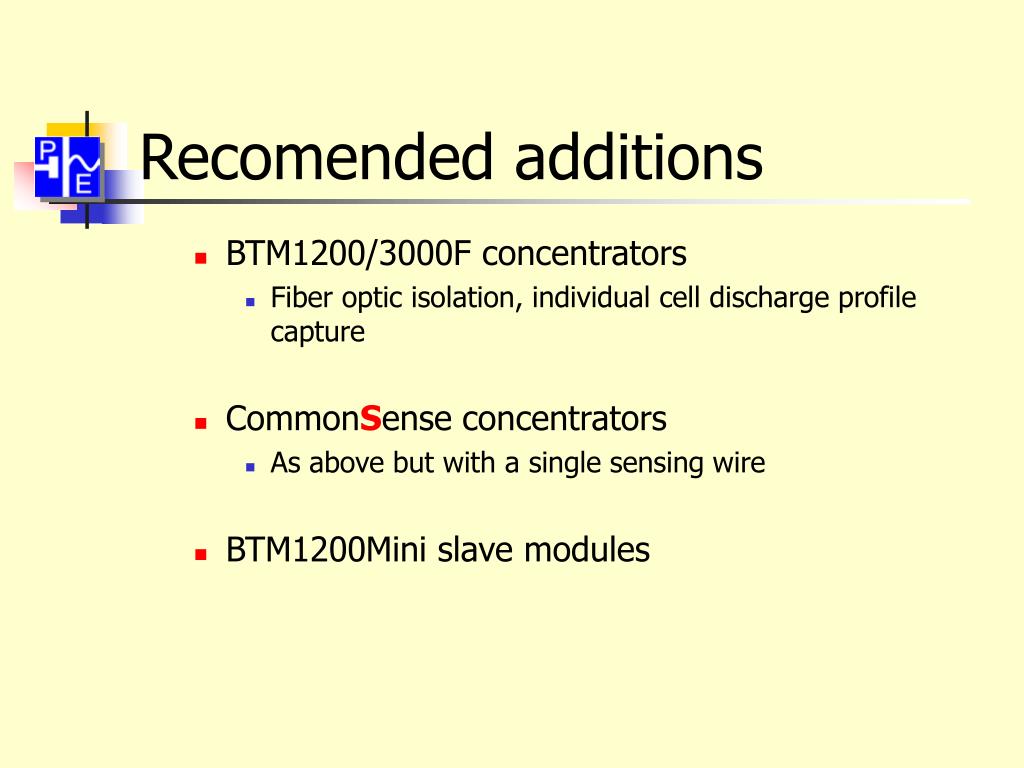

Recomended additions l.jpg
Recomended additions

  • BTM1200/3000F concentrators

    • Fiber optic isolation, individual cell discharge profile capture

  • CommonSense concentrators

    • As above but with a single sensing wire

  • BTM1200Mini slave modules
