Lecture 11 - By Paul Lin


Lecture 11 solving basic statistics problems

Lecture 11: Solving Basic Statistics Problems

11-1 Introduction to Statistics

11-2 Statistical Analysis

  • Arithmetic Mean

  • Variance

  • Standard Deviation

    11-3 Empirical Linear Equation

Lecture 11 - By Paul Lin


11 1 introduction to statistics

11-1 Introduction to Statistics

Origin of Statistics (18th century)

  • Game of chance, and what is now called political sciences

  • Descriptive statistics: numerical description of political units (cities, provinces, countries, etc); presentation of data in tables and charts; summarization of data by means of numerical description

Reference: Chapter 14 Statistics, Engineering Fundamentals and Problem Solving, Arvid Edie, et. al. McGrawHill, 1979

Lecture 11 - By Paul Lin


11 1 introduction to statistics1

11-1 Introduction to Statistics

Statistics Inference

  • Make generalization about collected data using carefully controlled variables

    Applications of Statistics

  • Decision making

  • Gaming industries

  • Comparison of the efficiency of production processes

  • Quality Control

    • Measure of central tendency (mean or average)

    • Measure of variation (standard deviation)

    • Normal curve

    • Linear regression

Lecture 11 - By Paul Lin


11 1 introduction to statistics2

11-1 Introduction to Statistics

  • Basic Statistical Analysis

    • A large set of measured data or numbers

    • Average value (or arithmetic mean)

    • Standard Deviation

    • Study and summarize the results of the measured data, and more

      Example 1: Student performance comparison

  • Two ECET students are enrolled in the CPET 190 and each completed five quizzes: qz1, qz2, qz3, qz4, and qz5. The grades are in the array format:

    • A = [82 61 88 78 80];

    • B =[94 98 92 90 85];

  • Student A has an average score of (82 + 61 + 88 + 78 + 90)/5 = 71.80

  • Student B has an average score of (94 + 98 +92 + 90 + 85)/5 = 91.80

  • Statistical Inference: Student B Better Than Student A????

Lecture 11 - By Paul Lin


11 1 introduction to statistics3

11-1 Introduction to Statistics

Example 1: Student performance comparison (continue)

  • Statistical Inference: Student B Better Than Student A????

  • Two Possible Answers:

    • Student B’s average grade 91.80 higher than A’s average grade 71.80, so that student B is a better student? Not quite true.

    • Student B may be better than A. This could be a more accurate answer.

Lecture 11 - By Paul Lin


Example 1 the matlab solution

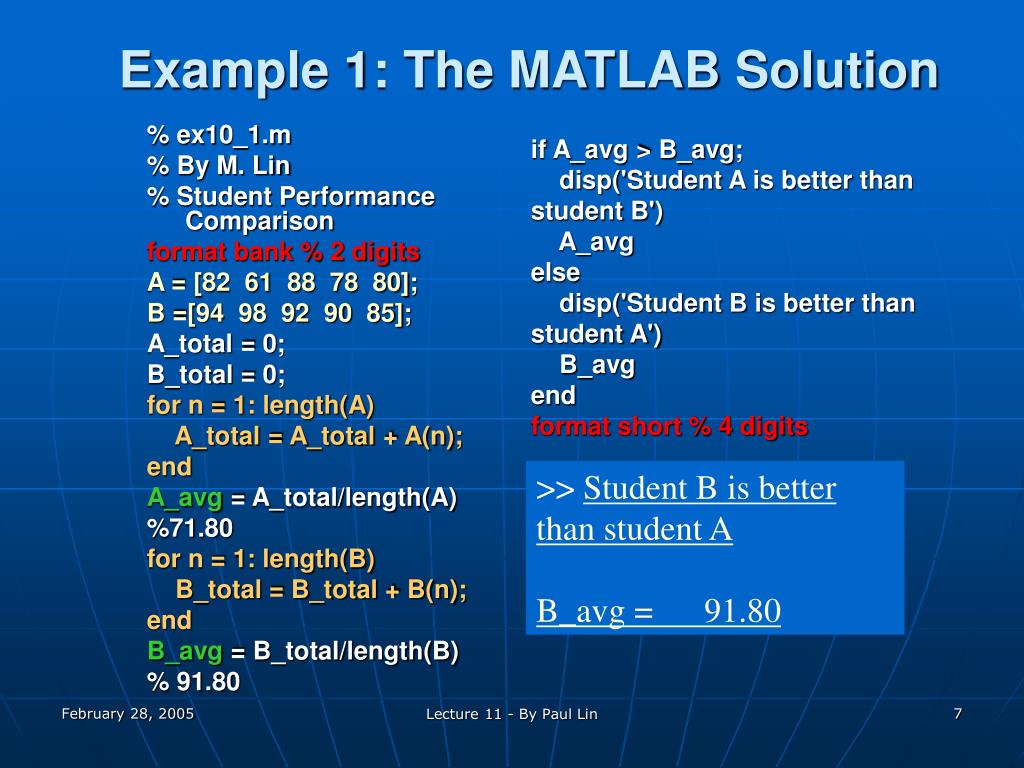

Example 1: The MATLAB Solution

if A_avg > B_avg;

disp('Student A is better than student B')

A_avg

else

disp('Student B is better than student A')

B_avg

end

format short % 4 digits

% ex10_1.m

% By M. Lin

% Student Performance Comparison

format bank % 2 digits

A = [82 61 88 78 80];

B =[94 98 92 90 85];

A_total = 0;

B_total = 0;

for n = 1: length(A)

A_total = A_total + A(n);

end

A_avg = A_total/length(A)

%71.80

for n = 1: length(B)

B_total = B_total + B(n);

end

B_avg = B_total/length(B)

% 91.80

>> Student B is better than student A

B_avg = 91.80

Lecture 11 - By Paul Lin


11 2 statistical analysis

11-2 Statistical Analysis

  • Statistical Analysis

    • Data grouping and classifying data

    • Measures of tendency

      • Arithmetic mean or average value.

    • Measures of variation

      • Variance

      • Standard Deviation

    • Predict or forecast the outcome of certain events

      • Linear regression (the simplest one)

Lecture 11 - By Paul Lin


11 2 statistical analysis1

11-2 Statistical Analysis

  • Arithmetic mean or average value

    Where N measurements are designated x1, x2, ..

    Or in the closed form as

Lecture 11 - By Paul Lin


Mean matlab function for calculating average or mean values

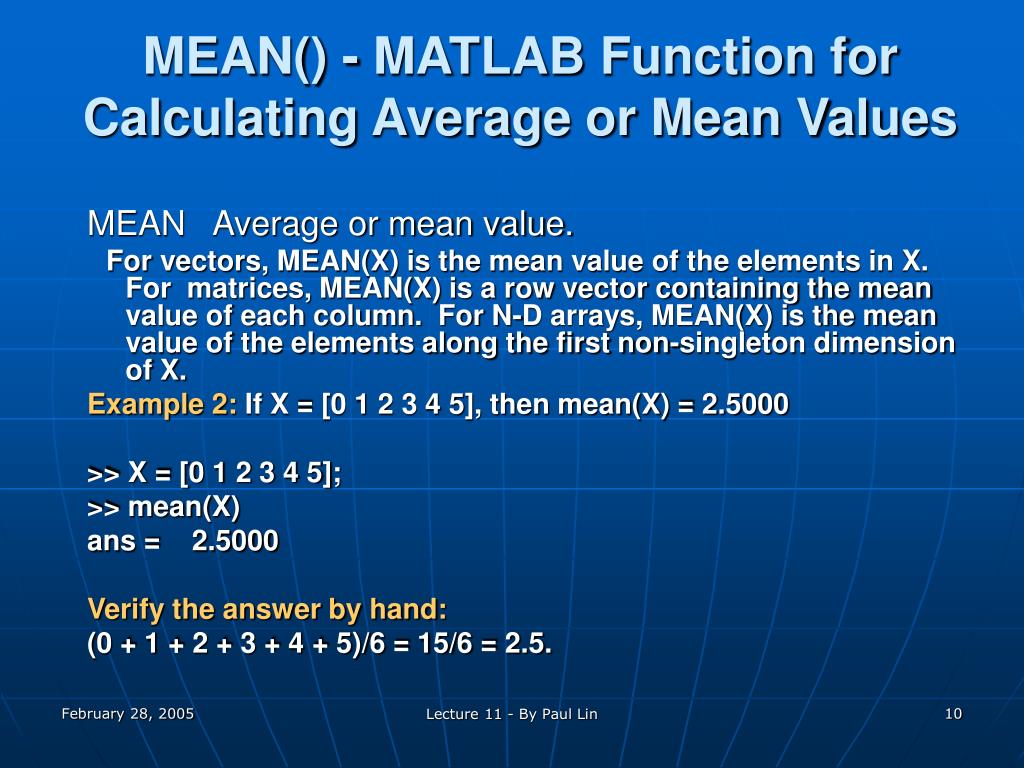

MEAN() - MATLAB Function for Calculating Average or Mean Values

MEAN Average or mean value.

For vectors, MEAN(X) is the mean value of the elements in X. For matrices, MEAN(X) is a row vector containing the mean value of each column. For N-D arrays, MEAN(X) is the mean value of the elements along the first non-singleton dimension of X.

Example 2: If X = [0 1 2 3 4 5], then mean(X) = 2.5000

>> X = [0 1 2 3 4 5];

>> mean(X)

ans = 2.5000

Verify the answer by hand:

(0 + 1 + 2 + 3 + 4 + 5)/6 = 15/6 = 2.5.

Lecture 11 - By Paul Lin


Variance

Variance

  • The variance is a measure of how spread out a distribution is.

    Where x is each measurement, μ is the mean, and N is the number of measurement

  • It is computed as the average squared deviation of each number from its mean.

    Example 3: we measure three resistors in a bin and read the resistances 1 ohm, 2 ohms, and 3 ohms, the mean is (1+2+3)/3, or 2 ohms, and the variance is

Lecture 11 - By Paul Lin


Standard deviation

Standard Deviation

  • A measure of the dispersion (or spread) of a set of data from its mean.

  • The more spread apart the data is, the higher the deviation.

  • A statistic about how tightly all the various measurement are clustered around the mean in a set of data.

  • When the examples are pretty tightly bunched together and the bell-shaped curve is steep, the standard deviation is small.

  • When the examples are spread apart and the bell curve is relatively flat, that tells you have a relatively large standard deviation.

Lecture 11 - By Paul Lin


Matlab function for standard deviation

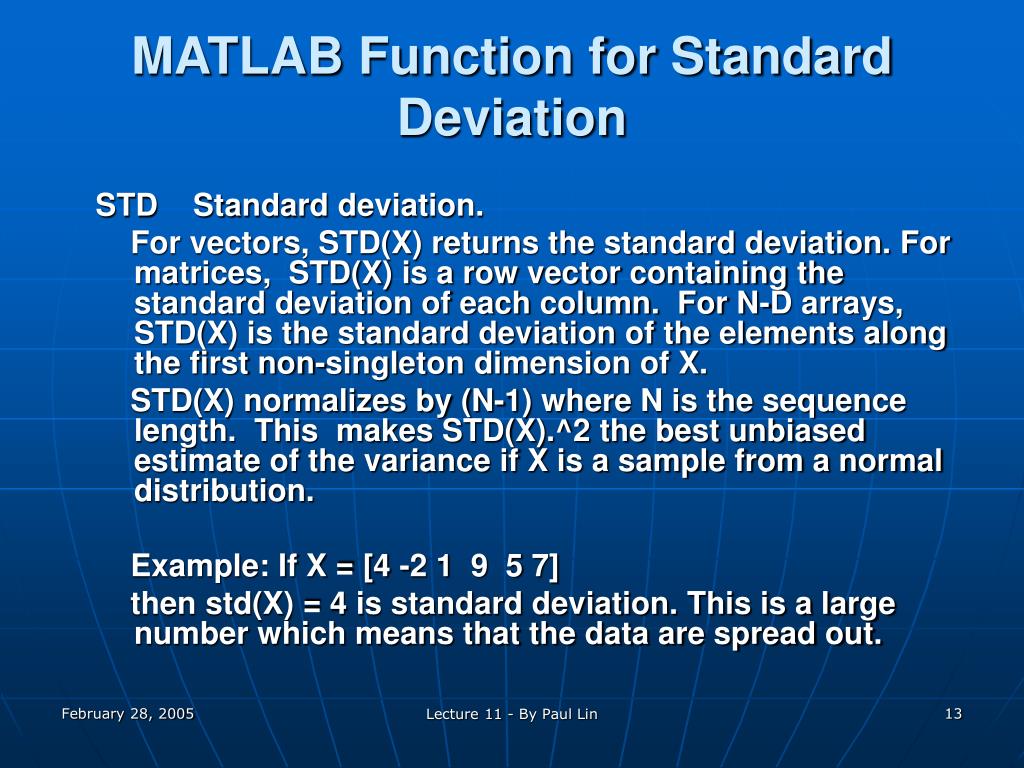

MATLAB Function for Standard Deviation

STD Standard deviation.

For vectors, STD(X) returns the standard deviation. For matrices, STD(X) is a row vector containing the standard deviation of each column. For N-D arrays, STD(X) is the standard deviation of the elements along the first non-singleton dimension of X.

STD(X) normalizes by (N-1) where N is the sequence length. This makes STD(X).^2 the best unbiased estimate of the variance if X is a sample from a normal distribution.

Example: If X = [4 -2 1 9 5 7]

then std(X) = 4 is standard deviation. This is a large number which means that the data are spread out.

Lecture 11 - By Paul Lin


Mean and standard deviation

Mean and Standard Deviation

Example 4: Mr. A purchased a new car and want to find the MEAN and the Standard Deviation of gas consumption (miles per gallon) obtained in 10 test-runs.

  • Find the mean and standard deviation using MATLAB mean( ) and std ( ) functions.

  • Find the mean and deviation using the formula as shown below:

Lecture 11 - By Paul Lin


Example 4 continue

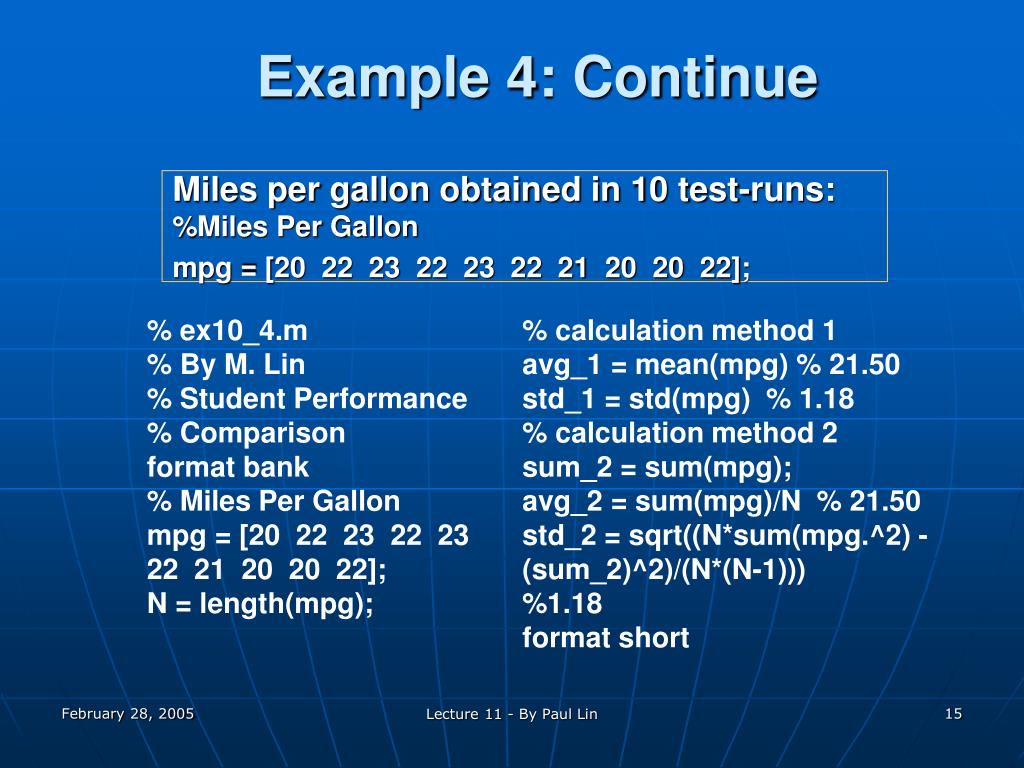

Example 4: Continue

Miles per gallon obtained in 10 test-runs:

%Miles Per Gallon

mpg = [20 22 23 22 23 22 21 20 20 22];

% ex10_4.m

% By M. Lin

% Student Performance % Comparison

format bank

% Miles Per Gallon

mpg = [20 22 23 22 23 22 21 20 20 22];

N = length(mpg);

% calculation method 1

avg_1 = mean(mpg) % 21.50

std_1 = std(mpg) % 1.18

% calculation method 2

sum_2 = sum(mpg);

avg_2 = sum(mpg)/N % 21.50

std_2 = sqrt((N*sum(mpg.^2) - (sum_2)^2)/(N*(N-1)))

%1.18

format short

Lecture 11 - By Paul Lin


10 3 empirical equation race car speed prediction

10-3 Empirical Equation – Race Car Speed Prediction

Example 5: A racing car is clocked at various times t and velocities V

t = [0 5 10 15 20 25 30 35 40]; % Second

velocity = [24 33 62 77 105 123 151 170 188]; % m/sec

  • Determine the equation of a straight line constructed through the points plotted using MATLAB

  • Once the equation is determined, velocities at intermediate values can be computed or estimated from this equation

Reference: Engineering Fundamentals and Problem Solving, Arvid Edie, et. al., pp. 67-68, McGrawHill, 1979

Lecture 11 - By Paul Lin


Empirical equation race car speed prediction

Empirical Equation – Race Car Speed Prediction

Example 5: MATLAB Program

% ex10_5.m

% By M. Lin

t = [0 5 10 15 20 25 30 35 40];

velocity = [24 33 62 77 105 123 151 170 188];

plot(t, velocity,'o'), grid on

title(' Velocity vs Time');

xlabel('Time - second');

ylabel('Velocity - meter/sec')

hold on

plot(t, velocity)

Lecture 11 - By Paul Lin


Empirical equation race car speed prediction1

Empirical Equation – Race Car Speed Prediction

Example 5: MATLAB Program

  • The linear equation can be described as the slope-intercept form V = m*t +b;

    where m is the slope and b is the intercept

  • Select point A(10,60), point B(40, 185)

185

A

60

10

40

Lecture 11 - By Paul Lin


Empirical equation race car speed prediction2

Empirical Equation – Race Car Speed Prediction

Example 5: MATLAB Program (continue)

  • We substitute A(10,60), and B(40, 185) into the equation V = m*t +b;

    to find m and b

    60 = m*10 + b ----- (1)

    185 = m*40 + b ---- (2)

    We then solve the two equations for the two unknowns m and b:

    m = 4.2

    b = 18.3

  • Now we have the equation

    V = 4.2 t + 18.3

Lecture 11 - By Paul Lin


Empirical equation race car speed prediction3

Empirical Equation – Race Car Speed Prediction

Example 5: MATLAB Program (continue)

t = [0 5 10 15 20 25 30 35 40];

velocity = [24 33 62 77 105 123 151 170 188];

plot(t, velocity,'o'), grid on

title(' Velocity vs Time');

xlabel('Time - second');

ylabel('Velocity - meter/sec')

hold on

plot(t, velocity)

m = 4.2;

b = 18.3;

t1 = 0:5:40;

V = 4.2*t1 + 18.3;

hold on

plot(t1, V, 'r')

Lecture 11 - By Paul Lin


Summary

Summary

  • Introduction to Statistics

  • Statistical Analysis

    • Arithmetic Mean

    • Variance

    • Standard Deviation

  • Empirical Linear Equation

Lecture 11 - By Paul Lin
