Csi 1301

CSI 1301

ALGORITHMS - PART 3

REPETITION/LOOP

CONTROL STRUCTURE


Need for repetition

Need for Repetition

  • An algorithm with get/give, assignment and conditional branch instructions processes one set of data (givens) each time it is executed

  • What would we do if we needed to process multiple sets of data?

    • To calculate the grades for 150 students (instead of a grade for one student)

    • To determine the payroll for all employees

  • We could execute the algorithm multiple times or once, as in the following example…..


Algorithm 3 1

Algorithm 3.1

  • Write an algorithm to find the sum of 100 numbers.

    • Name: SUM100

    • Givens:N1, N2, N3, … N99, N100

      • Change:None

    • Results: Total

    • Intermediates: None

    • Definition: Total := SUM100(N1, N2, N3… N100)

    • ---------------------------------

    • Method

      Get N1

      Get N2

      Get N100

      Let Total = N1 + N2 + N3 + … + N99 + N100

      Give Total

  • What would we do for 1,000,000 numbers?


Loop block

Loop Block

  • Clearly, we need a better way

  • We need an instruction that

    • Executes a block of instructions multiple times, and

    • After each execution, tests to see if the block of instructions should be executed again

  • This instruction is called a loop (repetition) control instruction


Parts of a loop

Parts of a Loop

  • There are four parts to a loop

    • Setup

      • The conditions to be set before we enter the loop

    • Test (included in the loop control instruction)

      • The Boolean test to determine if the loop should be executed again (the same type of test used in a conditional branch instruction)

    • Instruction Block

      • The instructions that are to be executed repeatedly

    • Change

      • A change to one of the variables in the test so that we can exit the loop

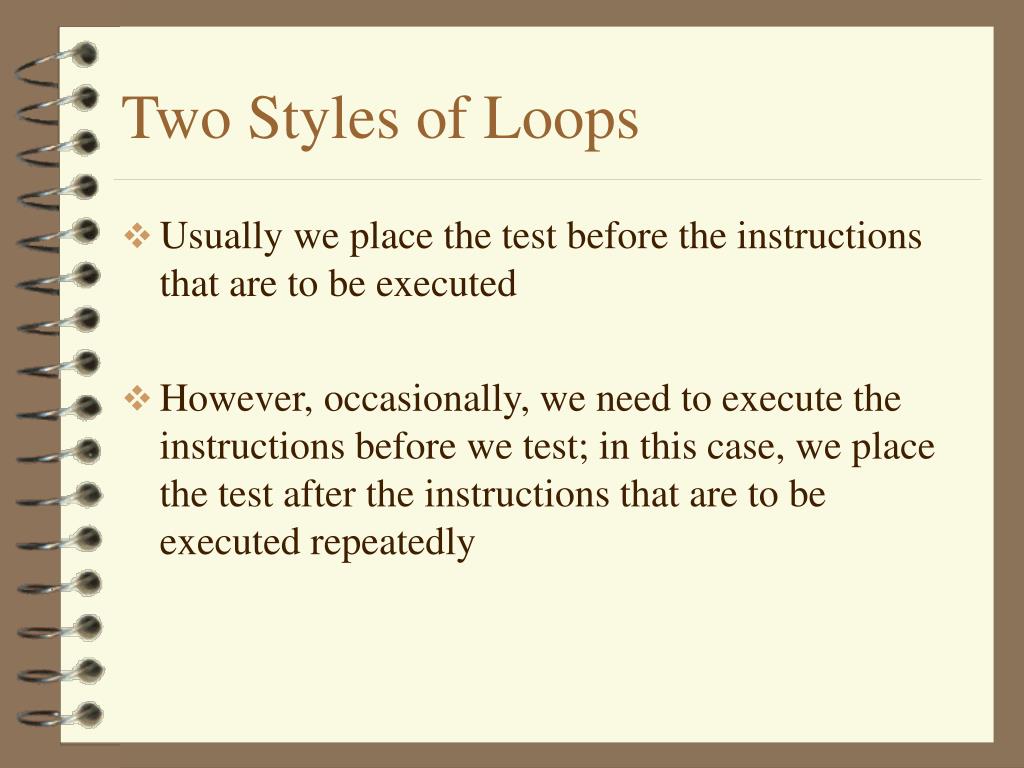

Two styles of loops

Two Styles of Loops

  • Usually we place the test before the instructions that are to be executed

  • However, occasionally, we need to execute the instructions before we test; in this case, we place the test after the instructions that are to be executed repeatedly


Loop block1

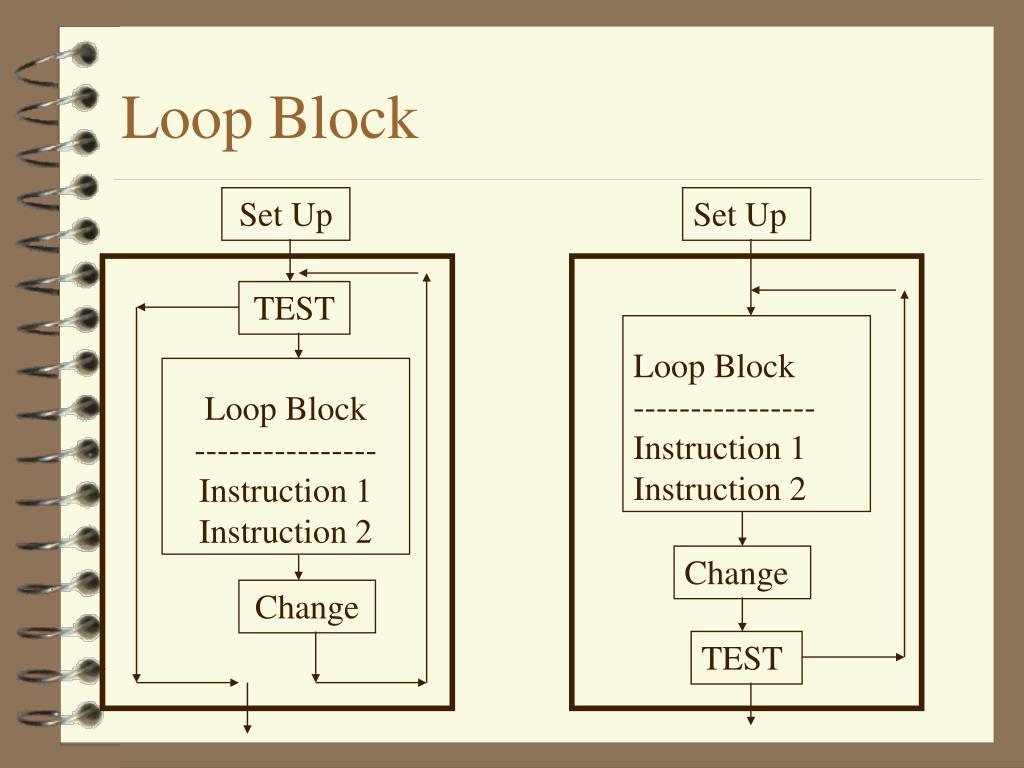

Loop Block

Set Up

Set Up

TEST

Loop Block

----------------

Instruction 1

Instruction 2

Loop Block

----------------

Instruction 1

Instruction 2

Change

Change

TEST


Setting up a loop in an algorithm 1

Syntax

Set Up

Loop When (Test)

Instruction 1

Instruction 2

……….

Change

Finish Loop

Semantic

After the Set Up, the Test is evaluated, if its value is true, instruction1, instruction2,… are executed, and Test is evaluated again. Instruction1, Instruction2 are repeated as long as the Test is true.

When the value of Test becomes false, the Loop ends and the instruction following the Loop is executed.

Setting up a Loop in an Algorithm (1)


Csi 1301

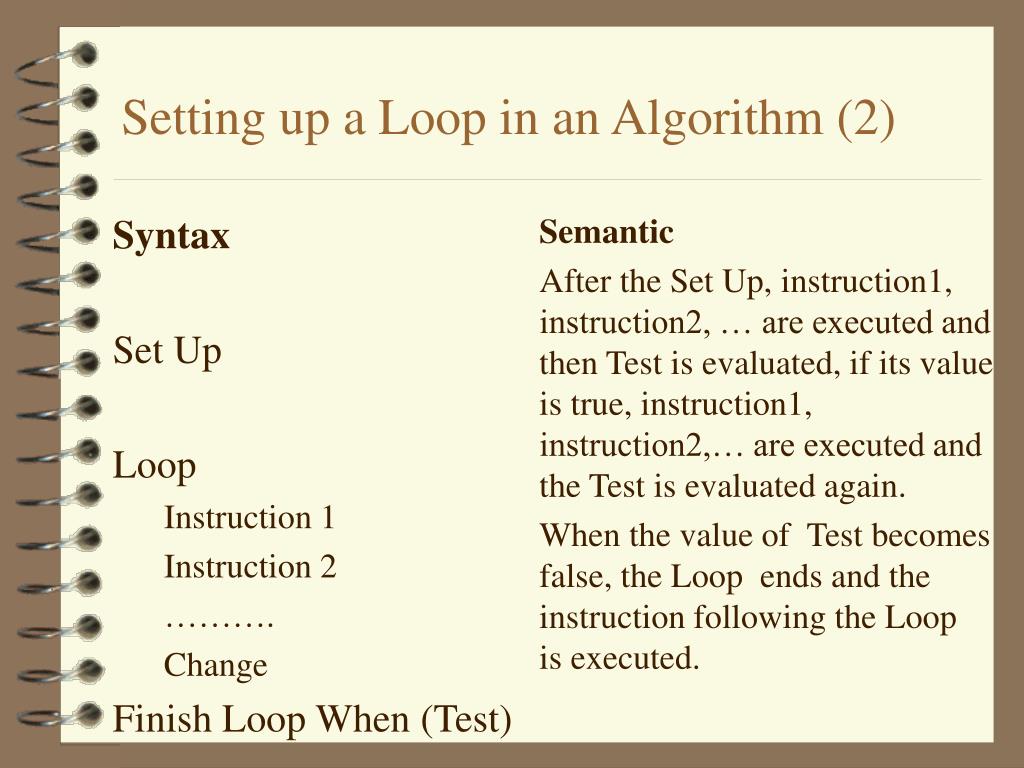

Setting up a Loop in an Algorithm (2)

Syntax

Set Up

Loop

  • Instruction 1

  • Instruction 2

  • ……….

  • Change

    Finish Loop When (Test)

Semantic

After the Set Up, instruction1, instruction2, … are executed and then Test is evaluated, if its value is true, instruction1, instruction2,… are executed and the Test is evaluated again.

When the value of Test becomes false, the Loop ends and the instruction following the Loop is executed.


Loop instructions

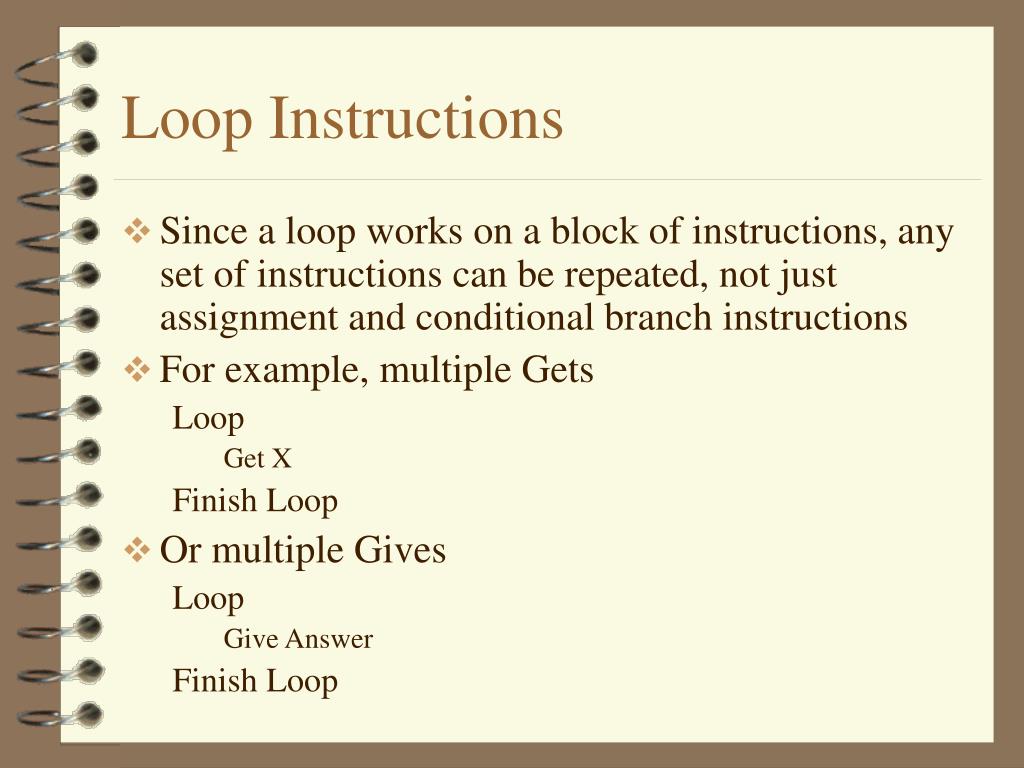

Loop Instructions

  • Since a loop works on a block of instructions, any set of instructions can be repeated, not just assignment and conditional branch instructions

  • For example, multiple Gets

    Loop

    Get X

    Finish Loop

  • Or multiple Gives

    Loop

    Give Answer

    Finish Loop


Algorithm 3 1 a

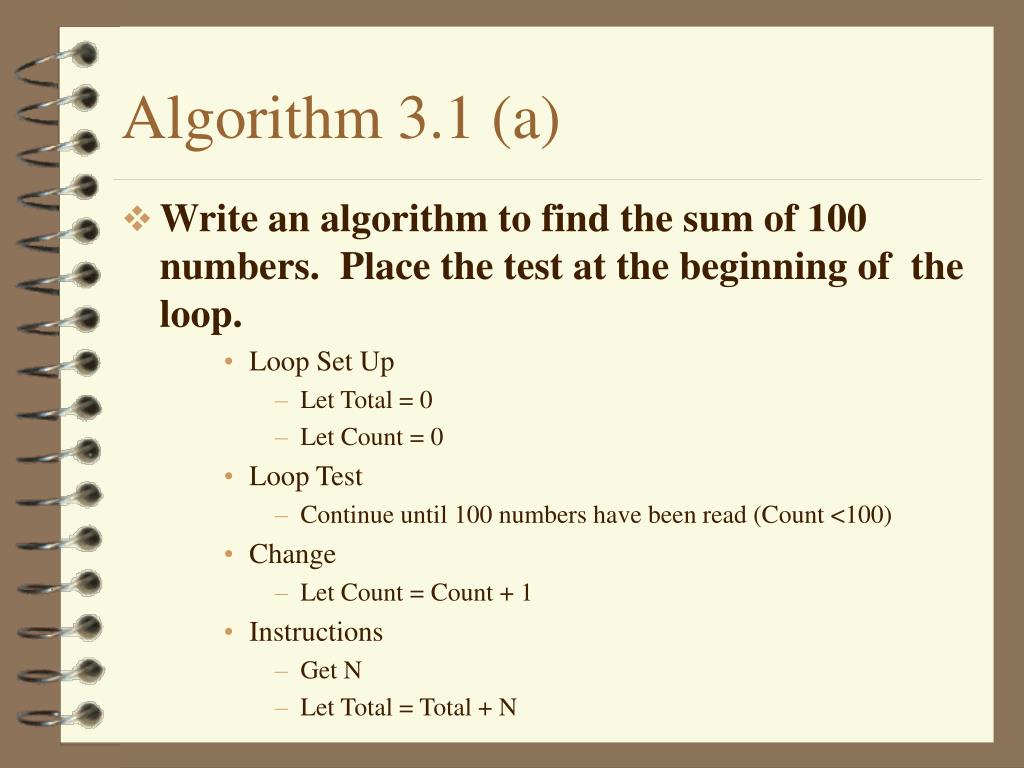

Algorithm 3.1 (a)

  • Write an algorithm to find the sum of 100 numbers. Place the test at the beginning of the loop.

    • Loop Set Up

      • Let Total = 0

      • Let Count = 0

    • Loop Test

      • Continue until 100 numbers have been read (Count <100)

    • Change

      • Let Count = Count + 1

    • Instructions

      • Get N

      • Let Total = Total + N


Algorithm 3 1 a1

Name: SUM100

Givens: N

Change: None

Results: Total

Intermediates: Count

Definition: Total := SUM100(N)

Method

Let Total = 0

Let Count = 0

Loop When (Count < 100)

Get N

Let Total = Total + N

Let Count = Count + 1

Finish Loop

Give Total

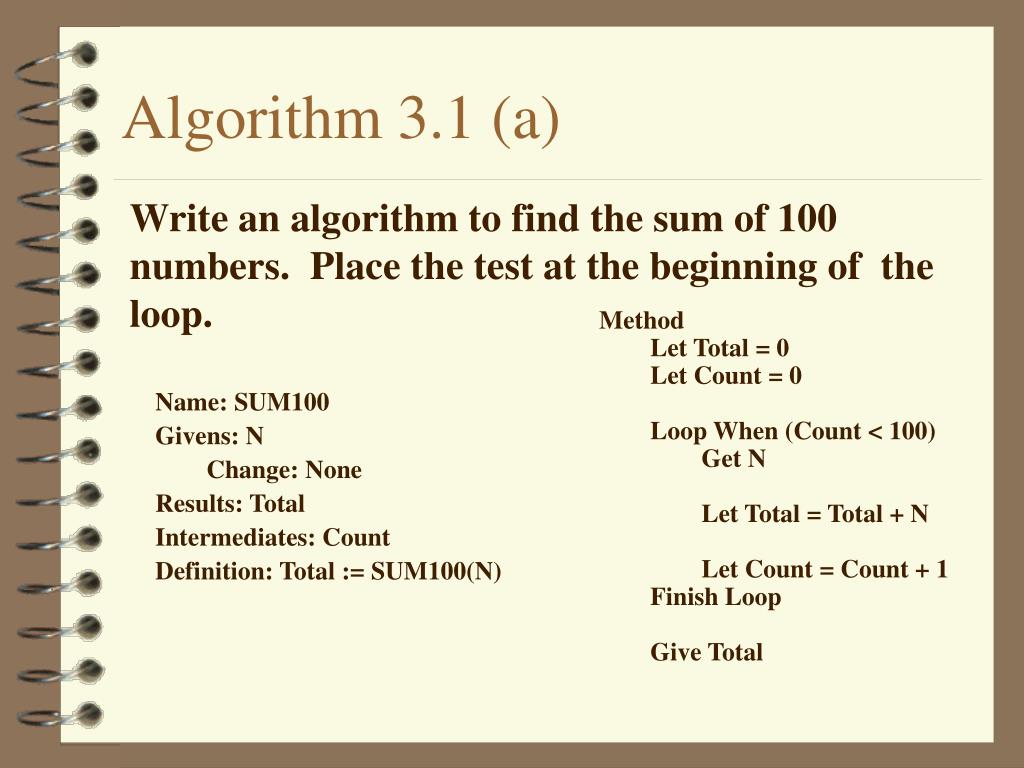

Algorithm 3.1 (a)

Write an algorithm to find the sum of 100 numbers. Place the test at the beginning of the loop.


Algorithm 3 1 b

Name: SUM100

Givens: N

Change: None

Results: Total

Intermediates: Count

Definition: Total := SUM100(N)

Method

Let Total = 0

Let Count = 0

Loop

Get N

Let Total = Total + N

Let Count = Count + 1

Finish Loop When (Count = 100)

Give Total

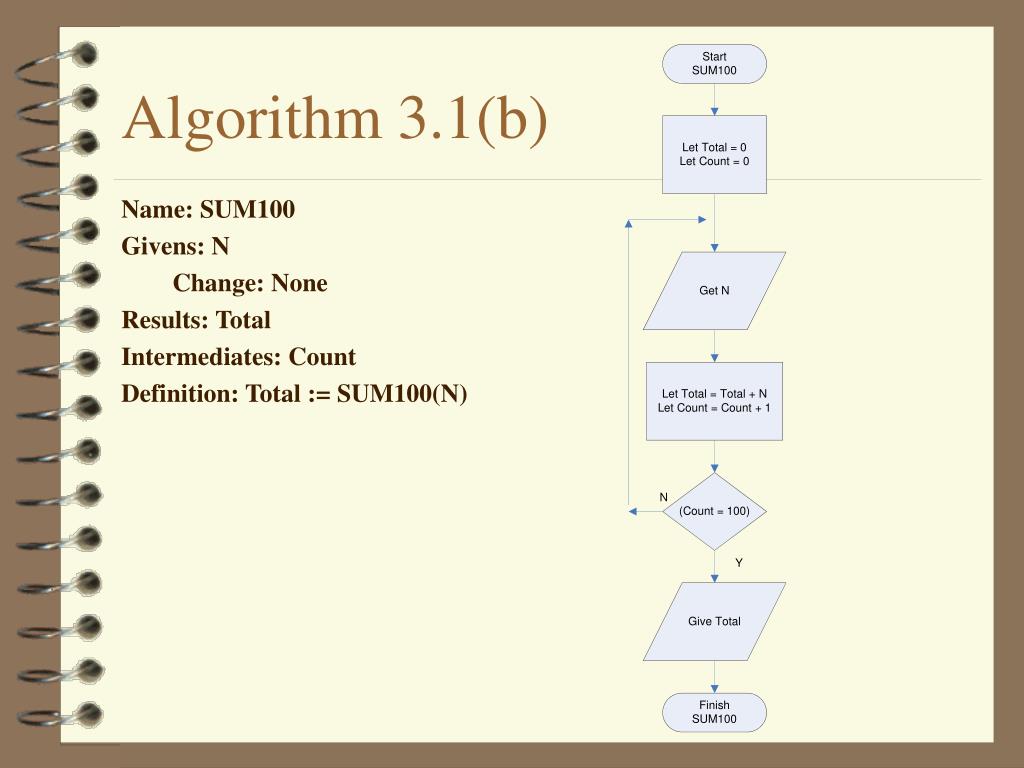

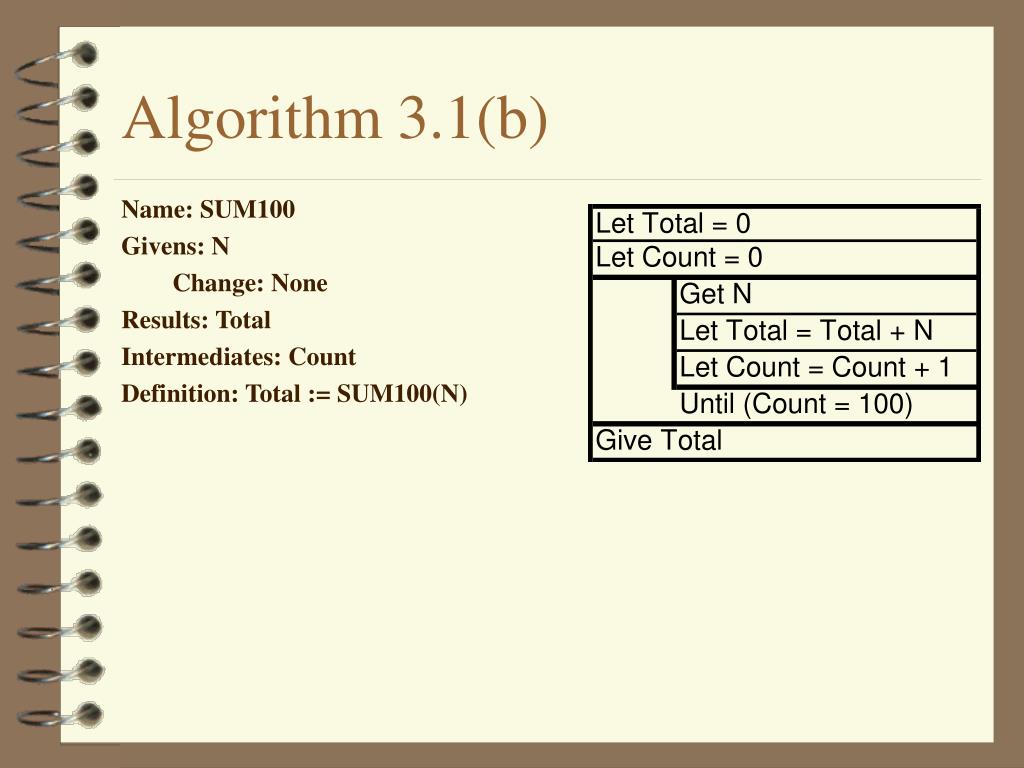

Algorithm 3.1 (b)

Write an algorithm to find the sum of 100 numbers. Place the test at the end of the loop.


Algorithm 3 2

Algorithm 3.2

Setup

  • Let Sum = 0

  • Let Value = 1

    Test

  • Value <= N

    Change

  • Let Value = Value + 1

Write an algorithm to calculate the sum from 1 to N. ie. (1+2+3+4+…N)

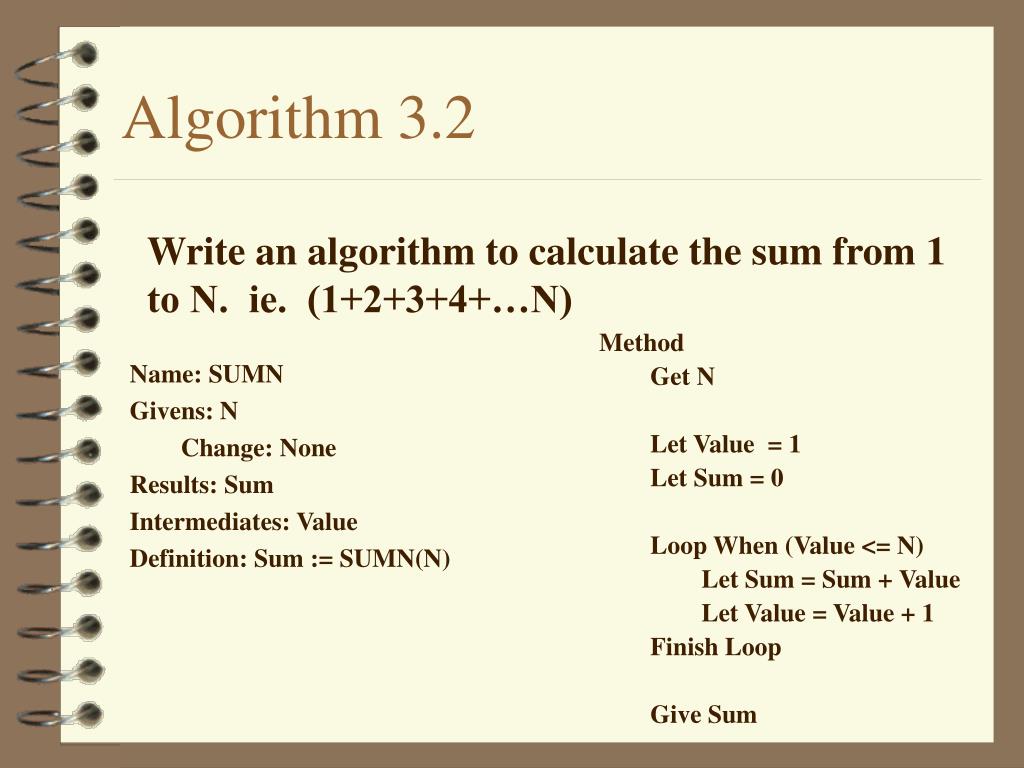

Algorithm 3 21

Name: SUMN

Givens: N

Change: None

Results: Sum

Intermediates: Value

Definition: Sum := SUMN(N)

Method

Get N

Let Value = 1

Let Sum = 0

Loop When (Value <= N)

Let Sum = Sum + Value

Let Value = Value + 1

Finish Loop

Give Sum

Algorithm 3.2

Write an algorithm to calculate the sum from 1 to N. ie. (1+2+3+4+…N)


Trace 3 1

Trace algorithm 3.2 when N is 4

(1) Get N

(2) Let Value = 1

(3) Let Sum = 0

(4) Loop When (Value <= N)

(5) Let Sum = Sum + Value

(6) Let Value = Value + 1

(7) Finish Loop

(8) Give Sum

LN N Value Sum Test

1 4

2 1

3 0

4 (1<=4)

5 1

6 2

4 (2<=4)

5 3

6 3

4 (3<=4)

5 6

6 4

4 (4<=4)

5 10

6 5

4 (5<=4)

8 Output 10

Trace 3.1


Complex tests

Complex Tests

  • Sometimes, a simple test is not adequate for either a conditional branch (If) or repetition (loop) control structure.

  • For more complicated tests, we use the Boolean operators

    • AND

    • OR

    • NOT

    • XOR

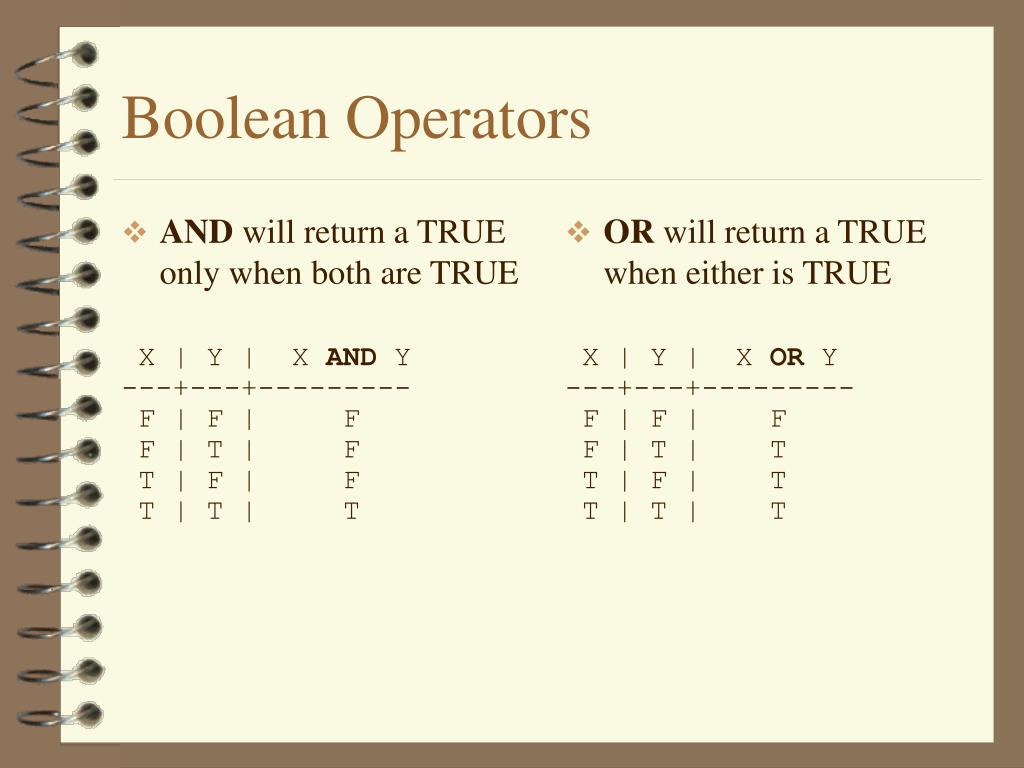

Boolean operators

AND will return a TRUE only when both are TRUE

X | Y | X AND Y

---+---+---------

F | F | F

F | T | F

T | F | F

T | T | T

OR will return a TRUE when either is TRUE

X | Y | X OR Y

---+---+---------

F | F | F

F | T | T

T | F | T

T | T | T

Boolean Operators

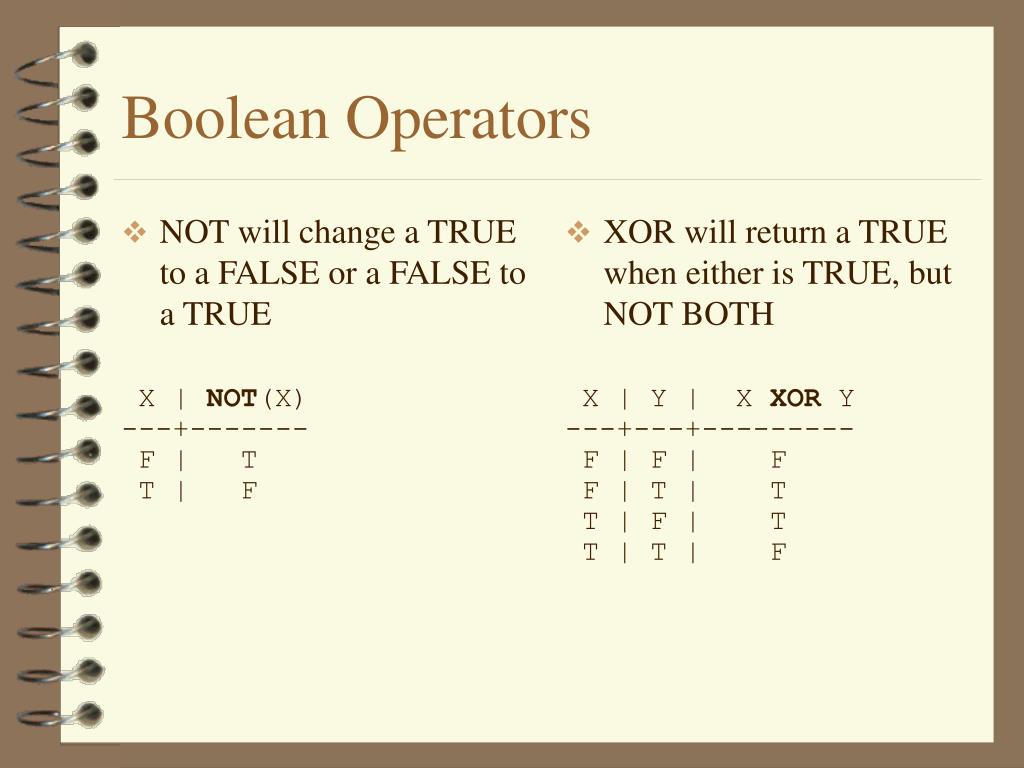

Boolean operators1

NOT will change a TRUE to a FALSE or a FALSE to a TRUE

X | NOT(X)

---+-------

F | T

T | F

XOR will return a TRUE when either is TRUE, but NOT BOTH

X | Y | X XOR Y

---+---+---------

F | F | F

F | T | T

T | F | T

T | T | F

Boolean Operators


Algorithm 3 3

Algorithm 3.3

Write an algorithm to find the average of up to 10 numbers entered by the user.

  • Execution of the algorithm stops whenever one of the following conditions occurs

    • 10 numbers have been entered

    • The user decides to stop entering numbers

  • Setup

    • Let Count = 0, Let Total = 0, Let Again = True

  • Test

    • Again = True AND Count <= 10

  • Change

    • Let Count = Count + 1, Get Again


Algorithm 3 31

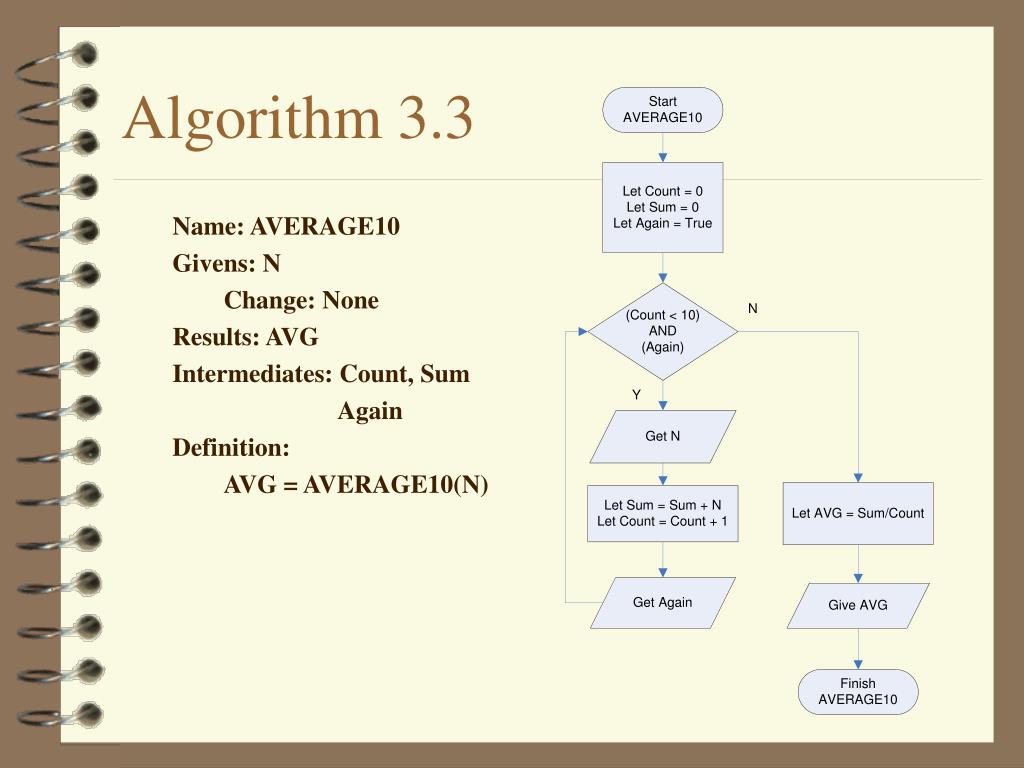

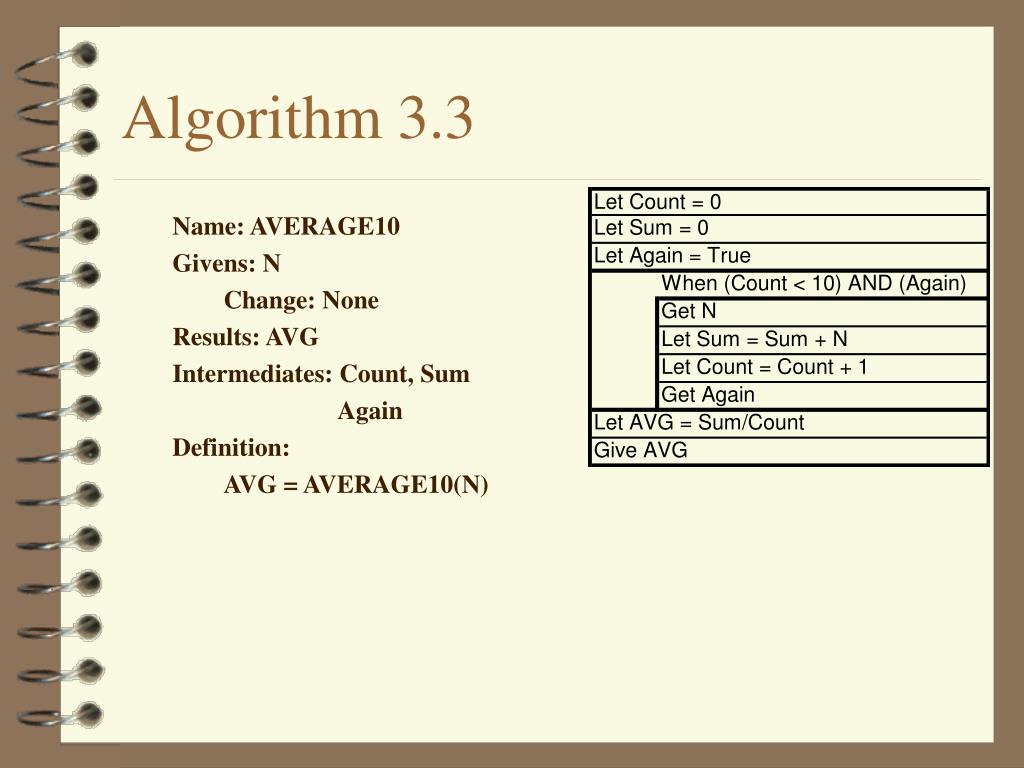

Algorithm 3.3

Write an algorithm to find the average of up to 10 numbers entered by the user.

Name: AVERAGE10

Givens: N

Change: None

Results: AVG

Intermediates: Count, Sum

Again

Definition:

AVG = AVERAGE10(N)

  • Method

    • Let Count = 0

    • Let Sum = 0

    • Let Again = True

    • Loop When (Count < 10) AND

    • (Again)

      • Get N

      • Let Sum = Sum + N

      • Let Count = Count + 1

      • Get Again

    • Finish Loop

    • Let AVG = Sum/Count

    • Give AVG


Trace 3 2

LN N Count Sum Again AVG Test

1 0

2 0

3 Yes

4 (0<10)AND YES

5 1

6 1

7 1

8 Yes

4 (1<10)AND YES

5 3

6 4

7 2

8 Yes

4 (2<10)AND YES

5 5

6 9

7 3

8 Yes

4 (3<10)AND YES

5 3

6 12

7 4

8 No

4 (4<10) AND NO

10 3

11 Output 3

Trace 3.2

  • Trace algorithm 3.3 when the user enters only the numbers 1, 3, 5 and 3

  • (1) Let Count = 0

  • (2) Let Sum = 0

  • (3) Let Again = True

  • (4) Loop When

  • (Count < 10) AND

  • (Again)

  • (5) Get N

  • (6) Let Sum = Sum + N

  • (7) Let Count = Count + 1

  • (8) Get Again

  • (9) Finish Loop

  • (10) Let AVG = Sum/Count

  • (11) Give AVG

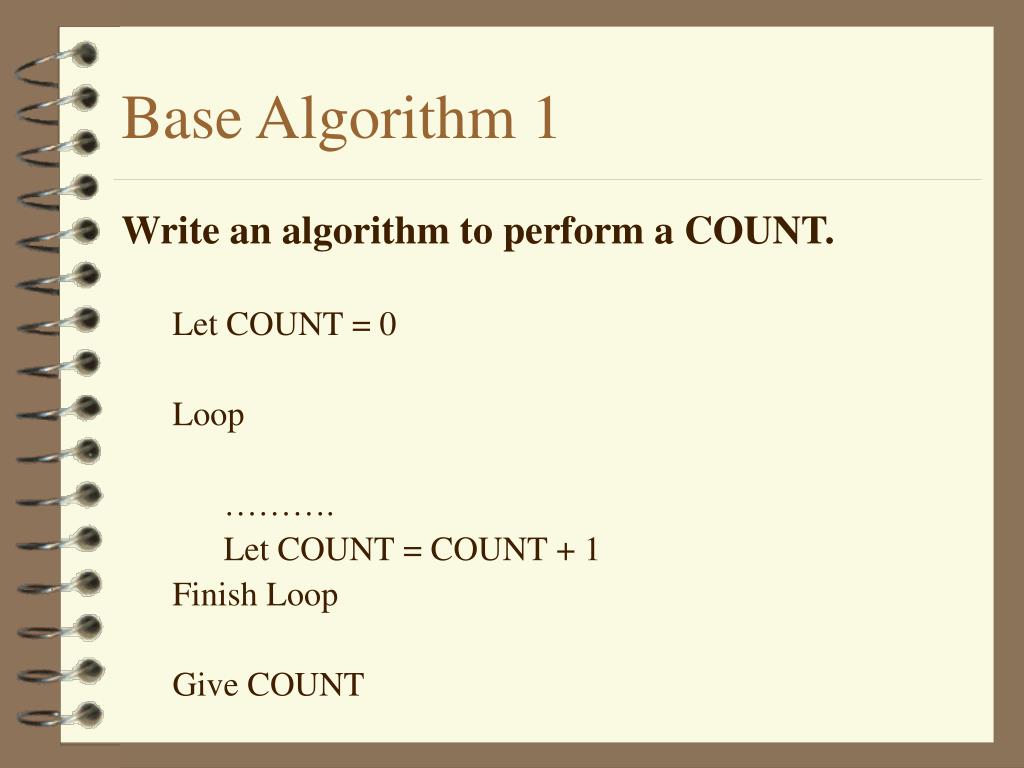

Base algorithm 1

Base Algorithm 1

Write an algorithm to perform a COUNT.

Let COUNT = 0

Loop

……….

Let COUNT = COUNT + 1

Finish Loop

Give COUNT

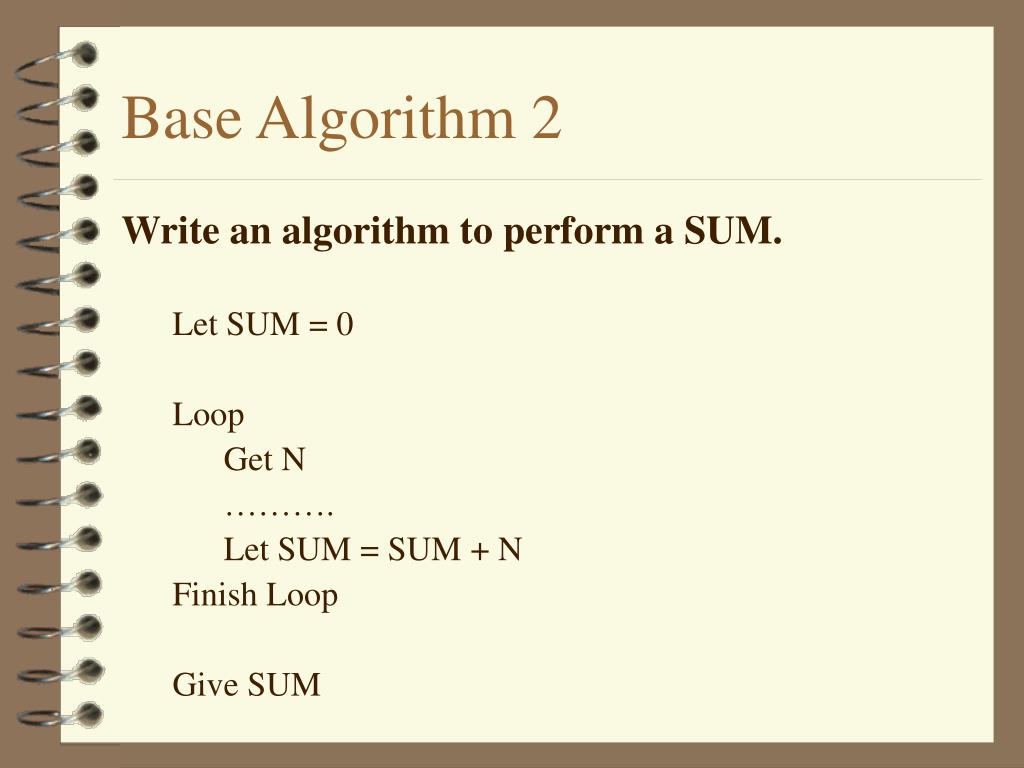

Base algorithm 2

Base Algorithm 2

Write an algorithm to perform a SUM.

Let SUM = 0

Loop

Get N

……….

Let SUM = SUM + N

Finish Loop

Give SUM


Base algorithm 3

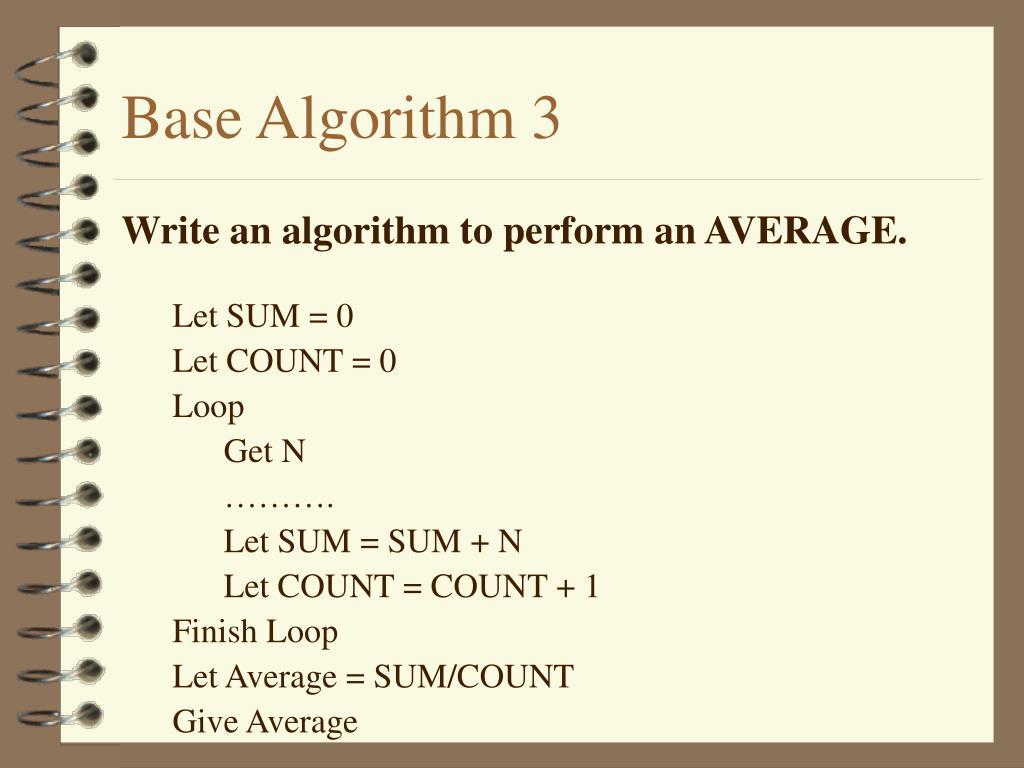

Base Algorithm 3

Write an algorithm to perform an AVERAGE.

Let SUM = 0

Let COUNT = 0

Loop

Get N

……….

Let SUM = SUM + N

Let COUNT = COUNT + 1

Finish Loop

Let Average = SUM/COUNT

Give Average


Base algorithms 4 and 5

Base Algorithms 4 and 5

Write algorithms to perform a MAX and MIN.

Let MAX = - infinity

Loop

Get N

If (N > MAX)

Let MAX = N

Finish Loop

Give MAX

Let MIN = infinity

Loop

Get N

If (N < MIN)

Let MIN = N

Finish Loop

Give MIN


Base algorithm 6

Base Algorithm 6

Write an algorithm to perform a SEARCH.

Get Search

Let FOUND = False

LOOP Until (FOUND Or No_More_Values)

Get Value

If (Value = Search)

Let FOUND = True

Finish Loop

If FOUND

Give Value

Else

Give “Not Found”


Algorithm 3 4

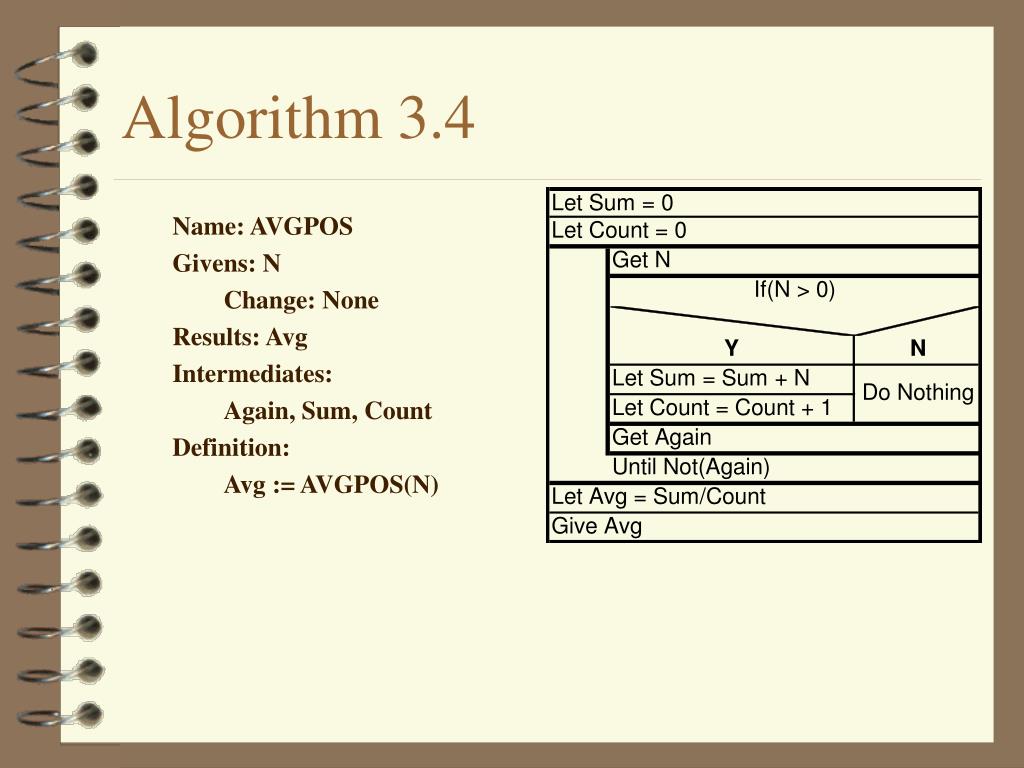

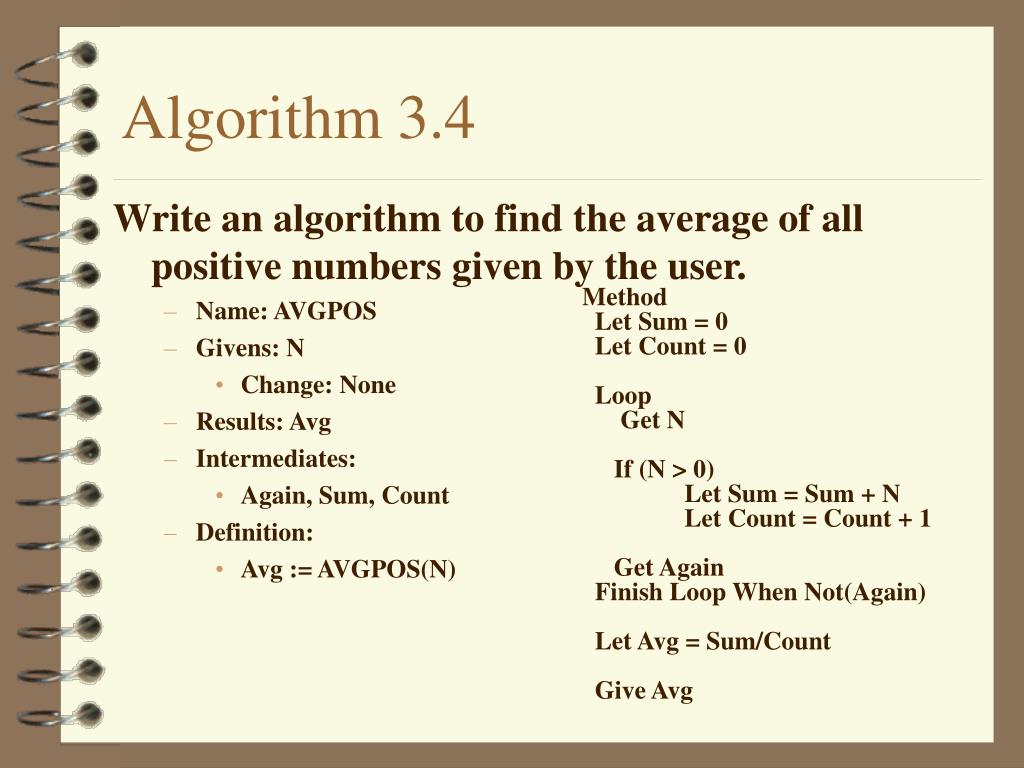

Algorithm 3.4

Write an algorithm to find the average of all positive numbers given by the user.

  • Name: AVGPOS

  • Givens: N

    • Change: None

  • Results: Avg

  • Intermediates:

    • Again, Sum, Count

  • Definition:

    • Avg := AVGPOS(N)

Method

Let Sum = 0

Let Count = 0

Loop

Get N

If (N > 0)

Let Sum = Sum + N

Let Count = Count + 1

Get Again

Finish Loop When Not(Again)

Let Avg = Sum/Count

Give Avg


Trace 3 3

Trace 3.3

LN Sum Count N Avg Again Test

1,2 0 0

4 1

5 (1>0)

6 1

7 1

8 Yes

9 Not(Yes)

4 -5

5 (-5>0)

8 Yes

9 Not(Yes)

4 5

5 (5>0)

6 6

7 2

8 Yes

9 Not(Yes)

4 3

5 (3>0)

6 9

7 3

8 No

9 Not(No)

10 3

11 Output 3

  • Trace algorithm 3.4 when the user enters only the numbers 1, -5, 5 and 3

(1) Let Sum = 0

(2) Let Count = 0

(3) Loop

(4) Get N

(5) If (N > 0)

(6) Let Sum = Sum + N

(7) Let Count = Count + 1

(8) Get Again

(9) Finish Loop When Not(Again)

(10) Let Avg = Sum/Count

(11) Give Avg


Algorithm 3 5

Algorithm 3.5

Write an algorithm to find the largest of 5 numbers (range 1 - 10).

  • Name: MAX5

  • Givens: N

    • Change: None

  • Results: Max

  • Intermediates:

    • Count

    • LastCount (Constant)

  • Definition:

    • Max := Max5(N)

Method

Set LastCount = 5

Let Max = -1

Let Count = 1

Loop When (Count <= LastCount)

Get N

If (N > Max)

Let Max = N

Let Count = Count + 1

Finish Loop

Give Max


Trace 3 4

LN Max Count LC N Test

1,2,3 -1 1 5

4 (1<=5)

5 1

6 (1>-1)

7 1

8 2

4 (2<=5)

5 5

6 (5>1)

7 5

8 3

4 (3<=5)

5 8

6 (8>5)

7 8

8 4

4 (4<=5)

5 3

6 (3>8)

8 5

4 (5<=5)

5 2

6 (2>8)

8 6

4 (6<=5)

10 Output 8

Trace 3.4

  • Trace algorithm 3.5 when the user enters only the numbers 1,5,8,3 and 2

    (1) Set LastCount = 5

    (2) Let Max = -1

    (3) Let Count = 1

    (4) Loop When (Count <= 5)

    (5) Get N

    (6) If (N > Max)

    (7) Let Max = N

    (8) Let Count = Count + 1

    (9) Finish Loop

    (10) Give Max


Additional materials

Additional Materials


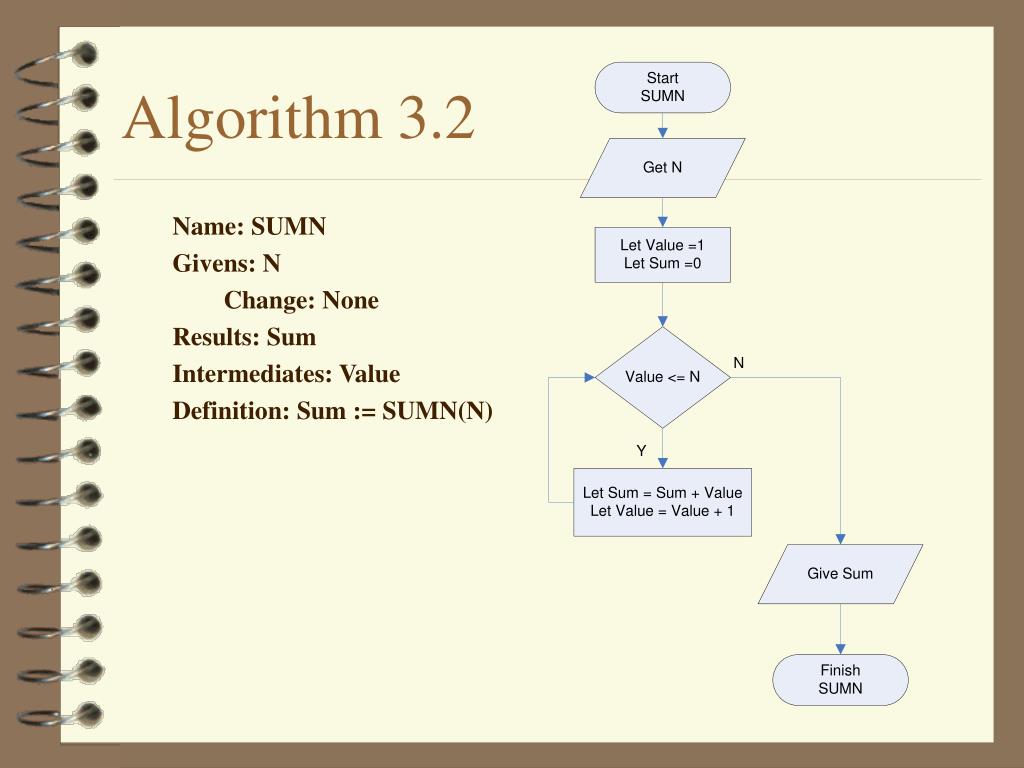

Flow charts

Flow Charts


Flow charts1

Flow Charts

  • The Diamond symbol is reused, to test the condition.

  • At the end of the block, the flow will reverse itself back to the top of the loop

  • Note the Test can be at the bottom or the top as stated previously


Algorithm 3 1 a2

Algorithm 3.1(a)

Name: SUM100

Givens: N

Change: None

Results: Total

Intermediates: Count

Definition: Total := SUM100(N)


Algorithm 3 1 b1

Algorithm 3.1(b)

Name: SUM100

Givens: N

Change: None

Results: Total

Intermediates: Count

Definition: Total := SUM100(N)


Algorithm 3 22

Algorithm 3.2

Name: SUMN

Givens: N

Change: None

Results: Sum

Intermediates: Value

Definition: Sum := SUMN(N)


Algorithm 3 32

Algorithm 3.3

Name: AVERAGE10

Givens: N

Change: None

Results: AVG

Intermediates: Count, Sum

Again

Definition:

AVG = AVERAGE10(N)


Algorithm 3 41

Algorithm 3.4

Name: AVGPOS

Givens: N

Change: None

Results: Avg

Intermediates:

Again, Sum, Count

Definition:

Avg := AVGPOS(N)


Algorithm 3 51

Algorithm 3.5

Name: MAX5

Givens: N

Change: None

Results: Max

Intermediates:

Count

LastCount (Constant)

Definition:

Max := Max5(N)


Csi 1301

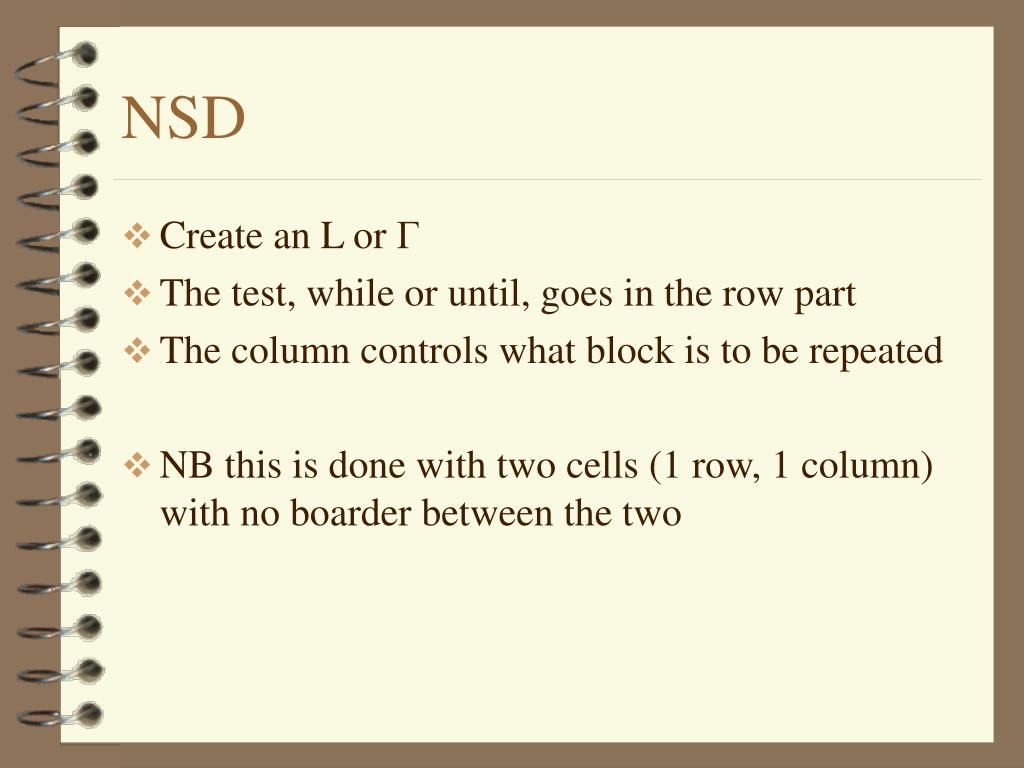

NSD


Csi 1301

NSD

  • Create an L or Γ

  • The test, while or until, goes in the row part

  • The column controls what block is to be repeated

  • NB this is done with two cells (1 row, 1 column) with no boarder between the two


Algorithm 3 1 a3

Algorithm 3.1(a)

Name: SUM100

Givens: N

Change: None

Results: Total

Intermediates: Count

Definition: Total := SUM100(N)


Algorithm 3 1 b2

Algorithm 3.1(b)

Name: SUM100

Givens: N

Change: None

Results: Total

Intermediates: Count

Definition: Total := SUM100(N)


Algorithm 3 23

Algorithm 3.2

Name: SUMN

Givens: N

Change: None

Results: Sum

Intermediates: Value

Definition: Sum := SUMN(N)


Algorithm 3 33

Algorithm 3.3

Name: AVERAGE10

Givens: N

Change: None

Results: AVG

Intermediates: Count, Sum

Again

Definition:

AVG = AVERAGE10(N)


Algorithm 3 42

Algorithm 3.4

Name: AVGPOS

Givens: N

Change: None

Results: Avg

Intermediates:

Again, Sum, Count

Definition:

Avg := AVGPOS(N)


Algorithm 3 52

Algorithm 3.5

Name: MAX5

Givens: N

Change: None

Results: Max

Intermediates:

Count

LastCount (Constant)

Definition:

Max := Max5(N)


Homework

Homework


Csi 1301

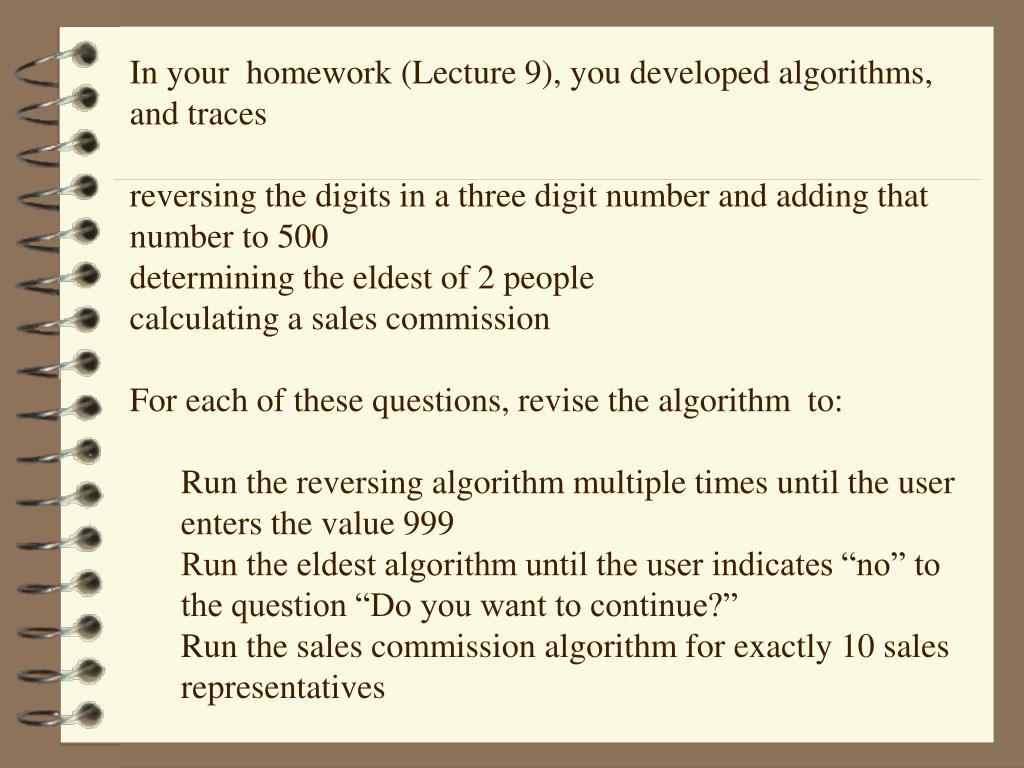

  • In your homework (Lecture 9), you developed algorithms, and traces

  • reversing the digits in a three digit number and adding that number to 500

  • determining the eldest of 2 people

  • calculating a sales commissionFor each of these questions, revise the algorithm to:

    • Run the reversing algorithm multiple times until the user enters the value 999

    • Run the eldest algorithm until the user indicates “no” to the question “Do you want to continue?”

    • Run the sales commission algorithm for exactly 10 sales representatives


Csi 1301

Develop an algorithm to assist a clerk in determining some statistics about students. For each student, she enters the name, gender (M or F), age and marital status (M or S). She wants to determine the number of married men, married women, single women and eligible bachelors (single men over 25). Each time she has completed entry of data for a student, the algorithm should give her a chance to indicate whether she has entered the data for all of the students.


Csi 1301

Write an algorithm to determine the closing balance for a teller. The teller enters his opening balance and then a number of transactions. Deposits are entered as positive numbers and withdrawals are entered as negative numbers. He also needs to calculate the number of deposits and the number of withdrawals. The teller indicates that all transactions have been entered by entering a transaction with a value of 0.


Csi 1301

Write an algorithm to calculate and display the total gross earnings, tax payable, medical deduction and net earnings for all employees.

The user will input the hours worked and the hourly rate of pay for each employee. The gross earnings for each employee can be calculated from this information.

The net earnings are calculated by subtracting the tax payable and medical deductions from the gross earnings. Tax payable is 20% of gross pay for the first $300, 30% for the next $200 and 40% thereafter. The medical deduction is calculated as 1% of gross pay.

The user will indicate that all employee information has been entered by entering hours worked as 999.


  • Login
