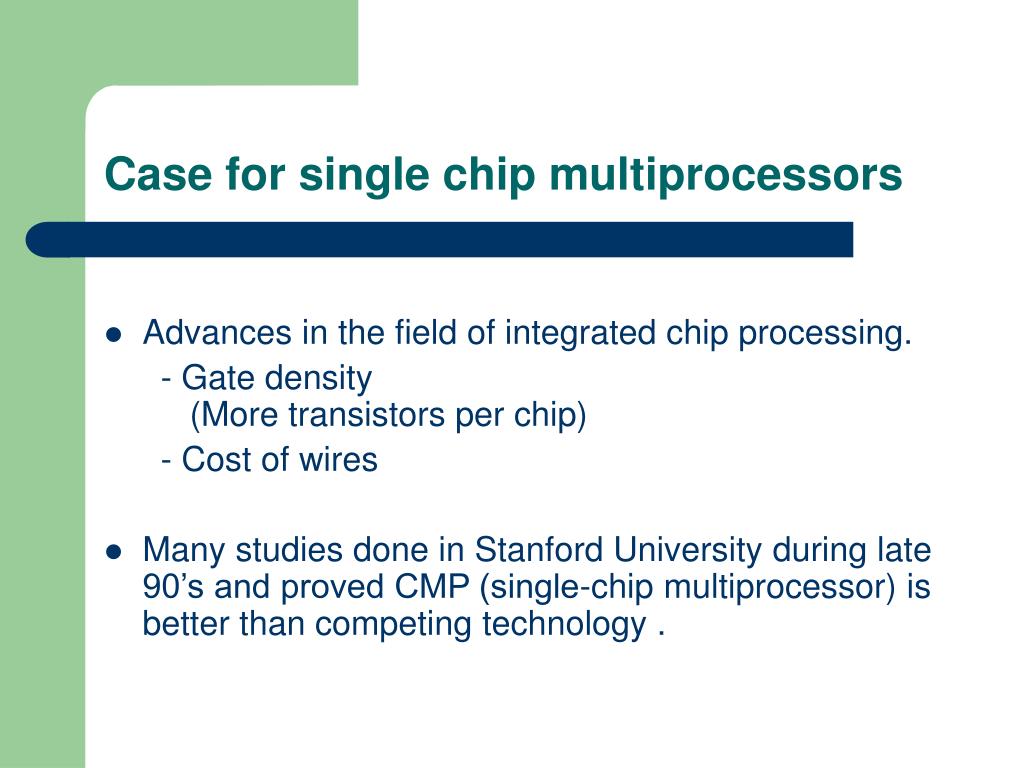

Case for single chip multiprocessors
Case for single chip multiprocessors

  • Advances in the field of integrated chip processing.

    - Gate density (More transistors per chip)

    - Cost of wires

  • Many studies done in Stanford University during late 90’s and proved CMP (single-chip multiprocessor) is better than competing technology .

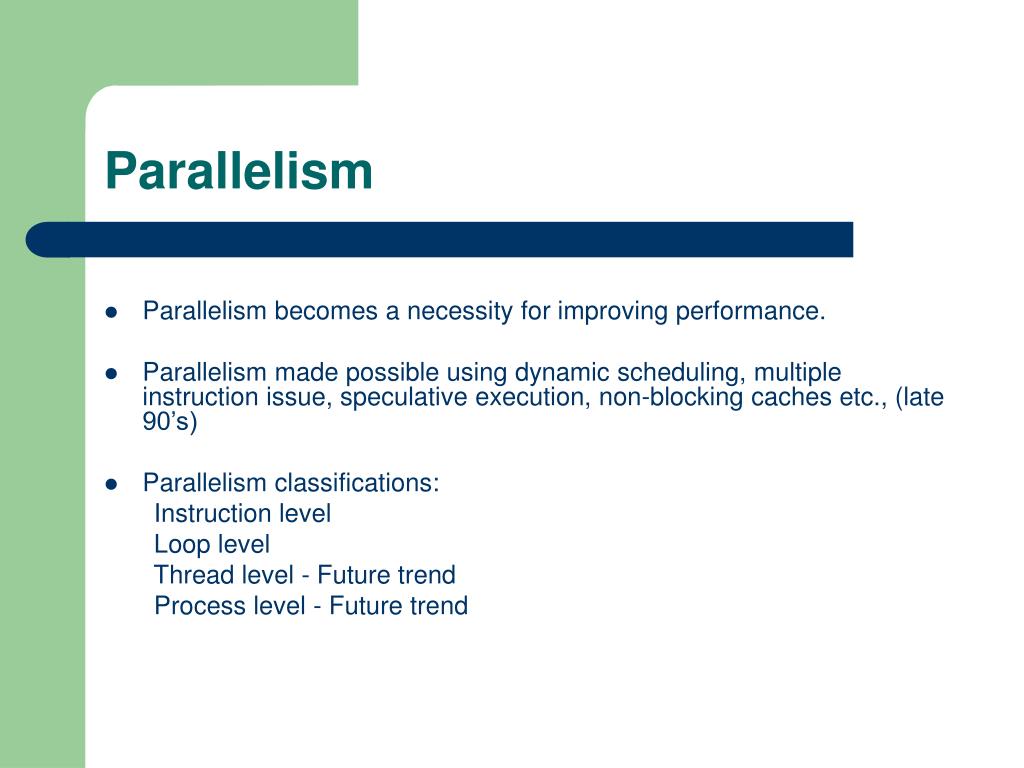

Parallelism
Parallelism

  • Parallelism becomes a necessity for improving performance.

  • Parallelism made possible using dynamic scheduling, multiple instruction issue, speculative execution, non-blocking caches etc., (late 90’s)

  • Parallelism classifications:

    Instruction level

    Loop level

    Thread level - Future trend

    Process level - Future trend


Loop level parallelism
Loop level parallelism

  • To increase amount of parallelism – exploit parallelism among iterations of a loop.

  • ILP that results from data independent loop iterations is LLP.

  • No circular dependencies. This could be avoided too using loop unrolling (beyond the scope of this lecture).


Llp loop level parallelism

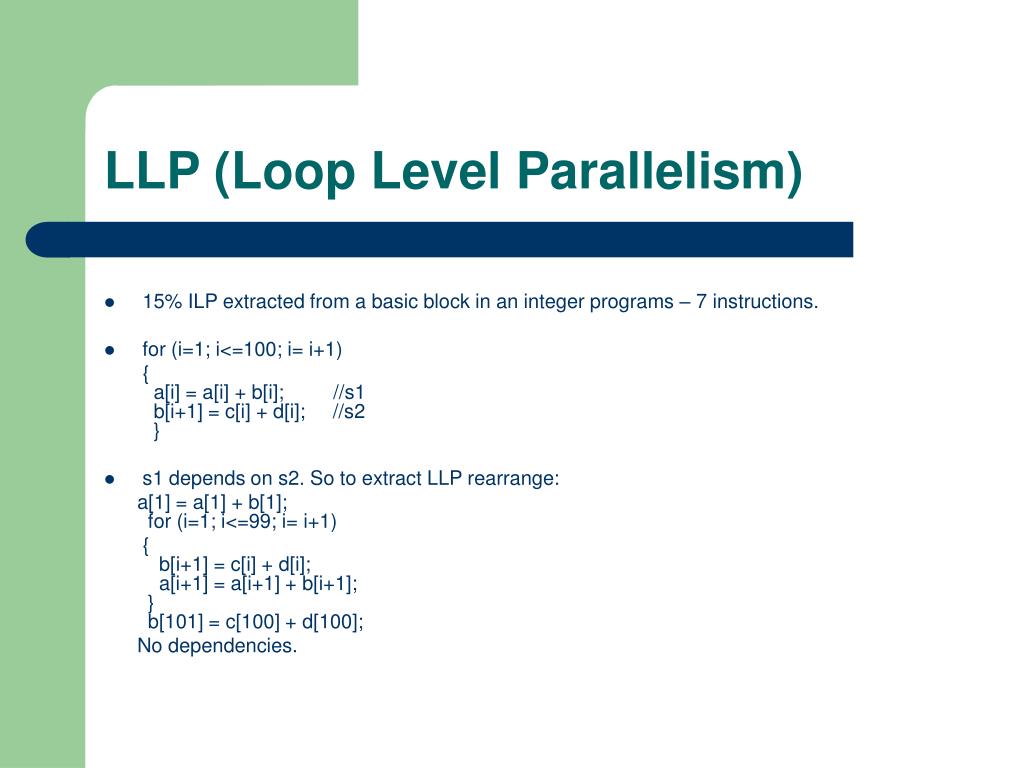

LLP (Loop Level Parallelism)

  • 15% ILP extracted from a basic block in an integer programs – 7 instructions.

  • for (i=1; i<=100; i= i+1)

    {   a[i] = a[i] + b[i];         //s1   b[i+1] = c[i] + d[i];     //s2 }

  • s1 depends on s2. So to extract LLP rearrange:

    a[1] = a[1] + b[1]; for (i=1; i<=99; i= i+1)

    {   b[i+1] = c[i] + d[i];   a[i+1] = a[i+1] + b[i+1]; } b[101] = c[100] + d[100];

    No dependencies.


Competing technology superscalar
Competing technology - Superscalar

  • Executing multiple instruction in the same clock cycle.

  • Dynamic scheduling

  • Single processor

  • Redundant functional units on processor

  • Mixture between a scalar and vector processor




Fetch phase
Fetch Phase

  • 3 phase: Fetch, Issue, Execution

  • Bottlenecks: Issue and Execution phase.

  • Fetch phase: Provide large and accurate window of decoded instructions - 3 issues: instruction misalignment, cache miss, mispredicted branch.

    - misprediction reduced to under 5% using branch predictor designed by McFarling*.

    - instruction misalignement reduced to under 3% by dividing cache into banks (Conte).

    - Roesnblum et al. shows that the 60% of latency by cache miss can be hidden**.

    * S. McFarling, “Combining branch predictors,” WRL Technical Note TN-36, Digital Equipment Corporation, 1993.

    ** M. Rosenblum, E. Bugnion, S. Herrod, E. Witchel, and A. Gupta, “The impact of architectural trends on operating system performance,” Proceedings of 15th ACM

    symposium on Operating Systems Principles, Colorado,December, 1995.


Issue phase

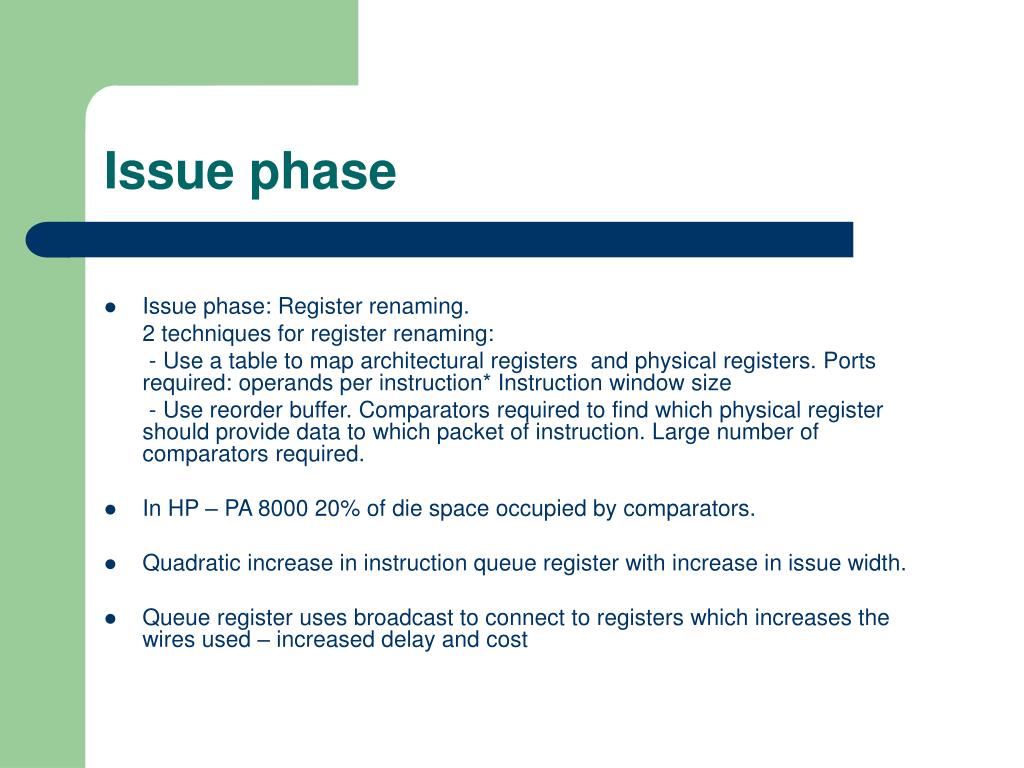

Issue phase

  • Issue phase: Register renaming.

    2 techniques for register renaming:

    - Use a table to map architectural registers and physical registers. Ports required: operands per instruction* Instruction window size

    - Use reorder buffer. Comparators required to find which physical register should provide data to which packet of instruction. Large number of comparators required.

  • In HP – PA 8000 20% of die space occupied by comparators.

  • Quadratic increase in instruction queue register with increase in issue width.

  • Queue register uses broadcast to connect to registers which increases the wires used – increased delay and cost


Execute phase

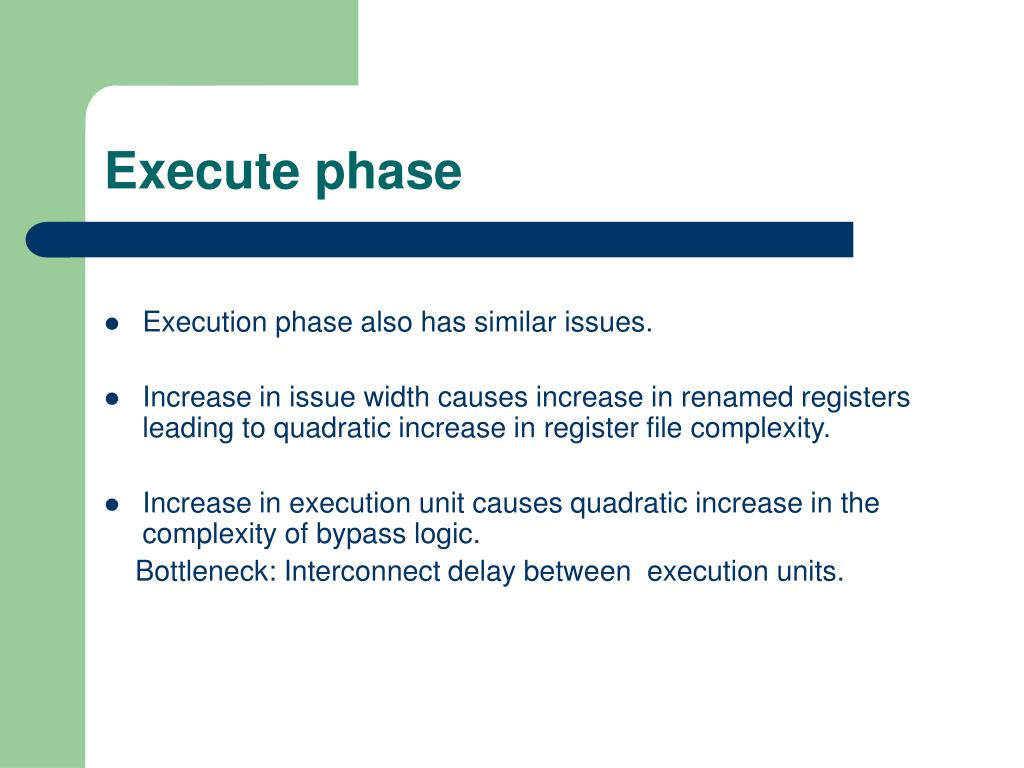

Execute phase

  • Execution phase also has similar issues.

  • Increase in issue width causes increase in renamed registers leading to quadratic increase in register file complexity.

  • Increase in execution unit causes quadratic increase in the complexity of bypass logic.

    Bottleneck: Interconnect delay between execution units.



Competing technologies simultaneous multi threading

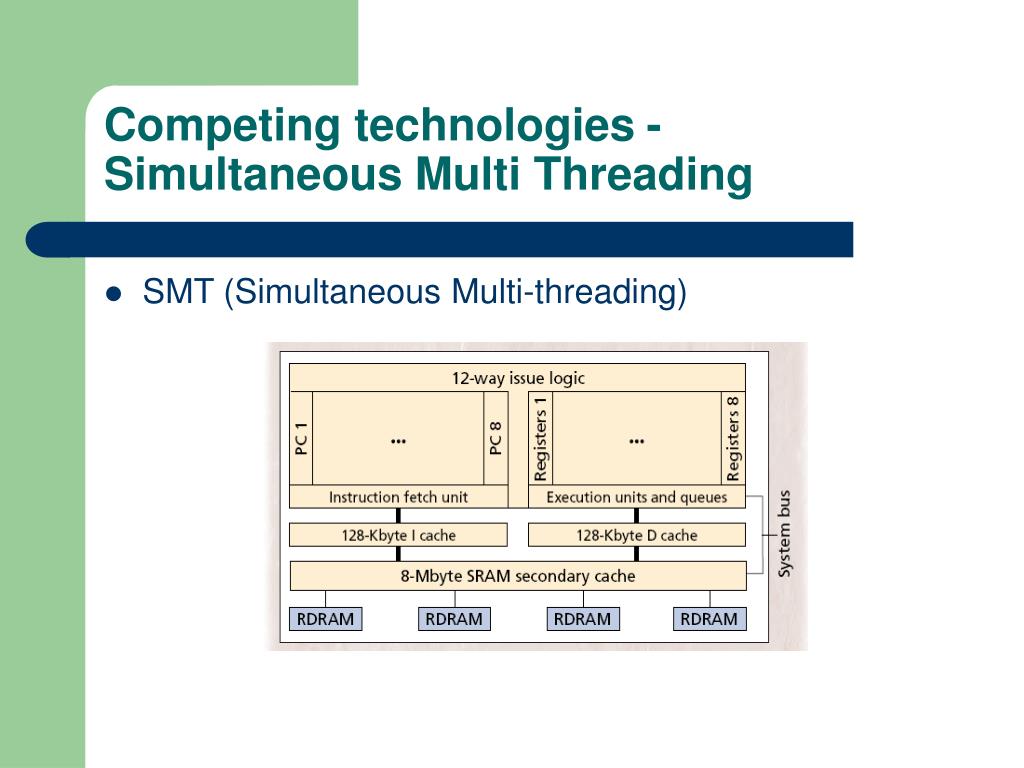

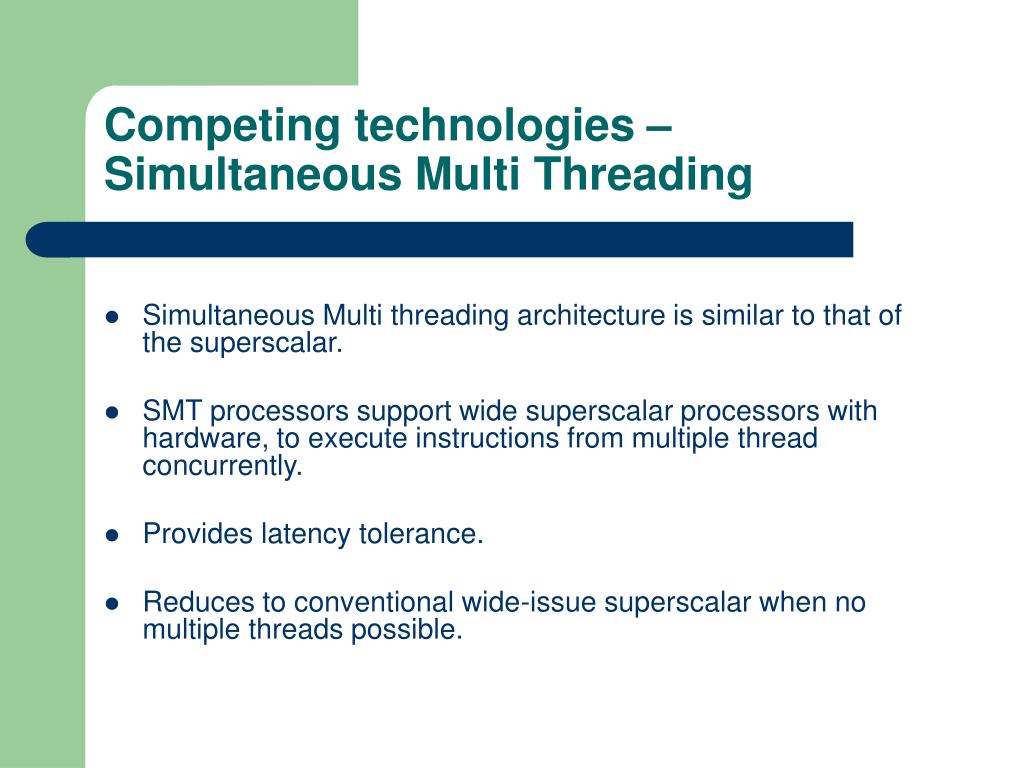

Competing technologies – Simultaneous Multi Threading

  • Simultaneous Multi threading architecture is similar to that of the superscalar.

  • SMT processors support wide superscalar processors with hardware, to execute instructions from multiple thread concurrently.

  • Provides latency tolerance.

  • Reduces to conventional wide-issue superscalar when no multiple threads possible.



Centralized architecture

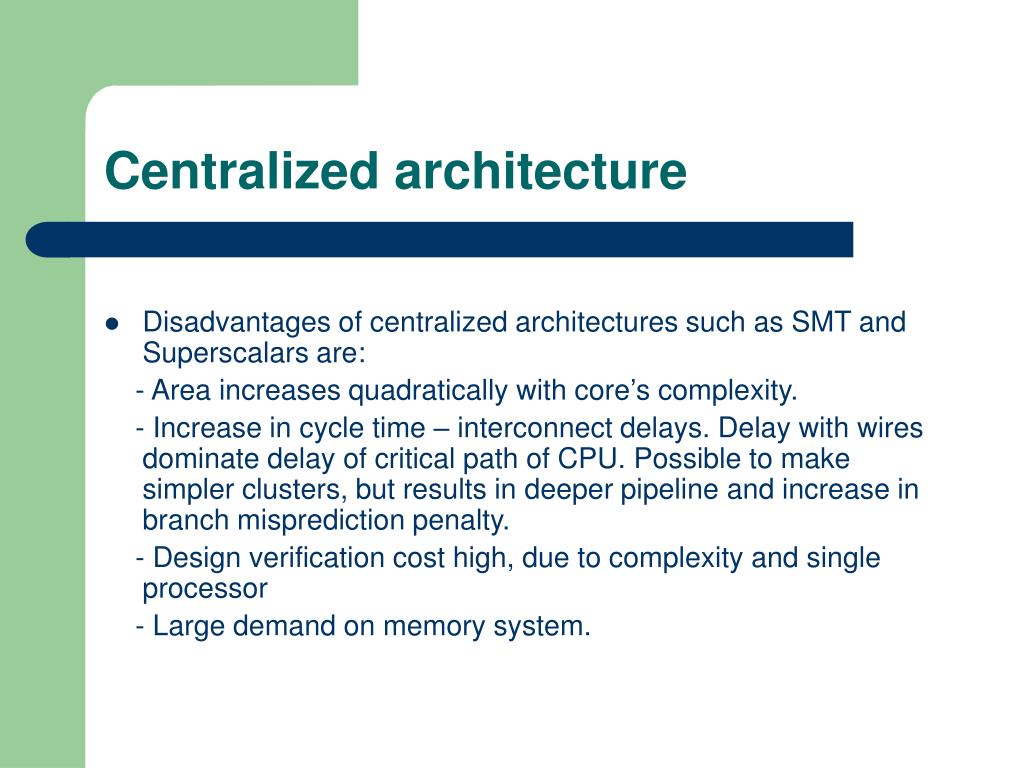

Centralized architecture

  • Disadvantages of centralized architectures such as SMT and Superscalars are:

    - Area increases quadratically with core’s complexity.

    - Increase in cycle time – interconnect delays. Delay with wires dominate delay of critical path of CPU. Possible to make simpler clusters, but results in deeper pipeline and increase in branch misprediction penalty.

    - Design verification cost high, due to complexity and single processor

    - Large demand on memory system.


Single chip multiprocessor1

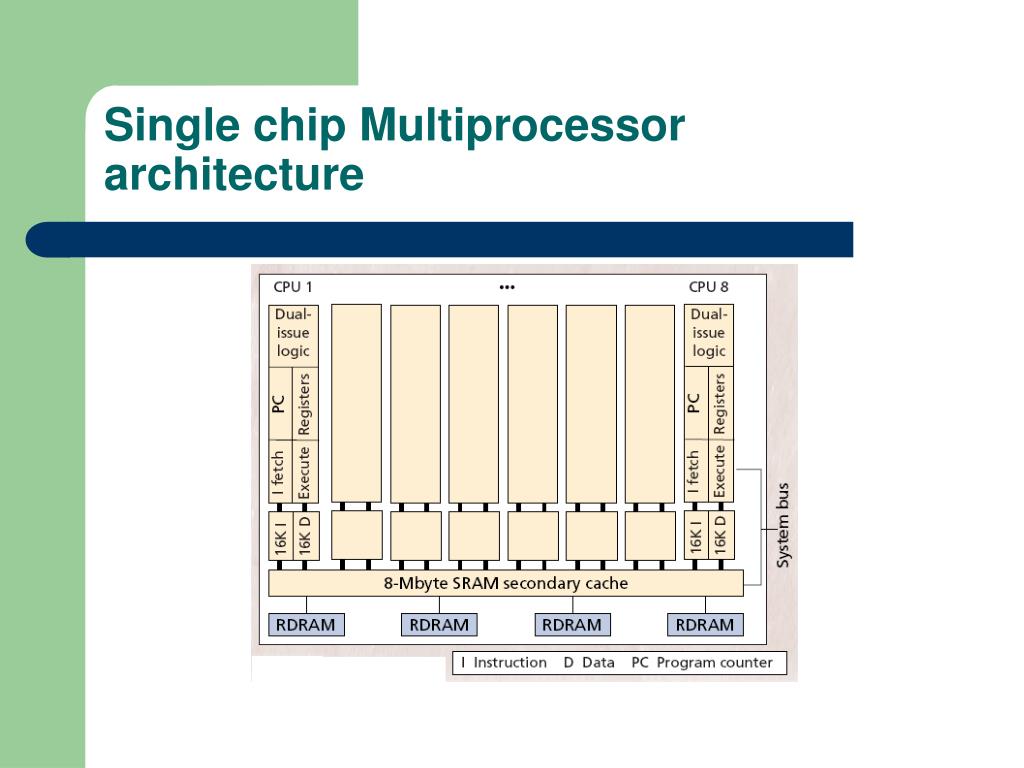

Single Chip multiprocessor

  • Motivation for a decentralized architecture due to the disadvantages of competing technologies.

  • Simple individual processors and high clock rate.

  • Low interconnect latency

  • Exploits thread level and processor level parallelism.



Performance comparison
Performance comparison

  • Example: 8 core Cell processor in the PS3 and the 3 core Xenon processor in the Xbox 360)

  • Performance chart

  • Run for different benchmark programs.


Summary cmp
Summary (CMP)

  • CMP (Chip level multiprocessor) provides superior performance with simpler hardware.

  • No parallelism – Superscalar performance is 30% better than CMP

    Fine grained thread-level parallelism – Superscalar is 10% better in performance

    Coarse grained thread-level parallelism – CMP is 50-100% better than superscalar.

  • Disadvantage – Slow when no multithreading, equal development of software required.

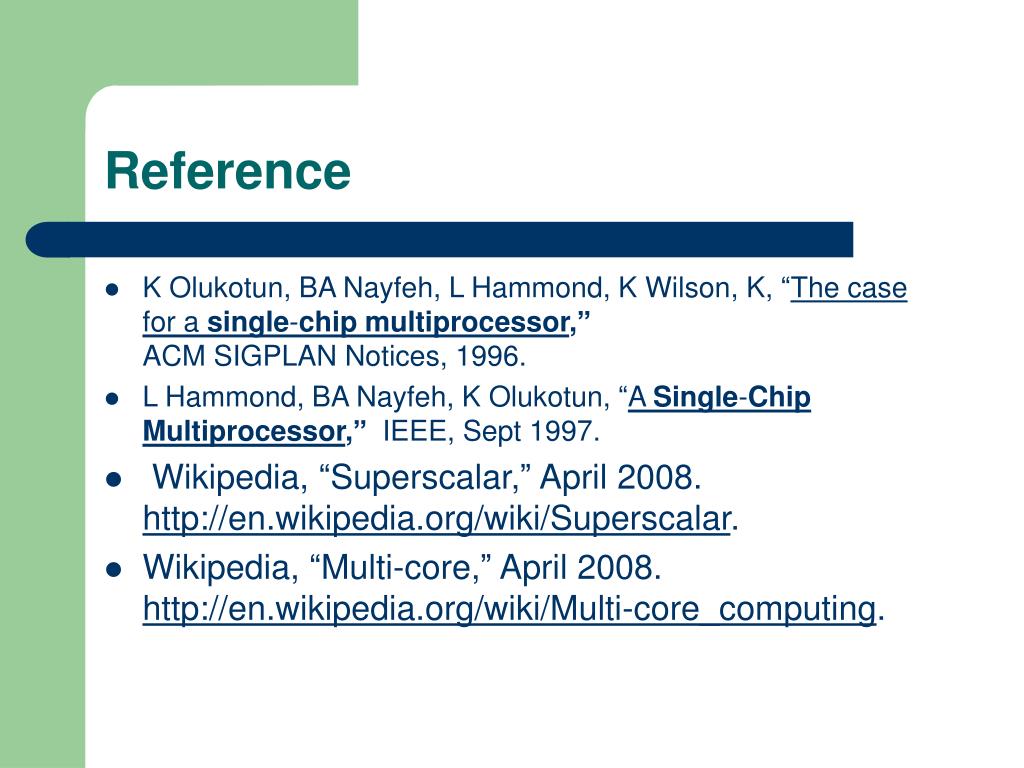

Reference
