  1. GSFC to AlaskaPerformance Results Tino Sciuto Swales Aerospace ESDIS Network Prototype Lab. NASA GSFC Greenbelt , MD

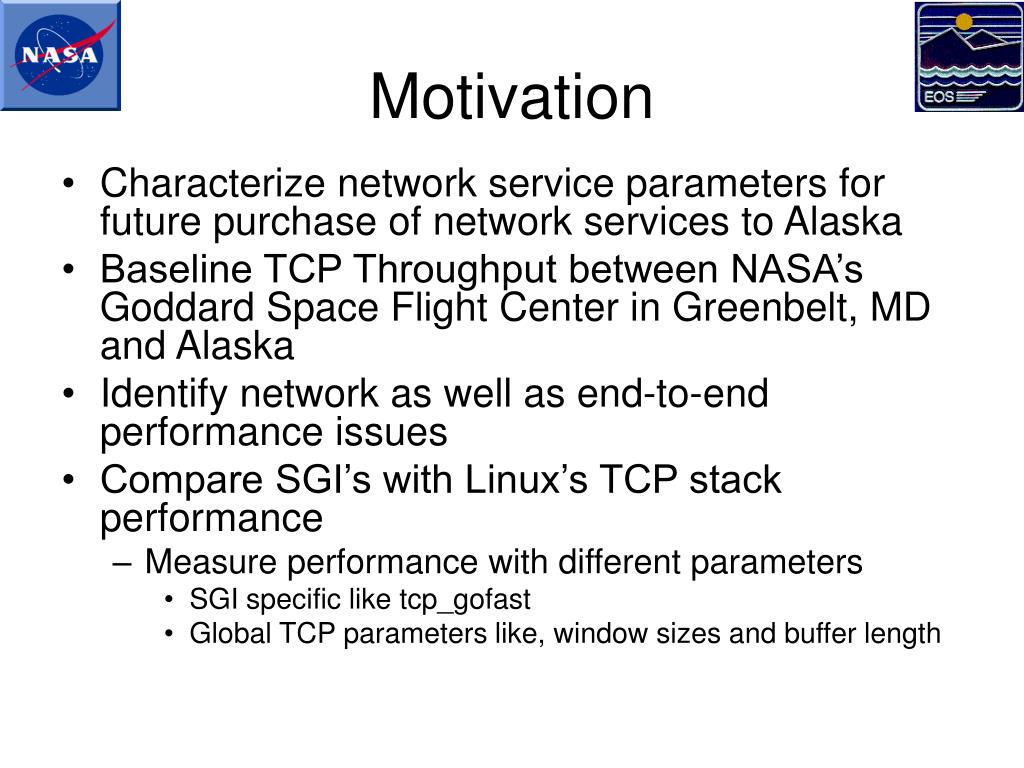

  2. Motivation • Characterize network service parameters for future purchase of network services to Alaska • Baseline TCP Throughput between NASA’s Goddard Space Flight Center in Greenbelt, MD and Alaska • Identify network as well as end-to-end performance issues • Compare SGI’s with Linux’s TCP stack performance • Measure performance with different parameters • SGI specific like tcp_gofast • Global TCP parameters like, window sizes and buffer length

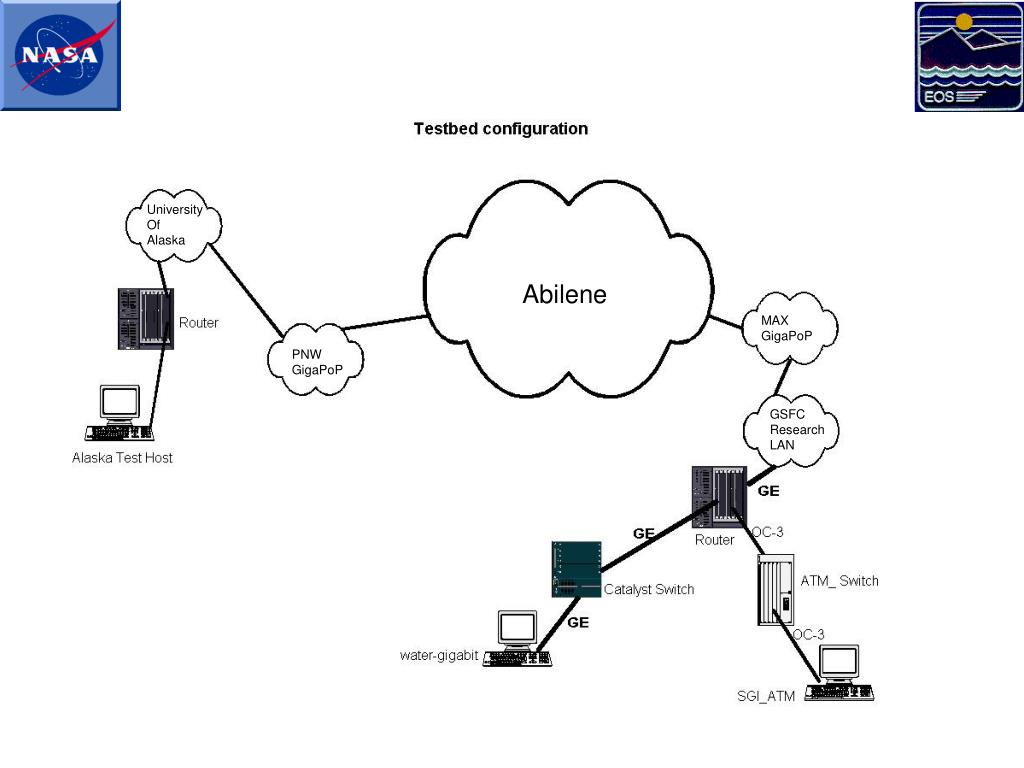

  3. University Of Alaska Abilene MAX GigaPoP PNW GigaPoP GSFC Research LAN

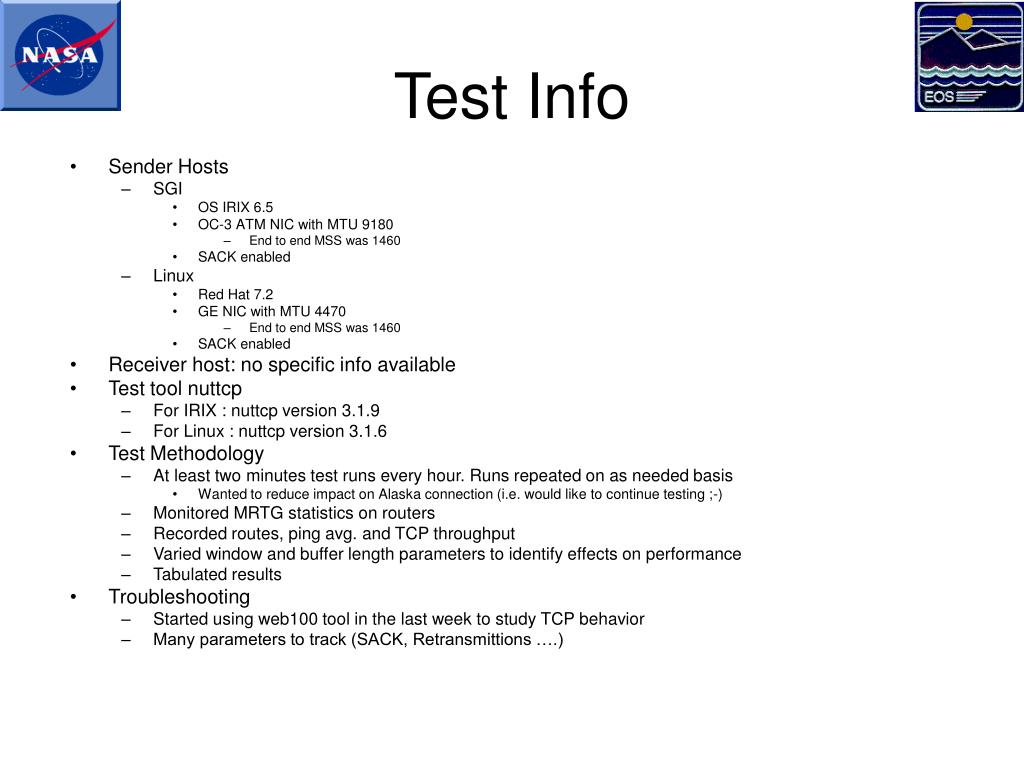

  4. Test Info • Sender Hosts • SGI • OS IRIX 6.5 • OC-3 ATM NIC with MTU 9180 • End to end MSS was 1460 • SACK enabled • Linux • Red Hat 7.2 • GE NIC with MTU 4470 • End to end MSS was 1460 • SACK enabled • Receiver host: no specific info available • Test tool nuttcp • For IRIX : nuttcp version 3.1.9 • For Linux : nuttcp version 3.1.6 • Test Methodology • At least two minutes test runs every hour. Runs repeated on as needed basis • Wanted to reduce impact on Alaska connection (i.e. would like to continue testing ;-) • Monitored MRTG statistics on routers • Recorded routes, ping avg. and TCP throughput • Varied window and buffer length parameters to identify effects on performance • Tabulated results • Troubleshooting • Started using web100 tool in the last week to study TCP behavior • Many parameters to track (SACK, Retransmittions ….)

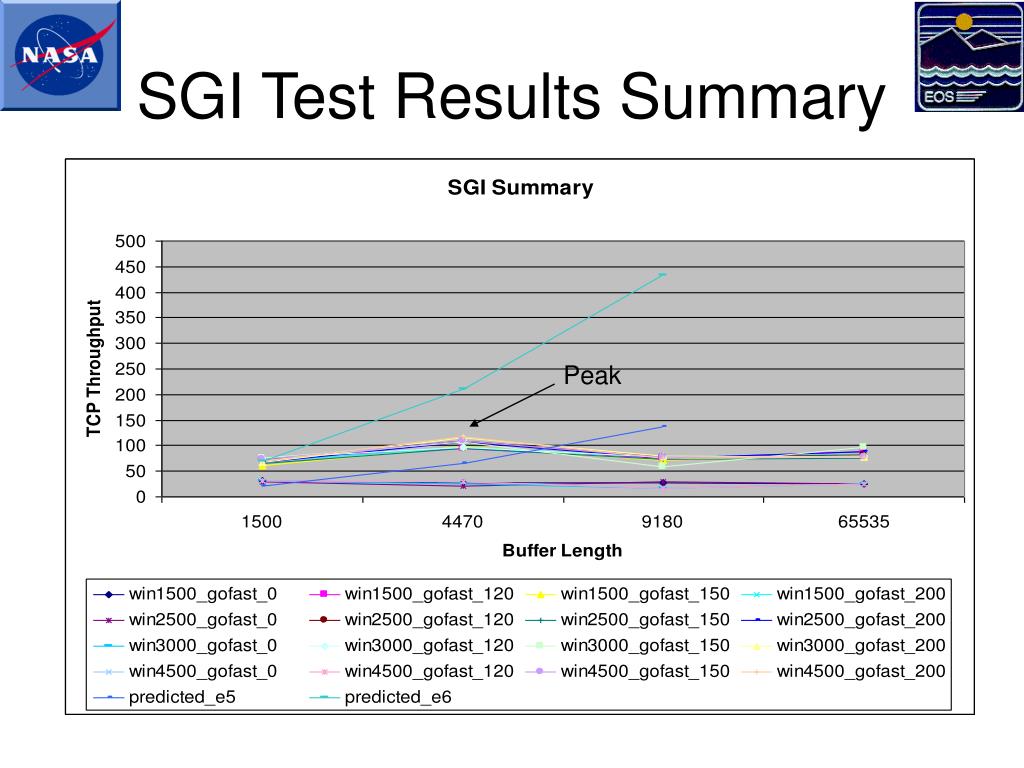

  5. SGI Test Results Summary Peak

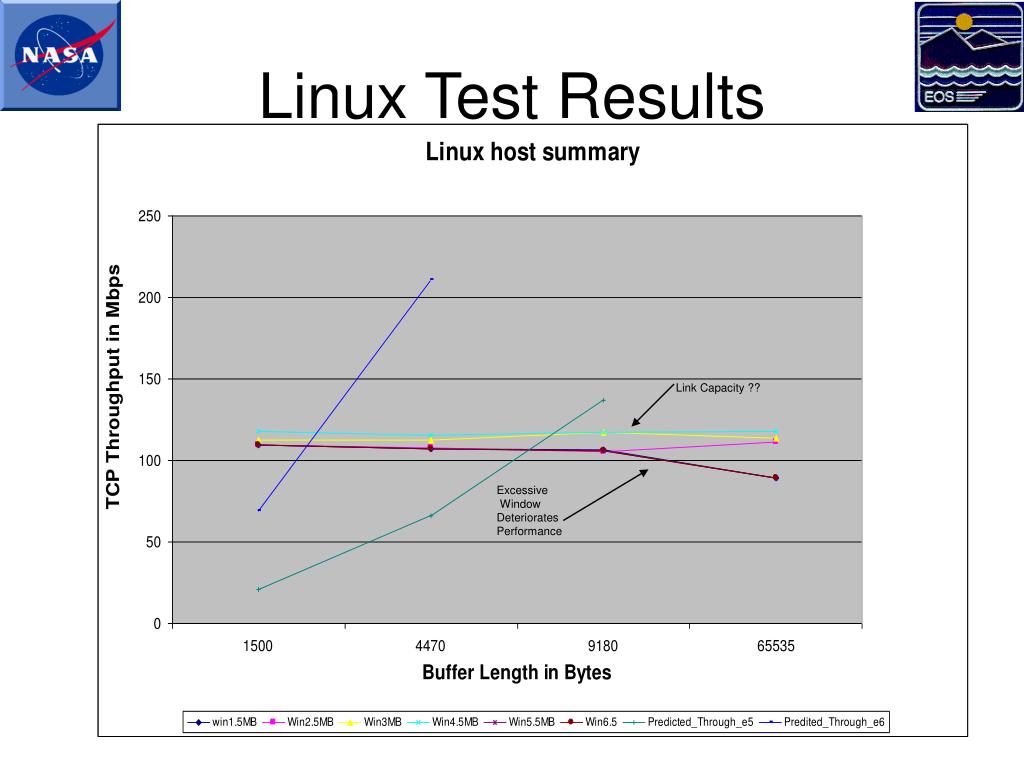

  6. Linux Test Results Link Capacity ?? Excessive Window Deteriorates Performance

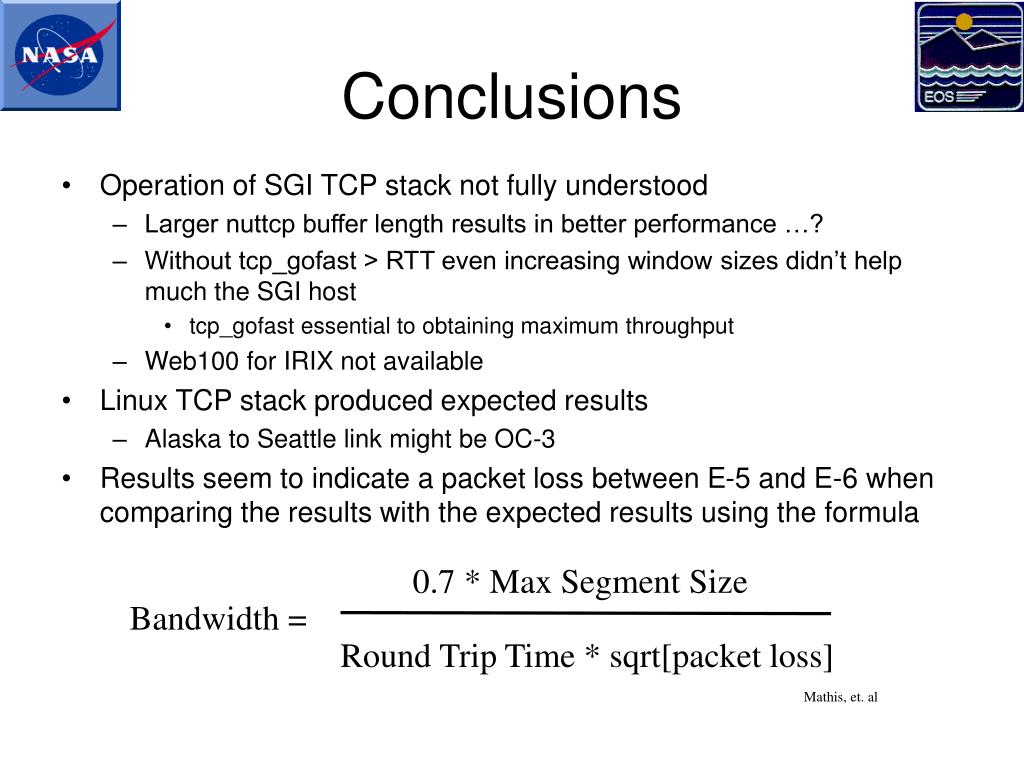

  7. 0.7 * Max Segment Size Bandwidth = Round Trip Time * sqrt[packet loss] Conclusions • Operation of SGI TCP stack not fully understood • Larger nuttcp buffer length results in better performance …? • Without tcp_gofast > RTT even increasing window sizes didn’t help much the SGI host • tcp_gofast essential to obtaining maximum throughput • Web100 for IRIX not available • Linux TCP stack produced expected results • Alaska to Seattle link might be OC-3 • Results seem to indicate a packet loss between E-5 and E-6 when comparing the results with the expected results using the formula Mathis, et. al
