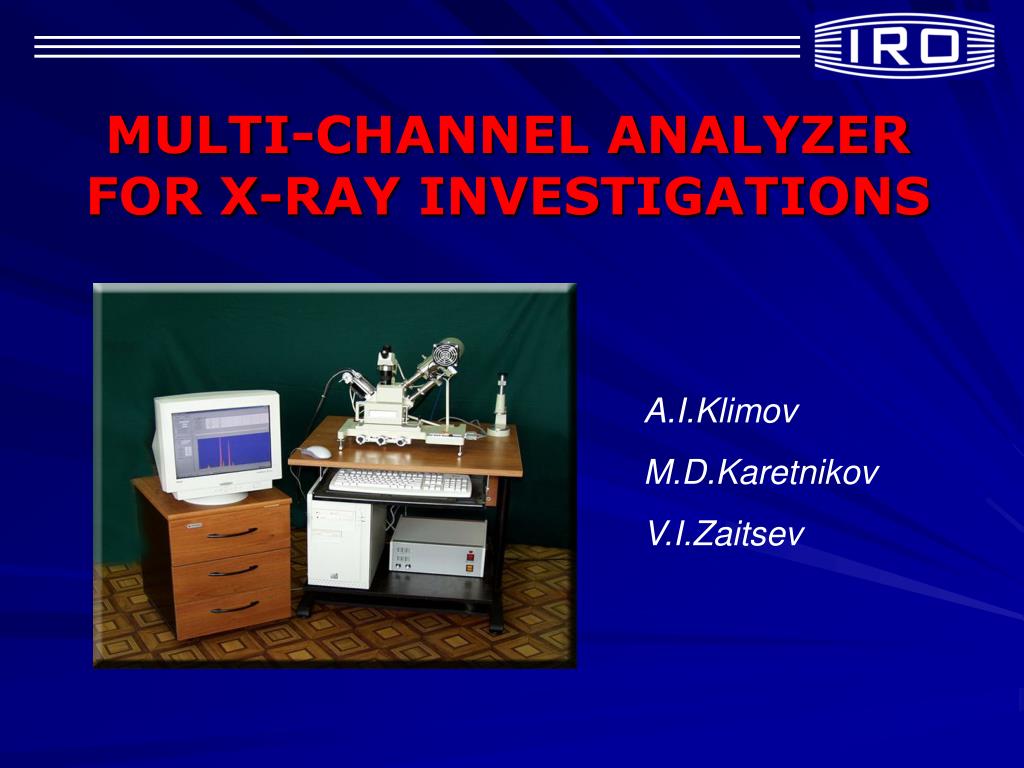

  1. MULTI-CHANNEL ANALYZERFOR X-RAY INVESTIGATIONS A.I.Klimov M.D.Karetnikov V.I.Zaitsev

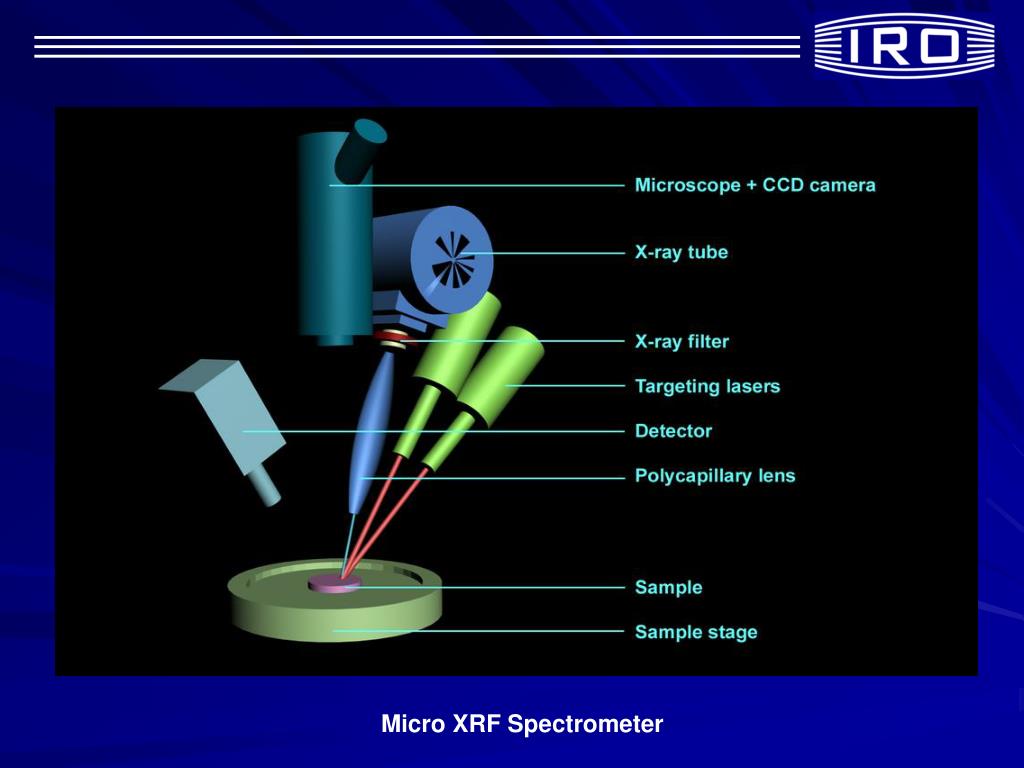

  2. Micro XRF Spectrometer

  3. МАA-4К Multi-Channel Amplitude Analyzer with Si-pin X-ray detector BDER-11KI Unit МАA-4К is made as one-module instrument, which is a spectrometric transducer-amplifier provided with the functions of superposition rejection and basic level restoration, featuring peak detector functions, those of a precision ADC complete with buffer memory and availability of transmitting the digital code to a PC, and including X-ray detector high-voltage power supply. All this resulted in a compact, functionally complete, instrument for X-ray analysis. • 4k data channels; Conversion time < 3 s; • Sliding-scale linearization; Differential nonlinearity <+-0.7%; • Integral nonlinearity <+-0.5%; Gain stability <+- 50ppm/ C; • Zero drift < +-10ppm/ C.

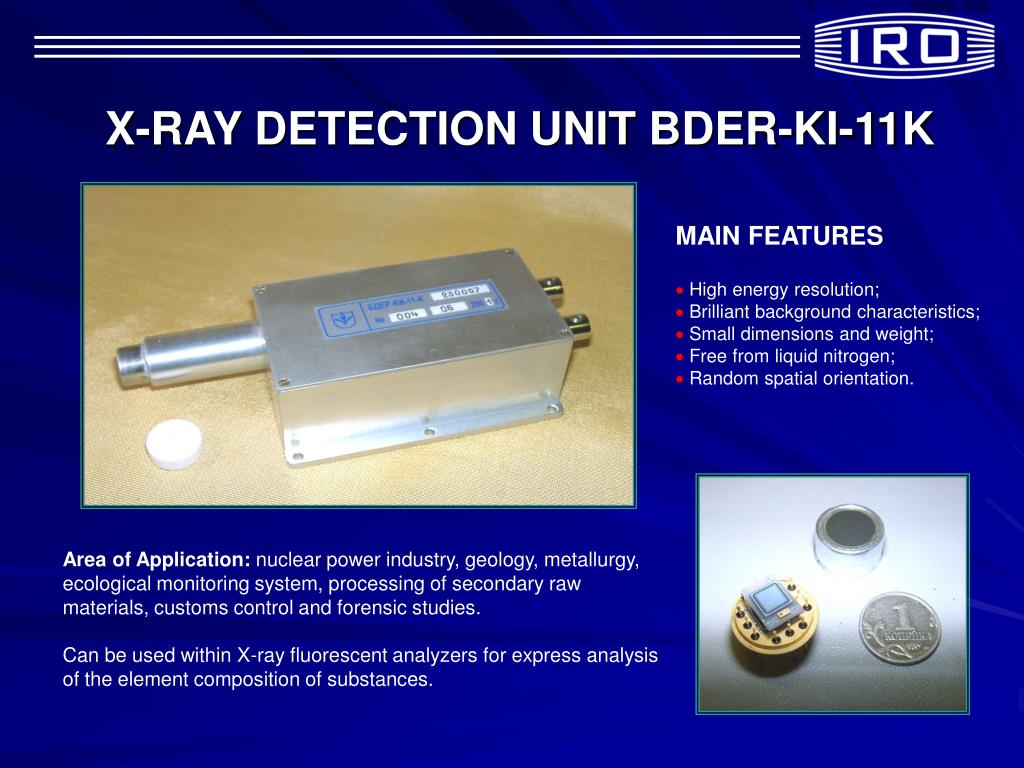

  4. X-RAY DETECTION UNIT BDER-KI-11K • MAIN FEATURES • High energy resolution; • Brilliant background characteristics; • Small dimensions and weight; • Free from liquid nitrogen; • Random spatial orientation. Area of Application: nuclear power industry, geology, metallurgy, ecological monitoring system, processing of secondary raw materials, customs control and forensic studies. Can be used within X-ray fluorescent analyzers for express analysis of the element composition of substances.

  5. BASIC SPECIFICATION Sensitive surface area of the unit 7 / 12 mm2 Thickness of the detector sensitive area 300 / 500 mkm Energy resolution for energy 5,9 keV at formation time constant 20 microseconds for detector: with area 7 mm2not more than 230 eV with area12 mm2not more than 300 eV Energy resolution for energy 59,6 keV at formation time constant 20 microseconds for detector: with area 7 mm2not more than 460 eV with area 12 mm2not more than 500 eV Ratio of the full absorption peak height for energy 5,9 keV to the level of continuous amplitude distribution for energy 3,5 keV (peak/noisenot less than 800 Thickness of the entry Beryllium window25 mkm ( 8 / 12 mkm– optionally ) Conversion coefficient at load not less than 1kOmnot less than 1 mV/keV Output resistance 50±1 Om Output signal polarity - negative Maximum bias voltage of the detector at current less than 1 mkA100V Preamplifier supply voltage at maximum current 35 mA±12V Maximum current of the cooler0,7 А at voltage 2 V Weightnot more than 0,25 kg Dimensions15х61х34 mm

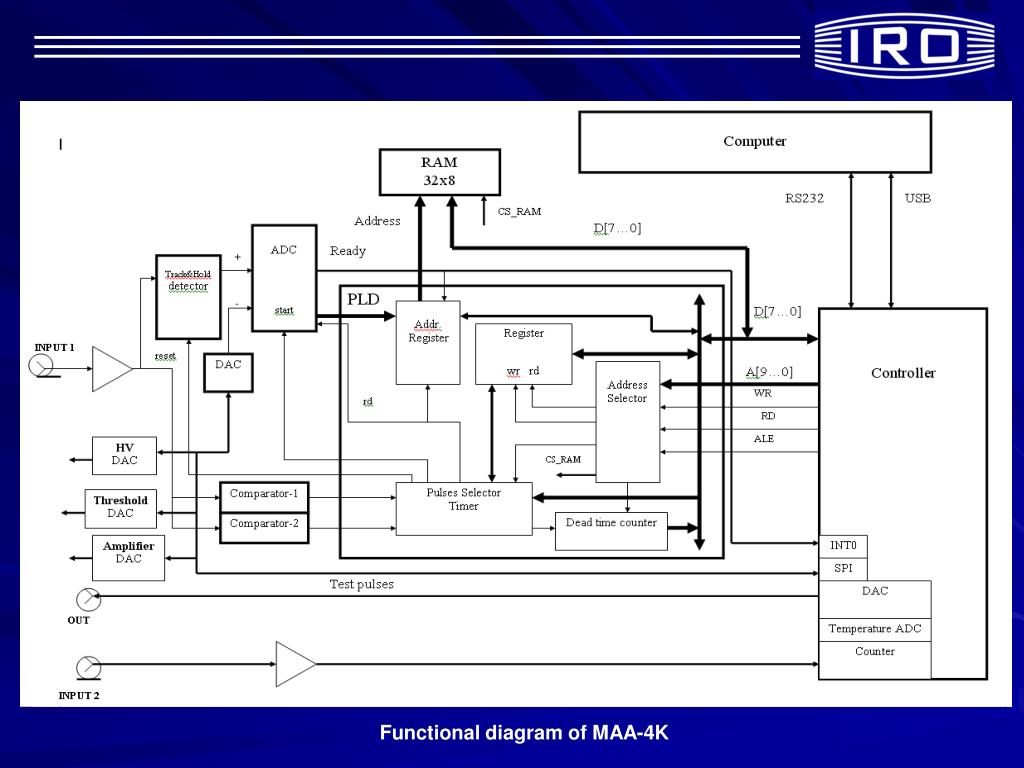

  6. Functional diagram of MAA-4K

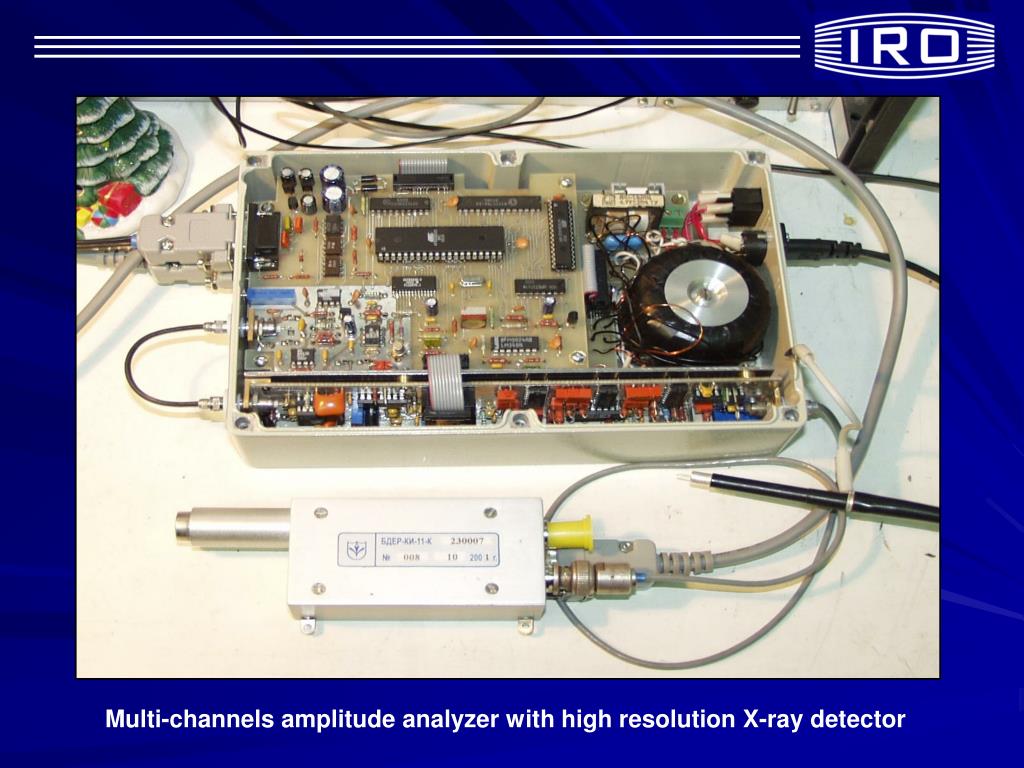

  7. Multi-channels amplitude analyzer with high resolutionX-ray detector

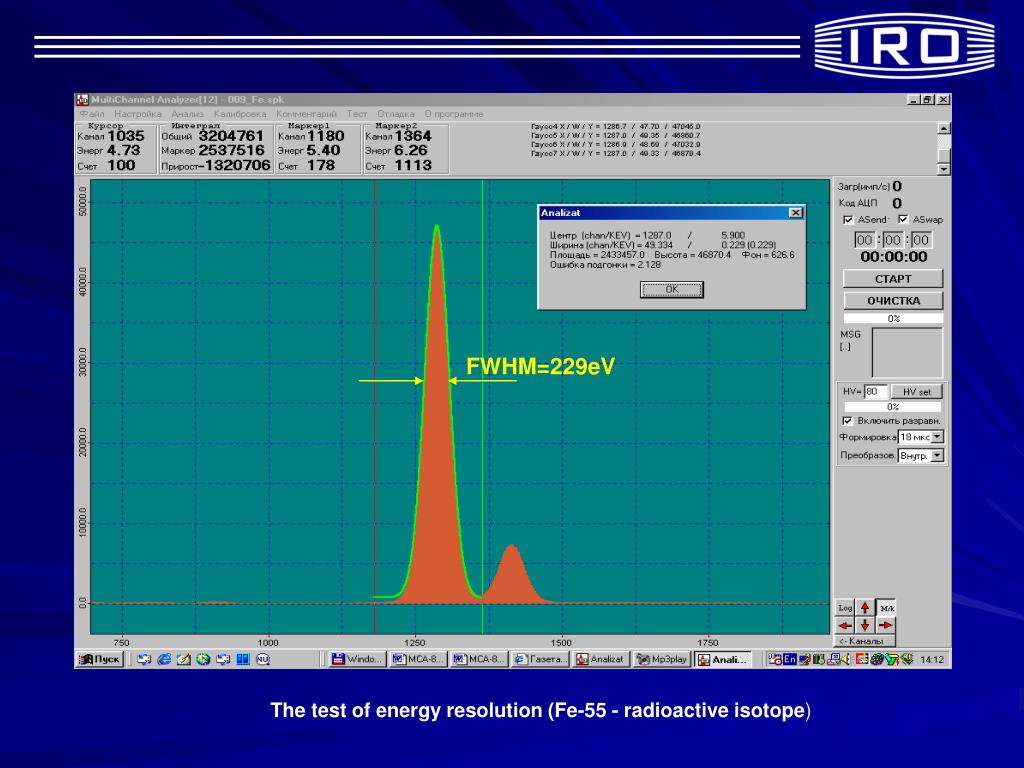

  8. FWHM=229eV The test of energy resolution (Fe-55 - radioactive isotope)

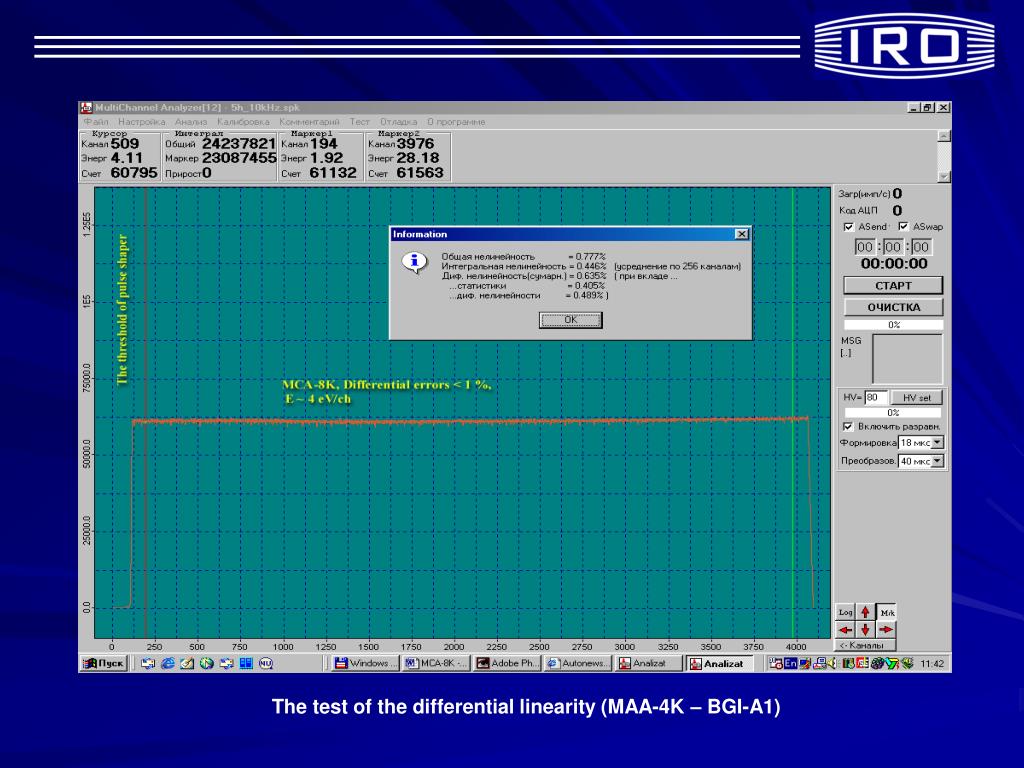

  9. The test of the differential linearity (MAA-4K – BGI-A1)

  10. X-RAY spectra, Am-241

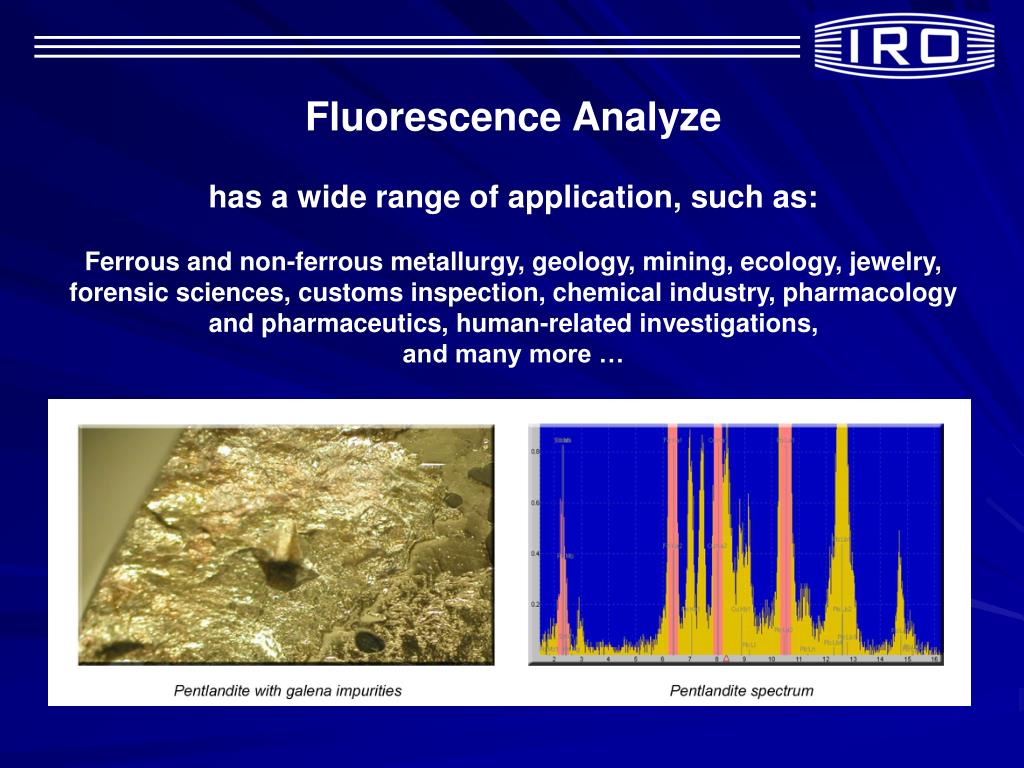

  11. Fluorescence Analyze has a wide range of application, such as: Ferrous and non-ferrous metallurgy, geology, mining, ecology, jewelry, forensic sciences, customs inspection, chemical industry, pharmacology and pharmaceutics, human-related investigations, and many more …
