Agglomerative clustering ac
Agglomerative clustering (AC)

Clustering algorithms: Part 2c

  • Pasi Fränti

  • 25.3.2014

  • Speech & Image Processing Unit

  • School of Computing

  • University of Eastern Finland

  • Joensuu, FINLAND

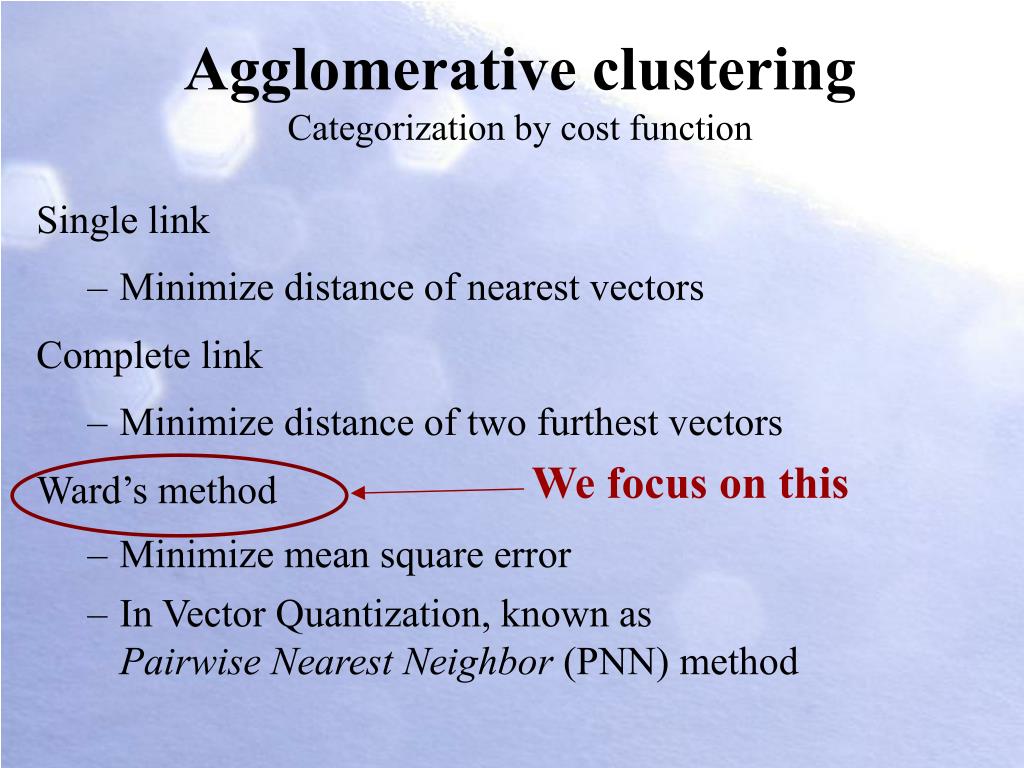

Agglomerative clustering categorization by cost function
Agglomerative clusteringCategorization by cost function

Single link

  • Minimize distance of nearest vectors

    Complete link

  • Minimize distance of two furthest vectors

    Ward’s method

  • Minimize mean square error

  • In Vector Quantization, known as Pairwise Nearest Neighbor (PNN) method

We focus on this

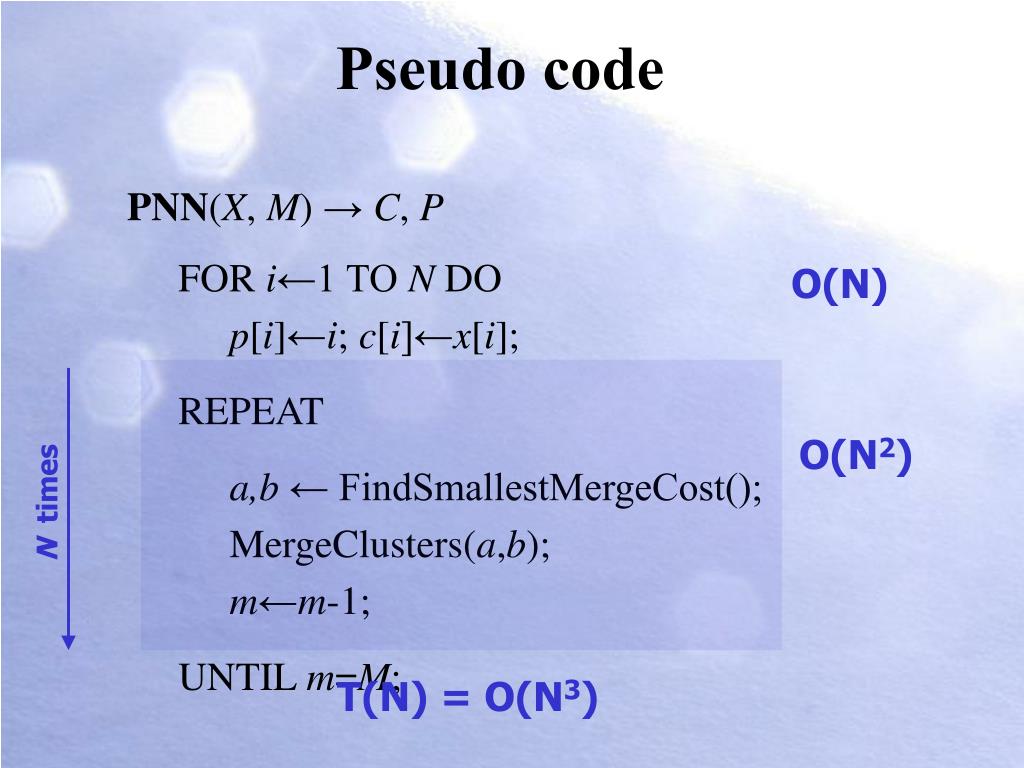

Pseudo code1
Pseudo code

  • PNN(X, M) → C, P

    • FOR i←1 TO N DO

      • p[i]←i; c[i]←x[i];

    • REPEAT

      • a,b ← FindSmallestMergeCost();

      • MergeClusters(a,b);

      • m←m-1;

    • UNTIL m=M;

O(N)

O(N2)

N times

T(N) = O(N3)


Ward s method ward 1963 journal of american statistical association
Ward’s method[Ward 1963: Journal of American Statistical Association]

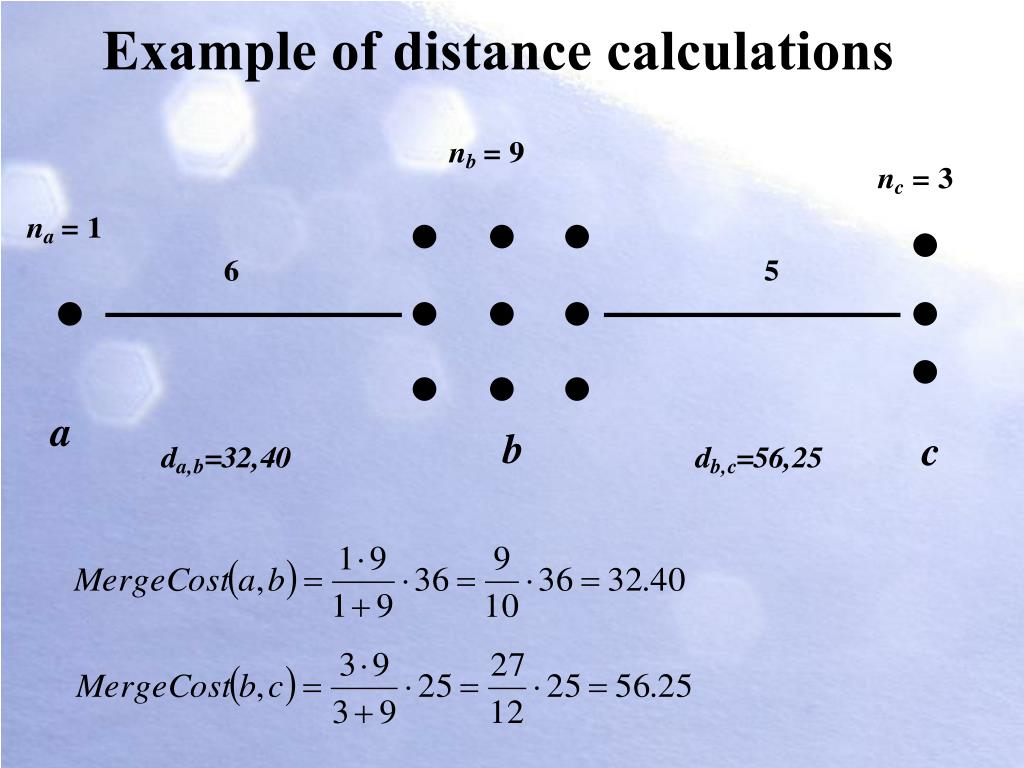

Merge cost:

Local optimization strategy:

Nearest neighbor search:

  • Find the cluster pair to be merged

  • Update of NN pointers

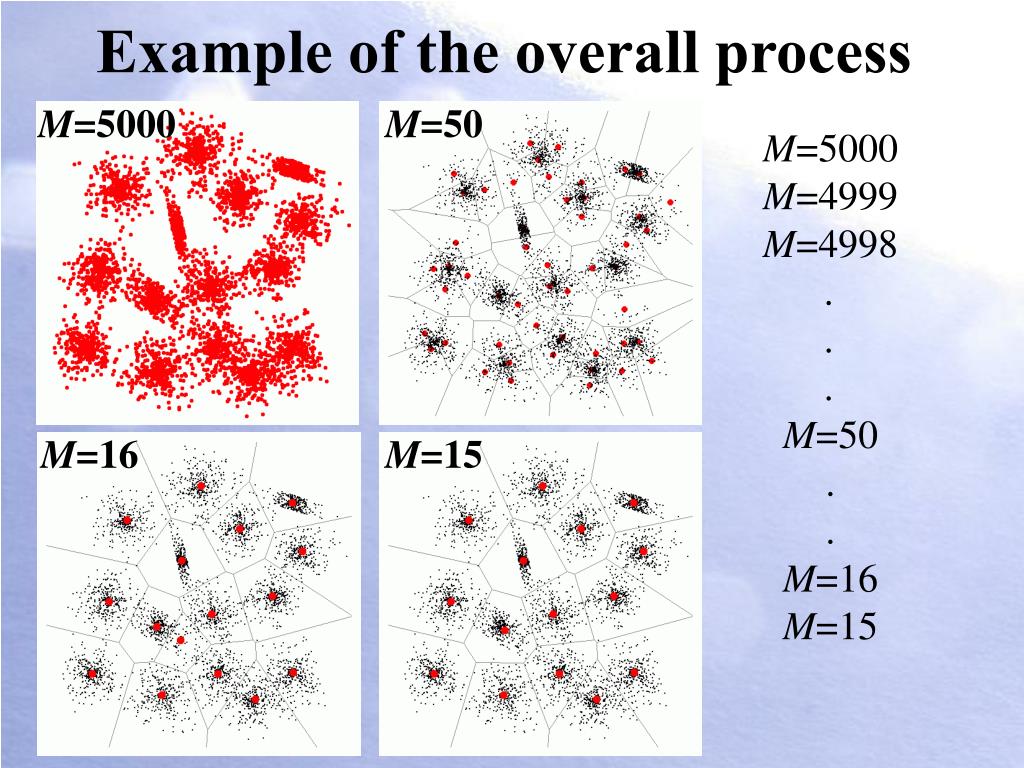

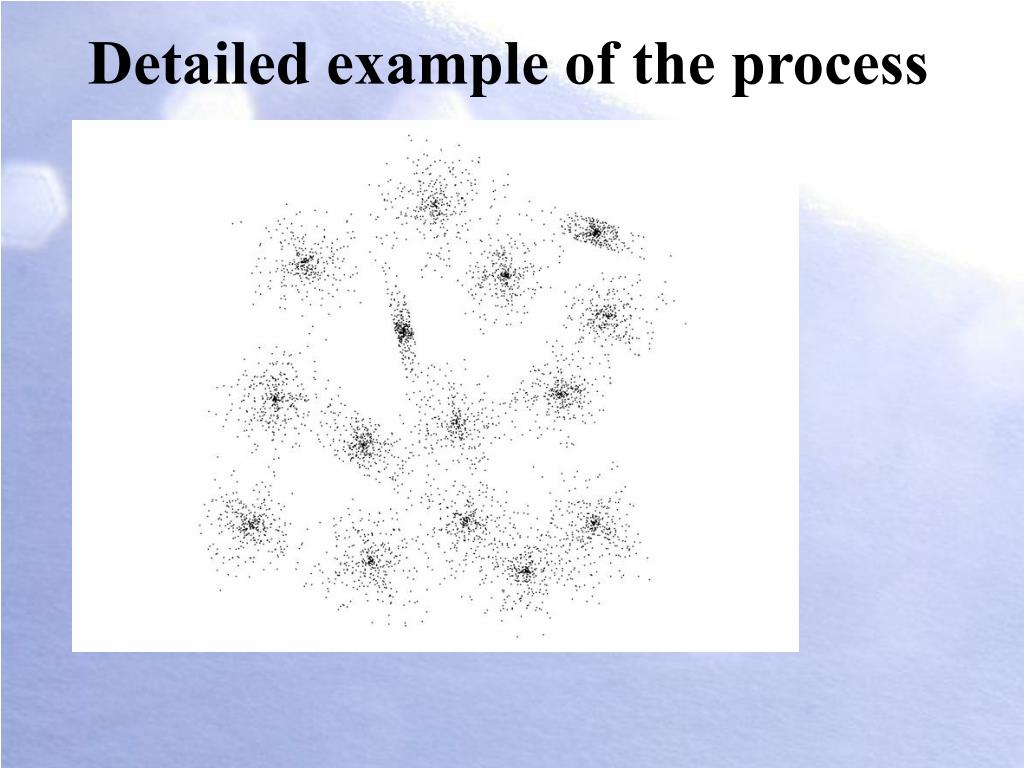

Example of the overall process
Example of the overall process

M=5000

M=50

M=5000

M=4999

M=4998

.

.

.

M=50

.

.

M=16

M=15

M=16

M=15



Example 25 clusters
Example - 25 Clusters

MSE ≈ 1.01*109


Example 24 clusters
Example - 24 Clusters

MSE ≈ 1.03*109


Example 23 clusters

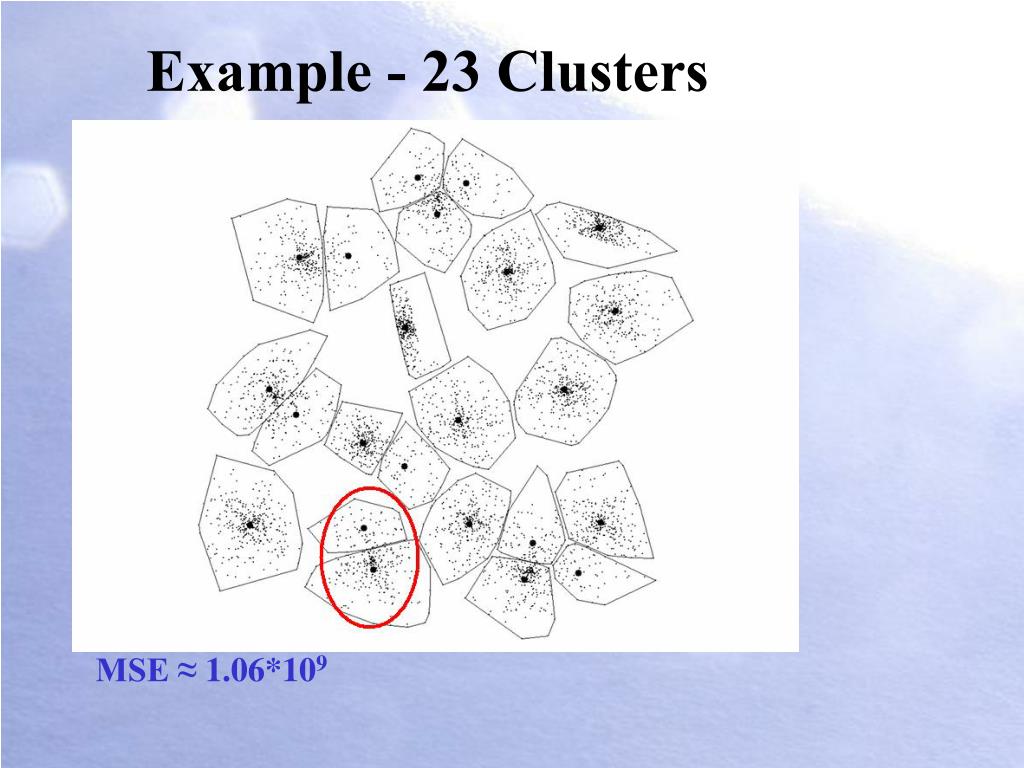

Example - 23 Clusters

MSE ≈ 1.06*109

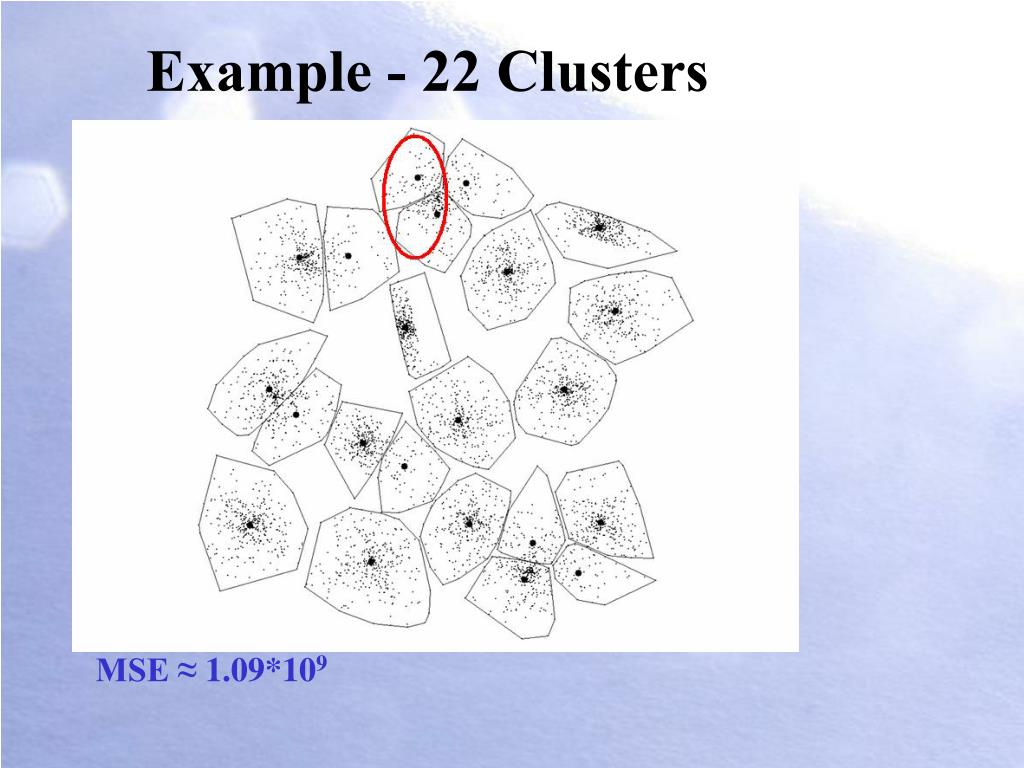

Example 22 clusters
Example - 22 Clusters

MSE ≈ 1.09*109


Example 21 clusters

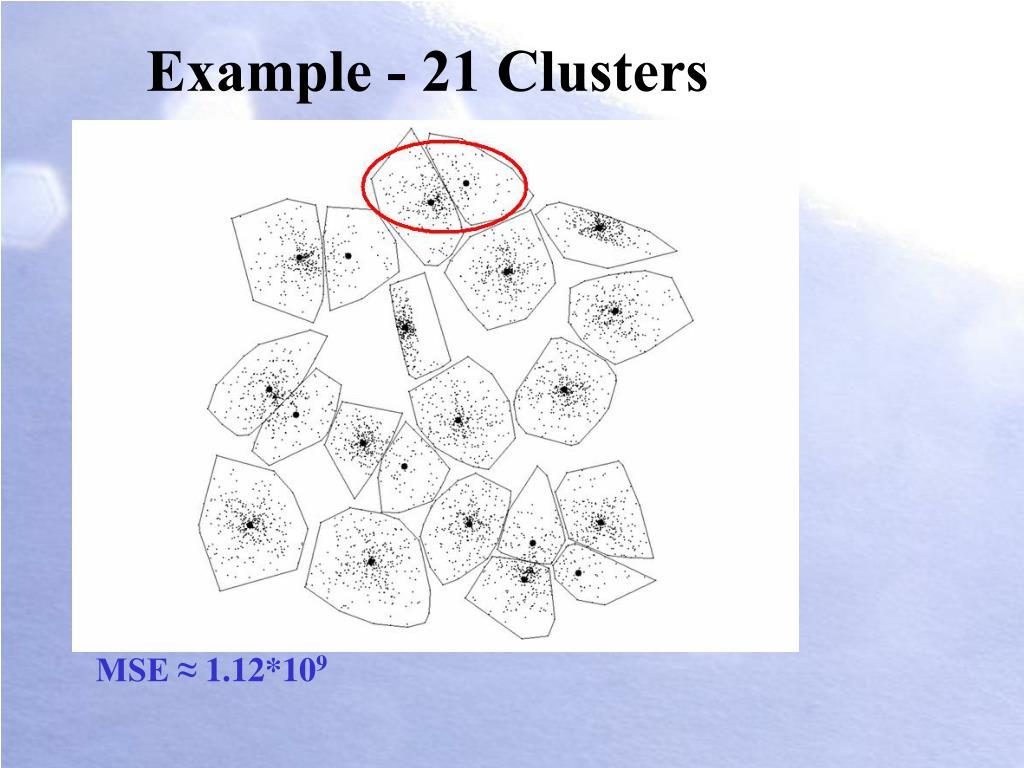

Example - 21 Clusters

MSE ≈ 1.12*109


Example 20 clusters
Example - 20 Clusters

MSE ≈ 1.16*109


Example 19 clusters
Example - 19 Clusters

MSE ≈ 1.19*109


Example 18 clusters
Example - 18 Clusters

MSE ≈ 1.23*109


Example 17 clusters
Example - 17 Clusters

MSE ≈ 1.26*109


Example 16 clusters
Example - 16 Clusters

MSE ≈ 1.30*109

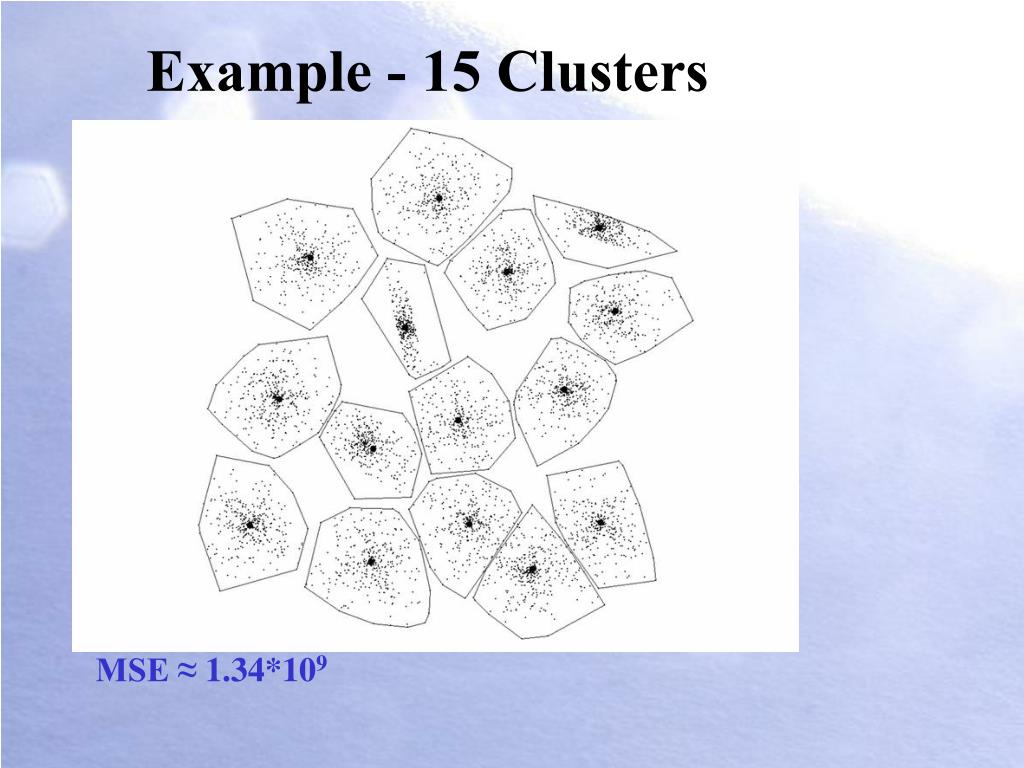

Example 15 clusters
Example - 15 Clusters

MSE ≈ 1.34*109

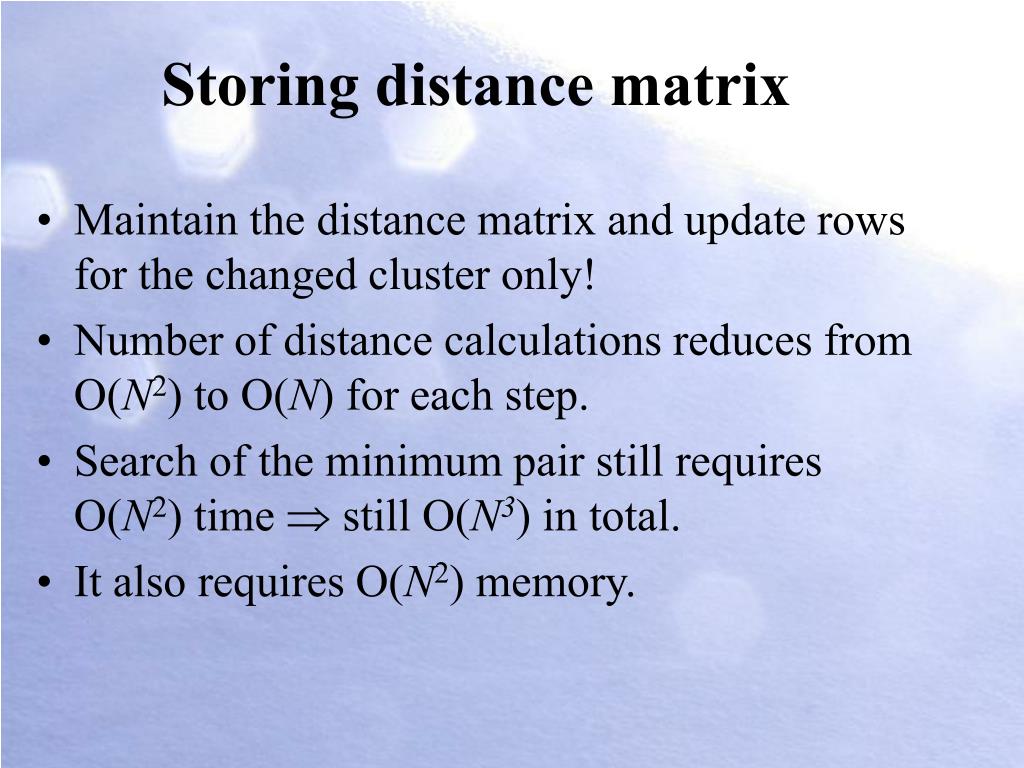

Storing distance matrix
Storing distance matrix

  • Maintain the distance matrix and update rows for the changed cluster only!

  • Number of distance calculations reduces from O(N2) to O(N) for each step.

  • Search of the minimum pair still requires O(N2) time  still O(N3) in total.

  • It also requires O(N2) memory.


Heap structure for fast search kurita 1991 pattern recognition
Heap structure for fast search[Kurita 1991: Pattern Recognition]

  • Search reduces O(N2)  O(logN).

  • In total: O(N2 logN)


Store nearest neighbor nn pointers fr nti et al 2000 ieee trans image processing
Store nearest neighbor (NN) pointers[Fränti et al., 2000: IEEE Trans. Image Processing]

Time complexity reduces to O(N 3)  Ω (N 2)

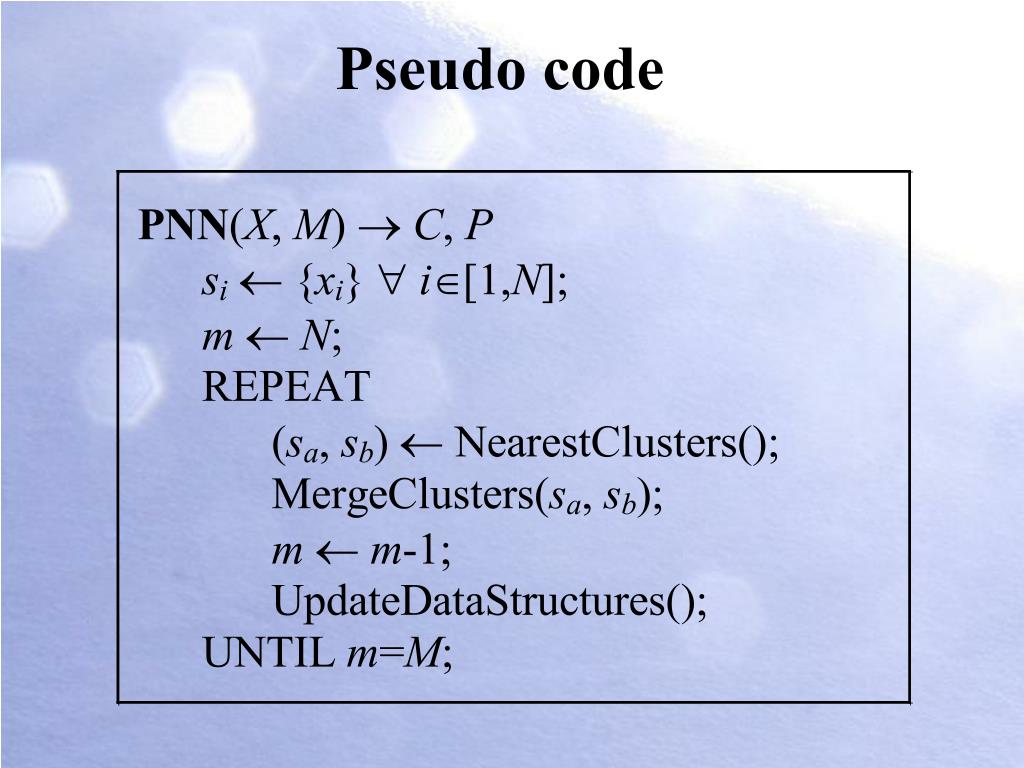

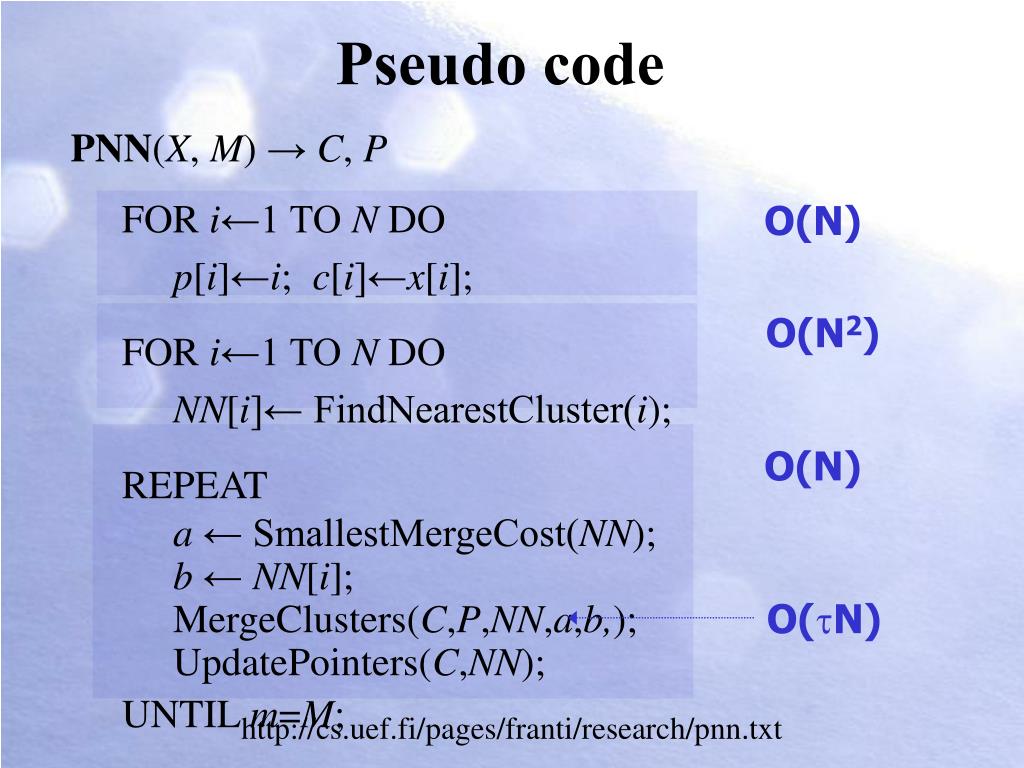

Pseudo code2
Pseudo code

  • PNN(X, M) → C, P

    • FOR i←1 TO N DO

      • p[i]←i; c[i]←x[i];

    • FOR i←1 TO N DO

      • NN[i]← FindNearestCluster(i);

    • REPEAT

      • a ← SmallestMergeCost(NN);

      • b ← NN[i];

      • MergeClusters(C,P,NN,a,b,);

      • UpdatePointers(C,NN);

    • UNTIL m=M;

O(N)

O(N2)

O(N)

O(N)

http://cs.uef.fi/pages/franti/research/pnn.txt

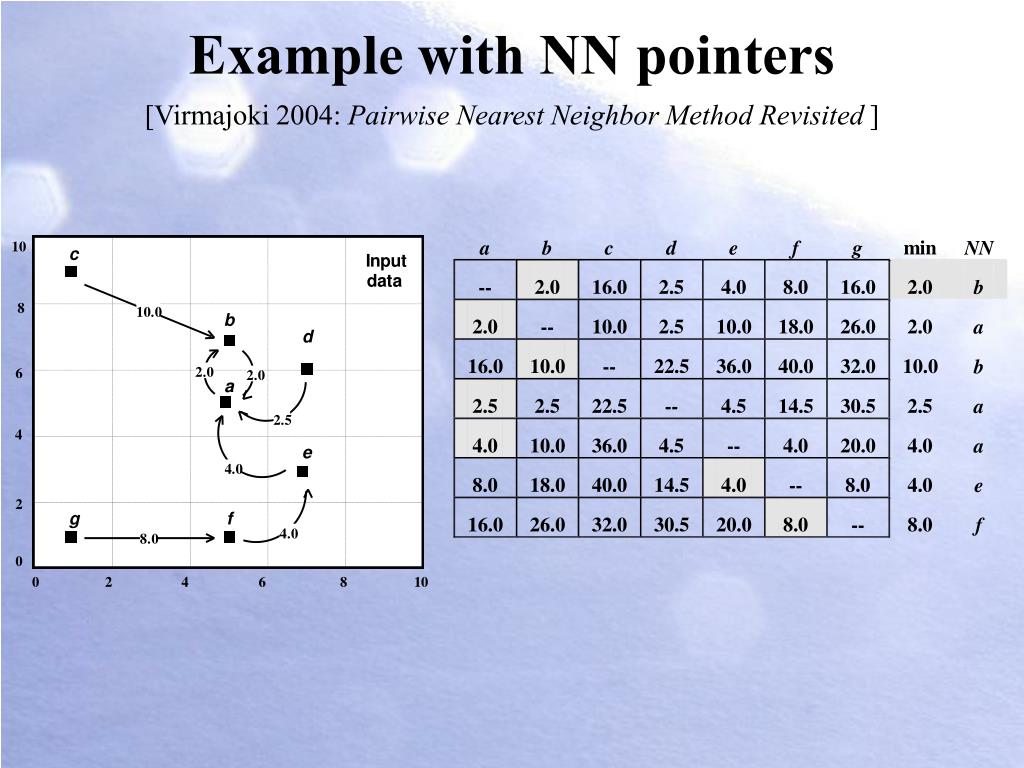

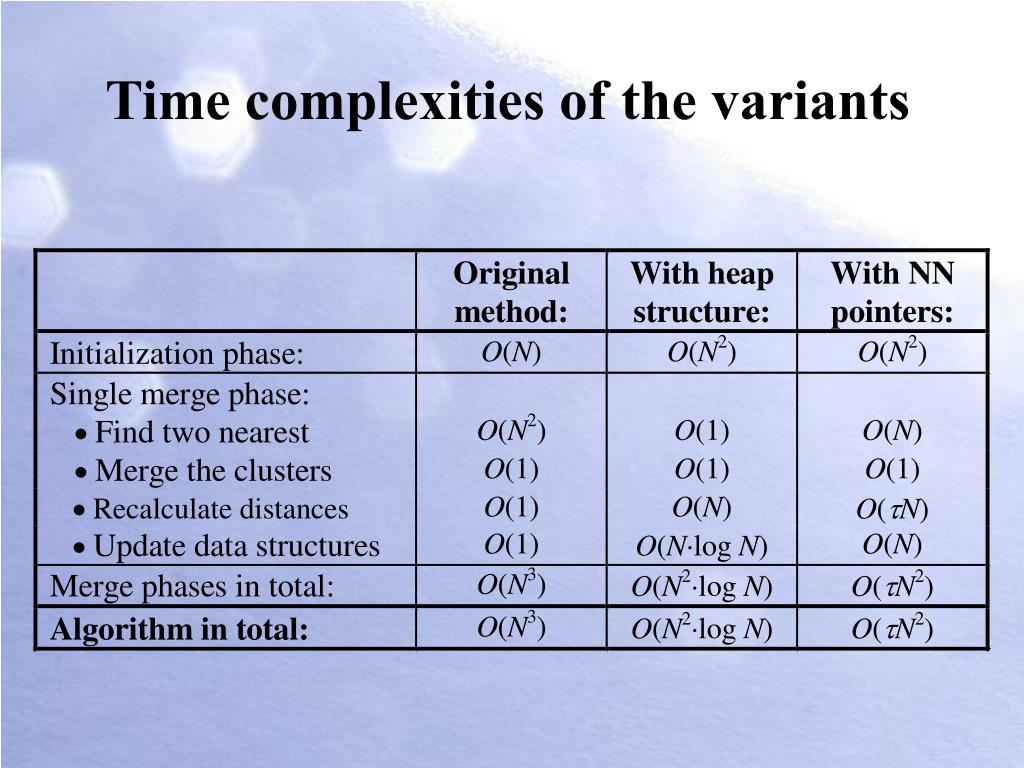

Example with nn pointers virmajoki 2004 pairwise nearest neighbor method revisited
Example with NN pointers[Virmajoki 2004: Pairwise Nearest Neighbor Method Revisited ]


Example step 1

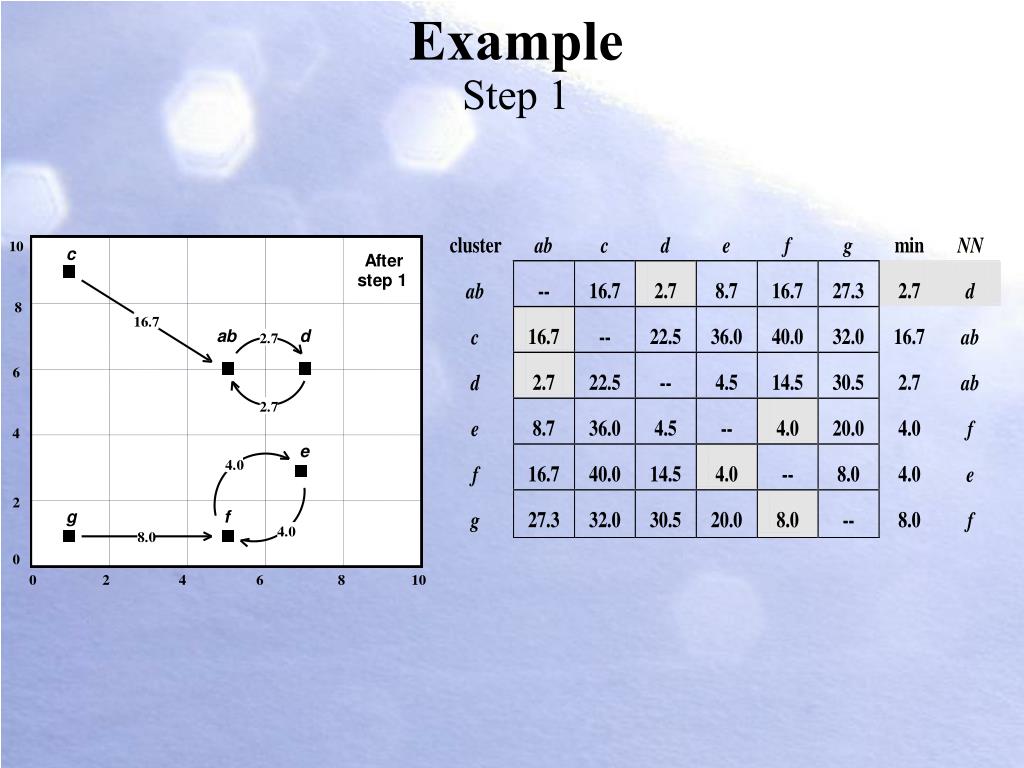

ExampleStep 1

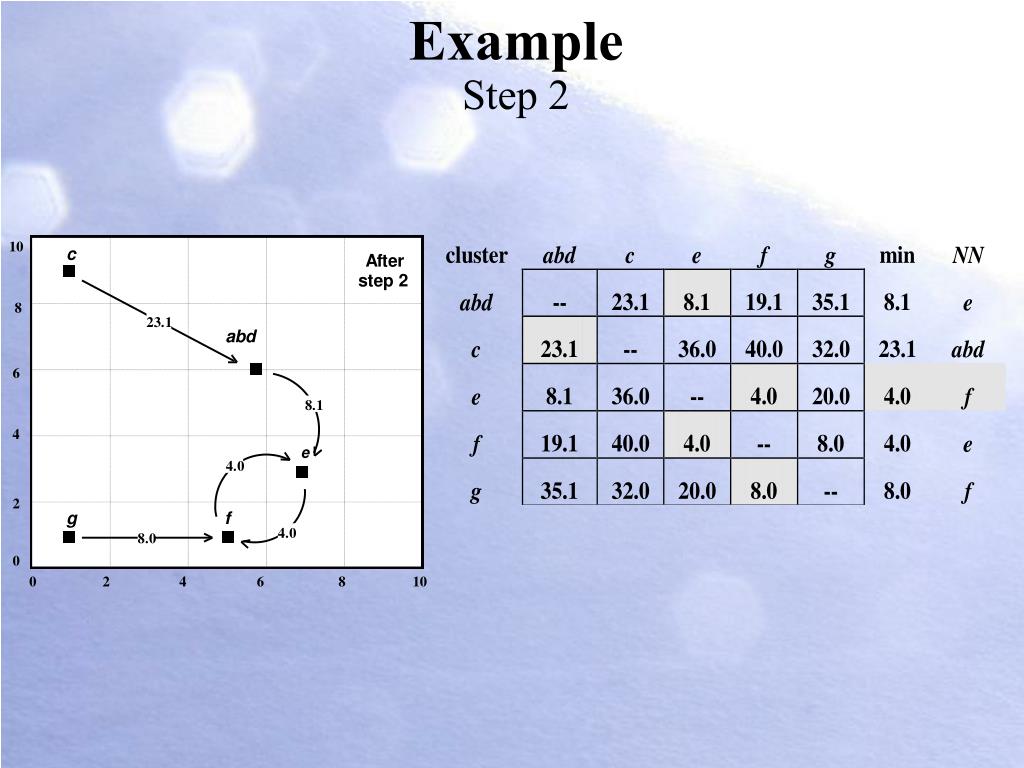

Example step 2
ExampleStep 2

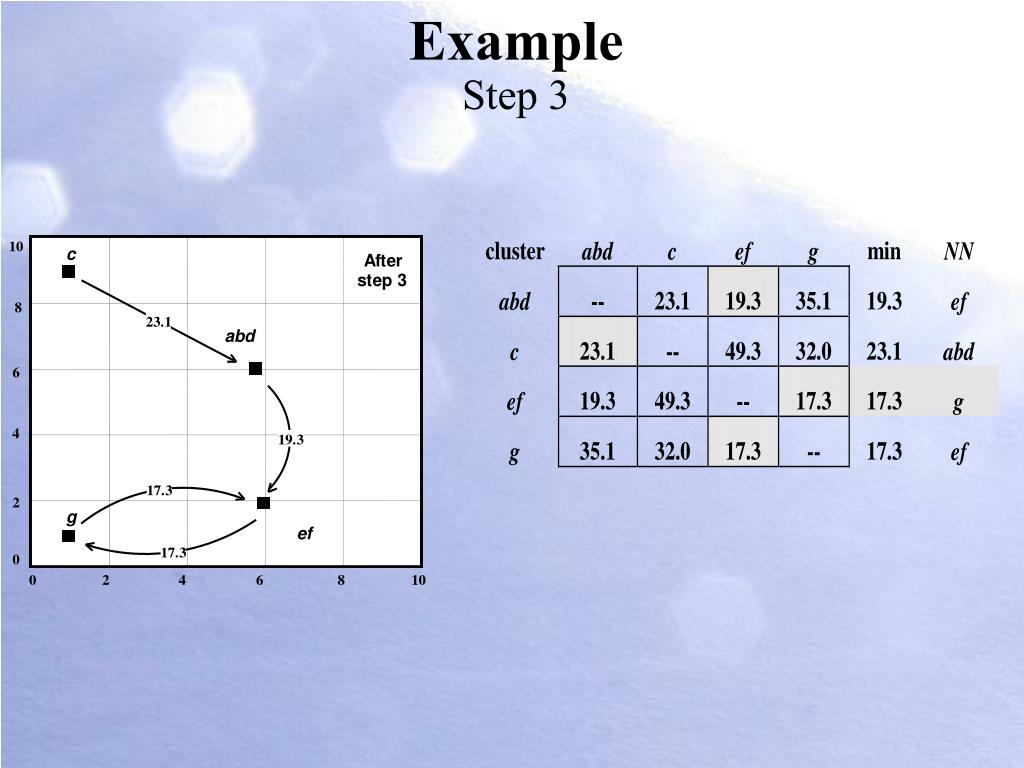

Example step 3
ExampleStep 3


Example step 4

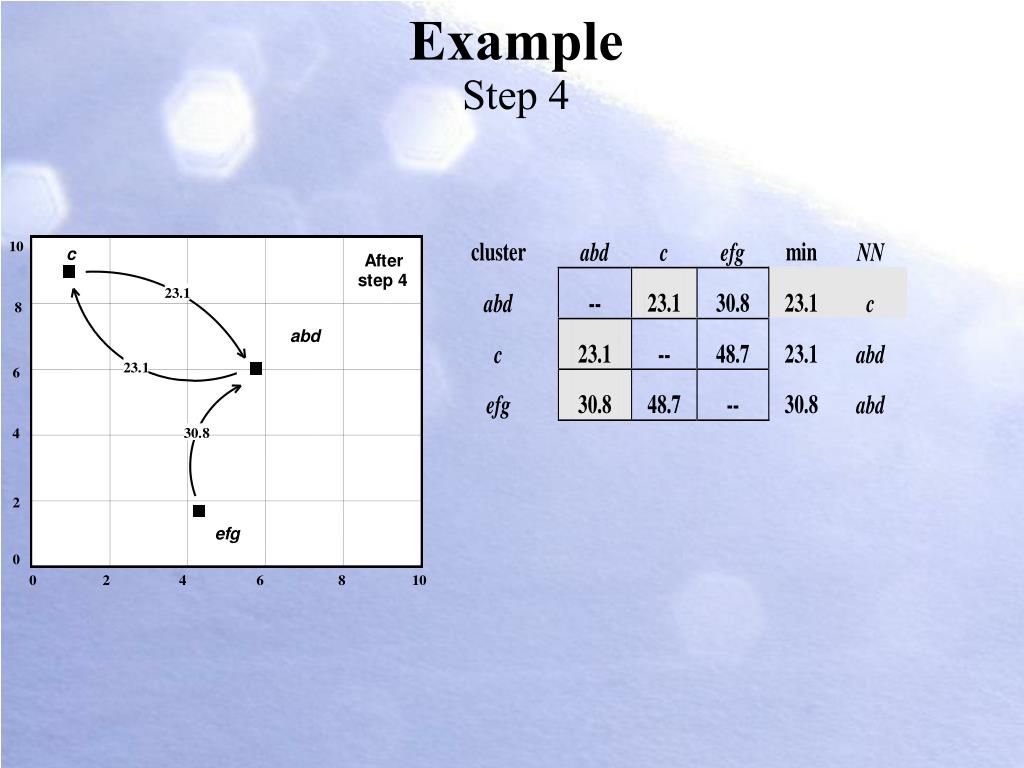

ExampleStep 4

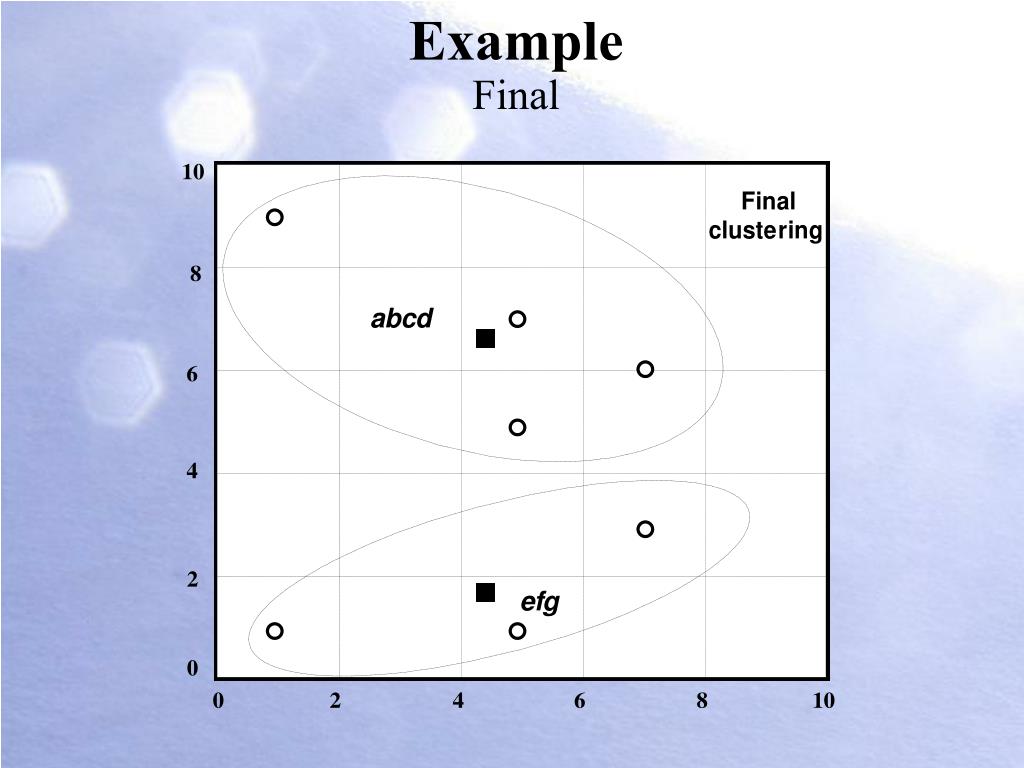

Example final
ExampleFinal

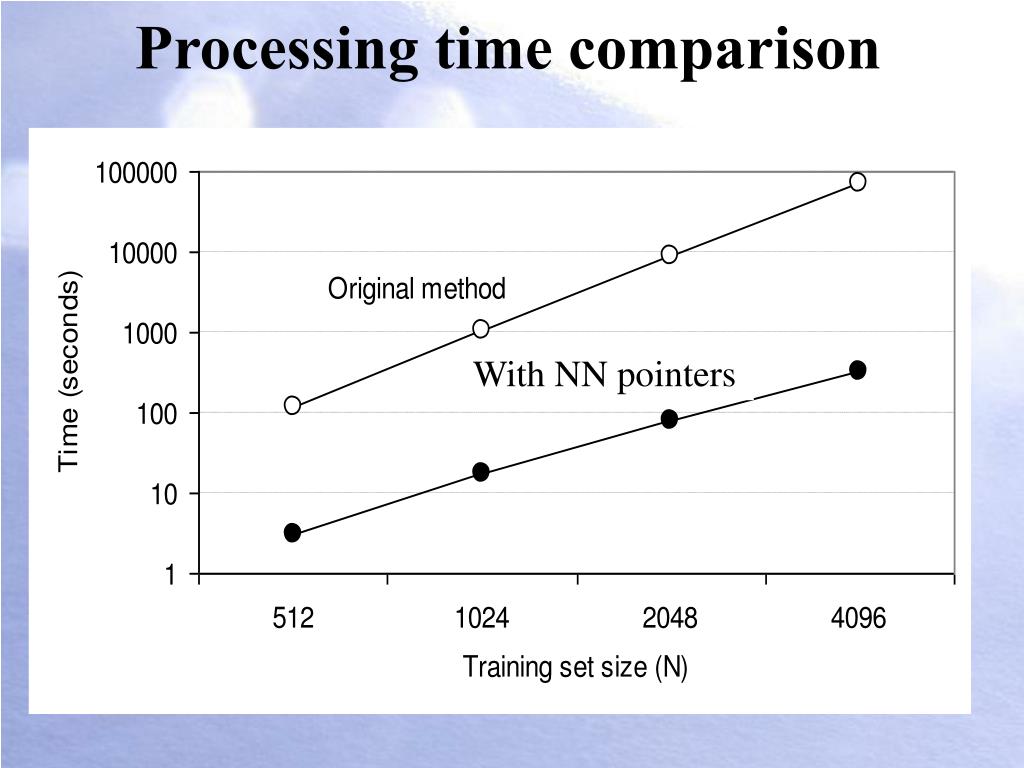

Processing time comparison
Processing time comparison

With NN pointers

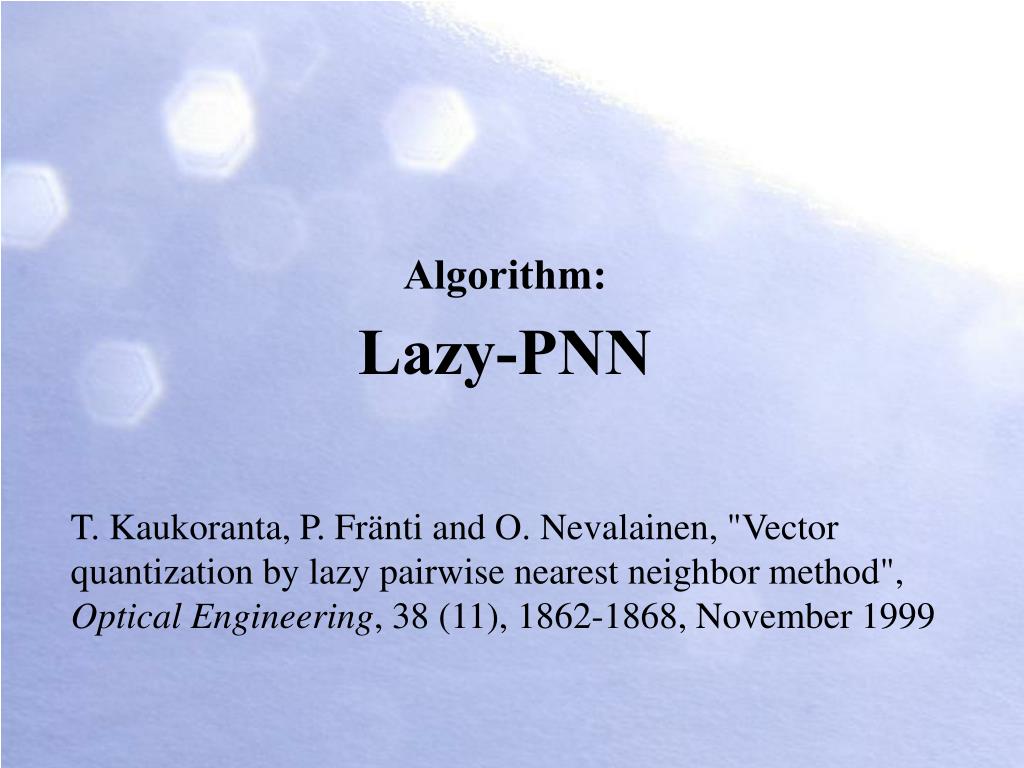

Algorithm lazy pnn
Algorithm:Lazy-PNN

T. Kaukoranta, P. Fränti and O. Nevalainen, "Vector quantization by lazy pairwise nearest neighbor method", Optical Engineering, 38 (11), 1862-1868, November 1999


Monotony property of merge cost kaukoranta et al optical engineering 1999
Monotony property of merge cost [Kaukoranta et al., Optical Engineering, 1999]

Merge costs values are monotonically increasing:

d(Sa, Sb) d(Sa, Sc) d(Sb, Sc)

d(Sa, Sc)  d(Sa+b, Sc)


Lazy variant of the pnn
Lazy variant of the PNN

  • Store merge costs in heap.

  • Update merge cost value only when it appears at top of the heap.

  • Processing time reduces about 35%.

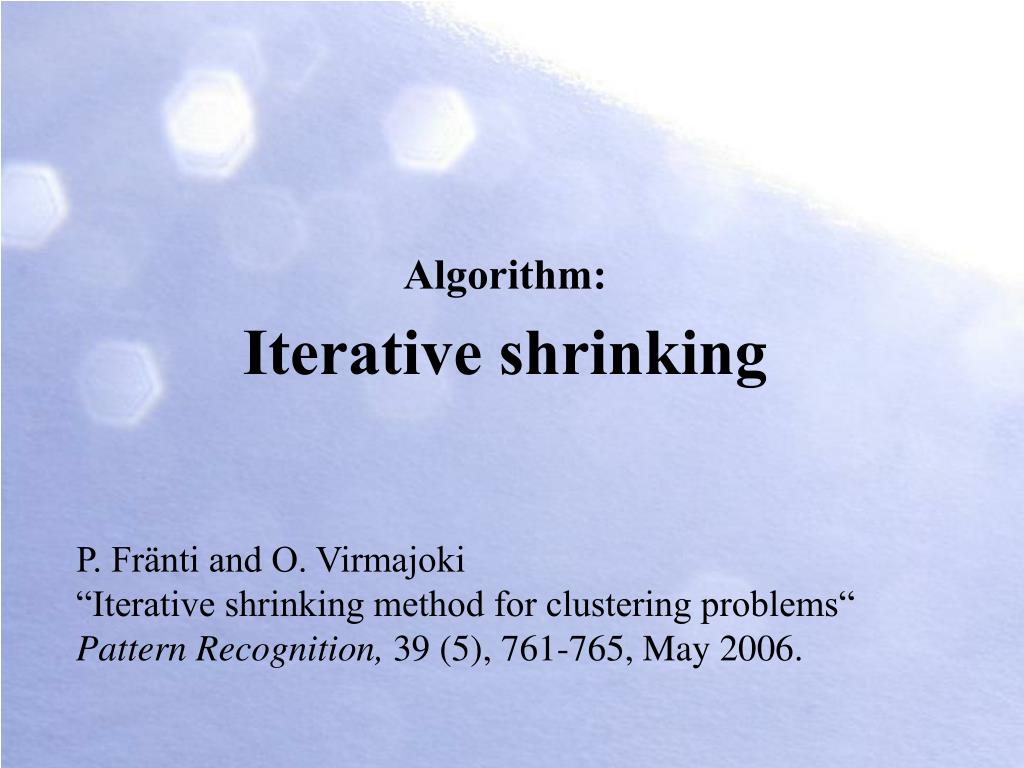

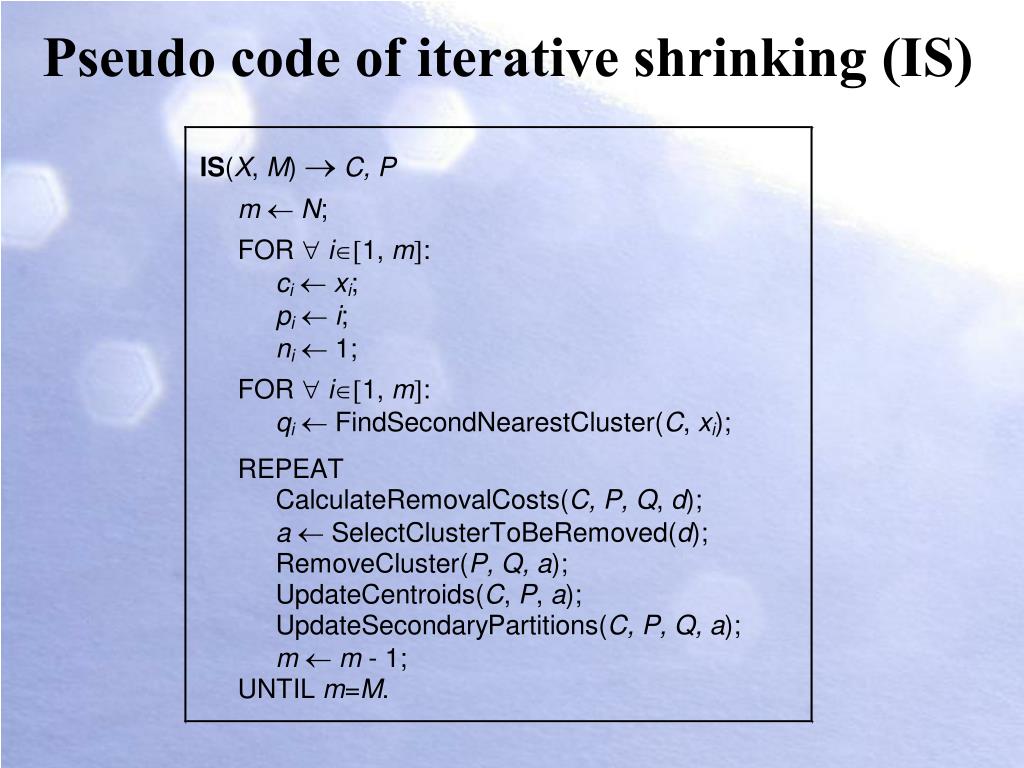

Algorithm iterative shrinking
Algorithm:Iterative shrinking

P. Fränti and O. Virmajoki “Iterative shrinking method for clustering problems“Pattern Recognition, 39 (5), 761-765, May 2006.


Agglomerative clustering based on merging

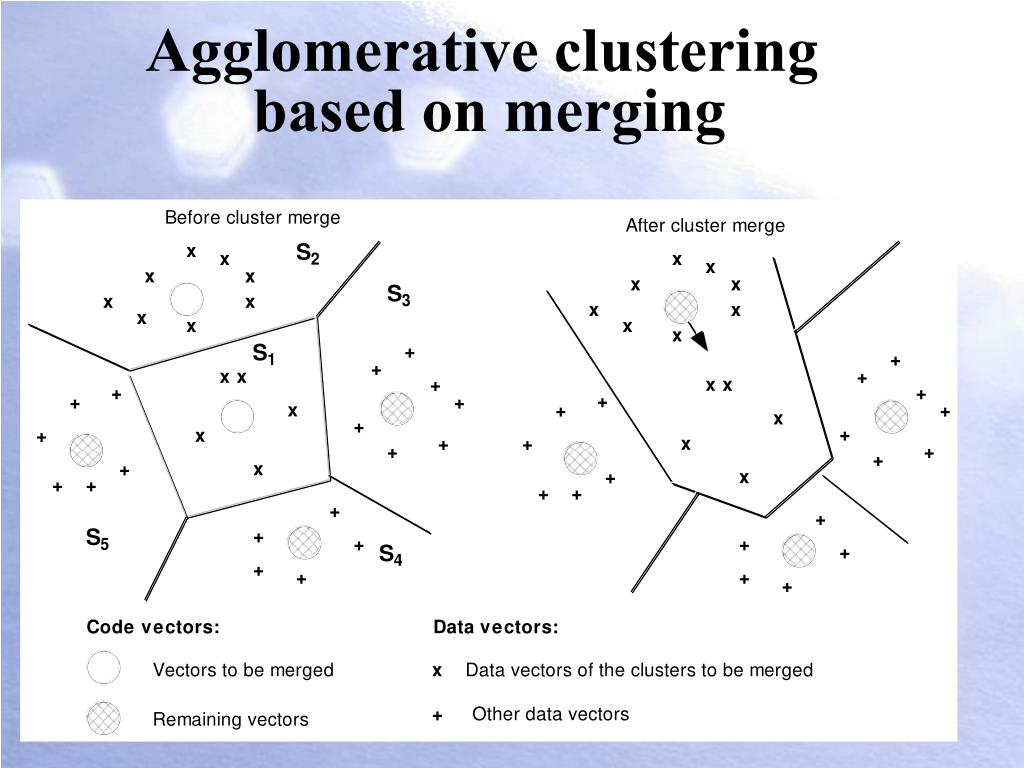

Agglomerative clustering based on merging


Agglomeration based on cluster removal fr nti and virmajoki pattern recognition 2006

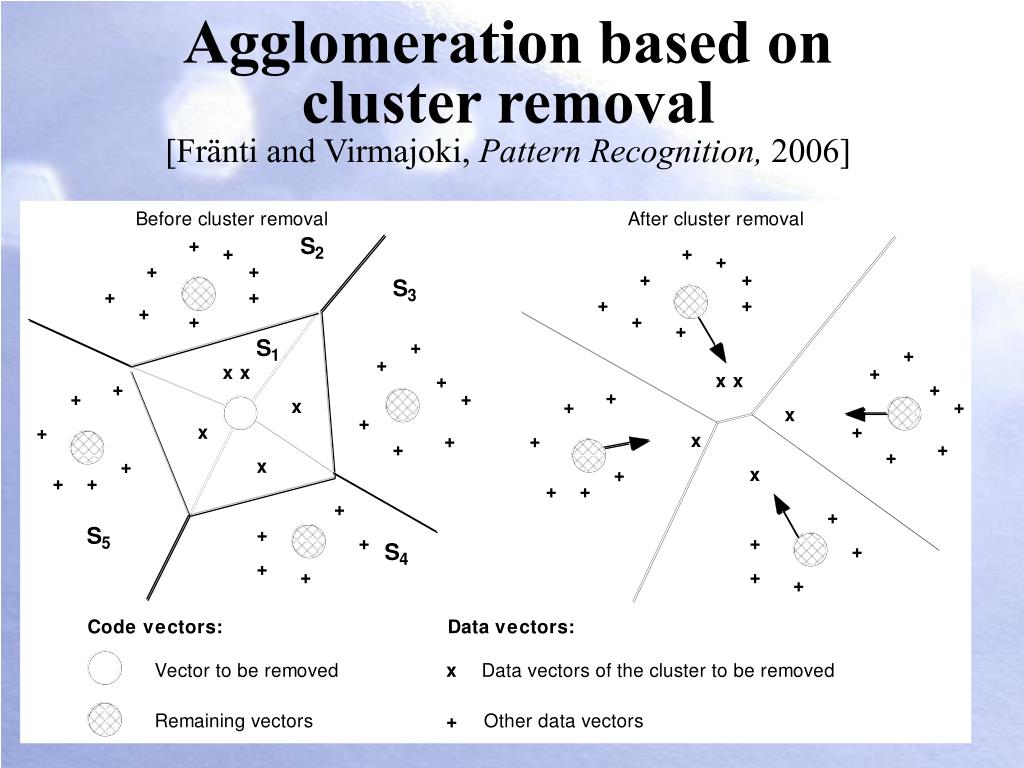

Agglomeration based on cluster removal[Fränti and Virmajoki, Pattern Recognition, 2006]




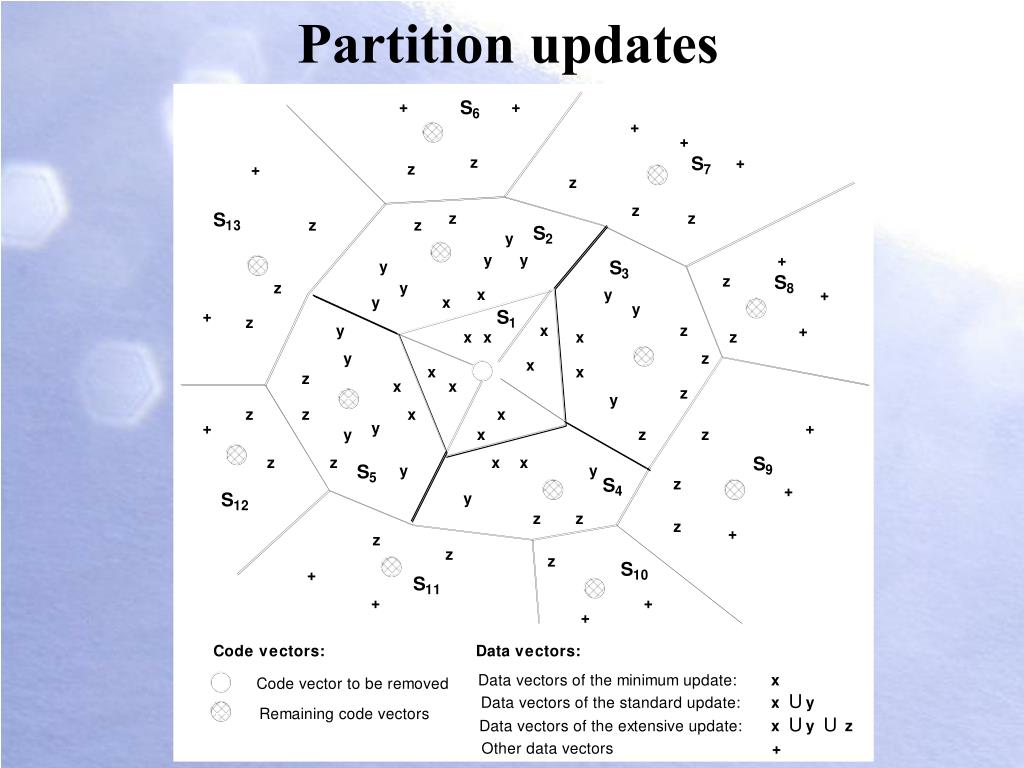

Cluster removal in practice
Cluster removal in practice

Find secondary cluster:

Calculate removal cost for every vector:

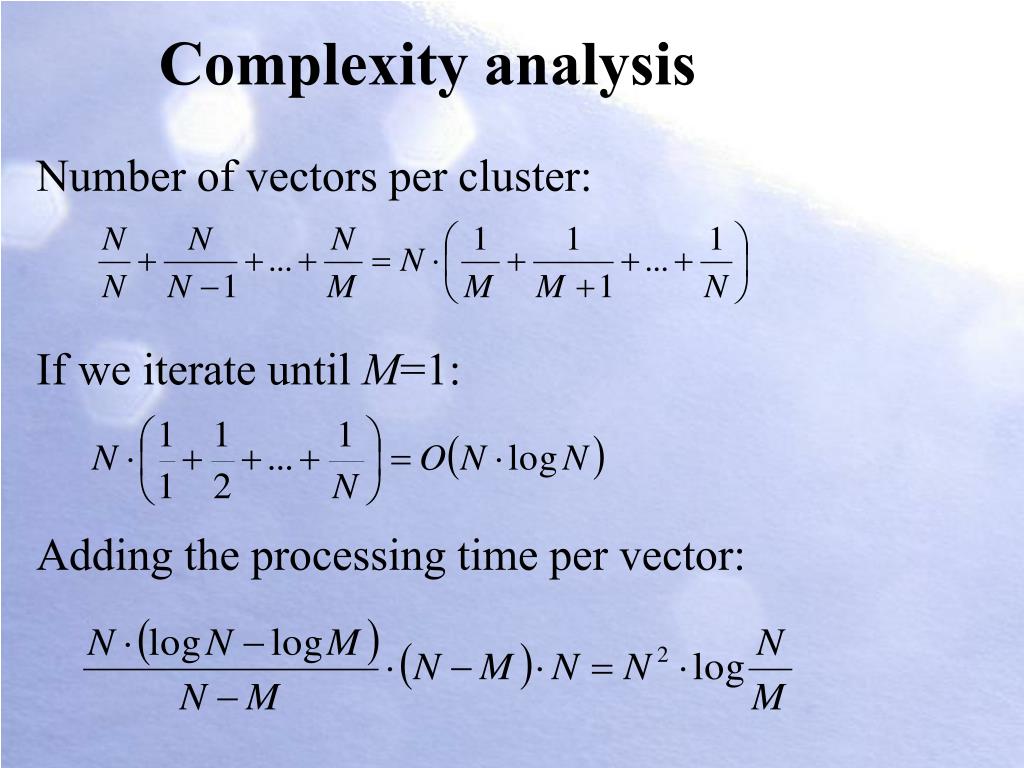

Complexity analysis
Complexity analysis

Number of vectors per cluster:

If we iterate until M=1:

Adding the processing time per vector:

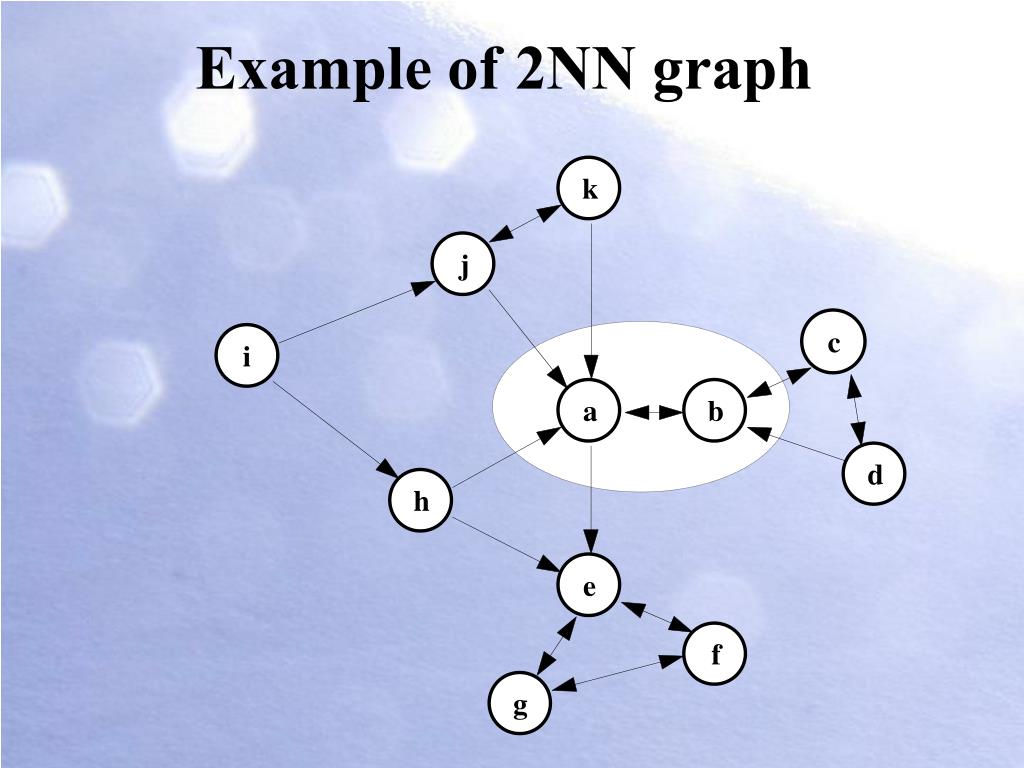

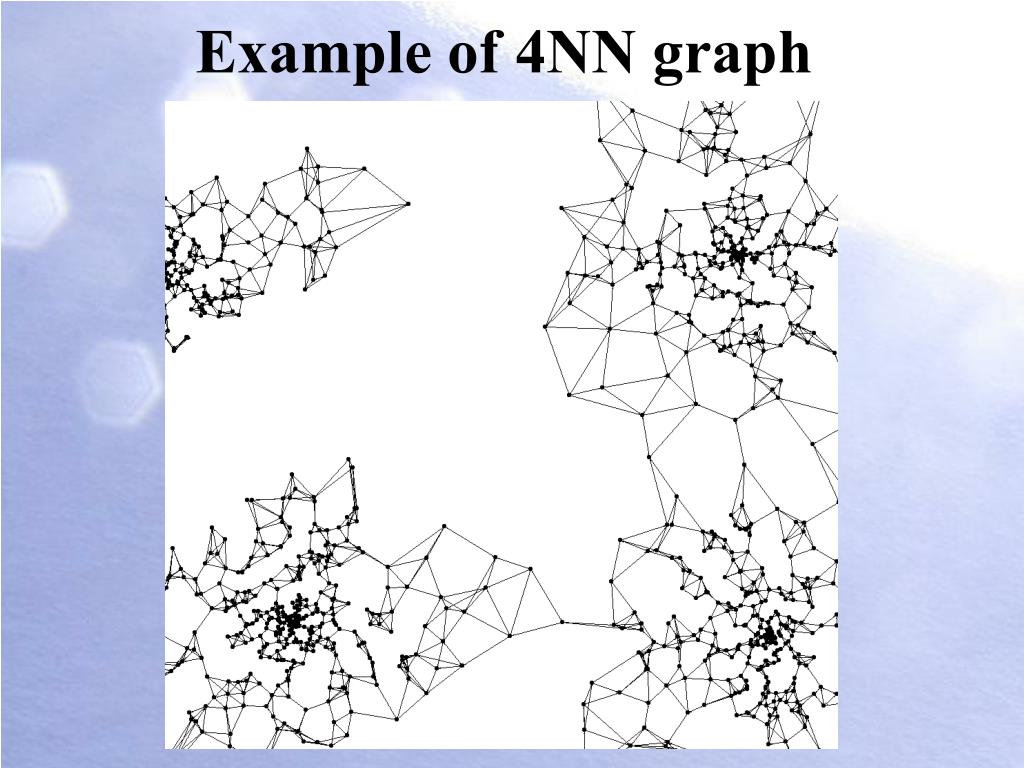

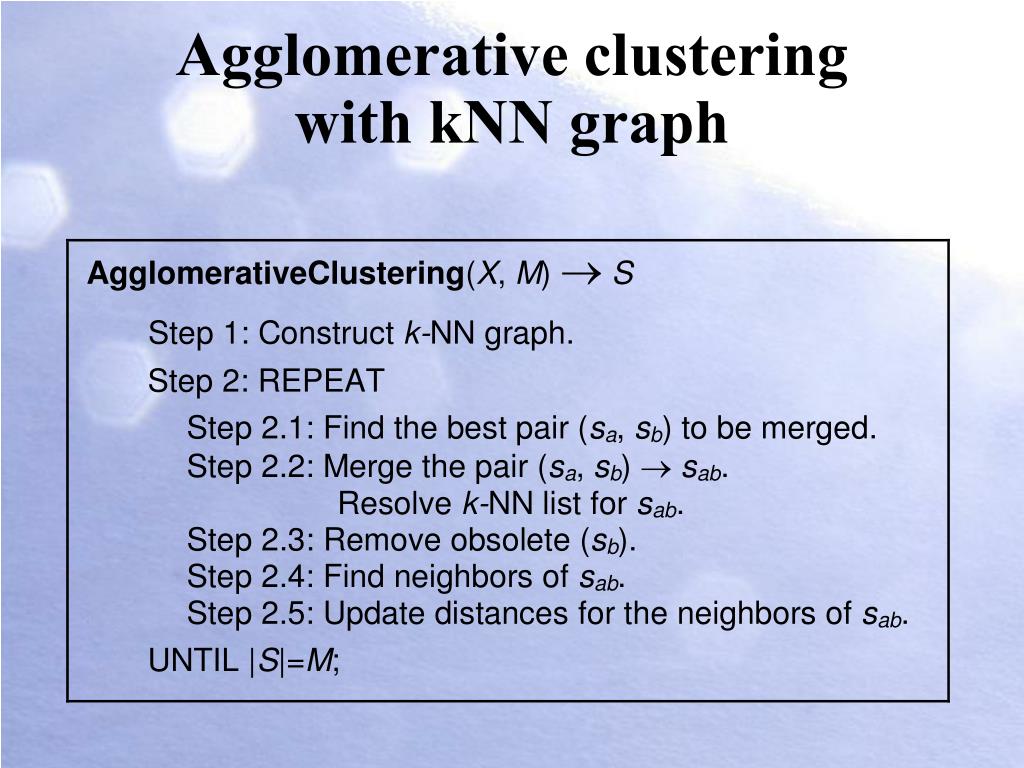

Algorithm pnn with knn graph

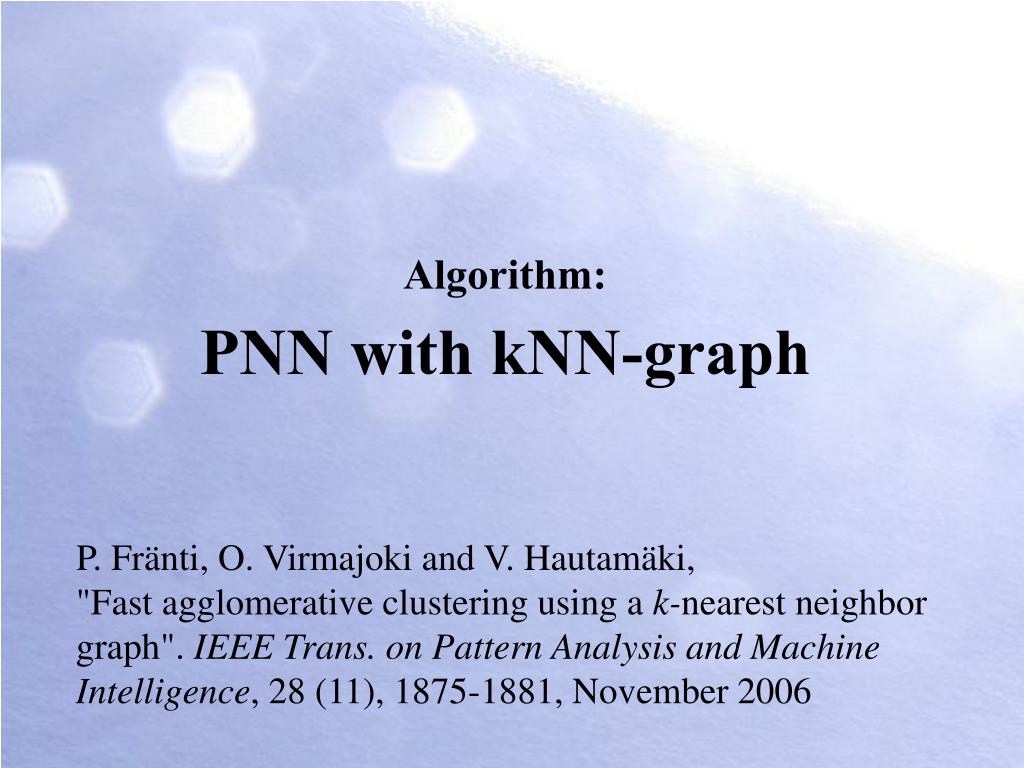

Algorithm:PNN with kNN-graph

P. Fränti, O. Virmajoki and V. Hautamäki, "Fast agglomerative clustering using a k-nearest neighbor graph". IEEE Trans. on Pattern Analysis and Machine Intelligence, 28 (11), 1875-1881, November 2006

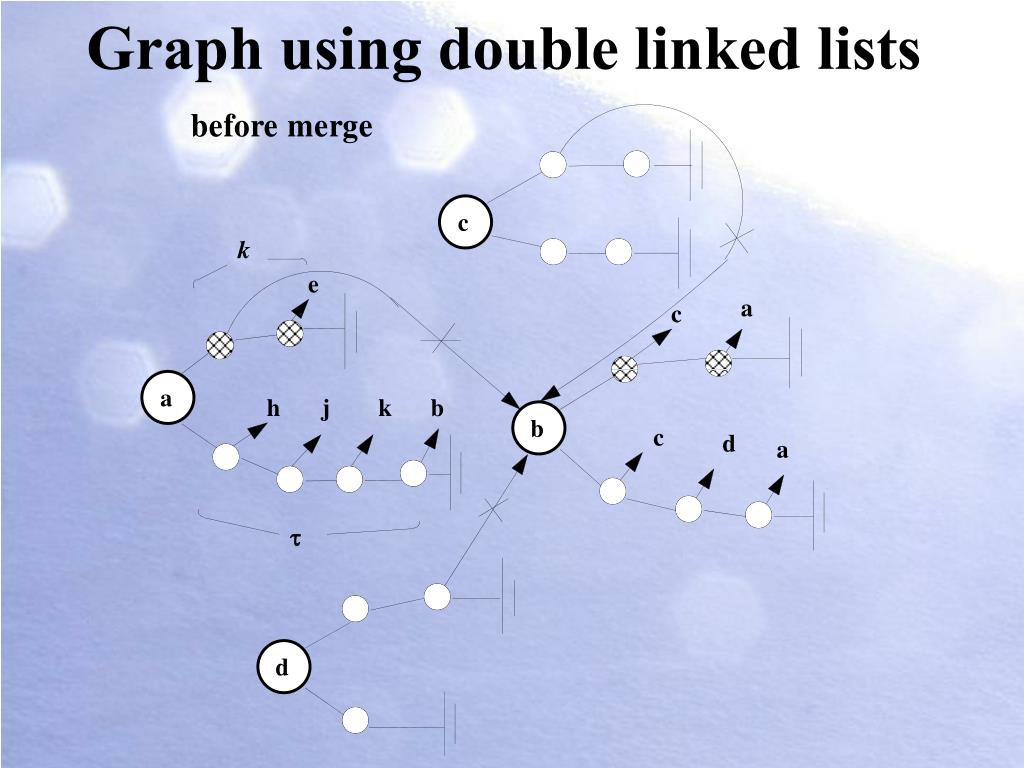

Merging a and b


Effect on calculationsnumber of steps


Processing time as function of k(number of neighbors in graph)


Time distortion comparison

-PNN (229 s)

Trivial-PNN (>9999 s)

Graph-PNN (1)

MSE = 5.36

Graph-PNN (2)

  • Graph created by MSP

  • Graph created by D-n-C


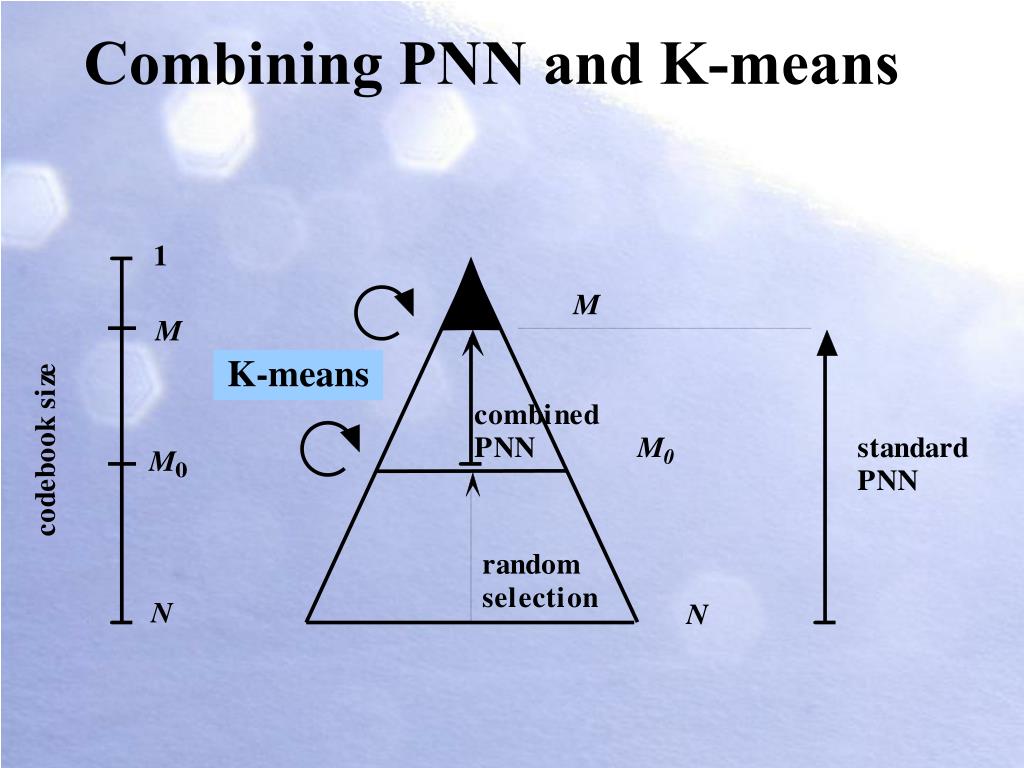

Conclusions

  • Simple to implement, good clustering quality

  • Straightforward algorithm slow O(N3)

  • Fast exact (yet simple) algorithm O(τN2)

  • Beyond this possible:

    • O(τ∙N∙logN) complexity

    • Complicated graph data structure

    • Compromizes the exactness of the merge


Literature
Literature

  • P. Fränti, T. Kaukoranta, D.-F. Shen and K.-S. Chang, "Fast and memory efficient implementation of the exact PNN", IEEE Trans. on Image Processing, 9 (5), 773-777, May 2000.

  • P. Fränti, O. Virmajoki and V. Hautamäki, "Fast agglomerative clustering using a k-nearest neighbor graph". IEEE Trans. on Pattern Analysis and Machine Intelligence, 28 (11), 1875-1881, November 2006.

  • P. Fränti and O. Virmajoki, "Iterative shrinking method for clustering problems", Pattern Recognition, 39 (5), 761-765, May 2006.

  • T. Kaukoranta, P. Fränti and O. Nevalainen, "Vector quantization by lazy pairwise nearest neighbor method", Optical Engineering, 38 (11), 1862-1868, November 1999.

  • T. Kurita, "An efficient agglomerative clustering algorithm using a heap", Pattern Recognition 24 (3) (1991) 205-209.


Literature1
Literature

  • J. Shanbehzadeh and P.O. Ogunbona, "On the computational complexity of the LBG and PNN algorithms". IEEE Transactions on Image Processing6 (4), 614‑616, April 1997.

  • O. Virmajoki, P. Fränti and T. Kaukoranta, "Practical methods for speeding-up the pairwise nearest neighbor method ", Optical Engineering, 40 (11), 2495-2504, November 2001.

  • O. Virmajoki and P. Fränti, "Fast pairwise nearest neighbor based algorithm for multilevel thresholding", Journal of Electronic Imaging, 12 (4), 648-659, October 2003.

  • O. Virmajoki, Pairwise Nearest Neighbor Method Revisited, PhD thesis, Computer Science, University of Joensuu, 2004.

  • J.H. Ward, Hierarchical grouping to optimize an objective function, J. Amer. Statist.Assoc. 58 (1963) 236-244.
