Presentation Transcript


Dynamical heterogeneity at the jamming transition of concentrated colloids

LCVN

Dynamical heterogeneity at the jamming transition of concentrated colloids

P. Ballesta1, A. Duri1, Luca Cipelletti1,2

1LCVN UMR 5587

Université Montpellier 2 and CNRS, France

2Institut Universitaire de France

[email protected]


Heterogeneous dynamics

Heterogeneous dynamics

homogeneous


Heterogeneous dynamics1

Heterogeneous dynamics

heterogeneous

homogeneous


Heterogeneous dynamics2

Heterogeneous dynamics

heterogeneous

homogeneous


Dynamical susceptibility in glassy systems

Dynamical susceptibility in glassy systems

Supercooled liquid (Lennard-Jones)

Lacevic et al., PRE 2002

c4~ var[Q(t)]


Dynamical susceptibility in glassy systems1

Dynamical susceptibility in glassy systems

N regions

c4~ var[Q(t)]

c4 dynamics spatially correlated


Dynamical heterogeneity at the jamming transition of concentrated colloids

Decreasing T

Glotzer et al.

c4 increases when decreasing T


Outline

Outline

  • Measuring average dynamics and c4 in colloidal suspensions

  • c4 at very high j : surprising results!

  • A simple model of heterogeneous dynamics


Experimental system setup

Experimental system & setup

PVC xenospheres in DOP

radius ~ 10 mm, polydisperse

j = 64% – 75%

Excluded volume interactions


Experimental system setup1

Experimental system & setup

CCD-based (multispeckle)

Diffusing Wave Spectroscopy

CCD

Camera

Laser beam

Change in speckle field mirrors change in sample configuration

Probe d << Rparticle


Time resolved correlation

lag t

time tw

fixed tw, vs.t

2-time intensity correlation function g2(tw,t) - 1

Time Resolved Correlation

degree of correlationcI(tw,t) = - 1

< Ip(tw) Ip(tw+t)>p

< Ip(tw)>p<Ip(tw+t)>p


2 time intensity correlation function

2-time intensity correlation function

f = 66.4%

Fit: g2(tw,t) ~ exp[-(t /ts (tw))p(tw)]

  • Initial regime: « simple aging » (ts ~ tw1.1 ± 0.1)

  • Crossover to stationary dynamics, large fluctuations of ts


2 time intensity correlation function1

2-time intensity correlation function

f = 66.4%

Fit: g2(tw,t) ~ exp[-(t/ts(tw))p(tw)]

Average dynamics :

< ts >tw , < p >tw


Average dynamics vs j

Average dynamics vs j

Average relaxation time


Average dynamics vs j1

Average dynamics vs j

Average relaxation time

Average stretching exponent


Fluctuations from trc data

lag t

time tw

fixed t, vs.tw

fluctuations of the dynamics

var(cI)(t)

c (t )

Fluctuations from TRC data

degree of correlationcI(tw,t) = - 1

< Ip(tw) Ip(tw+t)>p

< Ip(tw)>p<Ip(tw+t)>p


Fluctuations of the dynamics vs j

Fluctuations of the dynamics vs j

j = 0.74

var(cI) c4

(dynamical susceptibility)


Fluctuations of the dynamics vs j1

Fluctuations of the dynamics vs j

j = 0.74

var(cI) c4

(dynamical susceptibility)

Max of var (cI)

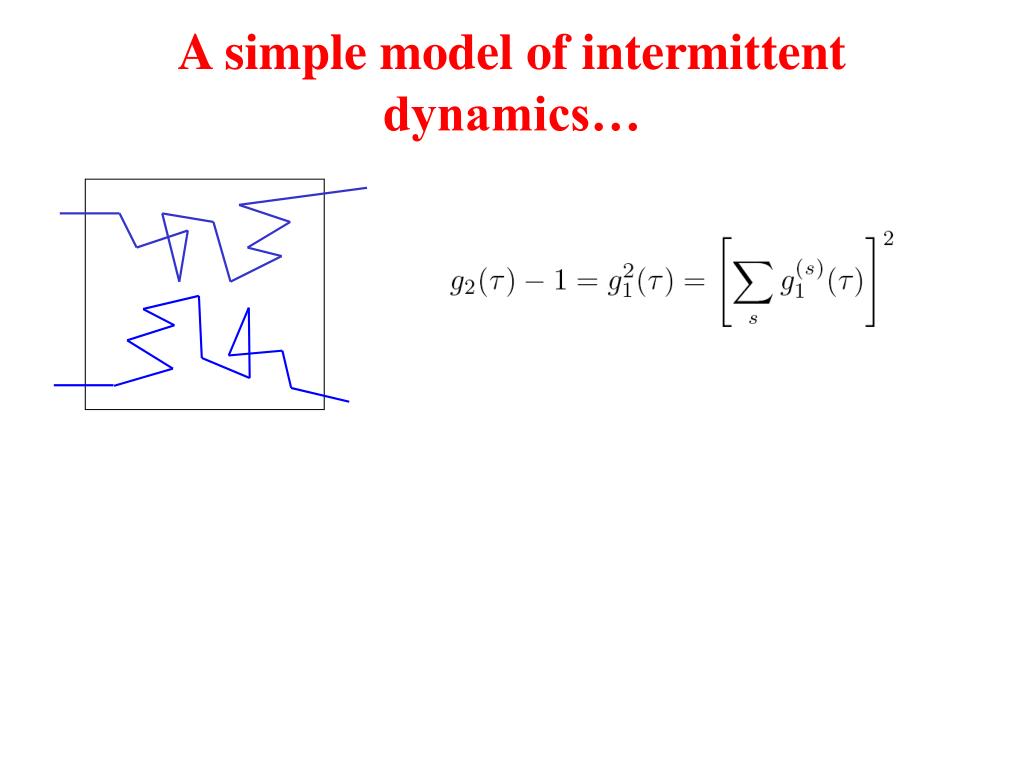

A simple model of intermittent dynamics

A simple model of intermittent dynamics…


A simple model of intermittent dynamics1

A simple model of intermittent dynamics…

fully decorrelated

r

Durian, Weitz & Pine (Science, 1991)


Fluctuations in the dwp model

Fluctuations in the DWP model

Random number of rearrangements

g2(t,t) – 1 fluctuates

r


Fluctuations in the dwp model1

Fluctuations in the DWP model

Random number of rearrangements

g2(t,t) – 1 fluctuates

r

r increases

fluctuations increase


Fluctuations in the dwp model2

Fluctuations in the DWP model

increasing r,j

r

r increases

fluctuations increase


Approaching jamming

Approaching jamming…

partially decorrelated

r

partially decorrelated


Approaching jamming1

Approaching jamming…

Correlation after n events

r

Probability of n events during t


Approaching jamming2

Approaching jamming…

r

Poisson distribution:


Approaching jamming3

Approaching jamming…

r

Poisson distribution:

Random change of phase

Correlated change of phase


Approaching jamming4

Approaching jamming…

r

Poisson distribution:

Random change of phase

Correlated change of phase


Approaching jamming5

Approaching jamming…

r

Poisson distribution:

b»1.5


Average dynamics

Average dynamics

increasing j

decreasing sf2

increasing j


Fluctuations

Fluctuations

r

Moderate j : large sf2 few events large flucutations

Near jamming : small sf2 many events small flucutations


Fluctuations1

Fluctuations

increasing j

decreasing sf2


Conclusions

Conclusions

Dynamics heterogeneous

Non-monotonic behavior of c*

Competition between

increasing size of dynamically

correlated regions ...


Conclusions1

Conclusions

Dynamics heterogeneous

Non-monotonic behavior of c*

Competition between

increasing size of dynamically

correlated regions

and

decreasing effectiveness of

rearrangements


Conclusions2

Conclusions

Dynamics heterogeneous

Non-monotonic behavior of c*

Competition between

increasing size of dynamically

correlated regions

and

decreasing effectiveness of

rearrangements

Dynamical heterogeneity dictated by the number of rearrangements

needed to decorrelate


A further test

A further test…

Single scattering, colloidal fractal gel (Agnès Duri)


A further test1

sf2 ~q2d 2look at different q!

A further test…


A further test2

sf2 ~q2d 2look at different q!

A further test…


A further test3

sf2 ~q2d 2look at different q!

A further test…


Fluctuations of the dynamics vs j 1 2

Fluctuations of the dynamics vs j (1/2)

St. dev. of stretching

exponent

St. dev. of relaxation time


Average dynamics vs j2

Average dynamics vs j

Average relaxation time


Dynamical hetereogeneity in glassy systems

Dynamical hetereogeneity in glassy systems

Supercooled liquid (Lennard-Jones)

Glotzer et al.,

J. Chem. Phys. 2000

c4 increases when approaching Tg


Conclusions3

Conclusions

Dynamics heterogeneous

Non-monotonic behavior of c*


Conclusions4

Conclusions

Dynamics heterogeneous

Non-monotonic behavior of c*

Many localized, highly effective

rearrangements


Conclusions5

Conclusions

Dynamics heterogeneous

Non-monotonic behavior of c*

Many localized, highly effective

rearrangements

Many extended, poorly effective

rearrangements


Conclusions6

Conclusions

Dynamics heterogeneous

Non-monotonic behavior of c*

Many localized, highly effective

rearrangements

Many extended, poorly effective

rearrangements

Few extended, quite effective

rearrangements

General behavior


Time resolved correlation1

lag t

time tw

Time Resolved Correlation

degree of correlationcI(tw,t) = - 1

< Ip(tw) Ip(tw+t)>p

< Ip(tw)>p<Ip(tw+t)>p
