Presentation Transcript


How to marry the alice high level trigger dimuon tracking algorithm and the

How to Marry

the

ALICE High Level Trigger

DiMuon Tracking Algorithm

and the

ALICE High Level Trigger

Data Transport Framework


How to marry the alice high level trigger dimuon tracking algorithm and the

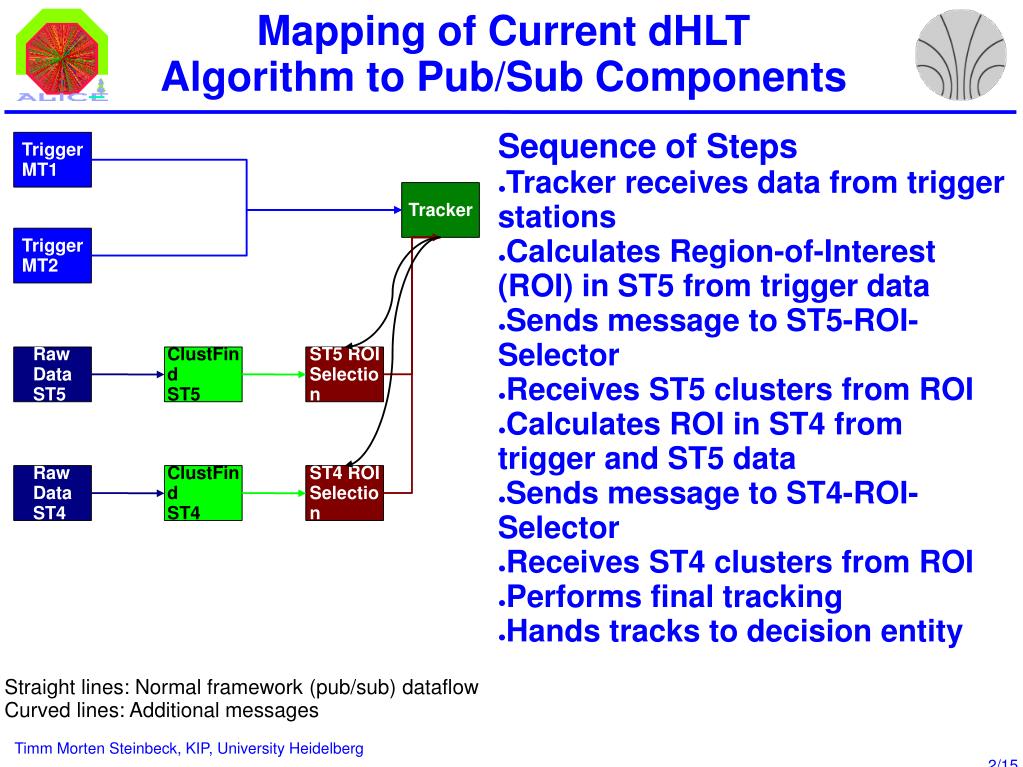

Mapping of Current dHLT

Algorithm to Pub/Sub Components

  • Sequence of Steps

  • Tracker receives data from trigger stations

  • Calculates Region-of-Interest (ROI) in ST5 from trigger data

  • Sends message to ST5-ROI-Selector

  • Receives ST5 clusters from ROI

  • Calculates ROI in ST4 from trigger and ST5 data

  • Sends message to ST4-ROI-Selector

  • Receives ST4 clusters from ROI

  • Performs final tracking

  • Hands tracks to decision entity

Trigger

MT1

Tracker

Trigger

MT2

Raw Data

ST5

ClustFind

ST5

ST5 ROI

Selection

Raw Data

ST4

ClustFind

ST4

ST4 ROI

Selection

Straight lines: Normal framework (pub/sub) dataflow

Curved lines: Additional messages


How to marry the alice high level trigger dimuon tracking algorithm and the

Mapping of Current dHLT

Algorithm to Pub/Sub Components

  • Sequence of Steps

  • Tracker receives data from trigger stations

Trigger

MT1

Tracker

Trigger

MT2

Raw Data

ST5

ClustFind

ST5

ST5 ROI

Selection

Raw Data

ST4

ClustFind

ST4

ST4 ROI

Selection

Straight lines: Normal framework (pub/sub) dataflow

Curved lines: Additional messages


How to marry the alice high level trigger dimuon tracking algorithm and the

Mapping of Current dHLT

Algorithm to Pub/Sub Components

  • Sequence of Steps

  • Tracker receives data from trigger stations

  • Calculates Region-of-Interest (ROI) in ST5 from trigger data

Trigger

MT1

Tracker

Trigger

MT2

Raw Data

ST5

ClustFind

ST5

ST5 ROI

Selection

Raw Data

ST4

ClustFind

ST4

ST4 ROI

Selection

Straight lines: Normal framework (pub/sub) dataflow

Curved lines: Additional messages


How to marry the alice high level trigger dimuon tracking algorithm and the

Mapping of Current dHLT

Algorithm to Pub/Sub Components

  • Sequence of Steps

  • Tracker receives data from trigger stations

  • Calculates Region-of-Interest (ROI) in ST5 from trigger data

  • Sends message to ST5-ROI-Selector

Trigger

MT1

Tracker

Trigger

MT2

Raw Data

ST5

ClustFind

ST5

ST5 ROI

Selection

Raw Data

ST4

ClustFind

ST4

ST4 ROI

Selection

Straight lines: Normal framework (pub/sub) dataflow

Curved lines: Additional messages


How to marry the alice high level trigger dimuon tracking algorithm and the

Mapping of Current dHLT

Algorithm to Pub/Sub Components

  • Sequence of Steps

  • Tracker receives data from trigger stations

  • Calculates Region-of-Interest (ROI) in ST5 from trigger data

  • Sends message to ST5-ROI-Selector

  • Receives ST5 clusters from ROI

Trigger

MT1

Tracker

Trigger

MT2

Raw Data

ST5

ClustFind

ST5

ST5 ROI

Selection

Raw Data

ST4

ClustFind

ST4

ST4 ROI

Selection

Straight lines: Normal framework (pub/sub) dataflow

Curved lines: Additional messages


How to marry the alice high level trigger dimuon tracking algorithm and the

Natural Mapping of Current dHLT

Algorithm to Pub/Sub Components

  • Sequence of Steps

  • Tracker receives data from trigger stations

  • Calculates Region-of-Interest (ROI) in ST5 from trigger data

  • Sends message to ST5-ROI-Selector

  • Receives ST5 clusters from ROI

  • Calculates ROI in ST4 from trigger and ST5 data

Trigger

MT1

Tracker

Trigger

MT2

Raw Data

ST5

ClustFind

ST5

ST5 ROI

Selection

Raw Data

ST4

ClustFind

ST4

ST4 ROI

Selection

Straight lines: Normal framework (pub/sub) dataflow

Curved lines: Additional messages


How to marry the alice high level trigger dimuon tracking algorithm and the

Mapping of Current dHLT

Algorithm to Pub/Sub Components

  • Sequence of Steps

  • Tracker receives data from trigger stations

  • Calculates Region-of-Interest (ROI) in ST5 from trigger data

  • Sends message to ST5-ROI-Selector

  • Receives ST5 clusters from ROI

  • Calculates ROI in ST4 from trigger and ST5 data

  • Sends message to ST4-ROI-Selector

Trigger

MT1

Tracker

Trigger

MT2

Raw Data

ST5

ClustFind

ST5

ST5 ROI

Selection

Raw Data

ST4

ClustFind

ST4

ST4 ROI

Selection

Straight lines: Normal framework (pub/sub) dataflow

Curved lines: Additional messages


How to marry the alice high level trigger dimuon tracking algorithm and the

Mapping of Current dHLT

Algorithm to Pub/Sub Components

  • Sequence of Steps

  • Tracker receives data from trigger stations

  • Calculates Region-of-Interest (ROI) in ST5 from trigger data

  • Sends message to ST5-ROI-Selector

  • Receives ST5 clusters from ROI

  • Calculates ROI in ST4 from trigger and ST5 data

  • Sends message to ST4-ROI-Selector

  • Receives ST4 clusters from ROI

Trigger

MT1

Tracker

Trigger

MT2

Raw Data

ST5

ClustFind

ST5

ST5 ROI

Selection

Raw Data

ST4

ClustFind

ST4

ST4 ROI

Selection

Straight lines: Normal framework (pub/sub) dataflow

Curved lines: Additional messages


How to marry the alice high level trigger dimuon tracking algorithm and the

Mapping of Current dHLT

Algorithm to Pub/Sub Components

  • Sequence of Steps

  • Tracker receives data from trigger stations

  • Calculates Region-of-Interest (ROI) in ST5 from trigger data

  • Sends message to ST5-ROI-Selector

  • Receives ST5 clusters from ROI

  • Calculates ROI in ST4 from trigger and ST5 data

  • Sends message to ST4-ROI-Selector

  • Receives ST4 clusters from ROI

  • Performs final tracking

Trigger

MT1

Tracker

Trigger

MT2

Raw Data

ST5

ClustFind

ST5

ST5 ROI

Selection

Raw Data

ST4

ClustFind

ST4

ST4 ROI

Selection

Straight lines: Normal framework (pub/sub) dataflow

Curved lines: Additional messages


How to marry the alice high level trigger dimuon tracking algorithm and the

Mapping of Current dHLT

Algorithm to Pub/Sub Components

  • Sequence of Steps

  • Tracker receives data from trigger stations

  • Calculates Region-of-Interest (ROI) in ST5 from trigger data

  • Sends message to ST5-ROI-Selector

  • Receives ST5 clusters from ROI

  • Calculates ROI in ST4 from trigger and ST5 data

  • Sends message to ST4-ROI-Selector

  • Receives ST4 clusters from ROI

  • Performs final tracking

  • Hands tracks to decision entity

Trigger

MT1

Tracker

Trigger

MT2

Raw Data

ST5

ClustFind

ST5

ST5 ROI

Selection

Raw Data

ST4

ClustFind

ST4

ST4 ROI

Selection

Straight lines: Normal framework (pub/sub) dataflow

Curved lines: Additional messages


How to marry the alice high level trigger dimuon tracking algorithm and the

Mapping of Current dHLT

Algorithm to Pub/Sub Components

  • Problems

  • Asynchronous sending (relative to normal dataflow) not foreseen in framework

  • Difficulties receiving multiple time delayed (causally linked) blocks of data for the same event in one component

  • Latency delays

Trigger

MT1

Tracker

Trigger

MT2

ClustFind

ST5

ST5 ROI

Selection

Raw Data

ST5

ClustFind

ST4

ST4 ROI

Selection

Raw Data

ST4

Straight lines: Normal framework (pub/sub) dataflow

Curved lines: Additional messages

Dataflow components not shown

Distribution on multiple nodes not shown


How to marry the alice high level trigger dimuon tracking algorithm and the

Adapted Mapping of Current

dHLT Algorithm to Components

Trigger

MT1

ST5 ROI

Calc

ST5 ROI

Selection

ST5

Tracker

ST4 ROI

Calc

ST4 ROI

Selection

ST4

Tracker

Trigger

MT2

Raw Data

ST5

ClustFind

ST5

Raw Data

ST4

ClustFind

ST4

  • Possible Solution:

  • No asynchronous message sending

  • All data flow is in framework

  • No additional latency delay and induced idle times

  • Split up of algorithm required

Dataflow components not shown

Distribution on multiple nodes not shown


How to marry the alice high level trigger dimuon tracking algorithm and the

Adapted Mapping of Current

dHLT Algorithm to Components

ST5 ROI

Calc 1/3

ST5 ROI

Selection

ST5

Tracker

ST4 ROI

Calc

ST4 ROI

Selection

ST4

Tracker

Trigger

MT1

ST5 ROI

Calc 2/3

ST5 ROI

Selection

ST5

Tracker

ST4 ROI

Calc

ST4 ROI

Selection

ST4

Tracker

Trigger

MT2

ST5 ROI

Calc 3/3

ST5 ROI

Selection

ST5

Tracker

ST4 ROI

Calc

ST4 ROI

Selection

ST4

Tracker

Raw Data

ST5

ClustFind

ST5

Raw Data

ST4

ClustFind

ST4

Possible configuration with some load balancing

Dataflow components not shown


How to marry the alice high level trigger dimuon tracking algorithm and the

Trivial Mapping of Current

dHLT Algorithm to Components

Trigger

MT1

Trigger

MT2

  • Very monolithic approach

  • No splitting up of tracking algorithm

  • But, no fine grained distribution of steps

  • Possibly higher latency (One event is processed fully sequentially, on one single node), requiring larger buffers in front ends

ClustFind

ST5

Global

Tracker

ClustFind

ST4

Raw Data

ST5

ClustFind

ST5

Global

Tracker

ClustFind

ST4

Raw Data

ST4

ClustFind

ST5

Global

Tracker

ClustFind

ST4
