  1. Présentation des µC PIC http://www.microchip.com

  2. La famille des PIC

  3. PIC 10Fxxx

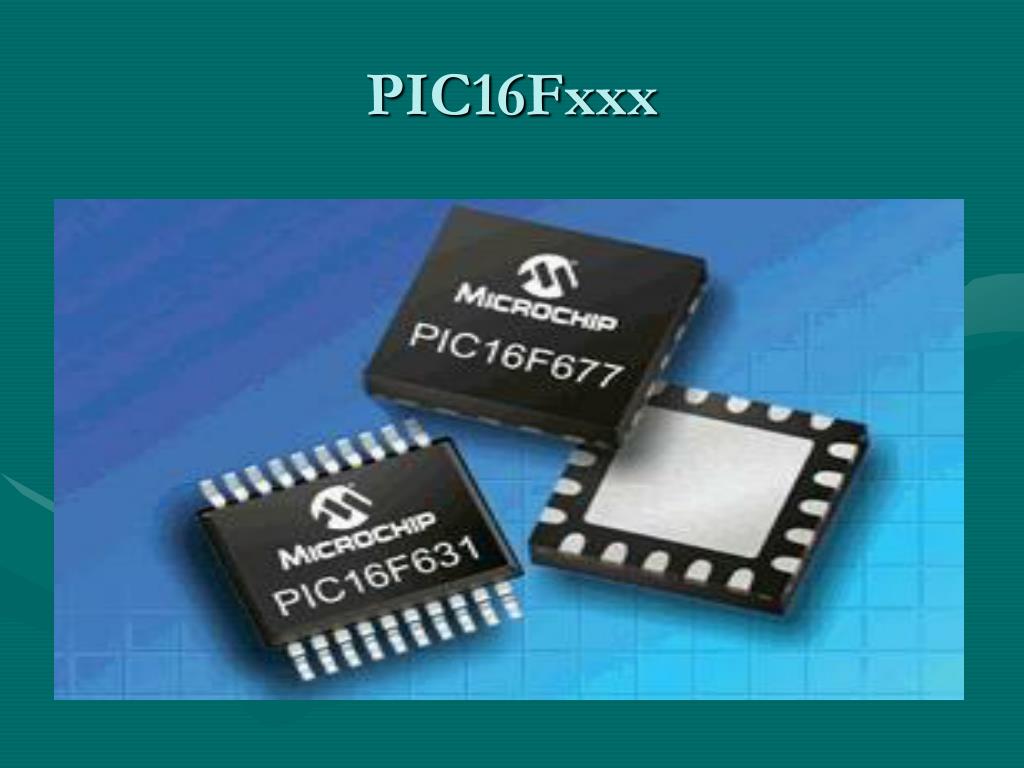

  4. PIC16Fxxx

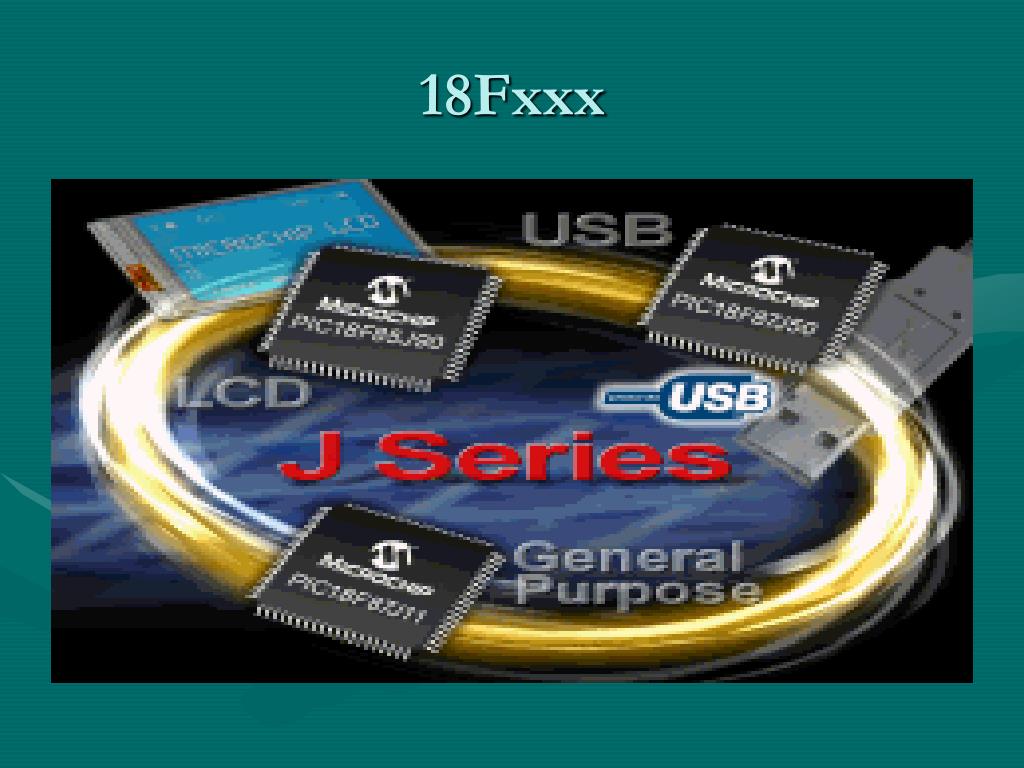

  5. 18Fxxx

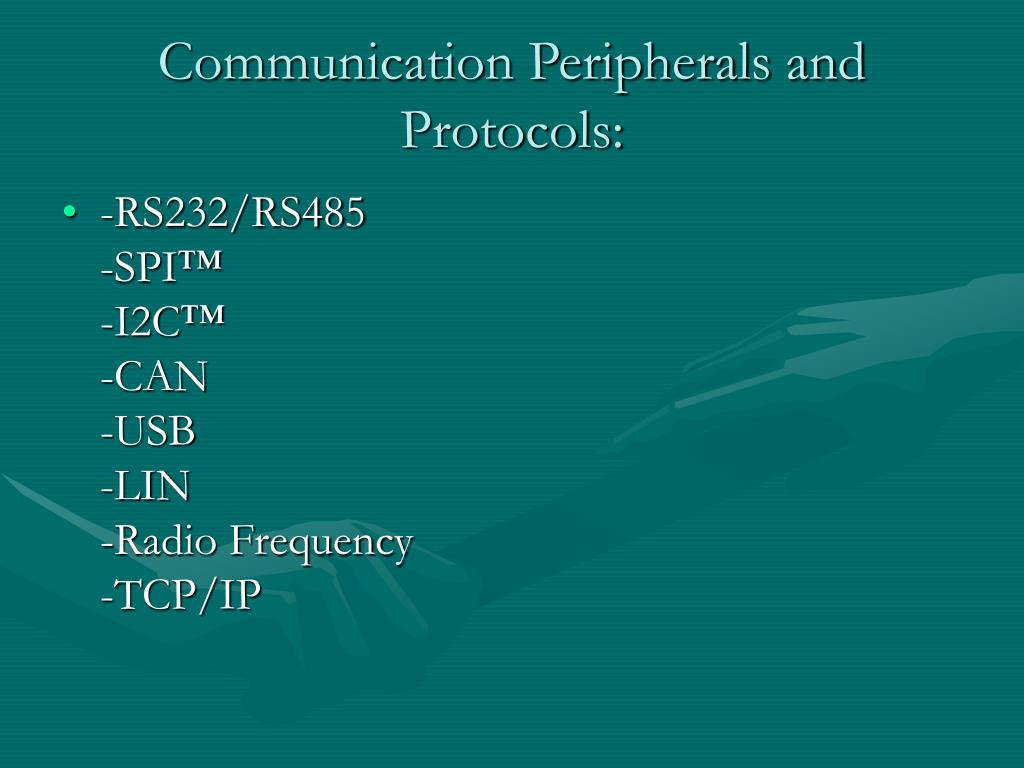

  6. Communication Peripherals and Protocols: • -RS232/RS485-SPI™-I2C™-CAN-USB-LIN-Radio Frequency-TCP/IP

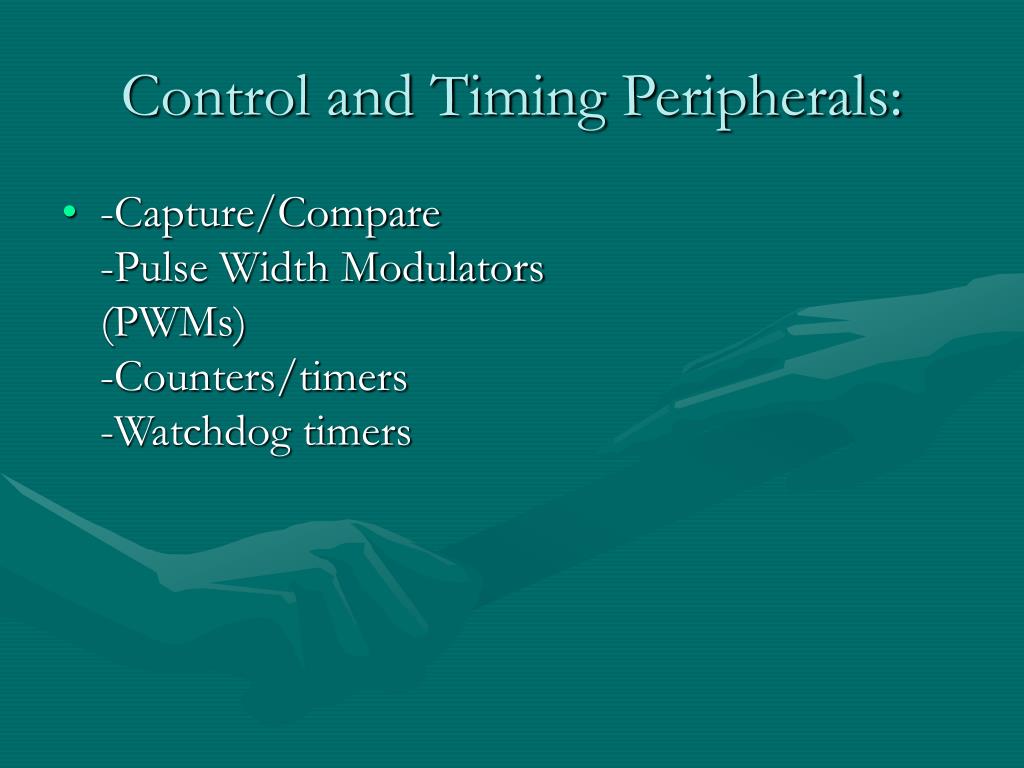

  7. Control and Timing Peripherals: • -Capture/Compare-Pulse Width Modulators (PWMs)-Counters/timers-Watchdog timers

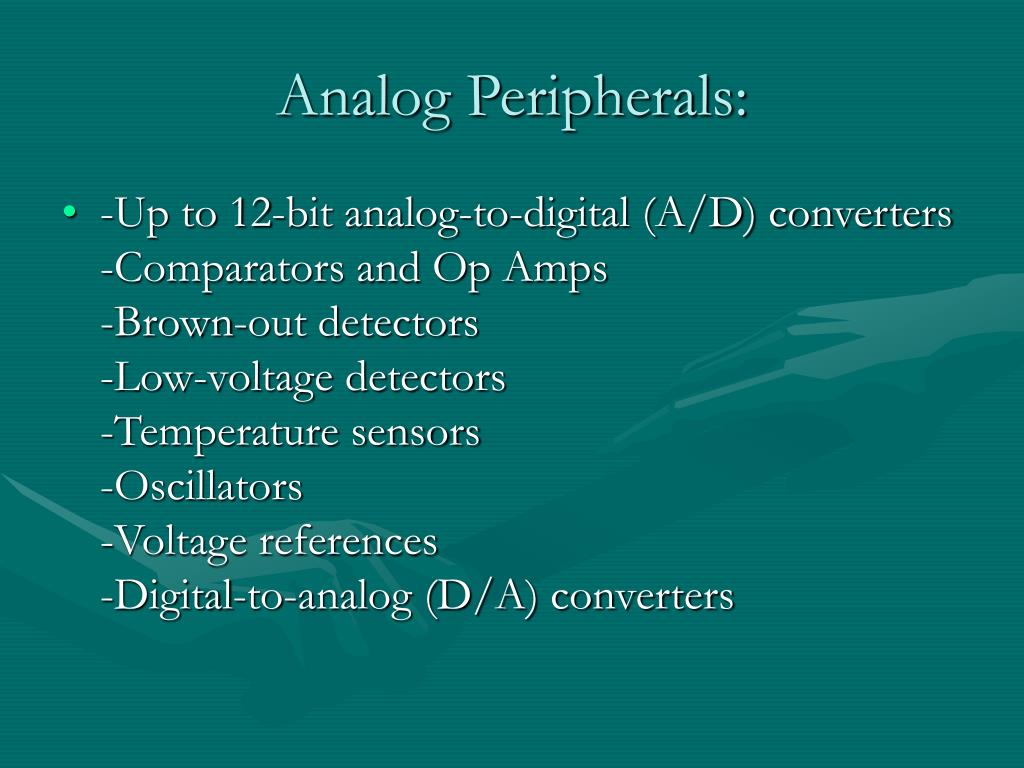

  8. Analog Peripherals: • -Up to 12-bit analog-to-digital (A/D) converters-Comparators and Op Amps-Brown-out detectors-Low-voltage detectors-Temperature sensors-Oscillators-Voltage references-Digital-to-analog (D/A) converters

  9. Architecture du PIC 10F200

  10. Architecture du PIC 16F

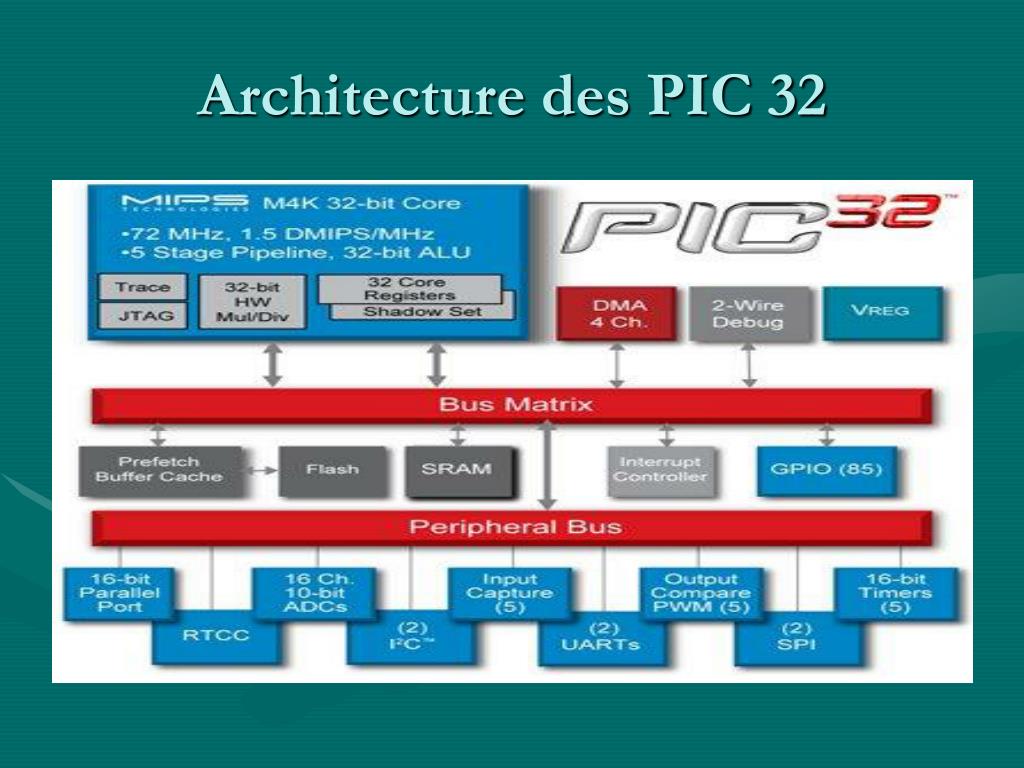

  11. Architecture des PIC 32

  12. Outils de développement • MPLAB IDE (microchip)

  13. Les programmateurs • JDM (ICPROG) • PICKIT2 (microchip)
