  1. Data Stream Mining Tore Risch Dept. of information technology Uppsala University Sweden 2014-05-14

  2. New applications • Data comes as huge data streams, e.g.: • Satellite data • Scientific instruments, e.g. colliders • Social networks • Stock data • Process industry • Traffic control • Patient monitoring

  3. Enormous data growth • Readlandmark article in Economist 2010-02-27: http://www.economist.com/node/15557443/ • The traditional Moore’s law: • Processor speed doubles every 1.5 years • Current data growth rate significantly higher • Data grows 10-fold every 5 year, which about the same as Moore’s law • Major opportunities: • spot business trends • prevent diseases • combat crime • scientific discoveries, the 4th paradigm (http://research.microsoft.com/en-us/collaboration/fourthparadigm/) • data-centered economy • Major challenges: • Information overload • Scalable data processing, ‘Bigdata management’ • Data security • Data privacy

  4. Too much data to store on disk • Need to mine streaming data

  5. Mining a swift data river Cover, Economist 14 pages thematic issue 2010-02-27

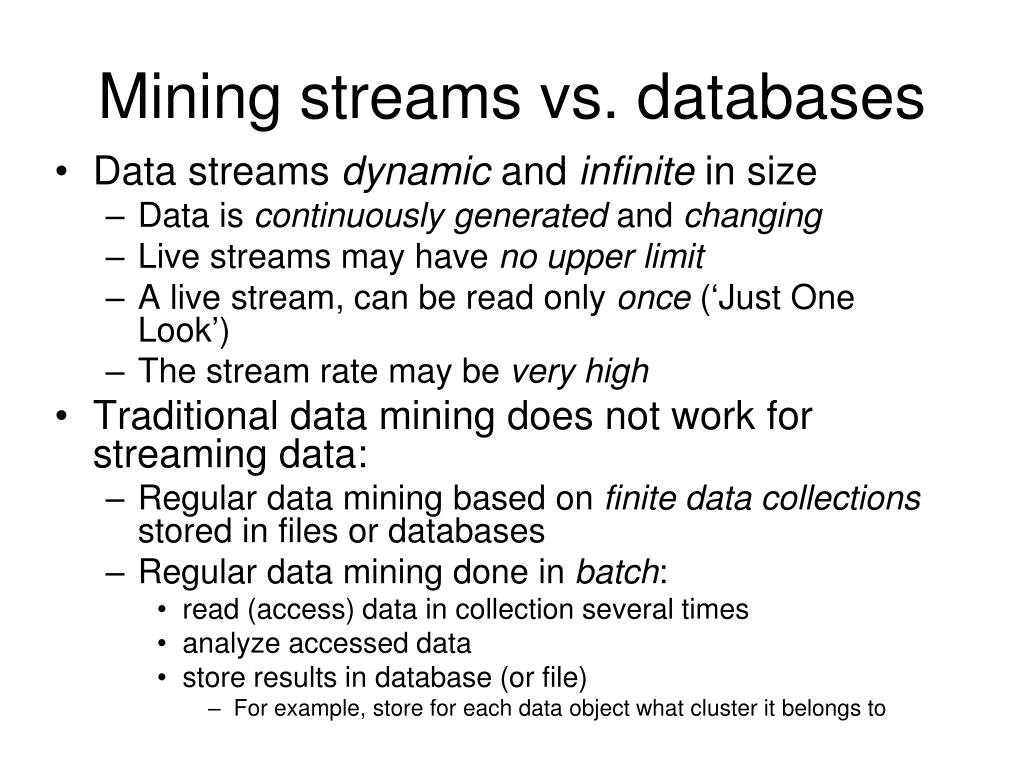

  6. Mining streams vs. databases • Data streams dynamic and infinite in size • Data is continuously generated and changing • Live streams may have no upper limit • A live stream, can be read only once (‘Just One Look’) • The stream rate may be very high • Traditional data mining does not work for streaming data: • Regular data mining based on finite data collections stored in files or databases • Regular data mining done in batch: • read (access) data in collection several times • analyze accessed data • store results in database (or file) • For example, store for each data object what cluster it belongs to

  7. Data stream mining vs. traditional data mining • Live streams grow continuously • The system cannot read streams many times as with traditional data mining • Live streams mining must be done on-line • Not traditional batch processing • Live streams require main memory processing • To keep up with very high data flow rates (speed) • Live streams must be mined with limited memory • Not load-and-analyze as traditional data mining • Iterative processing of statistics • Live streams must keep up with very high data flow volumes • Approximate mining algorithms • Parallel on-line computations

  8. Streams vs. regular data • Data stream mining requires iterative aggregation: • Read data tuples iteratively from input stream(s) • E.g. measured values • Do not store read data in database • Analyze read tuples incrementally • Keep partial results in main memory • E.g. sum and count • Continuosly emit incremental analyzed resuls • E.g. running average by dividing sum with count • Result of data stream mining is derived stream • Continuously produced by emit • Can be stored as continuously changing database

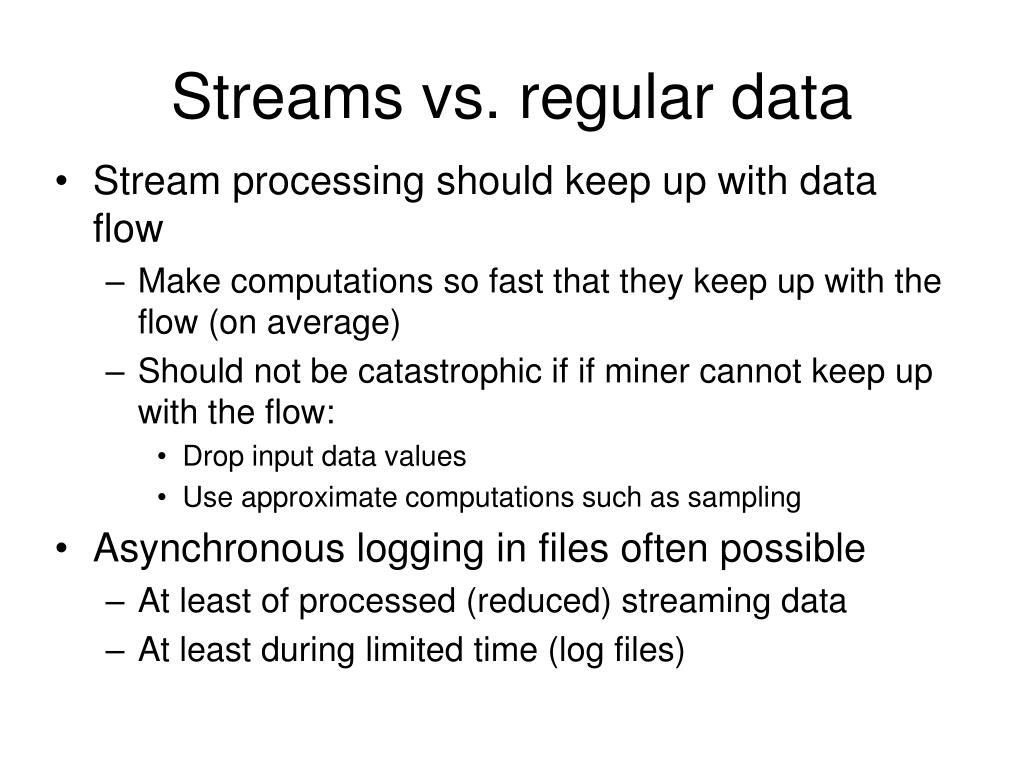

  9. Streams vs. regular data • Stream processing should keep up with data flow • Make computations so fast that they keep up with the flow (on average) • Should not be catastrophic if if miner cannot keep up with the flow: • Drop input data values • Use approximate computations such as sampling • Asynchronous logging in files often possible • At least of processed (reduced) streaming data • At least during limited time (log files)

  10. Requirements for Stream Mining • Single scan of data, • because of very large or infinite size of streams. • because it may be impossible or very expensive to reread the stream for the computation • Limited memory and CPU usage • because the processing should be done in main memory despite the very large stream volume • Compact continuously evolving representation of mined data • It is not possible to store the mined data in database as with traditional data mining • A compact main memory representation of mined data needed

  11. Requirements for Stream Mining • Allow for continuous evolution of mined data • Traditional batch mining static mined data • Continuous mining makes mined data into a stream too =>Concept drift • Often mining over different kinds of windows of streams • E.g. sliding or tumbling windows • Windows of limited size • Often only statistics summaries needed (synopses, sketches)

  12. Data Stream Management Systems (DSMS) • DataBase Management System (DBMS) • General purpose software to handle large volume persistent data (usually on disk) • Important tool for traditional datamining • Data Stream Management System (DSMS) • General purpose software to handle large volume data streams (often transient data) • Important tool for data stream mining

  13. SQL Queries Data Manager Data Base Management System DBMS Query Processor StoredData Meta – data

  14. Continuous Queries (CQs) Data streams Data streams Data & Stream Manager Data Stream Management System DSMS Query Processor StoredData Meta – data

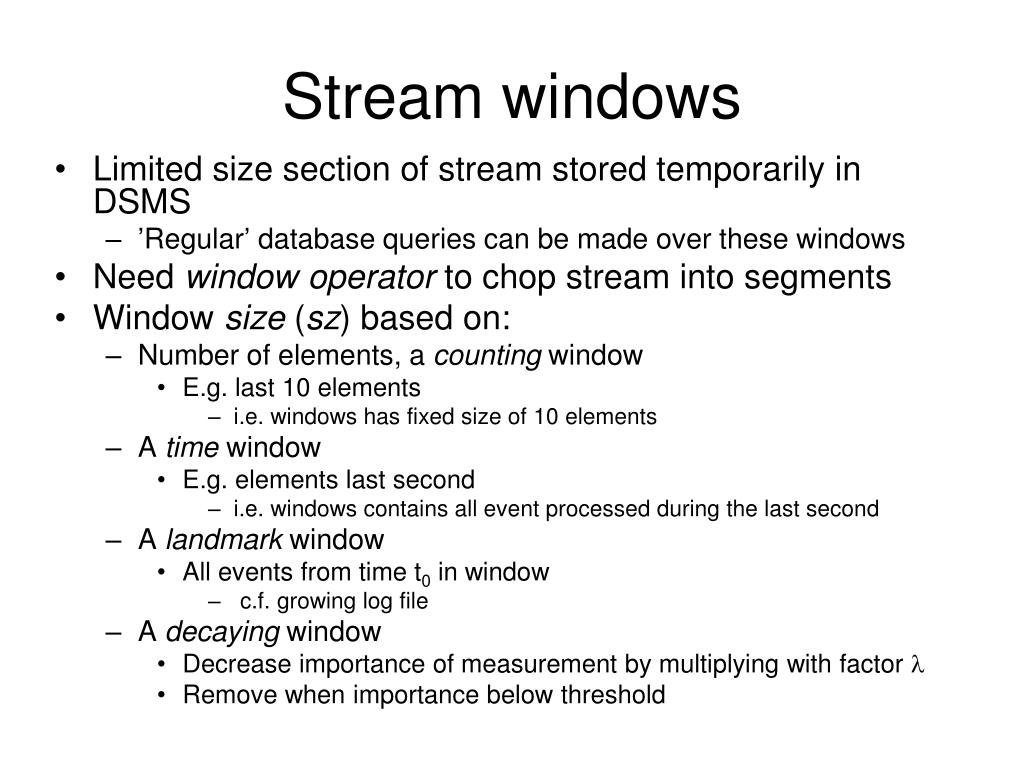

  15. Stream windows • Limited size section of stream stored temporarily in DSMS • ’Regular’ database queries can be made over these windows • Need window operator to chop stream into segments • Window size (sz) based on: • Number of elements, a counting window • E.g. last 10 elements • i.e. windows has fixed size of 10 elements • A time window • E.g. elements last second • i.e. windows contains all event processed during the last second • A landmark window • All events from time t0 in window • c.f. growing log file • A decaying window • Decrease importance of measurement by multiplying with factor l • Remove when importance below threshold

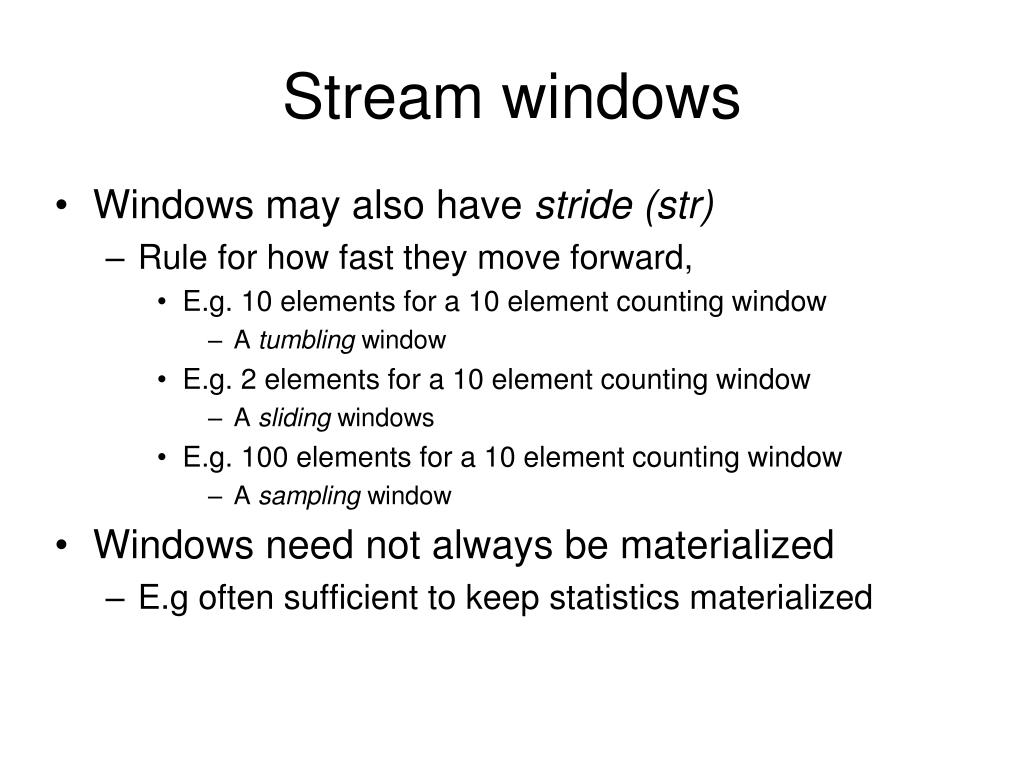

  16. Stream windows • Windows may also have stride (str) • Rule for how fast they move forward, • E.g. 10 elements for a 10 element counting window • A tumbling window • E.g. 2 elements for a 10 element counting window • A sliding windows • E.g. 100 elements for a 10 element counting window • A sampling window • Windows need not always be materialized • E.g often sufficient to keep statistics materialized

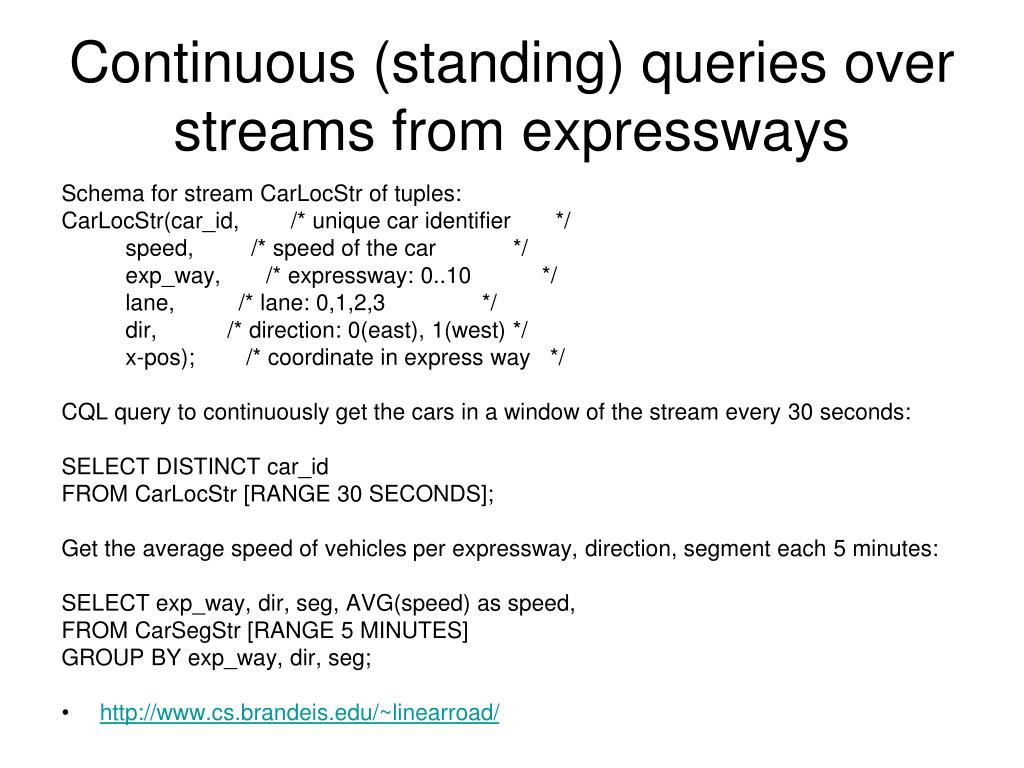

  17. Continuous (standing) queries over streams from expressways Schema for stream CarLocStr of tuples: CarLocStr(car_id, /* unique car identifier */ speed, /* speed of the car */ exp_way, /* expressway: 0..10 */ lane, /* lane: 0,1,2,3 */ dir, /* direction: 0(east), 1(west) */ x-pos); /* coordinate in express way */ CQL query to continuously get the cars in a window of the stream every 30 seconds: SELECT DISTINCT car_id FROM CarLocStr [RANGE 30 SECONDS]; Get the average speed of vehicles per expressway, direction, segment each 5 minutes: SELECT exp_way, dir, seg, AVG(speed) as speed, FROM CarSegStr [RANGE 5 MINUTES] GROUP BY exp_way, dir, seg; • http://www.cs.brandeis.edu/~linearroad/

  18. Denstream • Streamed DBScan • Published: 2006 SIAM Conf. on Data Mining (http://user.it.uu.se/~torer/DenStream.pdf) • Regular DBScan: • DBScan saves cluster memberships of static database per member object in database by scanning database looking for pairs of objects close to each other • Database accessed many times • For scalable processing a spatial index must be used to index points in hyperspace and answer nearest-neighbor queries

  19. Denstream • Denstream • One pass processing • Limited memory • Evolving clustering => not static cluster membership • Indefinite stream => store cluster memberships not stored in database • No assumption of number of clusters • clusters fade in and fade out • Clusters of arbitrary shape allowed • Good at handling outliers

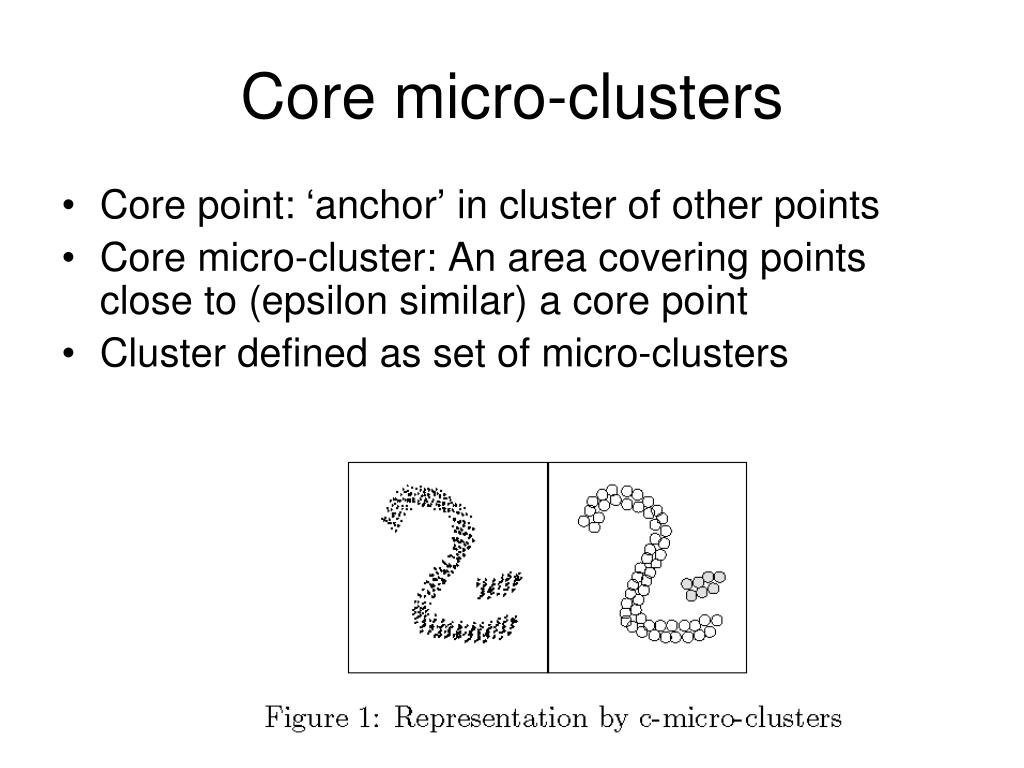

  20. Core micro-clusters • Core point: ‘anchor’ in cluster of other points • Core micro-cluster: An area covering points close to (epsilon similar) a core point • Cluster defined as set of micro-clusters

  21. Potential micro-clusters • Outlier o-micro-cluster • New point not included in any micro-cluster • Potential p-micro-cluster • Several clustered points not large enough to form a micro-cluster • When new data point arrives: • Try to merge with nearest p-micro-cluster • Try to merge with nearest o-micro-cluster • If so convert o-micro-cluster to p-micro-cluster • Otherwise make new o-micro-cluster

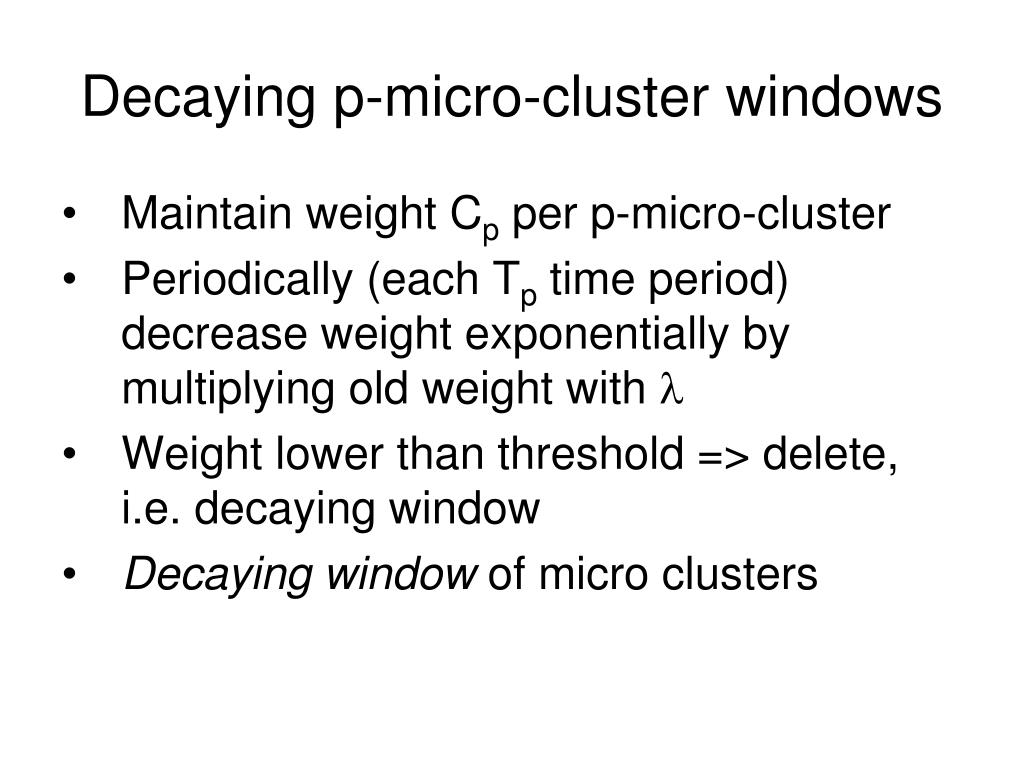

  22. Decaying p-micro-cluster windows • Maintain weight Cp per p-micro-cluster • Periodically (each Tp time period) decrease weight exponentially by multiplying old weight with l • Weight lower than threshold => delete, i.e. decaying window • Decaying window of micro clusters

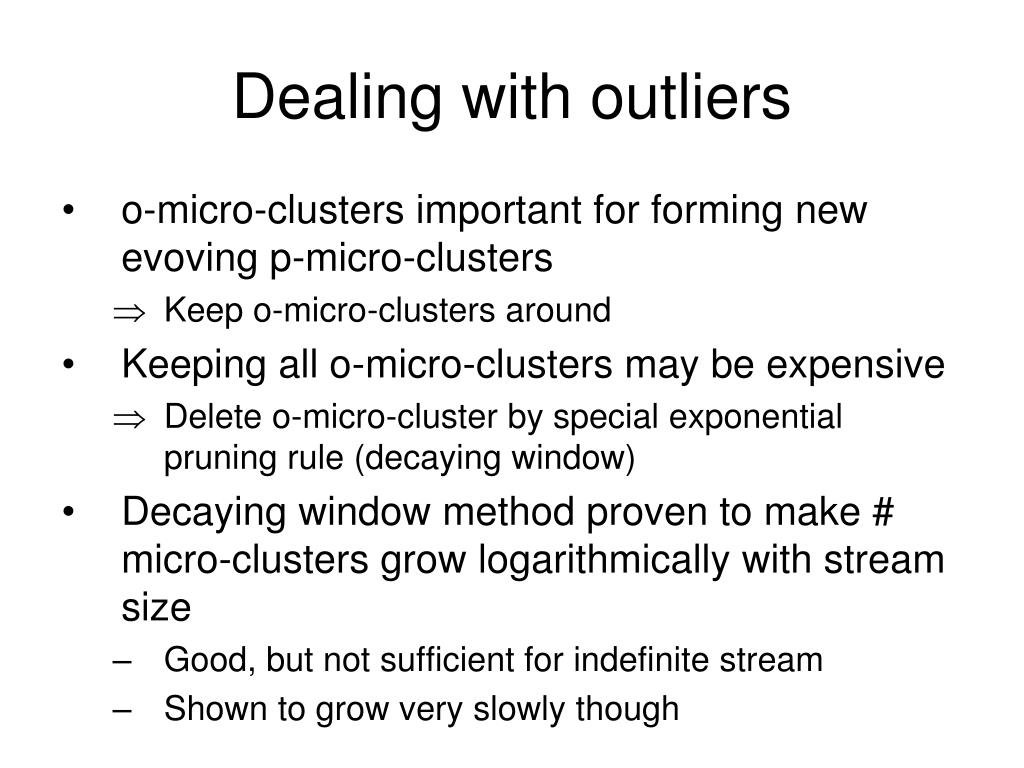

  23. Dealing with outliers • o-micro-clusters important for forming new evoving p-micro-clusters • Keep o-micro-clusters around • Keeping all o-micro-clusters may be expensive • Delete o-micro-cluster by special exponential pruning rule (decaying window) • Decaying window method proven to make # micro-clusters grow logarithmically with stream size • Good, but not sufficient for indefinite stream • Shown to grow very slowly though

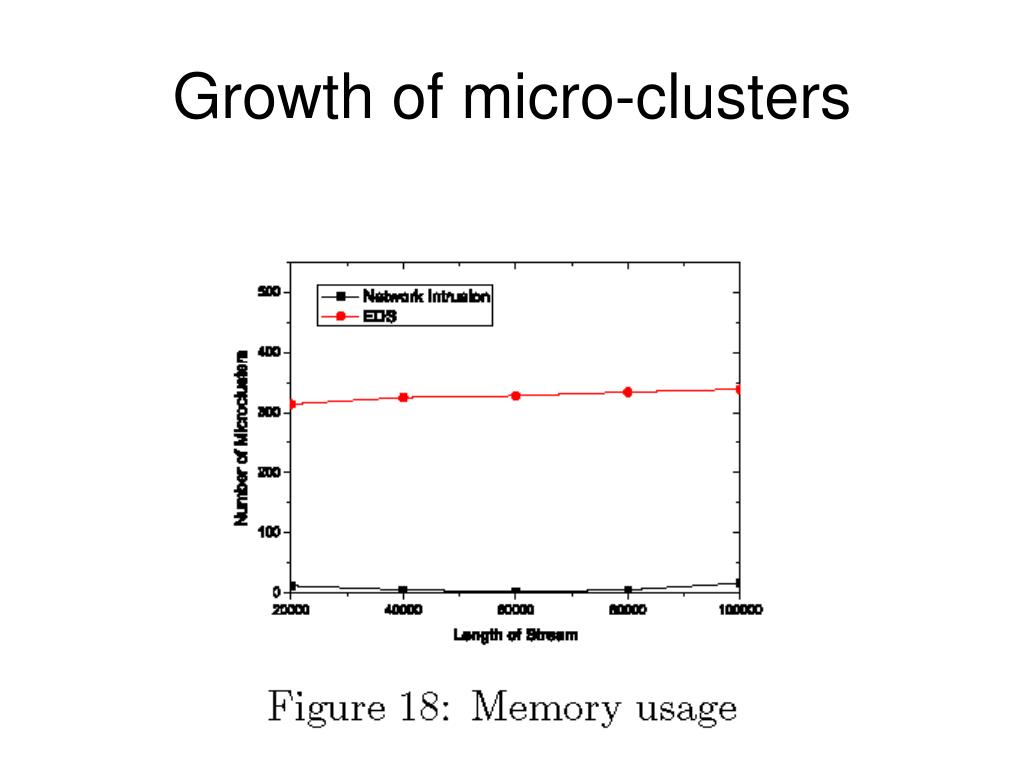

  24. Growth of micro-clusters

  25. Forming c-micro-cluster sets • Regularly (e.g. each time period) the user demands forming current c-micro-clusters from the current p-micro-clusters • Done by running regular DBSCAN over the p-micro-clusters • Center of each p-micro-cluster regarded as point • Close when p-micro-clusters intersect => Clusters formed

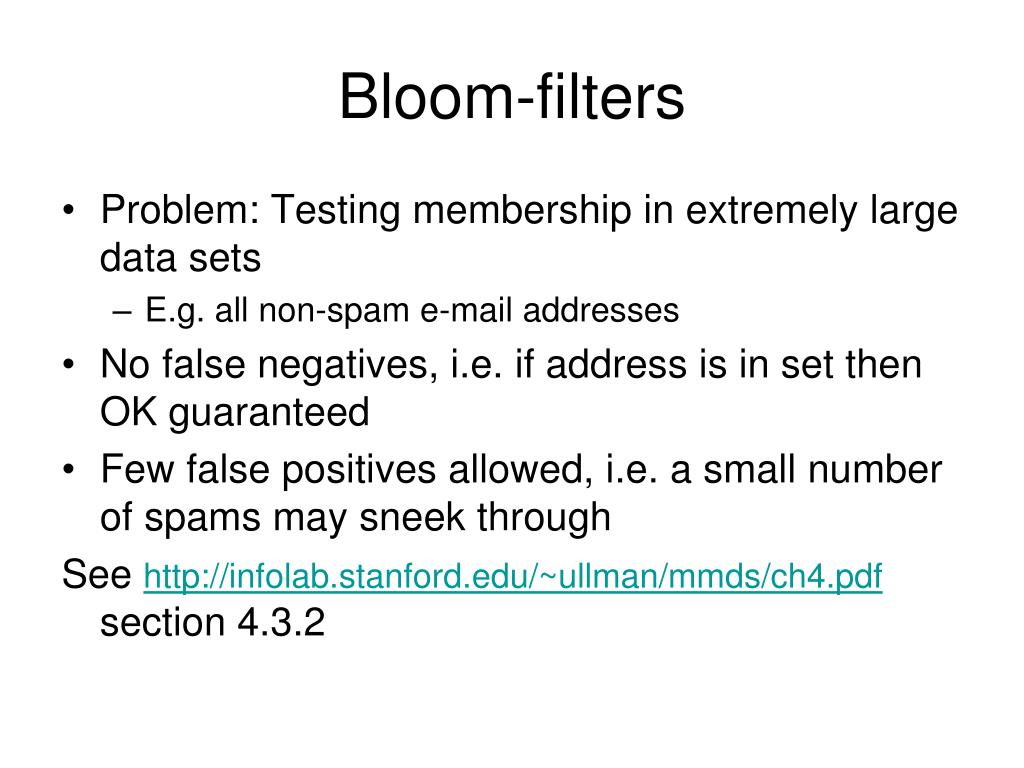

  26. Bloom-filters • Problem: Testing membership in extremely large data sets • E.g. all non-spam e-mail addresses • No false negatives, i.e. if address is in set then OK guaranteed • Few false positives allowed, i.e. a small number of spams may sneek through See http://infolab.stanford.edu/~ullman/mmds/ch4.pdf section 4.3.2

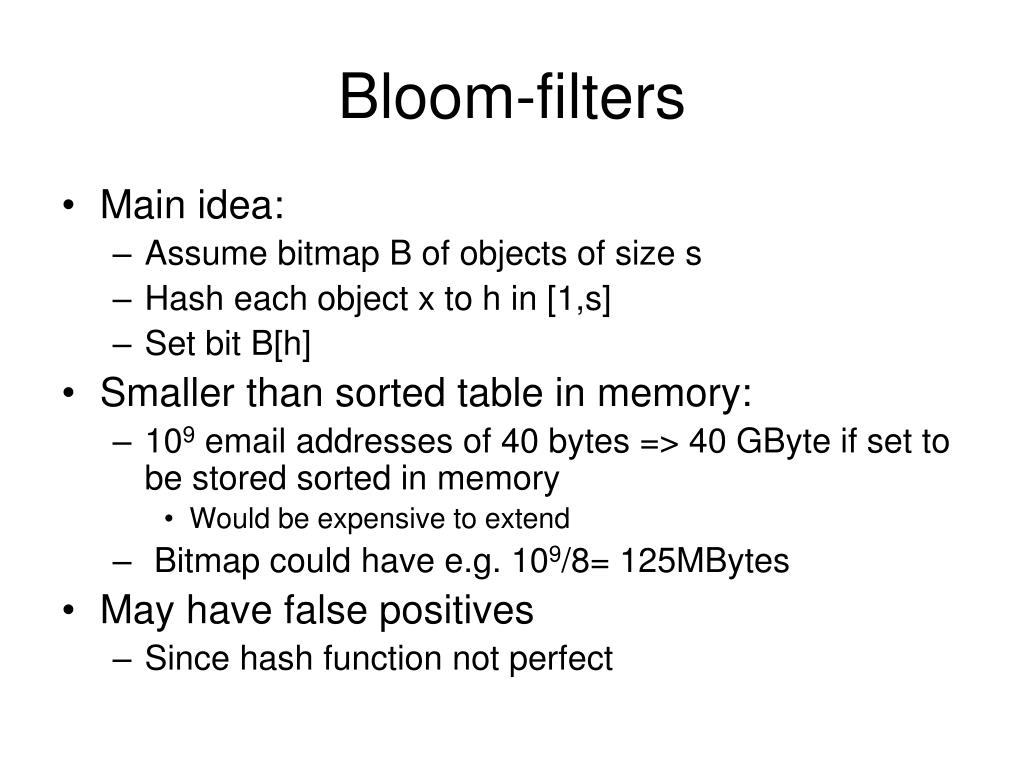

  27. Bloom-filters • Main idea: • Assume bitmap B of objects of size s • Hash each object x to h in [1,s] • Set bit B[h] • Smaller than sorted table in memory: • 109 email addresses of 40 bytes => 40 GByte if set to be stored sorted in memory • Would be expensive to extend • Bitmap could have e.g. 109/8= 125MBytes • May have false positives • Since hash function not perfect

  28. Lowering false positives • Small bitmap => many false positives • Idea, hash with several independent hash functions h1(x), h2(x) and set bits correspondingly (logical OR) • For each new x check that all hi(x) are set • If so => match • Chance of false positives decrease exponentially with number of hi • Assumes independent hi(x) • hi(x) and hj(x) no common factors if i ≠ j

  29. Books • Anand Rajaraman & J.Ullman: Mining of Massive Datasetshttp://infolab.stanford.edu/~ullman/mmds.html • L. Golab and T. Özsu: Issues in Stream Data Management, SIGMOD Records, 32(2), June 2003, http://www.acm.org/sigmod/record/issues/0306/1.golab-ozsu1.pdf
