Presentation Transcript

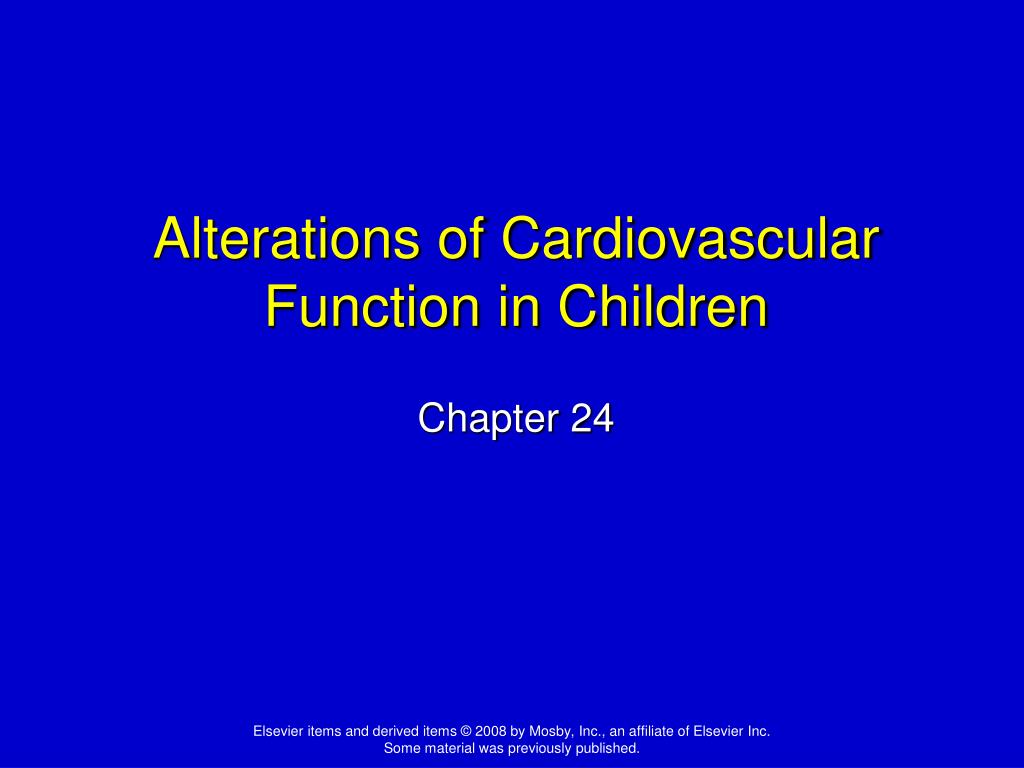

Alterations of cardiovascular function in children

Alterations of Cardiovascular Function in Children

Chapter 24


Congenital heart defects

Congenital Heart Defects

  • Major cause of death in the first year of life other than prematurity

  • Prenatal, environmental, and genetic risk factors

    • Maternal rubella, type 1 diabetes, alcoholism, PKU, and hypercalcemia

    • Drugs

    • Chromosome aberrations


Congenital heart disease

Congenital Heart Disease

  • Heart defects

  • Hemodynamic alterations

    • Right-to-left shunt, left-to-right shunt

  • Status of tissue oxygenation

    • Cyanotic defects

    • Acyanotic defects


Obstructive defects

Obstructive Defects

  • Coarctation of the aorta

    • Narrowing of the lumen of the aorta that impedes blood flow

    • Coarctation of the aorta is almost always in a juxtaductal position, but it can occur anywhere between the origin of the aortic arch and the bifurcation of the aorta in the lower abdomen


Coarctation of the aorta

Coarctation of the Aorta


Obstructive defects1

Obstructive Defects

  • Aortic stenosis

    • Narrowing of the aortic outflow tract

    • Caused by malformation or fusion of the cusps

    • Causes an increased workload on the left ventricle


Aortic stenosis

Aortic Stenosis


Obstructive defects2

Obstructive Defects

  • Valvular aortic stenosis

    • Malformed or fused cusps

    • Progressive obstruction with episodes of ischemia

    • Strenuous activity limited

  • Subvalvular aortic stenosis

    • Stricture caused by a fibrous ring below a valve

    • Konno procedure used to correct


Obstructive defects3

Obstructive Defects

  • Pulmonic stenosis

    • Narrowing of the pulmonary outflow tract

    • Abnormal thickening of the valve leaflets

    • Narrowing of the valve

    • Pulmonary semilunar valve atresia


Pulmonic stenosis

Pulmonic Stenosis


Defects increasing pulmonary blood flow

Defects Increasing Pulmonary Blood Flow

  • Patent ductus arteriosus (PDA)

    • Failure of the ductus arteriosus to close

    • PDA allows blood to shunt from the pulmonary artery to the aorta


Patent ductus arteriosus pda

Patent Ductus Arteriosus (PDA)


Defects increasing pulmonary blood flow1

Defects Increasing Pulmonary Blood Flow

  • Atrial septal defect

    • Abnormal opening between the atria

    • Three major types

      • Ostium primum defect

      • Ostium secundum defect

      • Sinus venosus defect


Defects increasing pulmonary blood flow2

Defects Increasing Pulmonary Blood Flow

  • Ventricular septal defect (VSD)

    • Abnormal communication between the ventricles

    • Most common type of congenital heart lesion

    • Types

      • Perimembranous VSD

      • Muscular VSD

    • Eisenmenger syndrome


Defects increasing pulmonary blood flow3

Defects Increasing Pulmonary Blood Flow

  • Atrioventricular canal defect (AVC)

    • Results from nonfusion of the endocardial cushions

    • Demonstrates abnormalities in the atrial and ventricular septa and atrioventricular valves

    • Complete, partial, and transitional AVCs


Atrioventricular canal defect

Atrioventricular Canal Defect


Defects decreasing pulmonary blood flow

Defects Decreasing Pulmonary Blood Flow

  • Tetralogy of Fallot

    • Syndrome represented by four defects

      • Ventricular septal defect (VSD)

      • Overriding aorta

      • Pulmonary valve stenosis

      • Right ventricle hypertrophy


Tetralogy of fallot

Tetralogy of Fallot


Defects decreasing pulmonary blood flow1

Defects Decreasing Pulmonary Blood Flow

  • Tricuspid atresia

    • Imperforate tricuspid valve

    • Lack of communication between the right atrium and right ventricle

    • Additional defects

      • Septal defect

      • Hypoplastic or absent right ventricle

      • Enlarged mitral valve and left ventricle

      • Pulmonic stenosis


Tricuspid atresia

Tricuspid Atresia


Mixed defects

Mixed Defects

  • Transposition of the great arteries

    • Aorta arises from the right ventricle and the pulmonary artery arises from the left ventricle


Mixed defects1

Mixed Defects

  • Transposition of the great arteries

    • Results in two separate, parallel circuits

      • Unoxygenated blood circulates continuously through the systemic circulation

      • Oxygenated blood circulates continuously through the pulmonary circulation

    • Extrauterine survival requires communication between the two circuits


Transposition of the great arteries

Transposition of the Great Arteries


Mixed defects2

Mixed Defects

  • Total anomalous pulmonary venous connection (TAPVC)

    • Pulmonary veins connect to the right side of the heart, directly or indirectly through one or more systemic veins that drain into the right atrium

    • Classified by point of attachment

      • Supracardiac

      • Cardiac

      • Infracardiac


Total anomalous pulmonary venous connection tapvc

Total Anomalous Pulmonary Venous Connection (TAPVC)


Mixed defects3

Mixed Defects

  • Truncus arteriosus

    • Failure of the embryonic artery and the truncus arteriosus to divide into the pulmonary artery and the aorta

    • The trunk straddles an always present VSD

    • Types I, II, and III


Truncus arteriosus

Truncus Arteriosus


Obstructive defects4

Obstructive Defects

  • Hypoplastic left heart syndrome

    • Abnormal development of the left-sided cardiac structures

      • Obstruction to blood flow from the left ventricular outflow tract

    • Under development of the left ventricle, aorta and aortic arch, and mitral atresia or stenosis


Hypoplastic left heart syndrome

Hypoplastic Left Heart Syndrome


Congestive heart failure

Congestive Heart Failure

  • Heart is not able to maintain cardiac output at level that meets demands of body

  • Result from poor ventricular function


Acquired cardiovascular disorders

Acquired Cardiovascular Disorders

  • Kawasaki disease

    • Also known as mucocutaneous lymph node syndrome

    • Acute, self-limiting systemic vasculitis that may result in cardiac sequelae


Kawasaki disease

Kawasaki Disease

  • Stages

    • Acute: capillaries, venules, arterioles, and the heart become inflamed

    • Subacute: inflammation of larger vessels; coronary aneurysms appear

    • Convalescent: medium-sized arteries begin granulation process; small vessel inflammation decreases


Kawasaki disease1

Kawasaki Disease

  • Stages

    • Post convalescent: scarring of vessels, thickening of tunica intima, calcification, coronary artery stenosis


Kawasaki disease2

Kawasaki Disease

  • Diagnosis (5 of 6 major findings)

    • Fever for 5 or more days (unresponsive to antibiotics)

    • Bilateral conjunctivitis without exudation

    • Erythema of oral mucosa (strawberry tongue)


Kawasaki disease3

Kawasaki Disease

  • Diagnosis (5 of 6 major findings)

    • Changes in the extremities, such as peripheral edema and erythema with desquamation of palms and soles

    • Polymorphous rash

    • Cervical lymphadenopathy


Acquired cardiovascular disorders1

Acquired Cardiovascular Disorders

  • Systemic hypertension

    • Hypertension in children differs from adult hypertension

      • Often have an underlying disease

        • Renal disease or coarctation of the aorta

      • A cause of the hypertension in children is almost always found

      • Children with hypertension are commonly asymptomatic


Acquired cardiovascular disorders2

Acquired Cardiovascular Disorders

  • Childhood obesity

    • Multivariable and multidimensional

    • Risk factors

      • Obesity, insulin resistance, diabetes, cardiovascular disease

      • Childhood nutrition, level of physical activity, and engagement of sedentary activities (TV, computer use, etc.)

    • Association with parental obesity
