Presentation Transcript
Wpf mvvm training

WPF MVVM Training

Michael Sync (Silverlight MVP)


Adopting the mvvm pattern with wpf
Adopting the MVVM pattern with WPF

  • Understanding MVVM

  • Motivation and benefits

  • Implementing the pattern

  • Dependency Injection and IoC

  • Unit Test and Mock

  • Supporting libraries and frameworks


What s mvvm
What's MVVM?

  • is an architectural pattern created by John Gossman from WPF team

  • is a variation of MVC pattern

  • is similar to Martin Fowler’s PresentationModel pattern

  • WPF Data Binding & Commanding


Motivation and benefits
Motivation and benefits

  • Testabiltiy ( ViewModelis easier to unit test than code-behind or event driven code)

  • Clearseperationbetween UX designer and developer

  • Increases the "Blendability" of your view

  • Model never needs to be changed to support changes to the view

  • ViewModel rarely needs to be changed to support changes to the view

  • No duplicated code to update views


MVVM

  • View knows ViewModel

  • ViewModelknows Models

  • But not vice versa.

View

ViewModel

Model


View

  • represents the user interface that the user will see.

  • can be a user control or Data Template

  • shouldn't contain any logic that you want to test

  • Keep the view as simple as possible.

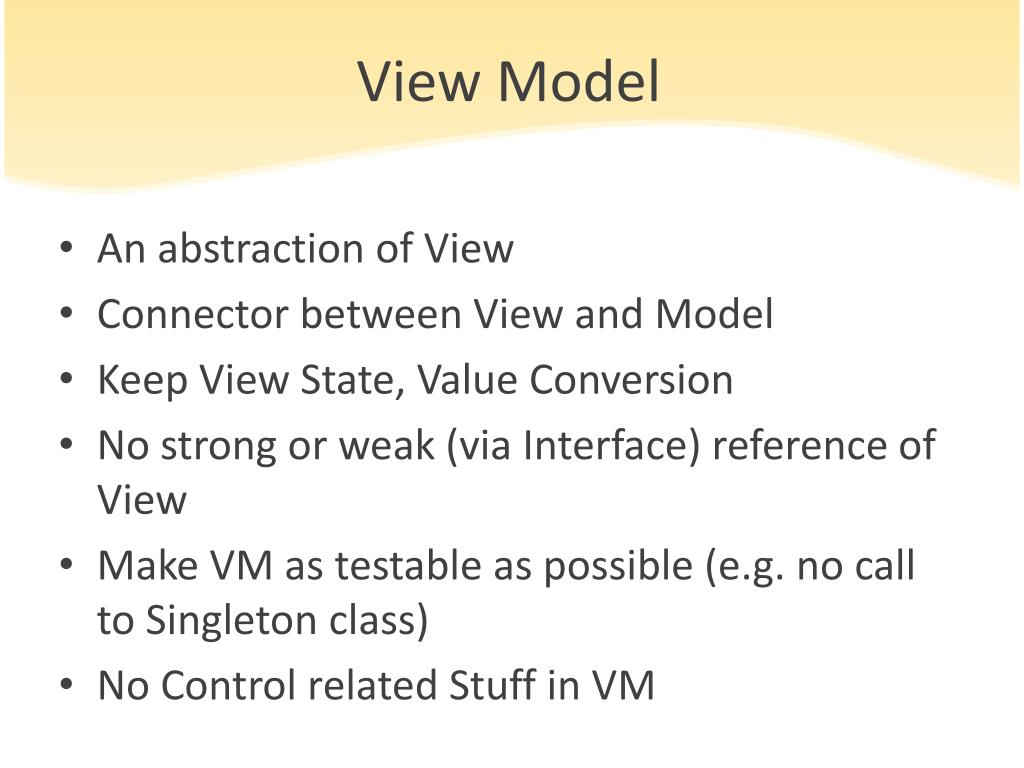

View model
View Model

  • An abstraction of View

  • Connector between View and Model

  • Keep View State, Value Conversion

  • No strong or weak (via Interface) reference of View

  • Make VM as testable as possible (e.g. no call to Singleton class)

  • No Control related Stuff in VM


Model
Model

  • can be Data Model, DTO, POCO, auto-generated proxy of domain class and UI Model based on how you want to have the separation between Domain Service and Presentation Layer

  • No reference to ViewModel


Disadvantages of mvvm
Disadvantages of MVVM

  • lack of standardization so everyone has own favor

  • For simple UI, M-V-VM can be overkill


Implementing mvvm
Implementing MVVM

  • DEMO – Simple MVVM

  • DEMO – MVVM + Data Template

  • DEMO – DI + IoC

  • DEMO – BDD


Supporting libraries and frameworks
Supporting libraries and frameworks

  • WPF Team : MVVM Toolkit

  • MS Pattern and Practice Team : Composite WPF (Prism)

  • Josh Smith. "MVVM Foundation"

  • Sacha Barber. "Cinch."

  • Karl Shifflett. "Ocean"

  • Laurent Bugnion. "MVVM Light Toolkit"

  • Lester Lobo. "CoreMVVM"

  • Rob Eisenberg. "Caliburn"

  • William e Kempf. "Onyx"

  • Peter O’Hanlon. "GoldLight"

  • jbe. "WPF Application Framework (WAF)"

  • Paul Stovel : MacroModels
