  1. Data Flow Diagrams www.matthewxuereb.com/uni CIS1107/1207 www.matthewxuereb.com/uni

  2. A Basic DFD for a University Course Registration System[1/5] Level 0 (Context Diagram) www.matthewxuereb.com/uni

  3. A Basic DFD for a University Course Registration System [2/5] Level 1 www.matthewxuereb.com/uni

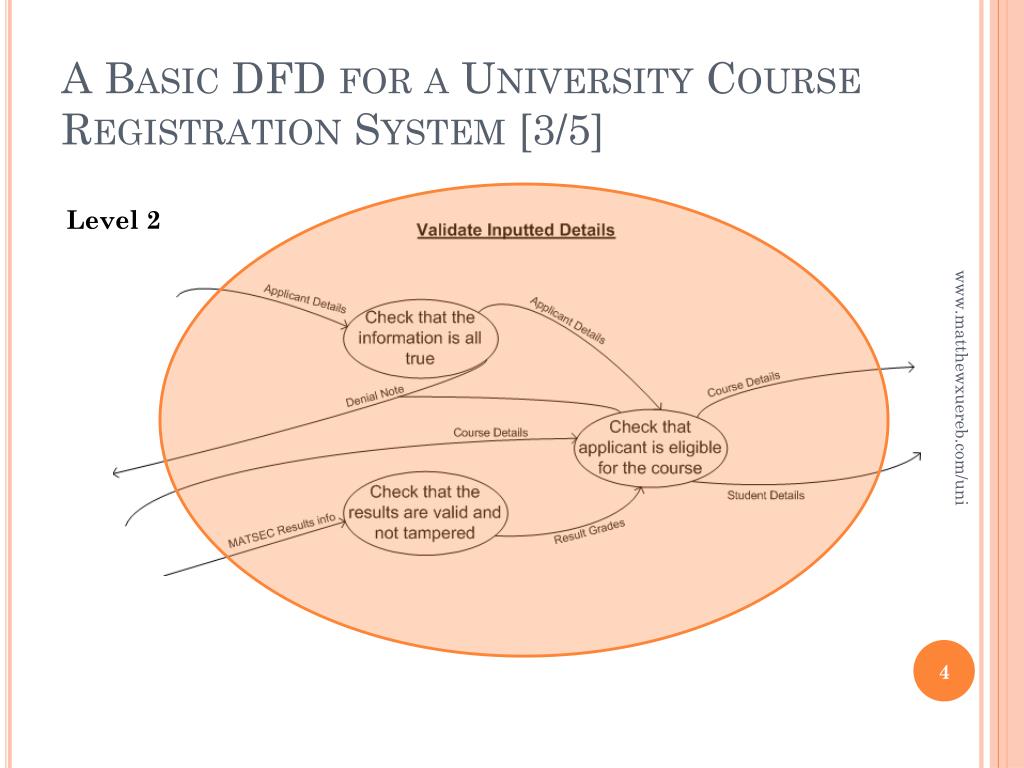

  4. A Basic DFD for a University Course Registration System [3/5] Level 2 www.matthewxuereb.com/uni

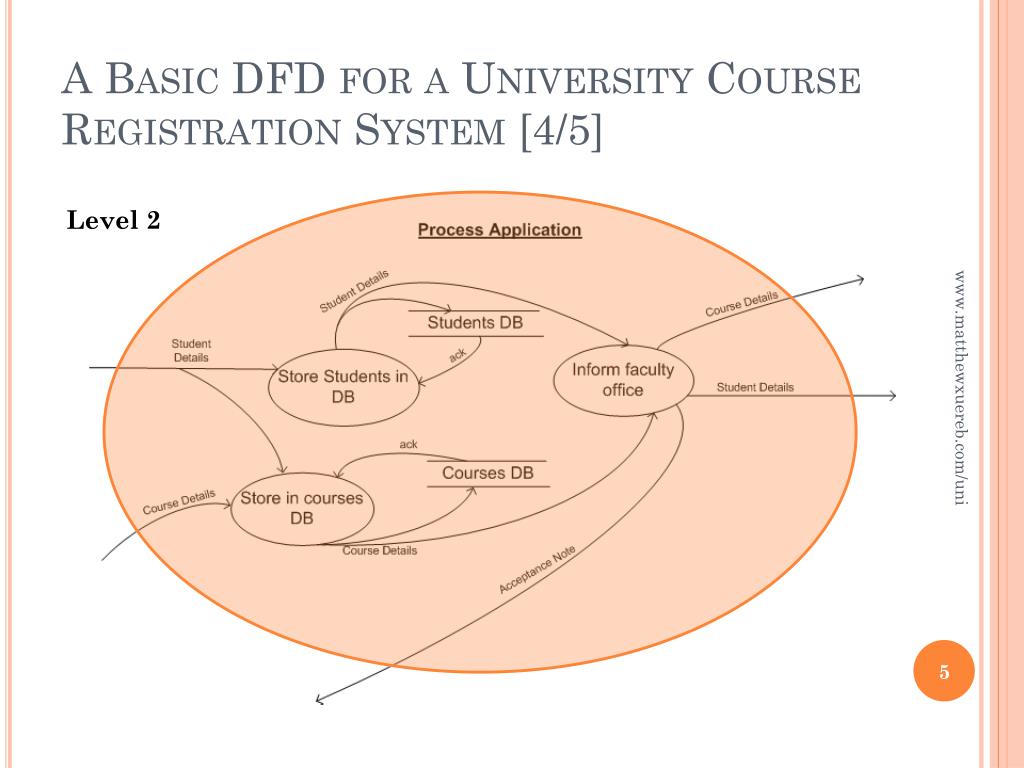

  5. A Basic DFD for a University Course Registration System [4/5] Level 2 www.matthewxuereb.com/uni

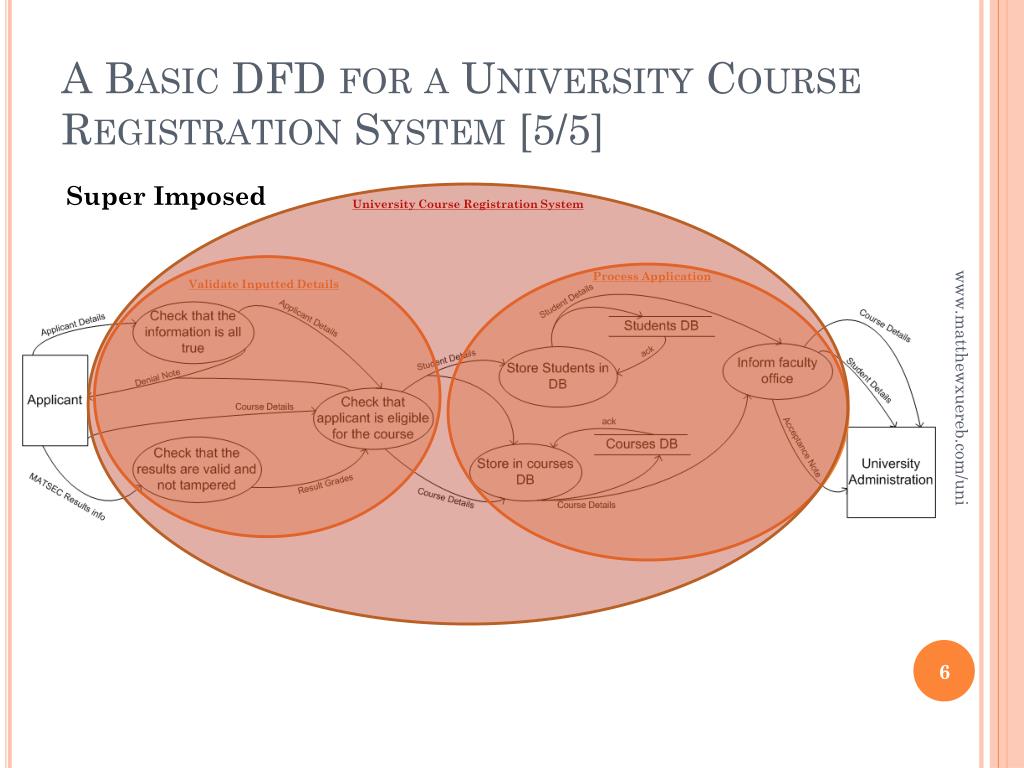

  6. A Basic DFD for a University Course Registration System [5/5] Super Imposed University Course Registration System Process Application Validate Inputted Details www.matthewxuereb.com/uni

  7. Example (Taken from 2005 past paper) Draw up a DFD of a very simple Maltese carnumber plate registration system storing registered number plates on a database. Your system should offer the following functionality: • Register (add) a number • Retire (delete) a previously registered number • Check number for validity • Check numbers for uniqueness against a database of assigned numbers • Confirm valid registration www.matthewxuereb.com/uni You should decompose your DFDs to whatever level youdeem necessary to produce PSPECs in any form of pseudo code you wish. All PSPECs must be shown.

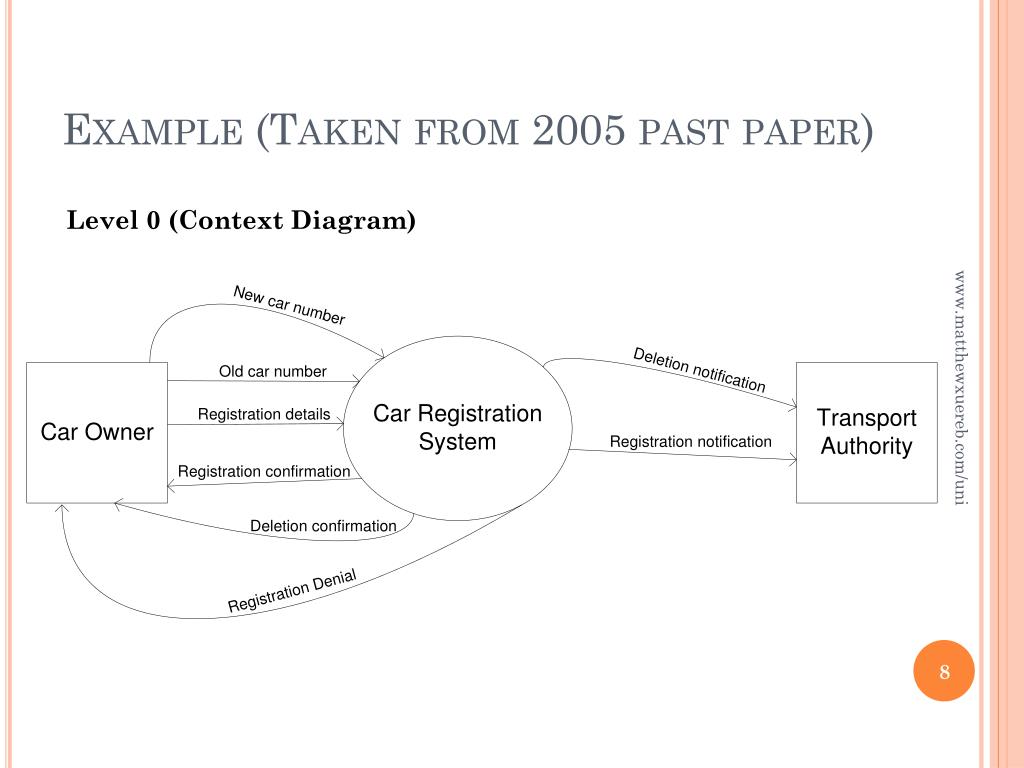

  8. Example (Taken from 2005 past paper) Level 0 (Context Diagram) www.matthewxuereb.com/uni

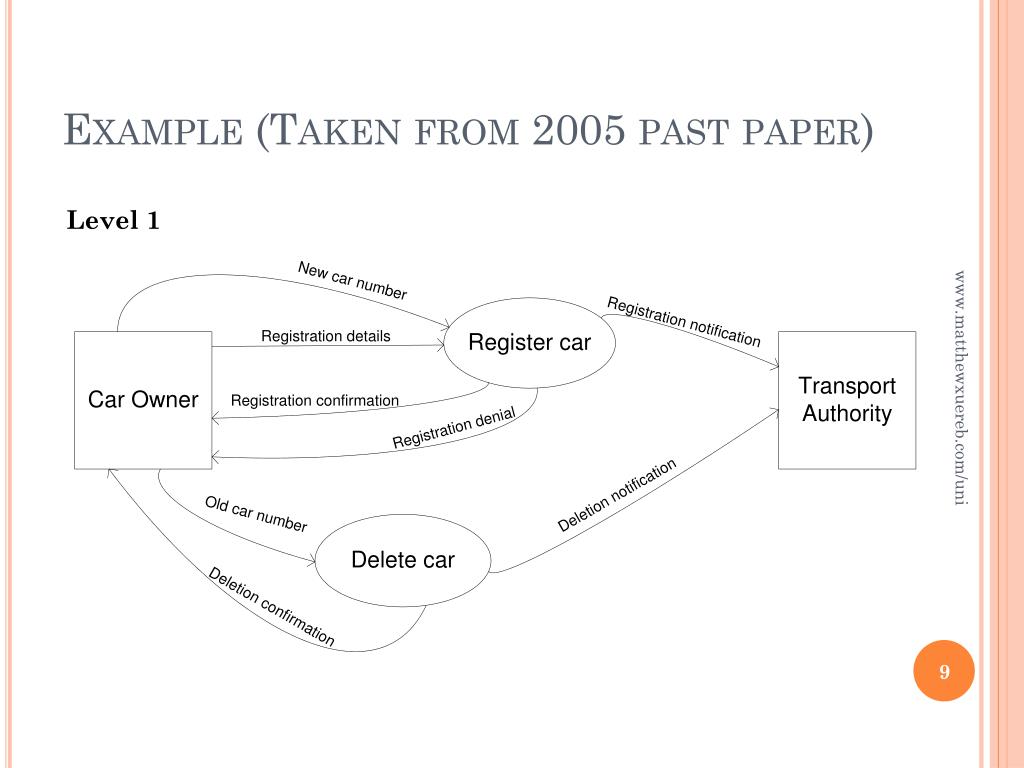

  9. Example (Taken from 2005 past paper) Level 1 www.matthewxuereb.com/uni

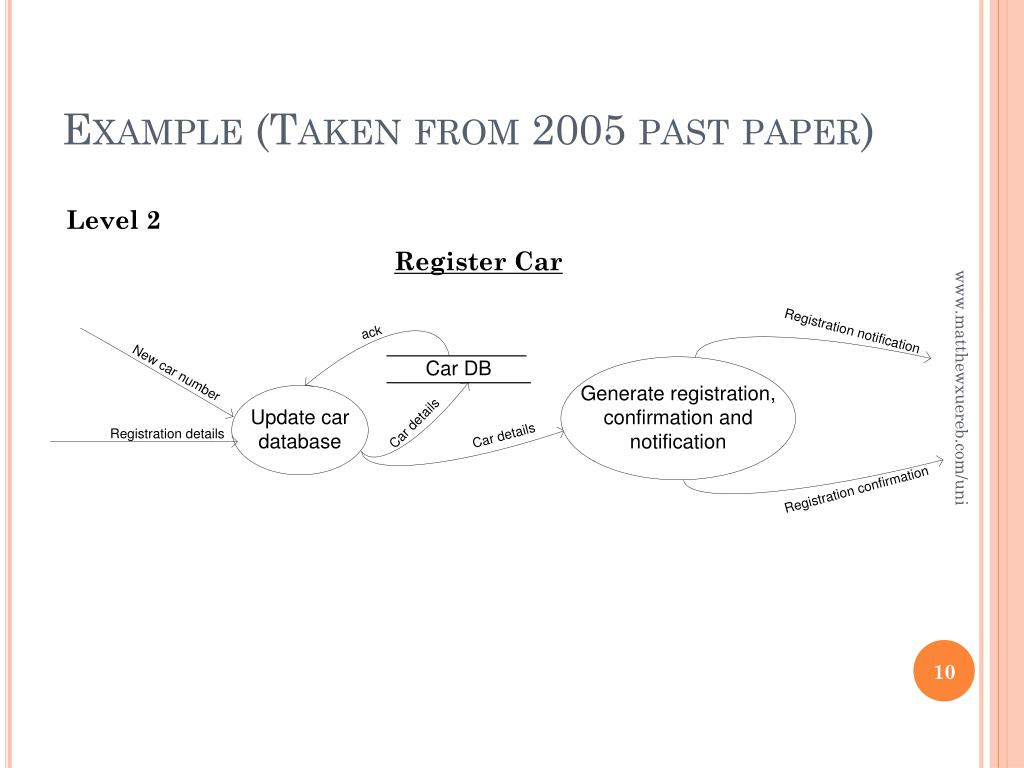

  10. Example (Taken from 2005 past paper) Level 2 Register Car www.matthewxuereb.com/uni

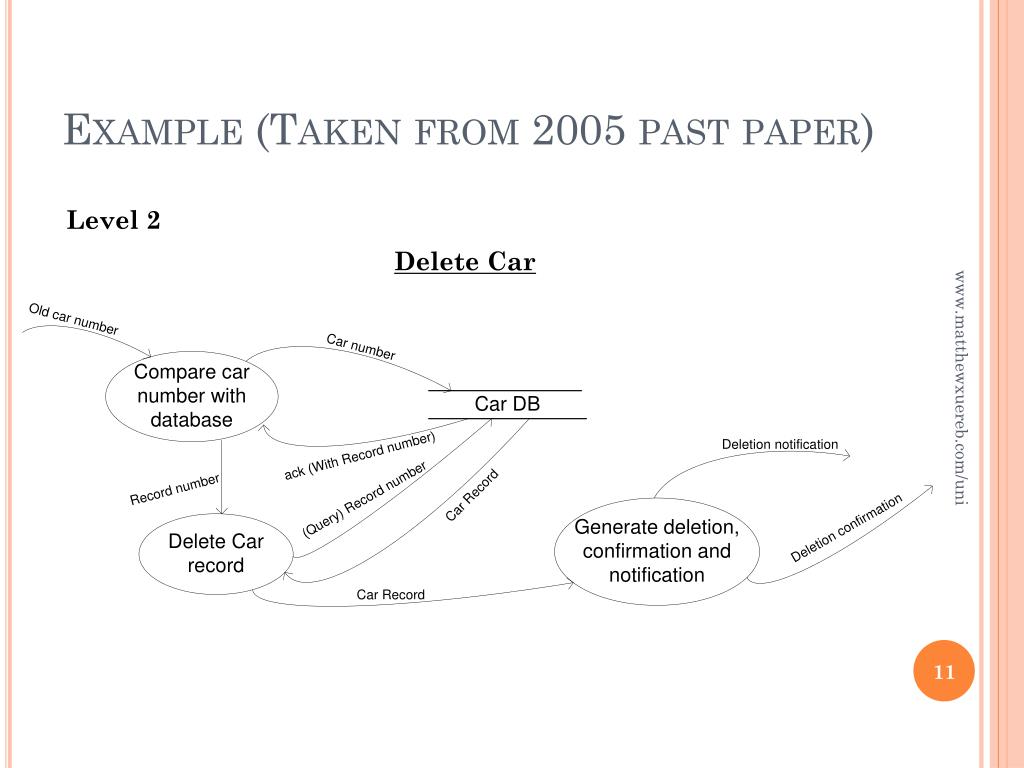

  11. Example (Taken from 2005 past paper) Level 2 Delete Car www.matthewxuereb.com/uni
