Powershell for sharepoint or administrators can use the object model too

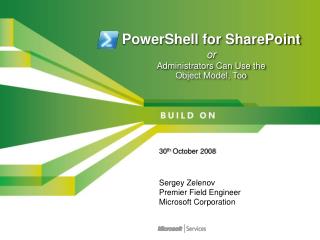

PowerShell for SharePointorAdministrators Can Use the Object Model, Too

30th October 2008

Sergey Zelenov

Premier Field Engineer

Microsoft Corporation


Agenda

Agenda

  • What is PowerShell anyway?

    • History

    • Ground principles

    • Availability

    • Future

  • PowerShell and SharePoint

    • Setting the scene...

    • Using PowerShell’s parsing might

    • Harnessing SharePoint Object Model


What is powershell anyway

What is PowerShell anyway?

  • History

  • Idea based on a study commissioned by Microsoft in the early 2000s

  • Inspired by Microsoft’s moving into the server marketplace

  • Originally based on POSIX shell as specified in IEEE 1003.2

  • Influenced by Perl and UNIX shells

  • Written in .NET providing direct access to the power of the framework

  • Current version is 1.0, 2.0 is coming soon!


What is powershell anyway1

What is PowerShell anyway?

  • Shell or Scripting Language?

    Best of both worlds!!

  • Ground Principles


What is powershell anyway2

What is PowerShell anyway?

  • Ground Principles

  • Cmdlets

    • Use verb-noun pairs

      Get-Command Add-Content Copy-Item Read-Host Set-Date

    • Return objects

    • Implemented by a .NET class that derives from the Cmdlet base class

  • Objects

    • Everything is an object

    • Uses and extends .NET type system

    • Adapts objects through the PSObject layer

    • Native support for accessing .NET and COM classes


What is powershell anyway3

What is PowerShell anyway?

  • Pipelines

    • Series of commands separated by the pipe operator “|”

      get-wmiobject win32_logicaldisk | sort -descfreespace | select -first 3 | format-table -autosizedeviceid, freespace

    • Pass output objects from one command to the next

    • Support streaming (in-process!)

  • Ground Principles


What is powershell anyway4

What is PowerShell anyway?

  • Availability

  • Available as a separate download (in fact a Windows Update) for:

    • Microsoft Windows XP Service Pack 2 (x86 and x64)

    • Microsoft Windows Vista (x86 and x64)

    • Windows Server 2003 (all editions, x86 and x64)

  • Included in Windows Server 2008 as a Feature

    • Not installed by default but can be added at any time


What is powershell anyway5

What is PowerShell anyway?

  • Future

  • Exchange Management Shell is already based on Windows PowerShell

  • All Microsoft server products are eventually to become PowerShell-compatible

  • PowerShell a weapon of choice for next version of SharePoint – STSADM included for backward compatibility only!


Demo powershell first steps

DEMO: PowerShell First Steps

Sergey Zelenov

Premier Field Engineer

Microsoft Corporation


Setting the scene

Setting the Scene

  • Prepare the environment for working with SharePoint

  • Taking care of security

    • Execution policy is set to Restricted by default

    • Consider changing policy to RemoteSigned or Unrestricted to allow scripts to run

  • Loading SharePoint assemblies

    • Use static methods of the System.Reflection.Assembly class

    • LoadWithPartialName is obsolete but great for interactive sessions

    • Load must be used in scripts


Setting the scene1

Setting the Scene

  • Loading SharePoint Assemblies

[System.Reflection.Assembly]::LoadWithPartialName(“Microsoft.SharePoint”)

[System.Reflection.Assembly]::Load(“Microsoft.SharePoint, Version=12.0.0.0 , Culture=Neutral, PublicKeyToken=71e9bce111e9429c”)


Setting the scene2

Setting the Scene

  • Loading SharePoint Assemblies

  • Windows SharePoint Services (WSS) Object Model

    • Microsoft.SharePoint

    • Microsoft.SharePoint.Security

  • Microsoft Office SharePoint Server (MOSS) Object Model

    • Microsoft.Office.Server

    • Microsoft.Office.Server.Search

    • Microsoft.SharePoint.Portal

    • Microsoft.SharePoint.Publishing


Using powershell s parsing might

Using PowerShell’s Parsing Might

  • Parsing STSADM output

    • PowerShell supports XML documents as a primitive data type ([xml])

    • Cast the output of an STSADM command to [xml] to use object notation

      $sites = [xml](Stsadm –o enumsites –urlhttp://sharepoint)

  • Parsing log files

    • Select-String cmdlet can be used for finding specific strings in ULS and IIS logs

      Select-String “Timer” $splogs\*20080419*\.log


Demo parsing with powershell

DEMO: Parsing with PowerShell

Sergey Zelenov

Premier Field Engineer

Microsoft Corporation


Harnessing sharepoint object model

Harnessing SharePoint Object Model

  • Working with objects

  • Static classes don’t need to be instantiated

    SPFarmSPUtilitySPEncode

  • “::” operator is used to retrieve static members

    $farm = [Microsoft.SharePoint.Administration.SPFarm]::Local

  • New-Object cmdlet

    New-Object [-typeName] <string> [[-argumentList] <Object[]>] [<CommonParameters>]

  • Dynamic members are retrieved using ‘common’ “.” operator

    $farm.Servers

    $farm.Services

    $farm.Solutions


Harnessing sharepoint object model1

Harnessing SharePoint Object Model

  • Power of Reflection

  • .NET classes are self-describing

  • Obtain maximum information about an object without explicitly specifying members

    $bindflag = $([System.Reflection.BindingFlags]::Instance, [System.Reflection.BindingFlags]::Public)

    $props = $object.GetType().GetProperties($bindflag)

    foreach($propinfo in $props)

    {

    “{0}: {1}” –f $propinfo.Name, $propinfo.GetValue($object, $null)

    }


Harnessing sharepoint object model2

Harnessing SharePoint Object Model

  • Is it all this good?

  • SPContentDatabase class is not CLR-compliant 

  • Solution? Use reflection!

    $props = [Microsoft.SharePoint.Administration.SPContentDatabase].GetProperties($bindflag);

    $props | % {"{0}: {1}" -f $_.Name, $_.GetValue($site.ContentDatabase,$null)}


Demo powershell and sharepoint object model

DEMO: PowerShell and SharePoint Object Model

Sergey Zelenov

Premier Field Engineer

Microsoft Corporation


Resources

Resources

  • PowerShell home page

    http://www.microsoft.com/powershell

  • Windows PowerShell Scripts in the TechNet Scripting Center

    http://www.microsoft.com/technet/scriptcenter/hubs/msh.mspx

  • PowerShell Pack for SharePoint

    http://code.msdn.microsoft.com/psp4sp

  • PowerGUI

    http://www.powergui.org

  • CodePlex

    http://www.codeplex.com

  • Zach Rosenfield’s Blog

    http://sharepoint.microsoft.com/blogs/zach

  • From The Field blog

    http://sharepoint.microsoft.com/blogs/fromthefield
