Aim: How do sedimentary rocks form?

Aim: How do sedimentary rocks form?. Do Now:. Predict how each sediment will settle in a jar full of water: Sand Pebbles Rocks Soil. A. Sediments in water deposit with the largest first, then the smallest. Rocks (heaviest settle on bottom) Pebbles Sand may fill in the gaps

luana
Download Presentation

Aim: How do sedimentary rocks form?

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

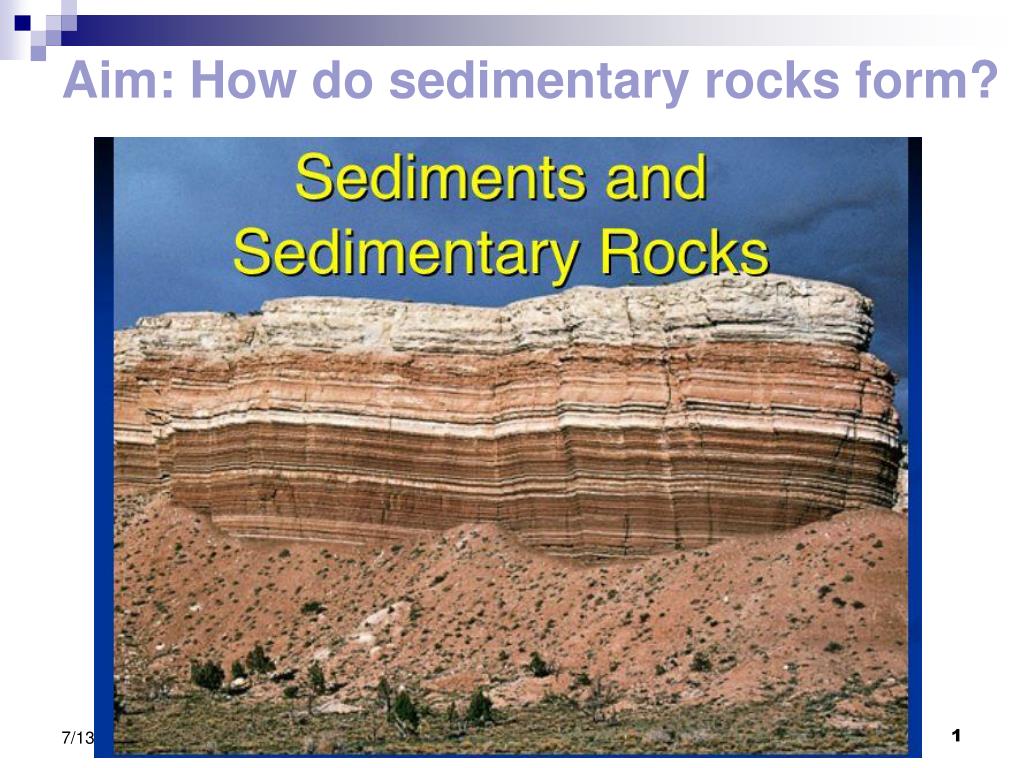

  1. Aim: How do sedimentary rocks form?

  2. Do Now: • Predict how each sediment will settle in a jar full of water: • Sand • Pebbles • Rocks • Soil

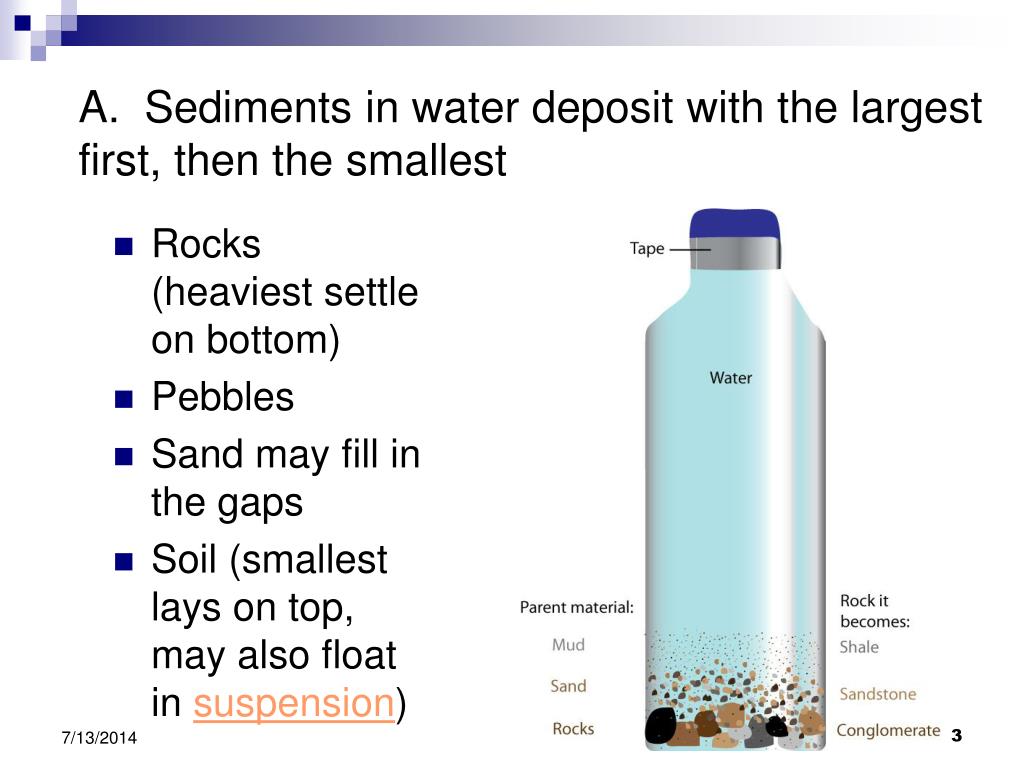

  3. A. Sediments in water deposit with the largest first, then the smallest • Rocks (heaviest settle on bottom) • Pebbles • Sand may fill in the gaps • Soil (smallest lays on top, may also float in suspension)

  4. Sediment sizes can be found on this ESRT chart:

  5. Definitions: • Sediment • Weathering • Erosion • Deposition • Compaction • Cementation • Clastic • Fossil

  6. B. What are sedimentary rocks made from? • Sedimentary rocks form from pieces of existing rock that have been worn away (weathered), carried to new place (erosion) and deposited there (deposition). • These pieces of rock are called sediments. • Water, ice, gravity, and wind are the agents of erosion. • Most sedimentary rocks form in water.

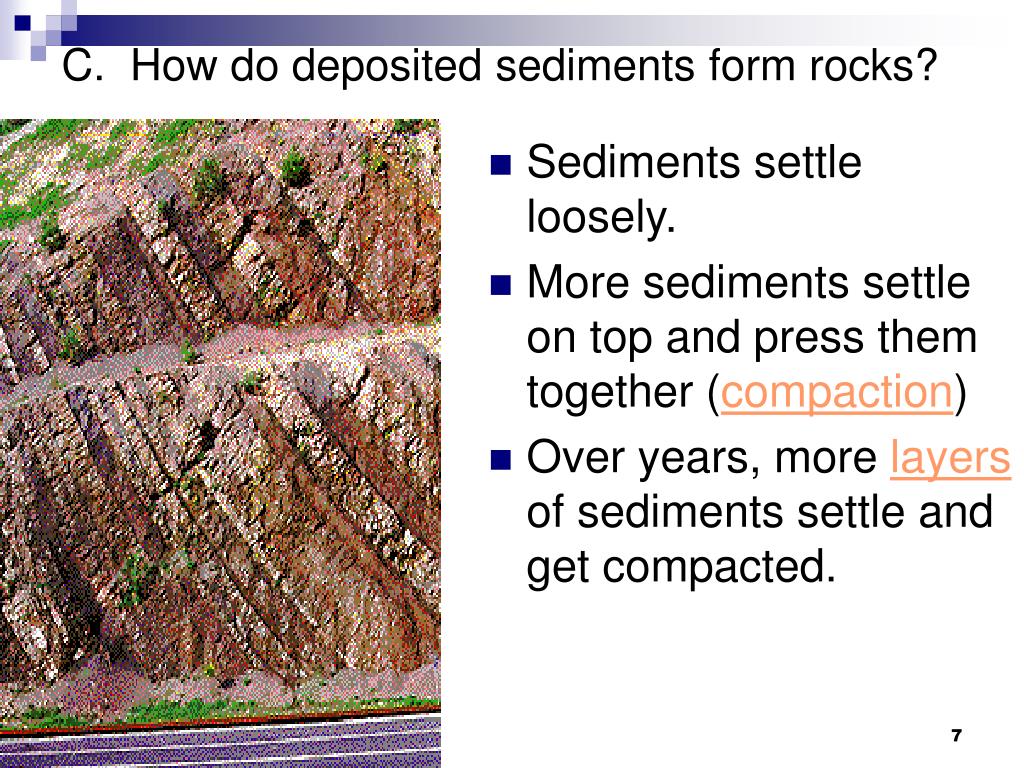

  7. C. How do deposited sediments form rocks? • Sediments settle loosely. • More sediments settle on top and press them together (compaction) • Over years, more layers of sediments settle and get compacted.

  8. In sedimentary rock formations, where would you find the oldest layers? • Older layers form on the bottom unless they have been uplifted or tilted by movement of the crust!

  9. D. What holds the sediments together? • Minerals in the sediments dissolve in water and seep into the spaces between the sediments. • The minerals form a “glue” that hold the sediments together. (cementation). Watch sedimentary rocks form

  10. Trace the path of an igneous rock to a sedimentary rock. What other kinds of rock can become sedimentary? UPLIFT means that a rock must be pushed up toward the surface where weathering takes place in order to become a sediment

  11. Aim: What are the 3 ways sedimentary rocks form?

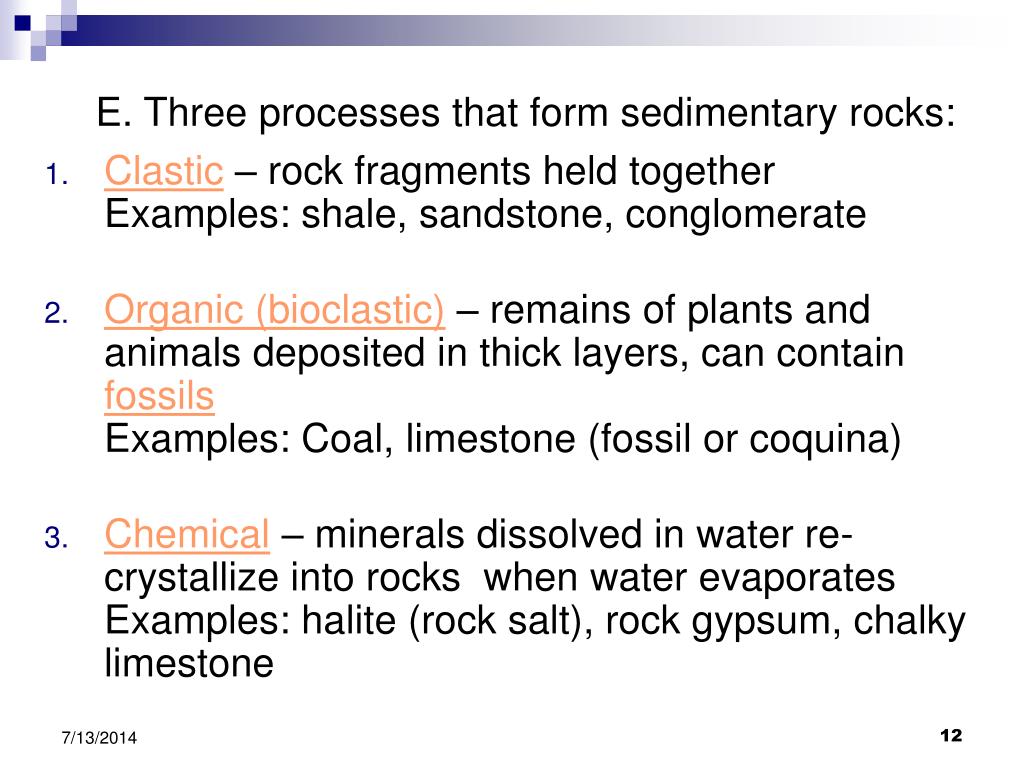

  12. E. Three processes that form sedimentary rocks: • Clastic – rock fragments held togetherExamples: shale, sandstone, conglomerate • Organic (bioclastic) – remains of plants and animals deposited in thick layers, can contain fossilsExamples: Coal, limestone (fossil or coquina) • Chemical – minerals dissolved in water re-crystallize into rocks when water evaporatesExamples: halite (rock salt), rock gypsum, chalky limestone

  13. F. Clastic Examples – sediments with different sizes (usually more than 1 mineral) Conglomerate -big rounded sediments Breccia – big sharp sediments Sandstone – sand sized sediments Siltstone - silt Shale –mud, clay

  14. G. Organic Examples (bioclastic) : Limestone • It is usually an organic sedimentary rock that forms from the accumulation of shell, coral, algal and fecal debris. Always forms in water. • Only 1 mineral limestone Fossil limestone coquina

  15. G. Organic Examples: Coal Coal is formed by plant debris piling up in water. http://www.classzone.com/books/earth_science/terc/content/visualizations/es0701/es0701page01.cfm?chapter_no=07

  16. H. Chemical: Crystaline • Formed from precipitation or evaporation in water • Only 1 mineral Rock Salt – evaporite, sedimentary form of mineral halite Rock Gypsum – precipitate form of mineral gypsum Dolostone – precipitate form of mineral dolomite

  17. I. Sedimentary Rocks: • Are the most abundant kind of rock on the outer surface (75%+). • Trap a history of the earth in the layers of rock. (life forms, climate and natural events)

  18. J. Grand Canyon • http://www.youtube.com/watch?v=XckLEPTmKjA&feature=related

  19. Describe some characteristics a sedimentary rock might have: • Layers • Sand particles • Pebbles –round or jagged • Fossils • Crystals

  20. Label the sedimentary rock as organic, clastic or chemical.
