  1. Litostroj Ravne Ltd. Koroška cesta 15 2390 Ravne na Koroškem Slovenia TRADITION, POWER QUALITY , INNOVATION • LITOSTROJ RAVNE IS A MEMBER OF LITOSTROJ GROUP

  2. Litostroj Group

  3. Litostroj Ravne – Historyandcompany profile • Is located in Ravne na Koroškem (townhas more than 380 yearsindustrialhistory). Presses(Brand Name „RAVNE“) have 45 years long history. • 1620Beginningofsteelmaking in Ravne. • 1969 Constructionoffirstpress. • 1970-71CooperationwithWeingarten. • 1971 First presswasexported to Germany. • 1985 First presswasexported to U.S. • 2008 Became part of Litostroj Group • 2010 First Preciseblankingpress. • 2011 First Servodrive press. • Numberofemployees: 200 • Representatives on themarkets • 18 km to highway, 60 km fromairport • Port : Luka Koper Experienceofgenerations

  4. RAVNE Presses– Worldwidebrand • MORE THAN 1.500 REFERENCES, MORE THAN 150 CUSTOMERS • TARGET INDUSTRIES • AUTOMOTIVE INDUSTRY ; • HOME APPLIANCE INDUSTRY; • TOOL AND DIE INDUSTRY; • ELECTRO INDUSTRY.

  5. LITOSTROJ RAVNE – ADVANTAGES: • MechanicalandHydraulicPresses up to 40.000 kNand bed width up to 8 m. • Optimalsolutionforcustomerneedsandcustomerspecificdesign. • Innovative andproventechnology. • Robustbasicconstruction. • Precisionoperation(Slide and Bed have low deflection 0,08mm/m ) • Flexibility. • Short delivery time . • Complete quotation (design, mechanical and electro development, assembly, • spare parts & service all life time presses). • In Ravne : • Development (mechanical, electro) • Productionofmainpartsproducts(forgedandweldedparts, steelcasting) • Assembly • Service

  6. MAIN PRODUCTION PROGRAM • CustommadeMechanicalandHidraulicPresses RAVNE SinglePresses RAVNE Transfer Presses RAVNE TandemPress Line SC, SE, SL RAVNE Progressive Die Presses RAVNE Blanking Line Presses RAVNE Forging Presses

  7. RAVNE Transferpresses • SE4 -1000 – 36 – 15 45 SPM • Production: Transmission parts SE4 -1000 – 50 – 24,4 Automation: 3 axis servo transfer Production: car sheet metal parts • 30SPM • Automation: 3 axis servo transfer • SE4 -2000 - 60 – 15 25 SPM • Production: Automatic speed hosing SE4 -2500 - 61 – 24,4 • 25 SPM

  8. RAVNE Tandem press line SE2 1000-27-15, SE2 800-27-15, SE2 500-27-15, SE2 400-27-15 Production: Gas tanks • SE2 800-27-15, • SE2 500-27-15, • SE2 400-27-15 • Production: Suspension parts • Automation: Robots • 16 SPM • SE4-1500-144-96 • SE4-1000-144-84 , • SE4-800-144-84 • Automation: • Robots • Production: • Outer car parts • 12 SPM

  9. RAVNE Blankinglines PressSC2-600-24-16 with line (decoiler, double straighteener, components for material flow, line for fast die change) • Theadvantages: • Achievedstraighteness • Highlevelofproductivity: up to 140 pcs/min • One cuttingoperation is less–fewerpresses

  10. RAVNE Progressive die presses SC2 -500-20-14 Automation: Feeding line PSN 400 Production: Structure parts 80 SPM SE4 -1600-240-108 Production: Structure parts 44 SPM • Progressive Die presses by Litostroj Ravne achieve stroking rates up to 90 SPM • Theyare available as link drive presses in capacities from 3.000 to 30.000 kN.

  11. Ravne references

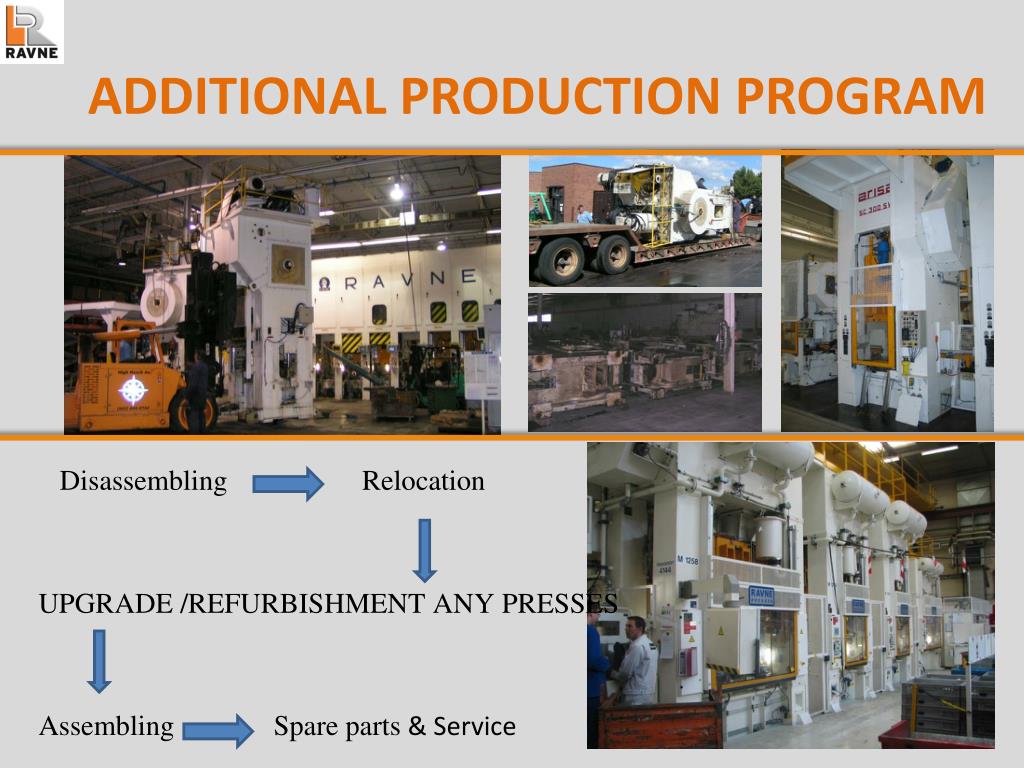

  12. ADDITIONAL PRODUCTION PROGRAM DisassemblingRelocation Upgrade /Refurbishmentanypresses AssemblingSpareparts& Service

  13. UPGRADES – Quickdiechange • is suitable for TANDEM LINES without rolling bolsters. • With specially designed system the dies are changed in one interval on all presses. • Die change time can be lowered under three minutes. • The system was developed for companies that CHANGE DIES MANY TIMES PER SHIFT.

  14. Slide guides ON-SITE refurbishment • Ravne special equipment allows us to do the refurbishment on the spot, even on presses with FIXED SLIDE GUIDES. • Machiningwithoutframedisassemblingandwithoutdrilling or anydamage to theuprights. • Qualityofmachining is controlledwith 3 measuringsystem. • Theresultis guideflatnes in tolerance + - 0,02mm/m.

  15. RAVNE Presses „Bestprice/performance“ THANK YOU FOR ATTENTION! www.litostrojravne.com
