Presentation Transcript


Slide1 l.jpg

Chapter 13 EDTA Titrations

Lewis acid-base concept

Lewis acid :electron pair acceptor

metal

Lewis base : electron pair donor

ligand

coordinate covalent bond

ligand donates both electrons of the electron pair bond


Coordinate covalent bond l.jpg

coordinate covalent bond


Slide3 l.jpg

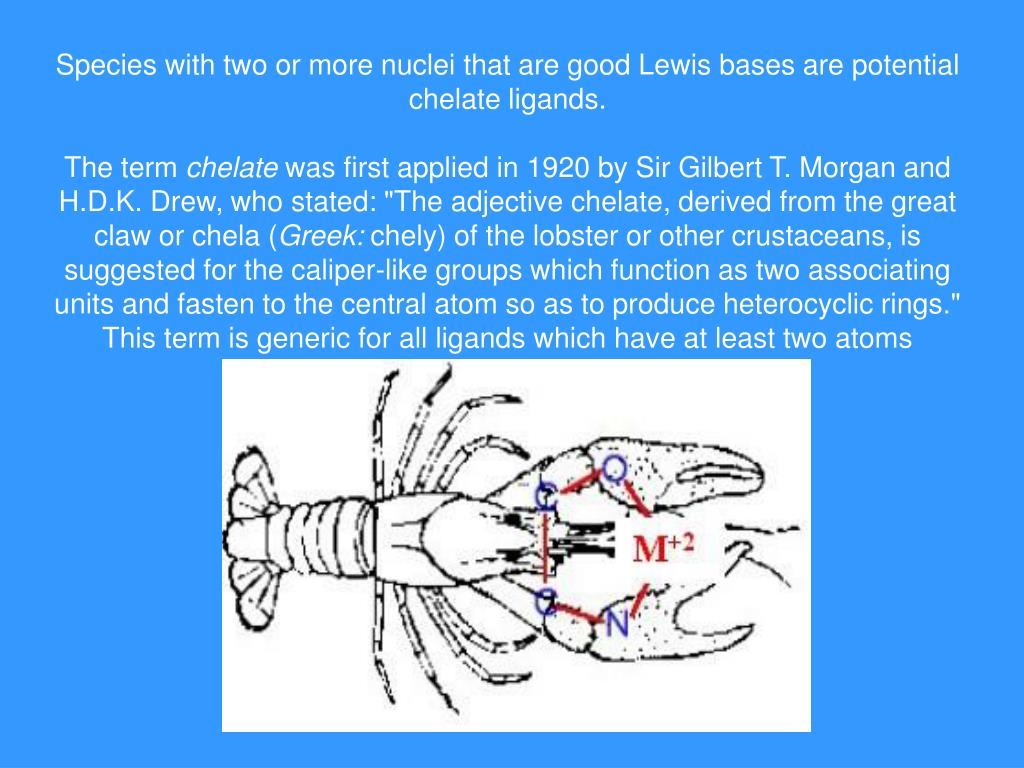

Species with two or more nuclei that are good Lewis bases are potential chelate ligands. The term chelate was first applied in 1920 by Sir Gilbert T. Morgan and H.D.K. Drew, who stated: "The adjective chelate, derived from the great claw or chela (Greek: chely) of the lobster or other crustaceans, is suggested for the caliper-like groups which function as two associating units and fasten to the central atom so as to produce heterocyclic rings." This term is generic for all ligands which have at least two atoms coordinated to the central metal ion.


Slide4 l.jpg

Chelate Effect

  • the ability of multidentate ligands to form more stable metal complexes than those formed by similar monodentate ligands

  • results from the formation of 5-membered "ring" with metal and two atoms on the ligand


Slide5 l.jpg

Metal ion

Monodentate

Stability 


Slide6 l.jpg

Metal ion

Bidentate

Stability 


Slide7 l.jpg

Metal ion

Tridentate

Stability


Slide8 l.jpg

Metal ion

Tetradentate

Stability


What forms of edta exist l.jpg

What forms of EDTA exist?

At Low pH? Which Functional Groups will be protonated?


Slide11 l.jpg

EDTA is a Hexaprotic acid (H6Y2+ )

pK1 = 0.0 ,pK2 = 1.5 ,pK3 = 2.0

pK4 = 2.66 ,pK5 = 6.16 ,pK6 = 10.24

The amount of ethylenediaminetetraacetate anion, EDTA-4 => Y-4 in solution is very important.

WHY????


Slide12 l.jpg

EDTA-4


Slide14 l.jpg

[Fe(EDTA)(H2O]


Let s take a look at the a plot for edta l.jpg

Let’s take a look at the a plot for EDTA


Slide17 l.jpg

EDTA

M+n + Y-4¾ MY (n-4)+

[MY(n-4)+]

KMY = --------------

[M][Y-4]

[Y-4]

a4 = ---------

CT

where

CT = [Y-4] + [HY-3] + [H2Y-2] + [H3Y-1] + [H4Y]


Slide20 l.jpg

Minimum pH for Effective EDTA Titrations


Metal ion indicators l.jpg

Metal Ion Indicators

Erichrome Black T

MgIn + EDTA  MgEDTA + In

(red) (colorless) (blue)
