  1. FABRIC 4 Gigabit Work&VLBI-UDP Performance and Stability. Richard Hughes-Jones The University of Manchesterwww.hep.man.ac.uk/~rich/ then “Talks” EVN-NREN Meeting, Zaandan, 31 Oct 2006, R. Hughes-Jones Manchester

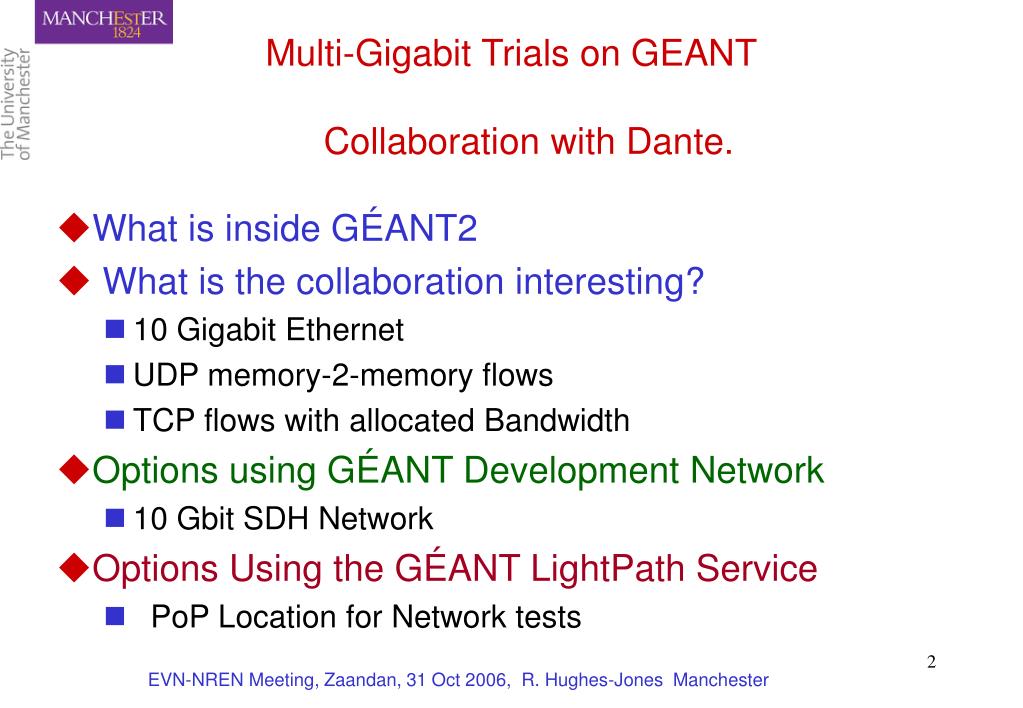

  2. Multi-Gigabit Trials on GEANTCollaboration with Dante. • What is inside GÉANT2 • What is the collaboration interesting? • 10 Gigabit Ethernet • UDP memory-2-memory flows • TCP flows with allocated Bandwidth • Options using GÉANT Development Network • 10 Gbit SDH Network • Options Using the GÉANT LightPath Service • PoP Location for Network tests EVN-NREN Meeting, Zaandan, 31 Oct 2006, R. Hughes-Jones Manchester

  3. GÉANT2 Topology EVN-NREN Meeting, Zaandan, 31 Oct 2006, R. Hughes-Jones Manchester

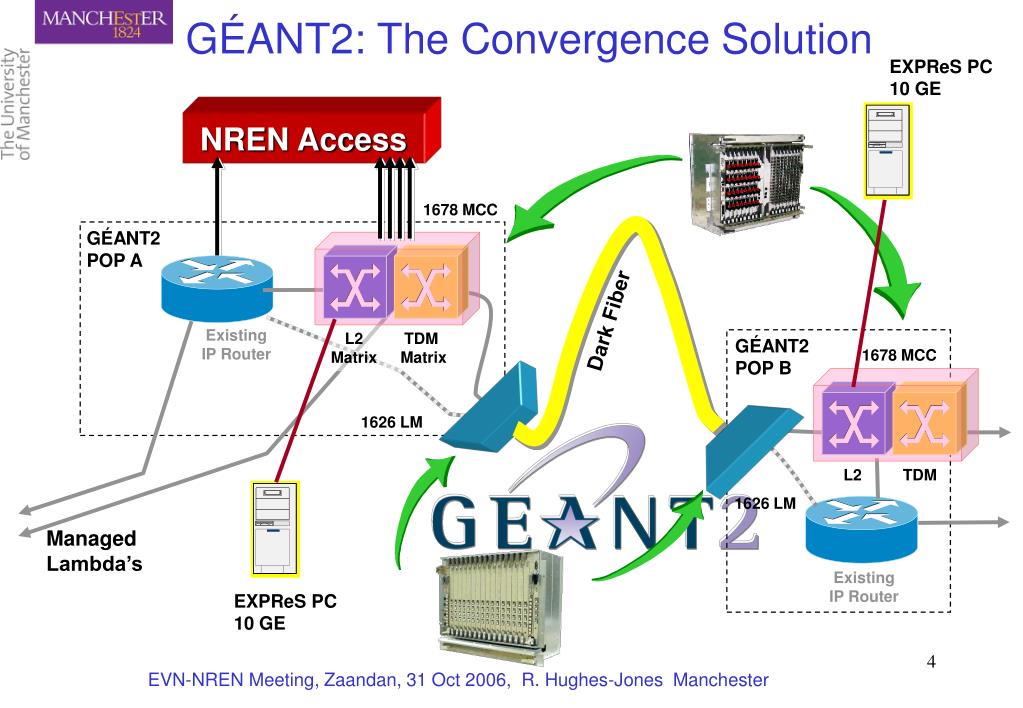

  4. EXPReS PC 10 GE 1678 MCC GÉANT2 POP A Dark Fiber L2 Matrix TDM Matrix GÉANT2 POP B 1678 MCC 1626 LM L2 TDM 1626 LM Managed Lambda’s EXPReS PC 10 GE GÉANT2:The Convergence Solution NREN Access Existing IP Router Existing IP Router EVN-NREN Meeting, Zaandan, 31 Oct 2006, R. Hughes-Jones Manchester

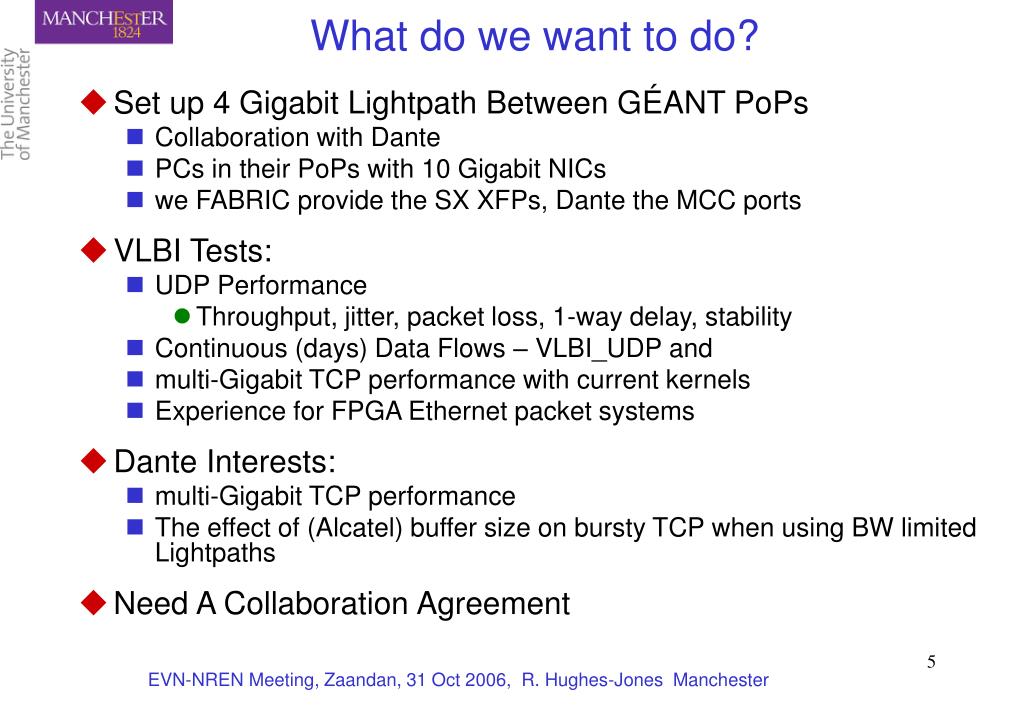

  5. What do we want to do? • Set up 4 Gigabit Lightpath Between GÉANT PoPs • Collaboration with Dante • PCs in their PoPs with 10 Gigabit NICs • we FABRIC provide the SX XFPs, Dante the MCC ports • VLBI Tests: • UDP Performance • Throughput, jitter, packet loss, 1-way delay, stability • Continuous (days) Data Flows – VLBI_UDP and • multi-Gigabit TCP performance with current kernels • Experience for FPGA Ethernet packet systems • Dante Interests: • multi-Gigabit TCP performance • The effect of (Alcatel) buffer size on bursty TCP when using BW limited Lightpaths • Need A Collaboration Agreement EVN-NREN Meeting, Zaandan, 31 Oct 2006, R. Hughes-Jones Manchester

  6. 10GE-LAN interface board in 1678 MCCDante interested in MCC performance 4x 10GE LAN board in 1678MCC Data Mapper Generic solution: • Rate adaptive mapping into VC4-nv with flow ctrl. and LCAS, n=1..64; • up to 4 ports per board Full rate option: • Ethernet full rate up to VC4-68v, flow ctrl. and LCAS for n<68 Optical Transport Hierarchy option: • Mapping into OpticalDataUnit1/2 with flow ctrl. O/E MAC BKPdr MAC O/E Data Mapper Data Mapper O/E MAC MAC O/E Data Mapper To matrix 4x10GE LAN interface ports Data Mapper Device - GFP-F into VC-4-nv - GFP-F into ODU1/2 EVN-NREN Meeting, Zaandan, 31 Oct 2006, R. Hughes-Jones Manchester

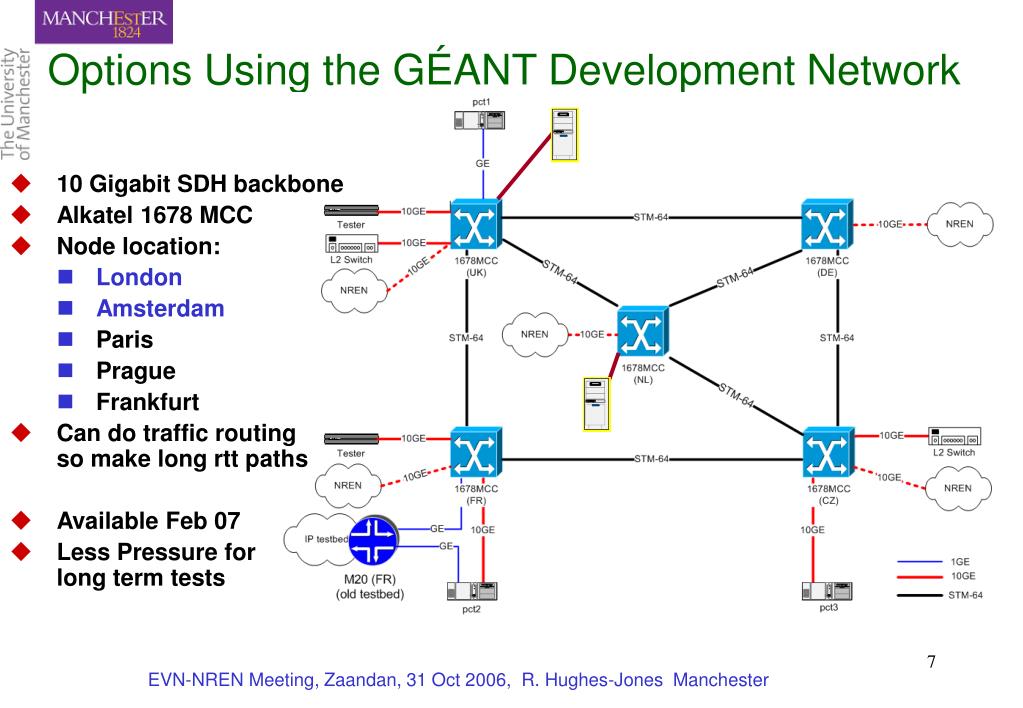

  7. 10 Gigabit SDH backbone • Alkatel 1678 MCC • Node location: • London • Amsterdam • Paris • Prague • Frankfurt • Can do traffic routingso make long rtt paths • Available Feb 07 • Less Pressure for long term tests Options Using the GÉANT Development Network EVN-NREN Meeting, Zaandan, 31 Oct 2006, R. Hughes-Jones Manchester

  8. Options Using the GÉANT LightPaths • 10 Gigabit SDH backbone • Alkatel 1678 MCC • Node location: • Budapest • Geneva • Frankfurt • Milan • Paris • Poznan • Prague • Vienna • Can do traffic routingso make long rtt paths • Ideal: London Copenhagen • Set up 4 Gigabit Lightpath Between GÉANT PoPs • Collaboration with Dante • PCs in Dante PoPs EVN-NREN Meeting, Zaandan, 31 Oct 2006, R. Hughes-Jones Manchester

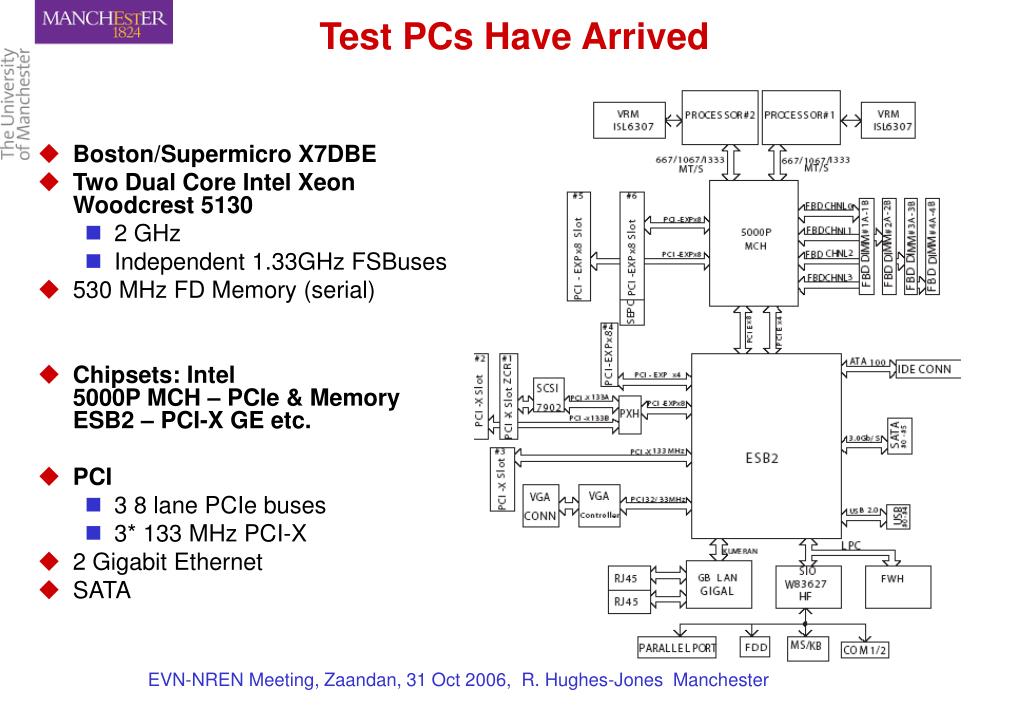

  9. Test PCs Have Arrived • Boston/Supermicro X7DBE • Two Dual Core Intel Xeon Woodcrest 5130 • 2 GHz • Independent 1.33GHz FSBuses • 530 MHz FD Memory (serial) • Chipsets: Intel 5000P MCH – PCIe & MemoryESB2 – PCI-X GE etc. • PCI • 3 8 lane PCIe buses • 3* 133 MHz PCI-X • 2 Gigabit Ethernet • SATA EVN-NREN Meeting, Zaandan, 31 Oct 2006, R. Hughes-Jones Manchester

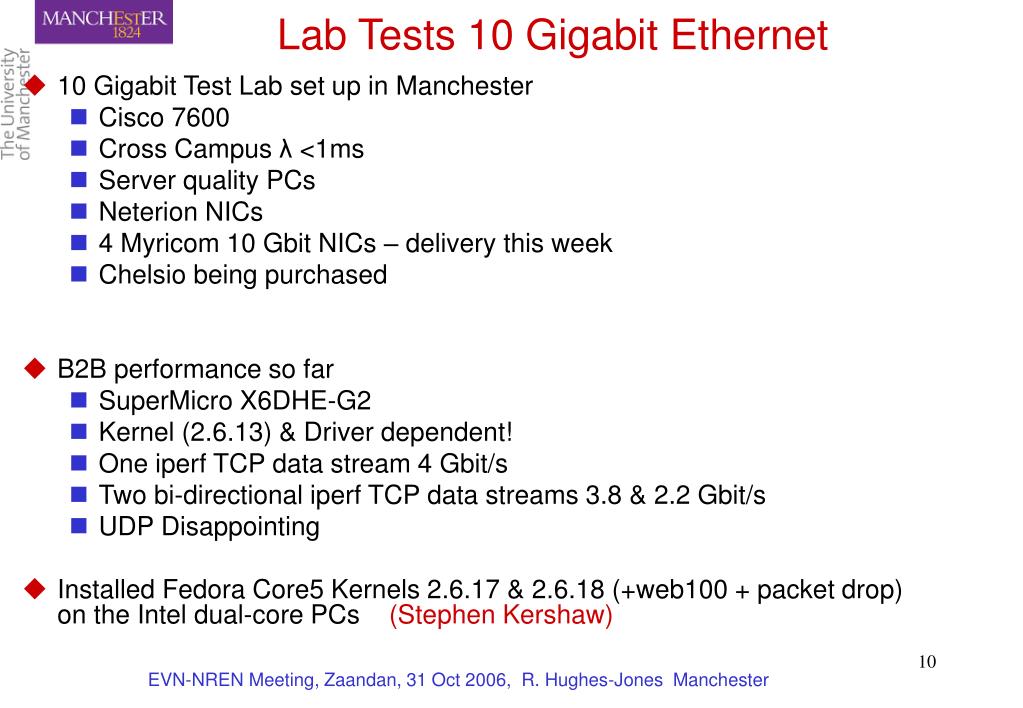

  10. Lab Tests 10 Gigabit Ethernet • 10 Gigabit Test Lab set up in Manchester • Cisco 7600 • Cross Campus λ <1ms • Server quality PCs • Neterion NICs • 4 Myricom 10 Gbit NICs – delivery this week • Chelsio being purchased • B2B performance so far • SuperMicro X6DHE-G2 • Kernel (2.6.13) & Driver dependent! • One iperf TCP data stream 4 Gbit/s • Two bi-directional iperf TCP data streams 3.8 & 2.2 Gbit/s • UDP Disappointing • Installed Fedora Core5 Kernels 2.6.17 & 2.6.18 (+web100 + packet drop) on the Intel dual-core PCs (Stephen Kershaw) EVN-NREN Meeting, Zaandan, 31 Oct 2006, R. Hughes-Jones Manchester

  11. iBOB EVN-NREN Meeting, Zaandan, 31 Oct 2006, R. Hughes-Jones Manchester

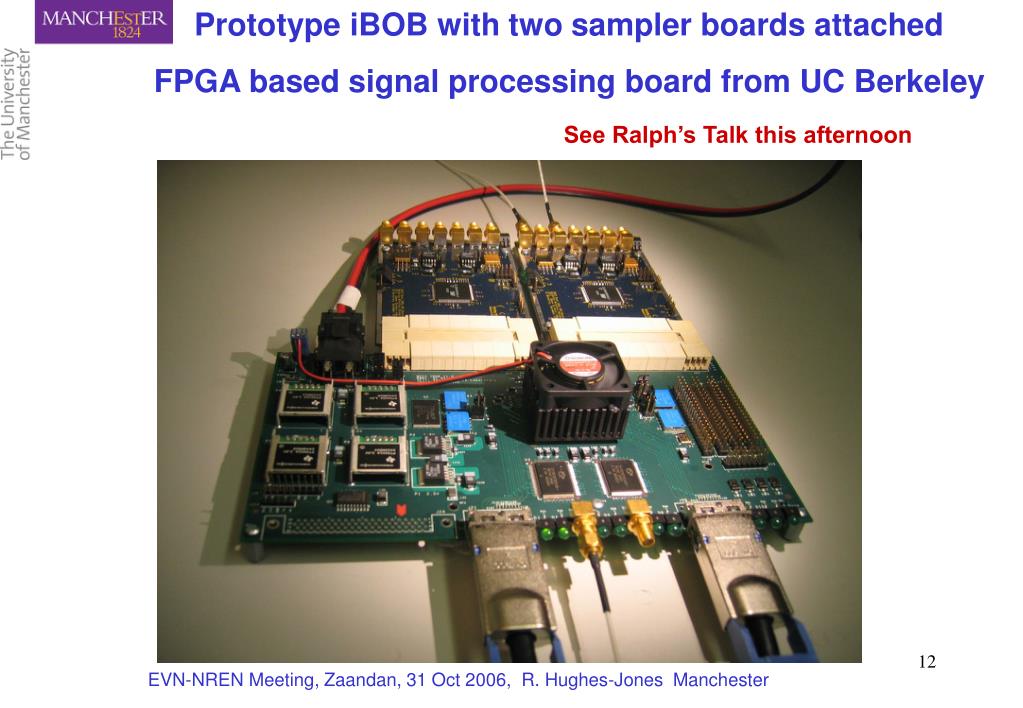

  12. Prototype iBOB with two sampler boards attached FPGA based signal processing board from UC Berkeley See Ralph’s Talk this afternoon EVN-NREN Meeting, Zaandan, 31 Oct 2006, R. Hughes-Jones Manchester

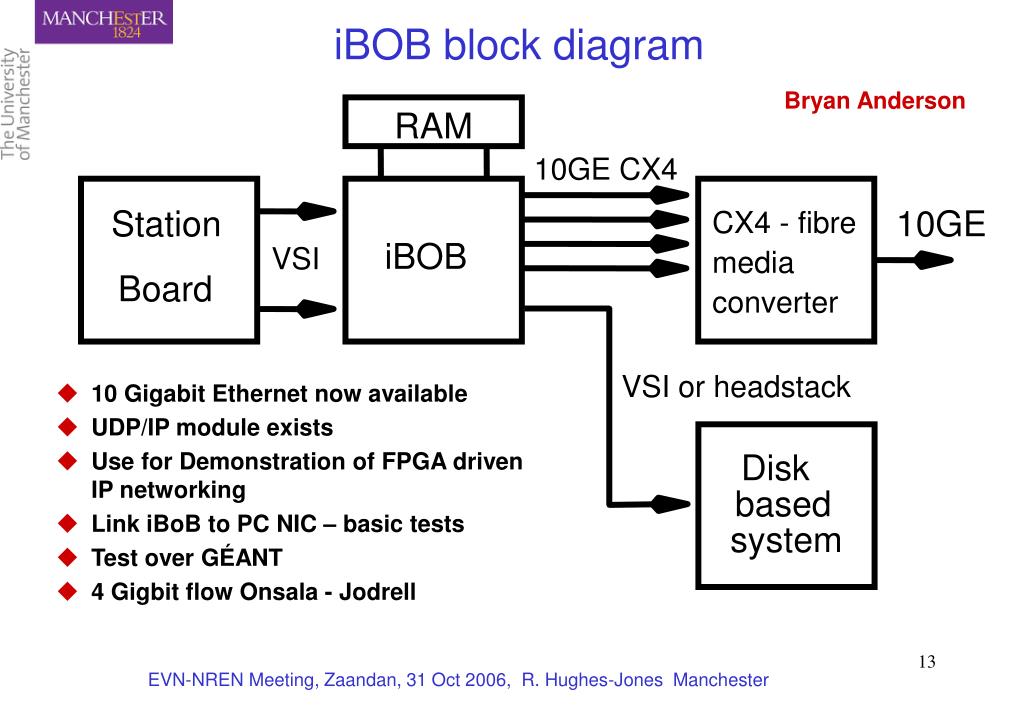

  13. iBOB block diagram Bryan Anderson RAM 10GE CX4 Station 10GE CX4 - fibre media converter iBOB VSI Board VSI or headstack • 10 Gigabit Ethernet now available • UDP/IP module exists • Use for Demonstration of FPGA driven IP networking • Link iBoB to PC NIC – basic tests • Test over GÉANT • 4 Gigbit flow Onsala - Jodrell Disk based system EVN-NREN Meeting, Zaandan, 31 Oct 2006, R. Hughes-Jones Manchester

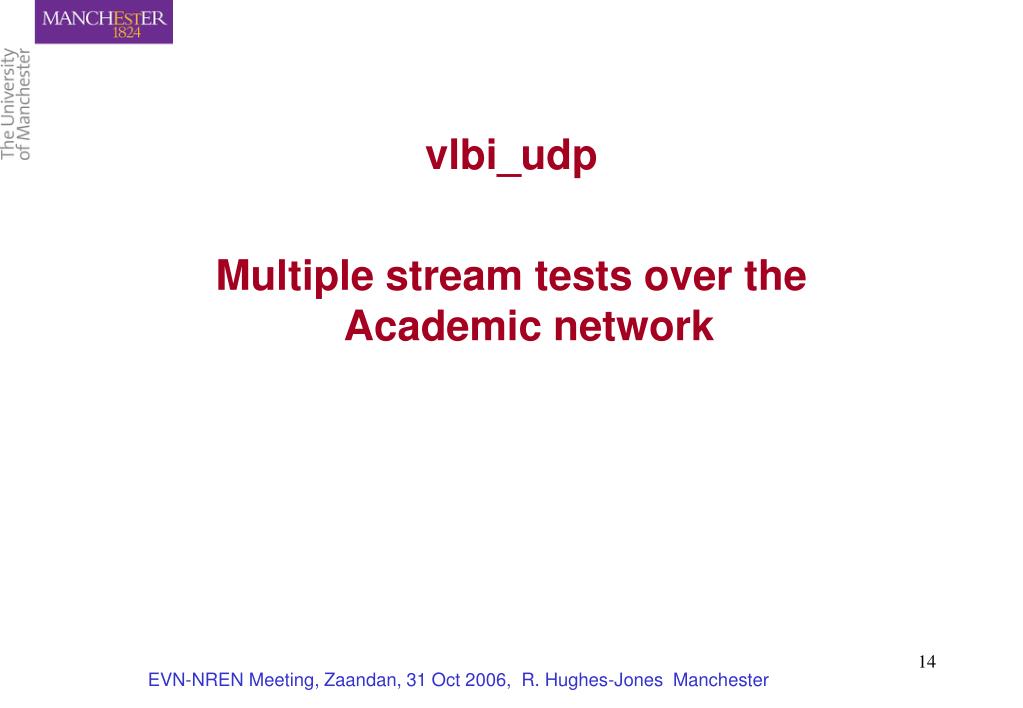

  14. vlbi_udp Multiple stream tests over the Academic network EVN-NREN Meeting, Zaandan, 31 Oct 2006, R. Hughes-Jones Manchester

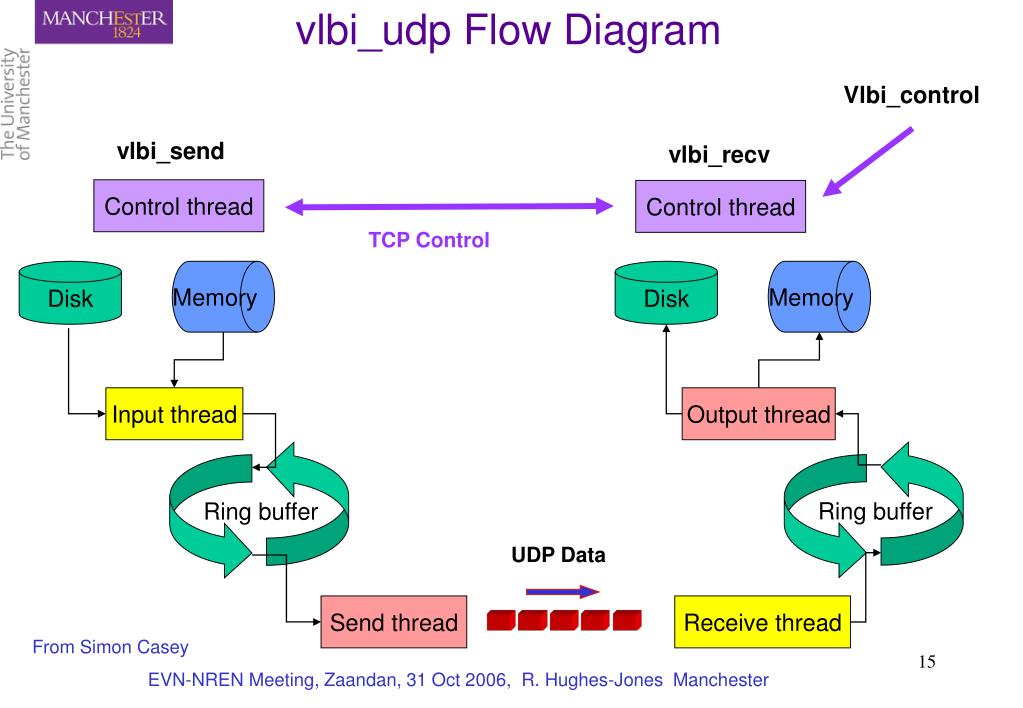

  15. Ring buffer vlbi_udp Flow Diagram Vlbi_control vlbi_send vlbi_recv Control thread Control thread TCP Control Disk Memory Disk Memory Input thread Output thread Ring buffer UDP Data Send thread Receive thread From Simon Casey EVN-NREN Meeting, Zaandan, 31 Oct 2006, R. Hughes-Jones Manchester

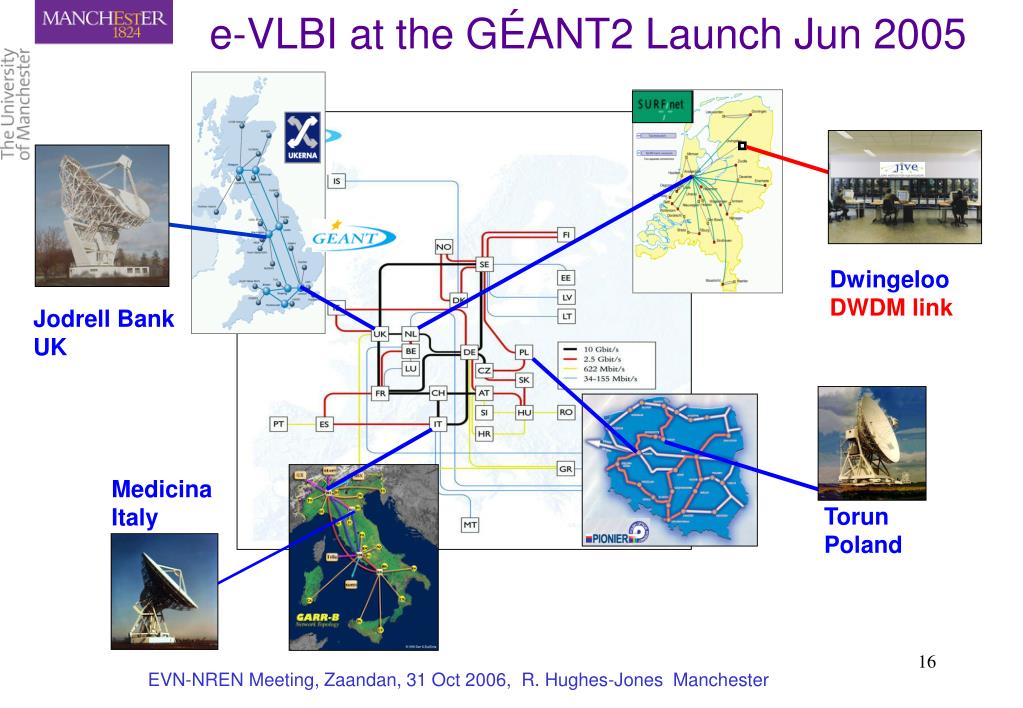

  16. e-VLBI at the GÉANT2 Launch Jun 2005 Dwingeloo DWDM link Jodrell BankUK MedicinaItaly TorunPoland EVN-NREN Meeting, Zaandan, 31 Oct 2006, R. Hughes-Jones Manchester

  17. Geant2 Launch event, June 2005 EVN-NREN Meeting, Zaandan, 31 Oct 2006, R. Hughes-Jones Manchester

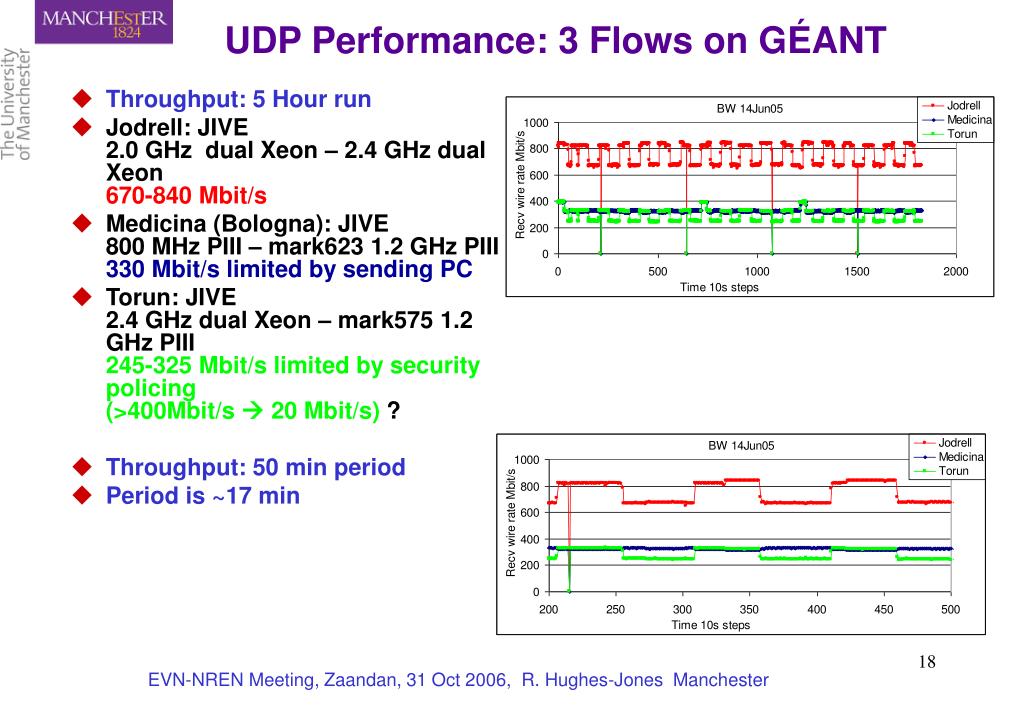

  18. UDP Performance: 3 Flows on GÉANT • Throughput:5 Hour run • Jodrell: JIVE2.0 GHz dual Xeon – 2.4 GHz dual Xeon670-840 Mbit/s • Medicina (Bologna):JIVE 800 MHz PIII – mark6231.2 GHz PIII330 Mbit/s limited by sending PC • Torun:JIVE 2.4 GHz dual Xeon – mark5751.2 GHz PIII245-325 Mbit/s limited by security policing (>400Mbit/s  20 Mbit/s) ? • Throughput:50 min period • Period is ~17 min EVN-NREN Meeting, Zaandan, 31 Oct 2006, R. Hughes-Jones Manchester

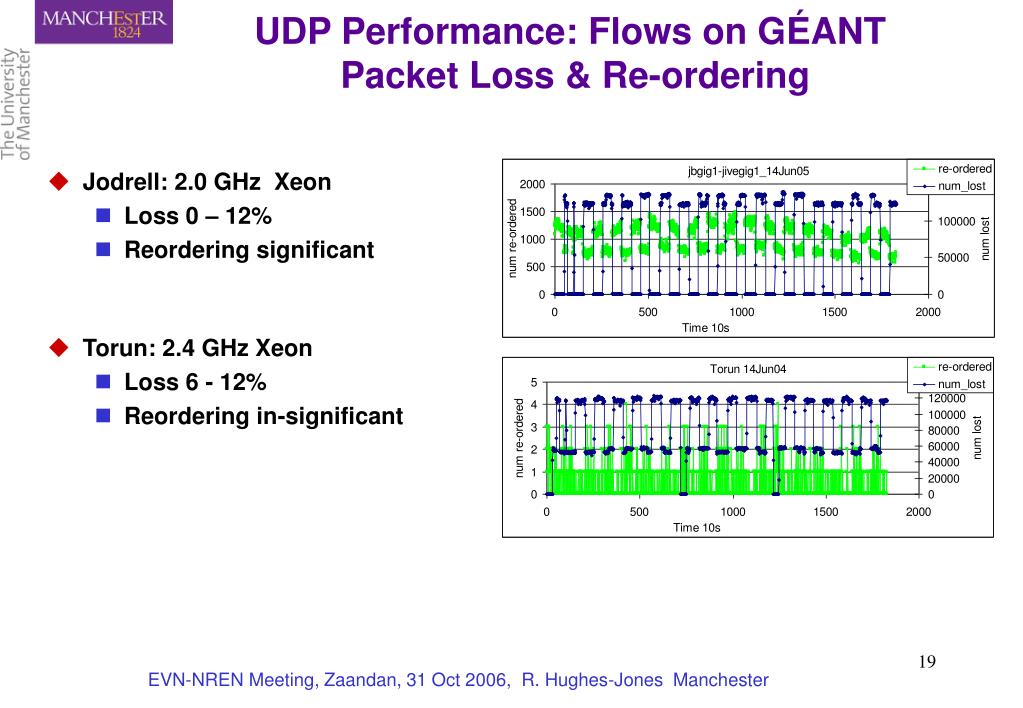

  19. UDP Performance: Flows on GÉANTPacket Loss & Re-ordering • Jodrell: 2.0 GHz Xeon • Loss 0 – 12% • Reordering significant • Torun: 2.4 GHz Xeon • Loss 6 - 12% • Reordering in-significant EVN-NREN Meeting, Zaandan, 31 Oct 2006, R. Hughes-Jones Manchester

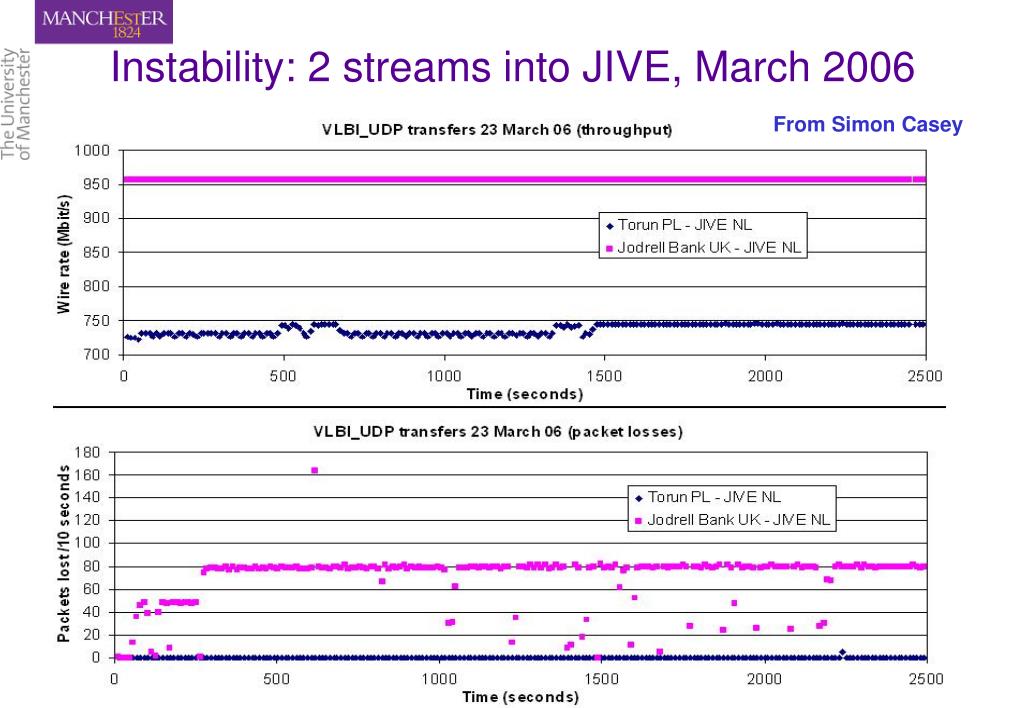

  20. Instability: 2 streams into JIVE, March 2006 From Simon Casey EVN-NREN Meeting, Zaandan, 31 Oct 2006, R. Hughes-Jones Manchester

  21. EVN-NREN Gbit link Chalmers University of Technology, Gothenburg Metsähovi OnsalaSweden Jodrell BankUK Gbit link TorunPoland DedicatedGbit link Dwingeloo DWDM link MedicinaItaly EVN-NREN Meeting, Zaandan, 31 Oct 2006, R. Hughes-Jones Manchester

  22. Any Questions? EVN-NREN Meeting, Zaandan, 31 Oct 2006, R. Hughes-Jones Manchester

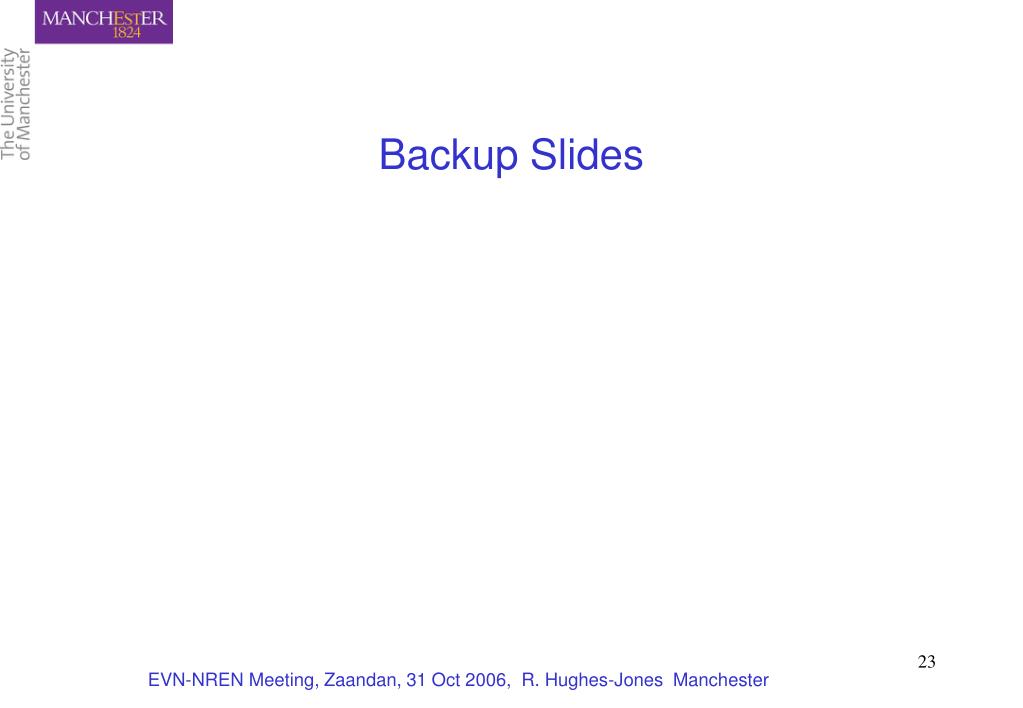

  23. Backup Slides EVN-NREN Meeting, Zaandan, 31 Oct 2006, R. Hughes-Jones Manchester

  24. Connect. Communicate. Collaborate IP Links 1678 MCC Transport Node VLANs Router VC-4-nv Channels L2 Matrix TDM Matrix 1/10 Gigabit Ethernet From PoS to Ethernet • More Economical Architecture • Highest Overall Network Availability • Flexibility (VLAN management) • Highest Network Performance (Latency) EVN-NREN Meeting, Zaandan, 31 Oct 2006, R. Hughes-Jones Manchester

  25. 10 Gigabit Ethernet: UDP Throughput • 1500 byte MTU gives ~ 2 Gbit/s • Used 16144 byte MTU max user length 16080 • DataTAG Supermicro PCs • Dual 2.2 GHz Xenon CPU FSB 400 MHz • PCI-X mmrbc 512 bytes • wire rate throughput of 2.9 Gbit/s • CERN OpenLab HP Itanium PCs • Dual 1.0 GHz 64 bit Itanium CPU FSB 400 MHz • PCI-X mmrbc 4096 bytes • wire rate of 5.7 Gbit/s • SLAC Dell PCs giving a • Dual 3.0 GHz Xenon CPU FSB 533 MHz • PCI-X mmrbc 4096 bytes • wire rate of 5.4 Gbit/s EVN-NREN Meeting, Zaandan, 31 Oct 2006, R. Hughes-Jones Manchester

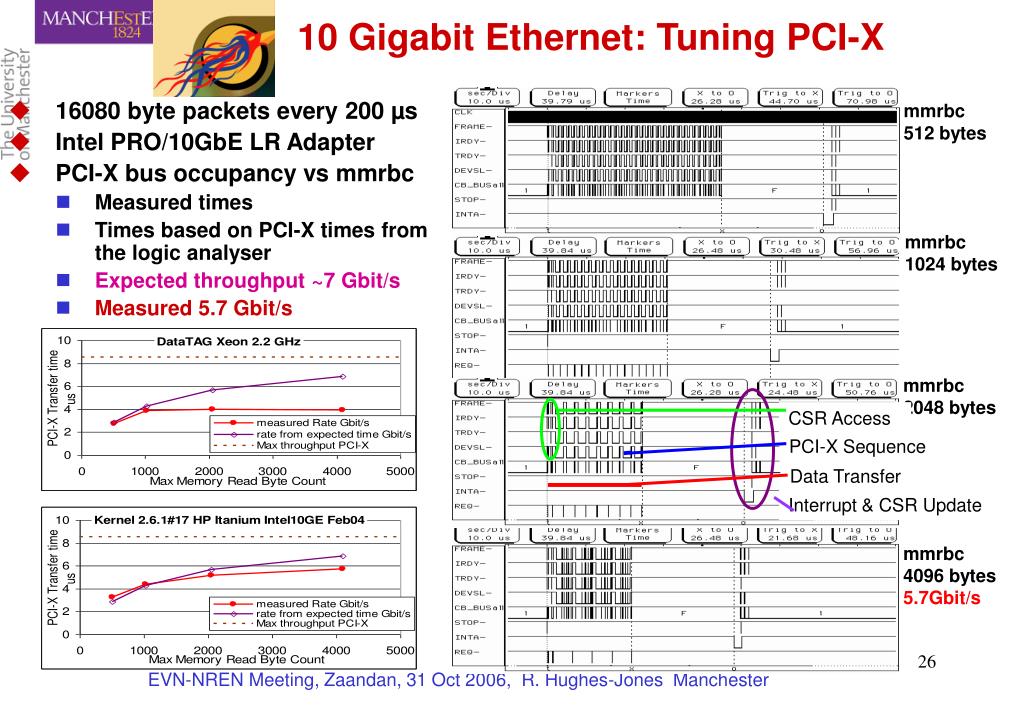

  26. mmrbc 512 bytes mmrbc 1024 bytes mmrbc 2048 bytes CSR Access PCI-X Sequence Data Transfer Interrupt & CSR Update mmrbc 4096 bytes 5.7Gbit/s 10 Gigabit Ethernet: Tuning PCI-X • 16080 byte packets every 200 µs • Intel PRO/10GbE LR Adapter • PCI-X bus occupancy vs mmrbc • Measured times • Times based on PCI-X times from the logic analyser • Expected throughput ~7 Gbit/s • Measured 5.7 Gbit/s EVN-NREN Meeting, Zaandan, 31 Oct 2006, R. Hughes-Jones Manchester
