Lecture 3 Electrical Energy. Chapter 16.1  16.5. Outline. Potential Difference Electric Potential Equipotential Surface. Conservative Forces. Both, gravitational and electric, forces acting on an object produce work.

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'Lecture 3 Electrical Energy' - louise


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
lecture 3 electrical energy
Lecture 3Electrical Energy

Chapter 16.1  16.5

Outline

  • Potential Difference
  • Electric Potential
  • Equipotential Surface
conservative forces

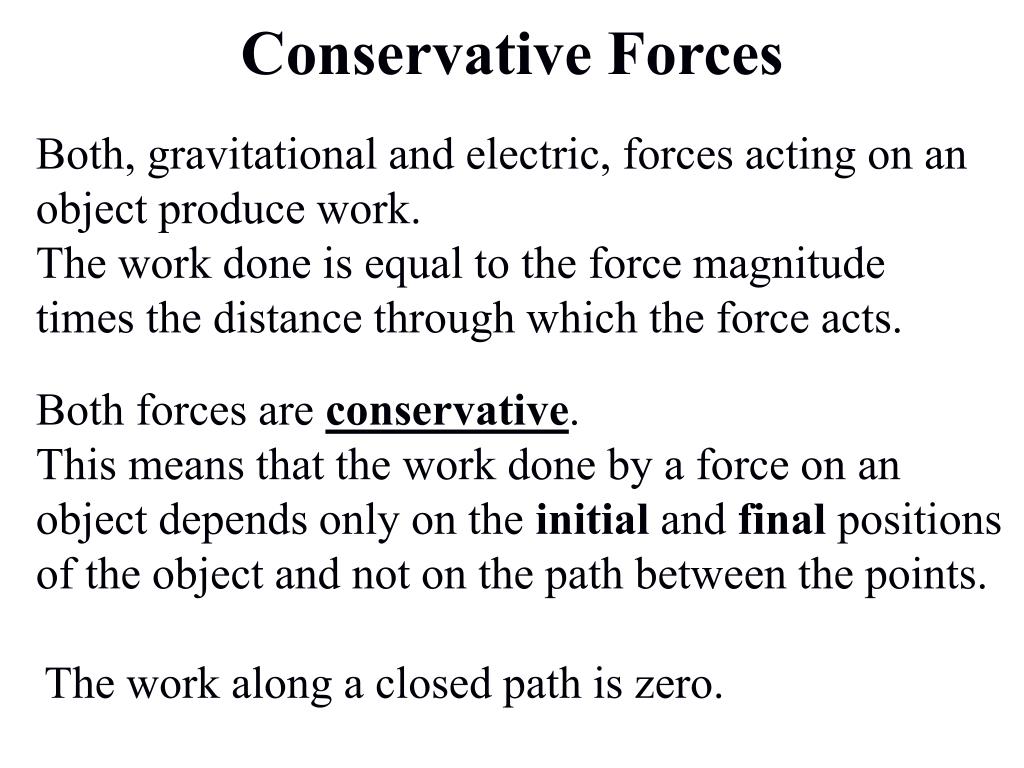

Conservative Forces

Both, gravitational and electric, forces acting on an object produce work.

The work done is equal to the force magnitude times the distance through which the force acts.

Both forces are conservative.

This means that the work done by a force on an object depends only on the initial and final positions of the object and not on the path between the points.

The work along a closed path is zero.

potential difference
Potential Difference

E  electric field magnitude

q  a small positive charge

The work done by the force moving the charge from A to B is WAB=qEd

The charge gains kinetic energy and loses potential energy

potential difference1
Potential Difference

The work done by a conservative force equals the negative of the change of potential energy, PE.

PE =  WAB =  qEd

(valid only for the case of a uniform field)

The potential difference between points A and B is the change in potential energy of a charge q moved from A to B divided by the charge size.

V  VB  VA = PE / q

units of electric potential difference
Units of Electric Potential Difference

PE

 = V = Ed

q

Electric potential difference is a measure of energy per unit charge.

Units of electric potential are joules per coulomb.

1 V = 1 J/C

The above equation also shows that 1 N/C = 1 V/m.

Both,potential energy and potential are scalars.

energy change in the electric field
Energy Change in the Electric Field

The direction of the electric field is the direction of the electric force, exerted on a positive charge.

Thus, a positive charge gains electrical potential energy when it is moved in a direction opposite the electric field.

Similarly, a negative charge moving in a direction opposite to the electric field loses electrical potential energy.

Positive charges move from a point of higher potential to a point of lower potential.

electric potential of a point charge

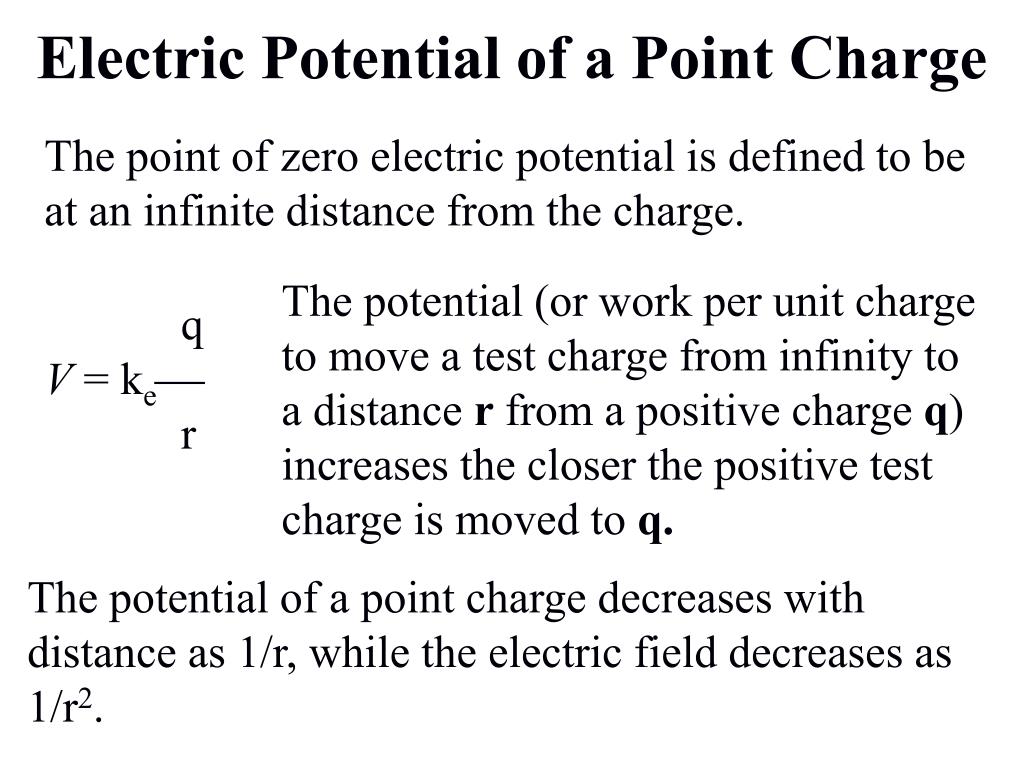

Electric Potential of a Point Charge

The point of zero electric potential is defined to be at an infinite distance from the charge.

The potential (or work per unit charge to move a test charge from infinity to a distance r from a positivecharge q)increases the closer the positive test charge is moved to q.

q

V = ke

r

The potential of a point charge decreases with distance as 1/r, while the electric field decreases as 1/r2.

electric potential
Electric Potential

What is the potential 2 meters away from a one nano-coulomb (109 C) charge?

V = V(r) = keq/r

ke = 9 x 109 (SI units)q = 1 x 109 Cr = 2 mV = 9 x 109 (1 x 109) / 2 = 4.5 V

work due to potential difference

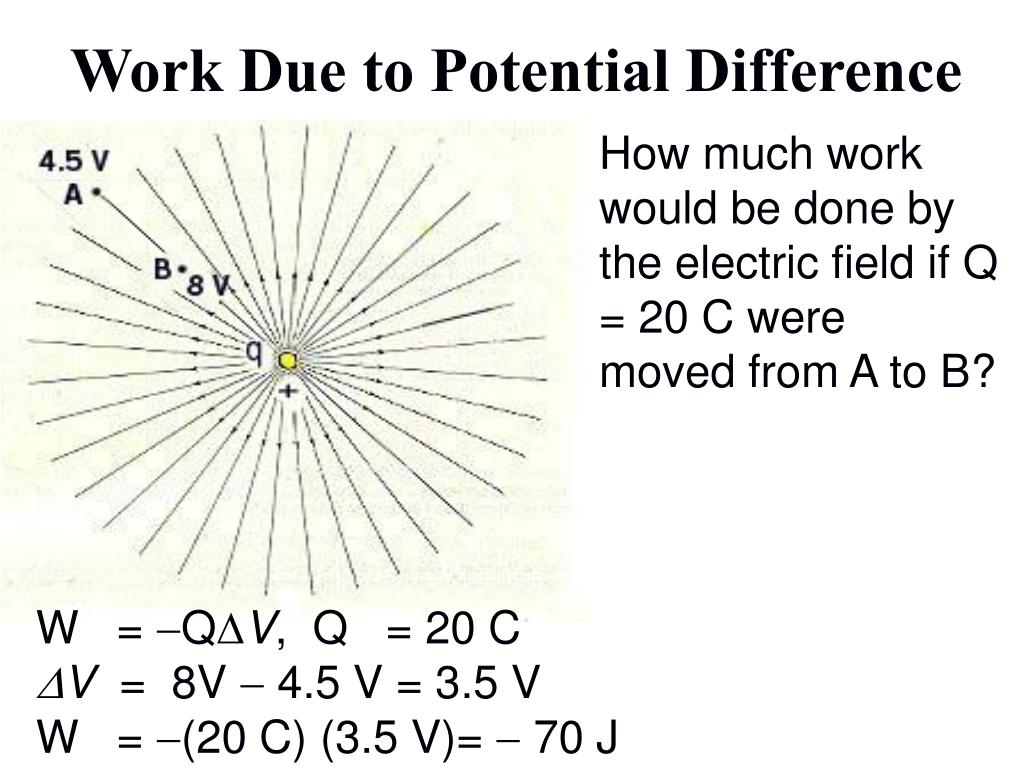

Work Due to Potential Difference

How much work would be done bythe electric field if Q = 20 C weremoved from A to B?

W   = QDV,  Q   = 20 C

DV  = 8V  4.5 V = 3.5 V

W = (20 C) (3.5 V)=  70 J

potential due to 2 charges
Potential Due to 2 Charges

What is the potential at Point P?

V = keq/r for each charge, add the potentials:

V = (9 x 109)(4 x 109)/12 = 4 V

V = (9 x 109)(6 x 109)/27 = 2 V

Total Potential:  6 V

potentials and charged conductors
Potentials and Charged Conductors

W = q (VB – VA)

If VB – VA = 0, no work is required to move a charge between points A and B.

  • When a conductor is in electrostatic equilibrium, a net charge resides entirely on its surface.
  • The electric field just outside the conductor is perpendicular to the surface.
  • The electric field inside the conductor is zero.

 All points on the surface of a charged conductor in electrostatic equilibrium are at the same potential.

surface potential
Surface Potential

No work is done to move a charge along the conductor’s surface  the electric potential is constant everywhere on the surface.

No work is required to move a charge inside the conductor  the electric potential is constant everywhere inside the conductor.

equipotential surfaces
Equipotential Surfaces

Equipotential surface (equipotential) is a surface on which all points are at the same potential  no work is required to move a charge at constant speed on such a surface.

The electric field at every point on an equipotential

surface is perpendicular to the surface.

 Heart equipotential surfaces

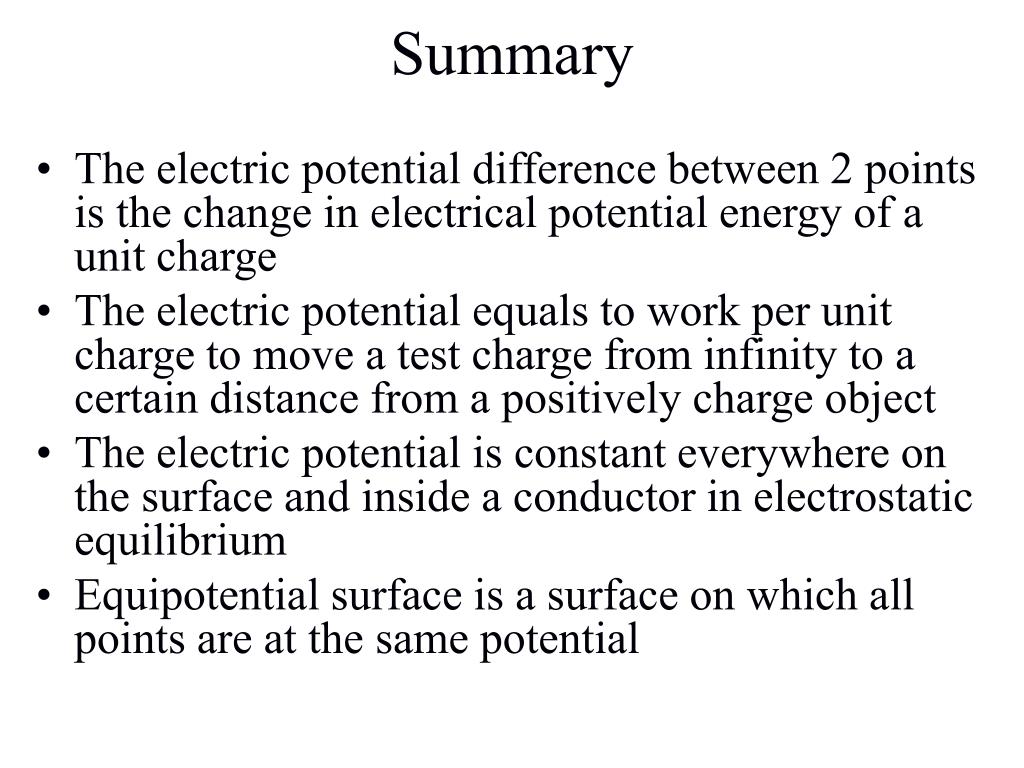

summary
The electric potential difference between 2 points is the change in electrical potential energy of a unit charge

The electric potential equals to work per unit charge to move a test charge from infinity to a certain distance from a positivelychargeobject

The electric potential is constant everywhere on the surface and inside a conductor in electrostatic equilibrium

Equipotential surface is a surface on which all points are at the same potential

Summary
