Digital highway measurements

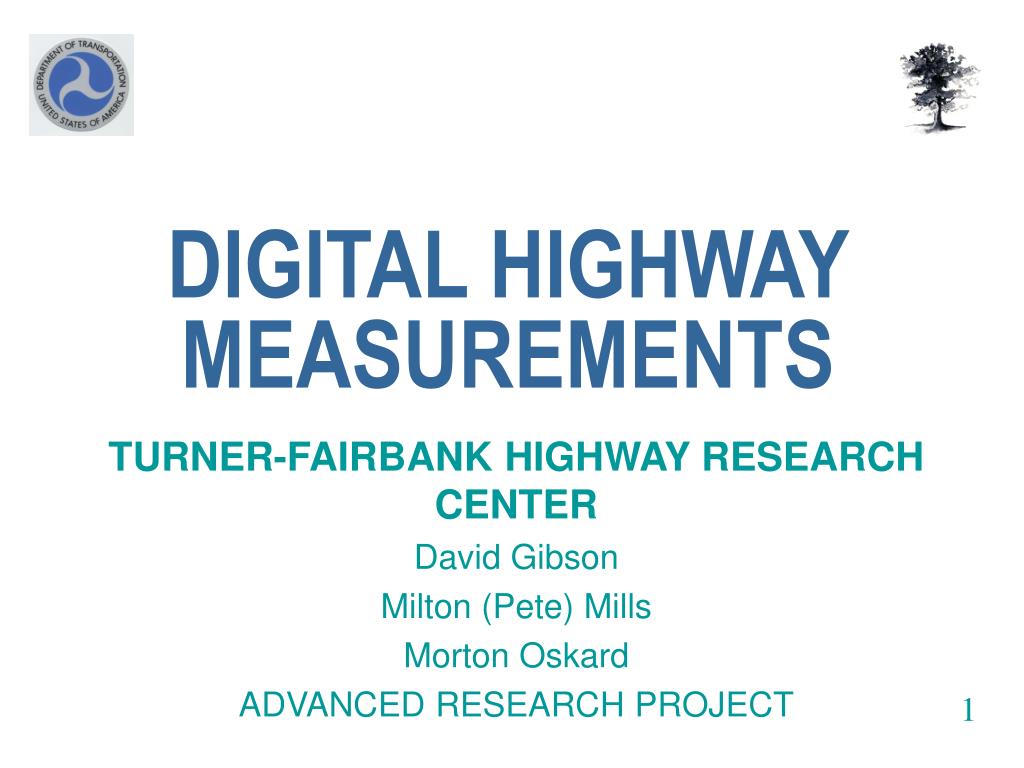

DIGITAL HIGHWAY MEASUREMENTS

TURNER-FAIRBANK HIGHWAY RESEARCH CENTER

David Gibson

Milton (Pete) Mills

Morton Oskard

ADVANCED RESEARCH PROJECT

1

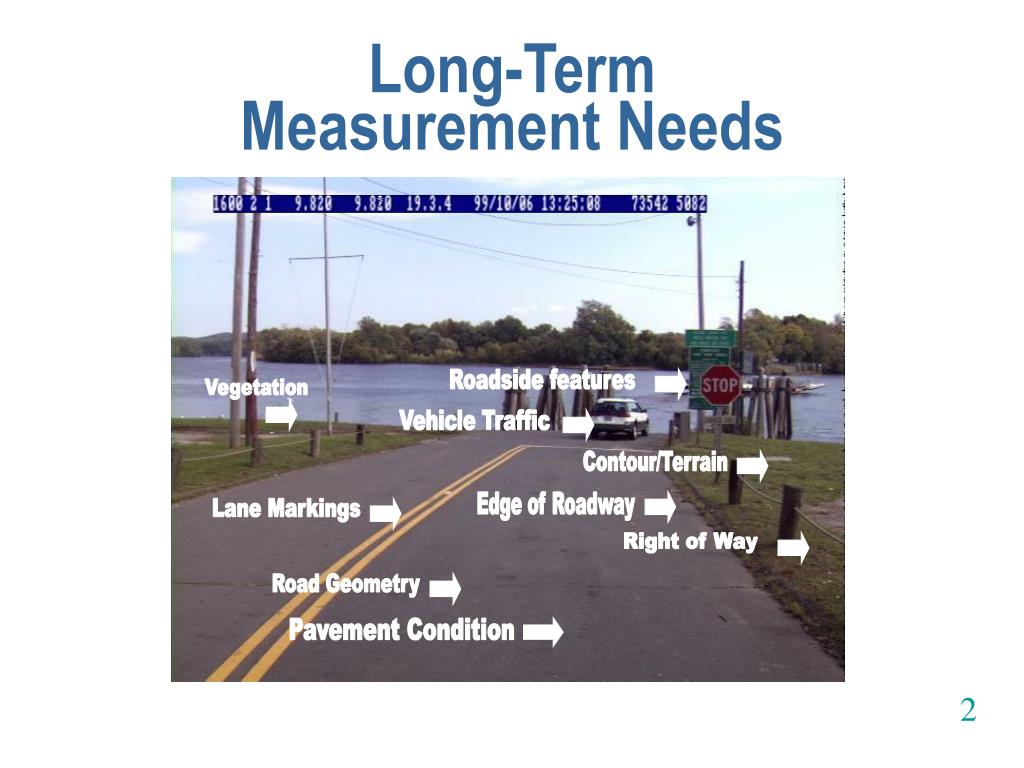

Long term measurement needs

Roadside features

Vegetation

Vehicle Traffic

Contour/Terrain

Edge of Roadway

Lane Markings

Right of Way

Road Geometry

Pavement Condition

Long-Term Measurement Needs

2

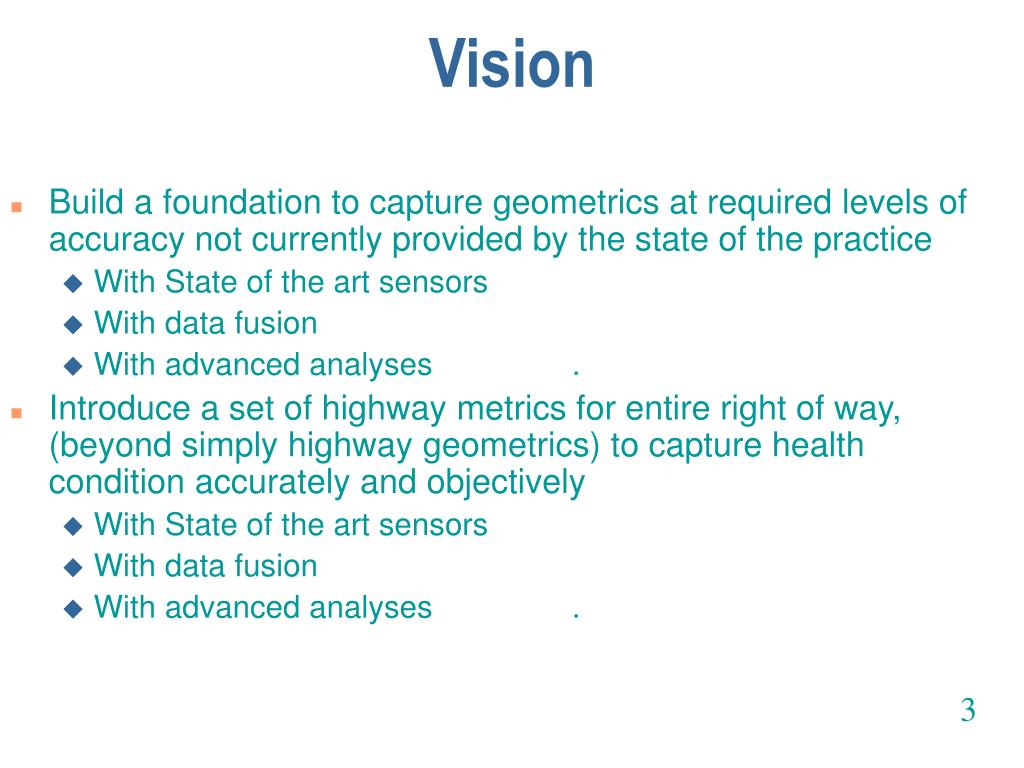

Vision

Vision

  • Build a foundation to capture geometrics at required levels of accuracy not currently provided by the state of the practice

    • With State of the art sensors

    • With data fusion

    • With advanced analyses .

  • Introduce a set of highway metrics for entire right of way, (beyond simply highway geometrics) to capture health condition accurately and objectively

    • With State of the art sensors

    • With data fusion

    • With advanced analyses .

3


Vehicle and phase i sensors

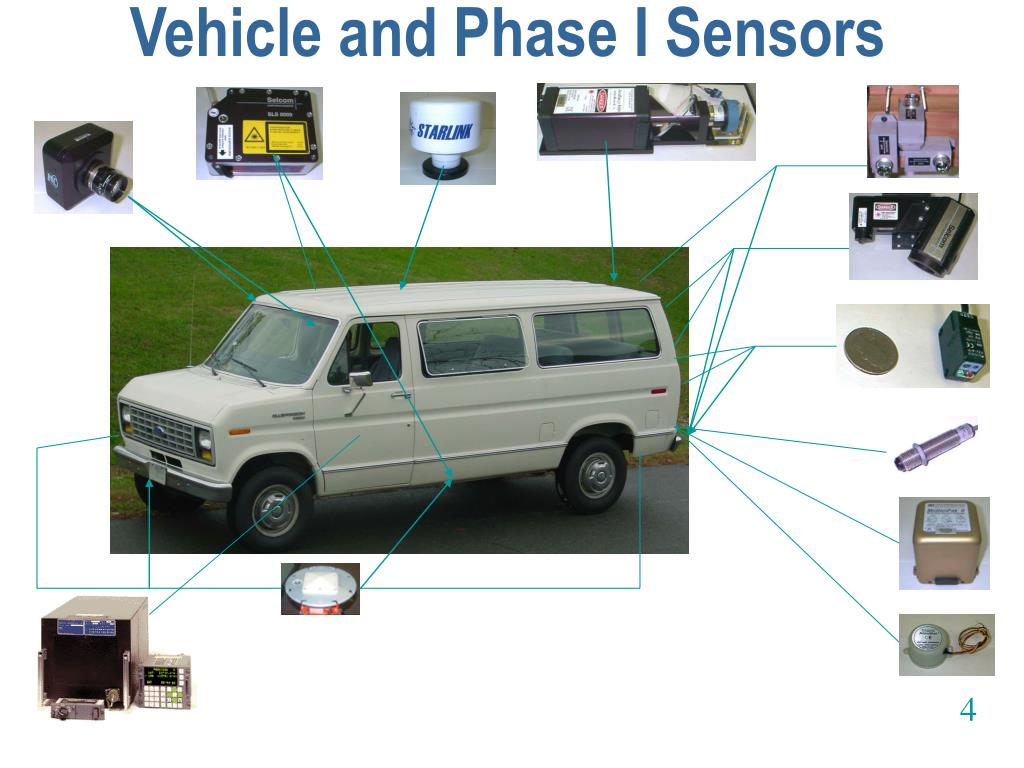

Vehicle and Phase I Sensors

4


Potential sensors

Potential Sensors

  • Sound Intensity Pressure Device (SIPD)

  • Ground Penetrating Radar (GPR)

  • LIDAR

  • Infrared Sign Retro-Reflectivity (IR)

  • Downward facing

    Camera for

    Pavements

IR

GPR

SIPD

5

Camera

LIDAR


Digital highway measurements

6

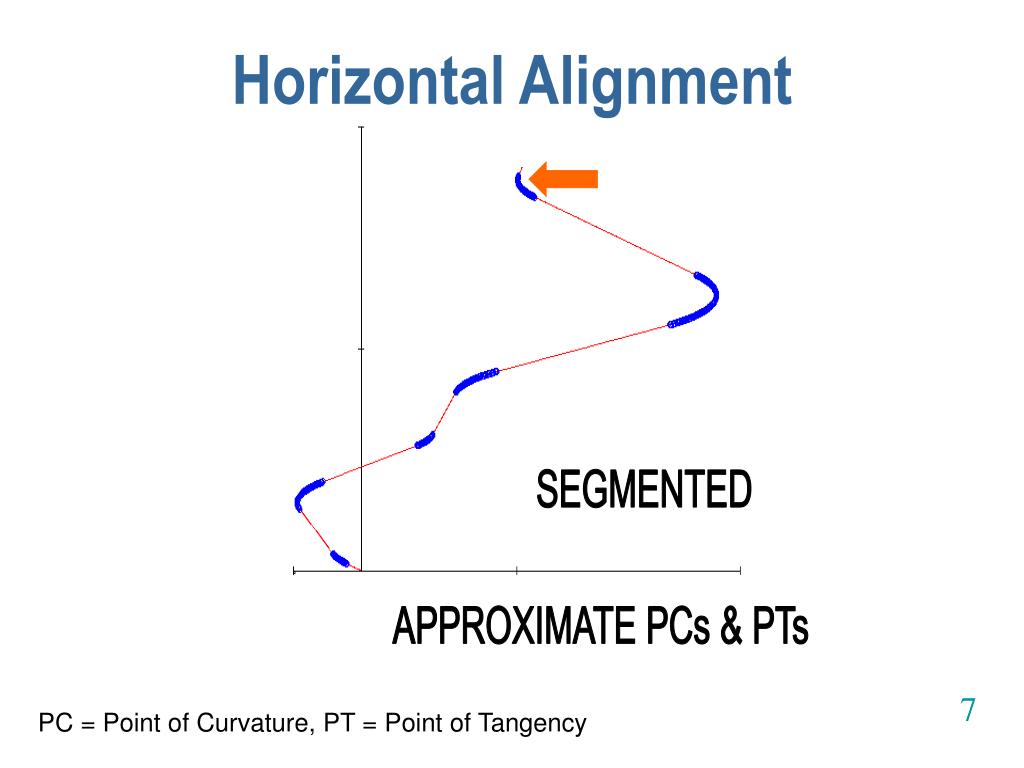

Horizontal alignment

Horizontal Alignment

SEGMENTED

APPROXIMATE PCs & PTs

7

PC = Point of Curvature, PT = Point of Tangency


Digital highway measurements

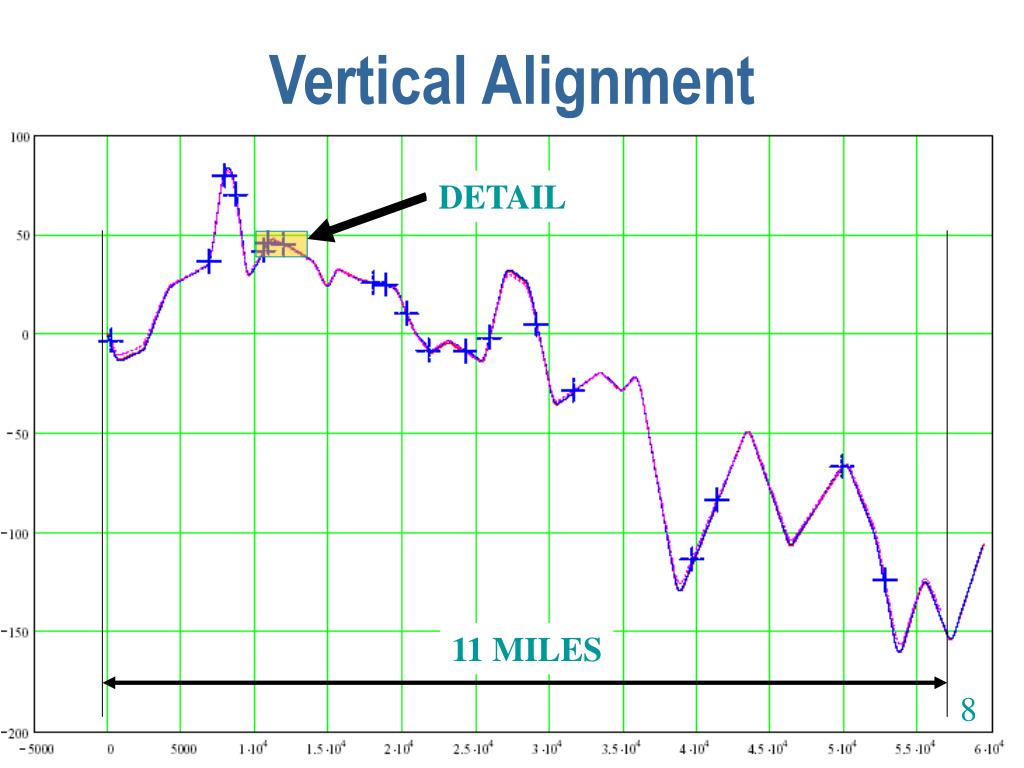

Vertical Alignment

DETAIL

11 MILES

8

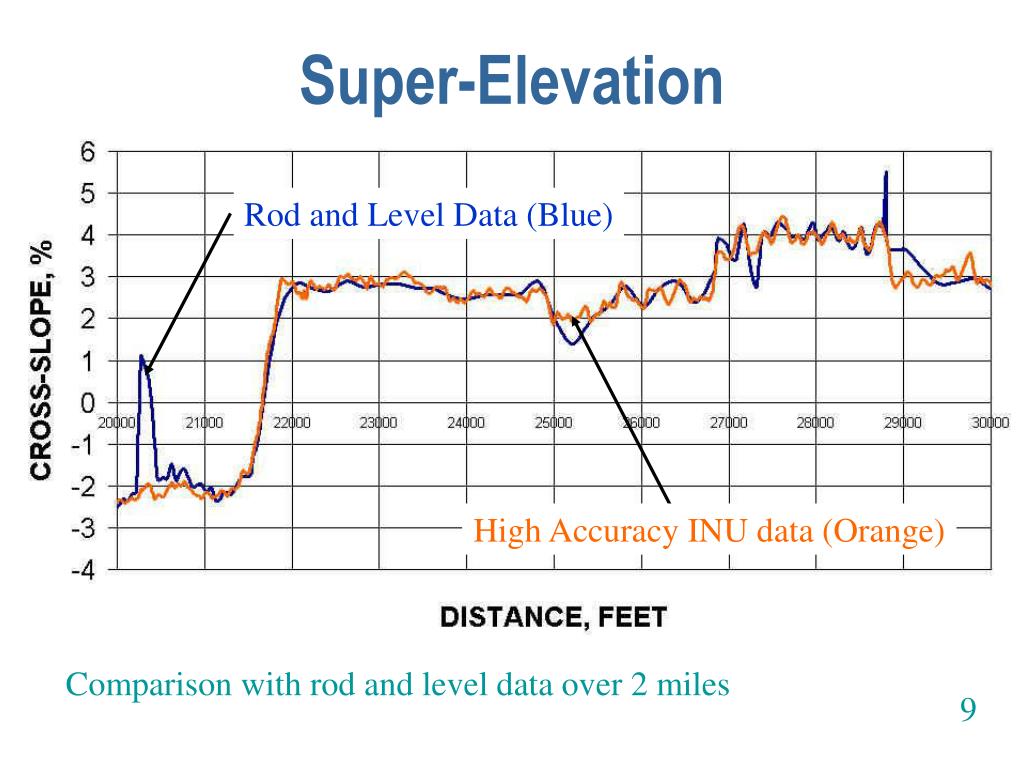

Super elevation

Super-Elevation

Rod and Level Data (Blue)

High Accuracy INU data (Orange)

Comparison with rod and level data over 2 miles

9


Penndot route 851 fhwa r d driving simulator

PennDOT Route 851: FHWA R&D Driving Simulator

  • Highway Geometrics for driving simulator collected in April 2004

PA Route 851

3.2 Miles

10

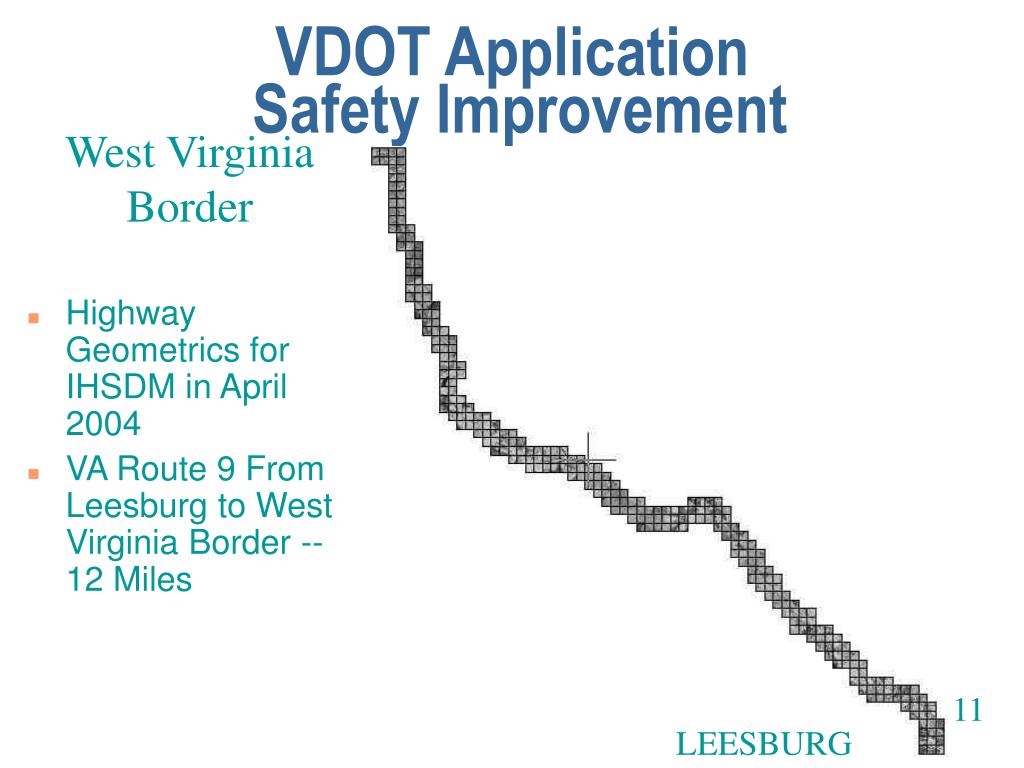

Vdot application safety improvement

VDOT Application Safety Improvement

West Virginia

Border

  • Highway Geometrics for IHSDM in April 2004

  • VA Route 9 From Leesburg to West Virginia Border -- 12 Miles

11

LEESBURG


Data types

Data Types

  • Vertical & Horizontal alignments including: PC, PT, Curve information

  • Super Elevation

  • Pavement Surface Condition

  • Lane Definition ( Markings and Edge )

  • Roadside hardware

  • Linear and XYZ Referencing of data

12

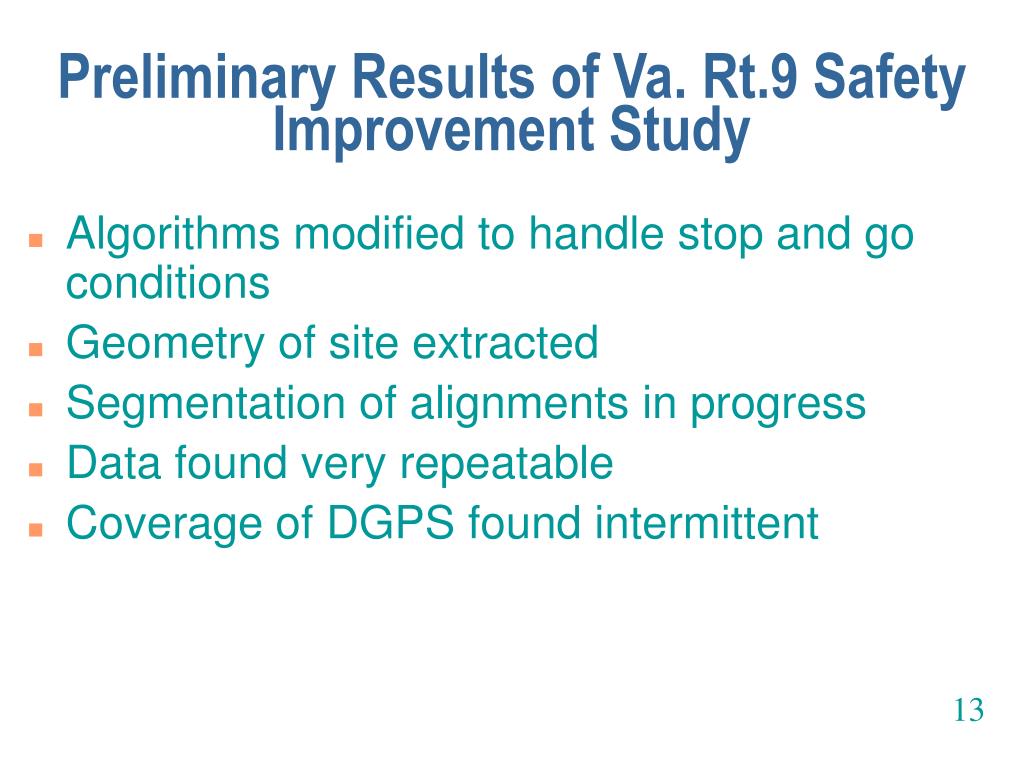

Preliminary results of va rt 9 safety improvement study

Preliminary Results of Va. Rt.9 Safety Improvement Study

  • Algorithms modified to handle stop and go conditions

  • Geometry of site extracted

  • Segmentation of alignments in progress

  • Data found very repeatable

  • Coverage of DGPS found intermittent

13


Digital highway measurements

Elevation View

HEAVY FOLIAGE

PROJECT ELEVATION IN FEET

VALLEYS

14

PROJECT LONGITUDE IN FEET

Differential GPS superimposed in blue - Arrows indicate blocked Reception


Cross sectional scans

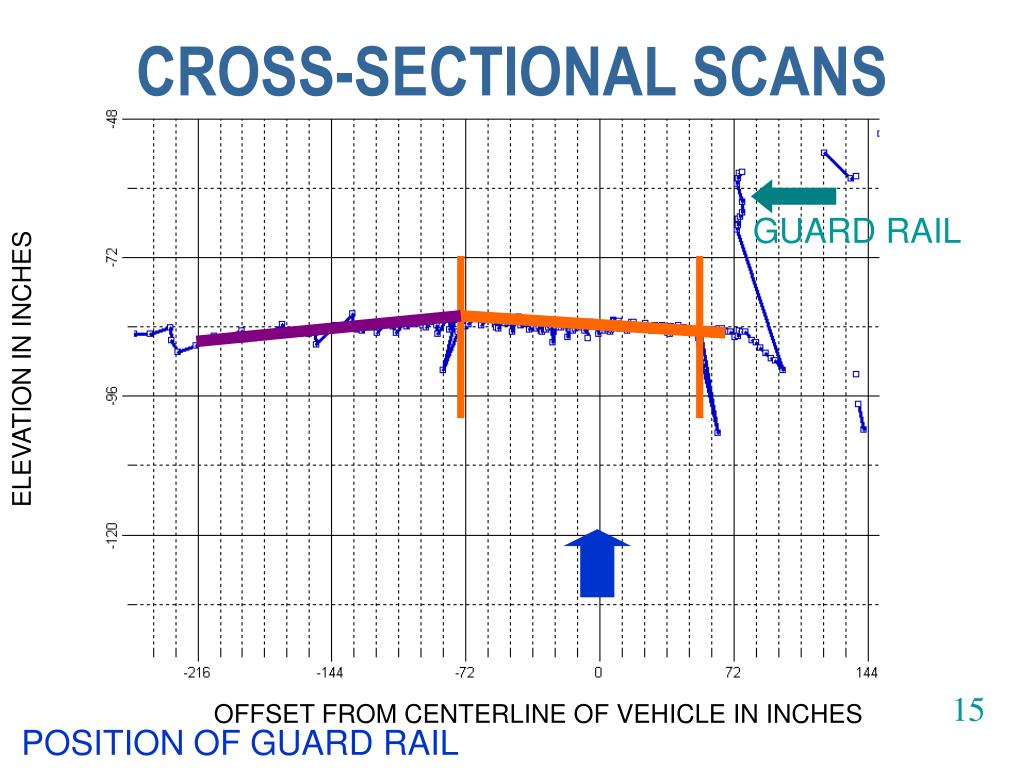

CROSS-SECTIONAL SCANS

GUARD RAIL

ELEVATION IN INCHES

15

OFFSET FROM CENTERLINE OF VEHICLE IN INCHES

POSITION OF GUARD RAIL


Cross sectional scans1

Cross-Sectional Scans

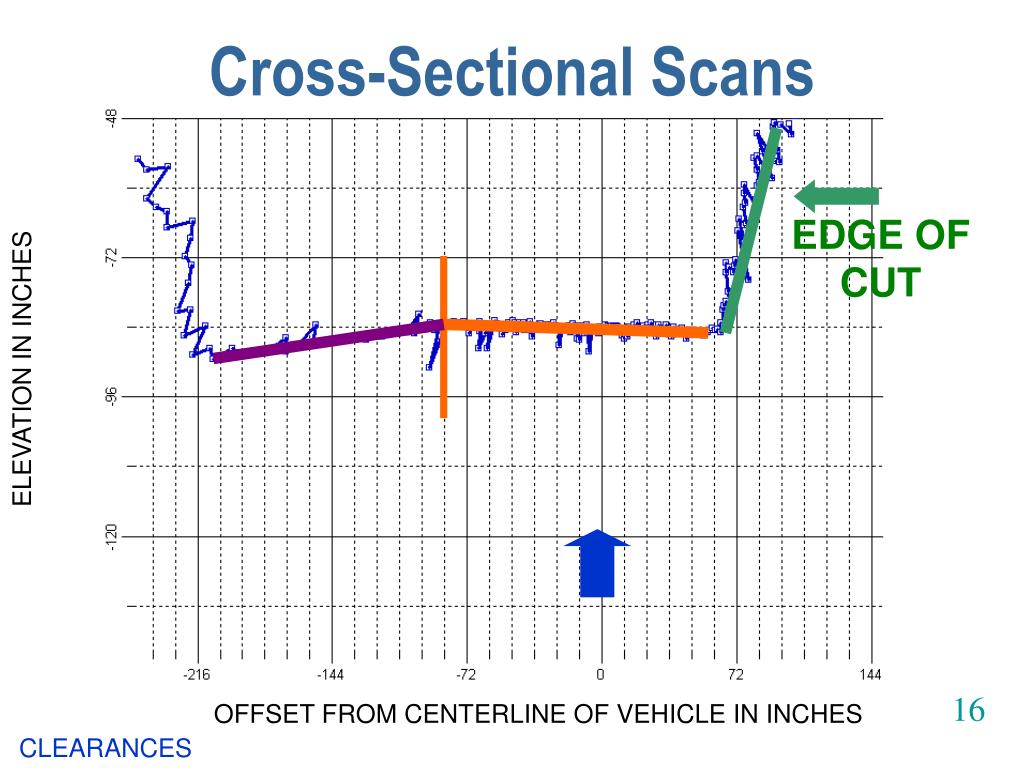

EDGE OF CUT

ELEVATION IN INCHES

16

OFFSET FROM CENTERLINE OF VEHICLE IN INCHES

CLEARANCES


Lane attributes

Lane Attributes

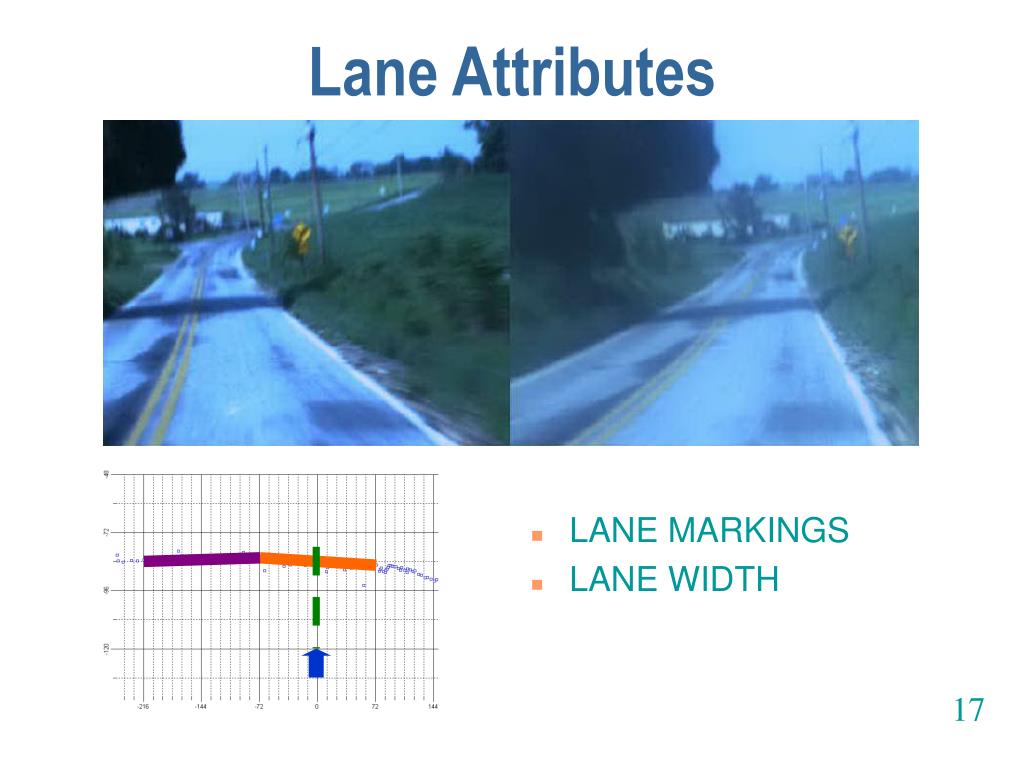

  • LANE MARKINGS

  • LANE WIDTH

17


Comparisons of dhm to dgps and sop

Comparisons of DHM to DGPS and SOP.

18


Comparing dhm to ndgps and sop

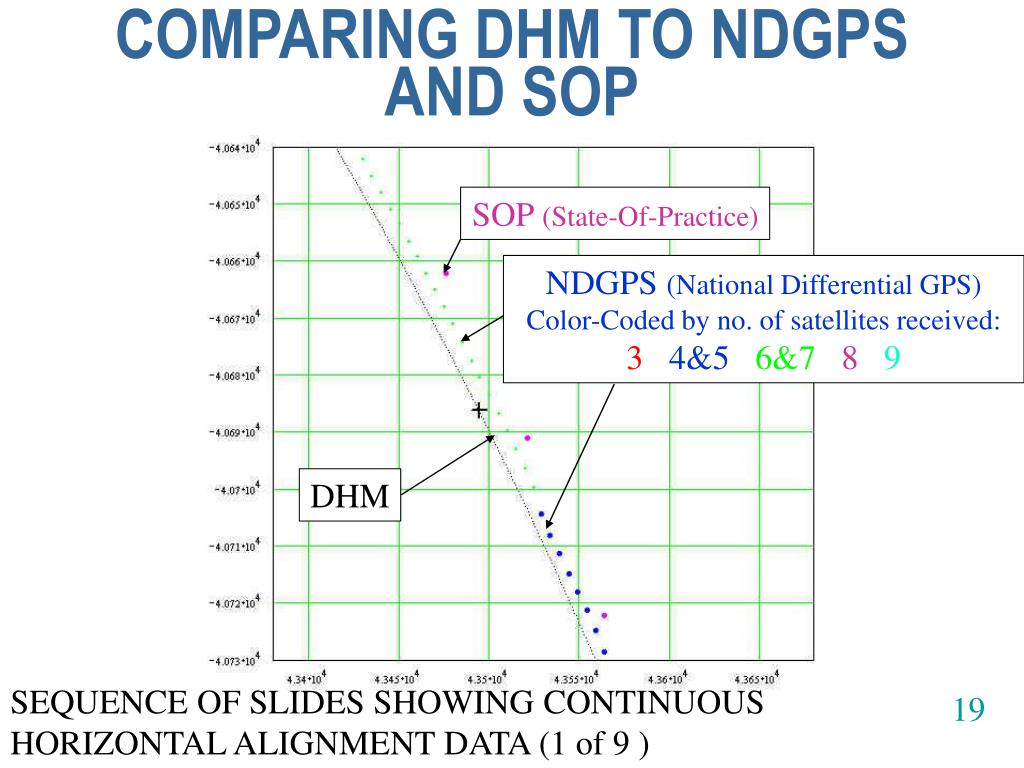

COMPARING DHM TO NDGPS AND SOP

SOP (State-Of-Practice)

NDGPS (National Differential GPS)

Color-Coded by no. of satellites received:

3 4&5 6&789

DHM

SEQUENCE OF SLIDES SHOWING CONTINUOUS HORIZONTAL ALIGNMENT DATA (1 of 9 )

19


Comparing dhm to ndgps and sop1

COMPARING DHM TO NDGPS AND SOP

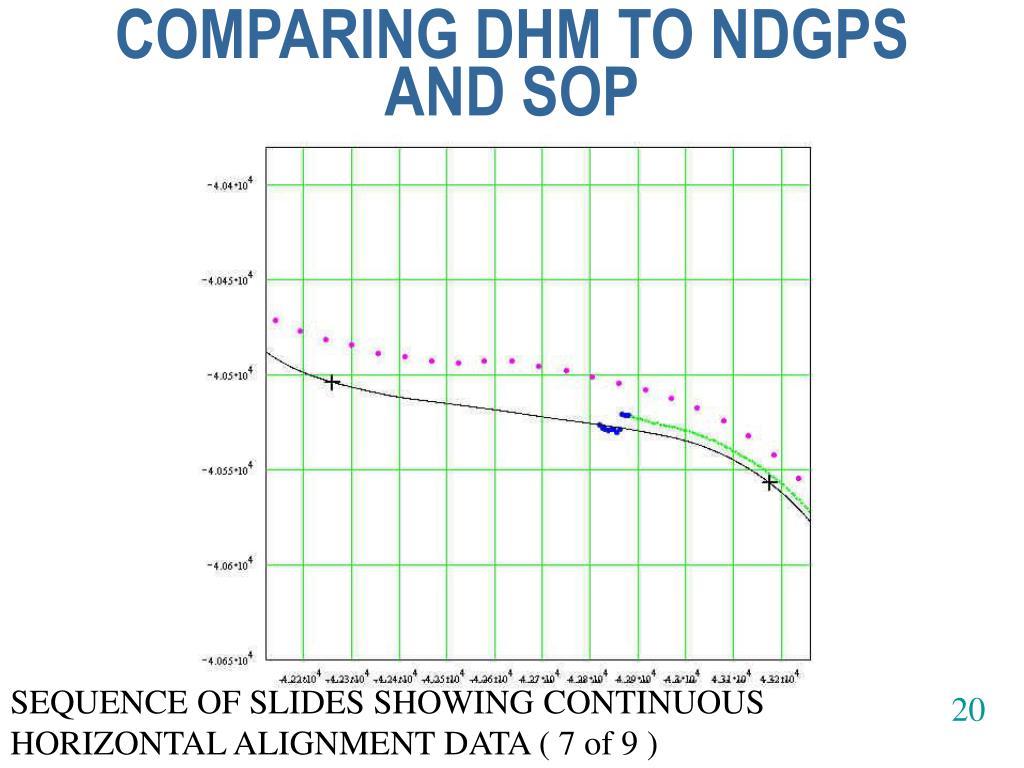

SEQUENCE OF SLIDES SHOWING CONTINUOUS HORIZONTAL ALIGNMENT DATA ( 7 of 9 )

20


Gps reception

GPS Reception

  • No. of Satellites:

    • 3

    • 4 & 5

    • 6 & 7

    • 8

    • 9

21


Digital highway measurements

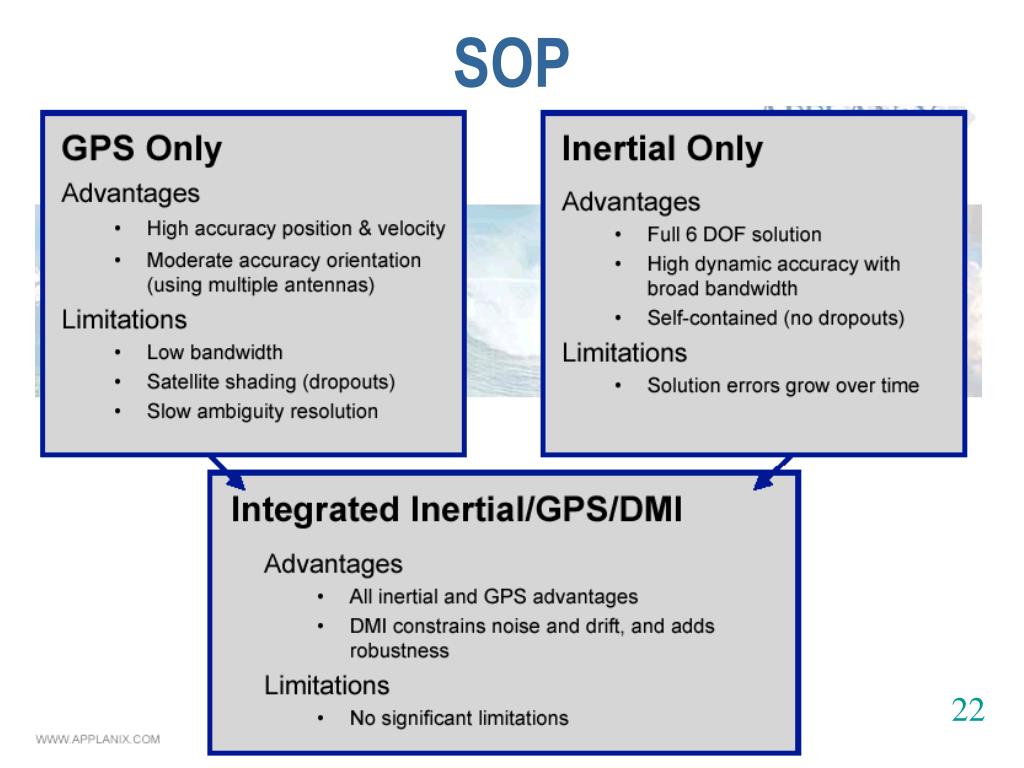

SOP

22


Measuring vehicle wander in lane using dhm laser

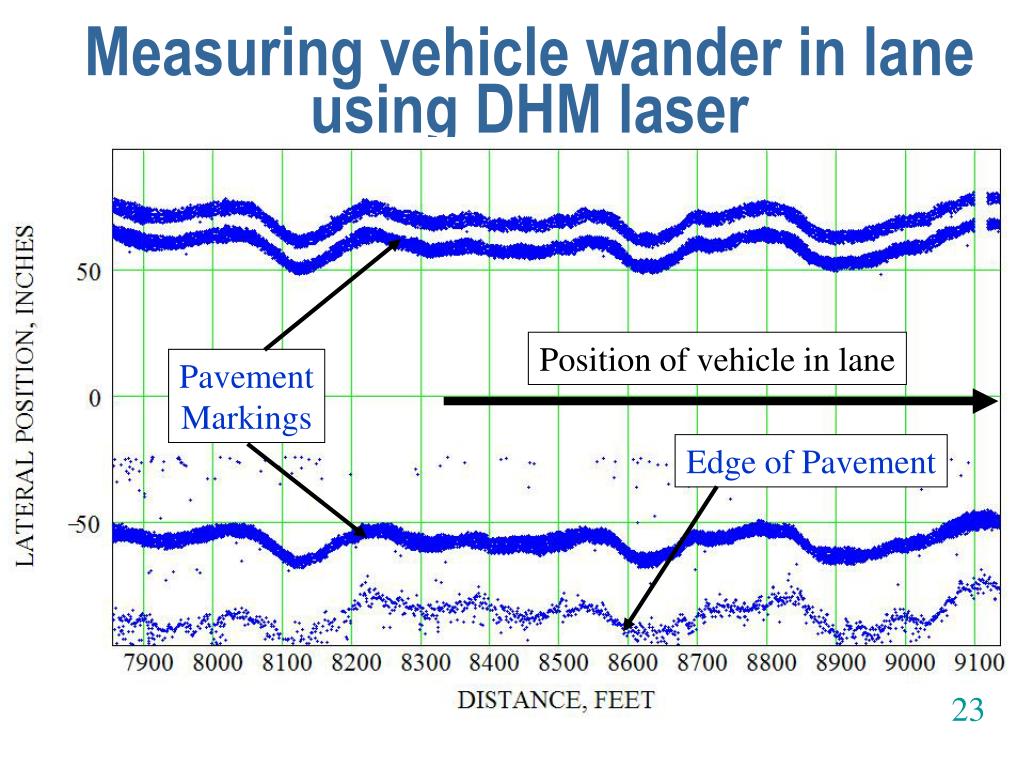

Measuring vehicle wander in lane using DHM laser

Position of vehicle in lane

Pavement

Markings

Edge of Pavement

23

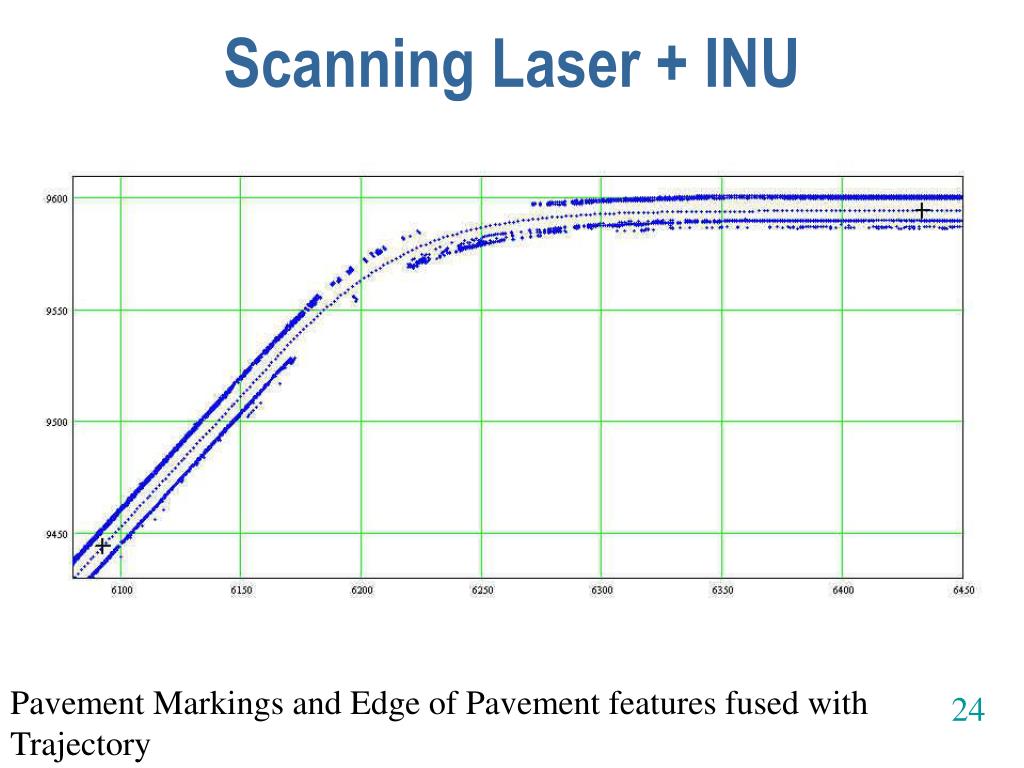

Scanning laser inu

Scanning Laser + INU

Pavement Markings and Edge of Pavement features fused with Trajectory

24


Multiple lanes

Multiple lanes

25

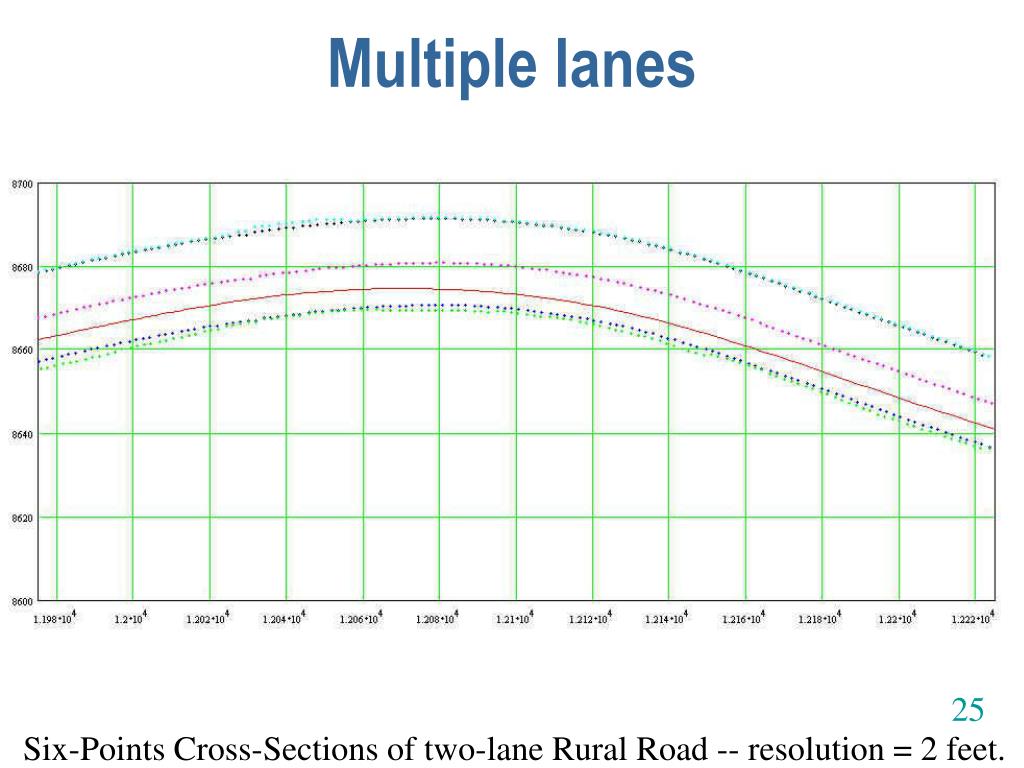

Six-Points Cross-Sections of two-lane Rural Road -- resolution = 2 feet.


Cross sections

Cross-Sections

26

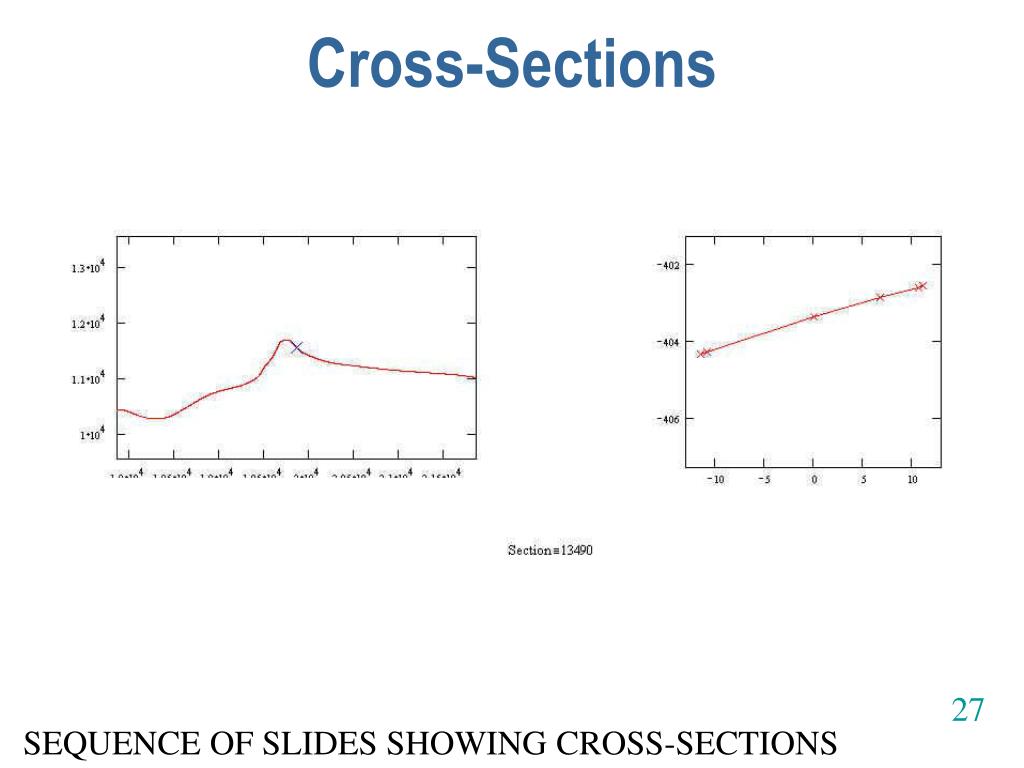

SEQUENCE OF SLIDES SHOWING CROSS-SECTIONS


Cross sections1

Cross-Sections

27

SEQUENCE OF SLIDES SHOWING CROSS-SECTIONS


Cross sections2

Cross-Sections

28

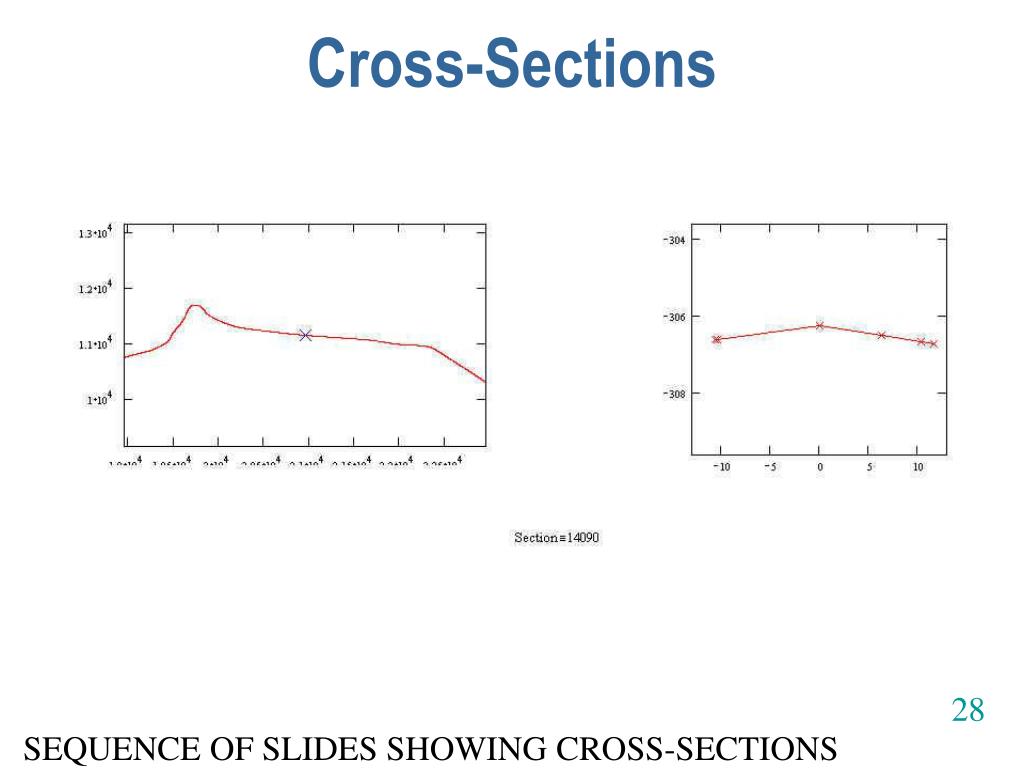

SEQUENCE OF SLIDES SHOWING CROSS-SECTIONS


Visualization

Visualization

29

3-D Rendering of Roadway in AUTOCAD


What is next

What is next ?

  • Optimize data reduction process

  • Reduce Data

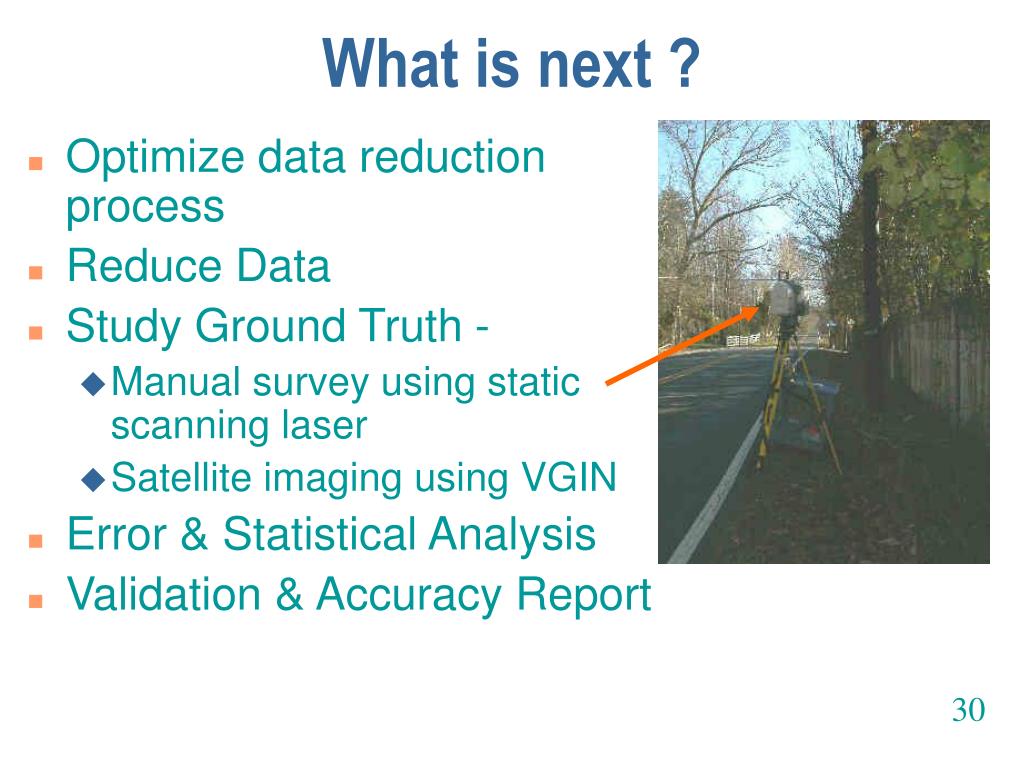

  • Study Ground Truth -

    • Manual survey using static scanning laser

    • Satellite imaging using VGIN

  • Error & Statistical Analysis

  • Validation & Accuracy Report

30


Preparations for gpr field trial

Preparations for GPR Field Trial

Mounting step frequency GPR

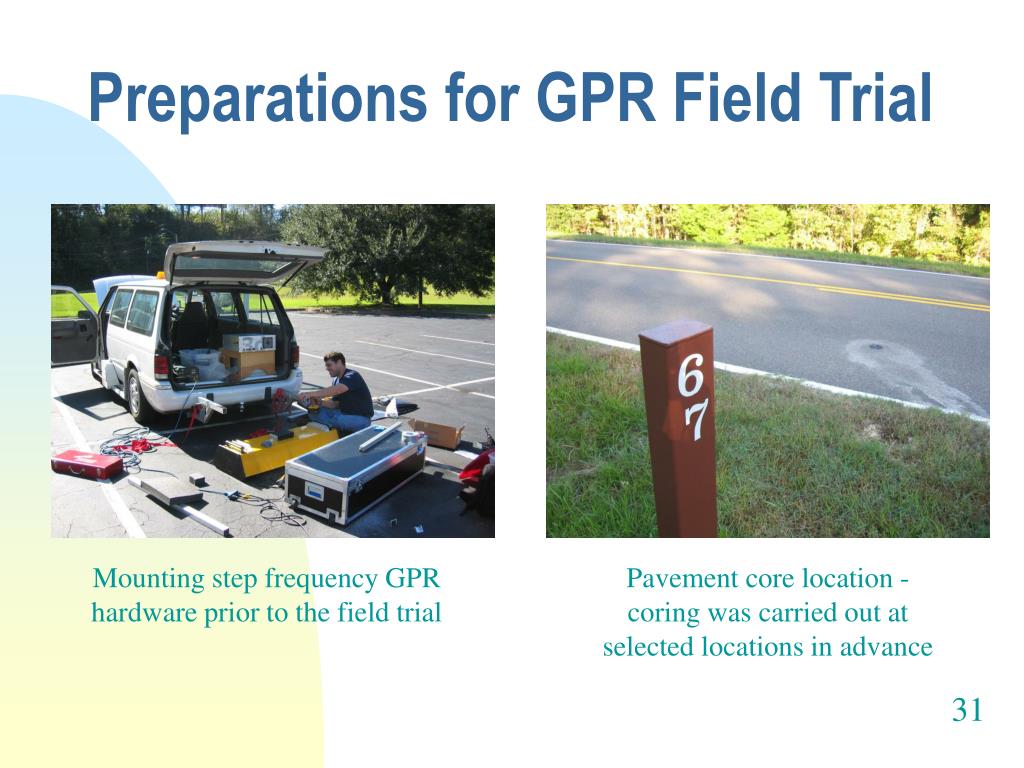

hardware prior to the field trial

Pavement core location - coring was carried out at selected locations in advance


Digital highway measurements

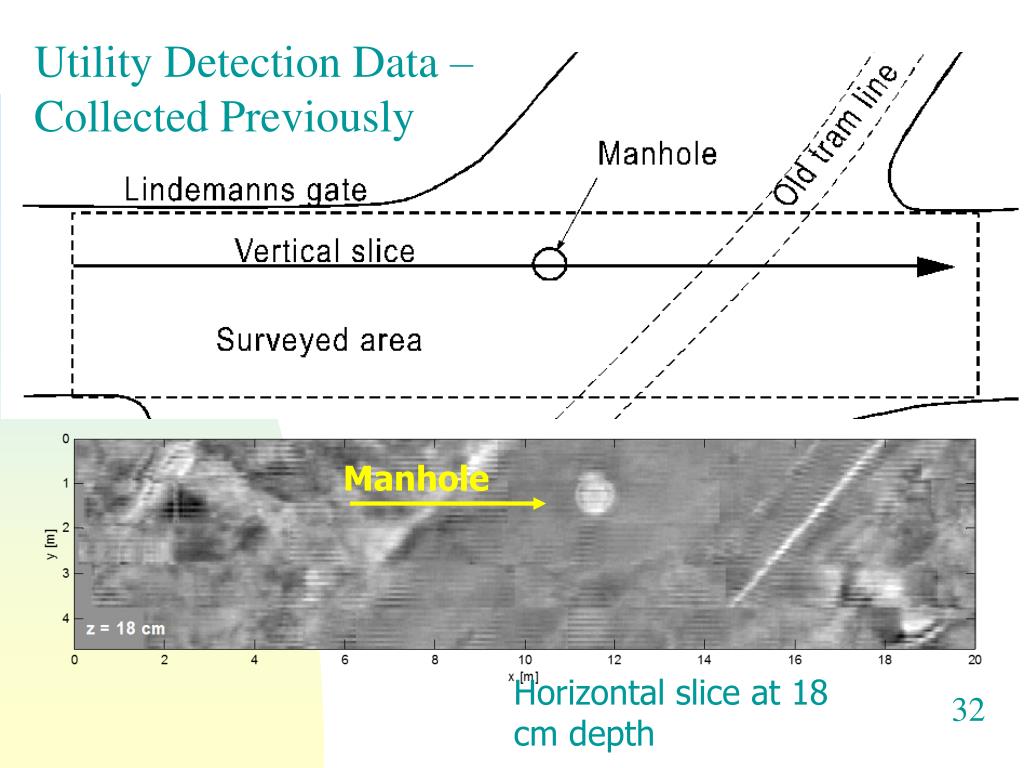

Utility Detection Data –

Collected Previously

Manhole

Horizontal slice at 18 cm depth


Digital highway measurements

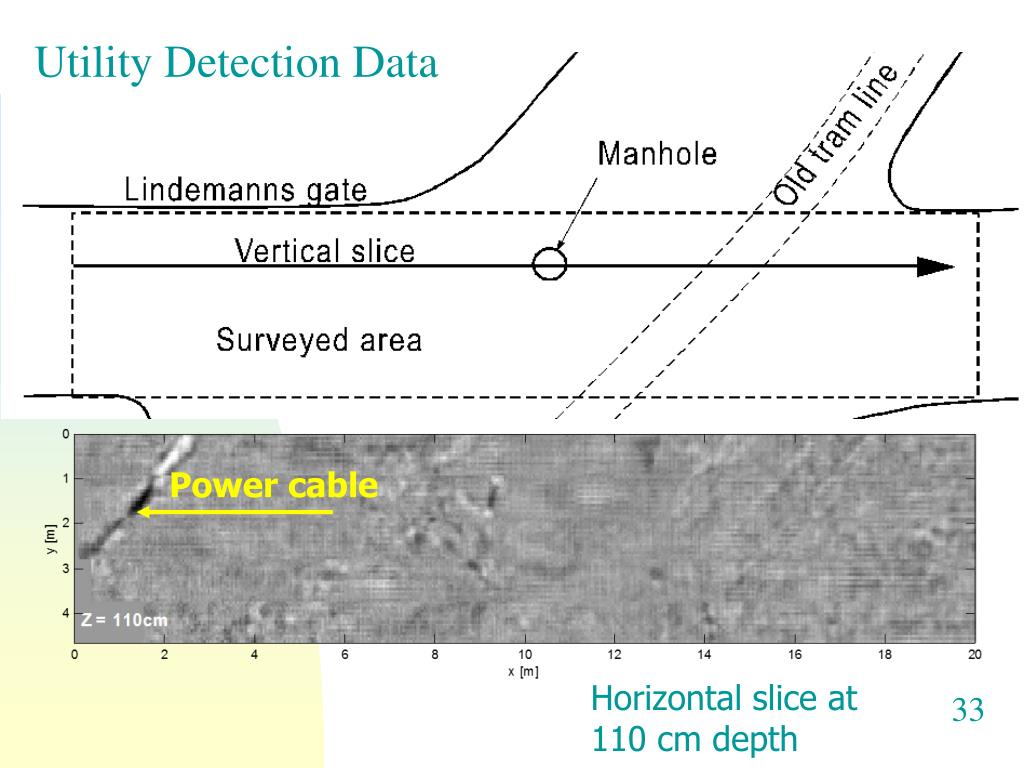

Utility Detection Data

Power cable

Horizontal slice at 110 cm depth


Digital highway measurements

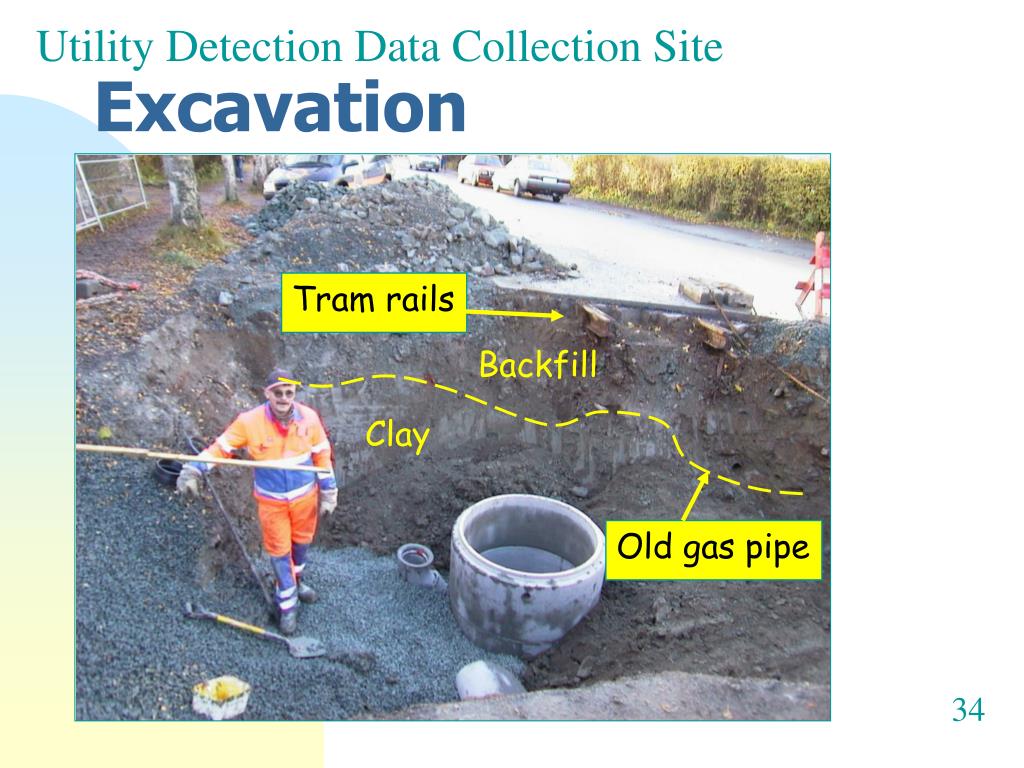

Utility Detection Data Collection Site

Excavation

Tram rails

Backfill

Clay

Old gas pipe


Conclusion

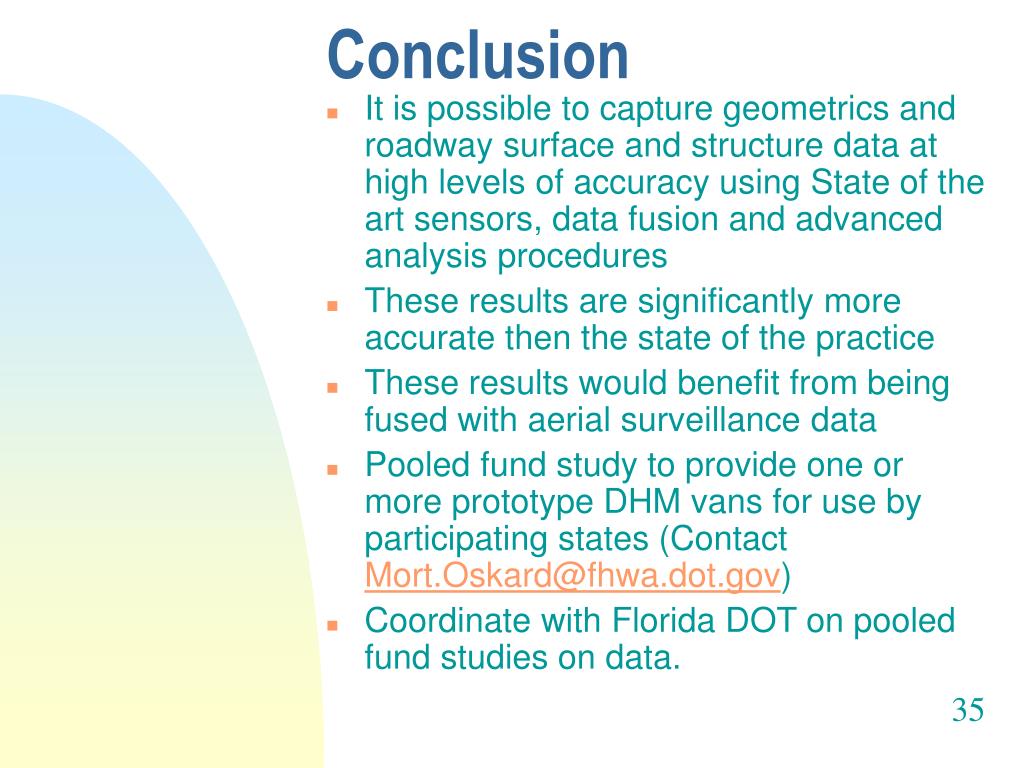

Conclusion

  • It is possible to capture geometrics and roadway surface and structure data at high levels of accuracy using State of the art sensors, data fusion and advanced analysis procedures

  • These results are significantly more accurate then the state of the practice

  • These results would benefit from being fused with aerial surveillance data

  • Pooled fund study to provide one or more prototype DHM vans for use by participating states (Contact [email protected])

  • Coordinate with Florida DOT on pooled fund studies on data.
