  1. Bones Dr. Sama ul Haque

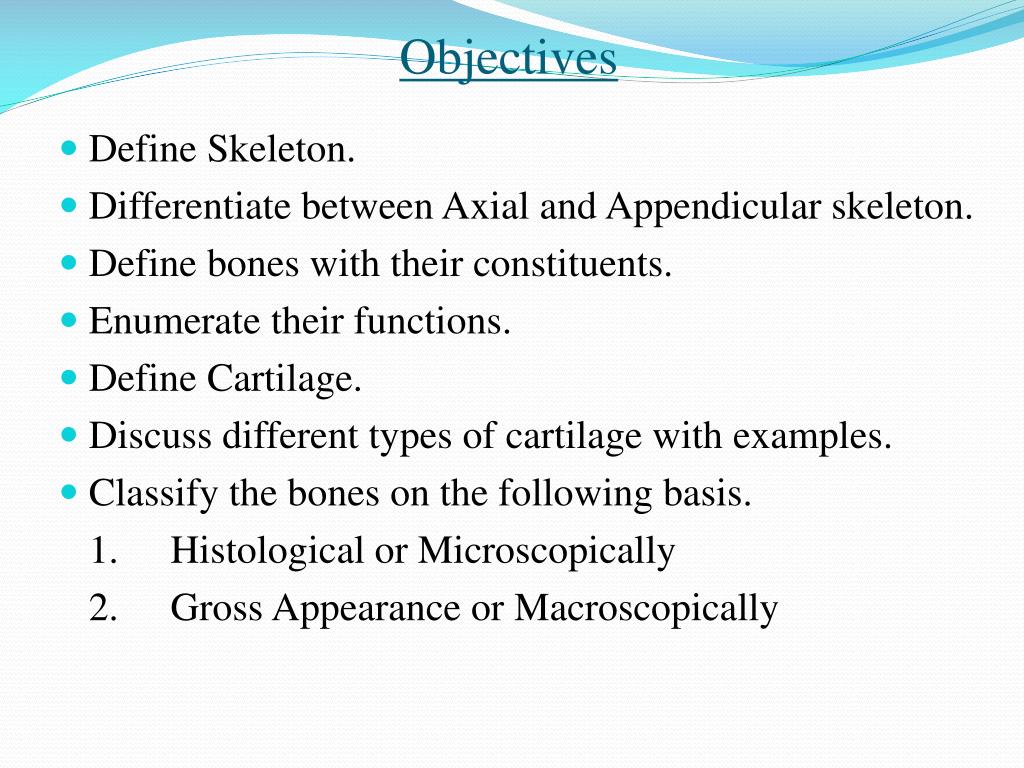

  2. Objectives • Define Skeleton. • Differentiate between Axial and Appendicular skeleton. • Define bones with their constituents. • Enumerate their functions. • Define Cartilage. • Discuss different types of cartilage with examples. • Classify the bones on the following basis. 1. Histological or Microscopically 2. Gross Appearance or Macroscopically

  3. Objectives • Define Ossification and its types. • Describe developing parts of a typical long bone. • Give the arterial supply of a Mature long Bone. • What are different types of bone break. • Define terms used for describing Bony features.

  4. Axial Skeleton These bones lie around the longitudinal axis of the body. • Skull (cranium and facial bones) • Vertebral column (vertebrae and discs) • Thoracic cage (ribs and sternum) Function: Axial skeleton supports and protects organs of head, neck and thorax.

  5. Appendicular skeleton • Pectoral or Shoulder girdle (clavicles and scapulae) • Upper limbs (arms) • Pelvic girdle (Hip bones, sacrum, coccyx) • Lower limbs (legs) Function: • Voluntary movements • Protection of delicate Structures

  6. Composition of Bones • Collagen: chief organic constituent (protein) • Inorganic Calcium Salts: Vitamin D essential for absorption

  7. A Chemical Analysis of Bone

  8. Cells • Osteoblasts: bone building, bone repairing cells in the periosteum and synthesize new matrix (Osteogenesis) • Osteocytes: osteoblast embedded within the bone matrix (mature bone cells) • Osteoclasts: cells that cause absorption of bone or dissolve bone matrix (Osteolysis)

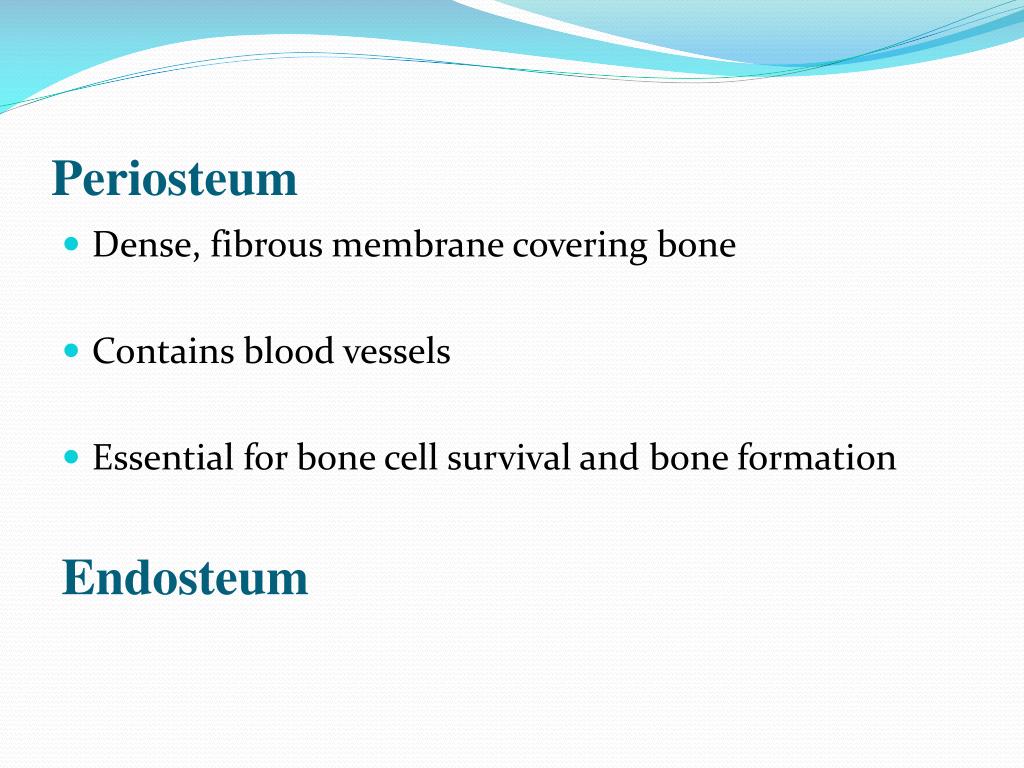

  9. Periosteum • Dense, fibrous membrane covering bone • Contains blood vessels • Essential for bone cell survival and bone formation Endosteum

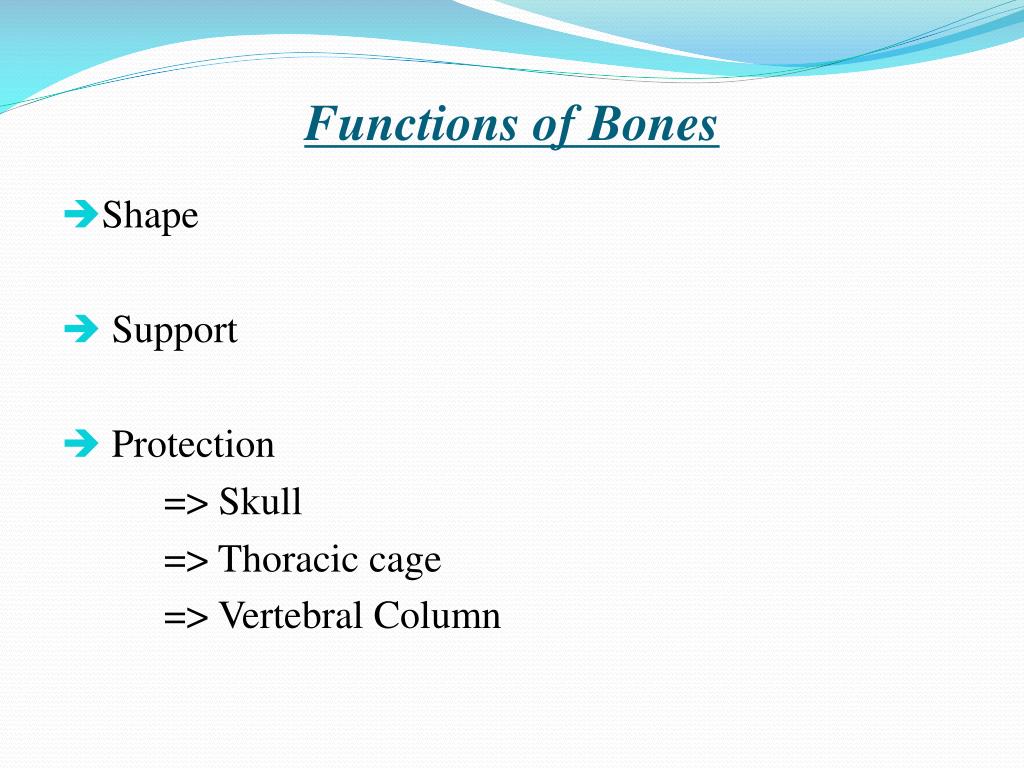

  10. Functions of Bones • Shape • Support • Protection => Skull => Thoracic cage => Vertebral Column

  11. Functions of Bones • Movement => Muscles => Tendons => Ligaments • Locomotion: To provide a lever system against which muscles can pull. • Weight Transmission

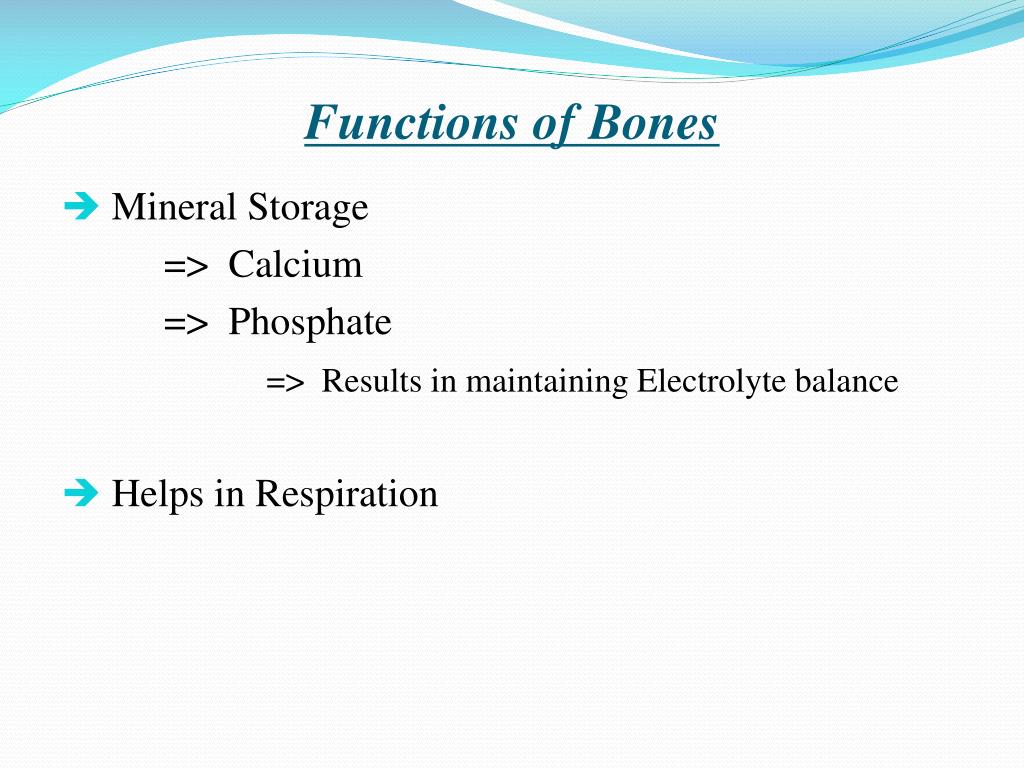

  12. Functions of Bones • Mineral Storage => Calcium => Phosphate => Results in maintaining Electrolyte balance • Helps in Respiration

  13. Functions of Bones Blood cell formation • Red Bone Marrow  Red gelatinous mass consisting of Haemopoietic tissue > Ends of long bones > Bodies of vertebrae > Sternum > Flat bones of skull

  14. Cartilage • Type of Dense connective tissue ( Cells and fibers) • Perichondrium ( Fibro-vasculo-cellular membrane) • Cells = Characterized by Rigid with flexibility and Resilience. • Avascular • Nerves and lymphatics are absent • Cells (Chondroblasts and chondrocytes) • Matrix => Connective tissue fibers (Collagen, Elastin)

  15. Types of cartilage: 3 • Hyaline cartilage: flexible and resilient • Elastic cartilage: highly bendable • Fibrocartilage: resists compression and tension

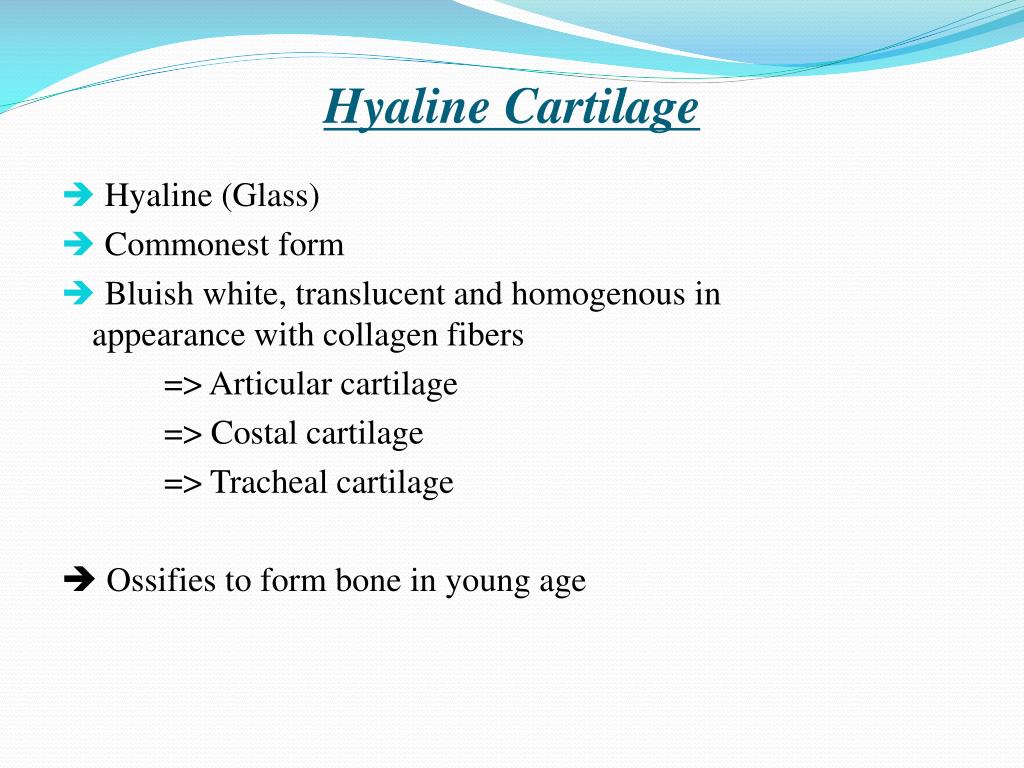

  16. Hyaline Cartilage • Hyaline (Glass) • Commonest form • Bluish white, translucent and homogenous in appearance with collagen fibers => Articular cartilage => Costal cartilage => Tracheal cartilage  Ossifies to form bone in young age

  17. Elastic Cartilage • Yellow; Elastin fibers • More elastic than hyaline • Sites => Pinna of the ear => Epiglottis  Never ossifies

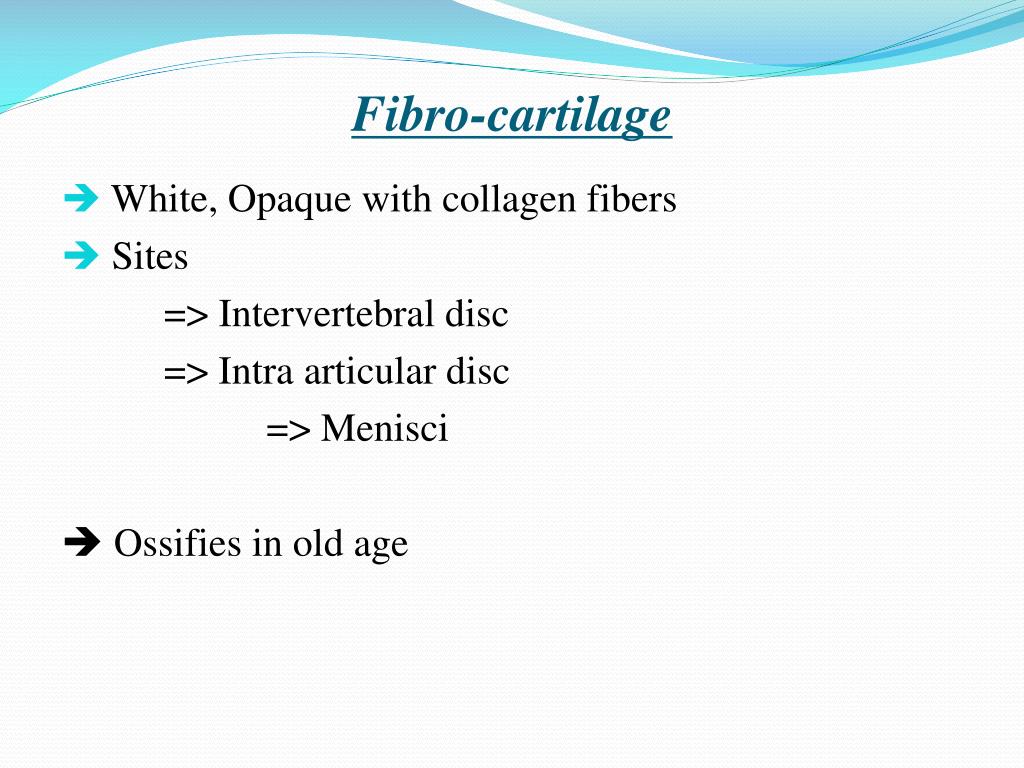

  18. Fibro-cartilage • White, Opaque with collagen fibers • Sites => Intervertebral disc => Intra articular disc => Menisci  Ossifies in old age

  19. Classification of bones • Histological or Microscopically • Gross Appearance or Macroscopically

  20. Histological or Microscopically Compact and Spongy Bone

  21. Compact and Spongy Bone

  22. Classification of Bones According to Shape • Long Bones • Short Bones • Flat Bones • Irregular Bones • Sesamoid Bones

  23. Developing parts of a typical long bone

  24. Long Bones • Epiphysis (Spongy): Covered with Hyaline cartilage. • Diaphysis (Compact): Covered with Periosteum. Medullary cavitywith yellow and red marrow. Examples: • Femur, Tibia, Fibula, Humerus, Ulna, Radius, Clavicle.

  25. Miniature Long Bones • Only one Epiphysis: Examples: • Metacarpals • Metatarsals • Phalanges

  26. Short Bones • Cube-shaped • Allows flexible movement • Spongy bone covered by Compact bone Examples: • Carpals & Tarsals,

  27. Flat Bones • Flat Plates • Protect Vital Organs Examples: • Bones of Vault of Skull • Ribs • Scapula • Sternum

  28. Flat bones

  29. Irregular Bones • Peculiarly Shaped to provide Support and Protection with Flexibility. Examples: • Vertebrae • Hip bone • Bones of base of Skull.

  30. Sesamoid Bones • Periosteum absent. • Ossify after birth. Functions: • Resist pressure • Reduce friction Examples: • Patella • Pisiform • Fabella

  31. Ossification OR Osteogenesis

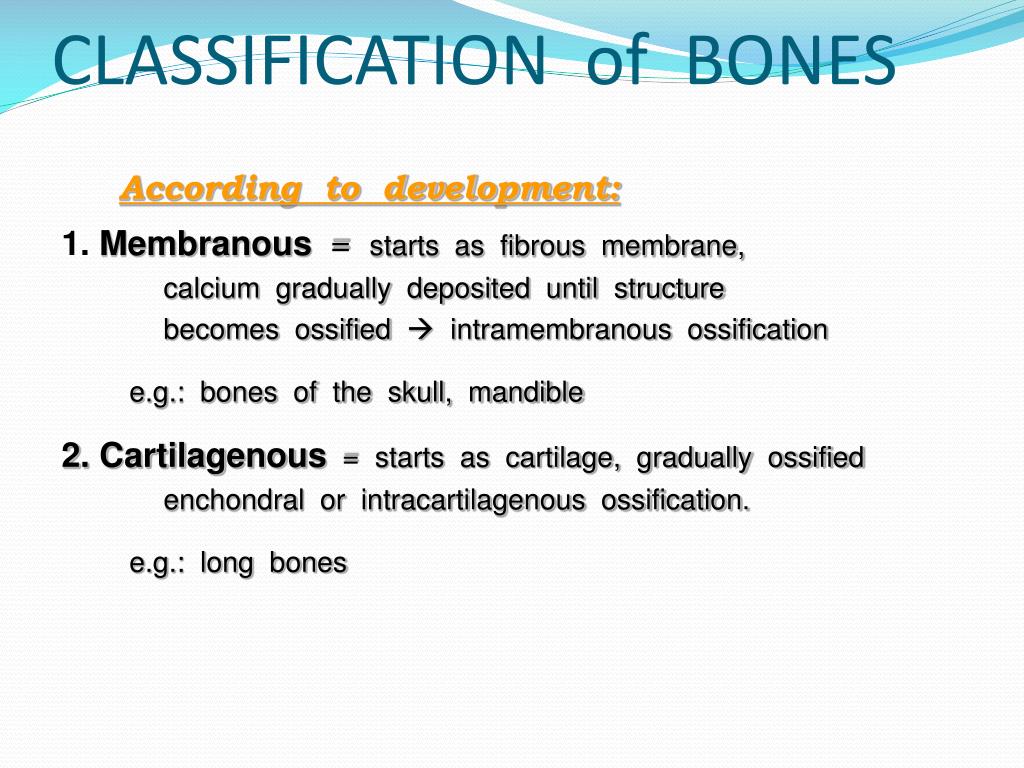

  32. CLASSIFICATION of BONESAccording to development: 1. Membranous = starts as fibrous membrane, calcium gradually deposited until structure becomes ossified  intramembranous ossification e.g.: bones of the skull, mandible 2. Cartilagenous = starts as cartilage, gradually ossified enchondral or intracartilagenous ossification. e.g.: long bones

  33. Developing parts of a typical long bone

  34. The arterial supply of a Mature long Bone

  35. Types of bone breaks Simple: Skin is not pierced. Compound: Skin is pierced. Complete: Bone is broken in half Greenstick: Incomplete break on outer arc. Comminuted: Broken into several pieces

  36. Thank you
