Amoeba Group Communication

Amoeba Group Communication. CS294-4 P2P Systems 2003 David Ratajczak. Group Communication. Group is a collection of processes that can communicate 1-to-n Members join and leave group Ordering All members see same ( total ) order Broadcast messages Join/leave changes Crash/recovery

louis
Download Presentation

Amoeba Group Communication

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Amoeba Group Communication CS294-4 P2P Systems 2003 David Ratajczak

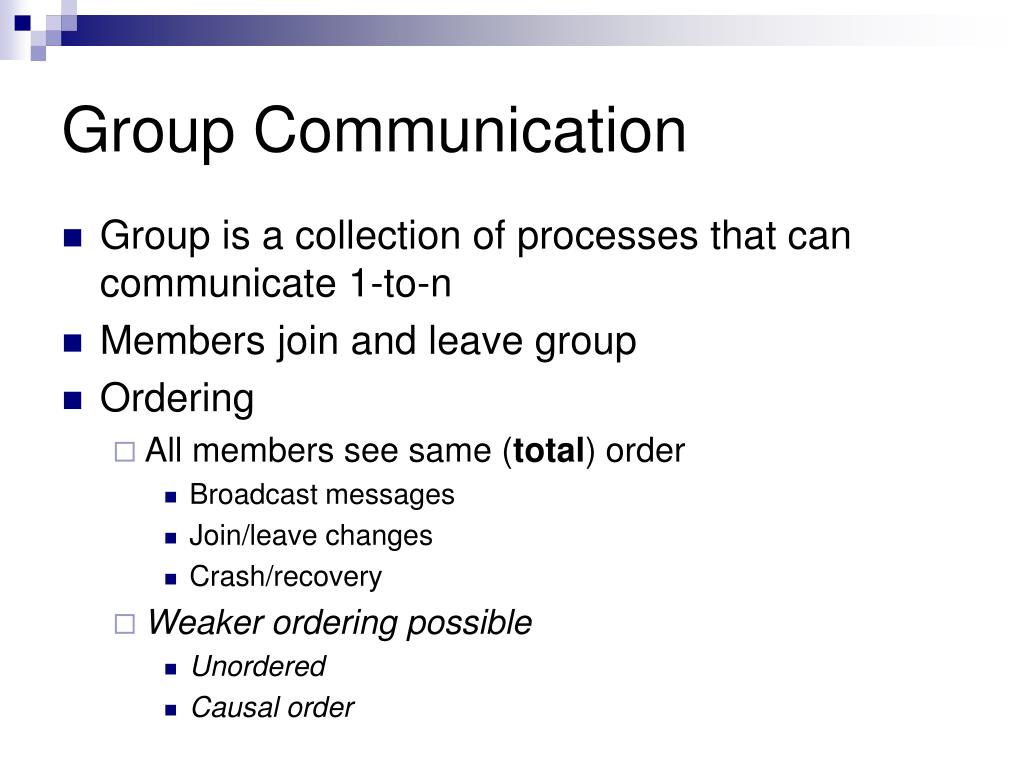

  2. Group Communication • Group is a collection of processes that can communicate 1-to-n • Members join and leave group • Ordering • All members see same (total) order • Broadcast messages • Join/leave changes • Crash/recovery • Weaker ordering possible • Unordered • Causal order

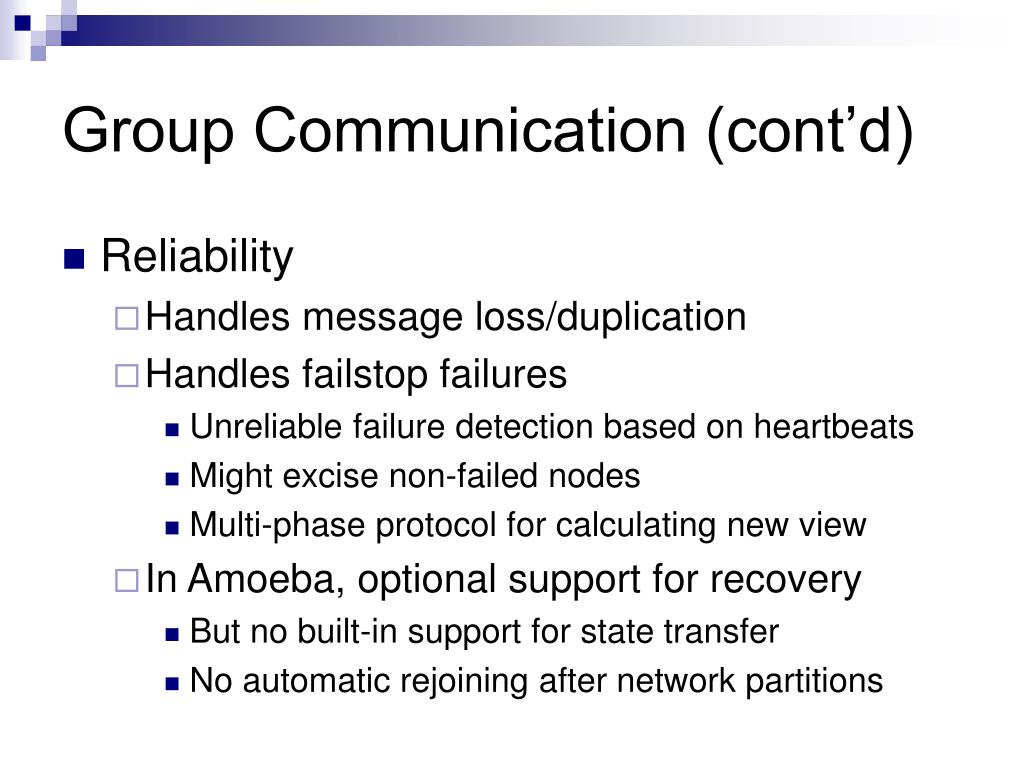

  3. Group Communication (cont’d) • Reliability • Handles message loss/duplication • Handles failstop failures • Unreliable failure detection based on heartbeats • Might excise non-failed nodes • Multi-phase protocol for calculating new view • In Amoeba, optional support for recovery • But no built-in support for state transfer • No automatic rejoining after network partitions

  4. Amoeba GCS API • All primitives are blocking • Use threads for parallelism • Claim: this simplifies programming • Question: how does an application create a group?

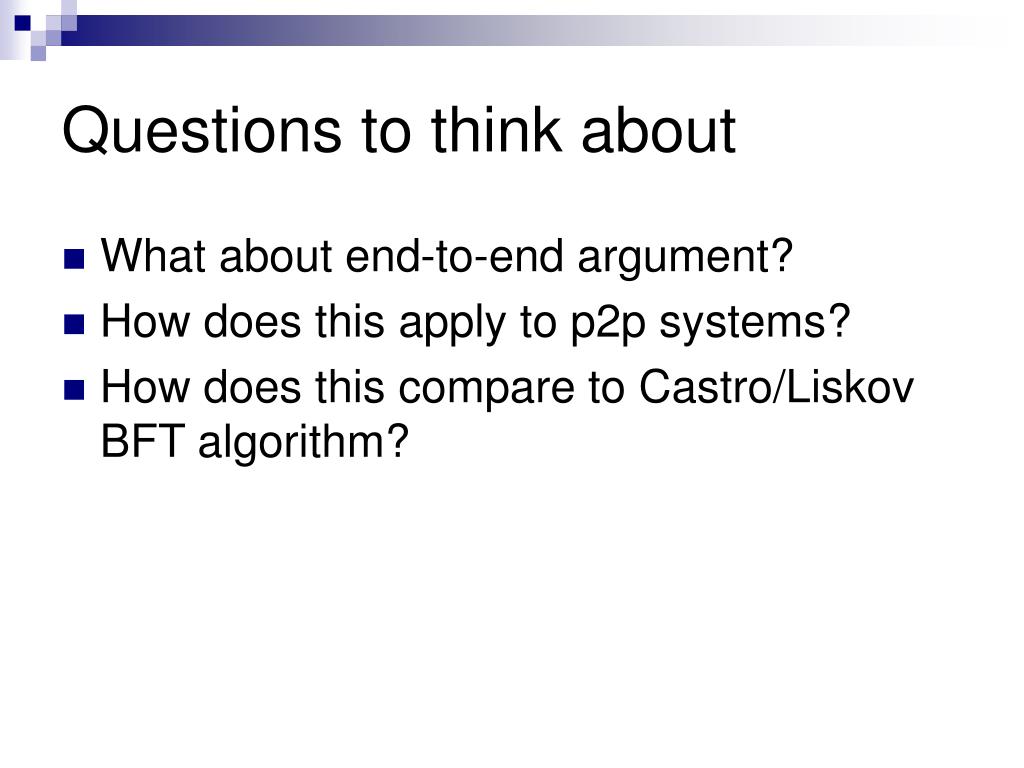

  5. Questions to think about • What about end-to-end argument? • How does this apply to p2p systems? • How does this compare to Castro/Liskov BFT algorithm?

  6. Amoeba Total Ordering • Every group view includes a designated sequencer • If sequencer fails, must produce new view • PB method • Sender sends msg to sequencer • Sequencer affixes sequence number • Sequencer broadcasts to group

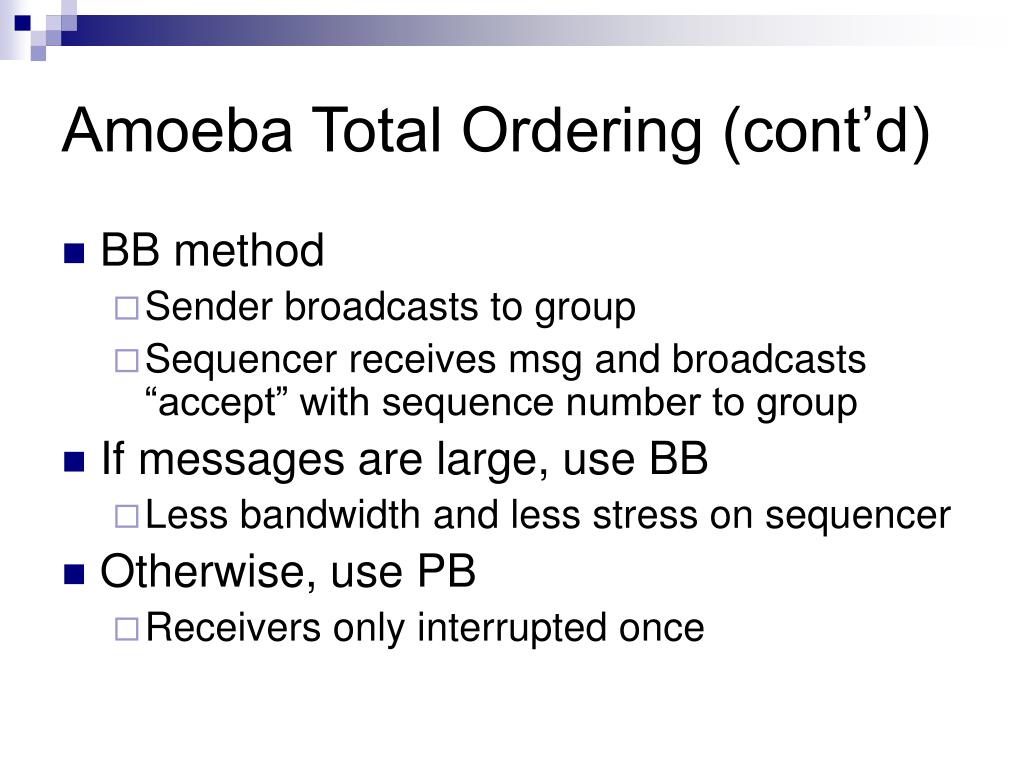

  7. Amoeba Total Ordering (cont’d) • BB method • Sender broadcasts to group • Sequencer receives msg and broadcasts “accept” with sequence number to group • If messages are large, use BB • Less bandwidth and less stress on sequencer • Otherwise, use PB • Receivers only interrupted once

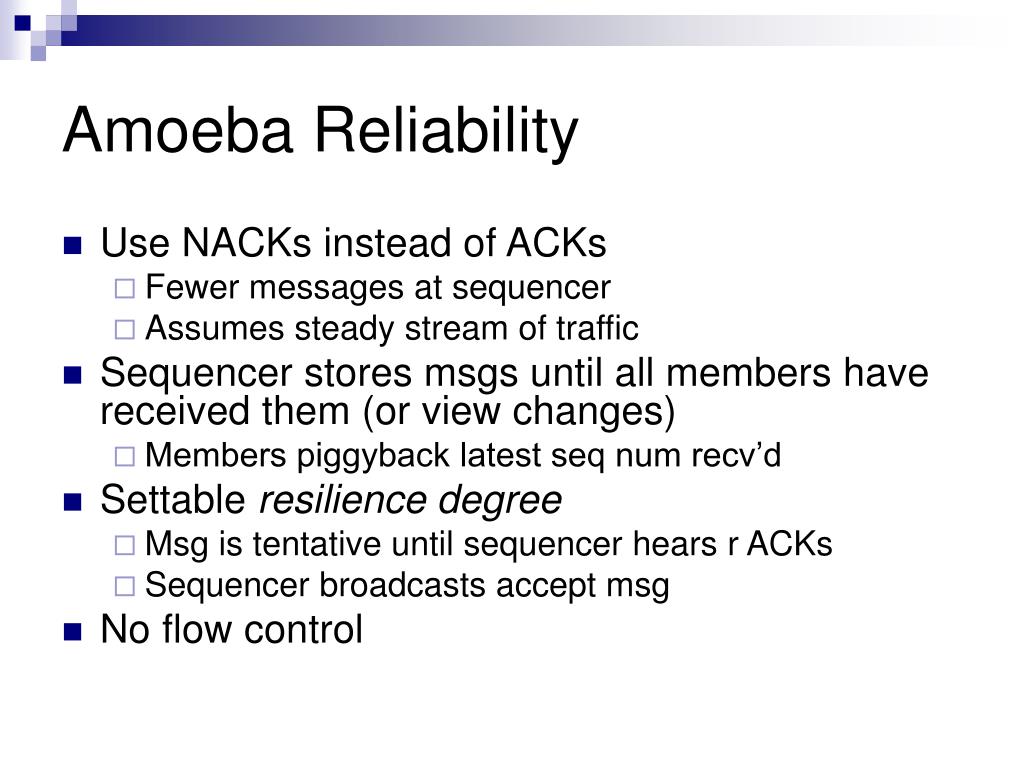

  8. Amoeba Reliability • Use NACKs instead of ACKs • Fewer messages at sequencer • Assumes steady stream of traffic • Sequencer stores msgs until all members have received them (or view changes) • Members piggyback latest seq num recv’d • Settable resilience degree • Msg is tentative until sequencer hears r ACKs • Sequencer broadcasts accept msg • No flow control

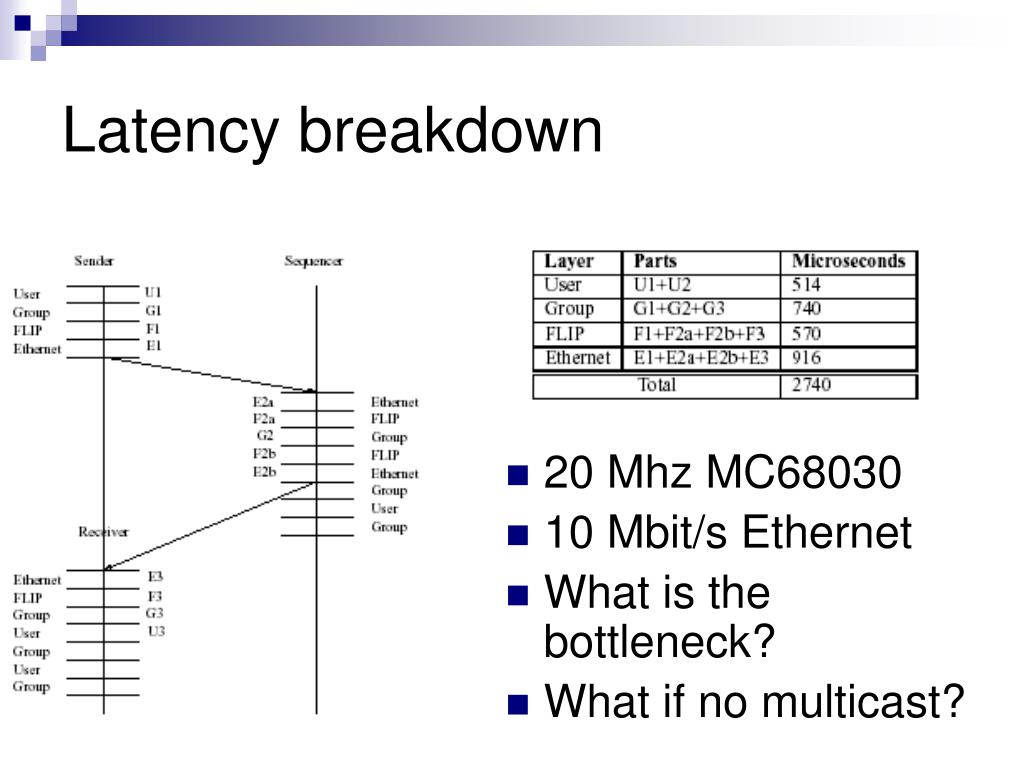

  9. Latency breakdown • 20 Mhz MC68030 • 10 Mbit/s Ethernet • What is the bottleneck? • What if no multicast?

  10. Delay

  11. Throughput

  12. Resilience

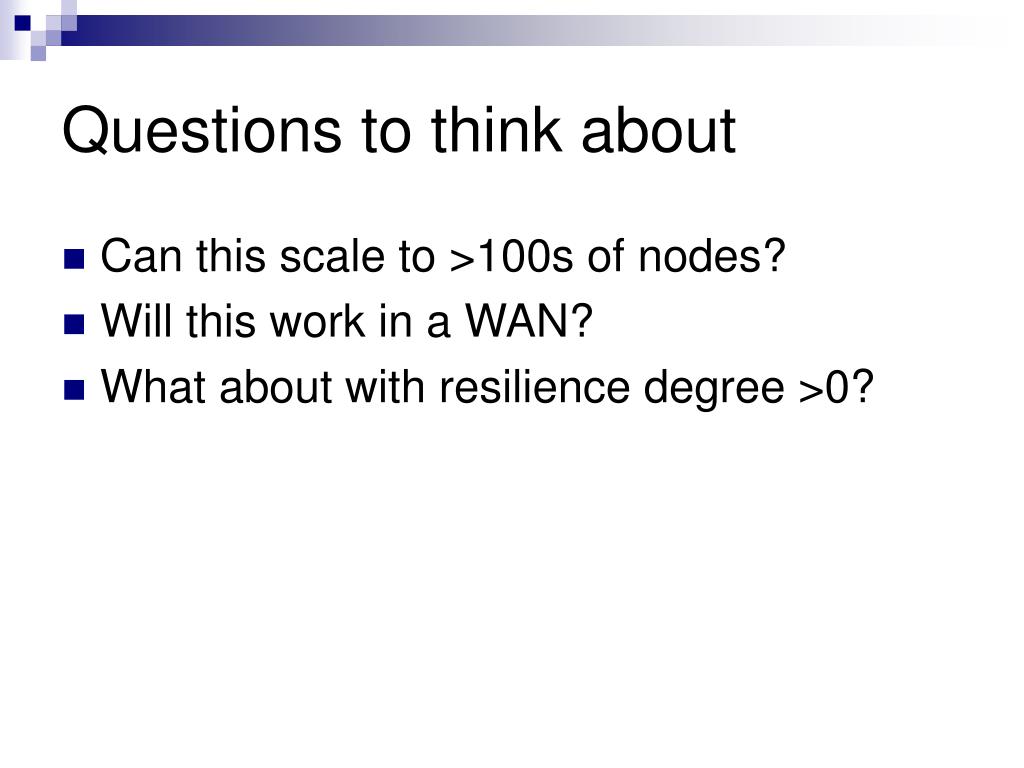

  13. Questions to think about • Can this scale to >100s of nodes? • Will this work in a WAN? • What about with resilience degree >0?
