Chapter 10 instruction sets
Chapter 10Instruction Sets

  • 10.1 Instruction Characteristics

  • 10.2 Types of Operands

  • 10.3 Data Types

  • 10.4 Operators


10 1 machine instruction characteristics

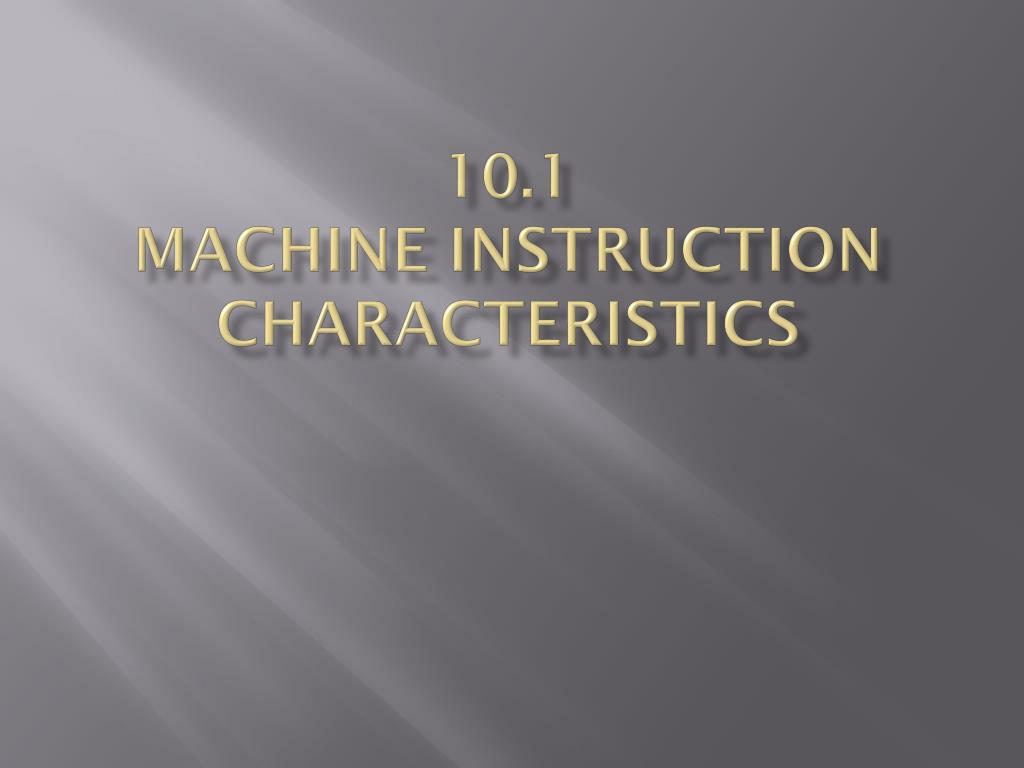

10.1Machine Instruction Characteristics


Machine instruction characteristics
Machine Instruction Characteristics

  • Machine Instructions- are instructions executed by the processor.

  • Instruction set- a collection of instructions that the processor can execute


Elements of a machine instruction

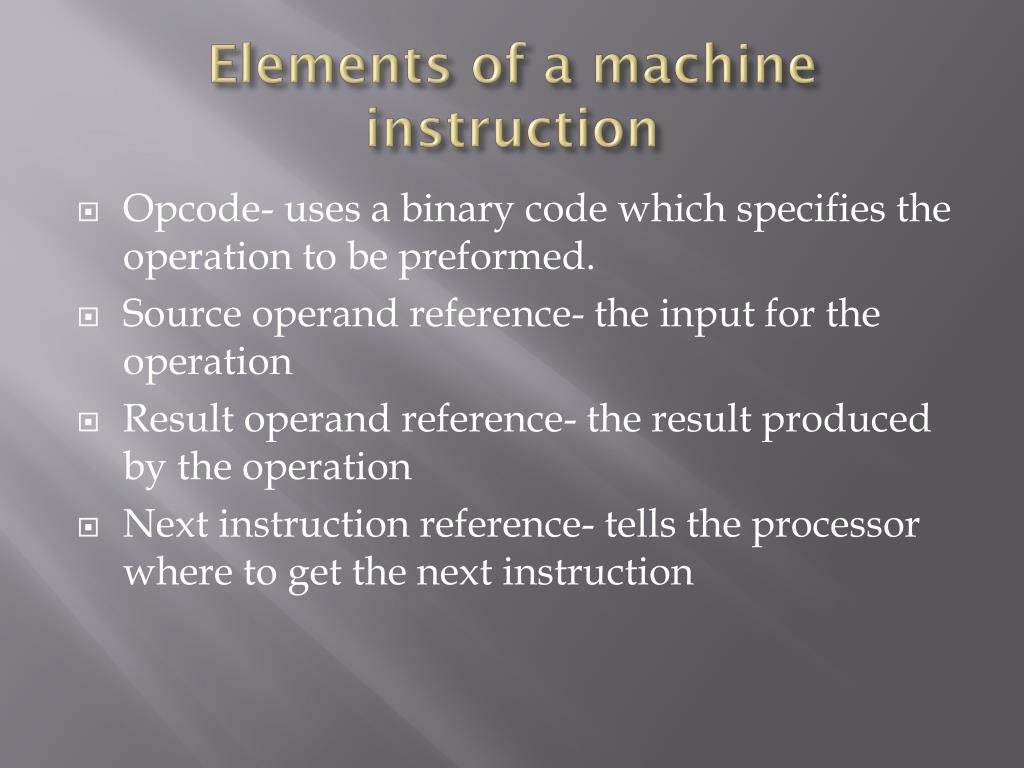

Elements of a machine instruction

  • Opcode- uses a binary code which specifies the operation to be preformed.

  • Source operand reference- the input for the operation

  • Result operand reference- the result produced by the operation

  • Next instruction reference- tells the processor where to get the next instruction


Source and result operands can be found in

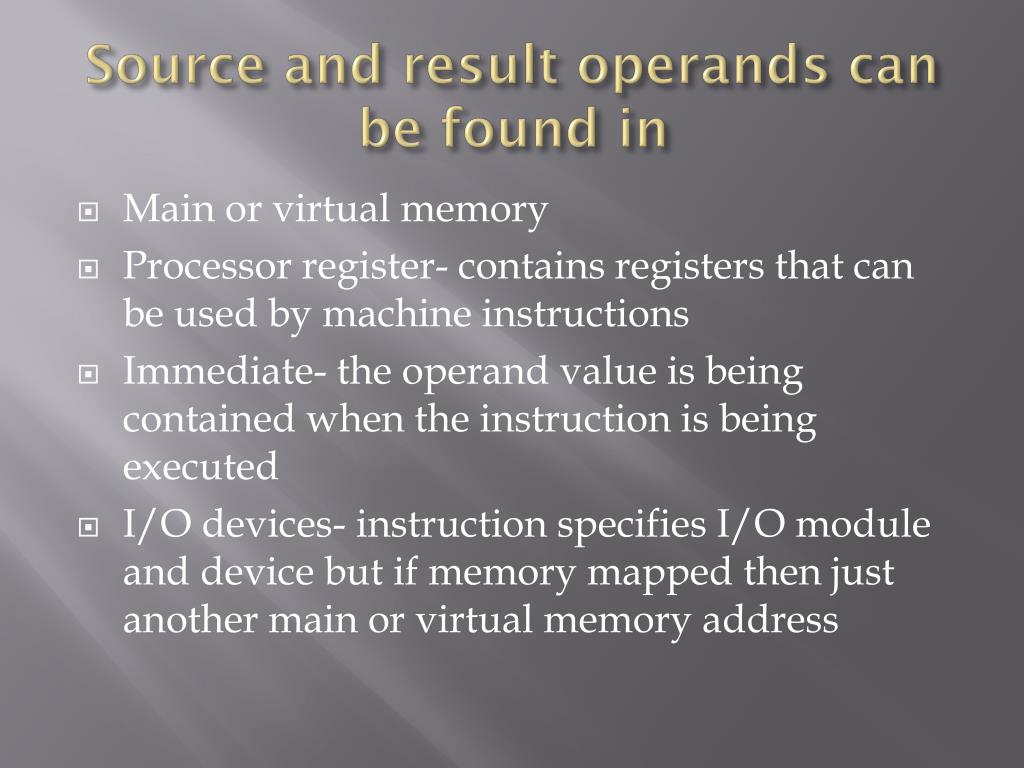

Source and result operands can be found in

  • Main or virtual memory

  • Processor register- contains registers that can be used by machine instructions

  • Immediate- the operand value is being contained when the instruction is being executed

  • I/O devices- instruction specifies I/O module and device but if memory mapped then just another main or virtual memory address


Instruction representation

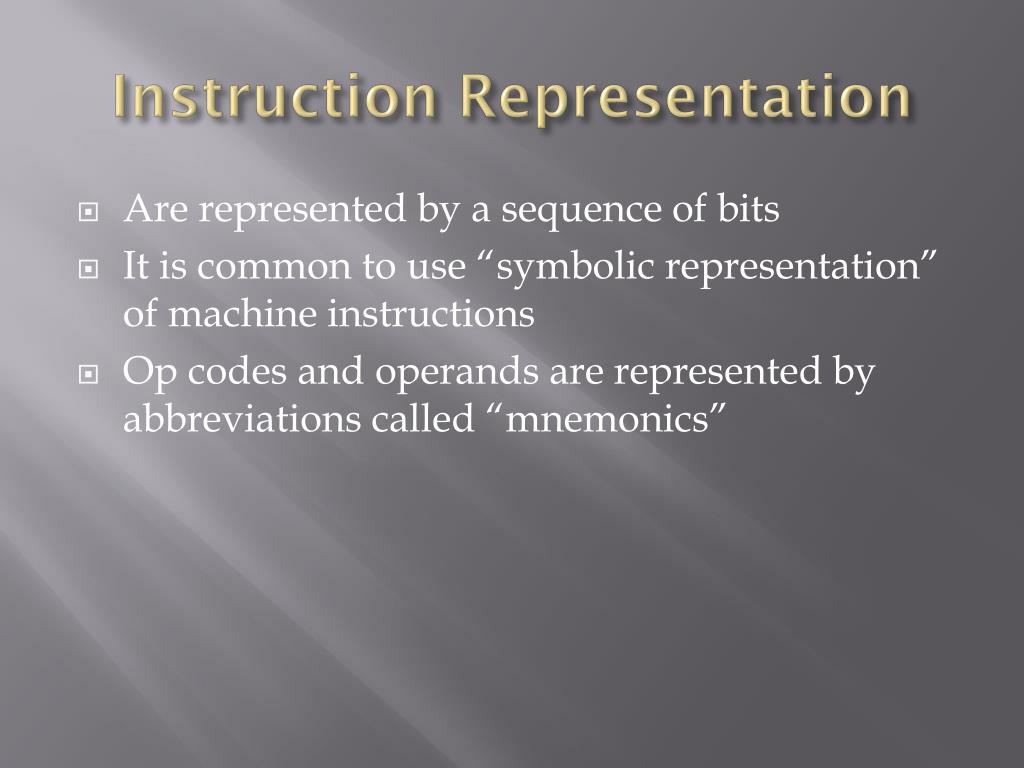

Instruction Representation

  • Are represented by a sequence of bits

  • It is common to use “symbolic representation” of machine instructions

  • Op codes and operands are represented by abbreviations called “mnemonics”


Mnemonics
Mnemonics

  • ADD add

  • SUB subtract

  • MUL multiply

  • DIV divide

  • LOAD load data from memory

  • STOR store data to memory


Instruction types
Instruction types

  • Data processing- arithmetic and logic instructions

  • Data storage- moving data into or out of register or memory locations

  • Data movement- I/O instructions

  • Control- test and branch instructions


Number of addresses
Number of Addresses

  • A traditional way of describing processor architecture

  • What is the maximum number of addresses one might need in an instruction?

  • An instruction could be required to contain four addresses


Number of addresses1
Number of Addresses

  • 3 addresses instructions

    • Operand 1, Operand 2, Result

    • a = b + c;

    • May be a forth - next instruction (usually implicit)

    • Not common

    • Needs very long words to hold everything


Number of addresses2
Number of Addresses

  • 2 addresses instructions

    • One address doubles as operand and result

    • a = a + b;

    • Reduces length of instruction

    • Requires some extra work

      • Temporary storage to hold some results


Number of addresses3
Number of Addresses

  • 1 address instructions

    • Implicit second address

    • Usually a register (accumulator)

    • Common on early machines


Number of addresses4
Number of Addresses

  • 0 address instruction:

    • Special memory organization

    • Last in first out

    • Stack is a known location


Number of addresses5
Number of Addresses

Utilization of Instruction Addresses (NonbranchingInstructions)


Number of addresses6
Number of Addresses

1 address instructions

2 Or 3 address instructions

  • One general purpose register

  • Multiple general purpose registers


Instruction set design

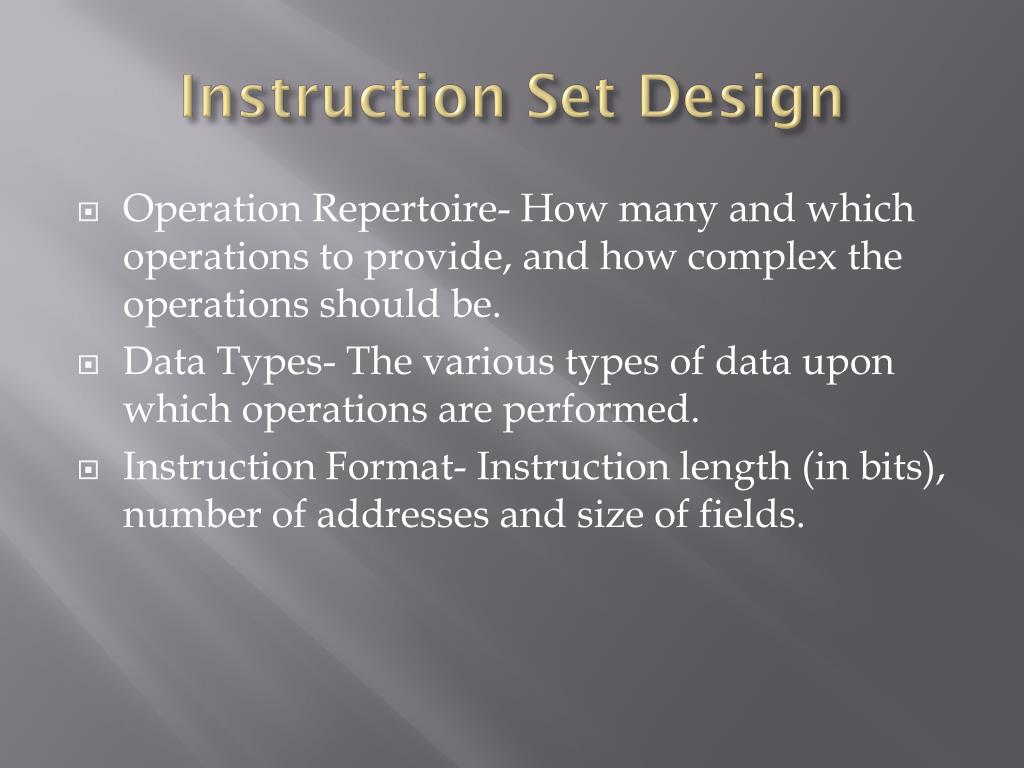

Instruction Set Design

  • Operation Repertoire- How many and which operations to provide, and how complex the operations should be.

  • Data Types- The various types of data upon which operations are performed.

  • Instruction Format- Instruction length (in bits), number of addresses and size of fields.


Instruction set design1
Instruction Set Design

  • Registers- Number of processor registers that can be referenced by instructions, and their use

  • Addressing- The mode or modes by which the address of an operand is specified.


10 2 types of operands

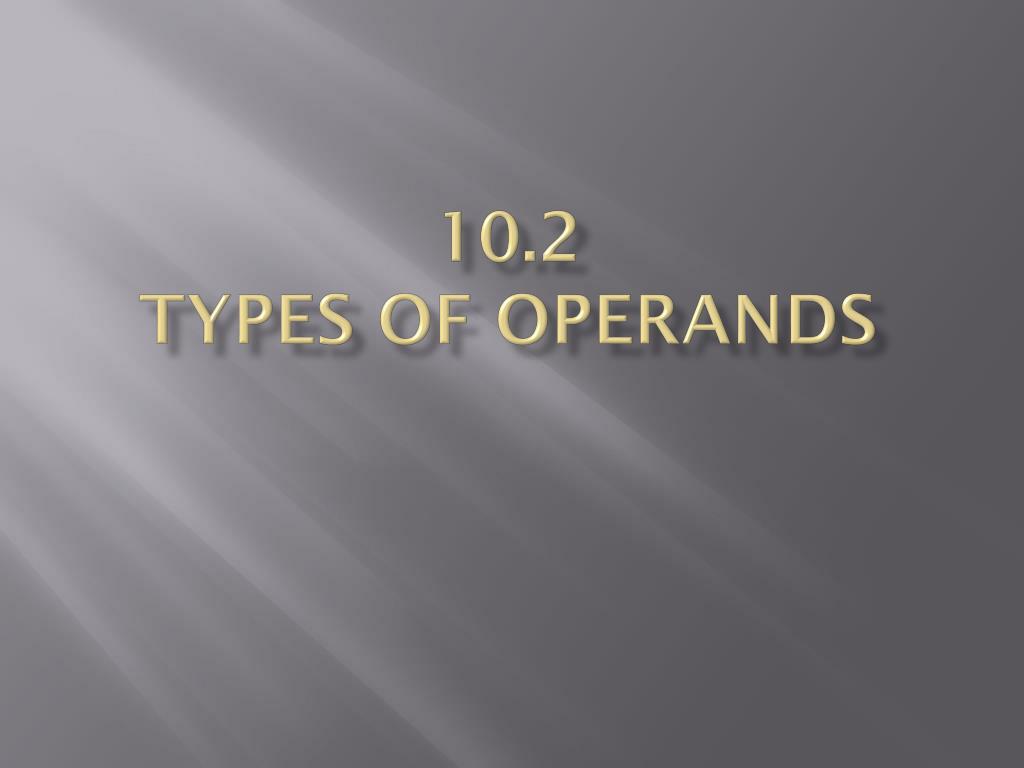

10.2Types of operands


Types of operands

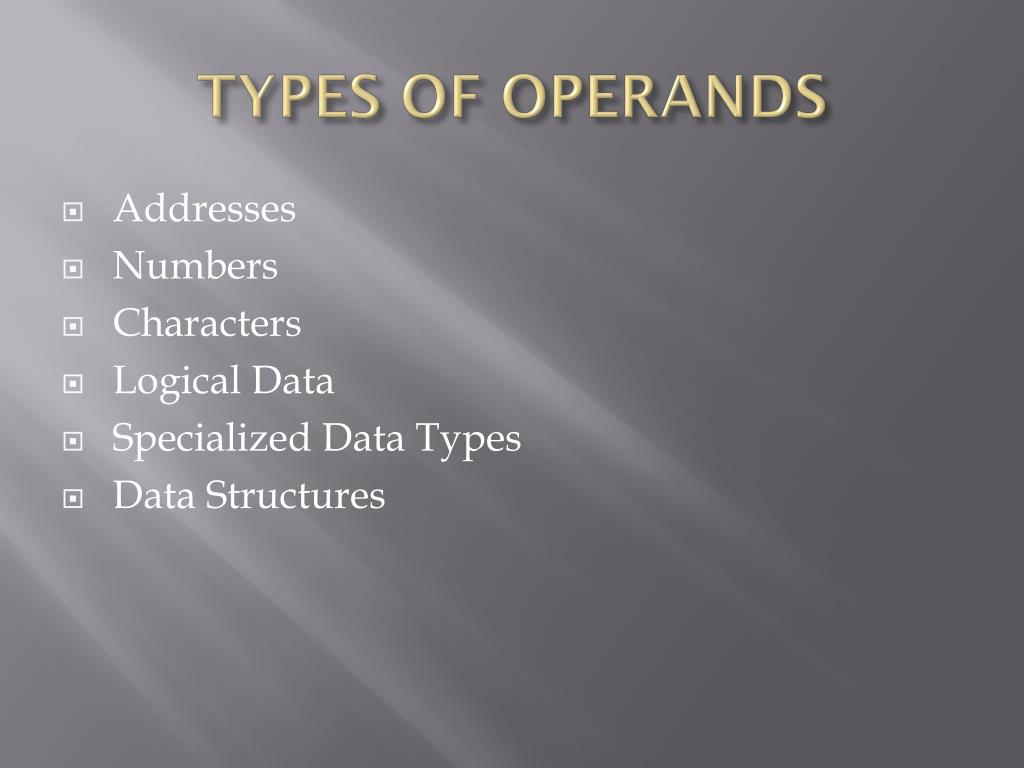

TYPES OF OPERANDS

  • Addresses

  • Numbers

  • Characters

  • Logical Data

  • Specialized Data Types

  • Data Structures


Addresses
Addresses

  • Main or Virtual memory address

  • Unsigned Integers


Numbers

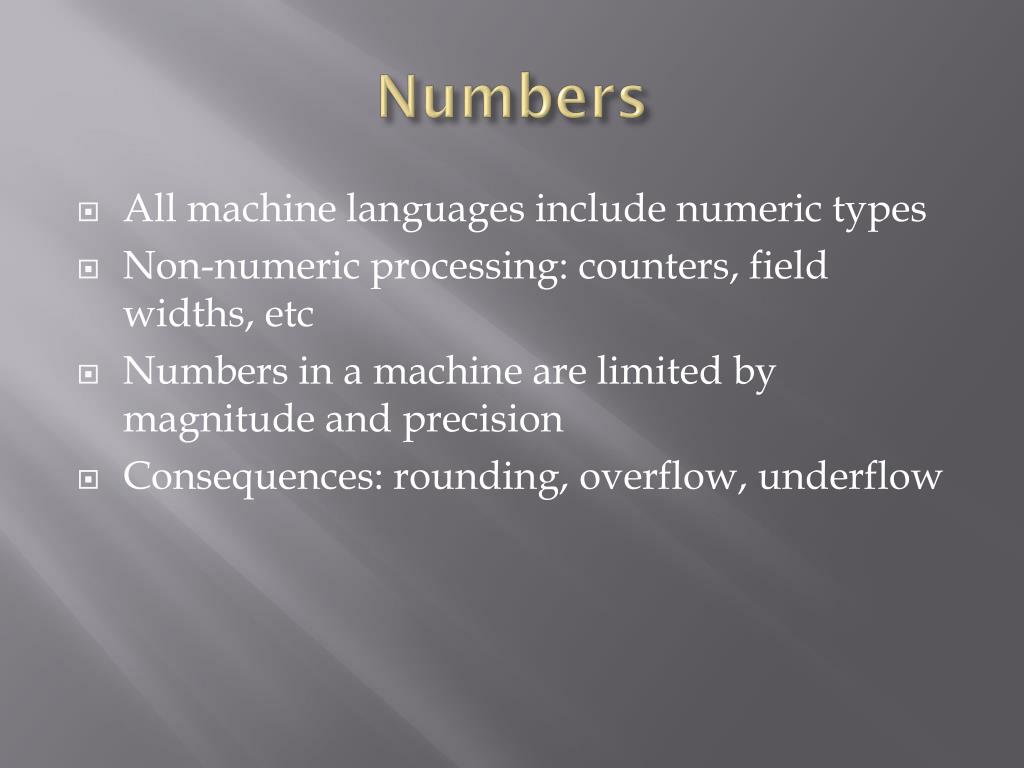

Numbers

  • All machine languages include numeric types

  • Non-numeric processing: counters, field widths, etc

  • Numbers in a machine are limited by magnitude and precision

  • Consequences: rounding, overflow, underflow


Numerical data

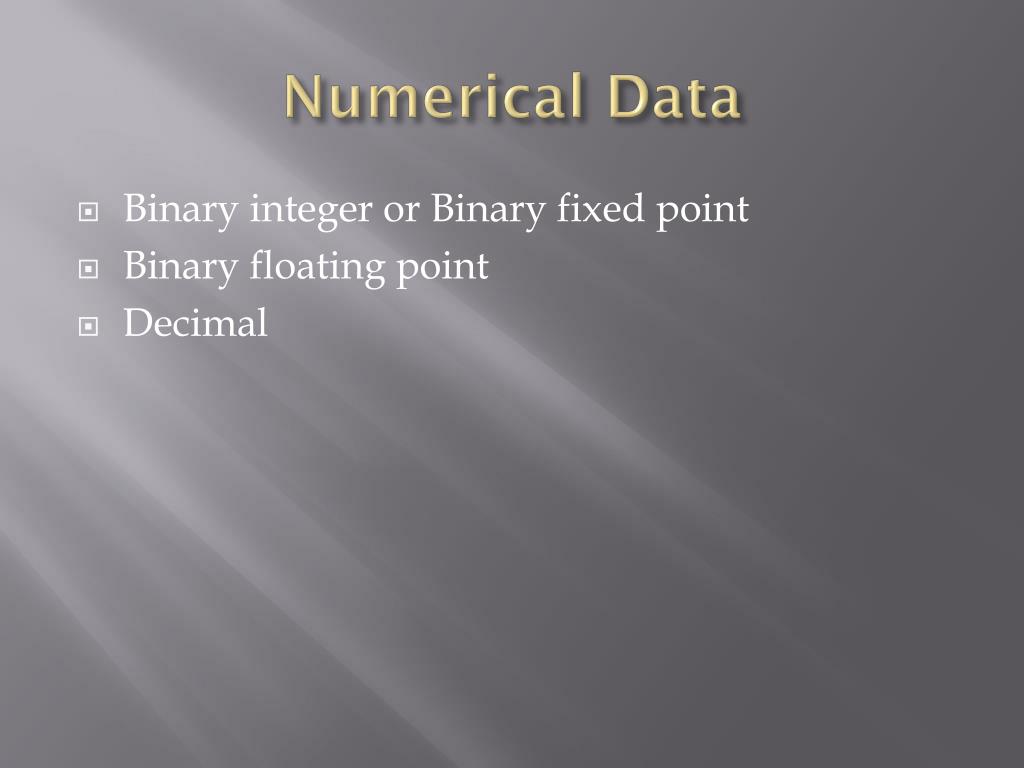

Numerical Data

  • Binary integer or Binary fixed point

  • Binary floating point

  • Decimal


Decimal

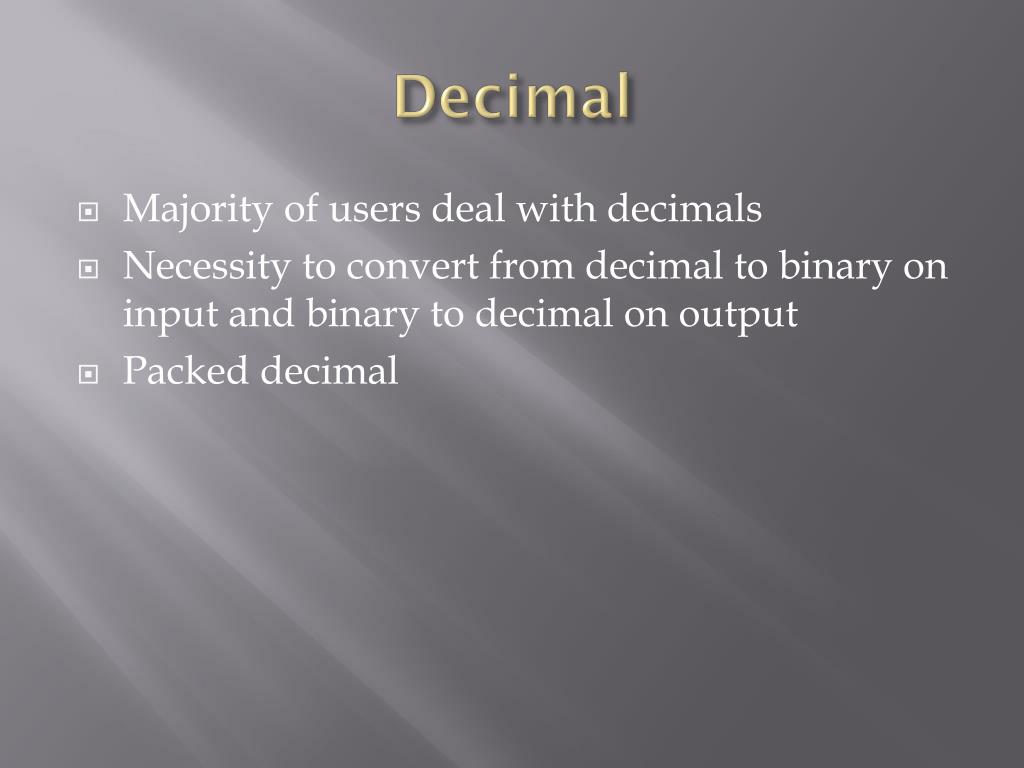

Decimal

  • Majority of users deal with decimals

  • Necessity to convert from decimal to binary on input and binary to decimal on output

  • Packed decimal


Packed decimal

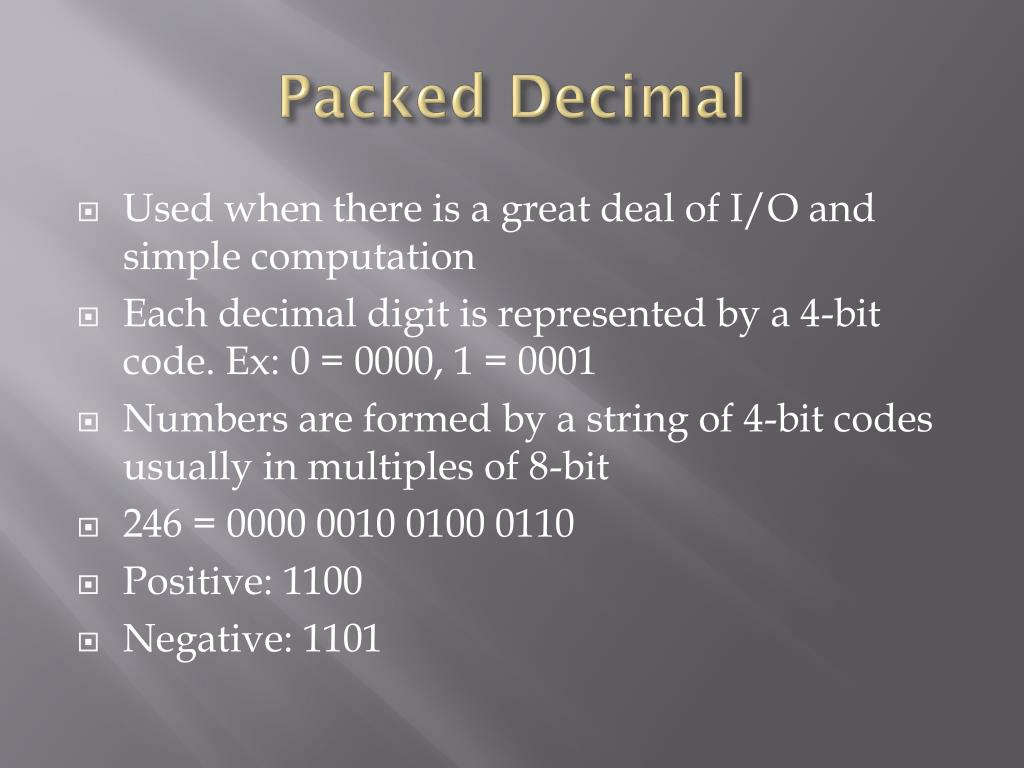

Packed Decimal

  • Used when there is a great deal of I/O and simple computation

  • Each decimal digit is represented by a 4-bit code. Ex: 0 = 0000, 1 = 0001

  • Numbers are formed by a string of 4-bit codes usually in multiples of 8-bit

  • 246 = 0000 0010 0100 0110

  • Positive: 1100

  • Negative: 1101


Characters
Characters

  • Text or character strings

  • Represented by a sequence of bits

  • Morse Code

  • International Reference Alphabet (IRA)

  • American Standard Code for Information Interchange (ASCII)

  • Extended Binary Coded Decimal Interchange Code (EBCDIC)


Logical data
Logical Data

  • Consider n-bit unit as consisting of n 1-bit items of data, each having a value of 0 or 1

  • Advantages:

    • Store array of Boolean or Binary data items

    • Manipulating bits of data items


10 3 data types

10.3data types


Intel x86 and arm data types

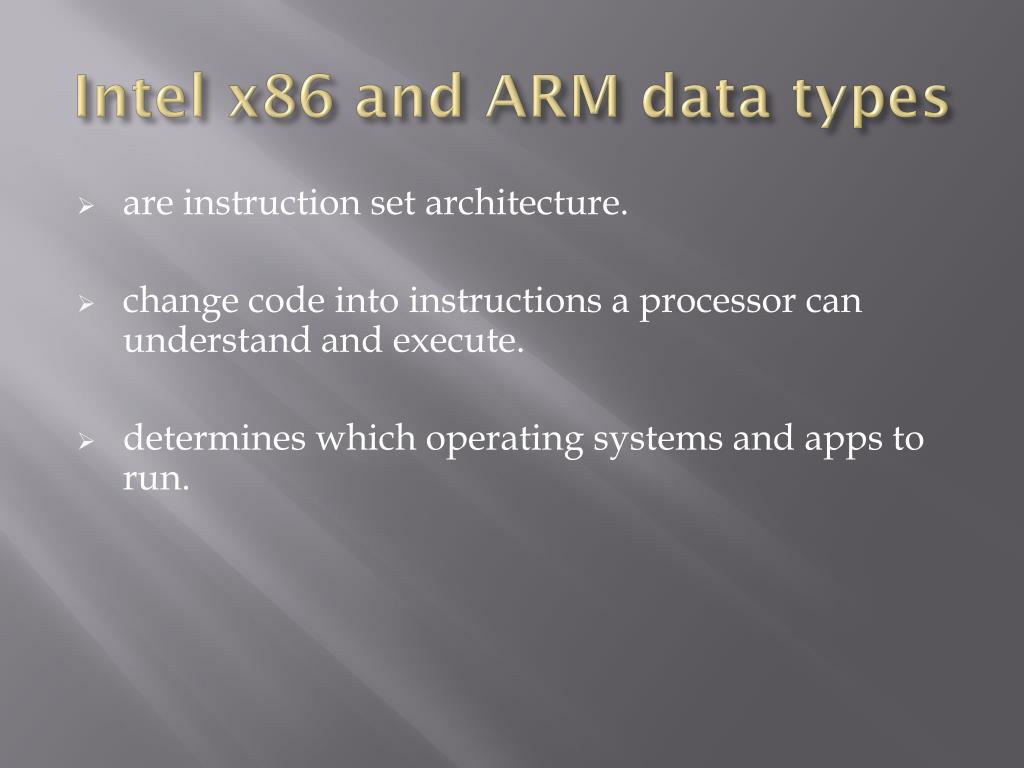

Intel x86 and ARM data types

  • are instruction set architecture.

  • change code into instructions a processor can understand and execute.

  • determines which operating systems and apps to run.


X 86 data types

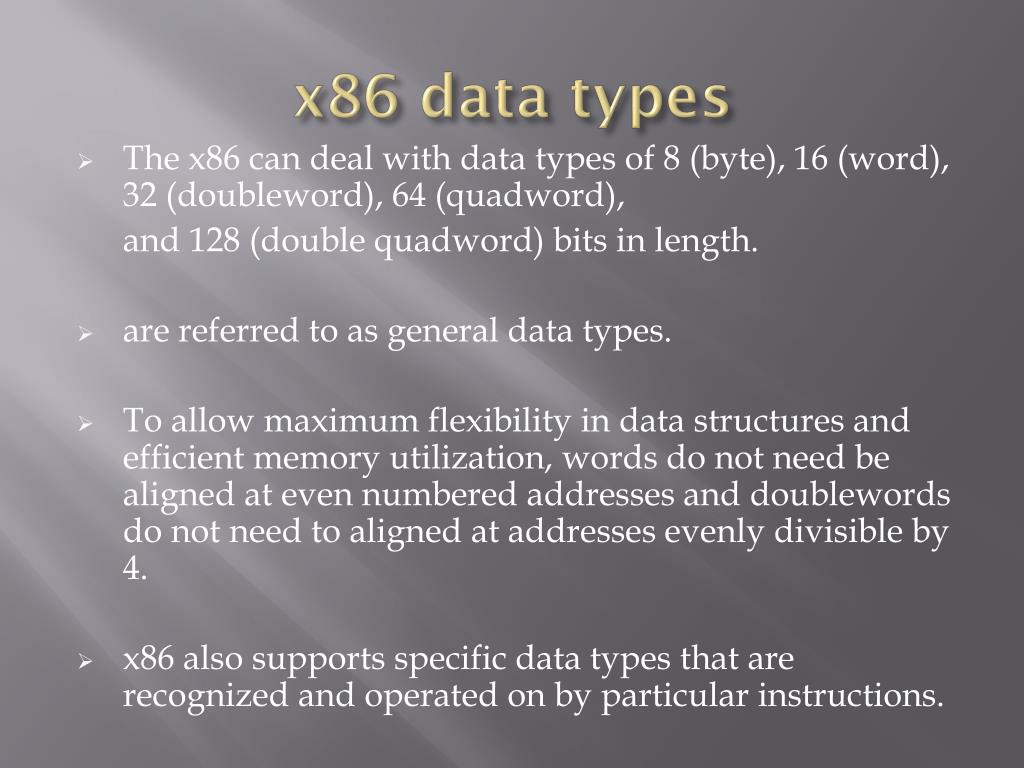

x86 data types

  • The x86 can deal with data types of 8 (byte), 16 (word), 32 (doubleword), 64 (quadword),

    and 128 (double quadword) bits in length.

  • are referred to as general data types.

  • To allow maximum flexibility in data structures and efficient memory utilization, words do not need be aligned at even numbered addresses and doublewords do not need to aligned at addresses evenly divisible by 4.

  • x86 also supports specific data types that are recognized and operated on by particular instructions.


Arm data types

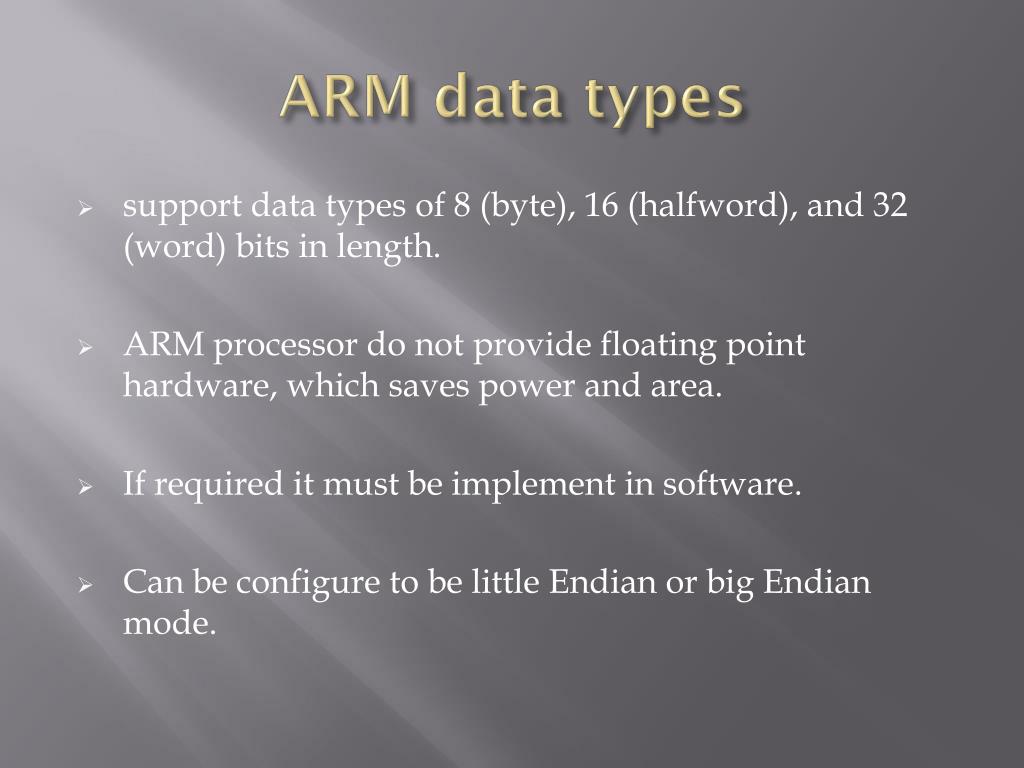

ARM data types

  • support data types of 8 (byte), 16 (halfword), and 32 (word) bits in length.

  • ARM processor do not provide floating point hardware, which saves power and area.

  • If required it must be implement in software.

  • Can be configure to be little Endian or big Endian mode.


10 4 operators

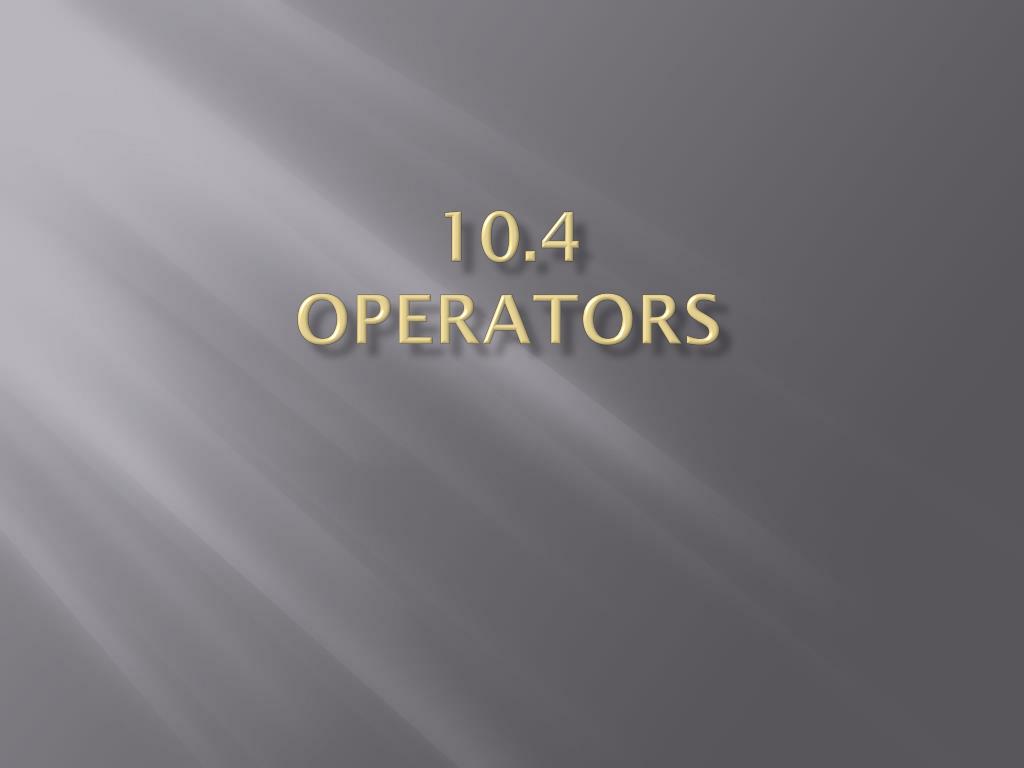

10.4operators


Types of operations

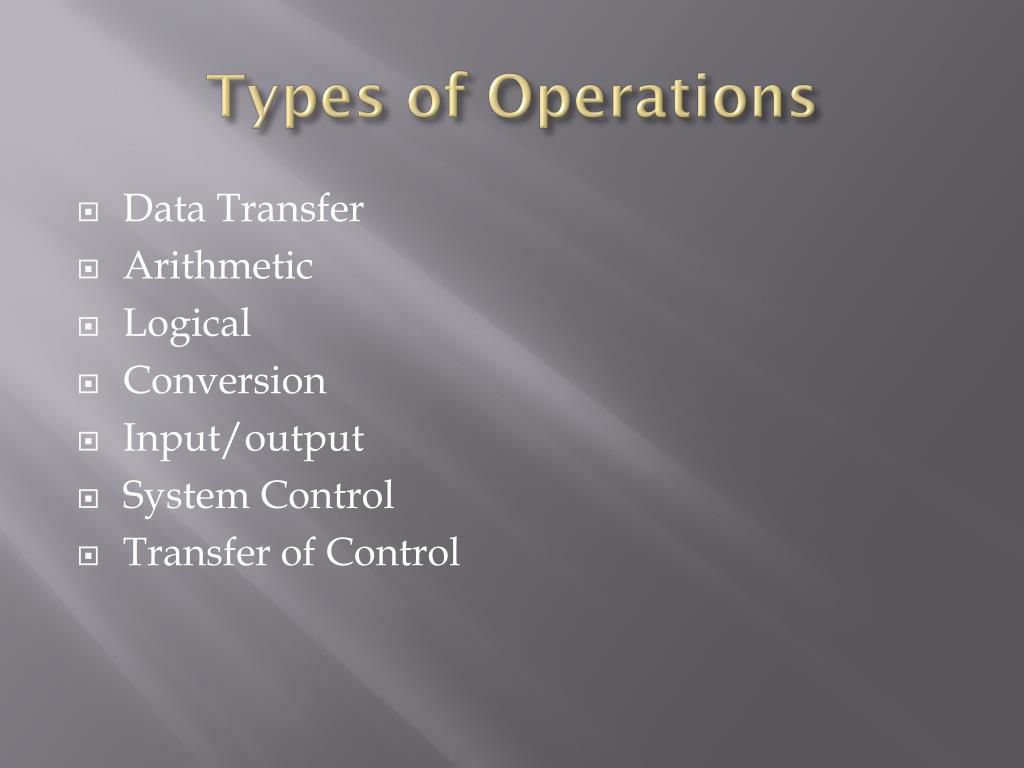

Types of Operations

  • Data Transfer

  • Arithmetic

  • Logical

  • Conversion

  • Input/output

  • System Control

  • Transfer of Control


Data transfer

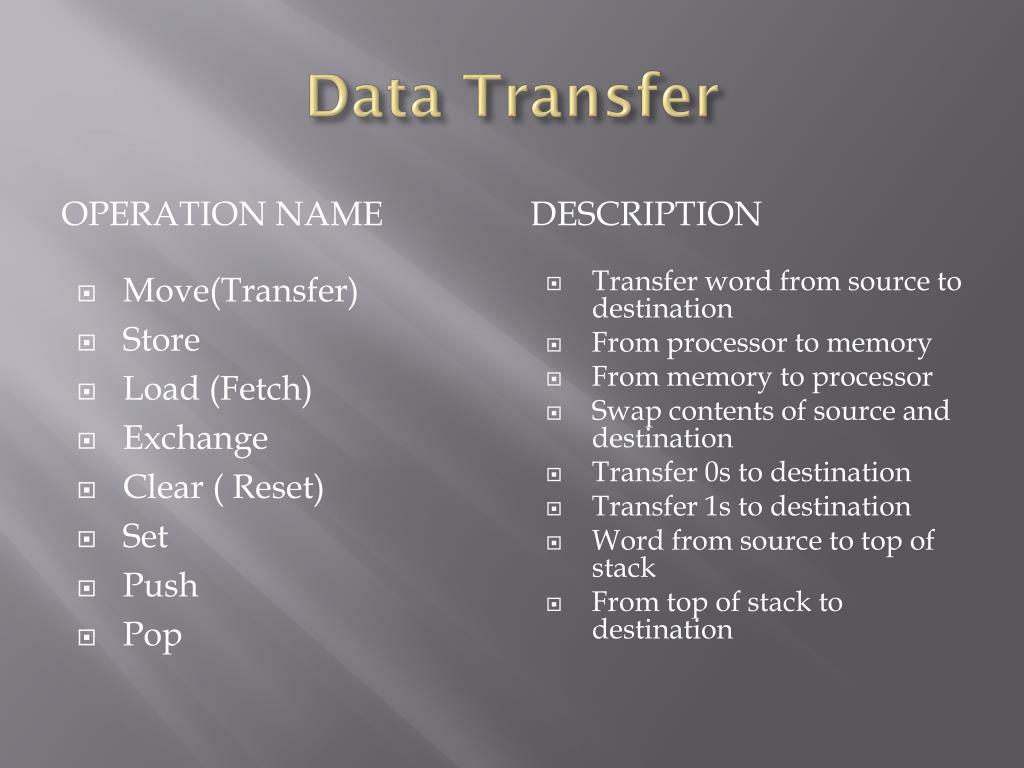

Data Transfer

Operation Name

Description

  • Move(Transfer)

  • Store

  • Load (Fetch)

  • Exchange

  • Clear ( Reset)

  • Set

  • Push

  • Pop

  • Transfer word from source to destination

  • From processor to memory

  • From memory to processor

  • Swap contents of source and destination

  • Transfer 0s to destination

  • Transfer 1s to destination

  • Word from source to top of stack

  • From top of stack to destination


Arithmetic

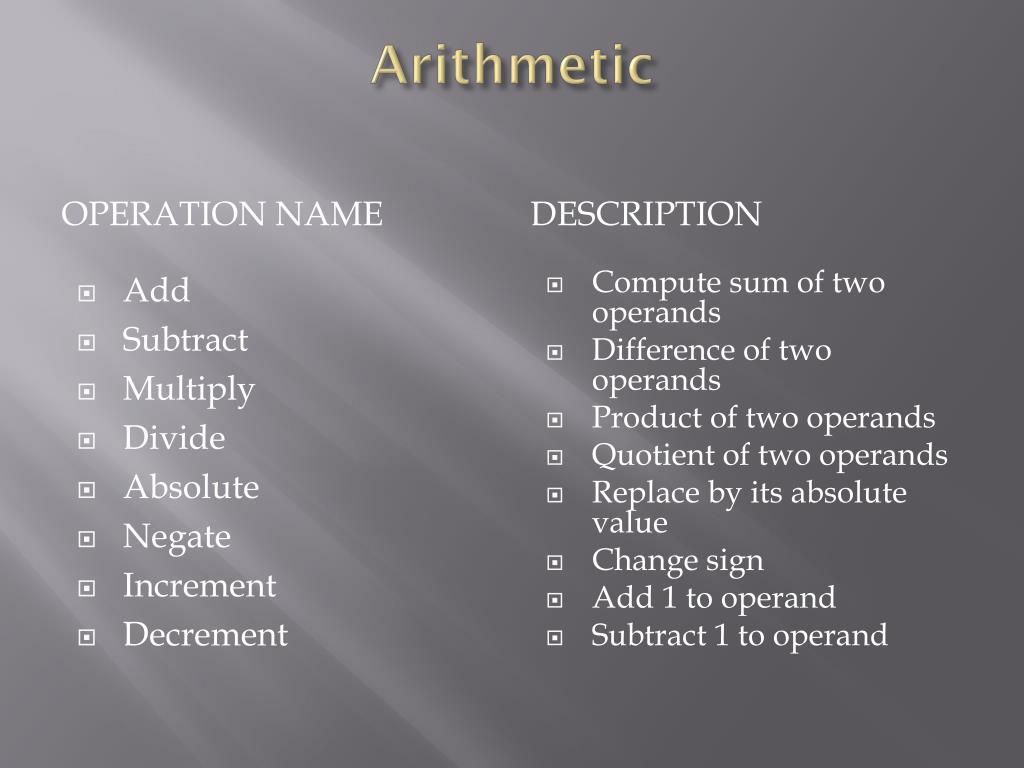

Arithmetic

Operation Name

Description

  • Add

  • Subtract

  • Multiply

  • Divide

  • Absolute

  • Negate

  • Increment

  • Decrement

  • Compute sum of two operands

  • Difference of two operands

  • Product of two operands

  • Quotient of two operands

  • Replace by its absolute value

  • Change sign

  • Add 1 to operand

  • Subtract 1 to operand


Logical

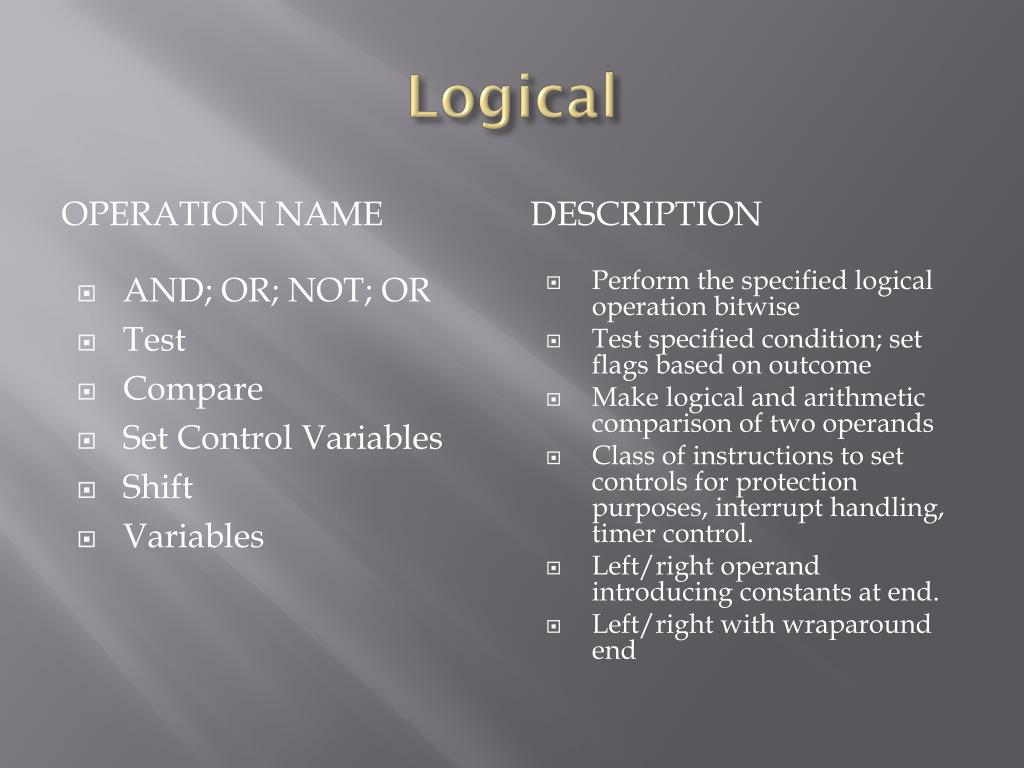

Logical

Operation Name

Description

  • AND; OR; NOT; OR

  • Test

  • Compare

  • Set Control Variables

  • Shift

  • Variables

  • Perform the specified logical operation bitwise

  • Test specified condition; set flags based on outcome

  • Make logical and arithmetic comparison of two operands

  • Class of instructions to set controls for protection purposes, interrupt handling, timer control.

  • Left/right operand introducing constants at end.

  • Left/right with wraparound end


Conversion

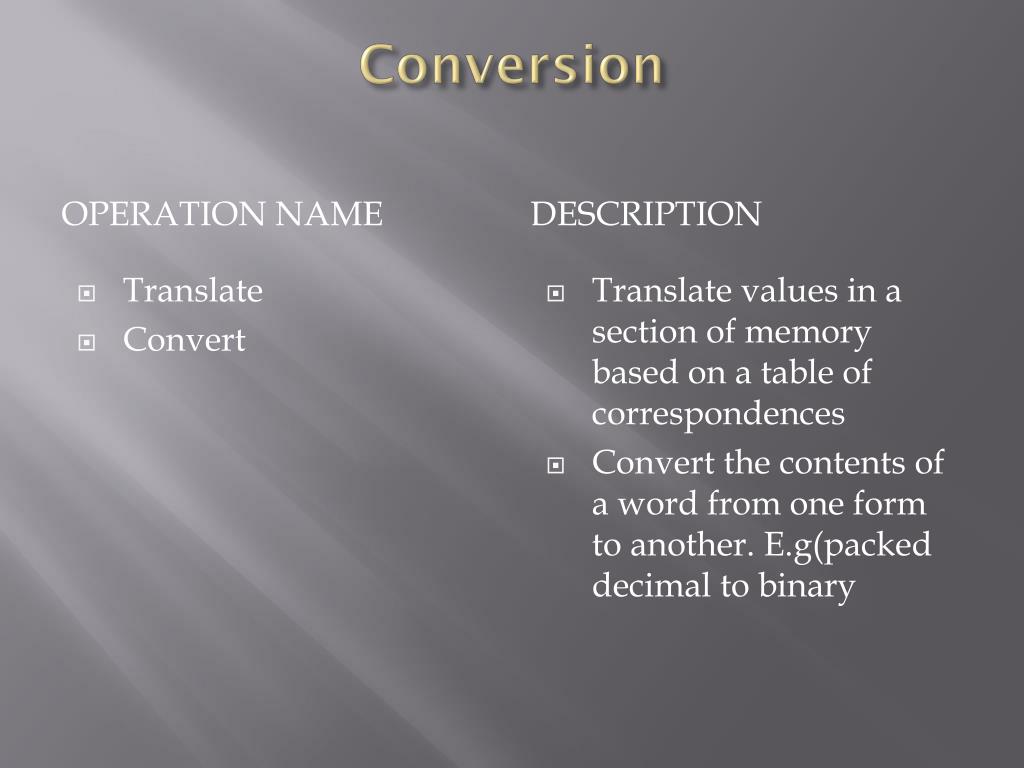

Conversion

Operation Name

Description

  • Translate

  • Convert

  • Translate values in a section of memory based on a table of correspondences

  • Convert the contents of a word from one form to another. E.g(packed decimal to binary


I/O

Operation Name

Description

  • Input (Read)

  • Output ( Write)

  • Start I/O

  • End I/O

  • Transfer data from specified I/O port or device to destination

  • From specified source to I/O port or device

  • Transfer instructions to I/O processor to initiate I/O operation

  • Transfer status info from I/O system to specified destination


System of control

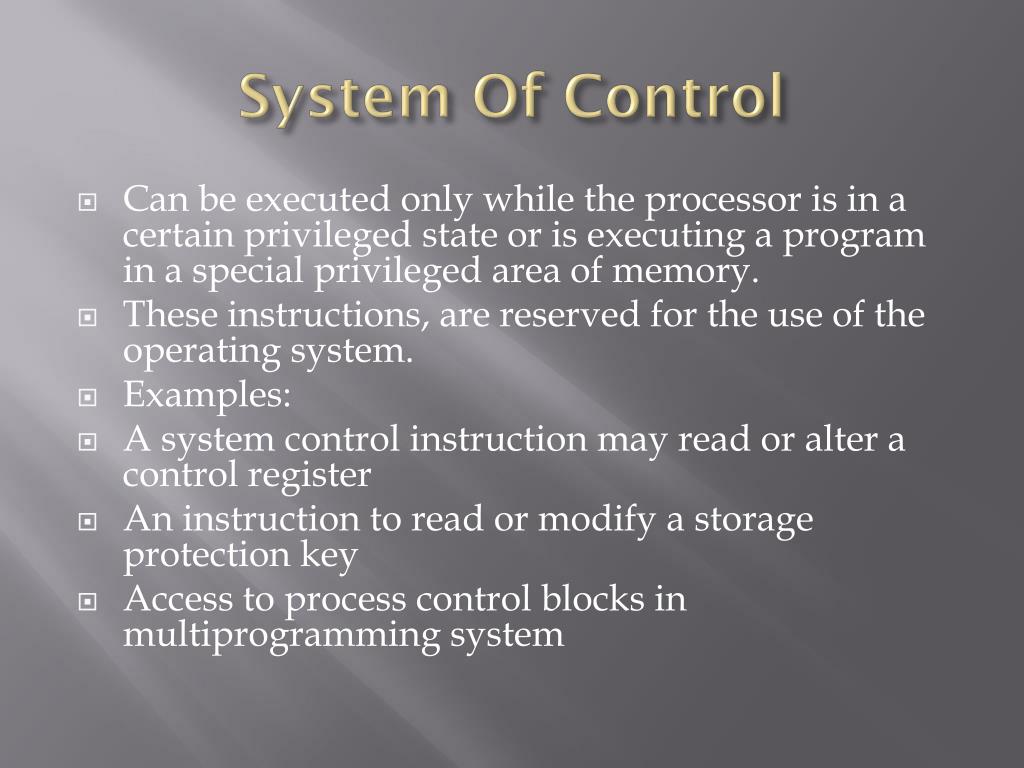

System Of Control

  • Can be executed only while the processor is in a certain privileged state or is executing a program in a special privileged area of memory.

  • These instructions, are reserved for the use of the operating system.

  • Examples:

  • A system control instruction may read or alter a control register

  • An instruction to read or modify a storage protection key

  • Access to process control blocks in multiprogramming system


Transfer of control
Transfer Of Control

Operation Name

Description

  • Jump (Branch)

  • Jump Conditional

  • Jump to Subroutine

  • Return

  • Execute

  • Skip

  • Skip conditional

  • Halt

  • Wait (Hold)

  • No Operation

  • Unconditional Transfer: load PC with specified address

  • Test condition: either load PC with specified address or do nothing

  • Place current program control info in known location; jump to specified address

  • Replace contents of PC and other register from known location

  • Fetch operand from location and execute as instructed

  • Increment PC to skip next instruction

  • Either skip or do nothing based on condition

  • Stop program execution

  • Test specified repeatedly and resume condition

  • No operation is performed; but program execution is continued.


Questions

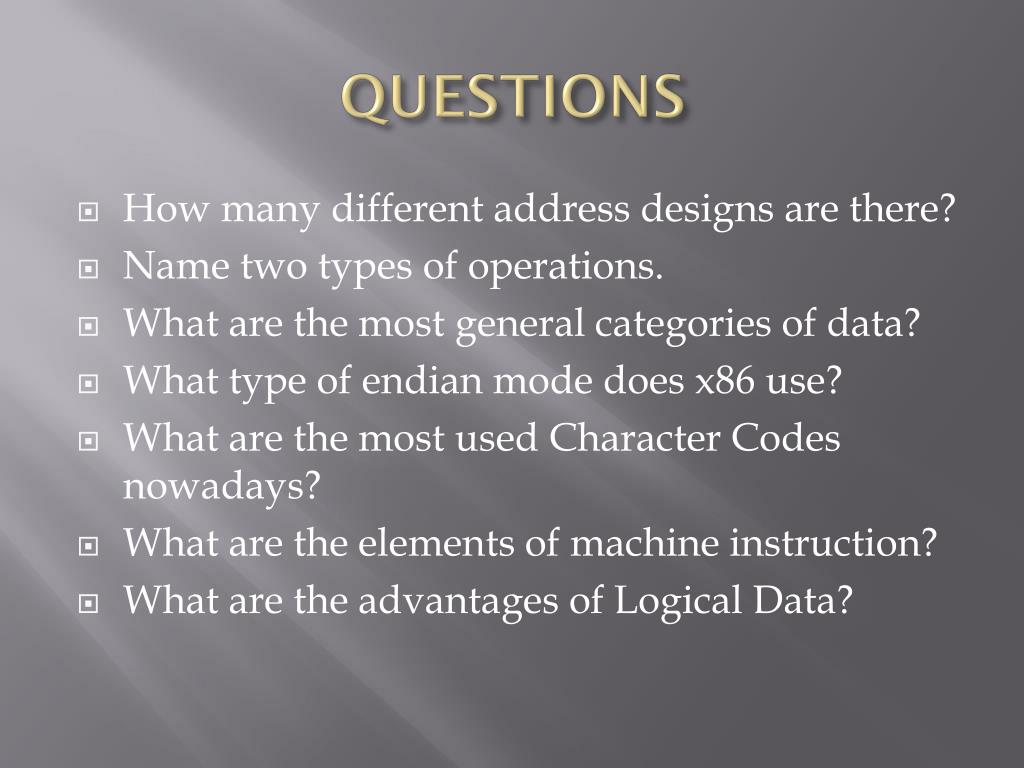

QUESTIONS

  • How many different address designs are there?

  • Name two types of operations.

  • What are the most general categories of data?

  • What type of endian mode does x86 use?

  • What are the most used Character Codes nowadays?

  • What are the elements of machine instruction?

  • What are the advantages of Logical Data?
