Presentation Transcript
Wireless subscriber gateway l.jpg

WirelessSubscriberGateway

Sales Department

Advanced Internet Access, LLC

TEL: +425-814-2216

FAX: +425-605-3549

Email: [email protected]

www.InstantHotSpot.com

Ver 1.7


Just plug in and go to the internet l.jpg
Just Plug in..and go to the Internet

Users just want to simply plug in -- and go to the Internet. No configuring. No network changes. No software.

The WSG-5000 solves connectivity problems by offering

instant Internet access for guests with no settings to change, no IP addresses to alter, and no subnets or gateways to negotiate to properly configure a guest’s laptop for the facility’s network, that means without changing network settings, even if they have a static IP address pre-set.

Users simply plug into the network and they are immediately connected.


Wsg 5000 wireless subscriber gateway l.jpg
WSG-5000Wireless Subscriber Gateway

The Integrated Solution for small to medium area Hot Spots

The Wireless Subscriber Gateway is a free-standing intelligent gateway with a 4-port switch, capable of supporting up to 100 simultaneous users.

Designed for use in the small to medium environments such as hotels, lobbies, cafes, RV parks and marinas, the Wireless Subscriber Gateway acts as an hotspot access controller and provides instant Internet access, advanced security and network management.


Key features and highlights l.jpg
Key Features and Highlights

IP Plug and PlayZero Configuration

Outgoing E-mail Redirection

Transparent HTTP Proxy

AAA and Billing

Web-based Internet Access

Credit Card Ready*

Dynamic Accounts

10 Billing Profiles

On-line Selective Service

*requires optional payment gateway service, like

Security

Layer 2 Isolation

VPN Pass through

SSL Login Page/Administration

Administration Access Control

Pass through IP/MAC Address

Management

LAN Device Management

Real-time Session List

Syslog

Marketing Service

Customized Login Page

Login Page Redirection

Advertisement Link

Walled garden

Miscellanies

Pass Through IP/MAC address

Multiple WAN connections


Ip plug and play l.jpg
IP Plug and Play

  • “Zero Configuration” Internet Access

  • Outgoing Email Redirection

  • Transparent HTTP Proxy


Key features zero configuration internet access l.jpg

Internet

Key Features”Zero Configuration” Internet Access

Easy-to-Use, Plug-and-Play Internet AccessAIA’s unique IP Plug-and-Play (iPnP) technology allows subscribers to connect with ease for broadband access without having to re-configure any of their device IP settings including DHCP, DNS, Proxy and dynamic and static IP address assignments.

WSG-5000

ADSL Modem

Ethernet / VDSL / HomePNA Switch

HTTP Proxy

DHCP Client

Fixed Private IP

Fixed Global IP

Dynamic IP


Key features outgoing email redirection l.jpg

Internet

Key Features Outgoing Email Redirection

The WSG-5000 will redirect subscriber’s original message of E-mail according to SMTP rules and sent it out via the specified SMTP server. This function could help subscribers to send E-mail via the local SMTP server when their default SMTP server is out of work or don’t allow connecting from Internet.

Pre-installed Email Server

210.66.77.88

  • All SMTP packet from Subscribers will be re-directed to specified SMTP Server which pre-installed by service provider.

  • Relay function of this SMTP Server must be enabled.

  • Subscribers no need to modify the SMTP setting for their laptop.

Send mail

Send mail

Original SMTP Server Setting:

mail.aiallc.com

Original SMTP Server Setting:

192.168.100.3


Key features transparent http proxy l.jpg

Internet

Key Features Transparent HTTP Proxy

Supports common proxies acting as a proxy server. This function could help subscribers without changing proxy settings to eliminate support calls related to client proxy settings. (only support HTTP proxy)

WSG-5000

HTTP

Even subscriber’s browser has proxy server setting, the WSG-5000 could work as proxy server to serve this laptop.

Subscriber do not need to change the proxy setting of his laptop.

Proxy Server Enable

Proxy Server Disable

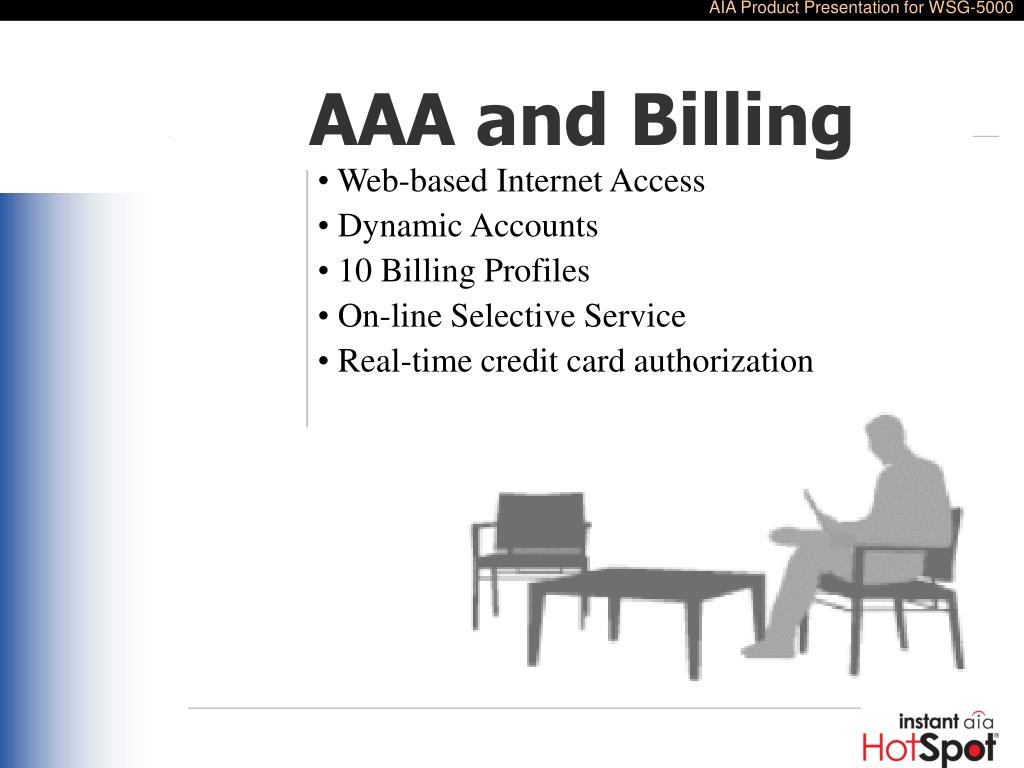

Aaa and billing l.jpg
AAA and Billing

  • Web-based Internet Access

  • Dynamic Accounts

  • 10 Billing Profiles

  • On-line Selective Service

  • Real-time credit card authorization


Key features web based internet access l.jpg

Internet

Key Features Web-based Internet Access

The “Login page” displays prompting the subscriber to enter the username and password for the first time Internet access. Subscribers without valid username and password cannot access Internet.

WSG-5000

ADSL /Cable Modem

Blocked

Login Page

Login Page

Login Page

User B

WITHOUT valid credential

WITH valid credential

WITH valid credential


Key features 10 billing profiles l.jpg
Key Features 10 Billing Profiles

The administrator can define up to 10 billing profiles. The billing time base can be minute, hour, day, week, month and unlimited.


Key features on line selective service l.jpg
Key Features On-line Selective Service

Subscribers can choose from the pre-defined service selections (billing profiles) when login if PMS implemented.

Administrator can define

10 billing profiles

Subscriber can choose

one billing profile when login

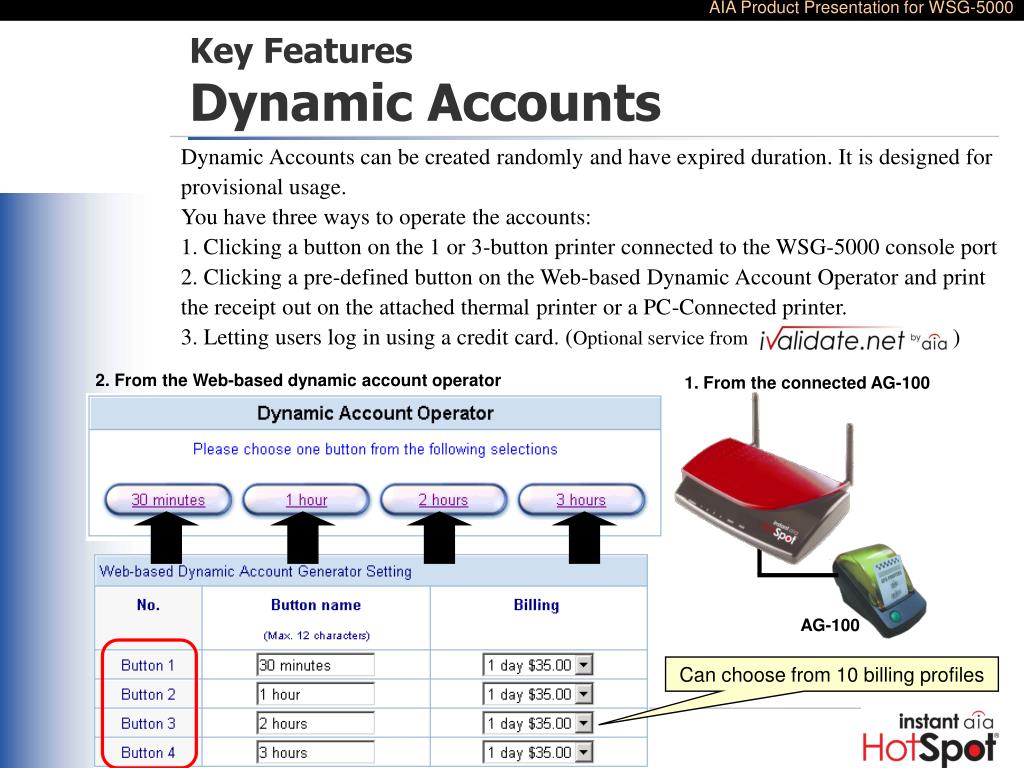

Key features dynamic accounts l.jpg
Key Features Dynamic Accounts

Dynamic Accounts can be created randomly and have expired duration. It is designed for provisional usage.

You have three ways to operate the accounts:

1. Clicking a button on the 1 or 3-button printer connected to the WSG-5000 console port

2. Clicking a pre-defined button on the Web-based Dynamic Account Operator and print the receipt out on the attached thermal printer or a PC-Connected printer.

3. Letting users log in using a credit card. (Optional service from )

2. From the Web-based dynamic account operator

1. From the connected AG-100

AG-100

Can choose from 10 billing profiles

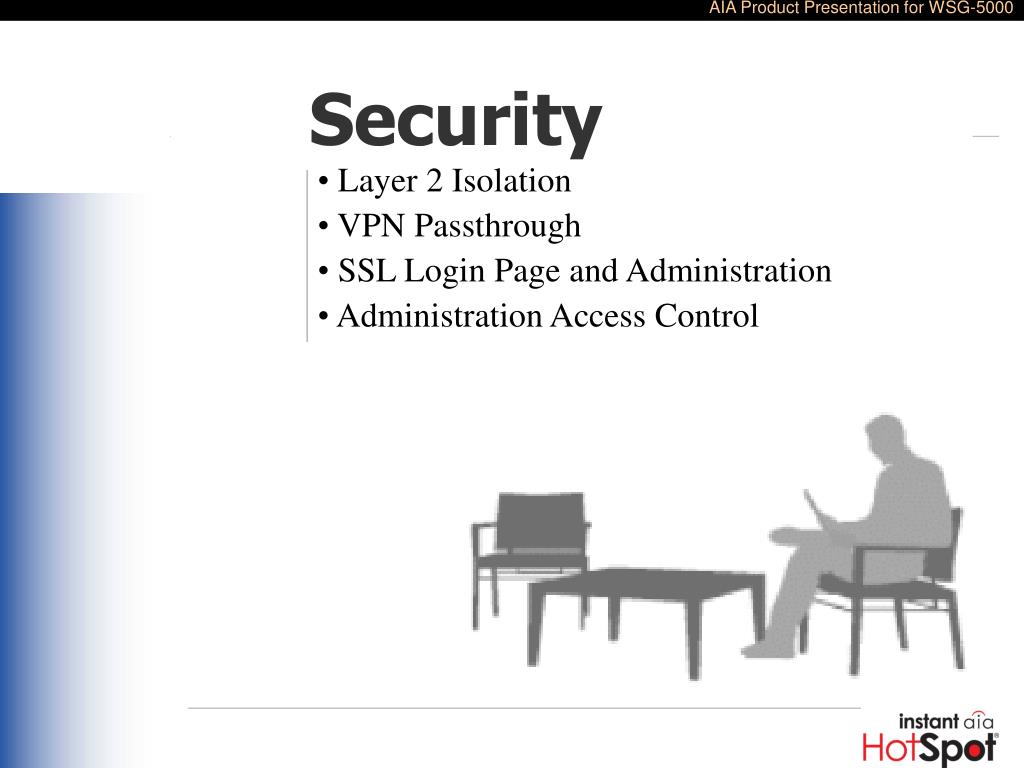

Security l.jpg
Security

  • Layer 2 Isolation

  • VPN Passthrough

  • SSL Login Page and Administration

  • Administration Access Control


Key features layer 2 isolation l.jpg

Internet

Key Features Layer 2 Isolation

Layer 2 VLAN Isolation prevents every wireless and wired subscriber from communicating with each other, even they are within the same subnet. They can see the Internet, but not each other! This is the best solution for Hotspot security, preventing a guest (or drive-by user) from hacking into your other guests.

WSG-5000

ADSL /Cable Modem

X

X


Key features vpn pass through l.jpg

Internet

Key Features VPN Pass-through

VPN Pass-through provides the subscribers who want to run his VPN or secure tunneling client software to connect to his/her company’s VPN server

Interoperability List:

AVAYA(IPSec), Cisco(IPSec), Nortel(IPSec), CheckPoint(IPSec)

Symantec(IPSec), Microsoft Win2000 RRAS(PPTP, L2TP)

PPTP VPN Server

Mail

FTP

Company A

VPN Client

PPTP

L2TP VPN Server

Secure Tunnel

Mail

FTP

VPN Client

L2TP

The WSG-5000 supports only Encapsulating Security Payload (ESP) tunnel mode. This is the most common mode of establishing IPSec tunnels. In the rare case that a subscriber is using one of the other methods, then it would be necessary for this user to be given a public IP address. Other IPSec methods are Authentication Header (AH) transport and tunnel mode and ESP transport mode.

Company C

IPSec VPN Server

Mail

FTP

Company B

VPN Client

IPsec


Key features ssl login page administration l.jpg

Internet

Key Features SSL Login Page/Administration

We use Secure HTML Login Page through SSL to protect username and password while LAN users login. That enables secure authentication within the network, preventing wireless snoops from seeing your guest’s keystrokes and data.

WSG-5000

ADSL /Cable Modem

X

(((((((((((((((((((((((

Login Page

Username =????????

Password =?????????

Wireless Airopeak

Subscriber Login’s Username/Password are encrypted, therefore even the packets are captured ,hackers still uneasily to know the username/password

User B

SSL Secure Login Page and Administrative Page


Key features administration access control l.jpg
Key Features Administration Access Control

The WSG-5000 integrates a secure administration access control list that checks the source (IP address) of administrator logins. A login is permitted only if a match is made with the list contained on the WSG-5000. If a match is not made, the login is denied, even if a correct login name and password are supplied.

Specified IP Address

For Administration

IP Address without in the list


Management l.jpg
Management

  • LAN Device Management

  • Real-time Session List

  • Syslog


Key features lan device management l.jpg
Key Features LAN Device Management

The administrator can directly remote control the devices under the LAN via WSG-5000 and check the status(OK/Fail) of the LAN devices.

LAN Devices Management

Global IP 210.66.37.22

10.59.1.60

60001

10.59.1.65

60006

10.59.1.66

60007

Administrator

http://210.66.37.22:60006

HPNA Switch

Private IP 10.59.1.60

WAP

Wireless AP

WAP

Wireless AP

Private IP 10.59.1.65

Private IP 10.59.1.66


Key features real time session list l.jpg

Internet

Key Features Real-time Session List

The remote site administrator could monitor the real time usage status of WSG-5000 via Session list page.

Administrator

Global IP 210.66.37.22

Network Management PC

PS 1

AP 1

AP 2

HPNA Switch

WAP

Wireless AP

WAP

Wireless AP


Key features system logs l.jpg

Internet

Key Features System Logs

  • WSG-5000 provide 5 categories of logs which will send to specified Syslog server. Network manager can know the network status according to the following logs.

  • 1. System category

    • System information

    • System Boot Notice

    • System Manager Activity information

  • 2. Accounting

    • Account Created

    • Subscriber Trace

    • Logged-in Users

  • 3. Billing

    • Billing Log

  • 4. LAN Devices Management

    • LAN Devices Information

    • LAN Devices Alarm

  • 5. Alert

    • Administration Access Fail

Syslog Server

ADSL /Cable Modem


Marketing service l.jpg
Marketing Service

  • Customized Login Page

  • Login Page Redirection

  • Advertisement Link

  • Walled Garden


Key features customized login page l.jpg
Key Features Customized Login Page

The WSG-5000 provides the standard login page for subscribers to input username and password. However, some service providers like hotels, coffee shops and airports may want to show their customized page or redirect their hosted page for promotion or corporate image, therefore WSG-5000 allows service provider or venue owner to specify or modify the login page.

Up Frame

Connect to the specified web page

Down Frame

Provided by WSG-5000 in order to enter the username and password

http://210.208.100.1/hotel/hilton.htm


Key features login page redirection l.jpg
Key Features Login Page Redirection

Web Server

WSG-5000 provides Integration sample Code,

so you can make your own HTML login page.

Login Page

Login Page

http://208.55.224.160/hotspot/authentication.html


Key features advertisement link l.jpg
Key Features Advertisement Link

Allow Service Provider to enter 10 URL for Advertisement Link purpose. Every time after user login successful, WSG-5000 will redirect the home page to specified URL link. (Random redirection)

www.yahoo.com

www.msn.com

www.aiallc.com


Key features walled garden l.jpg
Key Features Walled Garden

Walled Garden allows non-subscribers to access to specific URL’s without authentication


Miscellanies l.jpg
Miscellanies

  • Pass Through IP/MAC address

  • Multiple WAN Connections


Key features pass through ip mac l.jpg

Internet

Key Features Pass Through IP/MAC

Pass Through IP/MAC address is useful for VIP users without authentication and for devices that do not have a web browser (cash registers, for example) or that are connected with LAN port (wireless access points, for example).

WSG-5000

Built-in Auth.

ADSL /Cable Modem

Guest or

Subscriber

Guest or

Subscriber

Guest or

Subscriber

Hotel Staff

Hotel Manager

VIP Guest or

Subscriber

No Authentication required

Username and Password required


Key features multiple wan connections l.jpg

Internet

Key Features Multiple WAN connections

The system provides alternative WAN connection such as PPPoE, DHCP Client or Static IP for service provider to establish their service networking quickly and easily.

PPPoE

DHCP Client

Static IP


User experience l.jpg
User Experience

  • Subscriber Login – Scenario


User experience subscriber login scenario l.jpg
User Experience Subscriber Login - Scenario

The procedure shows typical user login experience.

Subscriber Login

Popup Information Window after login successfully


Conclusion l.jpg
Conclusion

WSG-5000 can help you…


Wsg 5000 can help you l.jpg
WSG-5000 can help you…

Integrated Solution for rapid deployment

The WSG-5000 Instant HotSpot® is a complete access controller for small to medium hot-spots. It can serve up to 100 simultaneous users and it is an ideal hotspot solution to be deployed in the hotels, lobbies, coffee shops, RV parks, and other sites that commonly host business travelers and offers instant high-speed Internet connections. It is perfect for nearly any Hotspot application!

Deliver instant PnP connectivity service

With its IP Plug and Play technology, the WSG-5000 Instant HotSpot® helps solve connectivity problems by offering instant Internet access without the need for configuration changes to the client computer or any resident client-side software and allows guests to send E-mail as usual without changing E-mail SMTP server settings even if their configured mail server is unavailable or behind a corporate firewall.

Ready to accept credit cards

With built-in hooks for leading payment gateways like , the WSG-5000 Instant HotSpot® provides the most comprehensive solution for fully-automated access to your WiFi hotspot in its class.


Wsg 5000 can help you35 l.jpg
WSG-5000 can help you…

Sophisticated Remote Management

The WSG-5000 enables you to manage all your underlying network devices with Syslog messaging, SNMP and LAN devices Management to reduce maintenance overhead.

Comprehensive security

The WSG-5000 provides a fully-secure operating environment with VPN pass through, SSL certificate, and Layer 2 Isolation V-LAN Security.

Enhance Local and Personalized Service

The login and logout pages are fully customizable. The WSG-5000 has the ability to let you redirect end users to your advertising web pages, increase your potential for revenue and customize locations where end-users can visit free (walled garden).

Built-in AAA/Billing System

The WSG-5000 has built-in AAA and billing system that is allowed manager to control user for Internet access and billing mechanism individually without any external AAA server and billing server.

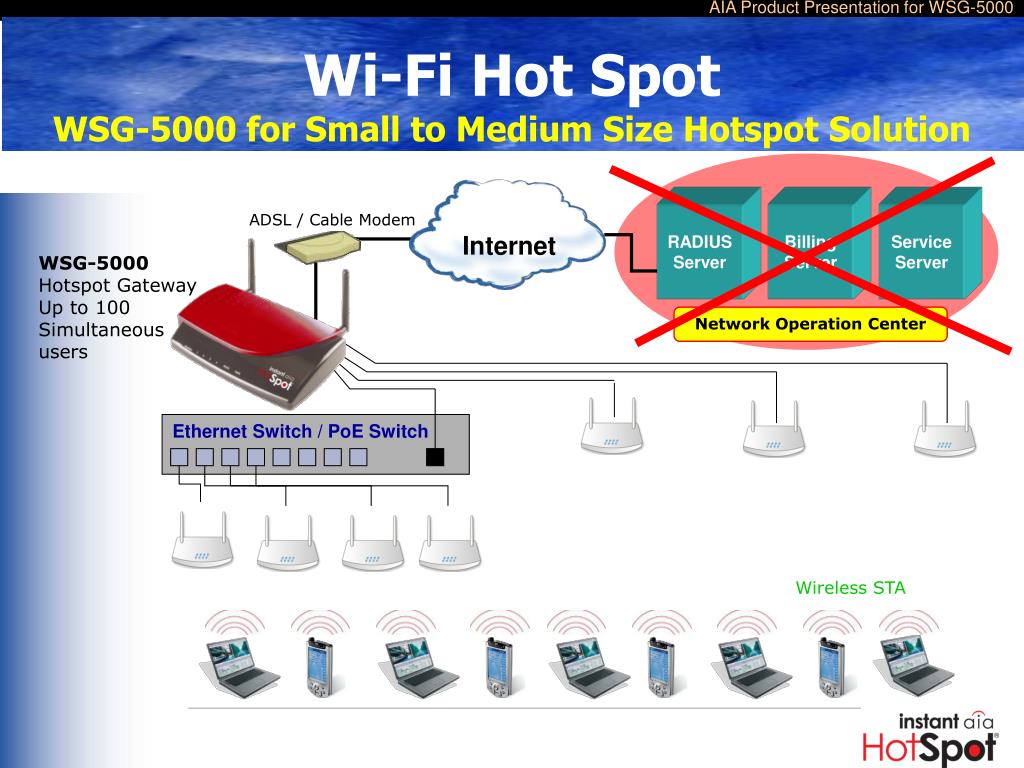

Wi fi hot spot wsg 5000 for small to medium size hotspot solution l.jpg

Internet

Wi-Fi Hot SpotWSG-5000 for Small to Medium Size Hotspot Solution

ADSL / Cable Modem

RADIUS

Server

Billing

Server

Service

Server

WSG-5000

Hotspot Gateway

Up to 100

Simultaneous

users

Network Operation Center

Ethernet Switch / PoE Switch

Wireless STA


Hotel vdsl phoneline solution wsg 5000 and vdsl infrastructure wired wireless l.jpg

RS-232 Line

RJ-11 Telephone Line

RJ-45 CAT5 Line

Hotel VDSL Phoneline SolutionWSG-5000 and VDSL infrastructure (Wired+Wireless)

2F

Room201

Guest Rooms

Notebook with

Ethernet Interface

VM-120

VDSL Modem

Wireless STA

Enjoy Internet with freedom

1F

Open Area

Lobby

Pool

Coffee shop

Restaurants

Gardens……

VM-120

VDSL Modem

Wireless AP

Control

Center

Staff Bypass

DSLAM/PBX

Internet

ADSL / Cable Modem

VS-1200

VDSL switch

WSG-5000

Wireless Subscriber Gateway


Hotel homepna phoneline solution wsg 5000 and homepna infrastructure wired wireless l.jpg

RS-232 Line

RJ-11 Telephone Line

RJ-45 CAT5 Line

Hotel HomePNA Phoneline SolutionWSG-5000 and HomePNA infrastructure (Wired+Wireless)

2F

Room201

Guest Rooms

Notebook with

Ethernet Interface

PEC-120

HomePNA Converter

Wireless STA

Enjoy Internet with freedom

1F

Open Area

Lobby

Pool

Coffee shop

Restaurants

Gardens……

PEC-120

HomePNA Converter

Wireless AP

Control

Center

Staff Bypass

DSLAM/PBX

Internet

ADSL / Cable Modem

PS-80

HomePNA switch

WSG-5000

Wireless Subscriber Gateway


ad
