Piezoelectric nanotubes

Piezoelectric Nanotubes (!)

• Electrons on Carbon NT’s

• Heteropolar Nanotubes

Pyroelectricity

Piezoelectricity

Photogalvanics

• Tubes as Optical Materials

….with

Na Sai

Charlie Kane

Petr Kral


Piezoelectric nanotubes

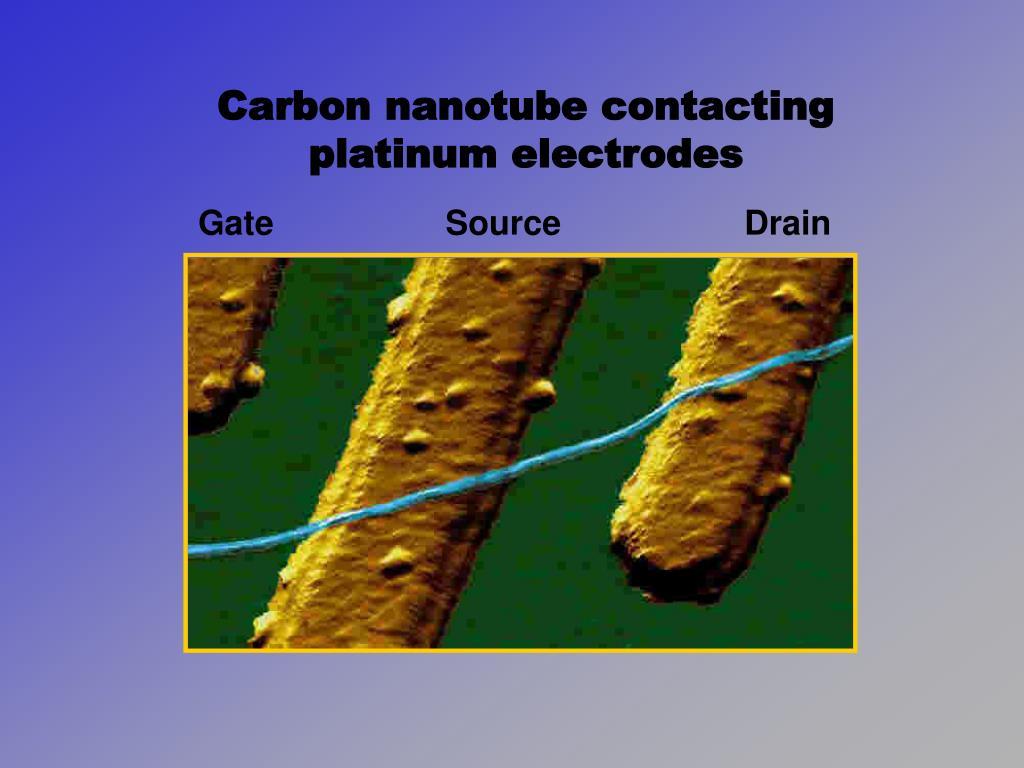

Carbon nanotube contacting

platinum electrodes

Gate

Source

Drain


Piezoelectric nanotubes

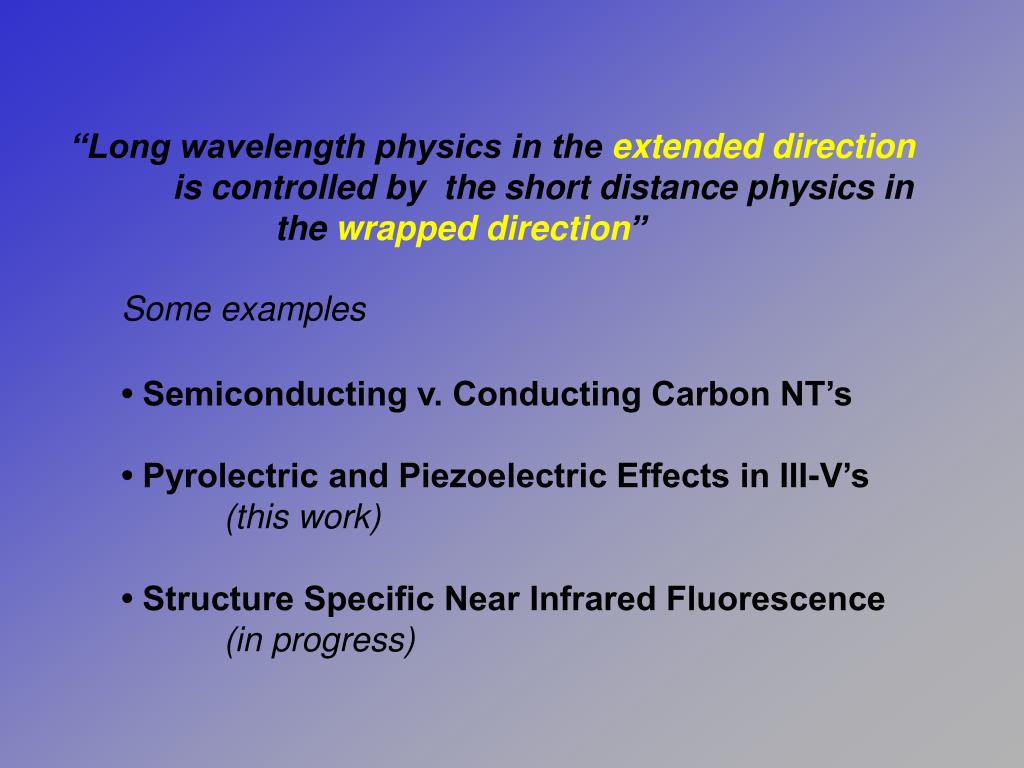

“Long wavelength physics in the extendeddirection is controlled by the short distance physics in the wrapped direction”

Some examples

• Semiconducting v. Conducting Carbon NT’s

• Pyrolectric and Piezoelectric Effects in III-V’s

(this work)

• Structure Specific Near Infrared Fluorescence

(in progress)


Graphene has a critical electronic state

Graphene has a Critical Electronic State

Dispersion of a free particle in 2D..

…is replaced

by an unconventional E(k) relation on the

graphene lattice


Rolling up a graphene sheet

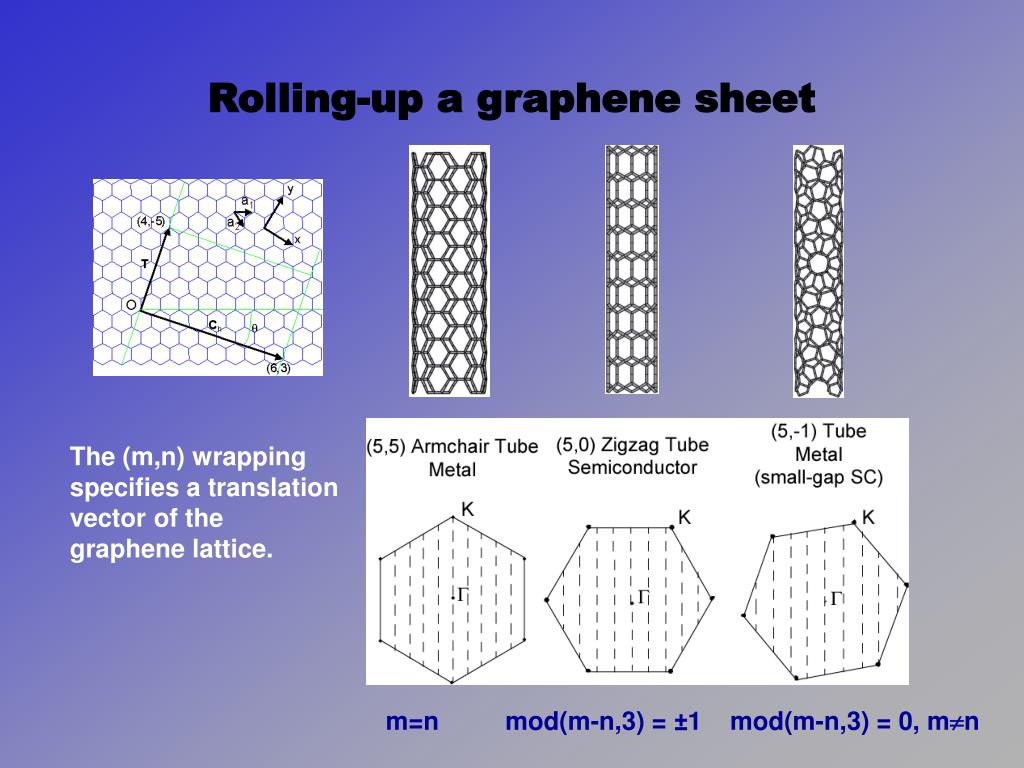

Rolling-up a graphene sheet

The (m,n) wrapping specifies a translation vector of the graphene lattice.

m=n

mod(m-n,3) = ±1

mod(m-n,3) = 0, mn


Backscattering from elastic strains bend and twist

Backscattering from elastic strains: bend and twist

Twist (but not bend) can

backscatter electrons

on an armchair tube.

this is responsible for

the T-linear observered

resistivity.


Are nanotubes photogalvanic

Are Nanotubes Photogalvanic ?


Heteropolar nt s of boron nitride

Heteropolar NT’s of Boron Nitride

BN is the III-V homolog

to graphene. The B and N occupy different sublattices -- this lowers the symmetry and leads to new physical effects


Piezoelectric nanotubes

Quantum Theory of Polarization

(King-Smith & Vanderbilt, Phys. Rev. B47, 1651 (1993))

DP is obtained from the geometric (Berry’s) phase

accumulated by the u’s under adiabatic motion on a

closed orbit in t-space.


Piezoelectric nanotubes

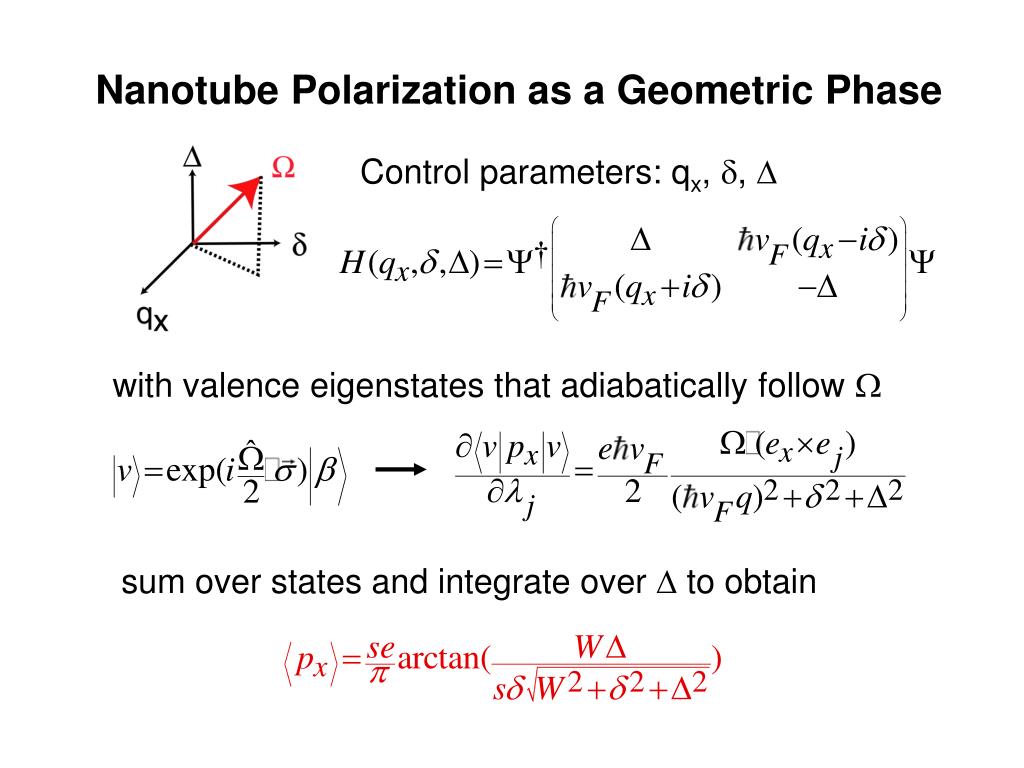

Nanotube Polarization as a Geometric Phase

Control parameters: qx, d, D

with valence eigenstates that adiabatically follow W

sum over states and integrate over D to obtain


The nt s electric dipole moment that depends on its wrapping

The NT’s electric dipole moment that depends on its wrapping


The magnitude of the dipole is sensitive to elastic strain modulate d

The magnitude of the dipole issensitive to elastic strain (modulate d)

NT’s are molecular piezoelectrics, where P is

sensitive to twist and stretch, so strain <=>voltage !


Piezoelectric nanotubes

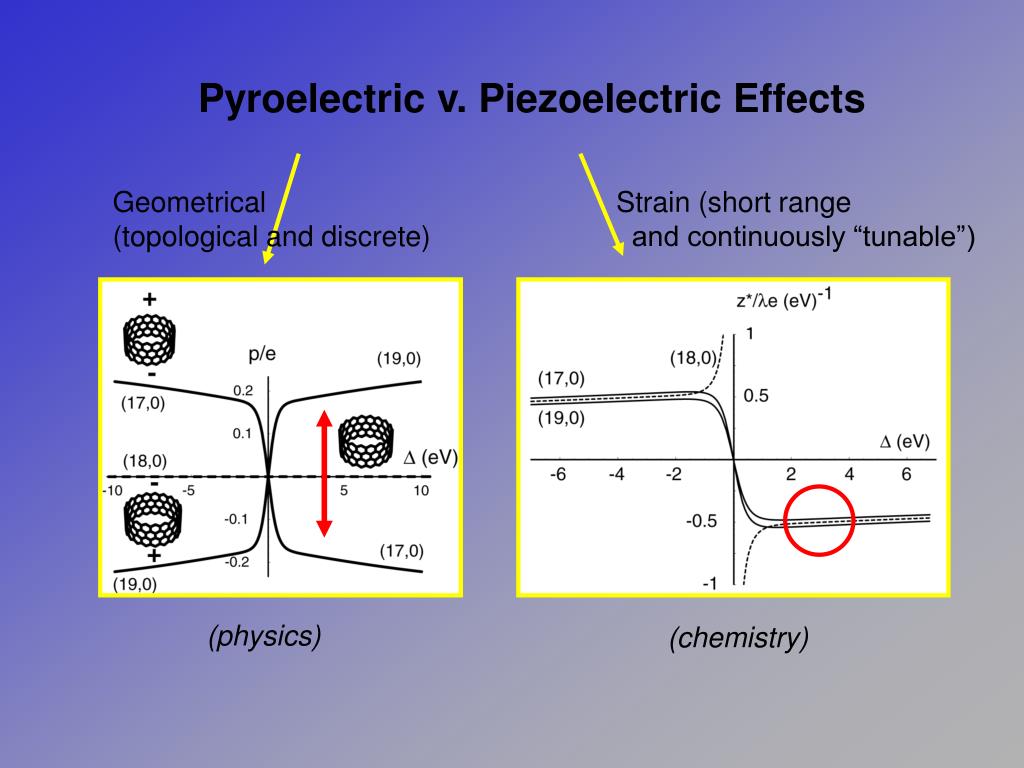

Pyroelectric v. Piezoelectric Effects

Geometrical

(topological and discrete)

Strain (short range

and continuously “tunable”)

(physics)

(chemistry)


Piezoelectric nanotubes

Piezoelectricity in a Heteropolar Sheet

elastic strain lowers the threefold symmetry of the BN sheet

producing an electric polarization

stretch

twist

3m symmetry:


Piezoelectric nanotubes

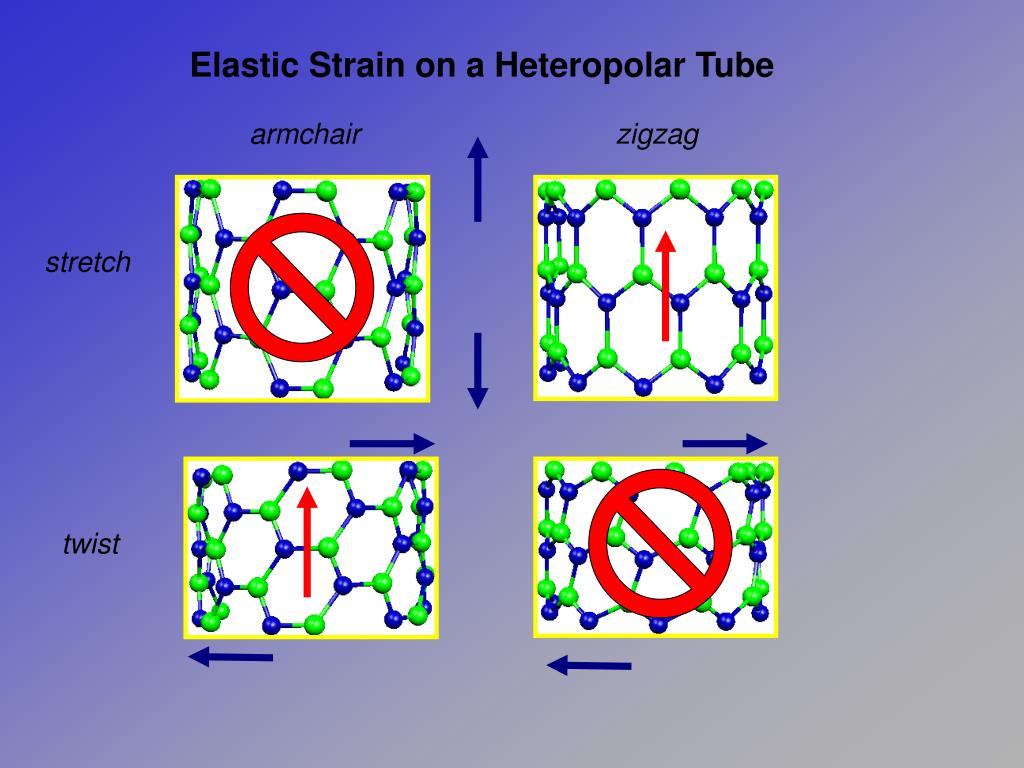

Elastic Strain on a Heteropolar Tube

armchair

zigzag

stretch

twist


Piezoelectric nanotubes

Calculated (N-TB) Piezo-Response

of Nanotubes

zigzag

armchair

sheets

N-TB

DFT

• p electron response dominates

• 1/R^2 finite size corrections


Piezoelectric nanotubes

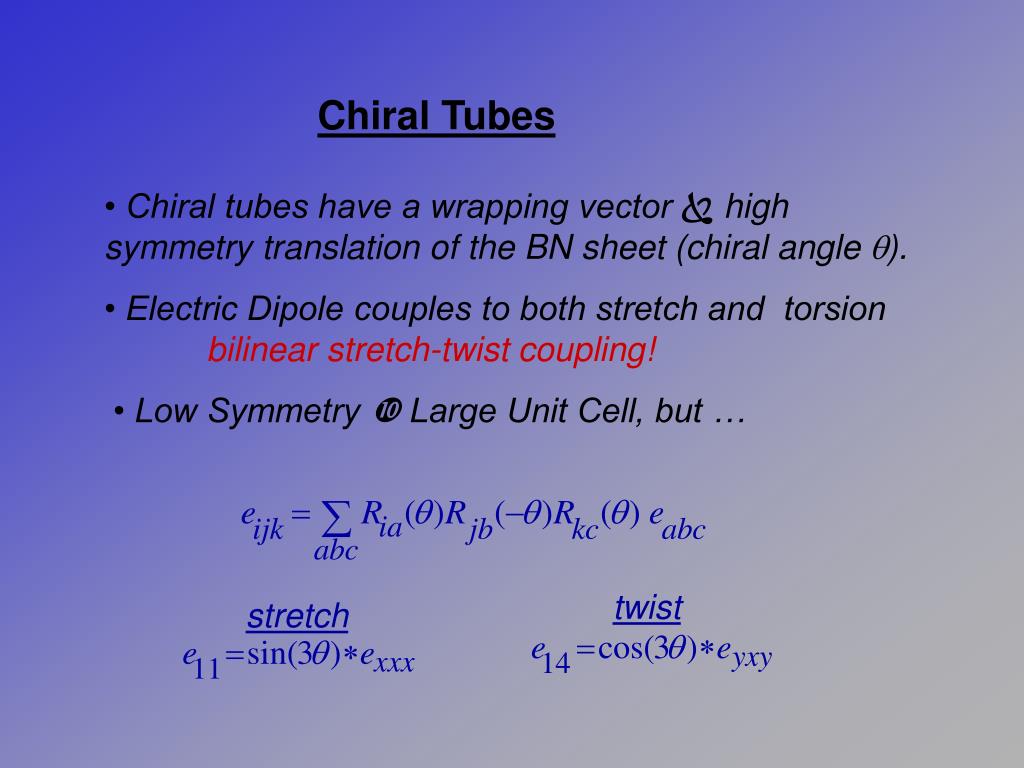

Chiral Tubes

• Chiral tubes have a wrapping vector  high

symmetry translation of the BN sheet (chiral angle q).

• Electric Dipole couples to both stretch and torsion bilinear stretch-twist coupling!

• Low Symmetry  Large Unit Cell, but …

twist

stretch


Piezoelectric nanotubes

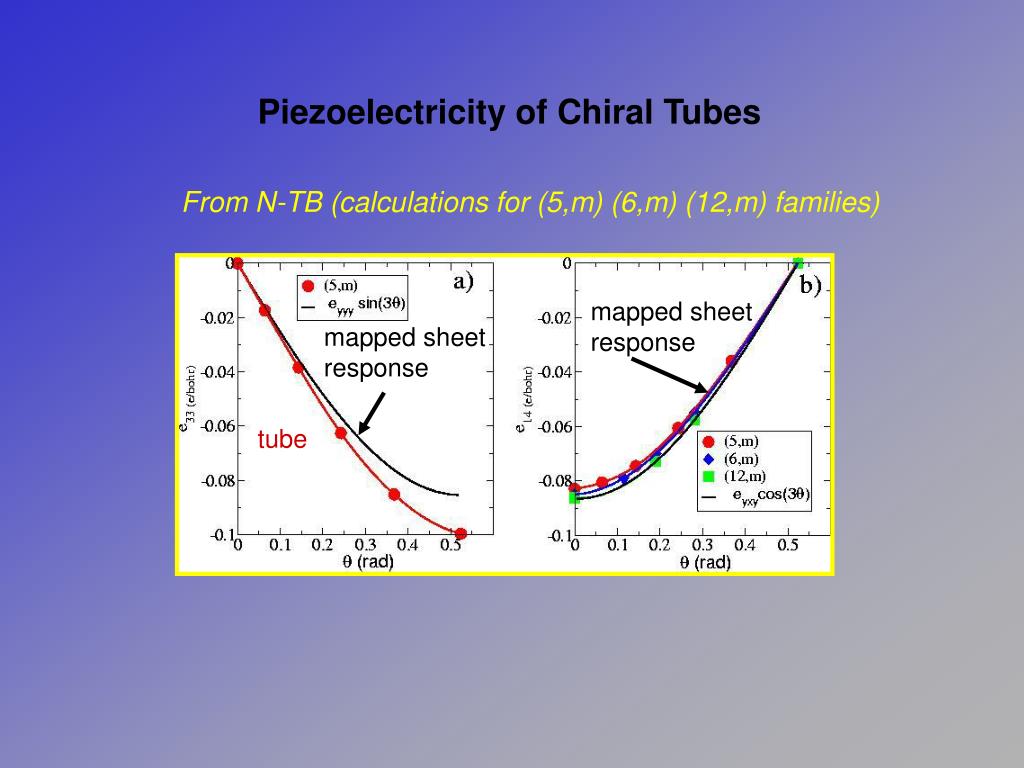

Piezoelectricity of Chiral Tubes

From N-TB (calculations for (5,m) (6,m) (12,m) families)

mapped sheet response

mapped sheet

response

tube


Piezoelectric nanotubes

Size (R) Scaling of the Piezoelectric

Constants of Chiral Tubes


Photogalvanic effects in heteropolar tubes

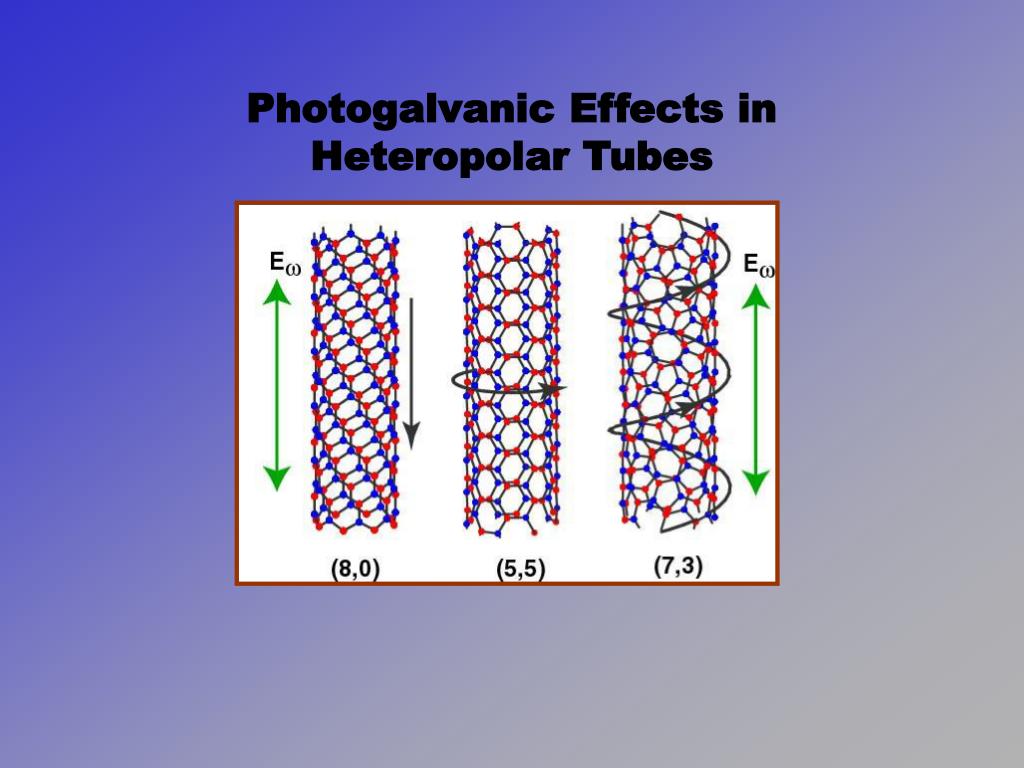

Photogalvanic Effects inHeteropolar Tubes


Piezoelectric nanotubes

C, BN NT’s are prototypes with many other compact

meso-phases formed by folding lamellae

MoS2

WS2

Single- and

double- wall WS2

coat C-NT

and WS2 cones

Whitby et al. APL 79, 4574 (2001)

& many others: Tenne & Zettl, Topics. In Applied Physics 80, 81 (2001)

Remska et al.

Science 292, 479 (2001)


Piezoelectric nanotubes

Physical Properties  Control of

Composition AND Geometry

challenges

opportunities

• highly ordered

(coherent) structures

• access to quantum

geometrical effects

• phenomenology:

systematics in “families”

• control C&G in

synthesis

• structural sorting

• assembly of networks

and superstructures


Piezoelectric nanotubes

Near-infrared Photoluminescence from Single-wall Carbon Nanotubes

Excitation (661 nm)

Emission ( 850 nm)


Piezoelectric nanotubes

Fluorescence Spectroscopy

• FS reveals electronic gap structure outside

the conventional band model.

• The “ratio problem”

Gap Ratio < 2 (asymptote for large diameter tubes)

Hybridize e-h and 2e-2h excitations

1D + degeneracy from tube wrapping.

Long Range

Interaction

• The “deviations problem”

They are very large… with ± asymmetry

Curvature, Trig. Warping + Coul. Anisotropy(distinguished by scaling with R, n)

Short Range Interaction


Stick boy and match girl

Stick Boy and Match Girl

Stick Boy liked Match Girl

he liked her a lot.

He liked her cute figure,

he thought she was hot.


Piezoelectric nanotubes

But could a flame ever burn

for a match and a stick?

It did quite literally;

he burned up pretty quick.
