Presentation Transcript
Internet protocols l.jpg
Internet Protocols

  • IP

  • TCP

  • http:

  • Domain Name Services

The internet is a network of networks

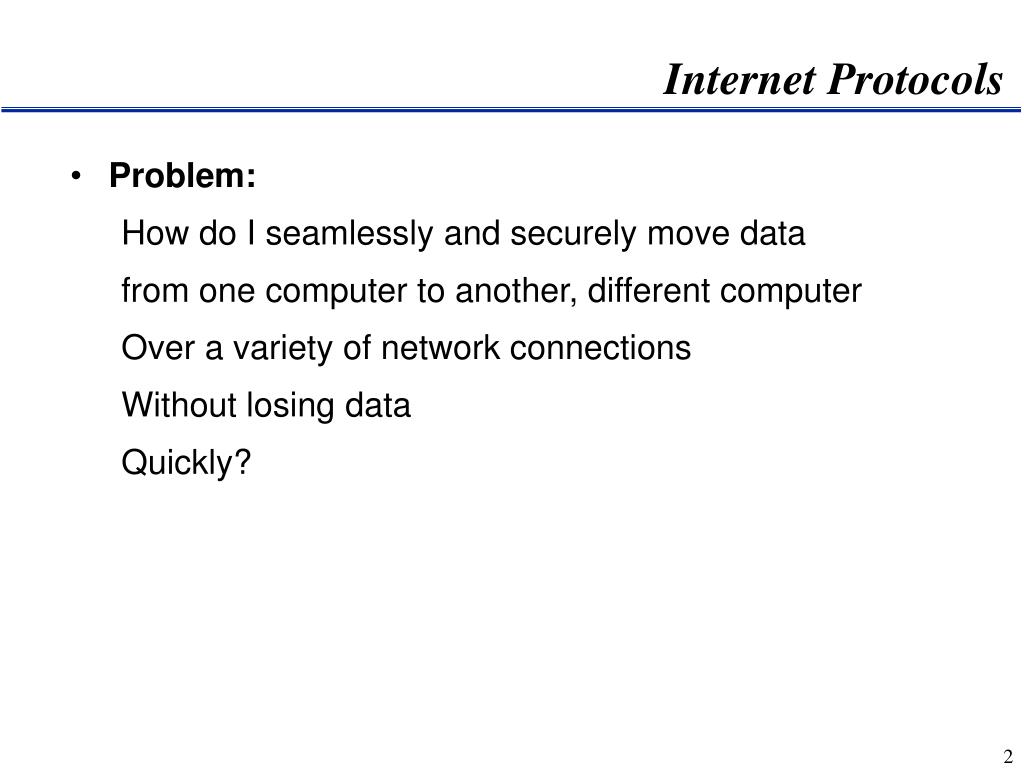

Internet protocols2 l.jpg
Internet Protocols

  • Problem:

    How do I seamlessly and securely move data

    from one computer to another, different computer

    Over a variety of network connections

    Without losing data

    Quickly?

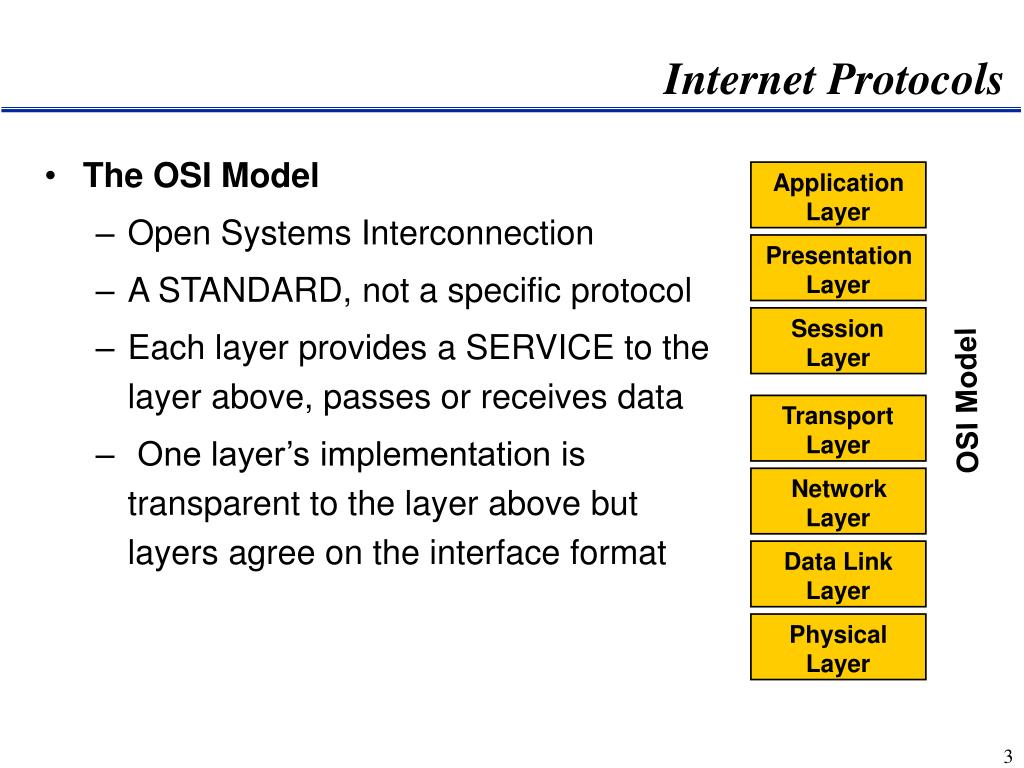

Internet protocols3 l.jpg

Application

Layer

Presentation

Layer

Session

Layer

OSI Model

Transport

Layer

Network

Layer

Data Link

Layer

Physical

Layer

Internet Protocols

  • The OSI Model

    • Open Systems Interconnection

    • A STANDARD, not a specific protocol

    • Each layer provides a SERVICE to the layer above, passes or receives data

    • One layer’s implementation is transparent to the layer above but layers agree on the interface format


Internet protocols4 l.jpg

Application

Layer

Presentation

Layer

Session

Layer

OSI Model

Transport

Layer

Network

Layer

Data Link

Layer

Physical

Layer

Internet Protocols

  • IP

    • Internet Protocol

    • Defined in 1974 (Cerf & Kahn) as part of “TCP”

    • Independent of OSI model, yet remains consistent with it


Internet protocols5 l.jpg
Internet Protocols

Application

Layer

Browser

Using http:

Presentation

Layer

Session

Layer

OSI Model

TCP/IP Model

Transport

Transport Control Protocol (TCP)

Layer

Network

Internet Protocol (IP)

Layer

Data Link

Network Interface (ppp)

Layer

Physical

Physical Layer

Layer


Internet protocols6 l.jpg
Internet Protocols

  • IP

    • Handles Routing of Internet Packets

    • Packets are routed based on IP address

    • Based on Packet-switching

    • Routing Work is done by ROUTERS


Internet protocols7 l.jpg
Internet Protocols

  • Routers are computers that connect networks

  • Routers contain configuration tables of known addresses, maintained by network administrators

  • Routers

    • DON’T send packets where they’re NOT needed

    • Send packets where needed by the fastest route

  • Process:

    • Scan the configuration table for the destination address

    • Check that path’s performance

    • Select an alternative path if busy


Internet protocols8 l.jpg
Internet Protocols

Structure of the IP Address

  • 4 bytes (octets), 32 bits

  • Values up to 232 (4,294,967,296)

  • Each 8-bit octet can range from 0 to 255

  • Two portions: Network and Host

  • Length of the “Network” portion depends on the value of the first octet

    nnn.nnn.nnn.nnn


Internet protocols9 l.jpg
Internet Protocols

nnn.nnn.nnn.nnn

  • First Octet:

  • 1- 126 = Class “A” network (8 bits network, 24 bits host)

  • - 191 = Class “B” network (16 bits network, 16 bits host)

  • 192 – 223 = Class “C” network (24 bits network, 8 bits host)

  • 136 class A networks can each have up to about 16 million hosts attached – first bit = 0

  • 16,384 class B networks can each have up to about 65,000 hosts each – first 2 bits = 10

  • 2 million class C network can have up to 254 hosts each – first 3 bits = 110


Internet protocols10 l.jpg
Internet Protocols

nnn.nnn.nnn.nnn

  • Routers first check for “local” routing

  • If the destination is on the same SUBNET as the source, the packet need not leave the local network

  • Uses a “subnet mask” to decide

  • Example:

    • Source and destination have a subnet mask of 255.255.255

    • The first 24 bits of both IP addresses are equal

    • Therefore, the router keeps it on the local network


Internet protocols11 l.jpg
Internet Protocols

  • Topics for further research

    • IP version 6

    • CIDR – Classless Inter-Domain Routing

    • VLSM – variable length subnet masking

    • Routing protocols –

      • Updating routing tables

      • Determining the best route


Internet protocols12 l.jpg
Internet Protocols

  • TCP (Transport/Transmission Control Protocol)

    • “Certified Mail” -- guaranteed delivery

    • Runs on each host (part of your browser)

    • Manages packets passed to or received from IP

      • Breakdown and reassembly

      • Resend if needed


Internet protocols13 l.jpg
Internet Protocols

  • Domain Name Services

    • A network of servers

    • Translate host names into IP addresses

    • Invented in 1984

    • “Distributed Database” of translation tables

    • Often uses the BIND (Berkeley Internet Name Domain) software

    • Two components: Name Server & Resolver


Internet protocols14 l.jpg
Internet Protocols

  • Domain Name Services

    • Top level = ZONE (rightmost)

      • .com, .gov, .mil, .net, .edu, .org, .biz, .info, .name

    • Second level DOMAIN (description PLUS zone)

      • Must be registered via a “registrar”

      • Dozens, governed by ICANN

      • Must be unique

    • Host name (leftmost)

      • Identifies a unique machine within that domain


Internet protocols15 l.jpg
Internet Protocols

  • When my browser requests a DNS translation:

  • Goes to my assigned (primary or secondary) DNS server

  • If the domain I seek is cached, it returns the IP address

  • If not cached, it passes the request to one of many redundant ROOT servers for the top level domain

  • Root points to one of many redundant master name servers for that TLD

  • Which point to one of many redundant name servers containing the requested domain

  • IP Address is returned through my DNS server


Internet protocols16 l.jpg
Internet Protocols

  • Tracing your Route:

  • Launch a “DOS” window (command prompt)

  • At the prompt enter “tracert” followed by a domain name


Internet protocols17 l.jpg
Internet Protocols

  • http:

  • Governs the activity between web servers & browsers

  • Defined by Tim Berners-Lee in 1991 (birth of WWW), formalized in 1996

  • Browser requests resources in URL format

  • Server returns requested document

[protocol]://[domain name]/directory/filename


Internet protocols18 l.jpg
Internet Protocols

  • http: REQUEST – RESPONSE - DISCONNECT

  • Client contacts host by URL or IP address (plus a port number.)

  • Client sends a text string, no spaces.

  • Web server software “listens” on port 80 for incoming http requests. Port 80 is assumed if no other is specified.

  • Connection is broken by the server when the entire page has been sent. May be aborted by the client.

  • Client-Server interaction is “stateless”


Internet protocols19 l.jpg
Internet Protocols

  • http:

  • Most common = GET request followed by page requested

  • PUT request stores string on server at URL location

  • POST request passes the string as a subordinate to the specified URL – should be executable

    • Typically used to pass data from an HTML FORM to a server-side script for processing

  • Returns a “404” if URL is not found


Internet protocols20 l.jpg

http://hotwired.lycos.com/webmonkey/

Many, many resources for web developers

Including good, high-level overviews

computer.howstuffworks.com

Abundant explanations of how stuff works

www.tcpipprimer.com/section.cfm

Excellent primer on tcp/ip

www.internic.net

Overseers of DNS registration

www.ietf.org

Oversees all internet protocol definitions

www.networksolutions.com

Domain name registrar

www.icann.org

Define DNS standards

Internet Protocols

References:


Internet protocols21 l.jpg
Internet Protocols

References:

http://www.dns.net/dnsrd/

Good DNS reference site

Governs assignment of various

numbers used by internet protocols

http://www.iana.org/numbers.html
