Presentation Transcript


Slide1 l.jpg

Asthma, Bronchiolitis, and Pnemonia

Tintinalli Chapt 123-124.

April 18th 2005

Mark Rodkey, M.D., FAAP

Scott Gunderon, D.O.


Asthma l.jpg

Asthma

  • Chronic disease of the tracheobronchial tree characterized by airway obstruction, inflammation, hyperresponsiveness, mucous plugging and edema.

  • Recurrent wheezing which responds to bronchodilators.


Epidemiology l.jpg

Epidemiology

  • 4.8 million children

  • 40% increase in last decade

  • Risk factors

    • Family Hx

    • African/American, Asian, Hispanic

    • Low birth weight

    • Urban household

    • Low income


Pathophysiology l.jpg

Pathophysiology

  • Three classifications:

    • extrinsic IgE mediated

    • intrinsic infection induced

    • mixed (both IgE and infection)


Pathophysiology5 l.jpg

Pathophysiology

  • Less than 2 years old

    • viral triggers

  • Over 2

    • allergens and irritants are triggers


Pathophysiology6 l.jpg

Pathophysiology

  • Bronchoconstriction

    • due to histamine and leukotriene release

  • Airway mucosal edema/plugging


Pathophysiology7 l.jpg

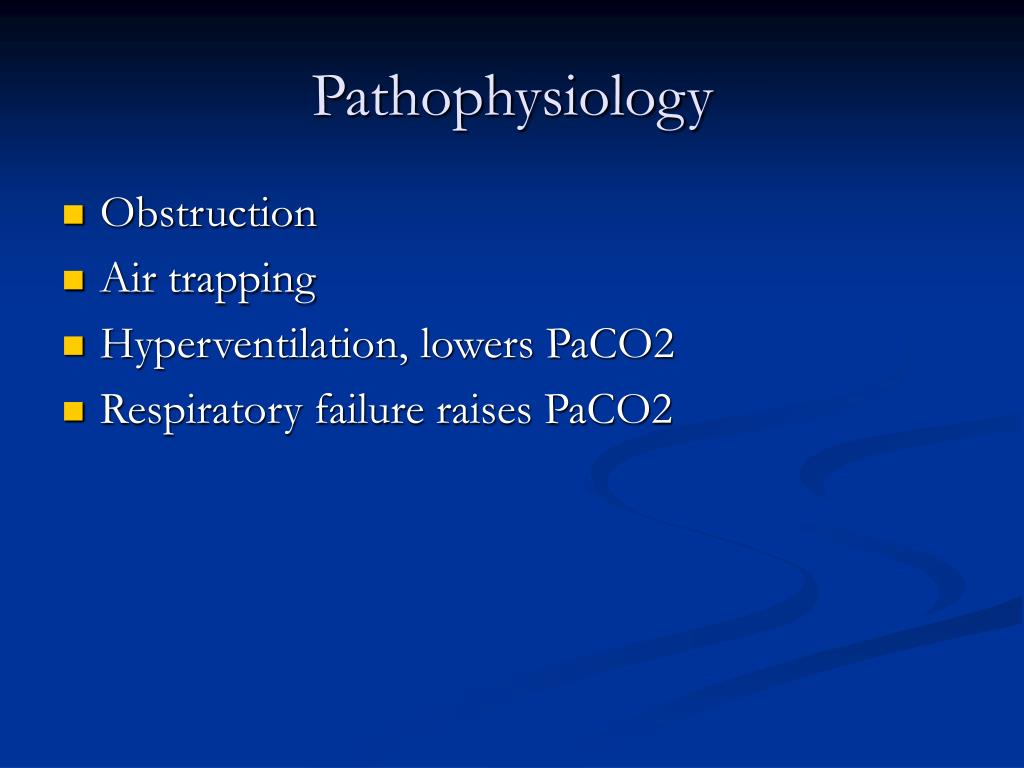

Pathophysiology

  • Obstruction

  • Air trapping

  • Hyperventilation, lowers PaCO2

  • Respiratory failure raises PaCO2


Pediatric anatomy l.jpg

Pediatric Anatomy

  • Higher risk for respiratory failure from asthma than adults because of anatomic differences

  • Compliance of infant rib cage and immature diaphragm

    • paradoxical respiration

    • increased work of breathing and fatigue


Pediatric anatomy9 l.jpg

Pediatric Anatomy

  • Less elastic recoil

    • more prone to atelectasis

    • increases V/Q mismatch

  • Thicker airway wall

    • greater bronchoconstriction


Pediatric anatomy10 l.jpg

Pediatric Anatomy

  • Obstruction more likely

  • Collapse of lung segments

  • Compensatory mechanisms may mask the extent of dyspnea


Evaluation l.jpg

Evaluation

  • Before H&P!!!!

  • ABC’s!

  • Shock (respiratory)

  • Oxygen

  • β2 agonist


Evaluation12 l.jpg

Evaluation

  • Peak expiratory flow rate (PEFR)

    • pre and post treatments (age 8)

    • values are in liters per minute

    • based on child’s height

  • < 50% indicates severe obstruction

  • < 25% indicates possible hypercarbia


Evaluation13 l.jpg

Evaluation

  • ABG

    • Impending respiratory failure

    • Hypoventilating

    • PEFR < 30% of predicted

    • Not responding to treatment

    • Disposition (PICU vs RNF)

    • Pulse Oximetry

    • Expired CO2


Clinical evaluation l.jpg

Clinical Evaluation!

  • Respiratory effort

    • tachypnea, grunt, flare, retractions

    • air hunger

    • altered activity

    • altered mental status

  • Forced breath (blow hand)

    • recite alphabet in one breath

    • response to treatment


Chest x ray l.jpg

first wheeze

poor response to treatment

fever

chest pain

considering FB, pneumo

hyperinflation

flattened diaphragm

barrel-chest

PBT

atelectasis

Chest X-ray


Differential l.jpg

pneumonia

FB

Cystic Fibrosis

BPD

CHF (Congenital Heart Disease)

Croup

Epiglottitis

Retropharyngeal abscess

Bacterial tracheitis

GERD

Differential


Treatment l.jpg

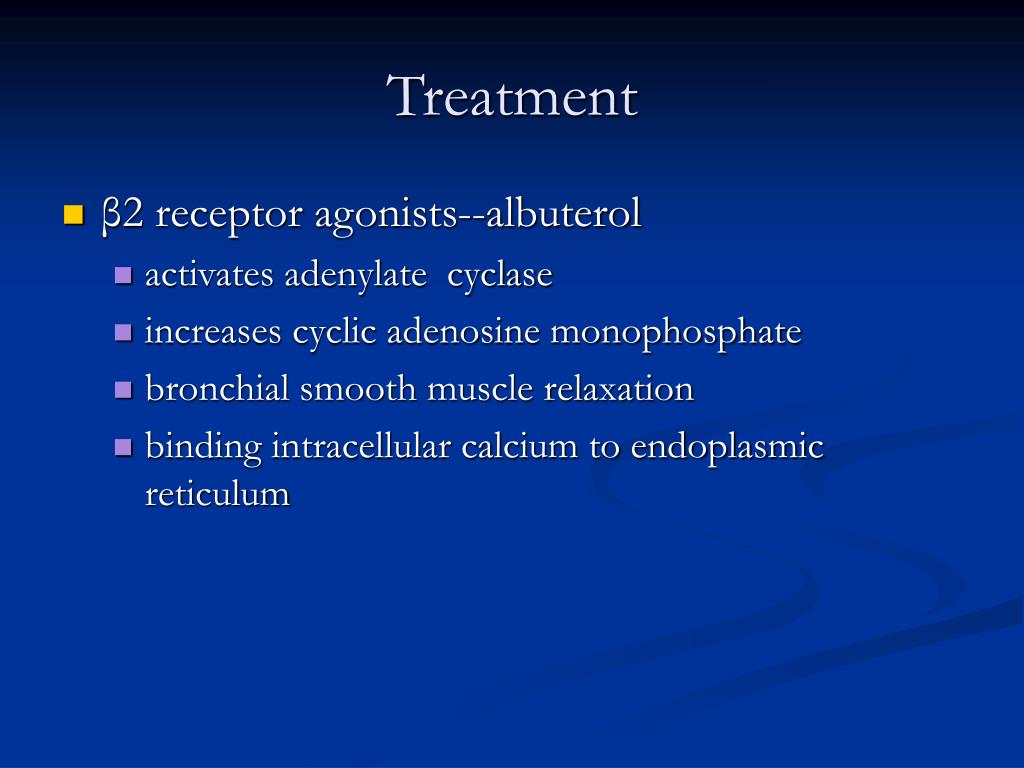

Treatment

  • β2 receptor agonists--albuterol

    • activates adenylate cyclase

    • increases cyclic adenosine monophosphate

    • bronchial smooth muscle relaxation

    • binding intracellular calcium to endoplasmic reticulum


Treatment18 l.jpg

Treatment

  • Xopenex - R isomer of albuterol

  • Salmeterol is a long acting β2 agonist

    • NOT indicated in acute setting

    • reduces need for Albuterol


Treatment19 l.jpg

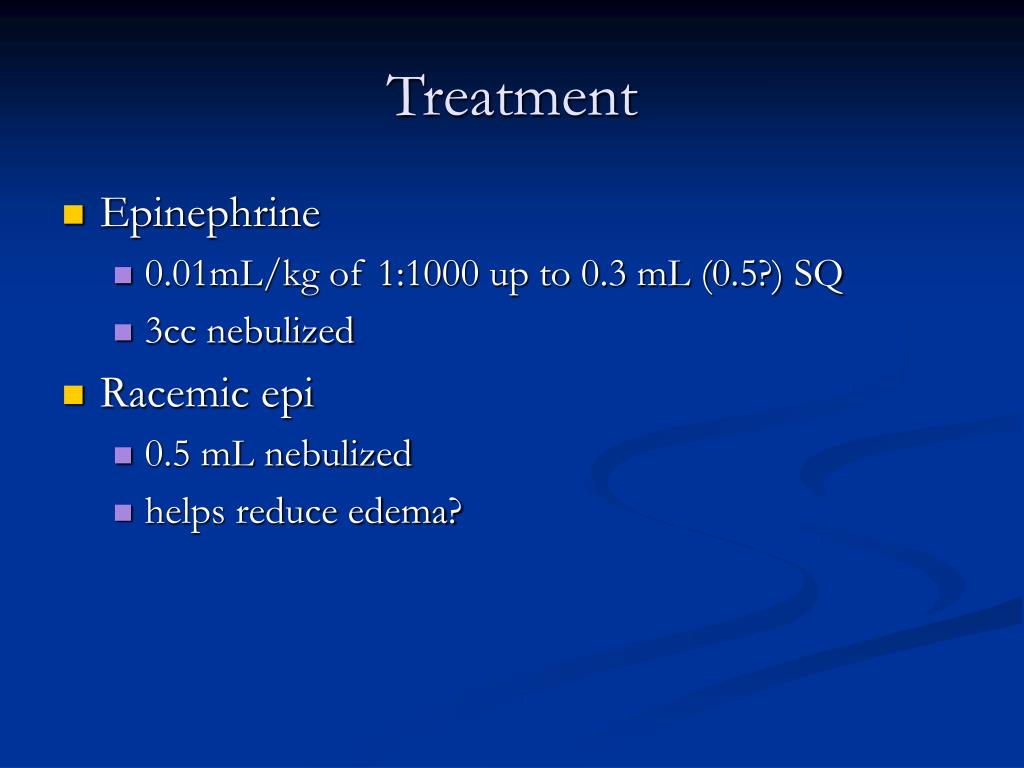

Treatment

  • Epinephrine

    • 0.01mL/kg of 1:1000 up to 0.3 mL (0.5?) SQ

    • 3cc nebulized

  • Racemic epi

    • 0.5 mL nebulized

    • helps reduce edema?


Treatment20 l.jpg

Treatment

  • Terbutaline

    • more β2 selective than epi

    • 0.01 mL/kg 1mg/mL, max 0.25 mL

    • 5-10 mcg/kg SQ or IV

    • may cause myocardial ischemia, tachycardia


Treatment21 l.jpg

Treatment

  • Corticosteroids (Prednisone, Solumedrol)

    • 1-2 mg/kg/day PO or IV

  • Anticholinergics (Atrovent)

    • prevents bronchoconstriction induced by guanosine monophosphate

  • IV fluids

  • Magnesium sulfate

    • not much supporting evidence in Pediatrics


Bronchiolitis l.jpg

Bronchiolitis


Bronchiolitis23 l.jpg

Bronchiolitis

  • Inflammation of bronchioles

  • Usually refers to children under 2 who have a viral URI with some intrathoracic symptoms (wheeze, cough, tightness)


Epidemiology24 l.jpg

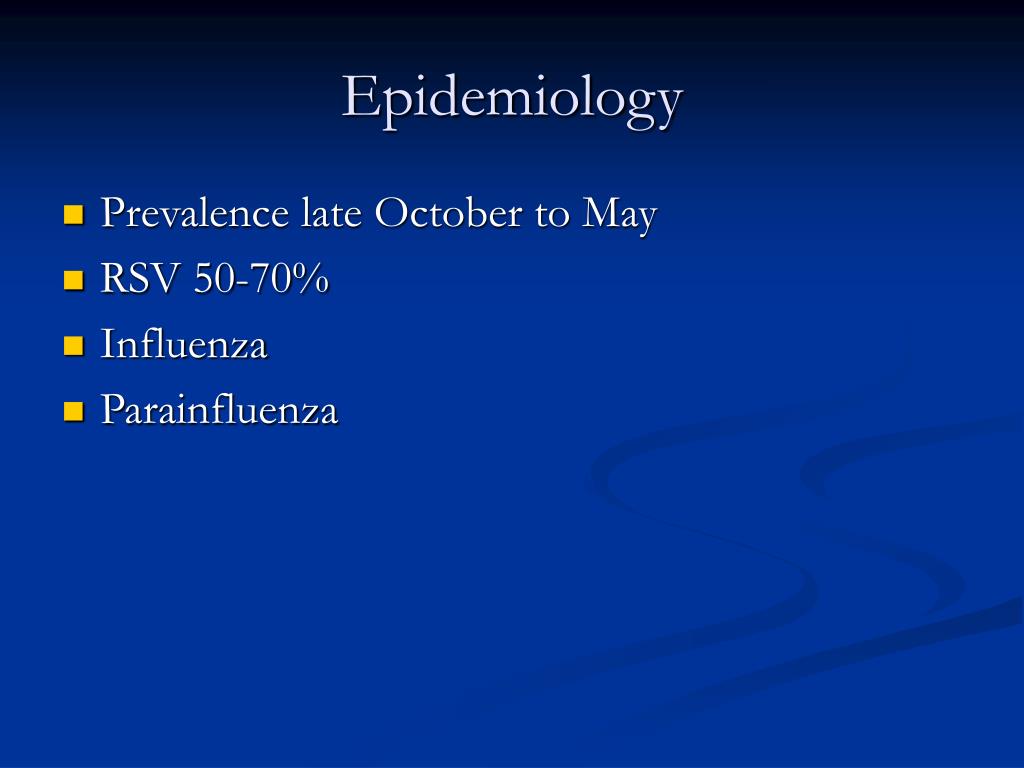

Epidemiology

  • Prevalence late October to May

  • RSV 50-70%

  • Influenza

  • Parainfluenza


Slide25 l.jpg

RSV

  • Direct contact with secretions

  • Self inoculation hands to eyes and nose

  • Infectious on countertops for > 6 hours

  • Shed up to 9 days in the respiratory tract

  • Nasal discharge, pharyngitis, cough

  • Fever up to 40C

  • Peak symptoms at 3 to 5 days


Physical findings l.jpg

Physical findings

  • tachypnea, tachycardia, conjunctivitis, retractions, prolonged expiration (I:E), wheezing, hypoxemia


Evaluation27 l.jpg

Evaluation

  • similar to asthma

  • swab nose for RSV, Influenza

  • CXR


Treatment28 l.jpg

Treatment

  • Suction airway

  • O2

  • β2 agonist

  • Albuterol

  • Racemic Epi

  • Epinephrine


Treatment29 l.jpg

Treatment

  • Atrovent?

  • Atropine?

    • dries secretions

  • Steroids?

    • for family Hx of asthma


Treatment30 l.jpg

Treatment

  • Ribavirin? (Guidance of PICU)

  • Pulmonary Disease

  • Cystic Fibrosis

  • RDS

  • Congenital Heart Disease


Bronchiolitis31 l.jpg

Bronchiolitis

  • 70% of children who wheeze in the ED are smoking (passively or actively)


Pneumonia l.jpg

Pneumonia


Pneumonia33 l.jpg

Pneumonia

  • Goals

    • Identify causes of Pneumonia in children

    • Describe Respiratory Distress in Pneumonia

    • Review Treatment for Pneumonia

    • Pediatric Emergency Medicine


Pneumonia34 l.jpg

Pneumonia

  • Infection within the lung

  • Viral

  • Bacterial

  • Fungal


Epidemiology35 l.jpg

Epidemiology

  • 40/1000 in preschool children (U.S.)

  • 9/1000 in 10 year olds (U.S.)

  • Mortality < 1% in industrialized nations

  • 5 million deaths under 5years annually in developing countries

  • Fall/Spring—parainfluenza

  • Winter—respiratory syncytial virus

  • Winter—influenza

  • Bacterial more common in the winter


Risk factors l.jpg

Asthma/RAD/Bronchiolitis

Immunocompromise

Previous Insult to Lungs

Abnormal Anatomy (Immotile Cilia)

Cystic Fibrosis, Sickle Cell . . .

Prematurity

Malnutrition

Low Socioeconomic Status

Cigarette Smoke

Day Care

Foreign Body

RiskFactors


Pathophysiology37 l.jpg

Pathophysiology

  • Aspiration of infective particles into the lower respiratory tract

  • Suppression of normal defenses after viral infection

  • Coexistent viral and bacterial pathogens in children in ¡Ã50% of cases


Etiologic agent l.jpg

Etiologic Agent

  • Birth to 1 month

    • Viruses: CMV

    • group B streptococcus, E coli, Klebsiella, Listeria

  • 1 to 24 months

    • Viruses: RSV, parainfulenza, influenza, adenovirus

    • Bacteria: Strep pneumoniae, strep pyogenes, staph aureus, H. influenza


Etiologic agent39 l.jpg

Etiologic Agent

  • 2 to 5 years

    • Viruses: Influenza, adenovirus

    • Bacteria: Strep pneumoniae

  • 5 to 18 years

    • Viruses: RSV, adenovirus

    • Bacteria: Mycoplasma, Strep pneumoniae, Chlamydia pneumoniae


Special concerns l.jpg

Special Concerns

  • Staph aureus

    • rapid progression, abscesses

  • Grp A Strep

    • invasive, necrotizing fasciitis, empyema

  • Gram neg bacilli

    • recently hospitalized patients


Special concerns41 l.jpg

Special Concerns

  • B. pertussis

    • paroxysmal cough

  • C. trachomatis

    • maternal exposure, conjunctivitis

  • M. pneumoniae

    • rash (Erythema Multiforme)


Special concerns42 l.jpg

Special Concerns

  • RSV mortality rate

  • Congenital Heart up to 35%

  • Congenital Heart w/ Pulmonary HTN up to 70%


Symptoms l.jpg

cough

fever

chest pain

fatigue

gasping

tachypnea

apnea

abdominal pain

nausea

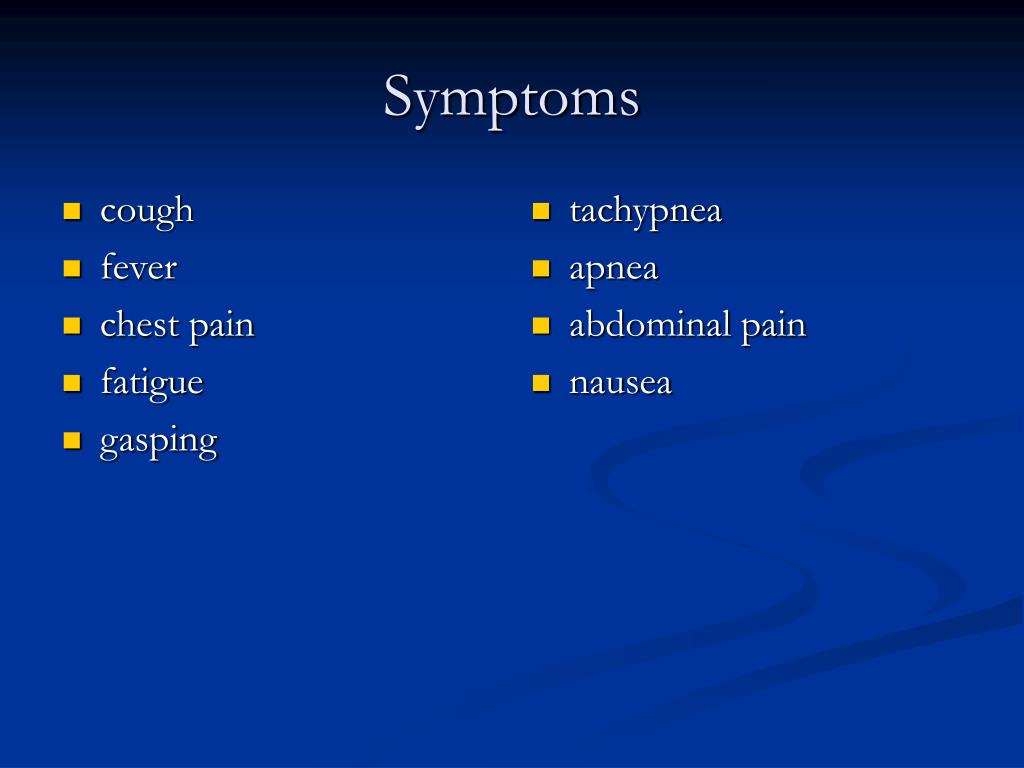

Symptoms


Findings l.jpg

Findings

  • respiratory distress

    • tachypnea, grunting, flaring, retracting

  • abnormal auscultatory findings???

  • cyanosis

  • chest X-ray - infiltrates


Cxr findings l.jpg

CXR Findings

  • Viral

    • diffuse interstitial infiltrates

  • Bacterial

    • consolidated, lobar

  • Mycoplasma

    • diffuse


Slide46 l.jpg

Lab

  • CBC

    • elevated WBC, left shift

  • Blood Culture

  • Cold Agglutins

  • Sputum Culture

  • ABG

  • May help with placement

  • RSV

  • Influenza


Appearance l.jpg

Appearance

  • History is not as useful

  • Examination is paramount

  • Observation

    • vigorous crying

    • playful

    • quiet is bad!


Signs of respiratory distress l.jpg

Tachypnea

Retractions

Flaring

Grunting

Abdominal Breathing (seesaw)

Bradypnea

Signs of Respiratory Distress

Wheezing

Stridor

Poor Air Exchange

Skin Color

Change in Level of Consciousness

Change in Depth of Breathing (volume)

Change in I:E

Positioning

Tripod

Sniffing

Air Hunger

Signs of Respiratory Distress


Evaluation of respiratory distress l.jpg

Evaluation of Respiratory Distress

  • High Expired CO2

  • CXR

  • Soft Tissue Neck X-ray

  • Response to Treatment

  • Pulse Oximetry????

    • should not guide acute treatment decisions

    • misleading

    • inaccurate


Treatment50 l.jpg

Treatment

  • Position/Support/Maintain Airway

  • Wipe Nose!

  • Remove Foreign Bodies

  • Oxygen

  • Cool Mist (H2O or NS?)


Antibiotics l.jpg

Antibiotics?

  • Birth to 1 month - Amp + Gent, Cefotaxime

  • 1 to 24 months - Amoxil, cephalosporin

  • 2 to 5 years - Amoxil, cephalosporin

  • over 5 years - Zithromax, Biaxin

  • Resistant S. pneumoniae - vancomycin


Antibiotics52 l.jpg

Antibiotics?

  • Viral

    • support

    • acyclovir?

    • ribavirin?


Treatment53 l.jpg

Treatment

  • Beta agonist

  • IVF (except cardiogenic and resp?)

    • 10-20cc/kg

    • normal saline or Ringer’s

    • never sugar in bolus (unless calculated)

  • Oxygen & Albuterol


Intubation l.jpg

Intubation

  • Cardio/Respiratory Failure

  • Uncompensated Shock

  • Unable to maintain airway **

  • ETT size

    • age/4 + 4, insert 3 x size of tube

    • small fingernail

    • nares


Disposition admit l.jpg

Disposition - Admit

  • Hypoxia

  • < 3 months old

  • Shock

  • Dyspnea

  • Activity Level

  • Extensive ED Treatment


Complications l.jpg

Complications

  • Viral pneumonia

    • resolve spontaneously without specific Tx

  • Bacterial pneumonia

    • dehydration, bronchiolitis obliterans, apnea

    • pleural effusions, empyemas, pneumothorax, pneumatoceles, development of additional infectious foci


Cases l.jpg

Cases

  • Case 1

    • 16 month old boy, respiratory distress

    • RR 40, HR 140, T 39.2C

    • Rash

  • Case 2

    • 7 year old boy, cough

    • RR 20, HR 105, T 38.2C

    • Hx TE Fistula, Cleft Palate, RAD


Cases58 l.jpg

Cases

  • Case 3

    • 6 day old boy, respiratory distress

    • RR 64, HR 160

  • Case 4

    • 9 month old boy, respiratory distress, shock

    • RR 60, HR 170, T 37.5

    • green nasal d/c


Cases59 l.jpg

Cases

  • Case 5

    • 3 month old boy, CPR

    • RR 0, HR 0

  • Case 6

    • 5 year old boy, cough, fever, rash

    • RR 20, HR 100, T 38.7C


Cases60 l.jpg

Cases

  • Case 7

    • 2 year old boy

    • Cough, fever

    • Tachypnea, retracting, grunting, flaring

    • Lungs clear

    • RR 42, HR 140, T 38.3C

  • Case 8

    • 4 year old boy, Down Syndrome

    • Cough, Fever, Tachypea

    • Grunting, Flaring, Retracting

    • RR 32, HR 120


Cases61 l.jpg

Cases

  • Case 9

    • 13 year old boy

    • Cough, Fever, Tachypea, Chest Pain

    • Grunting, Flaring, Retracting

    • Decreased BS on Left

    • RR 32, HR 120

  • Case 10

    • 14 year old boy, Christmas Day

    • Cough, Fever

    • RR 18, HR 96

    • WBC 4.0


Cases62 l.jpg

Cases

  • Case 11

    • 8 year old girl, 5 year old boy, siblings

    • Cough, Fever, Tachypea

    • Lungs clear

  • Case 12

    • 10 month old girl, Situs TOGA Diaphrag Hernia

    • Cough, Fever, Tachypea

    • Grunting, Flaring, Retracting

    • RR 48, HR 160


Cases63 l.jpg

Cases

  • Case 13

    • 4 year old boy

    • Cough, Fever, Tachypea

    • Coarse BS

    • RR 48, HR 120, T 38.6C

  • Case 14

    • 14 month old boy

    • Cough, Fever, Tachypea

    • Clear BS

    • RR 48, HR 120, T 39C


Summary l.jpg

Summary

  • Recognize Respiratory Distress

  • Low Threshold to Consider Pneumonia

  • Treatment for Respiratory Distress, then Pneumonia

  • Normal Breath Sounds

  • DO NOT R/O PNEUMONIA!


  • Login
