Concurrency in Java: Exploring Concurrent Programming Concepts and Challenges

This lecture discusses the benefits and challenges of programming concurrently in Java, including modularity, high-level interactions, and modeling. It covers the use of threads and the Runnable interface, as well as race conditions, preventing race conditions with locks, and dealing with deadlocks.

lorie
Download Presentation

Concurrency in Java: Exploring Concurrent Programming Concepts and Challenges

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Lecture 15: Concurring Concurrently David Evans http://www.cs.virginia.edu/evans CS201j: Engineering Software University of Virginia Computer Science

  2. Our computer can only do one instruction at a time, why would we want to program pretending it can do many things at once? CS 201J Fall 2003

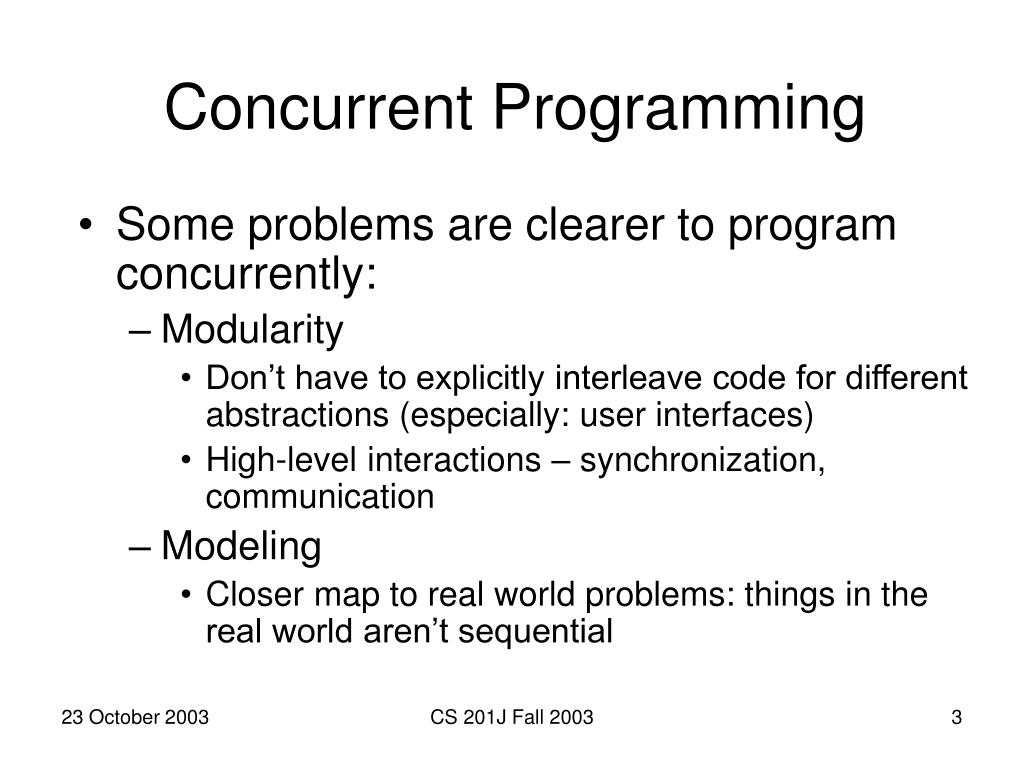

  3. Concurrent Programming • Some problems are clearer to program concurrently: • Modularity • Don’t have to explicitly interleave code for different abstractions (especially: user interfaces) • High-level interactions – synchronization, communication • Modeling • Closer map to real world problems: things in the real world aren’t sequential CS 201J Fall 2003

  4. Concurrency in Java public class Thread implements Runnable { // OVERVIEW: A thread is a thread of execution in a program. // The Java Virtual Machine allows an application to have // multiple threads of execution running concurrently. public Thread (Runnable target) // Creates a new Thread object that will run the target. public void start () // Starts a new thread of execution. … many other methods } CS 201J Fall 2003

  5. public class Thread implements Runnable { public Thread (Runnable target) public void start () … many other methods } Making a Thread // from PS5 SimObject class: final public void init(int x, int y, Grid grid) // REQUIRES: init has not previously been called for this. // The cell is at (row, col) on grid. // MODIFIES: this // EFFECTS: Initializes the cell at row, col on grid with isPaused = true. // NOTE: This method is final, that means subtypes cannot override this method. { this.mx = x; this.my = y; this.grid = grid; this.isPaused = true; Thread thread = new Thread(this); thread.setPriority(Thread.MIN_PRIORITY); thread.start(); //@set isInitialized = true; } What do you know about SimObject type? CS 201J Fall 2003

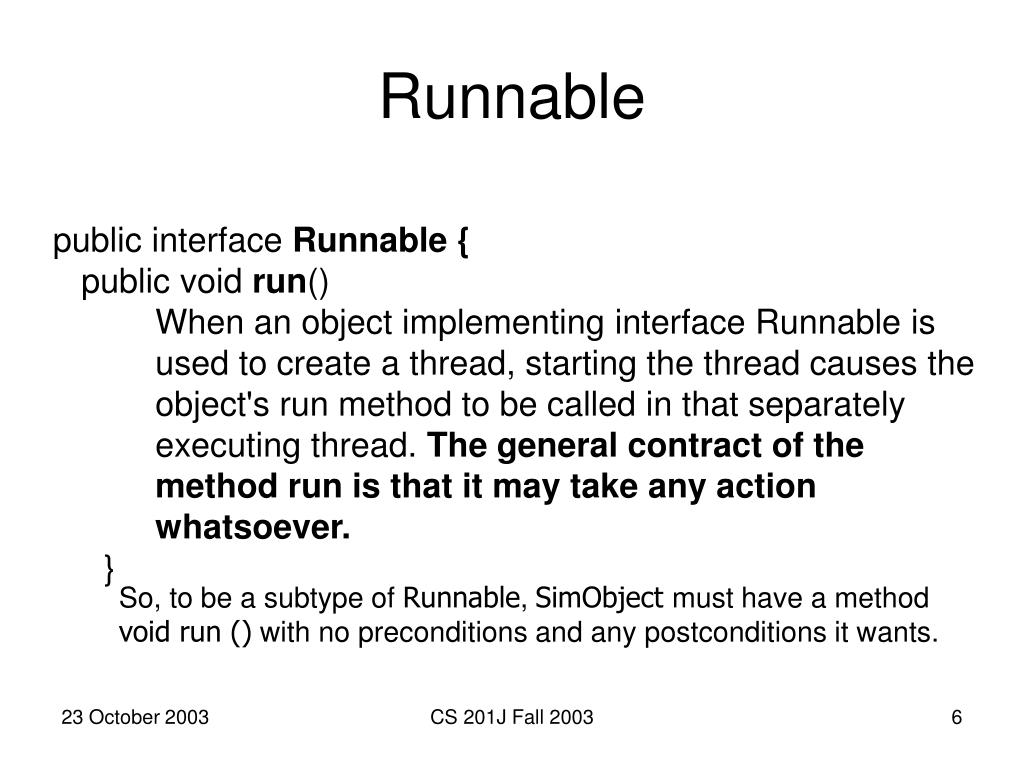

  6. Runnable • public interface Runnable { • public void run() • When an object implementing interface Runnable is • used to create a thread, starting the thread causes the • object's run method to be called in that separately • executing thread. The general contract of the method run is that it may take any action • whatsoever. • } So, to be a subtype of Runnable, SimObject must have a method void run () with no preconditions and any postconditions it wants. CS 201J Fall 2003

  7. Making a Runnable abstract public class SimObject implements Runnable { … public void run () // EFFECTS: Executes one turn by calling the // executeTurn method, and sleeps for a time // and repeats. { while (true) { executeTurn (); delay (TURN_DELAY + random.nextInt(TURN_RANDOM)); } } CS 201J Fall 2003

  8. Actually… abstract public class SimObject implements Runnable { … public void run () // REQUIRES: this has been initialized //@also_requires isInitialized // EFFECTS: Executes one turn by calling the // executeTurn method, and sleeps for a time // and repeats. { … } We are violating the substitution principle! SimObject.run() has a stronger precondition than Runnable.run(). CS 201J Fall 2003

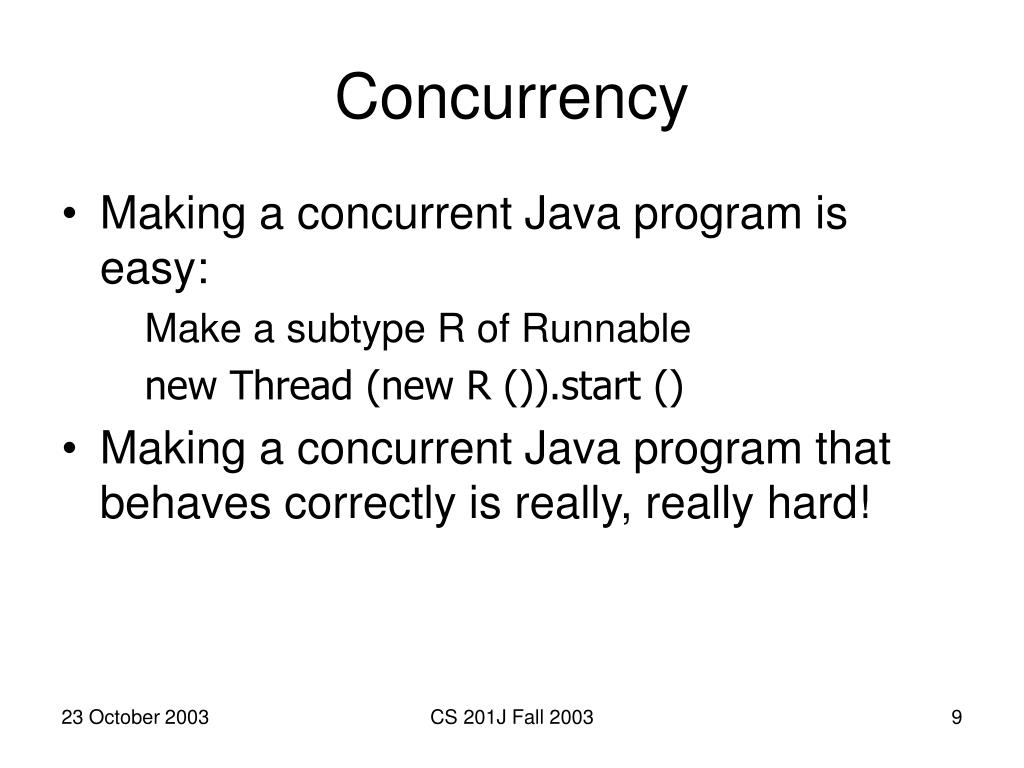

  9. Concurrency • Making a concurrent Java program is easy: Make a subtype R of Runnable new Thread (new R ()).start () • Making a concurrent Java program that behaves correctly is really, really hard! CS 201J Fall 2003

  10. Scheduling Meetings • Alice wants to schedule a meeting with Bob and Colleen “When can you meet Friday?” “When can you meet Friday?” Bob Alice Colleen “11am or 3pm” “9am or 11am” Picks meeting time Reserves 11am for meeting Reserves 11am for meeting “Let’s meet at 11am” “Let’s meet at 11am” CS 201J Fall 2003

  11. Partial Ordering of Events • Sequential programs give use a total ordering of events: everything happens in a determined order • Concurrency gives us a partial ordering of events: we know some things happen before other things, but not total order • Alice asks to schedule meeting before Bob replies • Alice asks to schedule meeting before Colleen replies • Bob and Colleen both reply before Alice picks meeting time • Alice picks meeting time before Bob reserves time on calendar CS 201J Fall 2003

  12. Race Condition “When can you meet Friday?” “When can you meet Friday?” Bob Alice Colleen Doug “When can you meet Friday?” “9, 11am or 3pm” “9am or 11am” “9, 11am or 3pm” Picks meeting time Reserves 11am for Doug “Let’s meet at 11am” “Let’s meet at 11am” “Let’s meet at 11am” “I’m busy then…” CS 201J Fall 2003

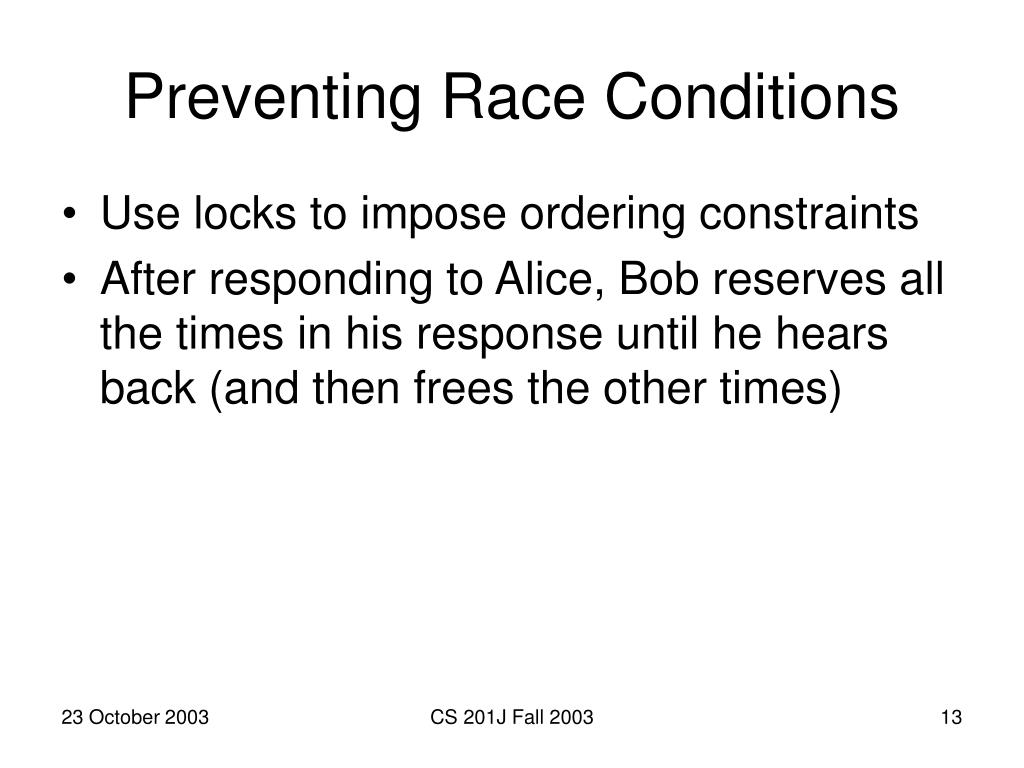

  13. Preventing Race Conditions • Use locks to impose ordering constraints • After responding to Alice, Bob reserves all the times in his response until he hears back (and then frees the other times) CS 201J Fall 2003

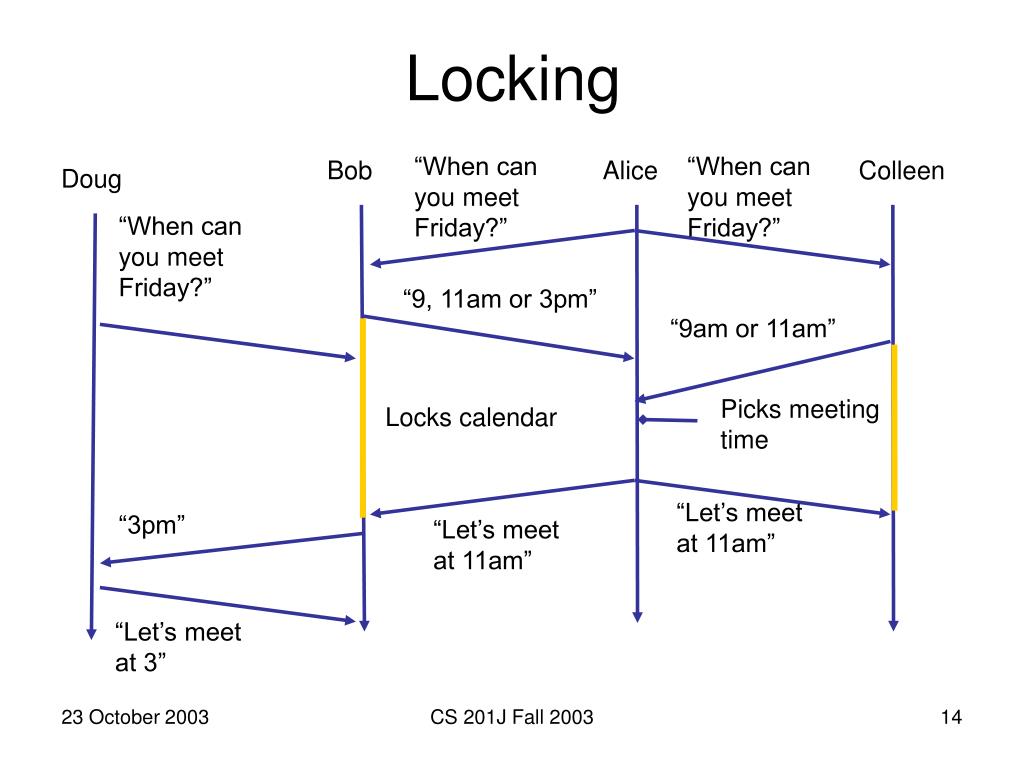

  14. Locking “When can you meet Friday?” “When can you meet Friday?” Bob Alice Colleen Doug “When can you meet Friday?” “9, 11am or 3pm” “9am or 11am” Picks meeting time Locks calendar “Let’s meet at 11am” “3pm” “Let’s meet at 11am” “Let’s meet at 3” CS 201J Fall 2003

  15. Deadlocks “When can you meet Friday?” Doug Bob Alice Colleen Locks calendar for Doug, can’t respond to Alice “When can you meet Friday?” “When can you meet Friday?” “When can you meet Friday?” “9, 11am or 3pm” Can’t schedule meeting, no response from Bob Locks calendar for Alice, can’t respond to Doug Can’t schedule meeting, no response from Colleen CS 201J Fall 2003

  16. Why are threads hard? • Too few ordering constraints: race conditions • Too many ordering constraints: deadlocks • Hard/impossible to reason modularly • If an object is accessible to multiple threads, need to think about what any of those threads could do at any time! • Testing is even more impossible than it is for sequential code • Even if you test all the inputs, don’t know it will work if threads run in different order CS 201J Fall 2003

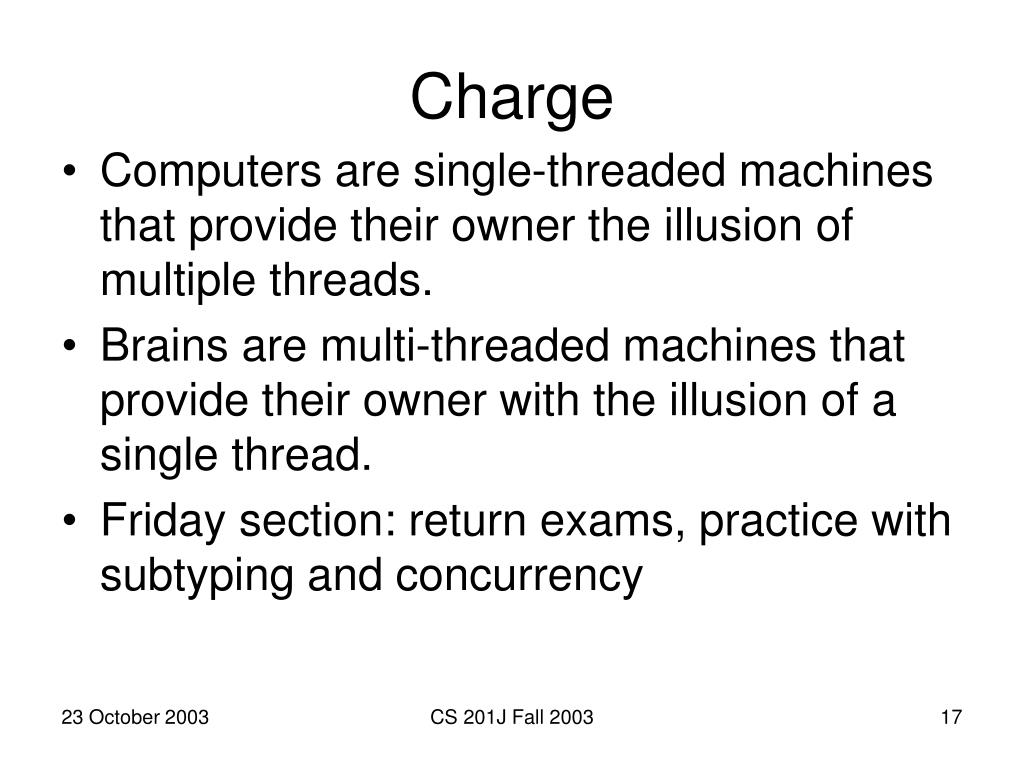

  17. Charge • Computers are single-threaded machines that provide their owner the illusion of multiple threads. • Brains are multi-threaded machines that provide their owner with the illusion of a single thread. • Friday section: return exams, practice with subtyping and concurrency CS 201J Fall 2003
