  1. Using Honeynets for Internet Situational Awareness Vinod Yegneswaran, Paul Barford Vern Paxson University of Wisconsin, Madison ICSI, LBNL Hotnets 2005

  2. Motivation • Currrent tasks for security analysts • Abuse monitoring • Audit and forensic analysis • NIDS/Firewall/ACL configuration • Vulnerability testing • Policy maintenance • Liaison activities • Network management • End host management

  3. NIDS: State of the art • Pinpoint descriptions of low-level activities • Source A launched CVE-XXX against Dest B • Large volume of alerts • Too many false alarms • Vulnerable to flooding attacks / IP spoofing • Continual manual update of signatures • Lack of “longitudinal” baseline • Lack of breadth for root-cause inference

  4. Our vision • Network “Situational Awareness” (NetSA) • “Degree of consistency between one’s perception of their situation and reality” -- US Navy • “an accurate set of information about one’s environment scaled to specific level of interest” -- NCOIC • Elevate quality and timeliness of alerts

  5. Our approach • Developing NetSA “building blocks” toward • Automated incident discovery • Robust classification • Real-time event notification • Forensic analysis capabilities • Honeynet situational awareness • Rich source of information of large-scale malicious activity • Accurate attribution of events such as botnets, worms and misconfiguration

  6. System structure • Tunnel filter: one source -> one dest • Volume vs diversity • Active responders • NetBIOS/SMB, DCE/RPC, MS-SQL, HTTP, Dameware, MyDoom • Bro Radiation-analy • Condensed protocol-aware summaries • Six-hour batches stored in MySQL backend • Adaptation • Auto-update of “previously-unseen” activities • Situational-analy • Organized reports highlighting most “unusual” and significant events

  7. Radiation-analy summarization • Leverage Bro’s protocol knowledge and attack semantics • Distill activity into high-level abstractions • Quickly validate against past history to check for previous instances • Types of summaries • Connection profiles • Source Profiles • Infer connection-profile associations • Session Profiles • Hard to summarize due to high degree of variability

  8. Radiation-analy vs MD5 signatures

  9. NetSA report example • Four components • New and interesting events • High beta events • Very high beta events • Top 10 profiles • For profile (p), interval (i): • Beta (p, i) = Num_sources(p, i) / Avg (num_sources(p)) across all intervals

  10. NetSA report example • New and interesting events No. Sources; Port tag 1 445-tcp CREATE_FILE: ``samr''; CREATE_FILE: ``webhost.exe''; CREATE_FILE: ``atsvc'‘ • High beta events Beta dest_port No.sources(avg) tag 12.6 1025-tcp 494 (39.2) [exploit] (RPC request (2904 bytes)) 11.5 135-tcp 416 (36.3) [exploit] (RPC request (1448 bytes))

  11. NetSA report example • Very high beta events (beta > 10) TAG: 1025/tcp/[exploit] (RPC request (2904 bytes)) Hour 0..5 srcs: 97, 93, 79, 74, 68, 94, src-overlaps: 0, 8, 13, 10, 8, 10, /8s: 25, 26, 19, 21, 16, 19, dsts: 103, 97, 80, 71, 76, 96, dst-overlaps: 0, 14, 12, 8, 8, 8, • Top 10 profiles Port No. Sources Tag 135-tcp 591 RPC bind: afa8bd80-7d8a-11c9-bef4-08002b10298 len=72; RPC request (24 bytes) 1025-tcp 494 [exploit] (RPC request (2904 bytes)) 135-tcp 416 [exploit] (RPC request (1448 bytes)) …

  12. Analysis dataset • Collected from 6 months of operation on 1,280 address LBL honeynet • Operational for over a year now… • Highlights from situational-analy summaries • 4 instances of misconfiguration (3 P2P, 1 NAT box) • 11 suspected botnet sweeps • Number of sources per incident 30 – 26,000 • MS-SQL, DCE/RPC, Several NetBIOS/SMB exploits • Slammer re-emergence (350 sources) • Historical worm data (5) • CR I, CR – reemergence, CR II, Nimda, Witty • 5,500 – 155,000 sources

  13. Situational awareness in-depth • Toolkit for large-scale forensic analysis of anomalous events • 9 offline statistical analyses (Worms/Botnets/Misconfig); • Source arrivals • Temporal source counts, arrival window, source interarrivals • Destination / source network coverage • Dest net footprint, first-dest pref, source-net dispersion • Per-source macro-analysis • Scanning profile, target scope, lifetime • Based on hypothesized behavior

  14. SA in-depth large scale events

  15. Temporal Source Counts Edonkey misconfig Codered I Wkssvc botnet

  16. First Destination-IP preference • Considers ordering and preference Nimda Wkssvc botnet

  17. Per-source scanning profile(100 random sources) Phase plot of dest IP Source ID vs dest IP MS-SQL botnet incident

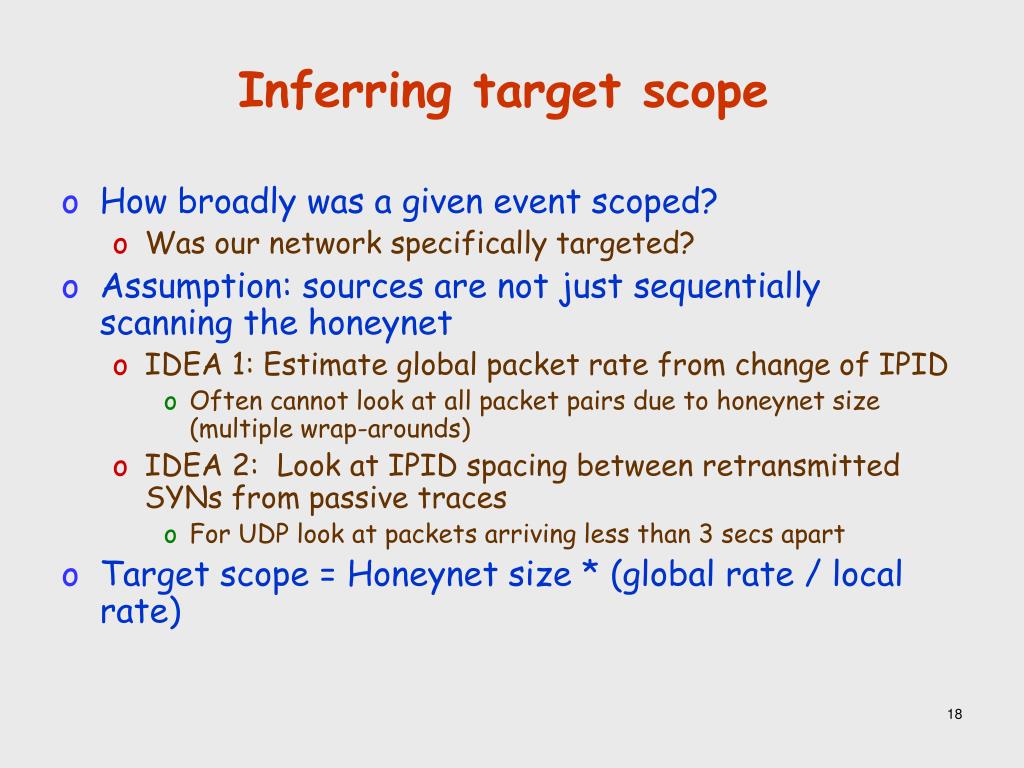

  18. Inferring target scope • How broadly was a given event scoped? • Was our network specifically targeted? • Assumption: sources are not just sequentially scanning the honeynet • IDEA 1: Estimate global packet rate from change of IPID • Often cannot look at all packet pairs due to honeynet size (multiple wrap-arounds) • IDEA 2: Look at IPID spacing between retransmitted SYNs from passive traces • For UDP look at packets arriving less than 3 secs apart • Target scope = Honeynet size * (global rate / local rate)

  19. Inferring target scope: Example Wkssvc (1280 addresses) multiplier ~ 10^4 13 M addresses Witty UW (8K addresses) multiplier ~ 5* 10^5  4 B addresses

  20. Summary • Objective: Internet situational awareness • Accurate timely summaries of honeynet data • Bro NetSA (radiation-analy / situation-analy) • MySQL backend • Situational in-depth statistical analyses • Provide different yet valuable perspectives on individual events • Toward real time classification of events • Future work • Refinement and extension of in-depth SA analyses • Distributed NetSA

  21. Other arrival characteristics • Arrival window • Expectation: botnets should see sharp spike in arrivals • Often not true – botnets don’t have to push commands, instead zombies could poll and pull • phatbot zombies wake up every 1000 seconds to check for new commands • Source interarrivals • Bots poll independently, implies their arrivals will appear to be poisson with exponential interarrivals • Worm interarrival rate should increase during the initial stages of the outbreak

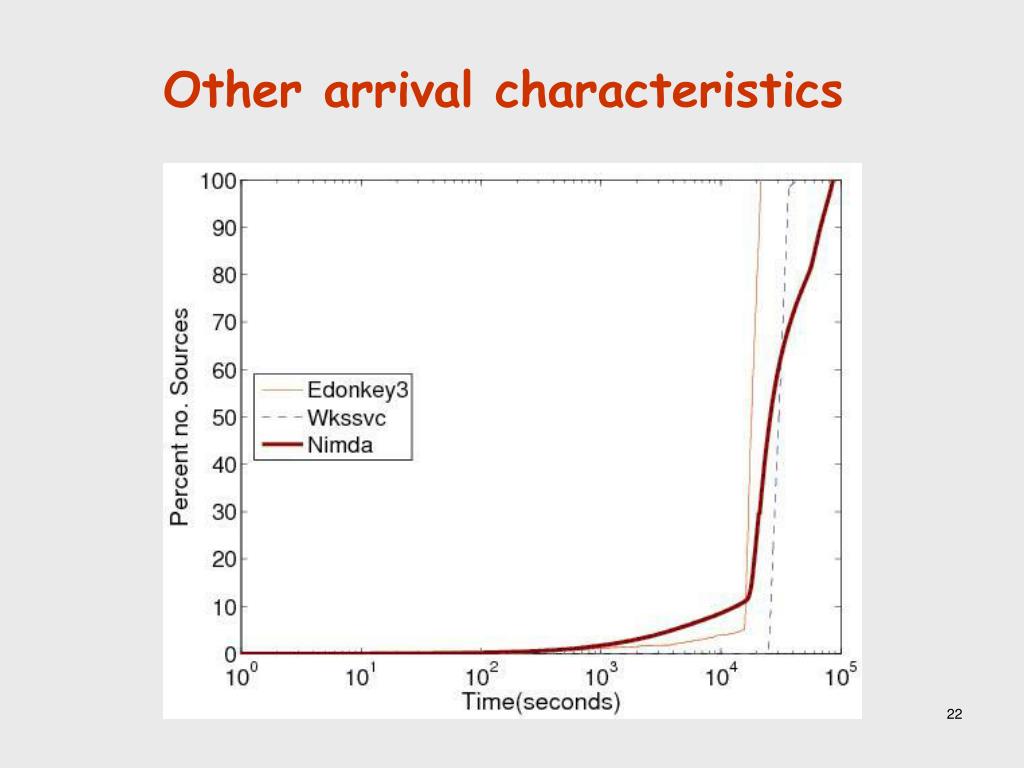

  22. Other arrival characteristics

  23. Honeynet footprint Nimda Wkssvc botnet
